300-440 Designing and Implementing Cloud Connectivity (ENCC) Questions and Answers

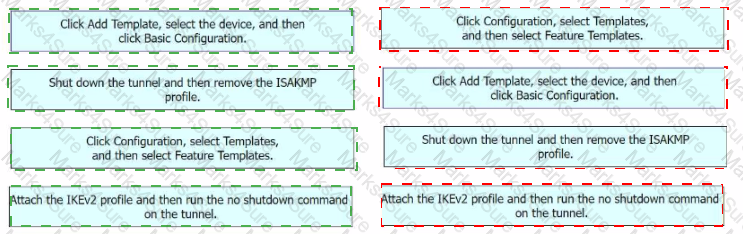

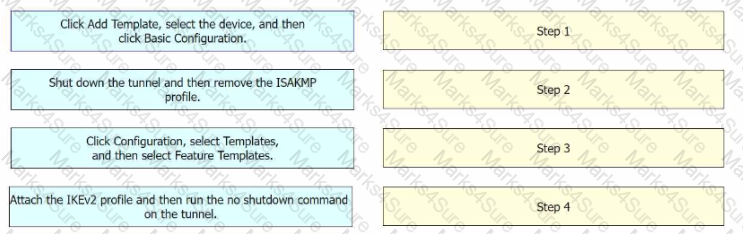

Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Basic Configuration. Step 3 = Shut down the tunnel and then remove the ISAKMP profile. Step 4 = Attach the IKEv2 profile and then run the no shutdown command on the tunnel.

The process of configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router in Controller mode and AWS, and changing the IKE version from IKEv1 to IKEv2 in Cisco vManage involves several steps123.

• Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.
• Click Add Template, select the device, and then click Basic Configuration: In this step, you add a new template for the device and proceed with the basic configuration1.
• Shut down the tunnel and then remove the ISAKMP profile: Before changing the IKE version, you need to shut down the existing tunnel and remove the ISAKMP profile that is configured for IKEv12.
• Attach the IKEv2 profile and then run the no shutdown command on the tunnel: Finally, you attach the newly created IKEv2 profile to the tunnel and bring the tunnel back up2.

References :=

• Configuring Internet Key Exchange Version 2 (IKEv2) - Cisco
• Switch from IKEv1 to IKEv2 on Cisco Routers - Cisco Community
• Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community

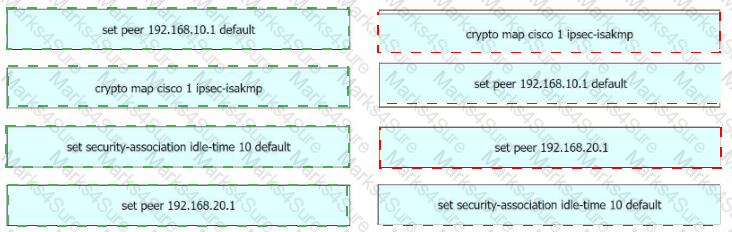

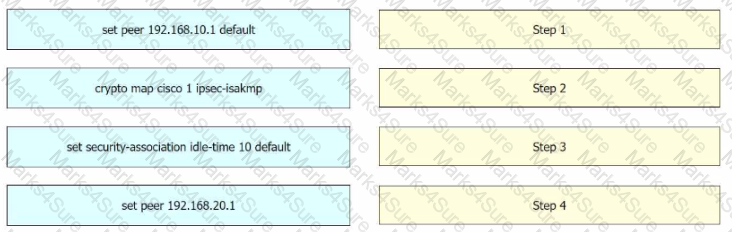

Step 1 = crypto map cisco 1 ipsec-isakmp Step 2 = set peer 192.168.10.1 default Step 3 = set peer 192.168.20.1 Step 4 = set security-association idle-time 120 default

The process of editing the settings of a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router and Amazon Web Services (AWS), and configuring IPsec to support multiple peers and failover after 120 seconds of idle time on the first entry of the crypto map named Cisco involves several steps123456.

• crypto map cisco 1 ipsec-isakmp: This command is used to create a new entry in the crypto map named “cisco”. The “1” is the sequence number of the entry, and “ipsec-isakmp” specifies that the IPSec security associations (SAs) should be established using the Internet Key Exchange (IKE) protocol13.
• set peer 192.168.10.1 default: This command is used to specify the IP address of the default peer for the crypto map entry. In this case, the default peer is at IP address 192.168.10.115.
• set peer 192.168.20.1: This command is used to add an additional peer to the crypto map entry. In this case, the additional peer is at IP address 192.168.20.1. This allows the IPsec VPN to support multiple peers56.
• set security-association idle-time 120 default: This command is used to set the idle time for the security association. If no traffic is detected over the VPN for the specified idle time (in this case, 120 seconds), the security association is deleted, and the VPN connection fails over to the next peer46.

References :=

• Configure a Site-to-Site IPSec IKEv1 Tunnel Between an ASA and a Cisco IOS Router - Cisco
• Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community
• Configuring Site to Site IPSec VPN Tunnel Between Cisco Routers
• Configure Failover for IPSec Site-to-Site Tunnels with Backup ISP Links on FTD Managed by FMC - Cisco
• Does Setting Multiple Peers in a Crypto Map Also Support Parallel IPSec Connections - Cisco Community
• Multiple WAN Connections — IPsec in Multi-WAN Environments | pfSense Documentation
• Multiple Set Peer for VPN Failover - Server Fault

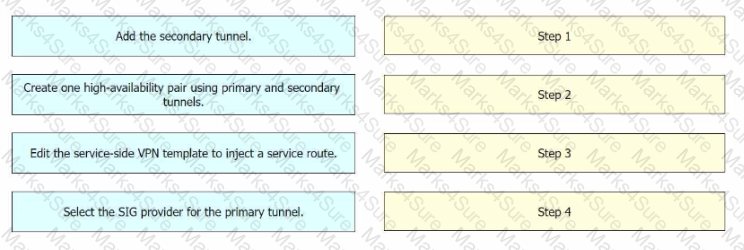

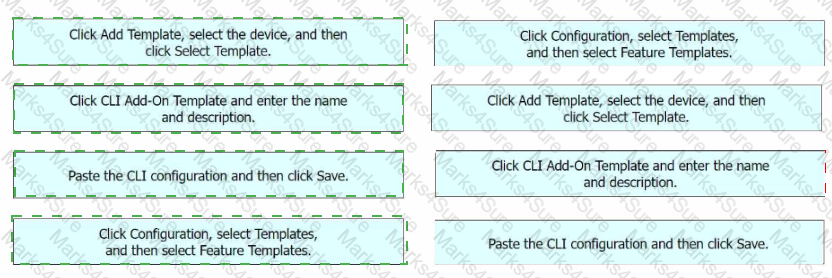

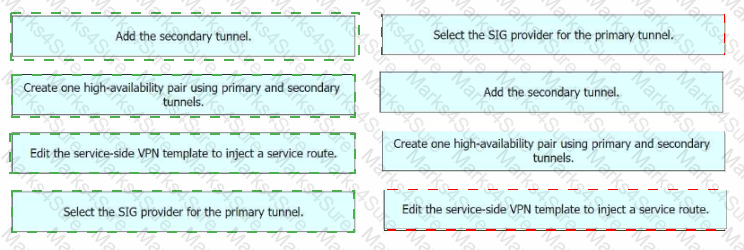

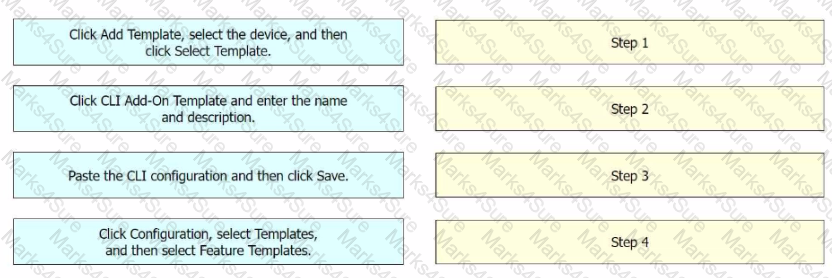

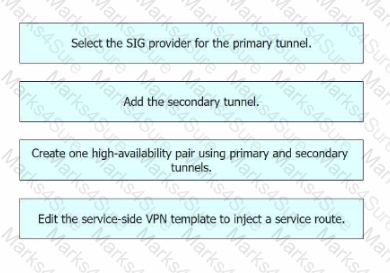

Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Select Template. Step 3 = Click CLI Add-On Template and enter the name and description. Step 4 = Paste the CLI configuration and then click Save.

The process of configuring a CLI add-on feature template in Cisco vManage for enhanced policy-based routing (ePBR) for IPv4 involves several steps1234.

• Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.
• Click Add Template, select the device, and then click Select Template: In this step, you add a new template for the device1.
• Click CLI Add-On Template and enter the name and description: After setting up the template, you select the CLI Add-On Template option, and then enter the name and description for the template1.
• Paste the CLI configuration and then click Save: Finally, you paste the CLI configuration into the template and save the changes1.

References :=

• CLI Add-On Feature Templates - Cisco
• Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x - CLI Add-On Feature Templates
• Cisco SD-WAN vSmart CLI Template - NetworkLessons.com
• CLI Templates for Cisco XE SD-WAN Routers

Step 1 = Create a Customer Gateway (CGW) in AWS. Step 2 = Create a Virtual Private Gateway (VGW) in AWS. Step 3 = Create a site-to-site VPN connection in AWS. Step 4 = Configure the IOS XE router with the required IPsec VPN parameters and routing settings. Step 5 = Verify and test the VPN connection.

The process of configuring a site-to-site VPN connection between an on-premises Cisco IOS XE router and Amazon Web Services (AWS) involves several steps12.

• Create a Customer Gateway (CGW) in AWS: This is the first step where you define the public IP address of your on-premises Cisco IOS XE router in AWS1.
• Create a Virtual Private Gateway (VGW) in AWS: This involves creating a VGW and attaching it to the VPC in AWS1.
• Create a site-to-site VPN connection in AWS: After setting up the CGW and VGW, you then create a site-to-site VPN connection in AWS. This involves specifying the CGW, VGW, and the static IP prefixes for your on-premises network1.
• Configure the IOS XE router with the required IPsec VPN parameters and routing settings: After the AWS side is set up, you configure the on-premises Cisco IOS XE router with the required IPsec VPN parameters and routing settings2.
• Verify and test the VPN connection: Finally, you verify and test the VPN connection to ensure that it is working correctly12.

References :=

• Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community
• SD-WAN Configuration Example: Site-to-site (LAN to LAN) IPSec between vEdge and Cisco IOS - Cisco Community

A fully meshed topology with SD-WAN technology, using dynamic routing and BGP as the routing protocol, meets the requirements of the company because it provides the following benefits:

• It allows direct and secure connectivity between any two branch offices, without the need for a central hub or intermediary devices12. This reduces the latency and improves the performance of the critical business applications.
• It leverages SD-WAN technology to optimize the traffic flow and application quality of service (QoS) across the WAN13. SD-WAN can dynamically select the best path for each application based on the network conditions and policies13. SD-WAN can also provide redundancy, security, and visibility for the WAN13.
• It uses dynamic routing and BGP as the routing protocol to exchange routing information and establish connectivity between the branch offices14. BGP is a scalable and flexible protocol that can support multiple address families, such as IPv4 and IPv6, and multiple routing policies, such as local preference and route filtering14. BGP can also enable seamless integration with the cloud service providers (CSPs) and internet service providers (ISPs)14.

References :=

• 1: Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5) (Cisco U. login required)
• 2: Cisco SD-WAN Design Guide

The problem is that the site-list “All-Site” has a higher match sequence than the site-list “Hub”, which means that the policy for “All-Site” will take precedence over the policy for “Hub” for any site that belongs to both lists. This creates a conflict and prevents the engineer from adding a new centralized control policy in Cisco vManage. To resolve this issue, the site-list “All-Site” should be configured with a new match sequence that is lower than the sequence for site-list “Hub”, so that the policy for “Hub” will be applied first and then the policy for “All-Site” will be applied only to the remaining sites that are not in the “Hub” list. References :=

• Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5), Module 3: Cisco SD-WAN Cloud OnRamp for Colocation, Lesson 3: Cisco SD-WAN Cloud OnRamp for Colocation - Centralized Control Policies
• Cisco SD-WAN Cloud OnRamp for Colocation Deployment Guide, Chapter 4: Configuring Centralized Control Policies
• Cisco SD-WAN Configuration Guide, Release 20.3, Chapter: Centralized Policy Framework, Section: Policy Configuration Overview

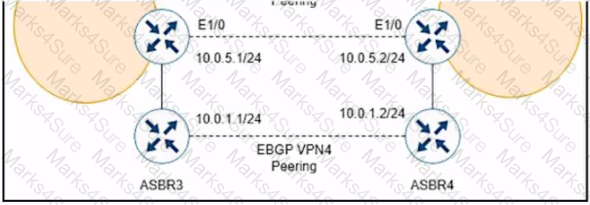

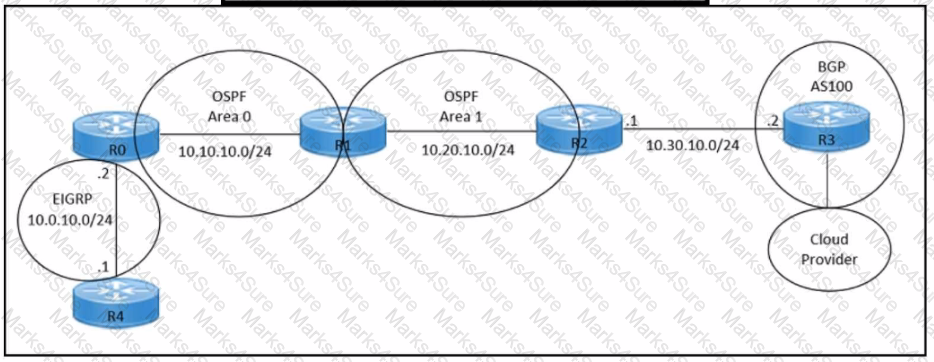

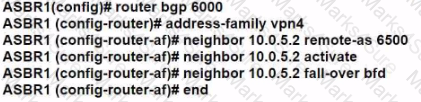

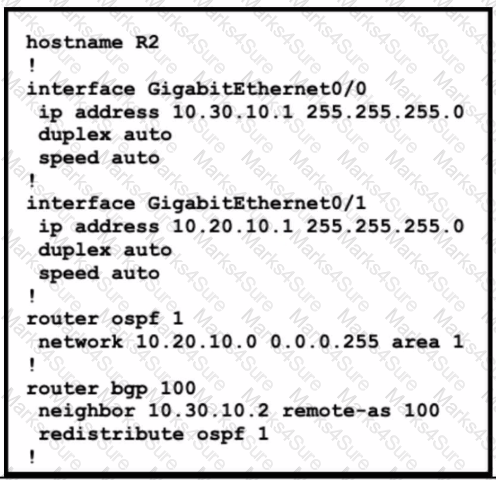

The command redistribute ospf 1 match external is missing on router R2. This command is needed to redistribute only the external OSPF routes into BGP. The external OSPF routes are those that are learned from another routing protocol or redistributed into OSPF. In this case, the 10.0.10.0/24 network is an external OSPF route, as it is redistributed from EIGRP into OSPF on router R1. The other commands are either already present or not relevant for this scenario. References :=

• Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3.1: Implementing IPsec VPN from Cisco IOS XE to AWS, Topic 3.1.2: Configure BGP on the Cisco IOS XE Router
• Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: Configuring IPsec VPNs with Dynamic Routing Protocols, Section: Configuring BGP over IPsec VPNs

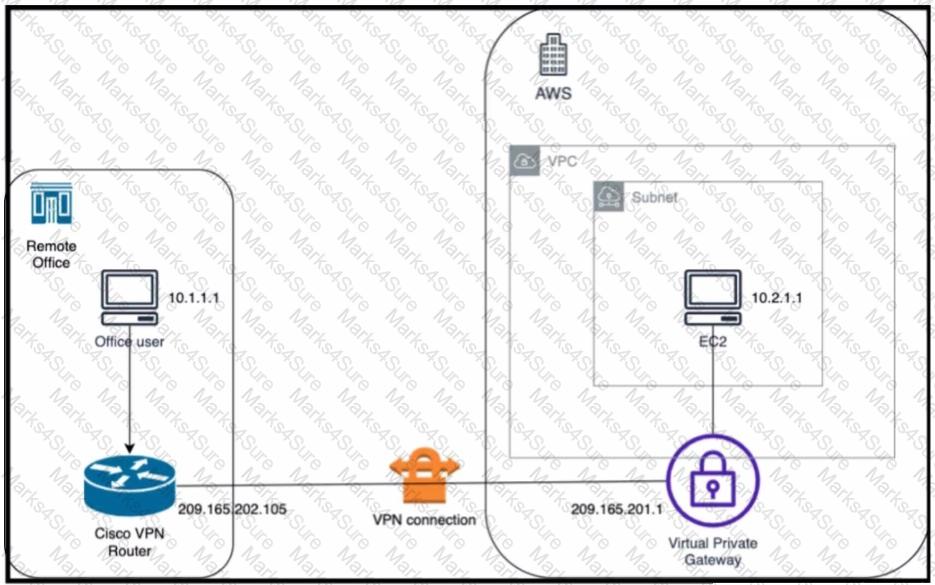

 The end-to-end ping between the office user PC and the AWS EC2 instance is not working because either the security group rules for the host VPC are blocking the ICMP traffic or the IPsec SA counters are showing errors or drops. To diagnose the loss of connectivity, the engineer should check both the security group rules and the IPsec SA counters. The network security group rules on the host VNET are not relevant because they apply to Azure, not AWS. The IPsec SA configuration on the Cisco VPN router and the AWS private virtual gateway are not likely to be the cause of the problem because the site-to-site VPN tunnel is already up and the site-to-site routing works correctly. References :=

• Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5), Module 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Lesson 3: Verify IPsec VPN Connectivity
• Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: IPsec VPN Overview, Section: IPsec Security Association
• AWS Documentation, User Guide for AWS VPN, Section: Security Groups for Your VPC
