1Y0-204 Citrix Virtual Apps and Desktops 7 Administration exam Questions and Answers

 According to the Citrix documentation1, the correct syntax for adding a simple ACL rule is:

add simpleacl -srcIP [-destIP ] [-TTL ]

The correct syntax for adding an extended ACL rule is:

add ns acl -srcIP [-destIP ] [-TTL ]

Therefore, the correct answer is B, because it uses the extended ACL rule format and specifies the destination IP address of the load balancing virtual server (192.168.100.25) and the TTL value of 10 minutes (600 seconds).

1: https://docs.citrix.com/en-us/citrix-adc/13/networking/acl.html

 According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, the Citrix ADC can optimize the responses by using HTTP protocol for the services and SSL protocol for the virtual server. This configuration allows the Citrix ADC to terminate the SSL connection from the client and then communicate with the server using HTTP. This way, the data is encrypted between the client and the Citrix ADC, and the Citrix ADC can perform optimization tasks such as compression and caching1: Page 95, Module 5: Citrix Gateway and Citrix StoreFront Integration.

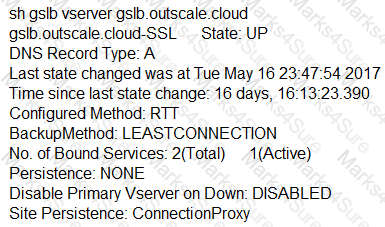

According to the Citrix documentation1, when connection proxy is used as the site persistence method, the Subnet IP (SNIP) address of the appliance is used to source the traffic when the connection is proxied. This ensures that the response from the server goes back to the same appliance that proxied the request.

1: Connection Proxy

 When creating a custom scope, the Full Administrator role is not available because custom scopes are designed to limit administrators’ permissions to specific objects or tasks within the Citrix environment.

According to the Default policy settings document for Citrix Virtual Apps and Desktops 7 2308, the default compression policies are stored in the site database and are applied to the VDAs when they register with the broker or when a user connects to them. To use the default compression policies, a Citrix administrator needs to bind them to the virtual server that handles the ICA traffic. This can be done using the Web Studio console or the Local Group Policy Editor. The other options are not related to the default compression policies.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, Citrix Provisioning can reduce the total number of writes on the storage by using a single shared image that isstreamed to multiple target devices. This eliminates the need to store multiple copies of the same image on the storage. The course also states that Citrix Provisioning can reduce the storage requirements by up to 90% compared to traditional methods1

1: CWS-215: Citrix Virtual Apps and Desktops 7 Deployment and Administration, Module 9: Implementing Citrix Provisioning, Lesson: Introduction to Citrix Provisioning, Slide 6.

The PowerShell command Get-Service -DisplayName *citrix* is used to display all the Citrix services installed on the Delivery Controller. This command filters services by their display name to only show those related to Citrix, which typically include various components of the Citrix Virtual Apps and Desktops 7 Deployment and Administration.

Enabling NTUSER.DAT backup allows Profile Management to maintain a last known good backup of the NTUSER.DAT file and use it to recover the profile if corruption is detected. This can help prevent data loss from users’ profiles. According to the Registry policy settings document, “If you do not configure this policy here or in the.ini file, Profile Management does not back up NTUSER.DAT.” The other options are not relevant to preventing profile corruption or data loss.

Typically, the migration of existing profiles to a new profile management system occurs during the user’s first logon after the policy has been applied, as this is when the user’s profile is first accessed and can be migrated.

https://docs.citrix.com/en-us/workspace-environment-management/current-release/user-interface-description/policies-and-profiles/citrix-upm-settings.html

According to the Citrix documentation1, the weight option assigns a numerical weight to a service. The higher the weight, the more requests the service can handle. By default, the weight is 1, which means equal distribution of requests. To make the new servers receive twice the connections of the old servers, the administrator needs to assign a weight of 2 to the services attached to the new servers.

 According to the Citrix documentation1, persistence time-out is the parameter that determines how long the service continues to serve requests from the client after it is disabled manually. The service accepts new requests or connections only to honor persistence. After the persistence time-out expires, no new requests or connections are directed to the service and all of the existing connections are closed. This parameter is available only when the service is disabled gracefully. The default value is 2 minutes. The other options are not related to the scenario described in the question.

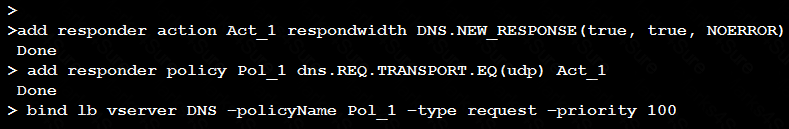

The commands in the screenshot create a responder action and policy that modify the DNS response from the Citrix ADC to the client. The responder action uses the DNS.NEW_RESPONSE function, which creates a new DNS response with the specified parameters. The first parameter is true, which means the response will have the TC (truncated) bit set. The second parameter is true, which means the response will have the AA (authoritative answer) bit set. The third parameter is NOERROR, which means the response will have the rcode (response code) set to NOERROR. The responder policy matches the DNS requests that use UDP as the transport protocol and applies the responder action to them. Therefore, the effect of this configuration is to create a DNS response with TC bit set and rcode as NOERROR for UDP requests. This can be used to prevent DNS amplification attacks by limiting the size of the DNS response.

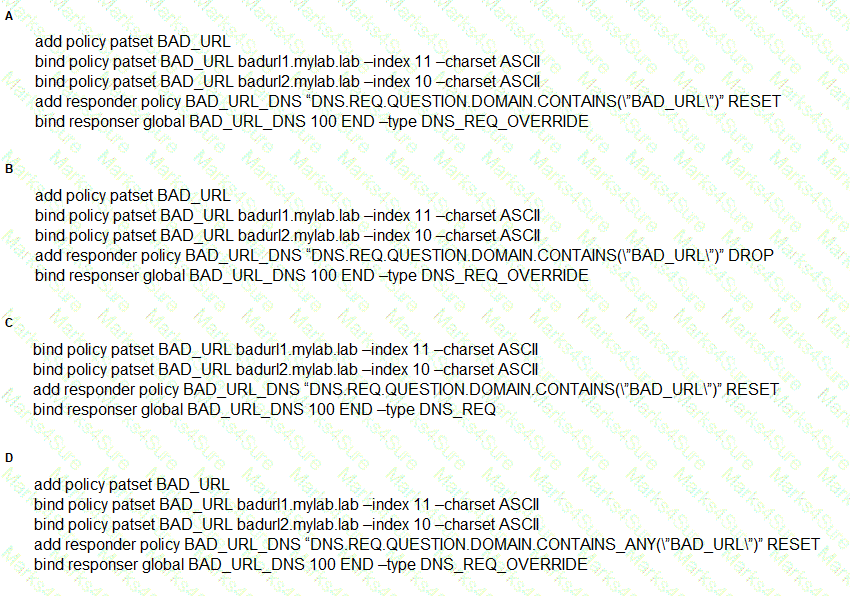

Option B is the correct answer because it uses the DROP action to block access to the URLs that match the BAD_URL pattern set. The other options use the RESET action, which only resets the connection but does not prevent access. Also, option C has a typo in the bind responder global command, which would cause an error. Option D has an invalid type argument for the bind responder global command, which should be DNS_REQ_OVERRIDE instead of DNS_REQ. For more information, see the following resources:

• Manage | Citrix Virtual Apps and Desktops 7 2308
• Applications | Citrix Virtual Apps and Desktops 7 2308
• Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS …
• CWS-215: Citrix Virtual Apps and Desktops 7 Deployment and …
• EDUCATION CWS-215: Citrix Virtual Apps and Desktops 7 Administration On …

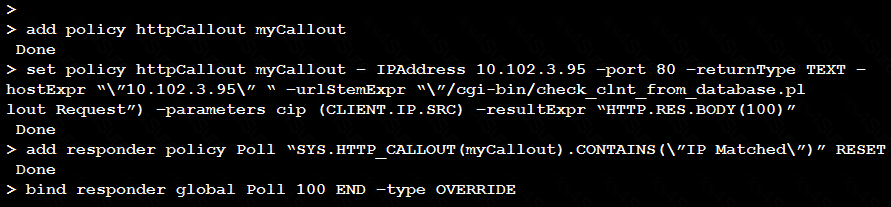

 The administrator should negate the expression of the Responder policy to avoid the HTTP callout recursion issue. According to the Citrix documentation, “If you configure an HTTP callout policy that is bound globally, you must ensure that the policy expression does not match the callout request. Otherwise, thecallout request will trigger the policy, resulting in a callout recursion.” The expression in option B ensures that the policy does not match the callout request by adding the NOT operator at the end.

https://docs.citrix.com/en-us/citrix-adc/13/appexpert/http-callout/http-callout-policy.html

The NSIP address is the NetScaler-owned IP address that uniquely identifies the NetScaler on your network, and it provides access to the appliance. By default, the NSIP is the source IP address for packets originating from the NetScaler appliance, such as packets destined for NTP servers1.

1: Configuring NetScaler-owned IP addresses | Networking

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration documentation1, the collation sequence for the site database should be _100_CI_AS_KS. This collation sequence is case-insensitive, accent-sensitive, kana-sensitive, and width-insensitive. It is also compatible with the SQL Server mirroring feature. Other collation sequences might cause errors or unexpected behavior when using SQL Server mirroring2.

LACP allows multiple network interfaces to be bundled together to form a single logical channel. This can increase the bandwidth and availability of the Citrix ADC1

1: Configure LACP

This is because having multiple Cloud Connectors can provide redundancy and high availability in case one of the connectors fails or needs maintenance. Therefore, based on my last update, option B would be the correct approach.

 Folder redirection is a feature of Microsoft Windows and can be used with Profile Management. It allows folders, such as Application Data or Documents, to be saved (redirected) to a network location. The contents of the folders are stored in the redirected location and not included within the user profile, which therefore reduces in size. This can improve the logon times for users with large Documents folders1

1: Plan folder redirection with Profile Management

 Process Explorer is a tool that can be used to get further details on orphaned processes in the session. According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, Process Explorer can be used to “identify processes that are preventing a session from logging off” (Module 6:Troubleshooting User Connection Issues, Lesson: Troubleshooting Session Logon and Logoff Issues, Slide 8). Additionally, according to the Citrix Virtual Apps and Desktops 7 Administration Exam Guide, one of the objectives is to “use Process Explorer to identify orphaned processes” (Objective 6.3: Troubleshoot Session Logon and Logoff Issues). Therefore, Process Explorer is the correct answer.

According to the Citrix Cloud documentation, when migrating existing VDAs to Citrix Cloud, the administrator must update the VDA software on the master image to communicate with the Cloud Connectors. This ensures that the VDAs can register with the Delivery Controllers in Citrix Cloud. If the VDA software is not updated, the VDAs will not be able to register with Citrix Cloud. Therefore, option A is the correct answer. The other options are not relevant to the registration issue.

According to the Citrix documentation1, an HTTP-ECV monitor can be used to check the availability of a web server by sending an HTTP request and expecting a specific keyword in the response. The keyword can be specified in the Special Parameters - Receive String field. This monitor can ensure that the web server is not only responding, but also delivering the expected content.

ttps://support.citrix.com/article/CTX239687/vda-registration-fails-when-a-vda-versions-functional-level-is-lower-than-its-machine-catalogs-minimum-functional-level

The Citrix Diagnostic Toolkit is a rapid deployment platform that delivers a suite of tools and automation options in an easy to use structured format that closely resembles the look and feel of any standard Windows application, even though each tool is an independent standalone application. The easy to use built in menus and shortcuts allow you to quickly and effectively configure multi-vector data collection and integrate third party tools for more robust and comprehensive debugging sessions1.

1: Citrix Diagnostics Toolkit - 64bit Edition

The Logon Performance report in Citrix Director provides insights into the various stages of the logon process and can help identify which stage is causing the delay. It includes details such as Brokering, VM Start, HDX Connection, Authentication, and Interactive Session times, allowing administrators to pinpoint the bottleneck in the logon process.

The expression B matches the required traffic because it uses the IN_SUBNET function to check if the source IP address belongs to the subnet 10.107.149.0/24, and it uses parentheses to group the logical OR condition for the destination port being either UDP or TCP 53. The other expressions are either syntactically incorrect or do not match the subnet correctly. See Policy Expressions and Classic Expressions for more information.

According to the policy priority and filtering, the Accounting users will match the policy “Accounting”, which has ‘Client Network Drives’ enabled and ‘Client Fixed Drives’ not configured. The policy “Baseline” will not apply because it has a lower priority. Therefore, the Accounting users will be able to access only the client network drives, and not the client fixed drives. This is confirmed by the Citrix documentation on policy filtering and precedence.

 In general, to improve HDX session performance for high-latency, low bandwidth connections, administrators can configure settings that reduce the amount of data transferred and the resources required. This includes optimizing the visual experience (B, D, E) by adjusting the frame rate, color depth, and video quality.

 The Dashboard view in Citrix Director provides a real-time graphical representation of the health and usage of the site, including the database services, the license server, and any hypervisor-hosting connections12

1: Director - Citrix Product Documentation 2: Director Dashboard Explained - Citrix Blogs

 If client drives are not mapped in a HDX session despite the ‘Auto connect client drives’ setting being configured, it could be due to the absence of loopback processing. Enabling loopback processing in the Group Policy Object (GPO) allows user-specific settings to be applied regardless of where the user object is located in Active Directory, ensuring that the policy is effectively applied to the published desktops.

The redirectURL parameter of the set cs vserver command specifies the URL where the user requests are redirected if the status of the content switching virtual server is DOWN1. This parameter is used for configuring backup servers or displaying maintenance messages1.

https://docs.citrix.com/en-us/citrix-adc/current-release/ssl/how-to-articles/create-and-use-ssl-certificates-on-a-citrix-adc-appliance.html

According to the Citrix Virtual Apps and Desktops service on Citrix Cloud documentation, the control layer is always managed by Citrix when hosting Citrix Virtual Apps and Desktops on the Citrix Cloud platform. The control layer consists of the Citrix Cloud Connector, Studio, Director, and other components that orchestrate the delivery of applications and desktops. The resource layer, which contains the VDAs, hypervisors, and storage, is managed by the customer or a service provider. The user layer, which contains the user profiles, policies, and data, is also managed by the customer or a service provider. The access layer, which contains the StoreFront and NetScaler Gateway components, can be either managed by Citrix or the customer, depending on the deployment scenario.

 Featured App Groups in Citrix Virtual Apps and Desktops can be created based on Application names, Keywords, and Application categories. This allows administrators to organize and highlight applications for users based on these criteria

 Installing the Cloud Connector on a machine template (before cloning) is not supported. If you clone a machine with the Cloud Connector installed, the Cloud Connector services won’t run and the machine can’t connect to Citrix Cloud1. Therefore, the administrator should provision each machine from a cloned machine template and install the Cloud Connector software on them. This way, the Cloud Connectors can communicate with Citrix Cloud and register with the same resource location2.

1: Cloud Connector Installation | Citrix Cloud 2: Install Cloud Connectors from the command line | Citrix Cloud Government

Citrix Gateway can be hosted in Citrix Cloud or in a customer-controlled resource location. It provides secure remote access to Citrix Virtual Apps and Desktops service deployments.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide, the expression CLIENT.SSL.CLIENT_CERT.VALID_NOT_AFTER.EQ(GMT2020) checks whether the client certificate is valid until the specified date (GMT2020). The other expressions are either incorrect or irrelevant for this requirement.

According to the Citrix documentation1, burst capacity allows an instance to use more bandwidth than its dedicated bandwidth when there is spare bandwidth available on the SDX appliance. The priority parameter determines which instance gets the spare bandwidth first. A higher priority value indicates a higher priority. Therefore, the administrator can configure burst capacity of 1GB with priority 10 on the instance that requires more bandwidth, to meet traffic requirements.

1: Citrix Virtual Apps and Desktops 7 Deployment and Administration - Configure burst capacity

 According to the Citrix documentation, automatic HA synchronization will fail if the primary and secondary Citrix ADCs have different build versions. The build versions must be the same for the configuration to be synchronized. A manual synchronization, a configuration change to the primary Citrix ADC, or a force failover will not affect the automatic HA synchronization1

1: Citrix Virtual Apps and Desktops 7 Deployment and Administration - High Availability

 The command set dns parameter -setAABit YES sets the authoritative answer (AA) bit in the DNS response header. This indicates that the Citrix ADC is the authoritative server for the domain name in the query. This can be useful when the Citrix ADC is configured as a DNS proxy server1

1: 2 - DNS Parameters

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course description12, one of the objectives is to “Configure Citrix ADC to monitor and report on the health of your environment”.The course also covers how to use Citrix Application Delivery Management to monitor and manage multiple Citrix ADC instances. According to the Citrix documentation3, Network Reporting on Citrix Application Delivery Management allows you to generate reports based on various metrics and events collected from the Citrix ADC instances. You can also configure thresholds and alerts for the reports, and specify the email addresses to receive the notifications. Therefore, the correct answer is D.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course description12, the course covers how to deploy and manage machines running the VDA in both on-premises datacenters and public clouds, such as AWS1. The Citrix Virtual Apps and Desktops service also supports Azure and Google Cloud Platform as resource locations for VDAs3. Citrix Cloud is not a resource location, but a platform that hosts the Citrix Virtual Apps and Desktops service3. VMware Workspace One is not a supported resource location for VDAs, but a competing product from VMware.

 Profile streaming ensures that only the files and folders that a user needs are downloaded to the VDA during logon and logoff. This reduces logon and logoff times and allows users to access their profiles in the event of network interruptions or VDA failures1

1: https://docs.citrix.com/en-us/profile-management/current-release/configure/profile-streaming.html

 According to the Citrix documentation, the Citrix Cloud Connector is a Citrix component that serves as a channel for communication between Citrix Cloud and the resource locations, enabling cloud management without requiring any complex networking or infrastructure configuration. This removes all the hassle of managing delivery infrastructure. The Cloud Connector also provides services for the Citrix Cloud Delivery Controllers to configure the resource location where Citrix Provisioning runs. Therefore, the administrator needs to install Citrix Cloud Connectors on the Citrix Provisioning servers to migrate the Citrix Provisioning environment to Citrix Cloud1

 The nsconmsg tool can be used to display the policy bound hits on a Citrix ADC appliance. This tool can show the number of times a policy was evaluated and the number of times it was hit. The nsconmsg tool can also display other statistics and information about the Citrix ADC configuration and performance1

1: Citrix ADC Command Reference

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide, the Operator permission level allows administrators to view and modify the configuration of the site, enable and disable services and servers, and perform power management operations. The Read-Only permission level does not allow modifying the configuration or enabling and disabling services and servers. The Network and Sysadmin permission levels have more privileges than required1

 The administrator can add the partition information to the SNMP traps by using the command set snmp alarm partition-name on the Citrix ADC. This command enables the Citrix ADC to include the name of the partition that generated the trap in the SNMP trap message. This way, the administrator can easily identify which partition has the load balanced virtual server that is down. The other options are not relevant or effective for this purpose. See SNMP alarms for more details.

According to the Citrix documentation1, the correct syntax for a rewrite action to change the HTTP version in a request is:

add rewrite action replace http.req.version “”

The new version should be enclosed in double quotes. Therefore, the correct answer is D, which uses the following command:

add rewrite action RW_ACT replace http.req.version “"HTTP/1.0"”

The other options are incorrect because they either use the wrong target location (http.res.version), the wrong value format (without double quotes), or the wrong action type (respond).

1: Rewrite policies and actions

HA Fail-safe mode is a feature that allows the Citrix ADCs to continue processing traffic even if both nodes become unavailable or fail a health check. This feature can be configured on each Citrix ADC independently, and it is recommended to enable it on both nodes for maximum availability. If HA Fail-safe mode is disabled on one node, that node will not process any traffic if it becomes unavailable or fails a health check, and it will not fail over to the other node. This could result in a loss of service for the business websites. Therefore, the correct answer is B.

 According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, the Generate Support File option on the Citrix ADC appliance allows the administrator to collect logs and configuration information for troubleshooting purposes. The support file can be downloaded and sent to the Citrix Support Engineer for analysis. The other options are not relevant for this scenario.
