220-1101 CompTIA A+ Certification Exam: Core 1 Questions and Answers

eSATA is the best choice for adding external storage as it offers a fast transfer rate and is specifically designed for external storage devices. SCSI is an older interface that is rarely used today, PCIe is typically used to add expansion cards to a computer, and NVMe is a newer interface for high-speed solid-state storage, but it is typically used for internal storage devices.

The MOST efficient next step the technician should complete is to install an updated printer driver on the print server12. The issue of information being garbled and looking like code could be related to a compatibility issue with the new firmware and the existing printer driver1. The printer driver is responsible for converting the print job data into a format that the printer can understand and print2.

https://www.vingle.net/posts/4651722

M.2 is a form factor for solid-state drives (SSDs) that enables direct attachment to the motherboard without the need for cables. Thunderbolt is a high-speed interface that supports data transfer, video output, and charging. eSATA is an external interface for connecting SATA devices. SCSI is an older interface standard for connecting hard drives, printers, and other peripherals.

Installing a hard drive directly on the motherboard without using cables is usually done with an M.2 slot. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

The black smudges over the entire image on a printed receipt are most likely caused by a jammed ribbon that is rubbing on the paper. The solution is to clear the bad ribbon and feed it through the printer properly. Ribbon jams can be caused by various issues, such as incorrect installation or a damaged ribbon. References: CompTIA A+ Certification Exam Objectives - 220-1001: 4.5 Given a scenario, troubleshoot common printer problems.

Electromagnetic interference (EMI) is unwanted noise or interference in an electrical path or circuit caused by an outside source. Hence shielded Cat 6 is better

If a technician determines that the root cause of sporadic network connectivity issues is EMI, the most cost-effective cable medium that can be used without sacrificing system performance is shielded Cat 6 cable. Shielded cables protect against electromagnetic interference (EMI) and radio frequency interference (RFI). References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 548)

The clicking sound is the sound of a damaged disk in the HDD

A clicking sound from a hard disk drive typically indicates a mechanical failure, such as the read/write head hitting a physical obstruction or a problem with the disk motor. This can cause the drive to fail to initialize or not be recognized by the system during booting.

DSL (Digital Subscriber Line) uses POTS (Plain Old Telephone Service) lines to provide high-speed internet access. If the POTS lines are not working, it could cause an internet outage for DSL customers. Fiber and cable internet typically use different types of infrastructure, while satellite internet is not reliant on POTS lines. References: CompTIA A+ Certification Exam: Core 1 - Page 231

Based on the information provided in the scenario, the most likely cause of the issue is that the user’s internet connection is down (option A). This would explain why the user is unable to access any of the organization’s servers or network items and why web pages are not functioning. However, since the user can still access local file folders and other local machines, it suggests that their local network is still functioning.

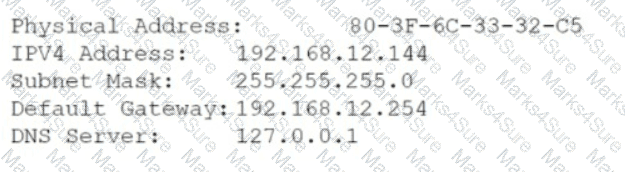

The user can access local file folders and other local machines but none of the organization's servers or network items, indicating that the issue is with the user's internet connection, not with the user's domain account, switch, or IP address.

When a user receives a notification indicating that there is limited or no connectivity, it means that their device is unable to establish a connection to the network. In this scenario, the user can access local file folders and other local machines but is unable to access any of the organization’s servers or network items and web pages are not functioning. This suggests that the issue is with the user’s internet connection.

An internet connection allows a device to communicate with other devices and servers outside of its local network. If the internet connection is down or not functioning properly, the device will be unable to access any resources outside of its local network. This would explain why the user in this scenario can still access local resources but is unable to access any of the organization’s servers or network items.

According to Dell Community, the Wi-Fi antenna is located in the top of the LCD display housing. It consists of two elements, fed by two cables, a white main designated on the Wi-Fi card by a white triangle, and a black auxiliary designated on the Wi-Fi card by a black triangle1.

ADF/flatbed scanner would most likely be used to obtain electronic images of a large number of printed documents. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 351

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

If a laptop has been returned for a screen repair and the owner insists the screen is broken, but occasionally a faded image is able to be seen in very bright settings on the desktop, the first step the repair technician should take is to ensure the backlight is functioning as expected. If the backlight is faulty, the screen may appear to be broken, but it may only be dim or too dark to be visible

This is a safe and sensible option if you value your data more than anything else. You don’t want to risk losing your data by trying other methods that may worsen the situation. You can use a software tool or a service provider to recover your data before attempting any repairs.

A picture containing text, electronics, printer Description automatically generated

A router (option C) is a network device that is used to separate broadcast domains. A broadcast domain is a logical division of a computer network in which all nodes can reach each other by broadcast at the data link layer. Routers operate at the network layer of the OSI model and use routing tables to determine the best path for forwarding packets between different networks.

By separating broadcast domains, routers can help to reduce network congestion and improve performance. When a router receives a broadcast packet on one of its interfaces, it does not forward the packet to any other interfaces. This means that only devices within the same broadcast domain as the sender will receive the broadcast packet.

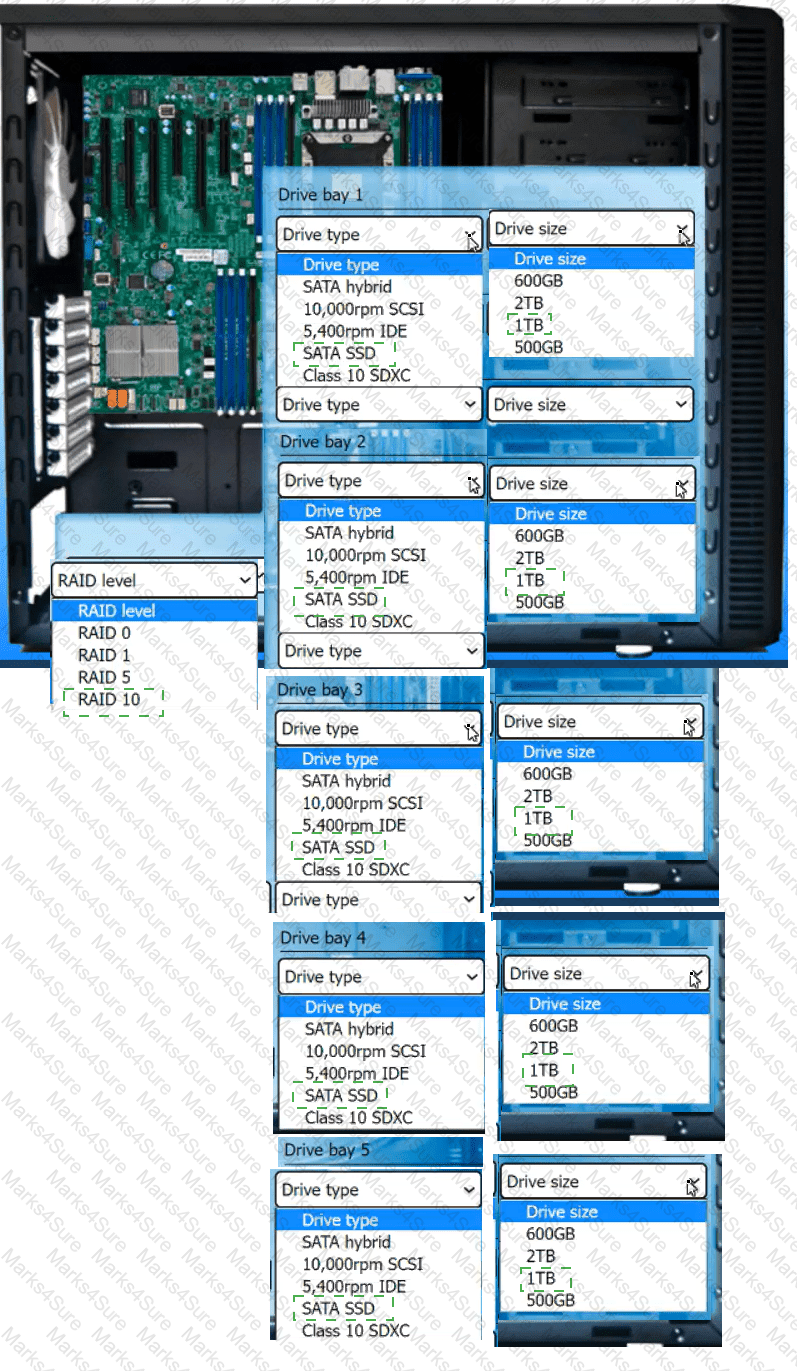

RAID 10 array is often used for server virtualization as it provides both redundancy and performance benefits. It uses a combination of mirroring and striping to provide both fault tolerance and improved I/O performance. An optical disk drive or eMMC storage device would not provide enough storage or performance for a VM host server, while a 15,000rpm drive may provide good performance but would not provide redundancy for fault tolerance. Therefore, a RAID 10 array is the best option for cost-effective storage that will be used for all VMs that run from the server.

By requiring a code or badge before releasing a print job, it ensures that only authorized personnel can collect the printouts. This method is effective in preventing waste and in keeping sensitive documents confidential. Sending reminders, enabling duplex printing, and billing departments are useful strategies for reducing paper utilization but may not necessarily prevent waste caused by uncollected printouts.

Requiring a code or badge before releasing a print job is the best solution to prevent the waste of printed materials, as it ensures that only the user who initiated the print job is able to pick up the printed materials. This can be achieved by implementing print release software or requiring users to enter a PIN code at the printer. References: CompTIA A+ Certification Exam Objectives 1001, 2.10

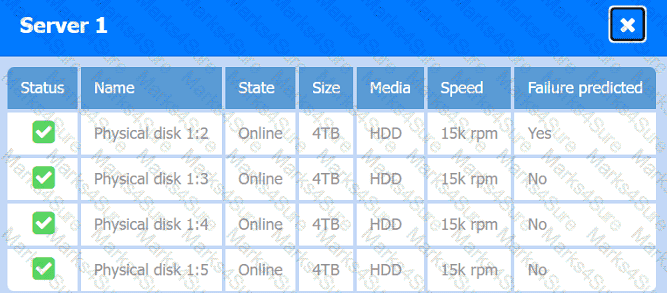

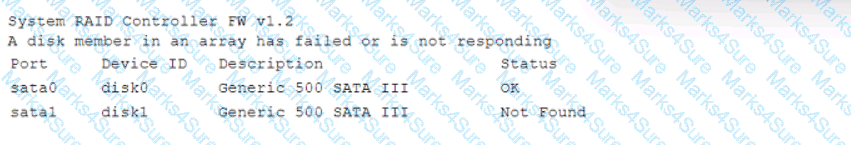

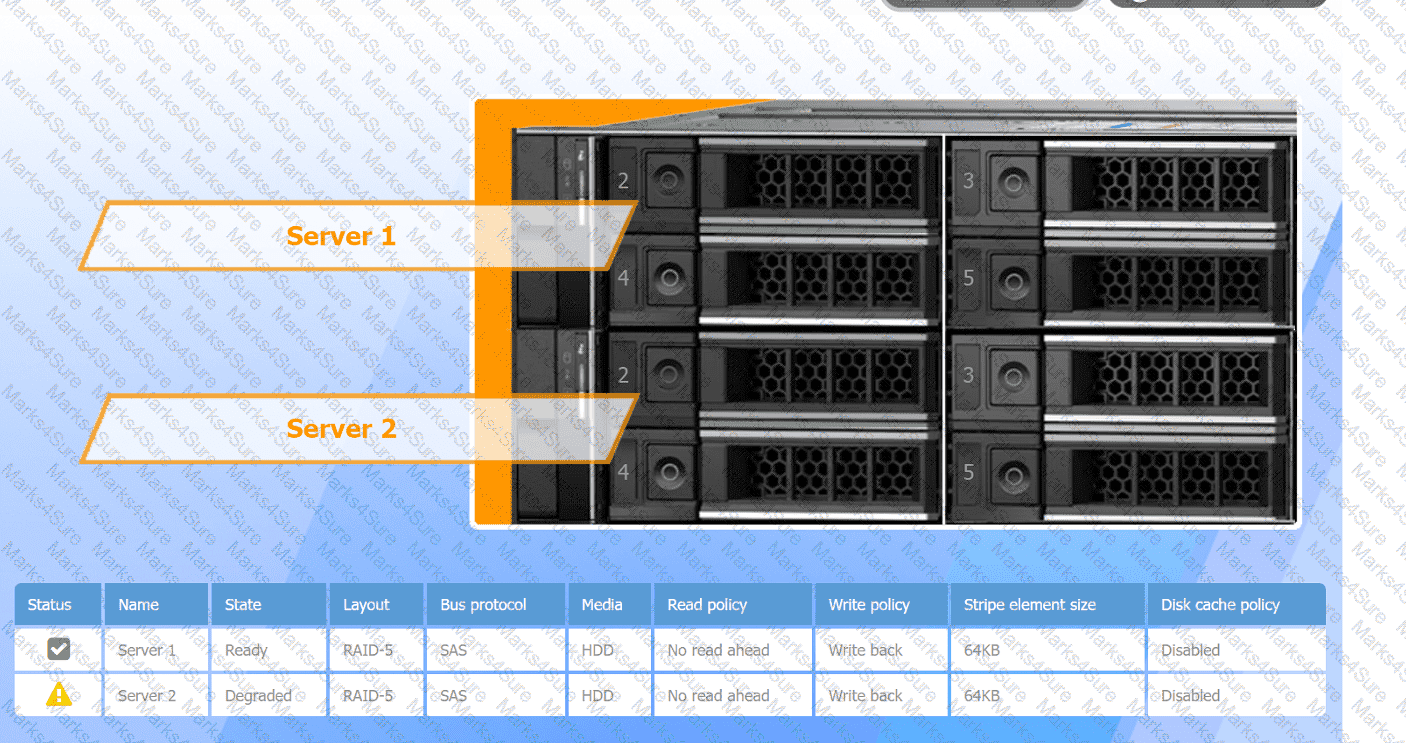

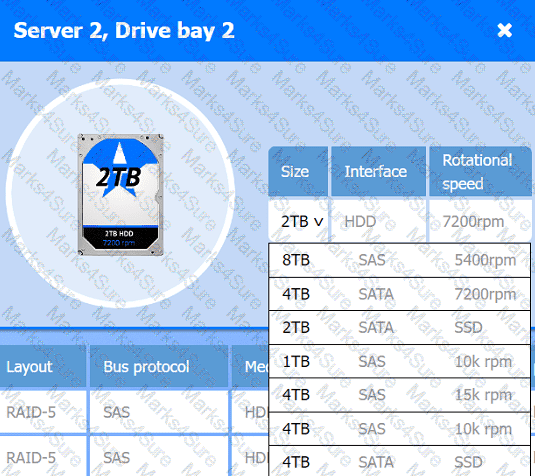

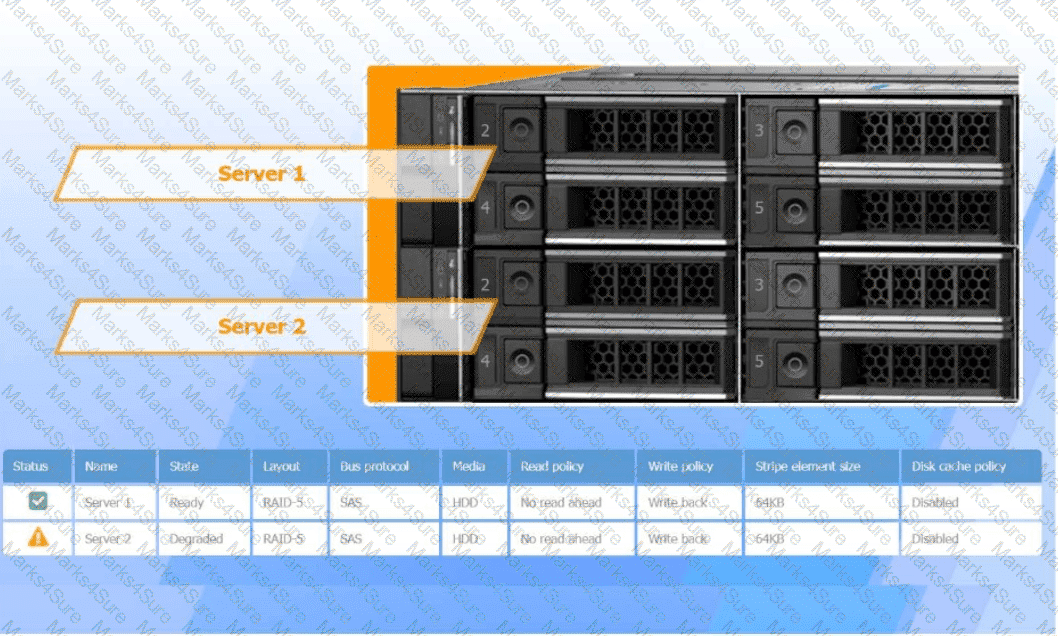

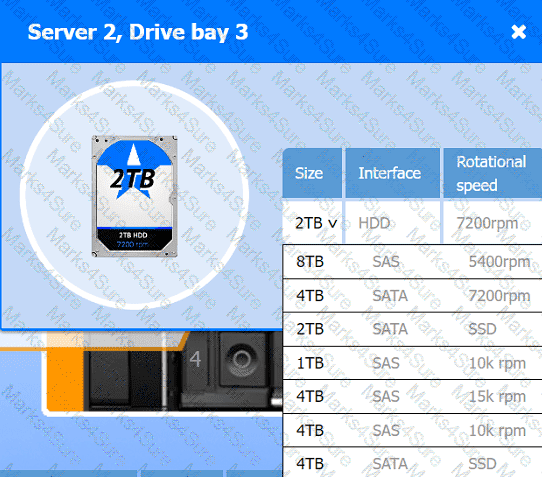

The message stating that one or more disks are in a degraded state is a clear indication of a RAID failure. RAID stands for Redundant Array of Independent Disks, and it is a technology used to provide fault tolerance and improve performance by combining multiple hard drives into a single logical unit.

The message indicating that the OS is missing is most likely caused by a bootable device not found. This means that the server is unable to boot from the designated boot device, which could be the hard drive, a CD/DVD drive, or a USB flash drive. This could be caused by a faulty boot device, a loose cable, or a misconfiguration in the BIOS or UEFI settings.

NFC (Near Field Communication) is a technology used for short-range wireless communication between devices, typically used for contactless payments and authentication. In this scenario, the 13.56MHz frequency short band was implemented, and users can authenticate using their mobile devices, which requires NFC to be enabled on the device. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device network and device synchronization - 4.4

The issue of video but no audio on a projector in a conference room can be resolved by utilizing an HDMI connection between the PC and the projector. HDMI supports both video and audio signals and is commonly used to connect a PC to a projector for presentations. Changing the input on the projector to VGA, changing the output on the PC to DVI, or modifying the projector's refresh rate will not resolve the issue. References: CompTIA A+ Certification Exam: Core 1 - Objective 2.5

To increase the performance of a laptop working with a large database stored on drive C, a systems administrator should increase the RAM and migrate to an SSD. Increasing the RAM will help the laptop to better handle the large database, while migrating to an SSD will improve the speed at which the laptop can access the database. Configuring RAID 1, installing a hybrid drive, upgrading to a 1GB NIC, and upgrading the power supply will not directly improve the laptop's performance when working with a large database. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.1

The first step to recover data from a failing drive is to clone the drive to another one, which means creating an exact copy of the drive’s contents, including the operating system, applications, files, and settings, to a new drive. Cloning the drive can preserve the data and prevent further damage or data loss from the failing drive. Cloning the drive can also allow the technician to boot from the new drive and access the data normally, without needing to reinstall the operating system or the applications12.

The other options are not as effective or relevant as cloning the drive. Accessing the Device Manager may not help with data recovery, as it is a tool that displays and manages the hardware devices and drivers on a PC. The Device Manager may show the status of the failing drive, but it cannot copy or restore the data from it3. Downloading the drive manufacturer’s diagnostic tool may help with identifying and repairing some errors or issues with the drive, but it may not be able to recover the data if the drive is physically damaged or corrupted. The diagnostic tool may also overwrite or erase some data during the repair process, which can make the data recovery more difficult or impossible4. Uninstalling the drive in the Device Manager may not help with data recovery, as it removes the drive from the system and its driver from the operating system. Uninstalling the drive may make the drive inaccessible or unrecognized by the PC, which can prevent the data recovery5. Replacing the drive with a new one may not help with data recovery, as it does not transfer the data from the old drive to the new one. Replacing the drive may also require reinstalling the operating system and the applications, which can take time and effort. Replacing the drive may also discard the old drive, which may still contain some recoverable data.

References:

• CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 3: Hardware, Section 3.3: Storage Devices, Page 140
• CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 3: Storage, Section 3.5: Disk Management, Page 107
• CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 2: Operating Systems, Section 2.4: Device Manager, Page 84
• CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 3: Storage, Section 3.6: Troubleshooting Storage Devices, Page 111
• CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 2: Operating Systems, Section 2.4: Device Manager, Page 85
• CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 3: Storage, Section 3.6: Troubleshooting Storage Devices, Page 112

http://www.221021.com/Hardware/input-output-devices/32310.html

1. Identify the problem.

Gather information from the user, identify user changes, and, if applicable, perform backups before making changes.

Inquire regarding environmental or infrastructure changes.

2. Establish a theory of probable cause (question the obvious).

If necessary, conduct external or internal research based on symptoms.

3. Test the theory to determine the cause.

Once the theory is confirmed, determine the next steps to resolve the problem.

If the theory is not confirmed, re-establish a new theory or escalate.

4. Establish a plan of action to resolve the problem and implement the solution.

Refer to the vendor's instructions for guidance.

5. Verify full system functionality and, if applicable, implement preventive measures.

6. Document the findings, actions, and outcomes.

An uninterruptible power supply (UPS) can help ensure maximum uptime for customers' virtual machines by providing a backup power source in case of a power outage or other power-related issues. A line conditioner and AC voltage regulator are designed to stabilize the power supply, but do not provide backup power. Cloud storage backup is a way to backup data, but does not directly impact uptime. References: CompTIA A+ Certification Exam: Core 1 - Page 159

Private cloud environments are designed for use by a single organization and offer the greatest control over security and access to data. They are typically used for sensitive or confidential data, such as health and criminal justice records. Public cloud environments are shared by multiple organizations and offer less control over security and access to data. Hybrid cloud environments combine public and private clouds, while community clouds are shared by multiple organizations with similar needs. References: CompTIA A+ Certification Exam: Core 1 - Page 234

https://techlibrary.hpe.com/docs/iss/proliant-gen10-uefi/s_enabling_VT-d.html

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

https://www.resonatenetworks.com/2020/04/29/clustering-vs-load-balancing-whats-the-difference/

A load balancer distributes network traffic evenly across multiple servers, ensuring each server is being properly utilized. This helps to prevent overloading of any individual server, which can cause downtime or slow response times for users. In this scenario, adding a load balancer would be the best way to ensure the new servers are being properly utilized. References: CompTIA A+ Certification Exam: Core 1 - Page 181

The main reason to use a virtual machine as a sandbox is to test new software in a safe environment without risking the integrity of the host operating system. Using a virtual machine enables the testing of software and allows for the isolation of the software from the host system. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 409

Switches only send data to the specific computer, while hubs send data to all computers inside the network. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 323

The flashing green and orange LEDs on the NIC indicate connection issues. The technician should first check for loose connections, pinched bends, and physical damage, which are the most common causes of connection problems. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 14

The 802.11n wireless networking standard supports Multiple Input Multiple Output (MIMO) technology. MIMO technology uses multiple antennas on both the transmitting and receiving devices to improve wireless performance by increasing the amount of data that can be transmitted simultaneously. 802.11a, 802.11b, and 802.11g do not support MIMO technology. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

The MOST efficient next step the technician should complete is to check the printer paper path to locate any obstructions1. The error message “Paper Jam, Jam in fuser” indicates that there is a paper jam in the fuser2. The fuser is one of the parts of a laser printer most likely to fail without giving any explicit message2.

The printer LCD screen indicates a paper jam in the fuser. The most efficient next step the technician should complete is to check the printer paper path to locate any obstructions. Applying a maintenance kit or replacing the fuser may not be necessary if the issue is caused by a paper jam.

A web server is a software application that serves HTTP (Hypertext Transfer Protocol) requests by delivering web pages and other files to users' web browsers. The main function of a web server is to host home pages and business portals, making them accessible to users via the internet. References: CompTIA A+ Certification Exam Objectives 220-1001 - Networking - 1.6

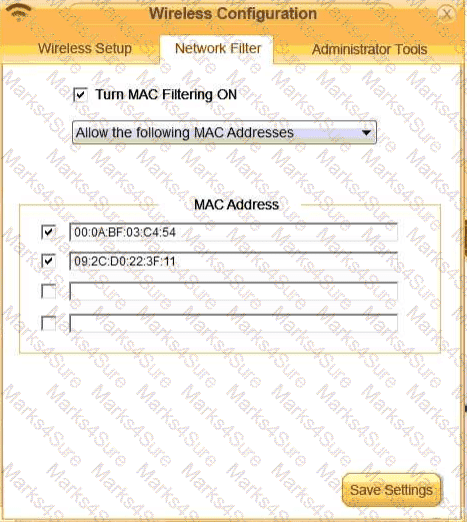

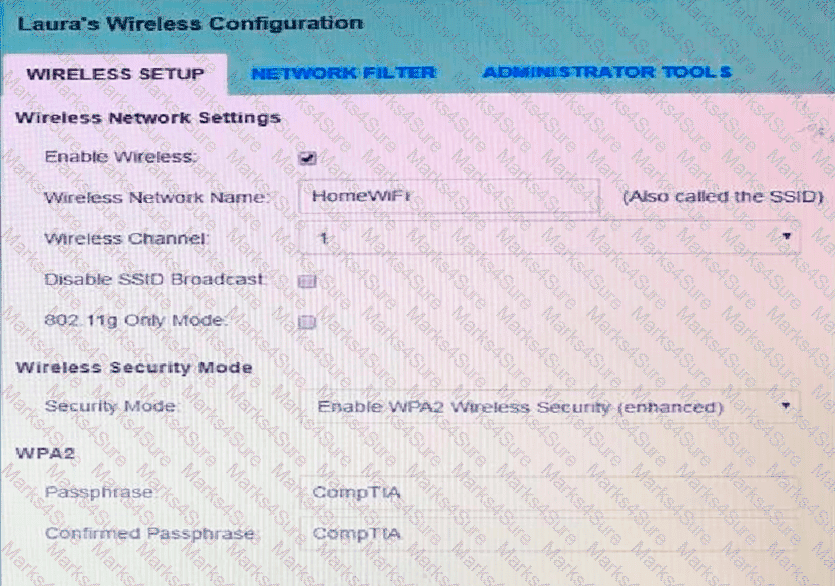

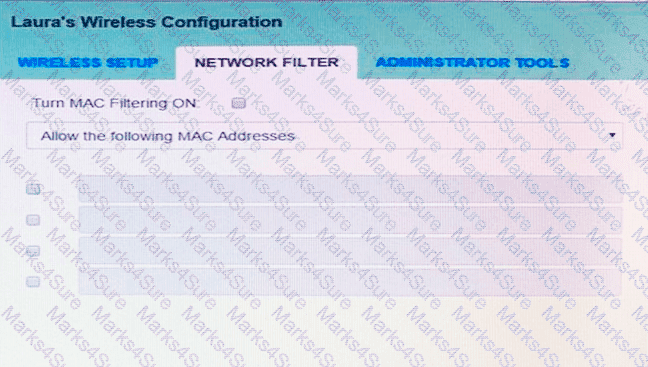

The technician should check the MAC filtering list next as the new router may have a different MAC address than the old router. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 332

The correct answer is A. Access point.

An access point is a device that extends the wireless coverage of a network by creating a hotspot that allows wireless devices to connect to the network1. An access point can be connected to a router or a switch via an Ethernet cable or a wireless bridge1. By deploying one or more access points throughout a SOHO location, the technician can provide better wireless connectivity and eliminate dead zones or weak signals2.

A managed switch is a device that allows multiple devices to communicate on a network by forwarding data packets based on their destination addresses3. A managed switch can also provide advanced features such as VLANs, QoS, security, and remote management3. However, a managed switch does not improve wireless connectivity, as it only works with wired devices.

A POE hub is a device that provides power and data over a single Ethernet cable to devices that support Power over Ethernet (PoE) technology, such as IP cameras, VoIP phones, and wireless access points4. A POE hub can simplify the installation and placement of these devices by eliminating the need for separate power adapters or outlets4. However, a POE hub does not improve wireless connectivity by itself, as it still requires an access point or a router to create a wireless network.

A Wi-Fi router is a device that combines the functions of a router and an access point, providing both wired and wireless connectivity to a network and the internet. A Wi-Fi router can be used to create a SOHO network, but it may not be sufficient to cover the entire location with a strong and reliable wireless signal. To improve wireless connectivity, the technician may need to add additional access points or use a mesh Wi-Fi system that consists of multiple routers that work together to create a seamless wireless network.

Therefore, an access point is the best option among the choices to improve wireless connectivity throughout a SOHO location.

Speed is the most important consideration. Striping without parity, also known as RAID 0, is a RAID configuration that splits data across multiple disks without any redundancy. This improves the performance of read and write operations, as multiple disks can work in parallel. However, this also increases the risk of data loss, as any disk failure will result in losing all data on the array. Therefore, striping without parity is suitable for situations where speed is prioritized over reliability. According to the CompTIA Core1 objectives, one of the advantages of RAID 0 is increased speed. A research paper on RAID performance also confirms that RAID 0 has the highest throughput among all RAID levels.

The physical servers are throttling due to overheating. This means that the servers are reducing their performance to prevent damage from excessive heat. This can cause the virtual machines to run slowly, as they depend on the physical servers’ resources. To avoid this, the servers need adequate cooling and ventilation, as well as monitoring of their temperature and fan speed. According to the CompTIA Core1 objectives, one of the environmental factors that can affect system performance is overheating. A research paper on thermal management of servers also states that overheating can lead to performance degradation, reliability issues, and energy inefficiency.

The most likely component that is failing and causing the PC to overheat is D. CPU fan. The CPU fan is a vital part of the cooling system that prevents the CPU from overheating by blowing air over the heatsink and dissipating the heat. If the CPU fan is faulty, noisy, or clogged with dust, it can reduce the airflow and cause the CPU temperature to rise12. This can result in poor performance, instability, or shutdowns of the PC.

The other components are less likely to be the cause of overheating. RAM, motherboard, and SSD do not generate as much heat as the CPU and usually do not require fans to cool them down1. They may overheat if there is poor ventilation in the case or if they are defective, but they are not as common as a failing CPU fan.

Therefore, the correct answer is D. CPU fan. This is the most likely component that is failing and causing the PC to overheat.

The correct answer is C. SPF.

SPF stands for Sender Policy Framework, which is a protocol that allows domain owners to specify which IP addresses are authorized to send email on behalf of their domains1. SPF helps prevent email spoofing and phishing by verifying the sender’s identity and preventing unauthorized use of their domain name12.

When an email is received, the receiving server checks the SPF record of the sender’s domain, which is a DNS TXT record that lists the valid IP addresses for that domain12. The server then compares the sender’s IP address with the SPF record and determines if it matches or not. If it matches, the email passes the SPF check and is accepted; if it does not match, the email fails the SPF check and is rejected or marked as spam12.

DKIM stands for DomainKeys Identified Mail, which is a protocol that allows domain owners to digitally sign their emails using a public-private key pair3. DKIM helps ensure the integrity and authenticity of email messages by verifying that they have not been tampered with or forged during transit3 .

MX stands for Mail Exchange, which is a type of DNS record that specifies the mail servers that are responsible for receiving email for a domain. MX records help direct incoming email to the correct destination and prioritize them based on preference values .

DMARC stands for Domain-based Message Authentication, Reporting and Conformance, which is a protocol that builds on SPF and DKIM and allows domain owners to define how receivers should handle unauthenticated or suspicious emails from their domains. DMARC helps protect domains from email fraud and abuse by providing feedback and reports on email delivery and authentication status .

Therefore, SPF is the only service among the options that checks whether the sender’s IP address is associated with the sender’s domain name when receiving email.

The best way to connect the devices is A. Enable pairing.

Pairing is a process that allows two Bluetooth devices, such as a smartphone and a headset, to communicate with each other wirelessly. Pairing creates a secure connection between the devices and allows them to exchange data and audio signals. To pair the devices, the user needs to enable Bluetooth on both devices, make them discoverable, and select the desired device from the list of available devices. The user may also need to enter a PIN code or confirm a passkey to complete the pairing process .

The other options are not the best ways to connect the devices. A hotspot is a feature that allows a smartphone to share its cellular data connection with other devices via Wi-Fi, Bluetooth, or USB. A hotspot can provide internet access to other devices, but it does not allow them to communicate with each other directly. NFC stands for Near Field Communication, which is a technology that allows two devices to exchange data by bringing them close together (usually within 4 cm). NFC can be used to initiate pairing between two Bluetooth devices, but it cannot establish a connection by itself. Synchronization is a process that allows two devices to update and match their data, such as contacts, calendars, photos, or music. Synchronization can be done via Wi-Fi, Bluetooth, USB, or cloud services, but it requires an existing connection between the devices.

An ONT, or Optical Network Terminal, is a device that converts fiber network signals from light into electric signals that can be used by a Wi-Fi router. An ONT is an interface between the fiber optic network that carries optical signals and the devices that use electrical signals, such as routers, telephones, or computers. An ONT is similar to a modem for fiber internet, as it allows the devices to communicate with the internet service provider (ISP) and access the internet.

References:

• The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook, page 4-111
• What Is an ONT? Optical Network Terminals Explained l Reviews.org2
• What Is An ONT & How is it Used in Fiber Networks? - STL Tech3

The correct answer is D. Power supply wattage rating.

The power supply wattage rating is the most important factor to consider before building a gaming computer, as it determines how much power the system can draw from the wall and how much power the components can consume. A power supply with a low wattage rating may not be able to support the high-end graphics card, processor, and other devices, resulting in poor performance, instability, or damage12.

To find the optimal power supply wattage rating for a gaming computer, the technician should calculate the total power consumption of all the components and add some headroom for future upgrades or overclocking. The technician can use online calculators such as Cooler Master Power Calculator or Seasonic Wattage Calculator to estimate the power requirements of the system3.

A laptop’s battery is the component that provides power to the laptop when it is not connected to an external power source, such as a wall outlet or a docking station. A laptop’s battery can wear out over time, losing its capacity and ability to hold a charge. This can cause the laptop to not turn on or shut down unexpectedly when it is not plugged in .

According to some web search results , some signs and symptoms of a failing laptop battery are:

•The laptop does not turn on or turns off suddenly when it is not connected to an external power source

•The laptop shows a low battery warning or a red X over the battery icon even when it is fully charged

•The laptop takes longer to charge or does not charge at all

•The laptop feels hot or the battery bulges or leaks

To fix this issue, the technician should replace the laptop’s battery with a new one that is compatible with the laptop model and specifications. The technician should also dispose of the old battery properly, following the environmental and safety guidelines .

Reinstalling the laptop’s operating system, enabling a remote desktop account, or issuing a peripheral set for use in the conference room are not effective solutions for this issue, since they do not address the root cause of the problem, which is the faulty battery. Reinstalling the operating system may erase the user’s data and settings, and it may not improve the laptop’s performance or power management. Enabling a remote desktop account may allow the user to access their files and applications from another device, but it does not solve the problem of the laptop not turning on. Issuing a peripheral set for use in the conference room may provide the user with an external monitor, mouse, and keyboard, but it does not guarantee that the laptop will work without an external power source.

A digitizer is a device that converts analog signals, such as touch or pressure, into digital signals that can be processed by a computer. A digitizer is usually embedded in the screen of a smartphone or tablet, and it works with a compatible stylus to enable drawing and writing on the screen1.

There are different types of digitizers and styluses, such as capacitive, resistive, active, and passive. Capacitive digitizers and styluses work by detecting changes in the electric field on the screen when the stylus touches it. Resistive digitizers and styluses work by detecting changes in the resistance on the screen when the stylus presses it. Active digitizers and styluses work by using an electromagnetic field to communicate between the stylus and the screen. Passive digitizers and styluses work by using a special material on the tip of the stylus that mimics the human finger2.

Not all digitizers and styluses are compatible with each other. For example, an active stylus will not work with a capacitive or resistive digitizer, and vice versa. A passive stylus will work with any digitizer, but it will not have any advanced features, such as pressure sensitivity or tilt control2.

The administrator should use RAID 0 for a video-rendering workstation at minimal cost. RAID 0, also known as striping, is a RAID configuration that splits data evenly across two or more disks, without parity information, redundancy, or fault tolerance. RAID 0 has the following advantages and disadvantages:

• High read/write performance: RAID 0 can increase the data transfer rate by using multiple disks in parallel. This can improve the speed and efficiency of video rendering, which involves processing large amounts of data. RAID 0 can also reduce the latency and seek time of the disks, as the data is distributed across multiple spindles.
• Maximum drive storage utilization: RAID 0 can use the full capacity of the disks, without wasting any space for parity or mirroring. This can lower the cost and increase the storage space for the workstation. For example, if two 500 GB disks are used in RAID 0, the total capacity of the array will be 1000 GB.
• No redundancy or fault tolerance: RAID 0 does not provide any protection against data loss or disk failure. If one disk fails, the entire array will fail and the data will be unrecoverable. Therefore, RAID 0 should only be used for non-critical data that is backed up elsewhere, or for temporary files that can be recreated.

References:

• Standard RAID levels - Wikipedia1
• RAID Levels and Types Explained: Differences and Benefits of Each2
• RAID Level Comparison Table | RAID Data Recovery Services3

The issue described suggests that the home USB-C adapter may not be compatible with the laptop or may not meet the necessary power requirements to charge the device. Providing the user with an Original Equipment Manufacturer (OEM) power supply ensures compatibility and reliability, as OEM chargers are specifically designed to work with the laptop model in question. This solution ensures that the user can work efficiently both at home and in the office without facing charging issues, as OEM power supplies adhere to the specific voltage and amperage requirements of the device.References: Hardware 1101.docx, "Power Supplies" section.

The correct answer is D. 5,400rpm HDD.

A 5,400rpm HDD (Hard Disk Drive) is a type of storage device that uses spinning magnetic disks to store data. A 5,400rpm HDD is the least expensive per gigabyte among the options given, as it has a lower rotational speed and performance than other types of HDDs or SSDs (Solid State Drives). A 5,400rpm HDD is suitable for archiving a large number of photos that are not accessed frequently, as it can offer high capacity and reliability at a low cost.

the average cost per gigabyte of a 5,400rpm HDD is around $0.02 to $0.0312, while the average cost per gigabyte of the other options are:

• NVMe SSD: $0.10 to $0.1534
• SCSI RAID: $0.20 to $0.305
• 15,000rpm SAS: $0.30 to $0.40

Therefore, a 5,400rpm HDD is the cheapest option among the four.

Virtualization is a technology that allows creating multiple virtual machines (VMs) on a single physical server. Each VM can run its own operating system and applications, and share the resources of the physical server, such as CPU, memory, disk, and network1. Virtualization can help improve server utilization and management in several ways, such as:

•Reducing the number of physical servers needed to run the same workload, which can lower the costs of hardware, power, cooling, and maintenance1.

•Increasing the flexibility and scalability of the server infrastructure, as VMs can be created, deleted, moved, or resized on demand without affecting the other VMs or the physical server1.

•Enhancing the availability and reliability of the server applications, as VMs can be backed up, restored, or migrated to another physical server in case of failure or maintenance1.

•Improving the security and isolation of the server data, as VMs can be configured with different levels of access and protection, and separated from each other and the physical server1.

The best option that the technician should do to optimize performance is D. Utilize all channels. This option means that the technician should install the RAM modules in a way that maximizes the number of memory channels that are used by the motherboard. Memory channels are pathways that connect the memory controller to the RAM modules, and they allow data to be transferred between them. The more memory channels that are used, the higher the memory bandwidth and performance1.

DDR5 memory supports up to eight memory channels per module, which is twice as many as DDR42. However, not all motherboards can support eight channels per module, and some may only support four or two channels per module. Therefore, the technician should check the motherboard specifications and manual to determine how many memory channels it supports and how to install the RAM modules accordingly.

For example, if the motherboard supports four channels per module, then the technician should install four RAM modules in slots 1, 3, 5, and 7 to use all 16 available channels. If the motherboard supports two channels per module, then the technician should install eight RAM modules in all slots to use all 16 available channels. If the technician installs fewer modules than the number of slots, then some channels will be left unused and the performance will be lower1.

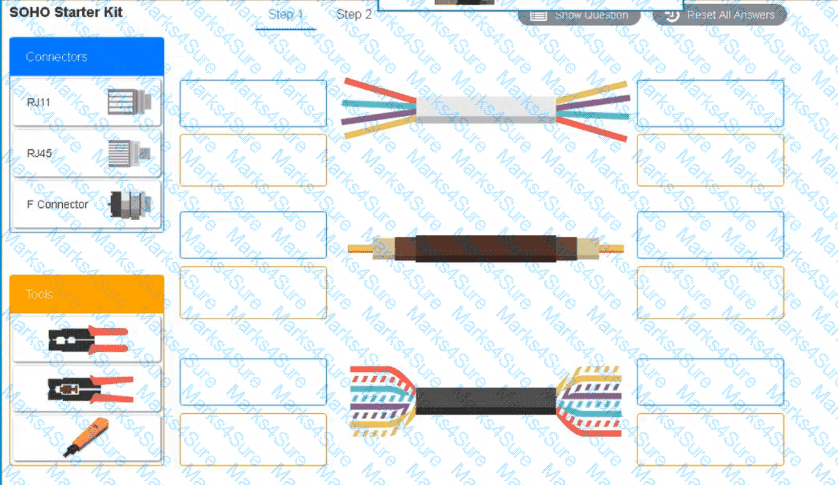

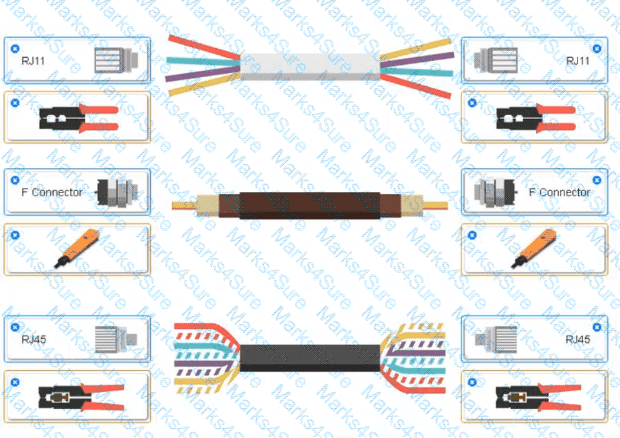

A crimper and a clamp-style wire stripper are tools most likely needed to complete the relocation of a router access point. The crimper is used to attach RJ45 connectors to Ethernet cables, which is essential when creating custom-length cables for precise placement of the router access point. The clamp-style wire stripper is used to strip the insulation from the twisted-pair wiring without damaging the wires, preparing them for crimping. These tools are fundamental for network cable management and modifications, aligning with the network infrastructure setup and modifications detailed in the CompTIA A+ Core 1 (220-1101) Exam Objectives under sections related to networking and hardware troubleshooting .

The best way to improve the efficiency of the process of formatting and reconfiguring a development PC after every application test is complete is to implement a sandbox. A sandbox is a virtual environment that isolates the application from the rest of the system, allowing the developer to test the application without affecting the main operating system, files, or settings. A sandbox can also be easily reset, deleted, or duplicated, saving the time and effort of formatting and reconfiguring the PC. A sandbox can also provide security benefits, such as preventing malware or bugs from spreading to the system or the network.

Other options, such as installing an SSD, disabling hyperthreading, or enabling hardware acceleration, may improve the performance of the PC, but they do not address the issue of formatting and reconfiguring the PC after each test. An SSD (solid state drive) is a storage device that uses flash memory instead of spinning disks, and it can offer faster data access, lower power consumption, and less noise and heat. Hyperthreading is a feature of some CPUs (central processing units) that allows each core to run two threads simultaneously, increasing the multitasking and parallel processing capabilities of the PC. Hardware acceleration is a technique that uses the GPU (graphics processing unit) or other specialized hardware to perform some tasks faster than the CPU, such as rendering graphics, video, or audio.

References:

• What is a Sandbox? | How Does a Sandbox Work? | Avast1
• What is a Sandbox Environment? | Definition and FAQs2
• How to Use a Sandbox to Test Software - Lifewire3
• What is a Sandbox and How to Use One - Norton4
• What is a Sandbox? - Definition from Techopedia5

A captive portal is a web page that requires users to agree to terms and conditions, enter credentials, or provide payment information before accessing a wireless network. Some devices, such as streaming media devices, may not have a web browser or a user interface to interact with the captive portal. One possible solution is to connect to the hotspot on the user’s device, such as a smartphone or a tablet, and use it as a bridge to access the internet through the wireless network. The user’s device can authenticate with the captive portal and share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 12)

A thermal receipt printer uses heat to print on thermal paper, which has a special coating that reacts to heat and produces black marks. If the paper roll is inserted in the wrong orientation, the printer will not be able to print anything on the paper. Therefore, the first thing the technician should do is to check if the paper roll is loaded correctly, with the paper feeding under, not over. This is a common and easy mistake to fix, and it does not require any software or hardware changes.

References

•Troubleshooting Your Thermal Printer Problems - Thermal POS Receipt Printer Tips & Tricks, paragraph 2

•POS Thermal Receipt Printer Troubleshoot - Not Printing Evenly, video at 0:15

•Receipt Printer Troubleshooting – Shopfront, bullet point 2

The correct answer is A. DHCP scope.

A DHCP scope is a consecutive range of IP addresses that a DHCP server can select from to fulfill requests from network clients. A DHCP server is a device that automatically assigns IP addresses and other network configuration parameters to devices that request them. A DHCP scope defines the pool of available IP addresses, as well as the subnet mask, default gateway, DNS servers, and lease duration for each IP address. A DHCP scope can also include exclusions, reservations, and policies to customize the IP address allocation process12.

A static IP list is a list of IP addresses that are manually assigned to devices and do not change over time. A static IP list does not require a DHCP server, but it requires more administrative effort and coordination to avoid conflicts or errors. A static IP list is not a consecutive range of IP addresses that a server can select from3.

DNS A records are DNS records that map a domain name to an IPv4 address. DNS is a system that translates human-readable domain names into machine-readable IP addresses. DNS A records are not a range of IP addresses that a server can select from, but a way of resolving domain names to IP addresses.

Automatic private IP addressing (APIPA) is a feature of Windows that allows devices to self-assign an IP address in the absence of a DHCP server or a static IP configuration. APIPA uses the 169.254.0.0/16 address range, which is reserved for link-local communication. APIPA does not create a range of IP addresses that a server can select from, but a fallback mechanism for devices that cannot obtain an IP address from another source.

For more information about DHCP scopes and other related topics, you can refer to the following web search results: DHCP Scope - NETWORK ENCYCLOPEDIA, Managing Microsoft DHCP Scope and other Components - ATA Learning, Dynamic Host Configuration Protocol (DHCP) | Microsoft Learn.

Radio-frequency identification (RFID) is the most appropriate protocol to use for inventory tracking in a small warehouse. RFID is a technology that uses radio waves to identify and track objects that have RFID tags attached to them. RFID tags are small devices that store information about the object, such as its name, serial number, location, or status. RFID tags can be passive, which means they do not have a battery and rely on the radio signal from the reader to power them, or active, which means they have a battery and can transmit their own signal. RFID readers are devices that can scan the RFID tags and read the information stored on them.

RFID is suitable for inventory tracking in a small warehouse because it can provide several benefits, such as:

• Faster and more accurate scanning: RFID tags can be scanned without direct line of sight, unlike barcodes, and can be scanned in bulk, unlike QR codes. This means that RFID readers can scan multiple items at once, even if they are inside boxes or containers, and reduce the time and errors involved in manual scanning.
• Real-time visibility and control: RFID tags can be updated with the latest information about the inventory, such as its location, quantity, or condition. This means that RFID readers can provide real-time data and feedback on the inventory status, such as its availability, movement, or expiration. This can help improve inventory management, optimize warehouse space, and prevent stockouts or overstocking.
• Enhanced security and quality: RFID tags can be encrypted and authenticated, unlike barcodes or QR codes, which can be easily copied or tampered with. This means that RFID tags can prevent unauthorized access or theft of the inventory, and ensure its authenticity and quality. This can help protect the inventory from damage, loss, or fraud, and increase customer satisfaction and trust.

References:

• Inventory Tracking Simplified: Steps, Methods and Efficiency Tips1
• 17 Essential Inventory Management Techniques – Forbes Advisor2
• Inventory Tracking vs Inventory Traceability - Kardex3

A video production workstation that will consist of two high-end GPUs will require a lot of power and a modular power supply. A modular power supply allows the technician to connect only the cables that are needed for the components, which reduces clutter and improves airflow. A 1,200W power supply should be enough to power the two GPUs and other components, but the exact wattage depends on the specifications of the GPUs and other components. A 400W external power supply is not enough to power the workstation and may not be compatible with the ATX case. Two 600W redundant power supplies are unnecessary and may not fit in the ATX case. A 1,500W uninterruptible power supply (UPS) is a device that provides backup power in case of a power outage, but it is not a replacement for a power supply unit (PSU). References: https://www.comptia.org/blog/what-is-a-power-supply-unit

DHCP (Dynamic Host Configuration Protocol) is a protocol that allows a device to automatically obtain an IP address and other network settings from a DHCP server, such as a home router. This simplifies the network configuration and avoids IP address conflicts. DHCP is a common requirement for home networks that have multiple devices that need Internet access.

A gateway is a device that connects two different networks, such as a home network and the Internet. A gateway usually performs routing functions, which means it determines the best path for packets to reach their destination. A gateway also often performs NAT (Network Address Translation), which allows multiple devices on a home network to share a single public IP address. A gateway is a necessary requirement for home networks that need Internet access.

References

Understanding DHCP on Home Networks

Basic home gateway services: DHCP, DNS, NAT

IP Addresses on Home Networks – A Beginner’s Guide

The correct answer is B. Gather additional details.

According to the CompTIA troubleshooting process for the A+ certification exams1, the technician should gather additional details after testing a theory that is incorrect. This step helps to identify the problem more accurately and establish a new theory of probable cause. The other options are not appropriate for this stage of the troubleshooting process. Documenting the findings, escalating the problem, and identifying user changes are steps that should be done later in the process, after determining the cause and implementing a solution1.

The most likely cause of the issue is that the laptop has a swollen battery, which is a condition where the battery expands due to gas buildup inside the cells. A swollen battery can cause physical damage to the laptop, such as pushing against the track pad or keyboard and preventing them from functioning properly. The technician should inspect the battery and replace it if it is swollen. A damaged digitizer is not the cause of the issue, as the digitizer is a component that converts touch input into digital signals, and it does not affect the track pad or keyboard. Distended capacitors are not the cause either, as capacitors are electronic components that store electric charge, and they do not affect the track pad or keyboard. A failed accelerometer is not the cause as well, as an accelerometer is a sensor that measures acceleration, and it does not affect the track pad or keyboard. References: https://www.comptia.org/blog/what-is-a-laptop-battery

ECC stands for Error Correction Code, which is a type of memory that can detect and correct data errors that may occur during processing or transmission. ECC memory is commonly used in servers that handle sensitive or critical information, such as payment information online, because it can reduce the risk of data corruption, system crashes, or security breaches12.

DDR4 is a generation of DDR technology, which stands for Double Data Rate. DDR4 memory is faster and more power-efficient than its predecessors, but it does not necessarily have ECC functionality. DDR4 memory can be either ECC or non-ECC1.

VRAM is Video RAM, which is a type of memory that is dedicated to storing graphics data for display. VRAM is usually found on graphics cards or integrated graphics processors, not on servers3.

SODIMM is Small Outline DIMM, which is a type of memory module that has a smaller size and lower profile than regular DIMMs. SODIMMs are typically used in laptops, notebooks, or other compact devices, not on servers3.

MDM (Mobile Device Management) is a policy that allows the technician to remotely manage, secure, and monitor the personal devices that employees use for work purposes. MDM can enforce security settings, such as passwords, encryption, and antivirus software, on the personal devices. MDM can also remotely wipe or lock the devices in case of loss, theft, or termination of employment. MDM can protect company information by preventing unauthorized access, data leakage, or malware infection on the personal devices.

References

What is Mobile Device Management (MDM)?

Chapter 2: Networking

Satellite internet is the most widely available internet connection type, as it does not depend on cables or wires. It can reach remote areas that lack infrastructure for other types of internet connections1. References: Satellite Internet

Application virtualization is a technique that allows an application to run on a computer without being installed or affecting other applications on the system. Application virtualization creates a virtual environment for the application that isolates it from the underlying operating system and hardware. This way, the technician can verify the application deployment will not affect other legacy applications on the end users’ computers.

Lightning is a proprietary connection type that is used by Apple devices, such as iPhones, iPads, and iPods, to transfer data, charge, and connect to accessories. Lightning cables have a reversible 8-pin connector that can be plugged into a USB port on a workstation or a power adapter. USB-C, serial, and NFC are not compatible with Apple phones.

The correct answer is B. Punchdown tool.

A punchdown tool is a device that can connect wires to a patch panel or a network jack by inserting them into the appropriate slots and cutting off the excess. A punchdown tool can be used to fix the damaged LAN ports by replacing the wires or reconnecting them to the correct terminals.

A cable stripper is a device that can remove the insulation from a cable to expose the wires inside. A cable stripper is not useful for fixing the damaged LAN ports, unless the technician needs to strip new wires before punching them down.

A crimper is a device that can attach connectors to the ends of cables, such as RJ-45 or RJ-11. A crimper is not useful for fixing the damaged LAN ports, unless the technician needs to replace the connectors on the cables.

A network tap is a device that can monitor and capture network traffic by creating a copy of the data passing through a network link. A network tap is not useful for fixing the damaged LAN ports, as it does not affect the connectivity of the network devices.

The correct answer is B. Check the power supply wattage rating.

A possible cause of the desktop randomly shutting down during operations is that the power supply is not able to provide enough power for the high-end graphics card. The power consumption of today’s graphics cards has increased a lot, and the top models demand between 110 and 270 watts from the power supply1. Therefore, the technician should check the power supply wattage rating and make sure it is sufficient for the graphics card and the rest of the components. Confirming the power supply is grounded, checking whether the power supply is redundant, or confirming the power cables are well connected are not likely to solve this problem.

A serial interface is a common way to connect to the console port of a switch using a rollover cable and a terminal emulator program. This allows the network technician to configure and troubleshoot the switch. Bluetooth, near-field communication, and port replicator are not used for console connections.

Running the printer’s alignment process is the first step that a technician should do to fix the shadowing problem on the printouts. Shadowing is a print quality issue that occurs when the printer prints a faint duplicate image of the original text or graphics, usually slightly offset from the original position. This can be caused by a misalignment of the printhead, which is the part of the printer that sprays ink onto the paper. The printer’s alignment process is a procedure that adjusts the position and angle of the printhead to ensure that the ink is applied accurately and evenly on the paper. The printer’s alignment process can be performed from the printer’s menu, the printer’s software, or the printer’s maintenance tool, depending on the model and type of the printer.

The other options are not the best solutions for this problem. Reseating the new ink cartridges may not solve the shadowing issue, unless the cartridges are not properly installed or recognized by the printer. However, this is unlikely to be the case, as the printer would usually display an error message or refuse to print if the cartridges are not compatible or inserted correctly. Replacing the fuser assembly or installing the maintenance kit are more drastic and expensive measures that are usually done when the printer has more serious problems, such as paper jams, smearing, streaking, or fading. The fuser assembly is the part of the printer that heats and melts the toner onto the paper, and the maintenance kit is a set of components that need to be replaced periodically to keep the printer in good condition. These parts are not directly related to the shadowing issue, and replacing them may not fix the problem.

References:

• CompTIA A+ Certification Exam Core 1 Objectives1
• The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook2
• How to Fix Shadow Printing on My Canon Printer?3
• Fixing A Printer That Creates Shadow Images On Printouts4

When a laptop screen fails to mirror to a television despite being correctly connected via an HDMI cable, a common issue is that the television is set to the wrong input source. Modern televisions have multiple input options (e.g., HDMI 1, HDMI 2, AV, etc.), and selecting the correct input that corresponds to the port the HDMI cable is connected to is essential for displaying the laptop's screen. The blinking logo on the TV screen typically indicates that the TV is functioning but not receiving a signal from the selected input source. Changing the TV's input to the correct HDMI port should resolve the issue and allow the laptop screen to mirror onto the TV.References: Hardware 1101.docx, "Connecting External Displays" section.

A clicking hard drive is usually a sign of a mechanical failure, where the read/write heads are not functioning properly or the platters are scratched or broken. This can be caused by physical shock, such as dropping the laptop while it was turned on. A damaged hard drive may not be able to boot up the operating system or access the data stored on it. This is a serious problem that requires data recovery and hard drive replacement.

References

Identifying Hard Drive Sounds and Determining What They Mean

Hard Drive Clicking? See How to Fix Click Hard Drive On Your Own

Chapter 3: Hardware

The correct answer is A. Serial.

A serial cable is a type of cable that can be used to connect a laptop to a network device via a serial port. A serial port is a physical interface that allows data transmission between devices using serial communication, which is a method of sending data one bit at a time over a single wire. Serial ports are often used for console access to network devices, such as routers, switches, firewalls, or servers, when other methods of connection, such as SSH (Secure Shell), are not available or not working.

SSH is a protocol that allows secure and encrypted remote login and command execution over a network. SSH uses public key cryptography to authenticate the client and the server, and to encrypt the data exchanged between them. SSH can be accessed through different ports, depending on the configuration of the server and the client. The default port for SSH is 22, but it can be changed to any other port for security reasons.

HDMI (High-Definition Multimedia Interface) is a type of cable that can be used to transmit audio and video signals between devices, such as laptops, monitors, TVs, or projectors. HDMI cables support high-definition video and audio formats, and can also carry Ethernet and power signals. HDMI cables are not suitable for connecting to network devices via SSH, as they are designed for multimedia purposes.

Parallel cables are a type of cable that can be used to connect devices that use parallel communication, which is a method of sending data multiple bits at a time over multiple wires. Parallel cables are often used for connecting printers or scanners to computers, but they are not commonly used for network devices or SSH connections.

Lightning cables are a type of cable that can be used to connect Apple devices, such as iPhones, iPads, or iPods, to computers or chargers. Lightning cables support data transfer and power delivery, and can also be used with adapters to connect to other types of ports, such as USB or HDMI. Lightning cables are not compatible with network devices or SSH connections, as they are specific to Apple products.

Therefore, the only cable that can be used as an alternative connection method with a laptop when SSH is not working is a serial cable. Serial cables can provide console access to network devices and allow configuration and troubleshooting commands to be executed. For more information about SSH and its alternatives, you can refer to the following web search results: Alternatives to SSH, How To Configure Custom Connection Options for your SSH Client, Understanding the SSH Encryption and Connection Process, How to Use Public Key Authentication with SSH.

The technician should boot into the BIOS and enable the TPM on the new motherboard to enable the system to boot again and get access to the stored data1.

Boot into the BIOS and enable the TPM on the new motherboard. Explanation: After upgrading the motherboard, the TPM may need to be enabled in the BIOS in order to access the encrypted key and boot the system. Enabling the TPM on the new motherboard should allow the system to boot and provide access to the encrypted data. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 13

The correct answers are A. Identify the location of devices that utilize 2.4GHz and D. Map all of the wireless signals in the restaurant. In order to troubleshoot the issue, the technician should first identify the location of devices that utilize the 2.4GHz frequency, as this can cause interference with the wireless signal. Additionally, the technician should map all of the wireless signals in the restaurant in order to identify any potential sources of interference. Checking to see if the phones are IJTP or STP lines, testing to see if the copper electrical wires are causing interference, verifying T568B is being used in the wiring closet patch panel, and scheduling timed router reboots throughout the day are not necessary steps for troubleshooting this issue.

RFD stands for Radio Frequency Identification, which is a technology that uses radio waves to identify and track objects that have RFID tags attached to them. RFID tags are small devices that store information and can be read by RFID readers without direct contact or line of sight. RFID can be used for inventory management, as it can provide real-time visibility and accuracy of the location, quantity, and status of the items in a warehouse, store, or supply chain .

When a phone's battery overheats and expands, it poses a significant safety risk, including the potential for fire or the battery bursting. The first and most critical action is to turn off the device to prevent further chemical reactions within the battery that could exacerbate the situation. Turning off the phone halts its operations, minimizing the heat generation and reducing the risk of further damage or danger. This is a precautionary measure to ensure the user's safety and to prevent any additional harm to the phone itself. It's important for the user to not attempt to charge or use the phone in this condition and to seek professional help or replacement of the battery or device as needed.References: Mobile Devices 1101.docx, Safety and Environmental Concerns section.

A Virtual LAN (VLAN) is a network topology that allows a switch to be divided into separate logical networks. This allows for the creation of multiple broadcast domains within a single physical network, improving network segmentation and security. With VLANs, you can segment your network so that different departments, applications, or users are isolated from each other, improving network security and performance.

This is because high-end graphics cards, processors, and multiple hard drives require a significant amount of power to operate. A power supply with insufficient wattage could cause stability issues or even damage the components.

The CompTIA A+ Core1 certification guide emphasizes the importance of selecting an appropriate power supply for a computer build. In addition to wattage, other factors to consider when selecting a power supply include efficiency, modularity, and the number and type of connectors required to power the components. However, of the options listed, the wattage rating is the most critical consideration.

Therefore, the technician should ensure that the power supply they select has a wattage rating that is sufficient to power all the components in the gaming computer. It is always a good practice to select a power supply with a wattage rating that exceeds the estimated power usage of t

VDI is a technology that allows a company to provide desktop environments to third-party developers while still maintaining control over the corporate network. VDI creates virtual desktops on a remote server, and each user gets their own desktop environment that is isolated from the other users. This allows the company to maintain control over the corporate network, as the virtual desktops are not directly connected to the corporate network.

CompTIA 6-Step Troubleshooting Process:

1. Identify the problem.

2. Establish a theory of probably cause. (Question the obvious)

3. Test the theory to determine cause.

4. Establish a plan of action to resolve the problem and implement the solution.

5. Verify full system functionality and if applicable implement preventative measures.

6. Document findings, actions, and outcomes.

Writing a knowledge base article in the ticketing software would help document the root cause of the application error and the steps taken to resolve it, which can help other technicians resolve similar issues in the future. This is an example of knowledge management best practices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 6

The appropriate connection types for connecting an external keyboard to an Android tablet are USB-C and Bluetooth123.

The two sets of colors on the motherboard indicate that it supports dual-channel memory, which doubles the bandwidth available to the memory controller. Dual-channel memory requires two identical memory modules to be installed in pairs in the correct slots to work effectively. In this case, the user can install two identical RAM modules to enable dual-channel memory, which will provide better performance when using multimedia applications that consume a lot of memory.

A Wi-Fi analyzer is a tool that can be used to scan the local area for available wireless networks and can provide information such as signal strength, interference, and available channels. It can also be used to locate the best channel to use for a given access point, which can help to reduce latency and improve performance.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The Tablet/PC settings contain options for configuring the touch-screen features on a Windows device. By checking the Tablet/PC settings, the technician can ensure that the touch-screen features are enabled and configured correctly.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The touch-screen settings may have been disabled or there may be a driver issue that needs to be resolved. References: CompTIA A+ Certification Exam Guide, pg. 536

A Storage Area Network (SAN) is a dedicated, high-speed network that connects servers to data storage devices. SANs are used in server rooms to provide high-speed storage access to virtual servers.

A USB to 9-pin serial adapter can be used to connect the new computer to the point-of-sale system using a USB port. USB is a common and versatile port type found on most computers.

If a technician is replacing a computer with a connected point-of-sale system using a 9-pin serial adapter and the new computer does not have a 9-pin serial port, an adapter can be installed on the USB port in order to connect to the point-of-sale system. A USB-to-serial adapter can be used to connect a serial device to a USB port on a computer.

Enabling secure boot will verify the digital signature of the bootloader and operating system, ensuring that the system only boots from trusted and authorised sources. This can prevent booting from an unauthorised live CD or other external media.

The best way to prevent booting from a live Linux CD on a computer in a shared space on campus is to enable secure boot. Secure boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs.

Secure Boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs. Secure Boot is an important security feature designed to prevent malicious software from loading when your PC starts up (boots)1.

Booting from a live Linux CD is a process that allows you to run a Linux operating system from a CD or DVD without installing it on your hard drive. This can be useful for testing or troubleshooting purposes. To boot from a live Linux CD, you need to insert the CD or DVD into your computer’s CD/DVD drive and restart your computer. Most systems are set up to automatically boot from the CD/DVD drive, but if your system is not set up this way, you may need to change a system setting to boot from a Linux CD/DVD23.

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

It is common for companies to place a data cap on the devices they provide to their employees, to control costs. If a user has exceeded the data cap, the phone may no longer allow internet browsing over a cellular connection. This is usually because the cellular data usage has exceeded the allotted amount for the particular plan the device is on, and the service provider has temporarily suspended the data connection.

It is unlikely that the child accidentally connected to a neighbor's WLAN because this would not affect the cellular data connection. Similarly, it is unlikely that the company's group policy has disabled the device, as this would likely affect all devices under the same policy. If the device's plan has been unpaid, the service provider would likely temporarily suspend all services, not just the cellular data connection.

it appears that option A, restoring function to the air conditioner, would most likely solve the thermal printer issue in the described scenario. The failure of the air conditioner during the summer could likely have caused high humidity or heat in the factory, which can affect the printing quality of thermal printers by causing blank spots or missing text. By restoring function to the air conditioner, the temperature and humidity in the factory can be controlled, which can help eliminate these printing issues. However, it is still possible that any of the other options listed could also potentially solve the issue, so it is best to assess the situation further and try different solutions if necessary.

A blot on the screen of a smartphone is most likely caused by damage to the digitizer, which is the part of the device responsible for interpreting touch input. Improper charging is unlikely to cause a blot on the screen, as is damage to the ambient light sensor. Liquid damage is a possibility, but it is more likely to cause discoloration or other physical damage to the screen.

An impact printer is a type of printer that uses a ribbon to produce text and images on paper. If an impact printer is producing faded text and images when printing, it could be due to a worn-out ribbon that needs to be replaced. The technician would need to replace the ribbon on the impact printer to resolve the issue.

A ribbon is a consumable component used in impact printers that uses a cloth or plastic strip coated with ink to produce text and images on paper. Examples of impact printers include dot matrix printers and line printers. References: Study Guide Section 4.6 - Printer technologies

The user should configure the print job to use the Duplex option, which will print on both sides of the paper and reduce the amount of paper used.

A docking station is a hardware accessory that allows laptops to connect to multiple peripherals and devices with a single connection. A docking station with DisplayPort would provide the necessary connectivity for the dual monitors, and it can also support the required peripherals such as the keyboard, mouse, and speakers. In addition, it will provide a wired network connectivity for faster and more reliable network access.

802.11ac is the 802.11 standard that supports both 5GHz and 2.4GHz channel frequencies. 802.11ac is the latest wireless networking standard that operates in both the 5GHz and 2.4GHz frequency bands. It provides higher wireless network speeds and better reliability compared to previous standards, such as 802.11a, 802.11b, and 802.11g. The 802.11a standard operates exclusively in the 5GHz band, while the 802.11b and 802.11g standards operate exclusively in the 2.4GHz band.

USB 3.0 ports are slightly smaller than other USB connections, so if the port appears to be the wrong size, it is likely that the port belongs to a different form factor. This can be caused by a number of factors, such as the device being too old to support USB 3.0, or the device not having a USB 3.0 port in the first place.

NFC (Near Field Communication) is a wireless communication technology that is commonly used for contactless payments, mobile payments, and other mobile transactions. It allows two devices to communicate with each other when they are placed in close proximity.

Contactless payments commonly use NFC (Near Field Communication). NFC is a wireless communication technology that allows two devices to communicate with each other when they are in close proximity. Contactless payments use NFC to enable customers to make payments by simply tapping their contactless card or mobile device on a payment terminal.

The first step in troubleshooting a printer issue is to disconnect the printer power to avoid electric shock or further damage to the printer. The technician can then inspect the fuser and determine if it needs to be replaced or repaired. Installing a printer roller kit or replacing the paper with thicker paper stock will not solve the problem of the overheating fuser. Replacing the fuser without disconnecting the power is dangerous and not recommended. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-a-fuser

A router is a device that connects one or more networks, such as a home or small office network, to the internet. It allows multiple devices to share a single internet connection and provides network address translation (NAT) to enable communication between the devices on the local network and the internet. A hub, Ethernet gateway, or wireless access point does not provide this functionality.

A router is the most likely device to be used to connect one or more devices to the internet in a SOHO. A router can provide network address translation (NAT), firewall protection, and other features that are important for securing and managing a network. References: CompTIA A+ Certification Exam Guide, pg. 355

The most common reasons you may be seeing the "No Signal" message: The projector and the source device are not connected correctly.

The first action should be to check the video cable and replace it if necessary, as the error message suggests that the projector is not receiving a signal from the laptop. Verifying that the projector is turned on and checking the bulb would come after verifying the video cable.

A technician is working on a help desk ticket for a user who wants the filament replaced in a 3-D printer. To remove the old filament and load the new one, the technician should preheat the nozzle to melting temperature. After the nozzle is heated, the technician should withdraw the filament and remove the spool. Then, cut a sharp angle on the end of the new strand, and push it along until resistance is felt.

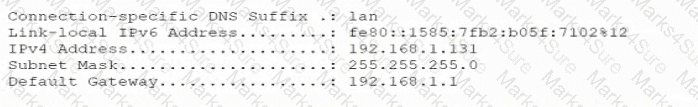

When two devices on the same network are assigned the same IP address, it can lead to intermittent connectivity issues as the network switches between the two devices. This situation, known as an IP address conflict, can disrupt the normal operation of the network, leading to connectivity problems that appear sporadic or intermittent. Resolving duplicate IP addresses typically involves ensuring DHCP is correctly configured or manually setting unique static IP addresses for devices prone to conflicts.

Upgrading a power supply to add a GPU typically requires more wattage to accommodate the additional power demands. Although the current power supply is 380W, adding a GPU with a six-pin power connector suggests a mid-range graphics card, which would likely need a total system power supply in the range of 450W to ensure adequate power for all components, providing a good balance between capacity and safety margins.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.5: Given a scenario, install or replace the appropriate power supply.

Thunderbolt cables are commonly used to connect Apple laptops to external displays or other devices. While Thunderbolt is available on some Windows and Chromebook devices, it is most commonly associated with Apple products. References: https://www.intel.com/content/www/us/en/products/docs/io/thunderbolt/thunderbolt-technology-general.html

Punchdown tools are used to connect wires to keystone jacks, patch panels and other communication hardware. When adding a new line at the demarcation point, a technician would use a punchdown tool to punch the wire into the keystone jack or patch panel, completing the connection.

Routers are designed to connect multiple networks and direct packets to their intended destinations across network segments. This makes them essential for directing packets to networks outside of the LAN, such as the internet or other remote networks.

References:

• CompTIA A+ Core 1 Exam Objectives Section 2.2: Compare and contrast common networking hardware.

The most secure way to implement fingerprint readers would be to restrict device access to only the user to whom the laptop is assigned. This ensures that only authorized personnel have access to the device, reducing the risk of unauthorized access and data breaches.

The IT department should implement VDI. Virtual Desktop Infrastructure (VDI) is a technology that allows users to access a desktop operating system from a remote location. VDI provides complete control over users’ operating systems, which is important for safeguarding data. VDI also provides a secure way to access data from remote locations, which is important for compliance with government-enforced requirements1.

BSoDs can be caused by poorly written device drivers or malfunctioning hardware, such as faulty memory, power supply issues, overheating of components, or hardware running beyond its specification limits. In the Windows 9x era, incompatible DLLs or bugs in the operating system kernel could also cause BSoDs.

Every computer has a CMOS battery and when you remove that battery, your computer will work almost the same as before. The only difference is you won’t be able to save any settings in the BIOS, which includes the date and time. If your PC is not booting after removing CMOS, you need to make sure that you have your CPU and RAM connected because it’s not possible for your system to boot without those.. Your motherboard and computer will be able to boot just fine even without a CMOS battery present. The only issue is all your BIOS settings will be reset and the time and date will be inaccurate. You will also be unable to save BIOS settings.

A Virtual Private Network (VPN) is a secure method for connecting a remote user's laptop to a corporate server. VPNs use encryption to protect data transmitted over the internet.

Once the technician has determined that the power supply is likely to be defective, they should establish a plan of action to resolve the problem. This may include replacing the power supply or further testing to confirm that it is indeed defective. After establishing a plan of action, the technician should implement the solution and verify that it has resolved the issue.

Utilizing a grounding strap is the safest way to replace RAM on a server that has a redundant power supply. This is because the grounding strap prevents electrostatic discharge (ESD) when handling the RAM, which can cause damage to the RAM and the server. Therefore, it is important to always use a grounding strap when handling RAM or other sensitive components.

The technician should verify the header panel connector is properly connected. A beep code is a diagnostic tool used by motherboards to indicate issues with hardware components. This beep code may be indicating an issue with the connection between the motherboard and the case's header panel connector. This connector is responsible for providing power to the system and any connected peripherals. Therefore, the technician should verify the connection is secure and properly connected before attempting any other troubleshooting steps.

Lightning Connector: Apple introduced this brand-new connector back in 2012. It is over 80% smaller than the 30-pin connector and is reversible.

https://www.cablewholesale.com/support/technical_articles/what s_your_port.php#:~:text=Lightning%20Connector%3A%20Apple%20introduced%20this,pin%20connector%20and%20is%20reversible.

The cloud concept that should be used for migrating all common business applications, including email and fileshares, to the cloud is Software as a Service (SaaS).

Secure Shell (SSH) is a protocol used to securely access and manage devices over a network. It provides a secure channel over an unsecured network in a client-server architecture, enabling technicians to perform troubleshooting and management tasks remotely with encryption to ensure the security of the data transmitted. FTP and TFTP are used for file transfers and do not inherently provide the same level of security or direct device management capabilities. RDP is used for remote desktop connections but is not as universally applicable for various devices as SSH.

References:

• CompTIA A+ Core 1 Exam Objectives Section 2.1: Compare and contrast Transmission Control Protocol (TCP) and User Datagram Protocol (UDP) ports, protocols, and their purposes.

A network tap (Test Access Point) is a device used for monitoring network traffic. It allows the technician to passively observe the traffic between two network nodes in real-time without introducing latency or affecting the network's performance. By using a network tap, the technician can analyze the data packets flowing through the network to identify if packet loss is occurring, which could be contributing to the slow network traffic in the branch office.

References: Network taps are widely recognized in the field of network troubleshooting and monitoring for their ability to provide a mirror of the traffic that can be analyzed for issues such as packet loss.

In this scenario, running a network cable over a long distance (279ft or 85m) and sharing conduit with a large power cable requires careful consideration of electromagnetic interference (EMI) and the physical distance limitations of the cable type. Fiber optic cables are immune to electromagnetic interference and can support much longer distances than copper-based cables like Cat 5e or Cat 6 without signal degradation. This makes fiber optic the most appropriate choice for this project.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.1: Explain basic cable types and their connectors, features, and purposes.
• CompTIA A+ Core 1 Exam Objectives Section 2.2: Compare and contrast common networking hardware.

The first step a technician should take before upgrading the Wi-Fi card on a laptop, or performing any internal hardware modifications, is to remove the power cable to ensure the device is not powered on. This is a crucial safety measure to prevent any electrical damage to the laptop or the technician. It also helps in avoiding any unintended changes or data loss that might occur if the device is powered on during the upgrade process.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the hardware domain that discusses best practices for safety and the procedures to follow when upgrading or replacing internal hardware components, such as a Wi-Fi card.
• General safety guidelines for performing hardware upgrades or repairs, emphasizing the importance of ensuring the device is powered off and disconnected from any power sources to avoid electrical hazards.

To connect printers without an RJ45 port to the network, the technician needs to enable wireless connectivity. By configuring the printers to connect to the network wirelessly, the company can achieve the desired consistency in printer configuration across the office. This approach allows printers without built-in wired network capabilities to be part of the network, facilitating shared access and remote printing functionalities.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, Section 2.3 Networking, specifically the information on configuring and troubleshooting wireless connectivity for devices, which includes enabling and securing wireless connections on network printers.
• General understanding of network printer configuration options, including the use of wireless connectivity to integrate printers into a network environment, particularly when wired connections are not feasible.

When a new GPU is installed and results in lower screen resolution and picture quality, it's often because the appropriate OEM (Original Equipment Manufacturer) drivers for the GPU have not been installed. Without these drivers, the operating system may revert to generic drivers that do not fully support the GPU's capabilities, leading to suboptimal performance. Installing the correct OEM drivers should resolve the issue and allow the GPU to function at its intended performance level.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly those relating to the installation and configuration of hardware components like GPUs, and the importance of installing the correct device drivers for optimal hardware performance.
• General knowledge of hardware installation and the role of device drivers in ensuring hardware components such as GPUs operate correctly within a system.

When print jobs remain stuck in the printer queue despite successful network communication (indicated by successful ping replies) and no issues with paper supply or toner levels, a common reason can be that the first job in the queue requires manual intervention, such as paper to be fed into a manual feed tray. Printers often pause the entire print queue if the first job requires a specific type of paper or manual insertion that hasn't been addressed, preventing subsequent jobs from processing.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections on troubleshooting printers, which include understanding various reasons why print jobs might get stuck in the print queue.
• Knowledge of printer operation and common print job issues, with an emphasis on how printers handle manual feed tray requirements and the impact on the print queue.

Duplex printing allows printing on both sides of a paper, which can significantly reduce paper consumption and costs associated with buying paper. This makes duplex printing the best feature for cutting costs on consumables.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.6: Given a scenario, deploy and configure multifunction devices/printers and settings.

When a device is experiencing slow file transfers to an external USB drive and the physical connections are confirmed to be correct, the next step is to update the device drivers. Outdated or corrupt drivers can cause suboptimal performance and slow transfer speeds. Updating the drivers can resolve these issues and improve the device's communication with the USB drive, leading to faster file transfers.

References:

• CompTIA A+ Core 1 Exam Objectives Section 5.0: Hardware and Network Troubleshooting.

The issue described in the scenario is most likely caused by the incorrect heat sink being used on the CPU. The heat sink plays a critical role in dissipating heat from the CPU to prevent overheating. If the incorrect heat sink is used, it may not fit properly, leading to insufficient contact with the CPU. This can cause inadequate heat transfer, resulting in the CPU overheating. Overheating can lead to thermal stress on the motherboard, potentially causing shorts near the CPU location as the excessive heat can damage the motherboard's circuits and components.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, Section 3.0 Hardware, specifically the subsection on cooling mechanisms and their importance in maintaining the optimal operating temperature for CPU and other components.
• General knowledge on the importance of proper heat dissipation in preventing hardware damage, particularly in scenarios involving CPU replacements and upgrades.

Display burn-in occurs when a static image is left on a screen for a long time, causing the pixels to wear out unevenly and retain a ghost image even when new content is displayed. This issue can result in double images, where the "burned-in" stationary image persists alongside new, live content. This problem is more common in older displays or those used for static signage. Replacing the display cable or adjusting color settings would not address the underlying cause of uneven pixel wear, and burned-out bulbs would likely result in a loss of image clarity or brightness, not double images.

References: Display burn-in is a well-documented phenomenon in display technology, particularly affecting screens used for signage with static elements.

When a user connects a laptop to a projector and the image displayed is very fuzzy (blurred) but the brightness level is satisfactory, the first setting to adjust on the projector is the focus. The focus control adjusts the clarity and sharpness of the projected image. Incorrect focus settings can lead to a fuzzy or blurred image even when the brightness is adequate. Adjusting the focus should help in making the image clear and sharp.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly sections related to configuring and troubleshooting display devices, including projectors and their common settings like focus, aspect ratio, keystone, and resolution.
• Basic understanding of how projectors work and the common adjustments that can be made to improve image quality, with focus being a primary control for addressing issues of image clarity.

The appropriate power supply specification for the described workstation setup is 12V, 500W output. This specification ensures that the power supply can handle the combined power requirements of an ATX motherboard, multi-core processor, dedicated graphics solution, SATA hard drive, and DDR4 memory. The 12V rail is crucial for components such as the CPU and graphics card, while a 500W output provides sufficient power overhead to support the system under load, as well as potential future upgrades or additional components.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, Section 3.0 Hardware, specifically the subsection on power supplies and their specifications, including voltage outputs and wattage requirements for various computer components.
• General knowledge on the power requirements of ATX motherboards, multi-core processors, dedicated graphics cards, SATA hard drives, and DDR4 memory, ensuring compatibility and efficient operation.

When a laser printer produces humming and grinding noises along with ghost images on the printouts, the issue is most likely related to the printer's rollers. These symptoms suggest that the rollers, which are responsible for feeding paper through the printer, may be worn out or dirty. This can cause them to not grip the paper properly, leading to repeated imprints or "ghosting" of images on the printouts. Replacing or cleaning the rollers should resolve both the noise and the print quality issues.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections dealing with printer maintenance and troubleshooting, which would include addressing issues with internal components such as rollers.
• General knowledge of laser printer operation and common issues, highlighting the role of rollers in paper feed mechanisms and their impact on print quality.

When a new drive is not recognized by Windows 10, and it's known that the drive was formatted before going offline, checking the file system format is crucial. Windows does not natively recognize the ext4 file system, commonly used in Linux environments. If the drive was inadvertently formatted to ext4, Windows would not display or allow access to it. The solution involves reformatting the drive to a file system that Windows recognizes, such as NTFS or FAT32, ensuring the drive becomes visible and accessible within Windows 10.

If a desktop PC shuts down suddenly and there is a burning smell coming from the area where it is connected to the wall socket, the first step should be to check that the power cable is not damaged. A damaged power cable can cause electrical shorts or overheating, leading to sudden shutdowns and a burning smell. Inspecting the power cable for fraying, cuts, or other damage can help identify if it is the source of the problem.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections on troubleshooting hardware components and power-related issues, which would include assessing external factors such as the condition of power cables.
• Basic electrical safety and troubleshooting principles, emphasizing the importance of checking power connections and cables when faced with symptoms of electrical issues.

An MX (Mail Exchange) record in DNS specifies the mail server responsible for accepting email messages on behalf of a domain. It is a vital component of the email delivery process, directing email to the correct server based on the domain part of the email address. Without properly configured MX records, a domain's email system cannot function correctly.

If a user consistently receives an error requesting A4 paper for print jobs, and this issue is isolated to a single user, it's likely that the user's printer settings are configured incorrectly for A4 paper size instead of the standard letter size used in the office. Adjusting the printer defaults in the Control Panel on the user's computer to use letter-sized paper should resolve the issue without needing to reinstall drivers, switch printers, or require the user to check page size for every job.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.6: Given a scenario, deploy and configure multifunction devices/printers and settings.

To clean sticking keys on a laptop keyboard, using compressed air is the most effective and safest method. Compressed air can dislodge and remove crumbs, dust, and other debris from under the keys without risking damage to the keyboard's electronic components or the keys themselves. This approach is non-invasive and widely recommended for keyboard maintenance.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly sections related to maintaining and cleaning computer components and peripherals, which would cover best practices for keyboard cleaning.
• General computer maintenance guidelines, highlighting the use of compressed air as a standard tool for cleaning keyboards and other computer parts where direct contact cleaning is not advisable.

A Storage Area Network (SAN) is a network specifically designed to pool storage resources and make them accessible to servers as if they were locally attached drives. SANs are used in data centers for high-performance storage and retrieval of large volumes of data. This setup allows multiple networked devices to access shared storage as if it were local, which matches the scenario described. PAN (Personal Area Network), WLAN (Wireless LAN), and MAN (Metropolitan Area Network) serve different purposes and do not primarily focus on shared storage access.

References:

• CompTIA A+ Core 1 Exam Objectives Section 2.7: Compare and contrast Internet connection types, network types, and their features.

In the case of a thermal receipt printer that will not print, the first step in troubleshooting should be to ensure that the thermal head is heating up. Thermal printers operate by applying heat to a special thermally sensitive paper, creating marks on the paper to form text and images. If the thermal head is not heating up, it cannot create these marks, leading to no print output. Verifying that the thermal head is operational can help isolate the issue, whether it's a hardware malfunction of the thermal head itself or another problem in the printer.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically sections dealing with printer technologies and troubleshooting methods, which would include understanding the operational basics of different types of printers, including thermal receipt printers.
• Fundamental knowledge of how thermal printers function, emphasizing the critical role of the thermal head in the printing process and the need to ensure it's operational when troubleshooting printing issues.

When a laptop screen is not displaying on a conference room TV despite being connected to a wireless HDMI dongle, the issue is often related to the TV being set to the wrong input source. Since the in-room computer's desktop is displayed, it suggests the TV is currently set to the input source used by the in-room computer. Changing the TV's input source to the one associated with the wireless HDMI dongle connected to the user's laptop is the simplest and most direct approach to resolve the issue. This does not involve adjusting network settings or hardware configurations but rather selecting the correct input source through the TV's input selection menu.

References: This solution is aligned with best practices for troubleshooting display connectivity issues, which emphasize checking and adjusting input sources on the display device as a first step.

Two-factor authentication (2FA) significantly enhances security by requiring two forms of verification before granting access to company resources, making it harder for unauthorized users to gain access even if they have one of the credentials. PIN code enforcement adds an additional layer of security by ensuring that devices are protected by a PIN, making physical access to the device more challenging for unauthorized users. While the other options provide various benefits, 2FA and PIN code enforcement directly enhance the security of remote users accessing company resources.

References:

• CompTIA A+ Core 1 Exam Objectives Section 2.7: Compare and contrast Internet connection types, network types, and their features.

Mobile Device Management (MDM) is the best solution for remotely managing security settings and configuring applications on tablets across branch offices. MDM allows administrators to control device security policies, push applications, track device locations, perform remote wipes, and manage many other aspects of mobile devices from a centralized console. While SSH, RDP, and VPN are useful for remote access and secure connections, they do not offer the comprehensive device management and configuration capabilities that MDM provides.

References:

• CompTIA A+ Core 1 Exam Objectives Section 2.7: Compare and contrast Internet connection types, network types, and their features.

Mobile Device Management (MDM) policies are crucial for companies that allow employees to use personal devices for work duties. MDM enables the company to enforce security policies, manage and secure corporate data on personal devices, and ensure compliance with company standards. It allows for remote management of these devices, including the ability to remotely wipe company data if the device is lost or stolen, without impacting personal data, thereby protecting company information effectively.

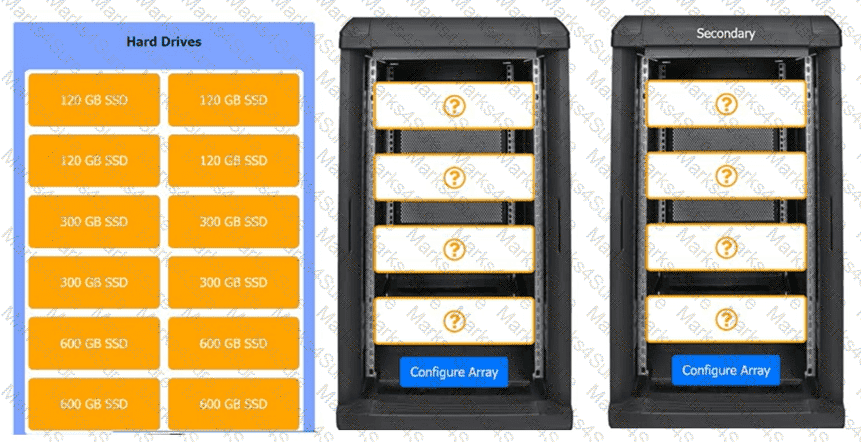

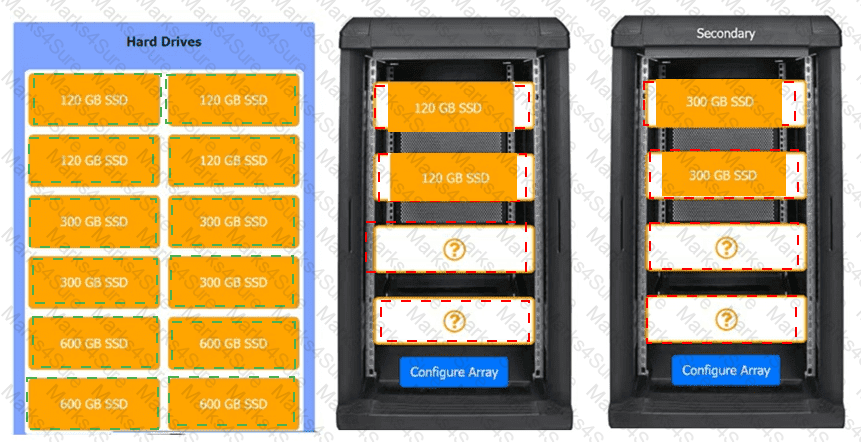

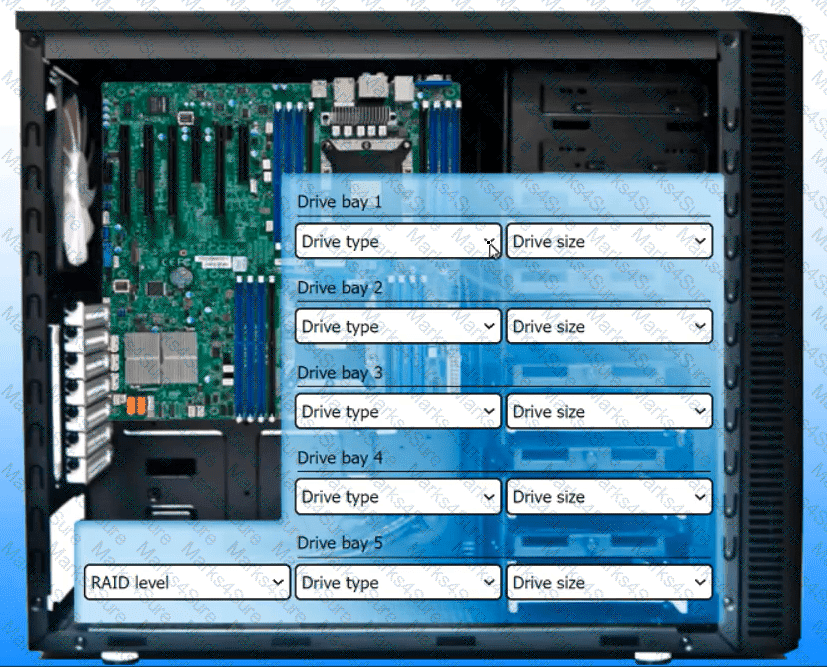

After setting up a RAID 5 array, the next step is to make the storage space usable by the operating system. This involves partitioning the array to define how the storage space is organized and then formatting it with a file system that the operating system can understand, thus making it possible to copy files to the array. Decreasing the number of drives, rebuilding the array, or checking the hot spare status would not address the issue of the array not being ready to store files.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.3: Given a scenario, select and install storage devices.

When upgrading a laptop's storage from an HDD to an SSD, especially in laptops with only a single bay for a hard drive, the most critical characteristic to consider is the form factor. The form factor must match the physical dimensions and interface of the original HDD to ensure that the SSD can fit into the bay and connect properly. Storage size (B) is important for capacity reasons, transfer speed (D) affects performance, and partition type (A) is a software configuration aspect, but the form factor (C) is crucial for the physical compatibility of the SSD with the laptop.

References:

• CompTIA A+ Core 1 Exam Objectives Section 3.3: Given a scenario, select and install storage devices.

A punchdown tool is essential for connecting telephone wires to patch panels, keystone modules, and punchdown blocks, making it a critical tool for installing plain old telephone service (POTS) lines. A toner probe, on the other hand, is used for tracing and identifying specific wires within a bundle, facilitating the correct attachment of telephone lines to their respective terminals. These tools are fundamental for ensuring proper and efficient installation of POTS lines in a client's environment.

A VPN (Virtual Private Network) is the technology that allows a home PC to connect securely to a company's network over the internet. It extends a private network across a public network, enabling users to send and receive data as if their computing devices were directly connected to the private network. This makes VPNs ideal for remote work and accessing company resources securely from a home PC.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically sections that cover networking concepts and technologies, including remote access methods and network security protocols such as VPNs.
• Understanding of network security practices and remote access technologies, focusing on how VPNs create secure connections over the internet for remote users to access corporate networks.

Self-encrypting hardware, such as self-encrypting drives (SEDs), provides an effective solution for securing data with minimal user interaction. SEDs automatically encrypt all data stored on the drive without requiring any special software or user action, ensuring that data remains protected even if the drive is removed from the device. This feature is particularly beneficial for remote users who may not consistently follow manual encryption procedures, offering a seamless and user-transparent method to secure sensitive data.

Infrastructure as a Service (IaaS) provides virtualized computing resources over the internet, including virtualized hardware, storage, and networking components. It offers the infrastructure on which clients can install their operating systems and applications, providing an equivalent to physical hardware environments. This allows developers and businesses to develop and run their solutions without managing physical servers. SaaS delivers software applications over the internet, PaaS provides a platform allowing customers to develop, run, and manage applications, and DBaaS offers database services in the cloud.

References:

• CompTIA A+ Core 1 Exam Objectives Section 4.1: Summarize cloud computing concepts.

Before creating a virtual machine (VM) on a computer, it's crucial to ensure that the CPU supports virtualization and that this feature is enabled in the BIOS (or UEFI) settings. While sufficient RAM and hard drive space are also important for running VMs effectively, and compatibility with the graphics card might be a consideration for VMs with intensive graphical requirements, the foundational step is to verify that the CPU supports virtualization and that this feature is activated in the BIOS settings. This is because virtualization technology, often referred to as VT-x (on Intel CPUs) or AMD-V (on AMD CPUs), is a prerequisite for running most virtualization software efficiently.

References:

• CompTIA A+ Core 1 Exam Objectives Section 4.0: Virtualization and Cloud Computing

The technician failed to properly diagnose the issue by not establishing a theory of probable cause. Instead of investigating why the network drives were accessible wirelessly but not when docked, the technician assumed a faulty network card and ordered a new laptop. Proper troubleshooting involves developing a theory of what might be causing the problem, based on the symptoms and available information, and then testing that theory. In this case, the issue could have been related to docking station settings, network configurations, or hardware issues specific to the docking connection.

References: This answer is grounded in standard troubleshooting methodologies, which emphasize the importance of logically deducing the most likely cause of a problem before proceeding with more drastic measures such as replacing hardware.

The "Ease of Access" settings in Windows are designed to help make the computer more accessible to users with various needs. Among these settings, there are options to adjust mouse and cursor functionality, including the visibility and behavior of the cursor. Adjusting these settings can resolve issues related to cursor trails, making it a suitable first step in troubleshooting this specific problem.

If a color laser printer's image quality decreases after being serviced for dust removal, it's likely that the servicing process affected the printer's calibration. Calibration ensures that color reproduction is accurate, and if disturbed, can lead to a decrease in image quality. It's important to check and recalibrate the printer to restore its ability to accurately reproduce colors and maintain high image quality.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly the sections dealing with printer maintenance, troubleshooting, and the importance of calibration in maintaining image quality in laser printers.
• Knowledge of printer maintenance procedures and their impact on printer performance, with a focus on how calibration affects color accuracy and overall image quality.

When an external touch screen exhibits flickering without registering input on a presentation laptop, the first troubleshooting step should be to check the cables connecting the touch screen to the laptop. This includes ensuring that the cables are securely connected, undamaged, and are the correct type for transmitting both video and touch input data. Faulty, loose, or incorrect cabling can lead to issues like flickering and unregistered inputs.

References:

• CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly the sections dealing with peripheral devices and troubleshooting connectivity and performance issues related to external devices like touch screens.
• Basic troubleshooting principles for peripheral devices, emphasizing the importance of verifying physical connections and cable integrity when encountering issues with device functionality.

Printers that use PostScript drivers are designed to handle complex printing tasks, including detailed graphics and images in PDF files. However, if the printer's PostScript driver is outdated, incompatible, or improperly configured, it may struggle to process and print PDF files containing images. Updating or reinstalling the PostScript driver, or choosing a different driver compatible with the printer and document type, can resolve this issue.

When installing RAM into a server that will be used as a VM host, it is recommended to install ECC (Error-Correcting Code) RAM to help prevent errors that can cause virtual machines to crash. References: https://www.servermonkey.com/blog/ecc-vs-non-ecc-ram-what-are-the-differences.html

When installing RAM into a rackmount server that will be used as a VM host, it would be best to install ECC (Error Correcting Code) RAM which can detect and correct common types of data corruption.

To resolve the issue of new memory modules not being recognized, the systems administrator should configure appropriate settings within the BIOS. This can include enabling memory mapping or setting memory speed and timings. References: CompTIA A+ Certification Exam Objectives, 220-1001 Section 1.8

Configure appropriate settings within the BIOS. If new memory modules were installed in several Windows desktops but some users are still reporting performance issues and the desktop has not recognized the new memory modules, the systems administrator should configure appropriate settings within the BIOS to help resolve this issue.

The screen rotation is locked. If a user’s touch-screen tablet is having an issue with screen orientation, it could be due to screen rotation being locked in device settings.

If the screen rotation is locked, the touch-screen tablet will not rotate the screen when the device is turned. This can usually be unlocked in the settings or by pressing a specific key combination. References: https://www.howtogeek.com/254132/how-to-enable-screen-rotation-on-windows-10/

A DHCP reservation is a feature that allows a DHCP server to assign a specific IP address to a specific device on a network, based on its MAC address. This ensures that the device always receives the same IP address, even if it is disconnected or rebooted. A DHCP reservation is most likely applied to a printer, as it can make it easier for users to find and connect to the printer on the network, without having to change the printer settings or deal with IP address conflicts. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 84)

The most likely reason for a computer showing an APIPA address after being plugged into a network port is that the PC is unable to contact a DHCP server1. Automatic Private IP Addressing (APIPA) is a DHCP fail-safe that protects a computer system from failure. It invokes a standby mechanism for local Internet Protocol version 4 (IPv4) networks supported by Microsoft Windows. With APIPA, DHCP clients can obtain IP addresses even when DHCP servers are not functional1. The other options are less likely to be the cause of the issue1.

If a user is unable to log in using the fingerprint reader on a company laptop after the motherboard was replaced, it could be due to an issue with the fingerprint software. The first step to fix the issue would be for the technician to reinstall the fingerprint software.

The technician should ensure the input connections to the screen are secure1. The screen may not be receiving the signal from the device outputting the data if the input connections are not secure1. Swapping cables with a screen that works is not likely to be the correct option1

Virtual memory is a software-based memory management system that allows a computer to use hard disk storage space as RAM. This can be used to increase the total RAM in a system without upgrading the hardware. To set up virtual memory, the user should go to the System Properties window and select the Advanced tab. In the Performance section, click on the Settings button, which will open the Performance Options window. Then, click on the Advanced tab and click on the Change button in the Virtual memory section. Finally, select the option to Automatically manage paging file size for all drives, and then click OK to save the changes.

A cable tester and a crimper are the best tools to execute the task of replacing all RJ45 cables in a customer environment. A cable tester can be used to check the continuity and quality of a cable, and a crimper can be used to attach RJ45 connectors to the ends of a cable. An optical fiber tester is a tool that can be used to test fiber optic cables, which are not RJ45 cables. Scissors are not a tool for replacing cables, but for cutting them. A coaxial cable is a type of cable that has a single copper conductor at its center, which is not an RJ45 cable either. A screwdriver is not a tool for replacing cables, but for fastening or loosening screws.

A scratch on the scanning bed of a copier can cause a solid black line to appear on all copies, as the scanner cannot read the original document properly through the scratch. The scratch can also reflect light and create noise in the scanned image. The printing function is unaffected by the scratch, as it does not use the scanning bed. The technician should inspect and clean the scanning bed, and replace it if necessary. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 16)

DNS stands for Domain Name System and is a service that translates domain names (such as www.example.com) into IP addresses (such as 192.168.1.100) that computers can use to communicate over a network. If the DNS server is offline, users may not be able to access websites or other network resources by using their domain names, even if they are online and reachable by their IP addresses. The technician should check if the DNS server is running and configured correctly, or use an alternative DNS server if possible. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 81)

A sandbox is a virtualization solution that allows a legacy application to run in an isolated environment without affecting other applications or systems. A sandbox can emulate an older operating system or hardware configuration that is compatible with the legacy software. A hybrid cloud is a combination of public and private cloud services that share data and resources. Infrastructure as a service is a cloud computing model that provides servers, storage, networking, and software over the internet. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network.

Platform as a service (PaaS) is a cloud-computing concept that describes an application that is hosted on the internet but can be used and configured as needed internally per organization. PaaS provides a platform for developing, testing, deploying, and managing applications without having to maintain the underlying infrastructure or software. Hybrid cloud is a combination of public and private cloud services that share data and resources. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Infrastructure as a service (IaaS) is a cloud computing model that provides servers, storage, networking, and software over the internet

SODIMM stands for Small Outline Dual In-line Memory Module and is a type of memory module that is compatible with laptops and other small devices. SODIMMs are smaller and thinner than DIMMs (Dual In-line Memory Modules), which are typically used for desktop PCs and servers. Upgrading or adding SODIMMs can increase the amount of RAM available for a laptop, which can improve its performance and speed when running process-intensive tasks. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 24)

Host-only mode is a network option that isolates a client-side virtual machine from the rest of the network. It allows the virtual machine to communicate only with the host machine and other virtual machines on the same host. NAT mode allows the virtual machine to share the host’s IP address and access the network through it. Bridge mode allows the virtual machine to have its own IP address and connect directly to the network. Direct mode is not a valid network option for virtual machines.

A toner probe is a tool that can be used to trace and identify cables in a wiring closet. The technician can use a toner probe to find the cable that connects the new computer to the internet. A cable tester is a tool that can be used to check the continuity and quality of a cable. A loopback plug is a tool that can be used to test network ports or cables by sending and receiving signals from the same device. A punchdown tool is a tool that can be used to terminate wires into a patch panel or jack.

A patch panel is a mounted hardware unit containing ports used to manage cable connections. The individual pairs of a Cat 6 cable are terminated on the patch panel, which then provides a central location for cable management and organization. The patch panel is then connected to the switch using a patch cable.

A damaged battery can cause a laptop to overheat and swell, making it unable to sit level on the workspace. A swollen battery can also pose a fire hazard and damage other components of the laptop, such as the motherboard or keyboard. The technician should replace the battery as soon as possible and dispose of it properly according to local regulations. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 25)

Quad-channel memory architecture allows the CPU to access four memory modules simultaneously, increasing the memory bandwidth and performance. DDR4 RAM is a type of memory that has higher speed and lower power consumption than DDR3. SODIMM is a smaller form factor of memory that is typically used in laptops, not desktops. ECC RAM is a type of memory that can detect and correct errors, but it is more expensive and slower than non-ECC RAM. Triple-channel memory architecture is less common and less efficient than quad-channel. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-ddr4-ram https://www.comptia.org/blog/what-is-quad-channel-memory

A storage area network (SAN) is the type of network that the technician will be working with when adding more space to resolve the issue of all VMs being down due to the network being out of space. A SAN is a network that provides access to consolidated and block-level data storage, which can be used for virtualization and backup purposes. SCSI is a type of interface that connects devices such as hard drives and optical drives to a computer. NAC is a type of security solution that controls access to a network based on policies and device compliance. WISP is a type of internet service provider that delivers wireless broadband access over long distances.

Near field communication (NFC) is a function that enables contactless payments with a phone by allowing it to communicate with compatible devices within close proximity. If NFC is not working properly, the user will not be able to perform contactless payments with the phone. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Bluetooth is a wireless technology that allows devices to connect and exchange data over short distances. USB is a standard interface that connects devices such as keyboards, mice, flash drives, etc

To configure a printer for network communications, the technician must configure its network settings, such as gateway, subnet mask, and IP address. The gateway is the IP address of the router or device that connects the printer to other networks or the internet. The subnet mask is a value that defines which part of the IP address identifies the network and which part identifies the host or device on that network. The IP address is a unique identifier that allows the printer to communicate with other devices.

One of the possible causes of extreme slowness and application crashes on a phone is low or insufficient storage space. This can affect the performance and functionality of the phone, as well as prevent new applications from being installed or updated. The technician should check the storage space on the phone and see if there is enough free space available for the diagnostic application and other operations. The technician should also advise the customer to delete or move any unnecessary or unused files, apps, or data from the phone to free up some space. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 10)

A multipage misfeed is when more than one sheet of paper feeds into the printer at once, causing paper jams or misprints. A multipage misfeed can be caused by low paper supply or wrinkled paper in the tray, as reported by the user in this case. High latency is not related to paper jams, but to network delays or slow performance. Page orientation refers to whether the page is printed in portrait or landscape mode, which does not affect paper jams either. Driver mismatch could cause printing errors or compatibility issues, but not paper jams.

When installing a wireless point-to-point connection between two buildings, the technician should consider the allowable limits for transmit power, which vary depending on the country or region. Exceeding these limits could interfere with other wireless devices or violate regulations. NFC protocol data rate, RFID frequency range, and Bluetooth version compatibility are not relevant for a wireless point-to-point connection.

The frequency bands that 802.11b and 802.11g operate in are 2.4GHz bands, which allow for longer range but lower speed than higher frequency bands such as 5GHz or 6GHz bands used by newer standards such as 802.11a/n/ac/ax.

Primary Array:

• Drag and drop two 120 GB SSD hard drives to the primary array bay.
• Open the primary array and select RAID 1 as the RAID level. RAID 1 provides fault tolerance of one drive, ability to function with only one drive, easily recoverable data, high redundancy, and very fast on reads. It also does not need to be scalable and uses the minimum number of drives (two) for RAID 1.
• Confirm the configuration and close the primary array.

Secondary Array:

• Drag and drop two 300 GB SSD hard drives to the secondary array bay.
• Open the secondary array and select RAID 0 as the RAID level. RAID 0 provides the best write performance and uses the minimum number of drives (two) for RAID 0. It also provides a total space of 600 GB (300 GB x 2), which meets the requirement.
• Confirm the configuration and close the secondary array.

You have completed the configuration of the storage arrays.

A CPU fan is a component that cools down the CPU, which is the main processor of the computer. If the CPU fan is failing, it can cause the computer to slow down and the fans to alternate between silent and very loud12. This is because the CPU fan cannot maintain a consistent speed and airflow to keep the CPU at a safe temperature. When the CPU gets too hot, it throttles its performance to avoid overheating, which results in a slower computer. The other fans in the computer also try to compensate for the lack of cooling from the CPU fan by spinning faster and louder2.

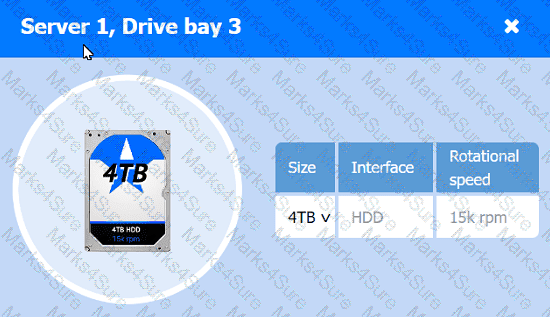

Since the RAID card does not support hot swapping, the technician needs to shut down the server and check the RAID controller’s status to verify RAID health. S.M.A.R.T. is a feature of hard drives, not RAID cards. Replacing the failed drive while users are connected could cause data loss or corruption. Physically cleaning the HDDs and connectors is unlikely to solve the slow boot time and performance issues.

 The message “The amount of system memory has changed” indicates that there is a problem with the random access memory (RAM) modules in the computer. The RAM may be loose, faulty, or incompatible with the motherboard or other components. The GPU, HDD, and CPU are not directly related to system memory and would not cause this message to appear.

A private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network. A private cloud can offer more security and control than other cloud models, as well as customized infrastructure that suits the organization’s needs. A bank would most likely choose a private cloud model to leverage cloud computing while maintaining isolation from other businesses. A public cloud is a cloud computing model that provides services and resources to anyone over the internet. A hybrid cloud is a combination of public and private cloud services that share data and resources.

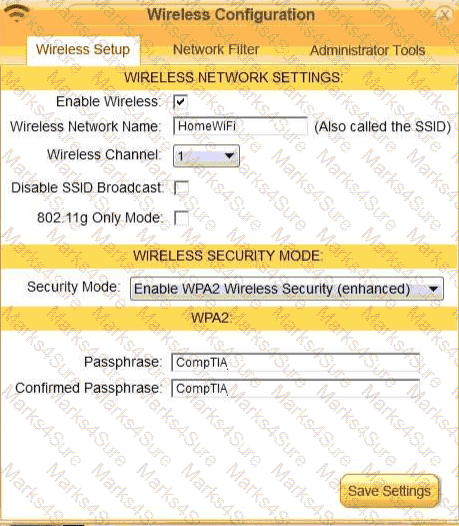

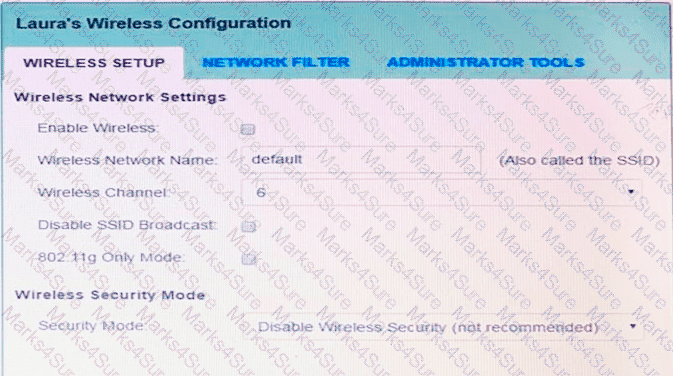

Checking if the password and SSID are correct is the best step that the technician should take to resolve the issue of a user being unable to access the SOHO wireless network after replacing the gateway. The new gateway may have a different password and SSID than the old one, which would prevent the user from connecting to the wireless network. The technician should verify that the user has entered the correct password and SSID for the new gateway. Assessing the network cables for damage, disabling Bluetooth connections, or updating the firmware are not likely to solve the issue, as they are not related to the wireless network authentication

The MX record is housed in the DNS (Domain Name System) which is responsible for translating domain names into IP addresses and vice versa. The MX record specifies the mail server responsible for accepting email messages on behalf of a domain name and is a resource record in the DNS123.

A faulty battery could cause a tablet to restart on its own and have intermittent issues with charging. Water damage could also cause these symptoms, but it is not the most likely cause unless there is evidence of liquid exposure. Incorrect OS version could cause compatibility or performance issues, but not charging problems. Damaged charging port could prevent the tablet from charging, but not cause it to restart randomly.

This is because HDMI (High-Definition Multimedia Interface) is a digital video cable that can also carry audio signals1. HDMI cables are commonly used to connect devices like Blu-ray players, game consoles, and streaming boxes to HDTVs and monitors. The other options are not capable of carrying audio signals. VGA (Video Graphics Array) is an analog video cable that only carries RGBHV signals12. S-Video (Super Video) is another analog video cable that carries separate luminance and chrominance signals1. DVI (Digital Visual Interface) is a digital video cable that can carry either analog or digital signals, but not audio1.

Calibrating the touch screen is the best action to resolve the issue of inaccurate touch input. Calibration adjusts the touch screen’s sensitivity and alignment to match the user’s touch. Resetting the mobile device could erase user data and settings and may not fix the touch screen issue. Replacing the LED screen or updating the mobile device are unnecessary and costly actions that may not solve the problem.

The best choice for the user's laptop is a 1TB NVMe SSD. NVMe (Non-Volatile Memory Express) is a high-performance storage protocol designed specifically for solid-state drives (SSDs). It is significantly faster than SATA SSDs and SAS hard drives, making it ideal for users who need fast storage for their laptop. NVMe SSDs also have lower latency and higher bandwidth than traditional hard drives, making them well-suited for data-intensive tasks such as video editing, gaming, and running multiple applications simultaneously. Additionally, NVMe offers more reliable data reliability than traditional hard drives, and is less susceptible to performance degradation over time.

To increase the volume on a laptop using only a keyboard, a user can press and hold down the Fn key while pressing one of the function keys (usually F1-F12) that has an icon representing volume up.

One of the possible causes of random and incorrect characters appearing on print jobs sent to a laser printer is an outdated or corrupted driver. The driver is a software component that communicates between the operating system and the printer, and converts data into a format that the printer can understand. If the driver is outdated or corrupted, it may send incorrect or garbled data to the printer, resulting in poor print quality or errors. The technician should update the driver to the latest version from the manufacturer’s website, or uninstall and reinstall it if necessary. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 47)
