Free Practice Questions for the CompTIA A+ 220-1201 Exam (2026 Updated)

The best answer is B. Reconnect the wireless antennas. Laptop display assemblies commonly contain more than just the screen. The Quentin Docter study guide explains that laptop display components may include the display panel, webcam, microphone, inverter, and Wi-Fi antenna. It also states that Wi-Fi antenna wiring is generally routed through the upper half of the clamshell case, down through the hinge, and to the motherboard or wireless NIC. During display assembly removal, the technician disconnects the wireless NIC, display cable, and touch-screen cable, and the guide notes that the NIC antenna wires travel with the display assembly. Therefore, after replacing the display assembly, reconnecting the wireless antennas is a required step to restore wireless functionality. Reattaching heat sinks and installing a CPU fan relate to CPU cooling, not display replacement. Resetting BIOS defaults is unrelated unless a firmware setting caused a specific issue, which is not indicated here. The display assembly procedure directly supports reconnecting the antenna wiring.

=========

If a desktopfails to power on entirely, the most probable cause is afaulty Power Supply Unit (PSU). If there are no lights, fans, or POST beeps, the PSU may have failed, cutting off all power to the motherboard and components.

Option B (GPU):Could prevent video output, but the system would still power on and beep.

Option C (RAM):Missing or faulty RAM would cause POST errors but not prevent startup entirely.

Option D (CPU):A bad CPU may cause POST failure, but the system would usually at least power on.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

===========

The correct answer is B. Reconnect the wireless antennas.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Laptop Maintenance:

Many laptop wireless antennas are routed through the display assembly to provide optimal Wi-Fi and Bluetooth signal strength.

When replacing a laptop display, it is essential to disconnect and then reconnect the wireless antennas to ensure proper connectivity.

Failing to reconnect these antennas can result in weak or no wireless signal.

Why the other options are incorrect:

A. Reattach the heat sinks: Heat sinks are part of the CPU/GPU cooling assembly and are unrelated to replacing the display.

C. Install a new CPU fan: CPU fans are part of the cooling system, not the display assembly.

D. Reset the BIOS to default settings: Not required for physically replacing the display; the BIOS retains settings independently of display hardware.

The correct answer is D. SMTP (Simple Mail Transfer Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

SMTP is the standard protocol used to send emails from a client to a mail server or between servers.

POP3 (Post Office Protocol 3) and IMAP (Internet Message Access Protocol) are used for receiving emails, not sending them.

LDAP (Lightweight Directory Access Protocol) is used for accessing and managing directory services, such as authentication and organizational information, not for email transport.

CompTIA A+ explains that Secure Boot is a UEFI security feature that prevents unauthorized or malicious bootloaders, rootkits, and unsigned OS loaders from starting during the boot process. Secure Boot verifies digital signatures on the OS and critical boot files before allowing startup, ensuring the system has not been tampered with.

TPM (Option A) provides encryption key storage and is used for BitLocker, but alone does not block malicious bootloaders. HSMs (Option B) are enterprise cryptographic devices, not PC boot protection features. BIOS passwords (Option D) restrict access to configuration but do not protect against malicious boot-level malware.

Windows 11 specifically requires Secure Boot, making it the correct protection mechanism for preventing startup-level malware.

Thus, Secure Boot is the proper choice.

In the CompTIA A+ Core 1 (220-1201) networking concepts, satellite internet is commonly associated with higher (increased) latency compared with terrestrial options like cable, fiber, or DSL. Latency is the delay between sending data and receiving a response. With satellite, signals must travel from the user’s dish up to a satellite and then back down to a ground station (and return again for responses). That long travel distance adds noticeable delay, which can affect real-time activities such as VoIP, video conferencing, and online gaming. Even though newer low-earth-orbit (LEO) systems can reduce latency compared with older geostationary systems, satellite service is still generally discussed in A+ as having higher latency characteristics to consider.

The other options do not best fit satellite internet. Proximity to urban infrastructure (A) is more relevant to cable/fiber availability. An eSIM requirement (B) relates to cellular/mobile service, not satellite broadband. Line of sight to a nearby tower (C) describes cellular or fixed wireless services that depend on tower connectivity; satellite instead needs a clear view of the sky toward the satellite (not a nearby tower). Therefore, increased latency is the best characteristic to consider.

The correct answer is D. Router.

According to the CompTIA A+ Core 1 (220-1201) objectives for Networking, routers are devices that operate at Layer 3 (Network layer) and are primarily used to connect multiple networks, including LANs, WANs, and the Internet. Routers use IP addressing to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Controller: Generally refers to a device that manages a network or hardware component but does not inherently connect different networks.

B. Bridge: Connects two segments of the same network, not different networks, and operates at Layer 2 (Data Link layer).

C. Hub: Connects devices within the same network segment, simply repeating signals, and does not perform routing between networks.

When a printout is being cut off, CompTIA A+ Core 1 (220-1201) troubleshooting emphasizes checking the simplest, most likely configuration mismatch first—the printer’s paper size/source settings. Even if the user physically loaded the correct paper, the print job can still be formatted incorrectly if the printer driver, application, or printer itself is set to use a different paper size or a different tray. If the printer thinks it is using a smaller paper size (or a tray configured for smaller paper), it may clip the printable area and truncate the image at the edges.

Changing tray settings (paper size and paper source) aligns the printer’s configuration with the actual media installed, which is a standard first-step for issues related to formatting, clipping, and page boundaries. Image quality (DPI) affects sharpness, not cropping. File type rarely causes consistent edge cutoff compared with page setup mismatches. Adjusting image size could work as a workaround, but CompTIA best practice is to correct the paper/tray and page setup settings first so all prints format properly without editing the document each time.

The correct answer is D. Check for loose connections on the display.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Troubleshooting:

Flickering or strange colored lines on a monitor are often caused by loose or damaged video cable connections (internal or external).

Before considering costly or time-consuming solutions like replacement, the technician should verify that the display cable, internal ribbon cables, or connectors are properly seated.

Why the other options are incorrect:

A. Suggest a secondary monitor: Provides a temporary workaround but does not resolve the underlying hardware issue.

B. Conduct a factory reset: Resets software settings but will not correct physical connection problems that cause flickering or colored lines.

C. Install a screen protector: Does not affect video signal or display functionality; irrelevant for flickering issues.

correct answer is " Overclocking " and " Reduce CPU Clock speed " CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

Because the smudges are not in the original document, CompTIA A+ troubleshooting logic indicates the problem is occurring inside the print process, not in the application or file. For laser printers, smudging commonly points to an issue with the imaging components—especially the drum/photoconductor unit (and sometimes the fuser). A+ Core 1 (220-1201) printer troubleshooting emphasizes starting with the most likely, easiest-to-verify causes before replacing parts. Inspecting the drum is a diagnostic step that can reveal visible defects such as scratches, toner buildup, contamination, or worn surfaces that cause toner to transfer incorrectly, leading to streaks or smears on output.

Replacing the toner (D) is a corrective action and may be unnecessary if the drum is damaged. Changing paper type (A) can help with some issues (like poor fusing or humidity-related problems), but it’s less directly tied to consistent smudges caused by the imaging process. Firmware updates (C) are rarely the first step for print-quality defects; they’re more relevant to compatibility, bugs, or feature issues—not physical smearing. Therefore, inspecting the printer drum first best matches A+ methodology and common laser printer failure points.

The correct answer is A. Containers.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Containers provide lightweight, portable environments that package applications and their dependencies, allowing them to run consistently across multiple environments.

Containers are ideal for development teams because they require minimal underlying infrastructure, can be quickly deployed or destroyed, and isolate applications from the host system, making it easier to manage multiple applications simultaneously.

Why the other options are incorrect:

B. IaaS (Infrastructure as a Service): Provides virtualized hardware over the cloud but is more general-purpose; it includes virtual machines, storage, and networking, not minimal isolated application environments.

C. SaaS (Software as a Service): Provides fully managed software to end-users; not intended for deploying custom web applications by a development team.

D. Desktop virtualization: Provides virtual desktop environments to users; it does not provide a minimal, disposable platform for web application development.

In CompTIA A+ Core 1 (220-1201) cloud concepts, the key differentiator between cloud deployment models is where the service is hosted and who owns/uses the underlying infrastructure. If a company’s directory services server (for example, a domain controller providing authentication/authorization and centralized identity management) is located on premises, that points to infrastructure that is owned and operated by the organization for its own internal use. This aligns best with a private cloud model, which is defined as cloud resources dedicated to a single organization and can be implemented on-premises (internally hosted) or in a dedicated off-site environment.

It is not a public cloud because public cloud services are hosted by a third-party provider and shared across multiple customers. It is not hybrid cloud because hybrid requires a mix of on-prem resources and public cloud resources working together (the question only specifies on-prem). It is not community cloud because that involves shared infrastructure among multiple organizations with common needs.

The correct answer is D. Restart the device.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

Warning messages like this can be caused by malicious pop-ups or temporary software glitches. Restarting the device is the safest and quickest first step to clear temporary processes, refresh the system, and remove transient malware or pop-up overlays.

This approach addresses the issue without risking data loss or unnecessary downtime.

Why the other options are incorrect:

A. Force close all running applications: May help if a specific app is causing the pop-up, but restarting achieves this more reliably and fully resets background processes.

B. Replace the tablet with a newer device: Unnecessary and costly for a potentially temporary software issue.

C. Reset the device to default settings: This is a last-resort action, as it erases personal data and settings; it is not the first step.

The correct answer is A. Duplex.

In the CompTIA A+ Core 1 (220-1201) exam objectives under printer settings and configuration, duplex printing refers to printing on both sides of the paper automatically.

Using duplex printing is the best way to reduce resource consumption because:

It cuts paper usage in half, which is the primary resource being conserved.

It is ideal for multi-page documents and multiple copies.

It reduces physical storage and handling requirements.

Why the other options are incorrect:

B. Orientation

Orientation (portrait or landscape) changes the layout of the document but does not reduce resource usage.

C. Tray settings

Tray settings determine which paper tray is used (e.g., plain paper, letterhead), but they do not impact resource consumption.

D. Quality

Print quality (draft, normal, high) may affect ink/toner usage, but it does not reduce paper consumption as effectively as duplex printing, which is the main resource concern in this scenario.

Final Answer: A. Duplex

The correct answer is A. Better compatibility.

According to CompTIA A+ Core 1 220-1201 objectives under Software Troubleshooting and Virtualization:

Application virtualization allows applications to run in an isolated environment on a client device without being installed directly on the operating system.

This improves compatibility, as applications can operate regardless of OS differences, avoiding conflicts with other installed applications or system configurations.

Why the other options are incorrect:

B. Reduced network latency: Application virtualization does not inherently reduce network latency; network performance depends on connectivity.

C. Secure telnet access: Telnet is unrelated to application virtualization.

D. Metered utilization: Metering refers to cloud service usage or billing, not a benefit of application virtualization itself.

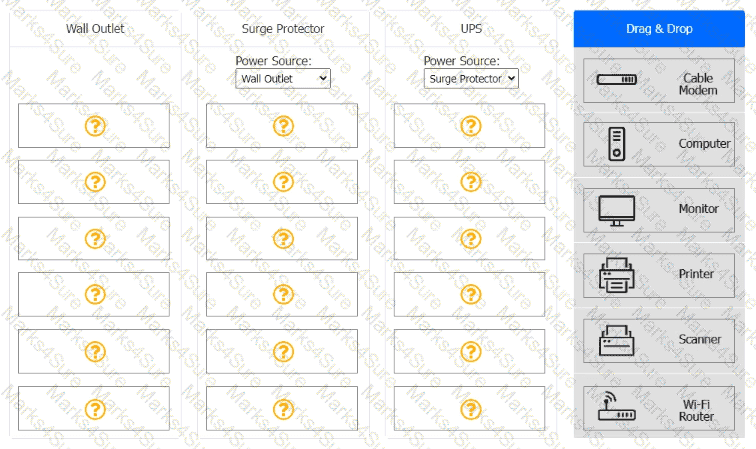

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

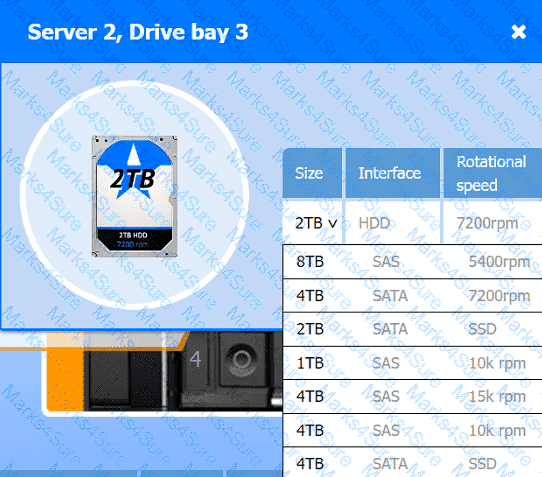

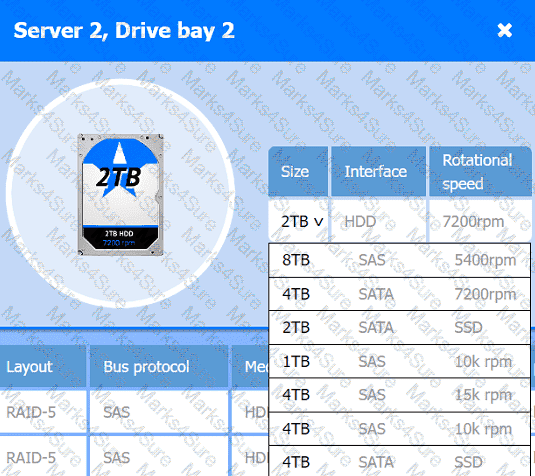

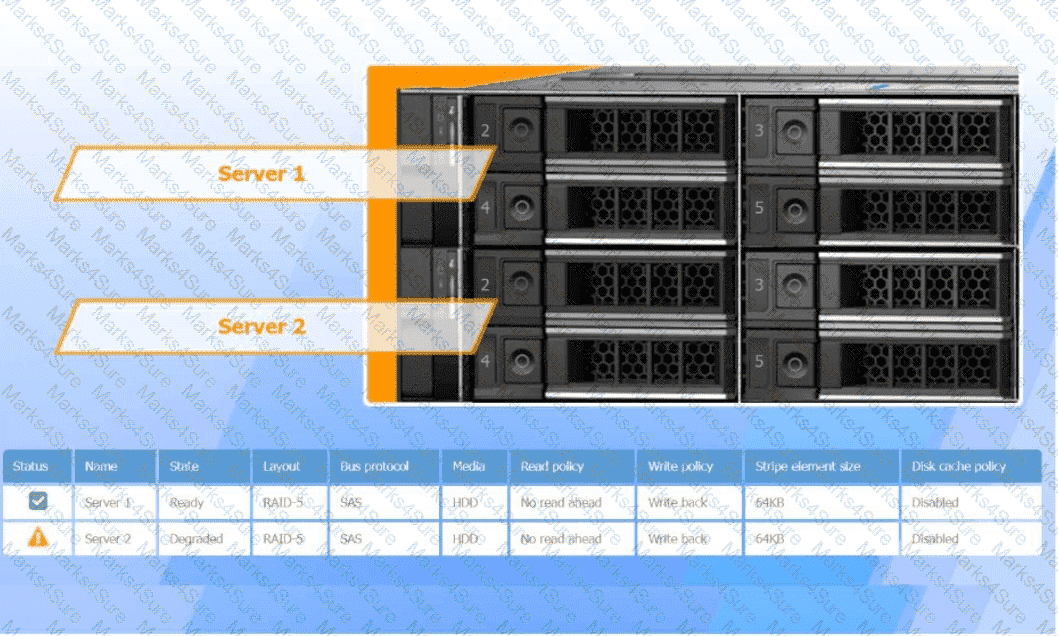

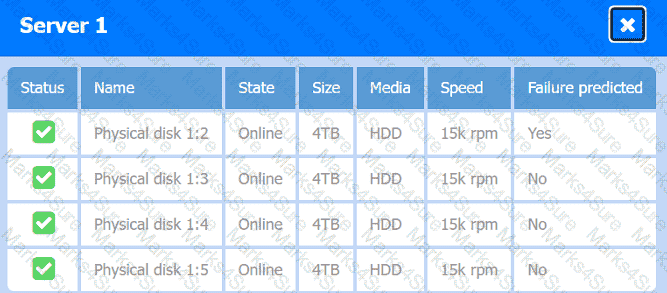

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

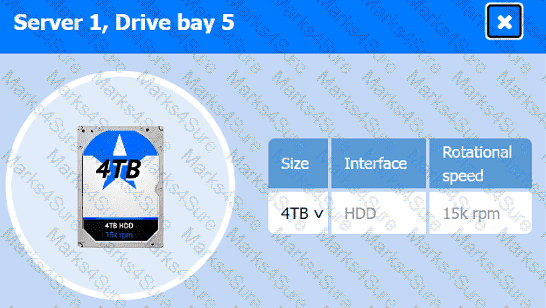

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

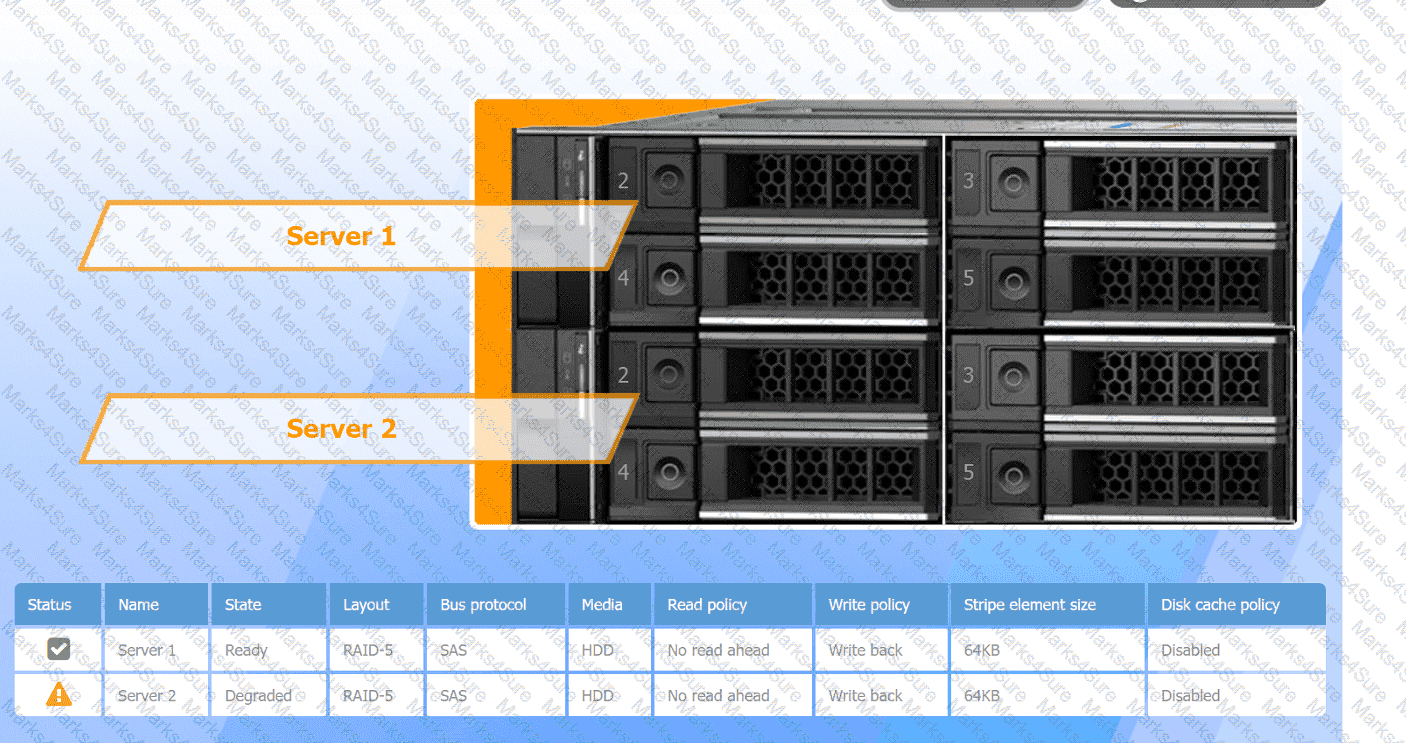

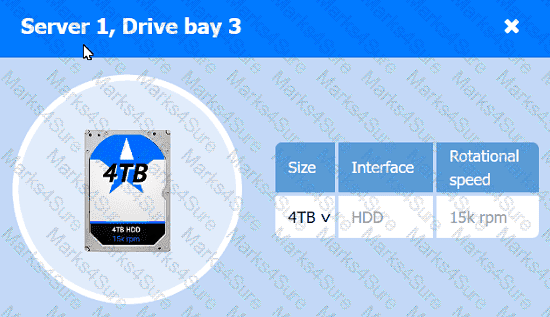

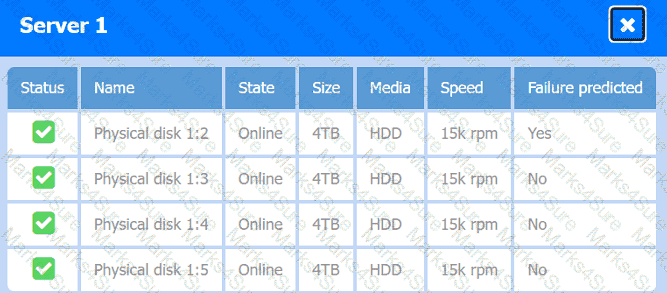

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

The correct answer is B. Change the fuser temperature.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

A laser printer fuses toner onto paper using heat and pressure. Thicker paper often requires a higher fuser temperature to properly adhere the toner.

If the output smudges on thick paper but prints fine on standard paper, adjusting the fuser temperature is the first step before performing more invasive maintenance or replacing parts.

Why the other options are incorrect:

A. Install a maintenance kit: Typically includes rollers, belts, and other parts; this is not the first action if the issue is temperature-related.

C. Clean the transfer roller: Cleaning may improve print quality, but smudging on thick paper usually relates to insufficient fusing heat.

D. Install an OEM toner cartridge: The issue is unlikely to be caused by non-OEM toner if standard paper prints correctly.

Scan-to-email functions rely on the printer sending scanned documents to an email server. CompTIA A+ identifies SMTP (Simple Mail Transfer Protocol) as the protocol responsible for sending email messages from clients to mail servers. When configuring scan-to-email, the technician must enter:

SMTP server address

Authentication credentials

Port number (25, 465, or 587)

Encryption type (TLS/SSL)

Without SMTP, the printer cannot transmit emails.

SMS (A) refers to text messaging. SFTP (C) is secure file transfer, common for scan-to-folder workflows, not email. SMB (D) is used for Windows file sharing.

Therefore, the correct protocol is SMTP.

Most meeting or conferencing applications default to the built-in laptop camera unless manually changed. When an external camera is connected, the software may continue to use the default device, resulting in a blank preview, especially if the internal camera is disabled, covered, or malfunctioning. CompTIA A+ stresses verifying correct device selection when peripherals are installed.

Selecting the correct camera source is a quick, non-invasive test that resolves the issue in the majority of cases. The technician should open the application’s video settings and choose the external webcam from the camera dropdown menu.

Replacing the camera (B) is premature without confirming configuration. Updating software (C) is beneficial but will not resolve a simple input-selection error. Checking the cable (D) is a valid step if the preview still fails after selecting the device.

Thus, the correct next step is to select the proper camera source.

For a main database server with high read/write activity, the best RAID choice must deliver strong performance while still providing fault tolerance. Per CompTIA A+ Core 1 (220-1201) storage/RAID objectives, RAID 10 (1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0). Striping improves performance by distributing read/write operations across multiple disks, which is ideal for databases that perform frequent transactions. Mirroring provides redundancy by keeping an identical copy of data on a paired drive, allowing the system to tolerate drive failures (typically one drive per mirrored pair) without data loss.

RAID 0 is fast but offers no redundancy, making it inappropriate for critical servers. RAID 5 and RAID 6 use parity, which provides redundancy but introduces a write penalty because parity must be calculated and written during updates—often a poor fit for workloads with heavy random writes like databases. RAID 6 is even more write-intensive

A VLAN (Virtual Local Area Network) is a network technology used to logically segment a physical network into multiple distinct broadcast domains, even if they share the same hardware.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Compare and contrast common networking hardware:

“VLANs allow network administrators to segment a network logically, isolating broadcast traffic and improving security and management, regardless of the physical network layout.”

Other options explained:

MAC (Media Access Control) is a hardware address, not a segmentation method.

NIC (Network Interface Card) is network hardware, not for logical segmentation.

DSL (Digital Subscriber Line) is an internet connection type.

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Concepts

CompTIA Exam Objectives 220-1101, Domain 2.2

A private cloud is the best choice when an organization requires ownership and control of all physical hardware. In CompTIA A+ terms, a private cloud is a cloud deployment model where the cloud infrastructure is dedicated to a single organization and can be implemented on-premises (or hosted for that organization only). If the requirement explicitly states the organization must own the servers, storage, and network equipment, that aligns with a private cloud built and maintained using the organization’s own datacenter resources. This provides greater control over security, compliance, customization, and data governance compared with shared models.

A public cloud is owned and operated by a third-party provider, so the organization does not own the underlying hardware. A hybrid cloud combines private and public components; since part of it relies on provider-owned infrastructure, it does not meet the requirement of owning all physical hardware. IaaS and PaaS are cloud service models (what is consumed), not deployment/delivery models (how it is deployed), and they commonly run on provider-owned hardware as well. Therefore, Private cloud is the correct answer.

A loopback plug is a diagnostic tool used to test whether a physical port such as an Ethernet NIC port or serial port is capable of sending and receiving its own signal. When inserted, it “loops” outgoing signals back into the device, confirming the port ' s transmit/receive functionality.

CompTIA A+ emphasizes loopback plugs as essential tools during hardware and network troubleshooting, especially when isolating physical port or NIC failures.

Network taps passively monitor traffic, crimpers attach RJ45 connectors to cables, and patch panels organize cabling none of these verify port-level functionality. Therefore, only a loopback plug can confirm that a port is working correctly by testing signal integrity and hardware responsiveness.

The correct answer is B. NVMe SSD.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Storage:

NVMe (Non-Volatile Memory Express) SSDs provide the fastest data access and retrieval speeds compared to other storage types, especially on laptops. NVMe SSDs use the PCIe interface, which allows significantly higher throughput and lower latency than SATA-based storage.

This improves boot times, application load times, and overall system responsiveness.

Why the other options are incorrect:

A. SATA M.2: While faster than traditional 2.5” SSDs and HDDs, SATA M.2 is limited by the SATA III interface (~600 MB/s), which is slower than NVMe SSDs (~3,000–7,000 MB/s).

C. Optical disk: Optical media (CD/DVD/Blu-ray) is extremely slow and not suitable for quick access or retrieval.

D. 7,200rpm HDD: Mechanical hard drives have the slowest access times and throughput compared to SSDs.

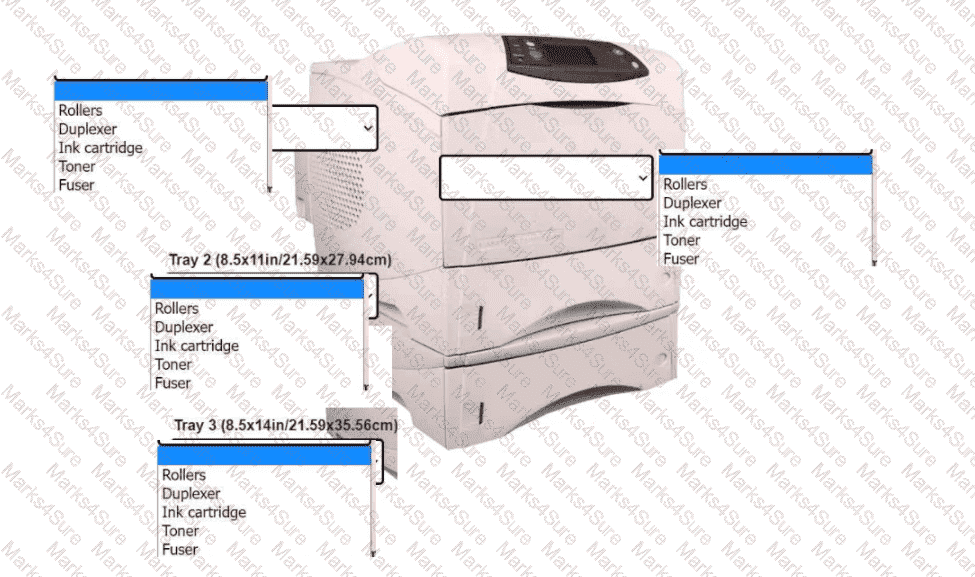

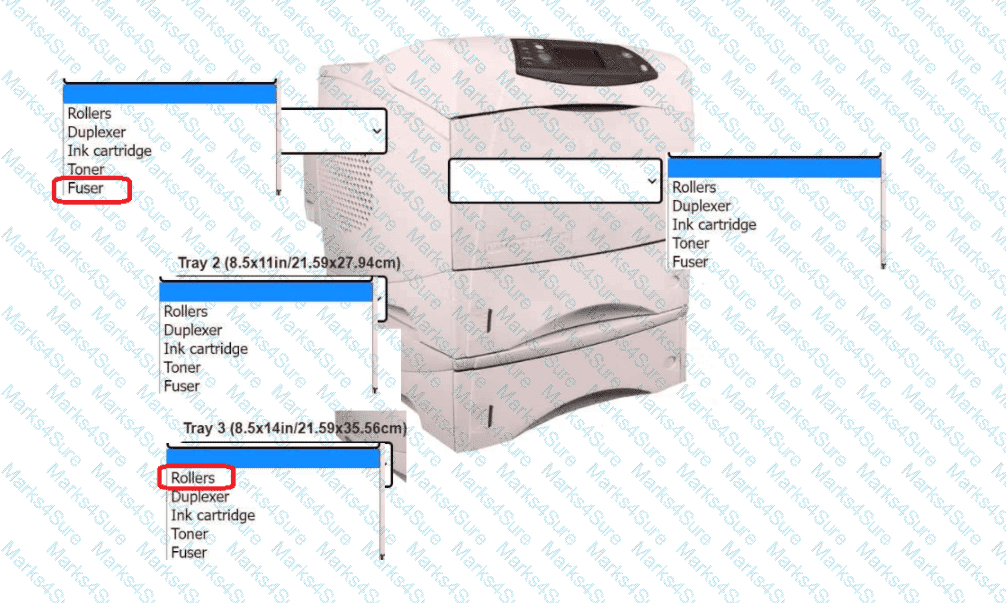

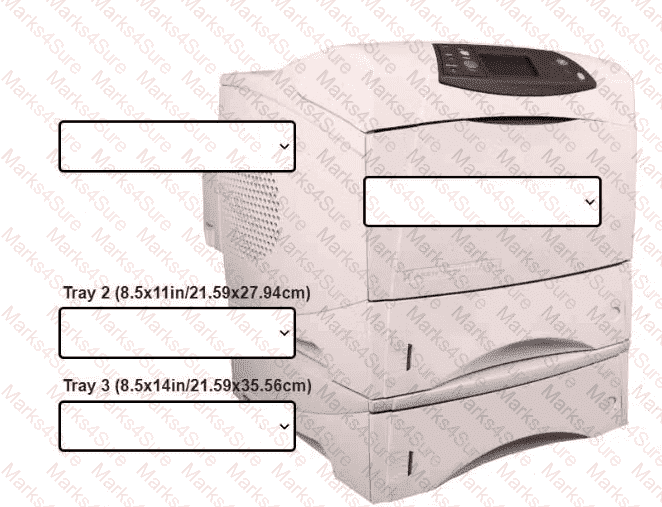

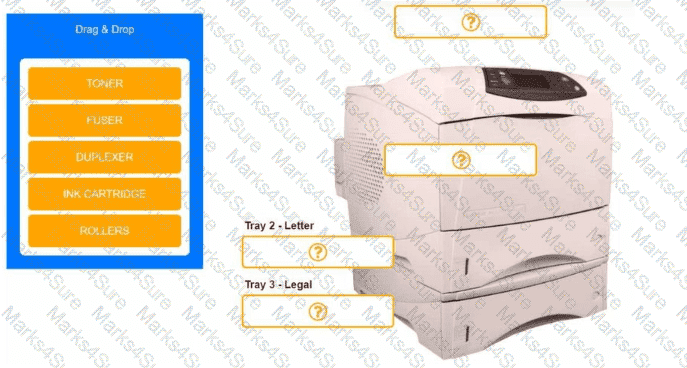

A printer with text boxes AI-generated content may be incorrect.

Near-field communication (NFC) is a short-distance wireless communication method widely used in mobile payment systems like Apple Pay and Google Pay. Simply placing the device near a compatible terminal initiates the payment process.

Upgrading to asolid-state drive (SSD)providesmore storage spaceandfaster read/write speeds, which resolves both the “insufficient storage” error and slow application loads.

Option B (USB):Not intended for permanent application storage or performance improvements.

Option C (HDD):Could solve storage capacity but would not improve speed.

Option D (RAM):Affects multitasking and memory-intensive tasks, not storage capacity directly.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

TPM 2.0 (Trusted Platform Module) is often disabled by default in the UEFI BIOS. Enabling it is necessary to meet the requirements for certain Windows installations, including Windows 11.

Why Not B (Install an HSM): A Hardware Security Module (HSM) is a separate device used for cryptographic functions and is not related to TPM on the motherboard.

Why Not C (Perform a clean install): A clean installation will not bypass the TPM 2.0 requirement.

Why Not D (Implement BitLocker): BitLocker requires TPM but does not resolve its absence or lack of activation.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.4, BIOS/UEFI configuration​.

When a laptop powers on but the screen is blank, the quickest way to isolate the problem is to connect to an external monitor. This helps determine if the issue is with the laptop display or with the graphics subsystem.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 – Troubleshoot common hardware problems:

“A blank screen on a laptop with power indicators lit should be tested with an external display first to rule out a faulty screen or ribbon cable.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Laptop Display Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.1

============

The correct answer is D. RAID 10 (also called RAID 1+0).

According to CompTIA A+ Core 1 220-1201 objectives under Storage:

RAID 10 combines the mirroring of RAID 1 with the striping of RAID 0. This provides both high data availability (because each drive has a mirror) and improved performance (because data is striped across multiple disks).

RAID 10 requires a minimum of four drives and is suitable for servers that handle high I/O workloads while maintaining redundancy.

Why the other options are incorrect:

A. RAID 1: Provides mirroring for redundancy but does not improve performance as effectively as RAID 10.

B. RAID 0: Provides striping for performance but has no redundancy; a single drive failure results in data loss.

C. RAID 5: Provides parity and can tolerate one drive failure with decent read performance, but write performance is lower than RAID 10 and rebuilds can impact system performance under heavy load.

NFC (Near-Field Communication)operates atvery short ranges usually less than 4cm, and is ideal for quick, secure transactions like contactless payments.Bluetoothsupportslonger ranges (up to 10 meters or 32 feet)and is suited for ongoing connections like wireless headsets or file transfers.

Option A:Bluetooth is faster for large file transfers.

Option B:NFC usesless power, not more.

Option C:NFC doesnotrequire pairing Bluetooth does.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.5: Given a scenario, connect and configure accessories and ports of mobile devices.

===========

When a workstation automatically assigns itself an IP address that is not part of the DHCP lease pool, the system has most likely configured an APIPA (Automatic Private IP Addressing) address. According to CompTIA Core 1 (220-1201) networking fundamentals, APIPA addresses fall within the range 169.254.0.0/16 and are assigned when a device cannot communicate with a DHCP server.

APIPA allows limited local network communication but does not provide access to the internet or network resources such as internal file shares that require routing or proper IP configuration. This explains why the workstation experiences connectivity issues.

A static IP address is manually configured and would not be automatically assigned. A DHCP address would come from the defined lease pool, which the technician has confirmed is not the case. A public IP address is assigned by an ISP and is not used directly on internal workstations.

CompTIA highlights APIPA as a key troubleshooting indicator of DHCP failure or network connectivity issues, making it the correct answer.

BitLocker Drive Encryption in Windows requires aTrusted Platform Module (TPM)to encrypt the boot drive securely. The TPM is a dedicated microcontroller designed to secure hardware through integrated cryptographic keys. It validates system integrity during boot and securely stores the encryption keys. If BitLocker cannot find a TPM or it is disabled in BIOS/UEFI, drive encryption cannot proceed.

BitLocker can function without TPM using a USB startup key, but this compromises some security and is not recommended for managed enterprise environments.

The correct answer is B. Inspect and replace the printer rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams with no visible obstruction are often caused by worn or dirty feed rollers, which fail to grip and feed paper properly.

Inspecting and replacing the rollers ensures smooth paper feeding and prevents repeated jams, particularly in high-use network printers.

Why the other options are incorrect:

A. Check for firmware updates: Firmware updates address software or functionality issues, not mechanical paper feeding problems.

C. Reseat the fuser assembly: Fuser issues typically cause smudging or incomplete toner adhesion, not paper jams.

D. Clean the corona wire: The corona wire affects toner adhesion and print quality, not paper feeding.

B. Correct the keystone:

A keystone correction adjusts the image shape when a projector is angled either up or down. When a projector is not positioned directly perpendicular to the screen, the image becomes distorted or offset. Correcting the keystone will resolve alignment issues, ensuring that the presentation matches the display.

Incorrect Options:

A. Adjust the color settings: This is used for improving color balance and has no impact on ghosting or mismatched images.

C. Increase the brightness levels: Brightness changes the visibility of the image but does not address ghosting or alignment.

D. Replace the monitor: Replacing the monitor is unnecessary unless there is hardware failure, which is not indicated here.

Key Takeaway: Keystone correction is essential to resolve alignment and distortion issues in projected images.

The correct answer is C. ECC (Error-Correcting Code).

In the CompTIA A+ Core 1 (220-1201) hardware objectives, RAM types and features include technologies designed to improve reliability and data integrity.

ECC memory is specifically designed to detect and correct data errors (faults) in memory automatically. It uses additional bits to store error-checking information, allowing the system to:

Detect single-bit and some multi-bit errors

Automatically correct errors without system interruption

Improve system stability, especially in servers and critical systems

This makes ECC the best choice for recovering from data faults.

Why the other options are incorrect:

A. Capacity

Capacity refers to how much data the RAM can hold (e.g., 8GB, 16GB). It has nothing to do with error detection or correction.

B. Speed

Speed (measured in MHz or MT/s) affects performance but does not provide any fault recovery capability.

D. DDR

DDR (Double Data Rate) refers to the generation/type of RAM (e.g., DDR3, DDR4, DDR5). It improves performance but does not handle errors.

E. Parity

Parity memory can detect errors but cannot correct them. Since the question specifically asks for recovery from faults, ECC is the correct answer because it both detects and corrects errors.

Final Answer: C. ECC

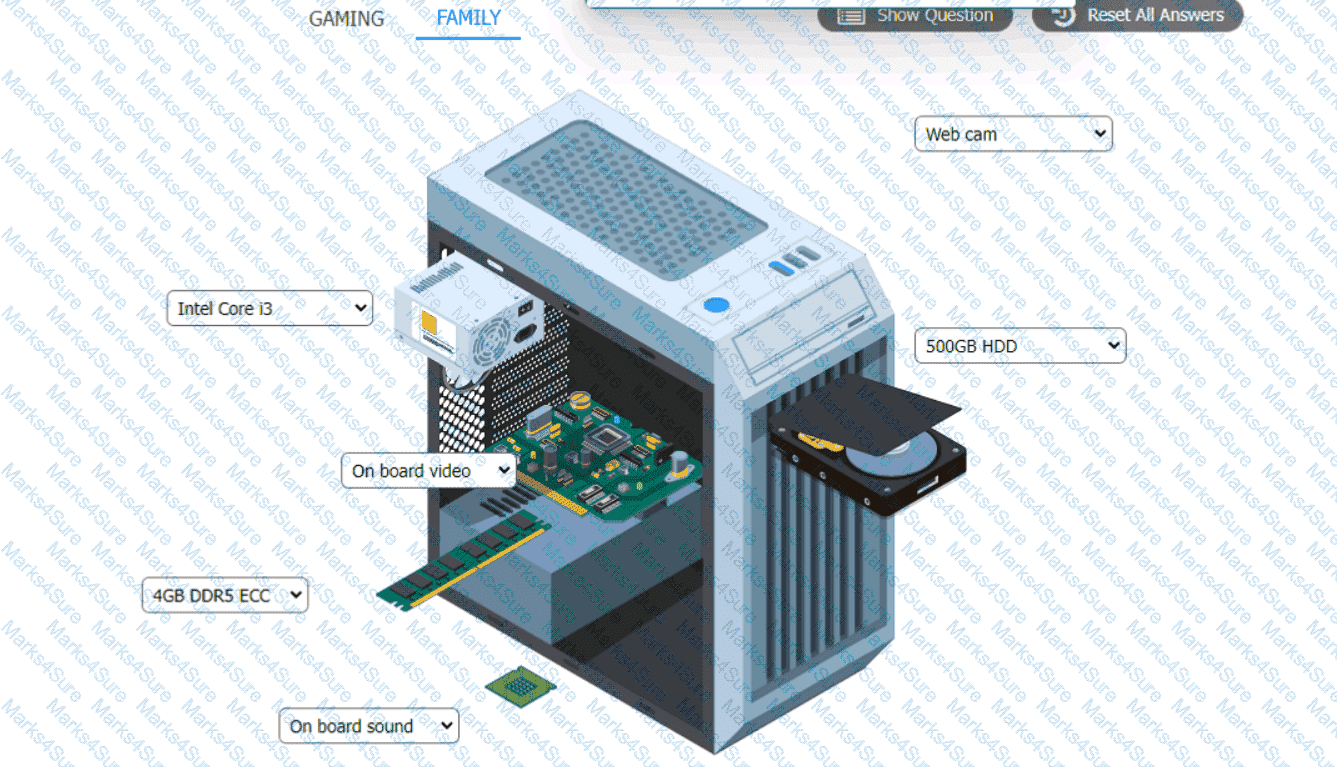

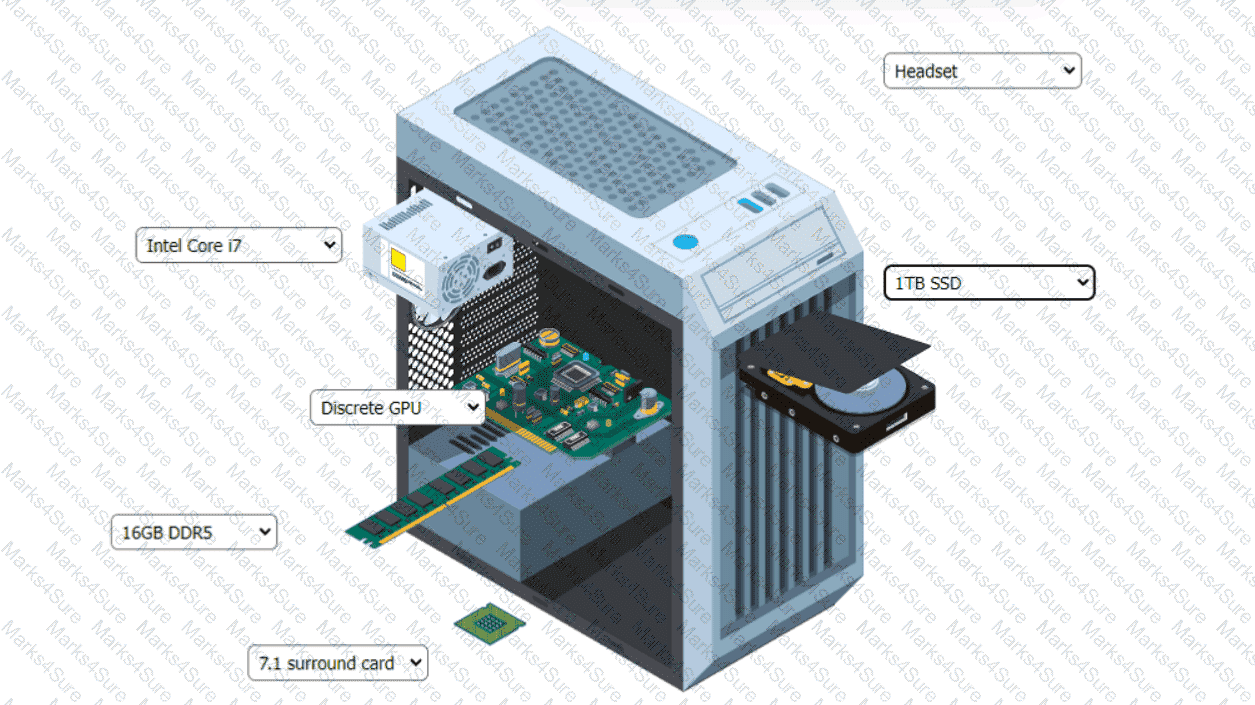

The best answer provided is A, although it is important to note that the question is somewhat misleading because it asks about motherboard selection but provides mostly incorrect or irrelevant motherboard-related options.

For high-performance workloads such as video editing and virtual reality (VR) using an Intel Core i9 processor and multiple graphics cards (multi-GPU setup), system design considerations include high power consumption and significant heat output. In the CompTIA A+ Core 1 220-1201 objectives under hardware planning and troubleshooting, high-performance CPUs and multiple GPUs require adequate thermal management solutions, including advanced cooling systems (air or liquid cooling) to ensure system stability and prevent thermal throttling.

Why A is the best answer:

High-end CPUs like Intel Core i9 and multiple GPUs generate substantial heat.

Proper cooling is essential for maintaining performance under sustained load (video rendering, VR workloads).

While not strictly a motherboard feature, cooling is a critical system requirement for such a build.

Why the other options are incorrect:

B. Use DDR3 RAM for increased compatibility

Incorrect because modern Intel Core i9 platforms use DDR4 or DDR5, not DDR3, which is obsolete and incompatible with current high-performance motherboards.

C. Verify there are two PCIe x1 slots for additional devices

Incorrect because PCIe x1 slots are used for low-bandwidth devices (sound cards, network cards), not graphics cards.

Multiple GPUs require PCIe x16 slots, not x1.

D. Select a motherboard with integrated graphics to support video output

Incorrect because high-performance systems with discrete GPUs rely on those GPUs for rendering. Integrated graphics are unnecessary and sometimes disabled when a dedicated GPU is installed.

Exam Insight (CompTIA A+ perspective):

In real-world A+ Core 1 scenarios, the correct motherboard selection for this requirement would focus on:

Multiple PCIe x16 slots (for multi-GPU support)

Compatible socket for Intel Core i9

Support for modern RAM (DDR4/DDR5)

Adequate chipset and power delivery (VRM design)

Proper cooling solution for thermal management

However, since those correct motherboard specifications are not provided in the options, A is the only viable system-level requirement relevant to stability under high-performance load.

A Lightning cable provides the best connectivity performance when you want strong, stable connectivity while keeping required accessories to a minimum. In a mobile troubleshooting and connectivity context, this refers to USB tethering from an iPhone to another device (such as a laptop). Wired tethering typically offers higher throughput, lower latency, and better stability than wireless tethering methods because it avoids Wi-Fi interference, signal loss, and radio congestion. It also reduces configuration variables—once the cable is connected and tethering is enabled, the connection is generally consistent and less prone to dropouts than wireless options.

A hotspot can provide good performance, but it relies on Wi-Fi and is more susceptible to interference and distance, and it also increases battery drain. Bluetooth tethering works with minimal setup but is usually the slowest option and is best suited for low-bandwidth needs. NFC is used for short-range pairing or tap-to-connect actions and does not provide an internet data connection by itself. Therefore, the best option for performance with limited accessories is using a Lightning cable.

Channel configuration(e.g.,dual-channel,quad-channel) determines how memory modules communicate with the memory controller. Usingmatched pairs in dual- or quad-channel setupscan significantlyincrease memory bandwidth, improving performance especially for gaming and video-intensive tasks.

Option A (Error correction):ECC RAM is used in servers for reliability, not performance or gaming.

Option B (RAM voltage):Affects compatibility and overclocking but not bandwidth.

Option D (Physical size):Refers to module form factor (e.g., DIMM, SO-DIMM) and does not impact bandwidth.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.2: Given a scenario, install RAM types.

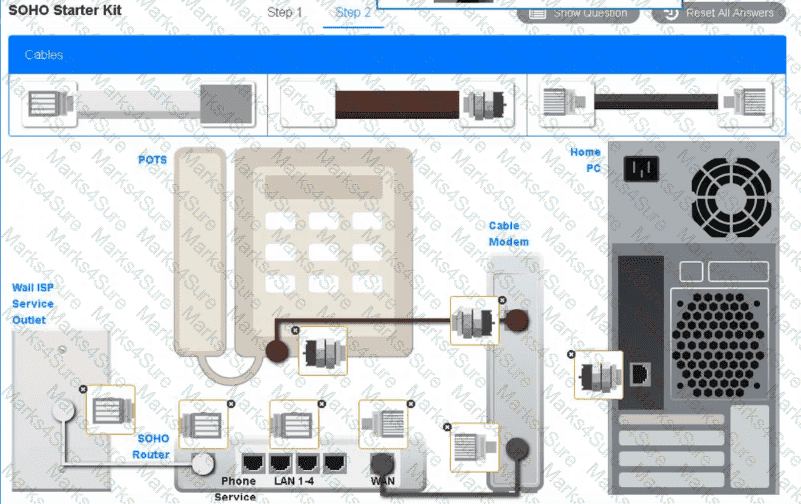

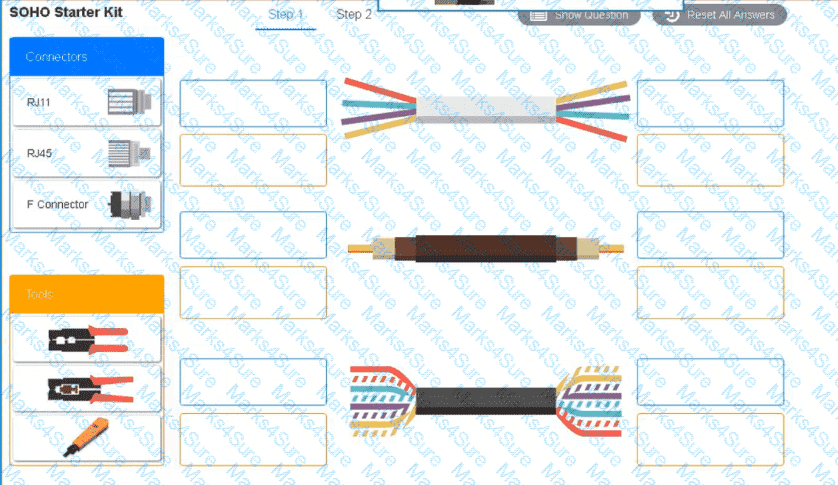

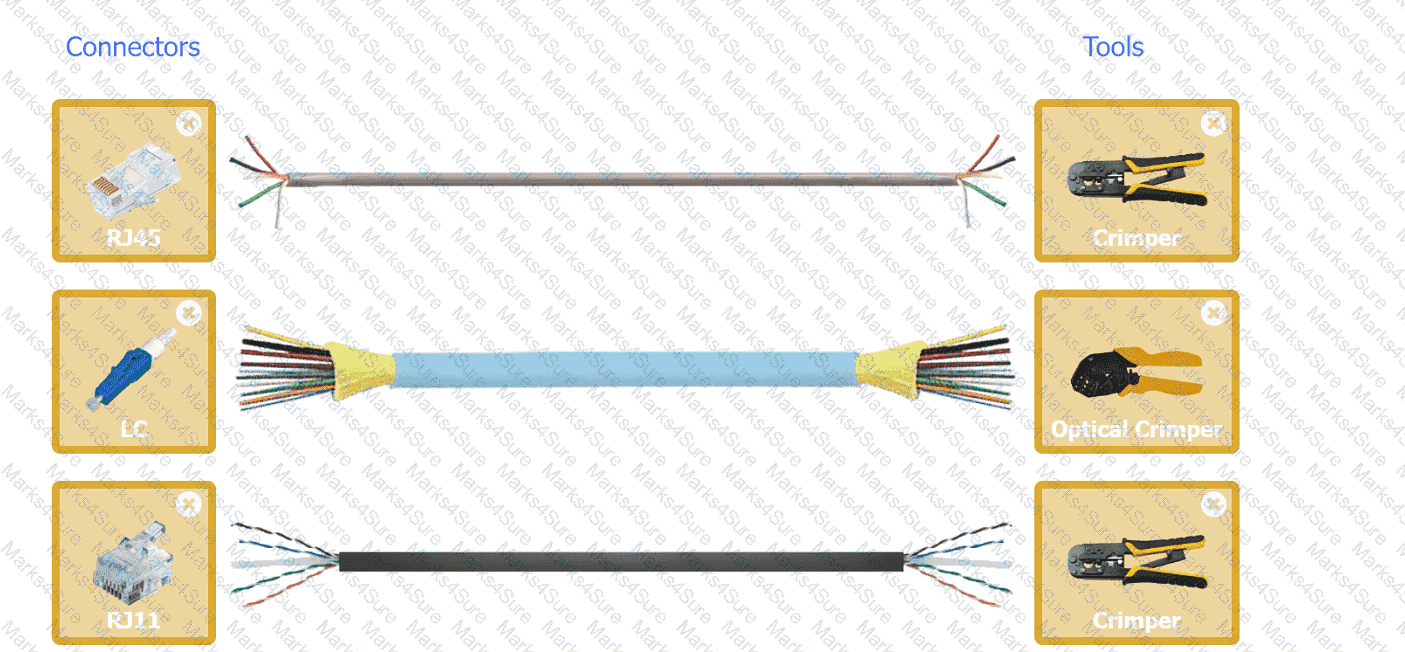

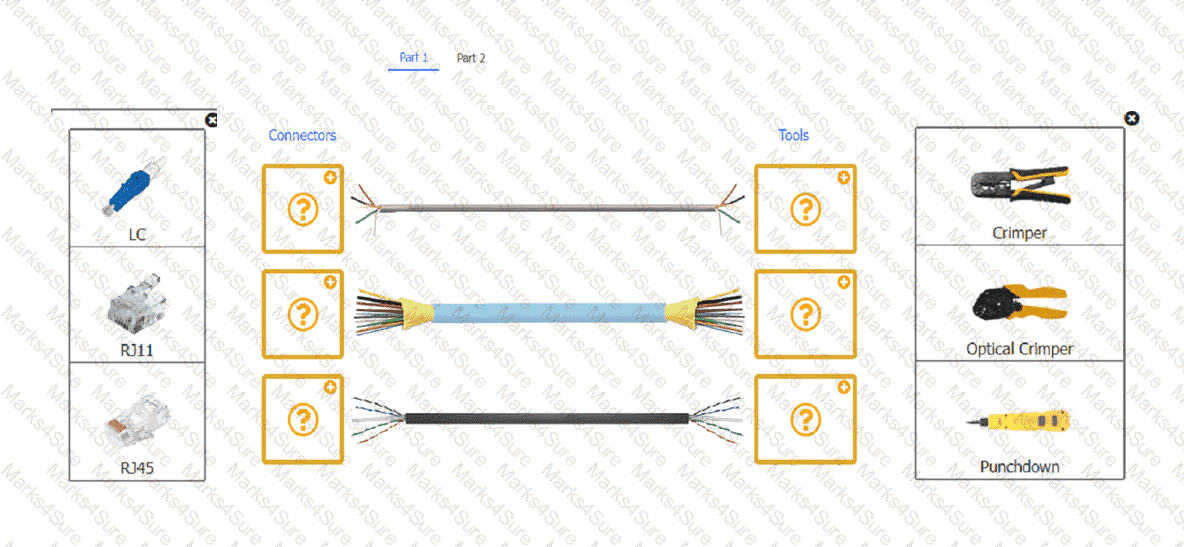

Check the exhibit diagram for both parts.

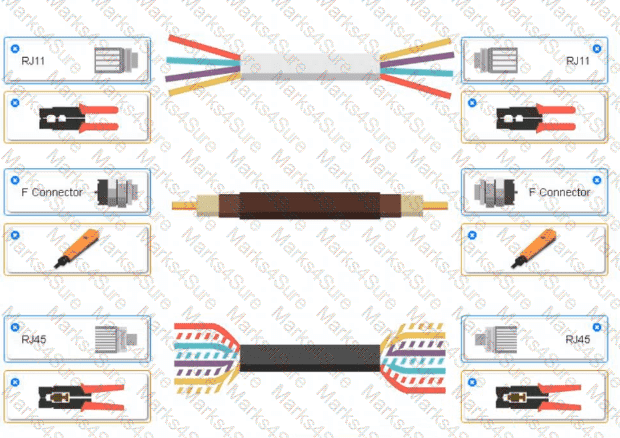

A close-up of several cables AI-generated content may be incorrect.

Part 2

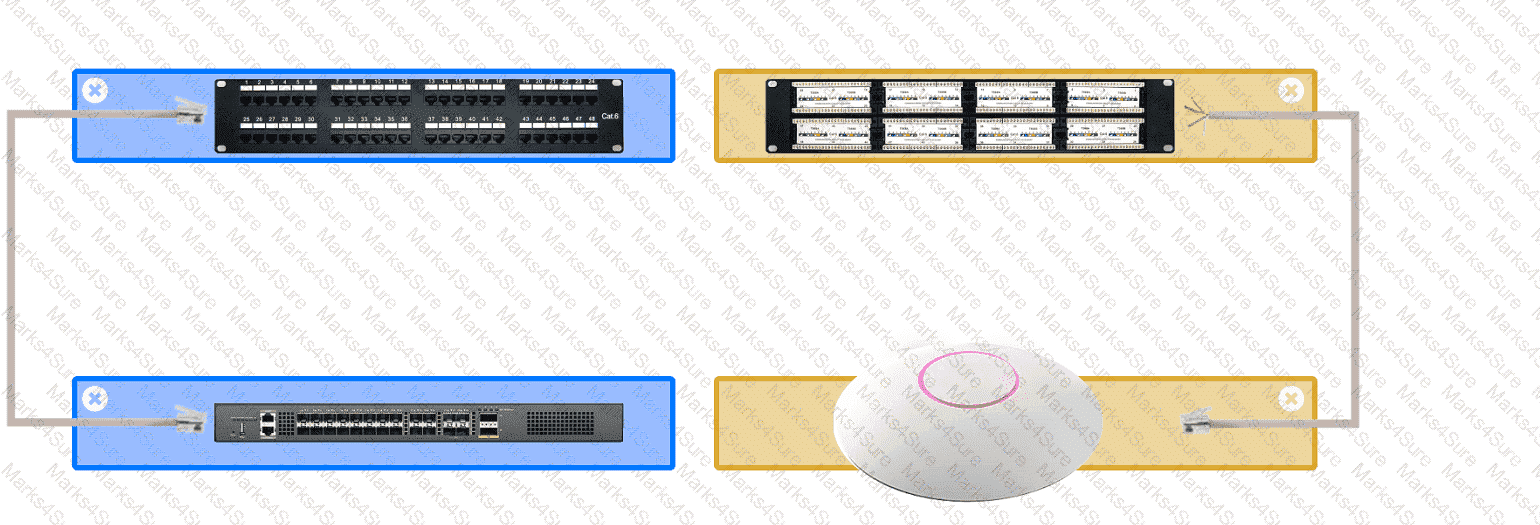

A group of different colored rectangular objects AI-generated content may be incorrect.

If a laptop shuts down when undocked and remains powered off even with a new charging cable, the internal battery is likely faulty and cannot hold a charge. Replacing the battery is the next troubleshooting step.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 – Troubleshoot common hardware problems:

" If a laptop only works when docked or connected to AC power, and a replacement cable does not resolve the issue, the internal battery may need to be replaced. "

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Troubleshooting Mobile Devices

CompTIA Exam Objectives 220-1101, Domain 4.1

============

DHCP Dynamic Host Configuration Protocol is the service that automatically assigns IP addresses and other essential network settings to devices when they join a network. Instead of manually configuring each device with an IP address, subnet mask, default gateway, and DNS servers, a DHCP server provides these settings dynamically from a defined address pool. This reduces configuration errors, prevents IP conflicts, and makes network administration easier—especially in environments with many devices or frequent changes. In the DHCP process, a client broadcasts a request, the DHCP server offers an address, the client requests that offered address, and the server acknowledges it, granting the device a lease for a specific period. The lease can be renewed, and administrators can also configure reservations to always give the same IP to a particular device based on its MAC address.

DNS is used for resolving hostnames to IP addresses, not assigning them. SMTP is for sending email between mail servers and clients. SNMP is used for monitoring and managing network devices. Therefore, DHCP is the correct service for automatically assigning IP addresses.

Comprehensive and Detailed Step-by-Step Explanation:

To answer this question, we need to identify the port numbers associated with email protocols used in client-server communication.

Port 25 (SMTP - Simple Mail Transfer Protocol):

This port is primarily used for sending emails between mail servers and from mail clients to mail servers (sending outbound mail).

SMTP is an essential protocol for email traffic.

To share a phone’s cellular data connection with a laptop, the user should use a hotspot, also known as mobile hotspot or Wi-Fi tethering. In CompTIA A+ Core 1 terms, this feature allows a smartphone to act like a small wireless router: it takes the phone’s mobile data (4G/5G) connection and rebroadcasts it over Wi-Fi so another device (the laptop) can join the wireless network using an SSID and password. This is the most common and straightforward method because laptops universally support Wi-Fi and the connection typically provides better throughput than other tethering methods. Hotspot/tethering settings also commonly allow configuration of security (WPA2/WPA3) and can limit connected devices to reduce unauthorized access and manage data usage.

Bluetooth (option B) can support tethering on some devices, but it is slower, more limited, and not the primary expected answer when the goal is simply sharing cellular internet with a laptop. NFC (option C) is mainly used for close-range pairing or payments and does not provide an internet sharing link by itself. Ethernet (option D) would require wired adapters and is not the standard method for cellular sharing. Therefore, Hotspot is the best answer.

A WWAN card provides cellular wide-area network connectivity (such as LTE or 5G) for a laptop, allowing it to access mobile data networks similar to a smartphone. To authenticate to a cellular carrier and identify the subscriber account, WWAN devices typically use a SIM (Subscriber Identity Module) or an embedded SIM. The SIM contains carrier subscription information and security credentials used during registration on the cellular network. Without a valid SIM or eSIM profile, the WWAN radio may be present, but it cannot complete carrier authentication and will not provide cellular data service.

The other options are different wireless technologies that are not the defining requirement for WWAN service. Wi-Fi is WLAN connectivity, usually provided by a separate Wi-Fi adapter. Bluetooth is a short-range personal area networking technology for peripherals and tethering. NFC is very short-range communication used mainly for tap-to-pair or payments. Therefore, the technology a built-in WWAN card supports in this context is SIM.

The correct answer is B. VGA.

VGA (Video Graphics Array) is an analog video interface. It transmits video signals as continuous electrical waves, which means the signal can degrade over distance or due to interference. VGA uses a 15-pin connector and is considered legacy hardware in modern systems, but it is still important for CompTIA A+ because you may encounter it in older equipment.

Why the other options are incorrect:

A. DVI

DVI can support both digital and analog signals, but in most modern contexts and exam questions, it is primarily treated as a digital interface (especially DVI-D). Since the question asks for a clearly analog cable, VGA is the best answer.

C. USB-C

USB-C is a digital interface that can carry video signals using protocols like DisplayPort Alternate Mode. It does not transmit analog video.

D. HDMI

HDMI is a fully digital interface used for high-definition video and audio transmission. It does not support analog signals.

Exam Tip (Core 1 220-1201):

Analog video = VGA

Digital video = HDMI, DisplayPort, USB-C, most DVI types

Final Answer: B. VGA

The best answer is B. Fan speed and airflow through the heat sinks. The symptoms strongly indicate overheating: the computer works normally at first, slows down as heat builds up, then locks up and powers off to protect the CPU/GPU and motherboard. The Quentin Docter study guide states that a PC that works for a few minutes and then locks up is probably overheating because a heat sink or fan is not functioning properly, and the first troubleshooting step is to check all internal fans and ensure the heat sinks are properly attached. High-end gaming systems are especially heat-sensitive because CPUs and dedicated graphics cards generate substantial heat under load. The same section notes that CPUs are common overheating sources and video cards are also very susceptible in gaming or graphics-heavy systems. Power supply testing is useful for intermittent power problems, but the gradual slowdown before shutdown points more directly to thermal throttling and heat buildup than voltage failure.

=========

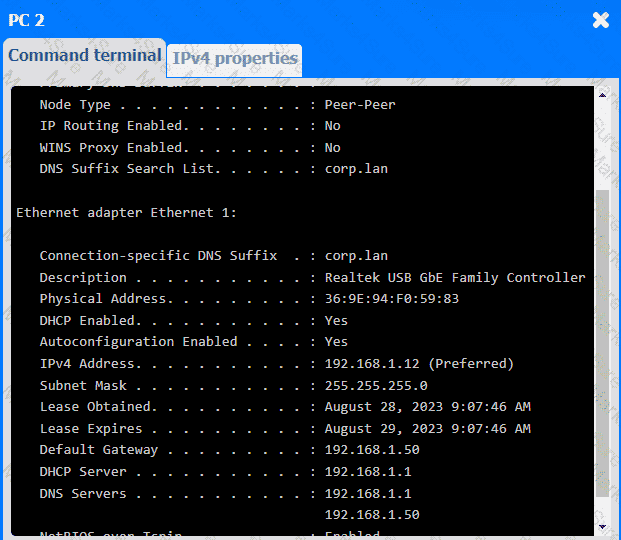

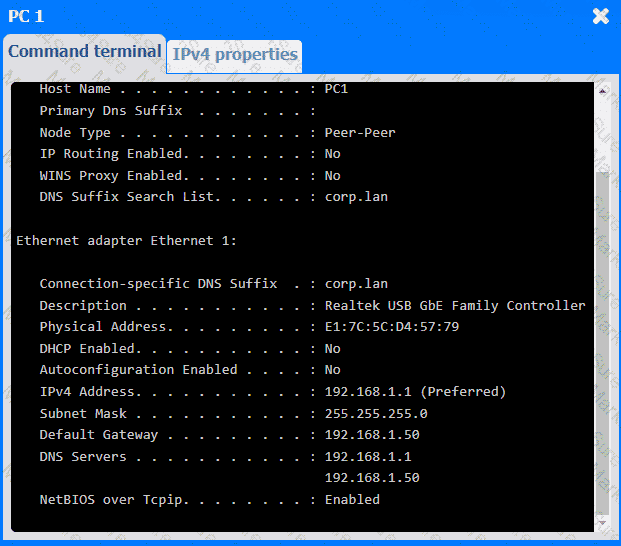

Answer of both steps below.

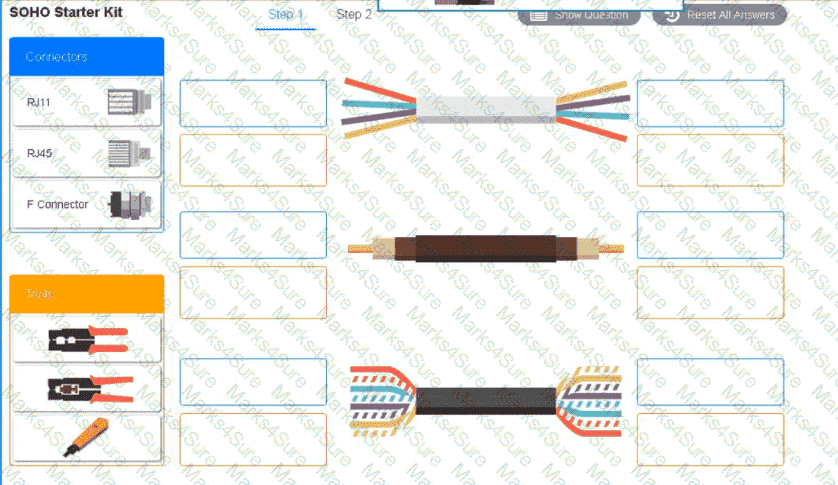

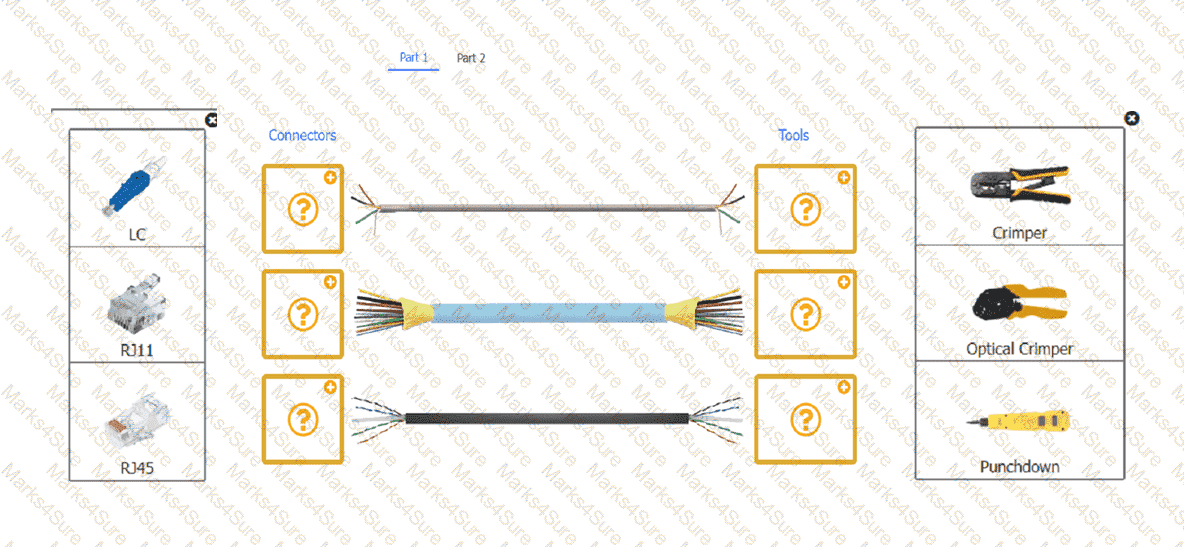

A group of wires with different colors AI-generated content may be incorrect.

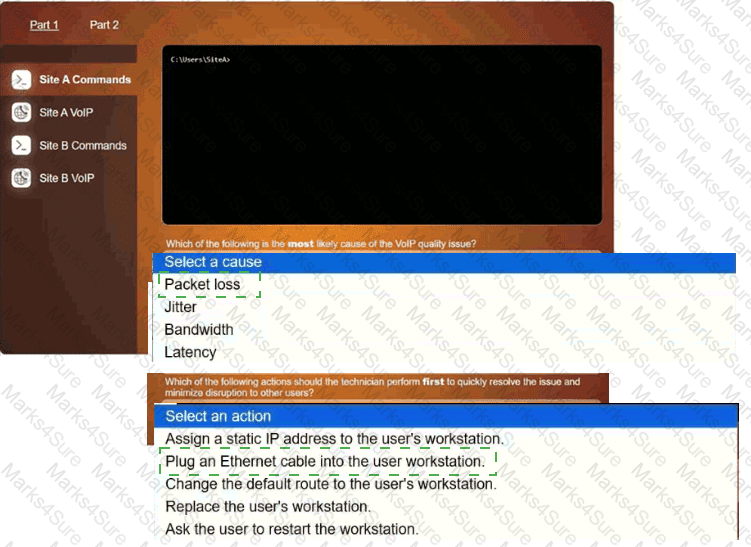

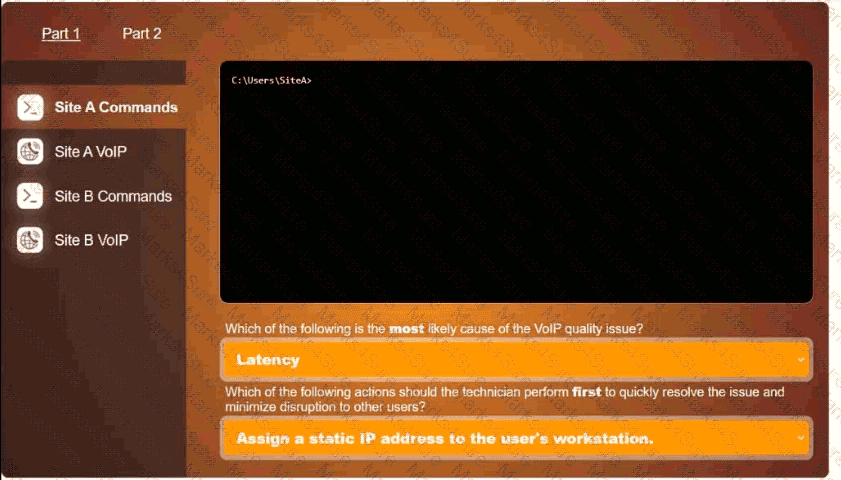

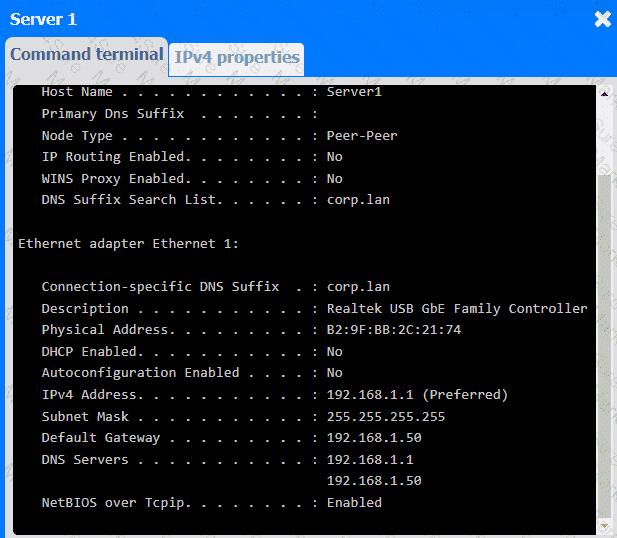

A screenshot of a computer AI-generated content may be incorrect.

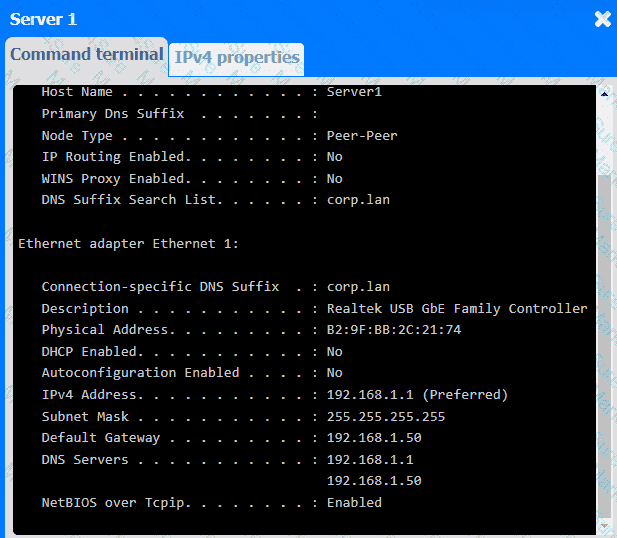

The best answer is E. Subnet mask. With the current subnet mask of 255.255.255.0, the user’s IP address 192.168.1.10 is on the 192.168.1.0/24 network, while the default gateway 192.168.2.1 is on the 192.168.2.0/24 network. A host normally needs its default gateway to be reachable on the same local network. The Mike Meyers material explains that the subnet mask identifies the network ID and host ID, and every computer on a single LAN must have the same network ID. With 255.255.255.0, the first three octets define the network, so 192.168.1.x and 192.168.2.x are different networks. The NOC verified that the gateway value itself is correct, so changing the gateway would conflict with the verified next hop. DNS settings would affect name resolution, not access to all local and remote resources. Lease time and firewall rules are not indicated by the IP information. The subnet mask must be changed so the client and gateway are in the same local IP network.

When migrating large volumes of data to a cloud provider, CompTIA A+ notes that the transfer speed is dominated by the WAN (internet) connection speed. Among the given options, fiber-optic internet (C) provides the highest upload and download throughput, often delivering speeds from 1 Gbps to 10 Gbps or more, depending on the service. Fiber supports symmetrical upload speeds, which is critical because data migration requires heavy upstream bandwidth.

Coaxial (A) and DSL (B) offer much lower upstream speeds—often under 30 Mbps—making them too slow for large-scale cloud migration. A SAN (D) is a local storage network that operates within the data center; it does not provide a path to the cloud and cannot replace an internet connection.

Fiber’s extremely high capacity, low latency, and resistance to electromagnetic interference make it the best and most efficient option for cloud migration performance.

A sandbox is a secure, isolated environment used to test potentially harmful software or code. It prevents the software from affecting the main system, allowing safe malware testing. Thismethod is standard in cybersecurity best practices.

The correct answers are E. NFC and F. Location services.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC (Near-Field Communication): Enables the device to communicate with contactless payment terminals, which is essential for detecting nearby stores that accept contactless payments.

Location services: Allows the application to determine the user’s geographic location so it can provide notifications only when the user is near a participating store.

Why the other options are incorrect:

A. MDM (Mobile Device Management): Manages device policies but does not enable location-based notifications or contactless payments.

B. Contact syncing: Synchronizes contacts; unrelated to payment notifications.

C. Bluetooth: Can be used for some proximity services, but NFC is required for contactless payment detection.

D. Hotspot: Provides internet access; not required for proximity detection in this context.

If a laptop has a USB flash drive connected during startup, the system firmware BIOS or UEFI may attempt to boot from that USB device depending on the configured boot order or boot priority. This can cause intermittent startup behavior because the laptop might sometimes detect the flash drive as a bootable device and try to load from it instead of the internal drive, leading to delays, boot errors, or unexpected screens. The correct fix is to adjust boot options in BIOS/UEFI: set the internal SSD/HDD as the first boot device, reduce the priority of USB boot devices, or disable booting from external media when appropriate for the environment. This addresses the root cause directly and prevents the presence of a flash drive from affecting normal startup.

BitLocker and TPM features relate to drive encryption and secure key storage and are not the primary reason the system is changing its boot behavior. “USB Enable” would control whether USB ports function, but disabling USB entirely is not a targeted first step and could break keyboards/mice or legitimate USB use. Therefore, the correct configuration item is Boot options.

An automatic document feeder (ADF) is designed to speed up scanning jobs that involve many pages by feeding sheets through the scanner automatically, one after another, without requiring the user to lift the lid and position each page manually. For a 300-page contract, the biggest time loss is the manual handling of every page on a flatbed. With an ADF-equipped scanner or multifunction printer, the user can load a stack of pages into the feeder tray and the device will process them continuously, greatly improving productivity and reducing user effort. This is a common CompTIA A+ Core 1 concept when comparing scanner hardware features and selecting the correct device for high-volume tasks.

A flatbed scanner (A) is typically slower for large documents because it requires manual placement of each page. Duplexing (B) can be helpful when scanning double-sided documents because it captures both sides automatically, but it does not address the “each page must be scanned individually” issue as effectively as an ADF does for high page counts. Orientation configuration (D) only changes how pages are rotated or aligned in the output file and does not increase scan throughput. Therefore, an ADF is the best choice to increase scanning speed for a large contract.

The most likely cause is a swollen battery, which occurs when the battery ' s internal components break down, causing a buildup of gas. This results in:

Physical Symptoms: The battery bulges, pushing the screen away.

Operational Symptoms: The device may still power on when connected to a charger but fails to hold a charge due to battery degradation.

Option A (Malfunctioning power supply): Incorrect. Power supply issues affect charging but do not cause physical bulging.

Option B (Damaged charge port): Incorrect. A damaged port can prevent charging but does not explain the bulge.

Option D (Broken screen): Incorrect. A damaged screen does not cause the device to bulge; it is likely a secondary effect of the swollen battery.

Safety Note: A swollen battery poses a risk of fire or explosion and should be replaced immediately following proper disposal procedures.

An NVMe port, typically implemented through an M.2 slot, is designed specifically for NVMe-based solid-state drives (SSDs). CompTIA A+ explains that NVMe (Non-Volatile Memory Express) is a high-performance storage protocol that communicates directly with the CPU over PCIe lanes, offering significantly faster read/write speeds compared to SATA-based SSDs.

SATA drives (A) connect via SATA ports, not NVMe/M.2 PCIe slots. SAS drives (C) are enterprise-level storage devices requiring SAS controllers and are incompatible with consumer desktop motherboards. Optical drives (D) use SATA or USB interfaces and cannot be installed in an NVMe slot.

Thus, the only device designed for and compatible with an NVMe slot is a solid-state drive (SSD) using the NVMe protocol.

Software as a Service (SaaS) provides users access to fully managed applications hosted in the cloud. CompTIA A+ explains that SaaS is subscription-based and typically billed monthly or annually, which aligns perfectly with the phrase “recurring fee.” Business productivity applications—such as Microsoft 365, Google Workspace, Zoom, Slack, and Salesforce—are classic examples of SaaS offerings.

SaaS applications run entirely in the provider’s cloud environment, eliminating the need for installation, maintenance, or management by the customer. This makes SaaS ideal for businesses that need reliable, scalable tools without maintaining their own infrastructure.

DaaS (Desktop as a Service) provides virtual desktops.

PaaS (Platform as a Service) offers a development framework for building applications.

IaaS (Infrastructure as a Service) provides virtual servers, storage, and networking—not end-user productivity apps.

Thus, SaaS is the correct and only model that matches the description of subscription-based access to productivity applications.

Ceiling-mounted projectors are typically installed upside down, and therefore include a built-in “Ceiling Mount” or “Vertical Flip” setting within their display menu. CompTIA A+ emphasizes that projectors provide their own orientation controls intended specifically for this installation scenario. Adjusting orientation from the laptop rotates the desktop, not the projected output configuration. Changing input sources does not affect image orientation. Display frequency affects refresh rate and flickering, not physical image rotation.

Flipping the image directly from the projector ensures the display is oriented correctly regardless of the device connected. This is the method recommended in A+ material under display configuration and projector troubleshooting, which covers keystone correction, rotation, and mounting modes.

Thus, the correct solution is to flip the image vertically using the projector’s built-in settings.

In a corporate office environment where multiple employees must share a single printer, the most efficient and manageable solution is a print server. A print server centralizes print management, queues print jobs, handles driver distribution, and provides access control. CompTIA A+ highlights print servers as the enterprise-standard method for managing shared printing resources because they ensure reliability, scalability, and better network performance.

Bluetooth printing and Wi-Fi Direct are short-range, peer-to-peer technologies meant for one-to-one or small-scale printing. They lack user authentication management, enterprise security controls, and cannot efficiently support dozens or hundreds of print requests simultaneously. Cloud printing requires internet reliance and external service routing, which introduces latency, potential downtime, and privacy concerns—often unsuitable for corporate networks, especially those with sensitive internal documents.

A print server allows users to connect to the printer through a standard network infrastructure (wired or wireless), and technicians can configure permissions, monitor print loads, and troubleshoot from a central location. It integrates seamlessly with enterprise directory services such as Active Directory, enabling controlled access and auditing. Because of these capabilities, the print server is the best professional-grade solution for corporate-wide printing needs.

DNS contains different record types that serve specific purposes. To determine where incoming email should be delivered for a particular domain, DNS uses an MX (Mail Exchange) record. CompTIA A+ identifies MX records as essential for routing mail from external senders to the appropriate mail server assigned to a domain.

The MX record specifies:

The mail server hostname responsible for receiving messages

Priority values, which determine which server to try first

The server destination for SMTP traffic

When someone sends an email, the sending mail server queries DNS to find the MX record for the recipient’s domain. The SMTP server then relays the email to the server listed in that record.

CNAME is used for aliasing hostnames, TXT is used for verification/security (SPF, DKIM), and AAAA maps a hostname to an IPv6 address. None of these direct email delivery. Only MX records are designed to instruct mail servers where to deliver incoming email.

Thus, the correct answer is MX.

A network switch operates at Layer 2 (Data Link Layer) of the OSI model and forwards traffic using MAC addresses. CompTIA A+ teaches that switches maintain a MAC address table, learning which devices reside on each port. When a frame arrives, the switch checks the destination MAC address and forwards it only to the appropriate port, reducing unnecessary traffic and improving performance.

Routers, on the other hand, operate at Layer 3 and forward traffic based on IP addresses, not MAC addresses. Firewalls inspect traffic for security policies and operate across multiple OSI layers but do not perform MAC-based forwarding. A gateway is a broad term that generally refers to a device connecting different networks or protocols, typically involving routing, not MAC-based switching.

Thus, the device specifically responsible for forwarding frames based on MAC address lookup is the switch.

A hypervisor allows multiple operating systems to run simultaneously on a single physical host, making it the ideal solution for providing concurrent access to different test environments. Developers can use virtual machines (VMs) for testing and development.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Compare and contrast cloud computing concepts:

“A hypervisor is software that enables multiple operating systems to run on a single host as virtual machines. This is commonly used in development and testing environments for flexibility and isolation.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Virtualization

CompTIA Exam Objectives 220-1101, Domain 3.7

Error-Correcting Code (ECC) memory is designed to detect and correct single-bit memory errors, increasing system reliability and data integrity. According to CompTIA Core 1 (220-1201) hardware and memory objectives, ECC memory is most commonly used in servers and enterprise-grade systems where uptime and data accuracy are critical.

A file server is responsible for storing, managing, and serving data to many users simultaneously. Memory errors in such systems could lead to data corruption, crashes, or security issues. For this reason, servers frequently use ECC memory in combination with server-class CPUs and motherboards that support error correction.

High-end gaming consoles prioritize performance and cost efficiency rather than fault tolerance, and they do not use ECC memory. Smartphones rely on low-power mobile RAM without error correction, and laptops typically use non-ECC memory unless they are specialized workstation-class systems, which is not indicated in this question.

CompTIA emphasizes that ECC memory is associated with mission-critical environments, particularly servers and enterprise systems, making a file server the most appropriate answer.

The most likely cause of this issue is incorrect tray settings on the user’s printer. According to CompTIA Core 1 (220-1201) printer configuration and troubleshooting concepts, printers rely on tray configuration settings to determine the paper size and paper type loaded in each tray. If the tray is not configured for 11 × 17 (Tabloid/Ledger) paper, the printer will assume the required paper is unavailable—even if the paper is physically present.

When a print job specifies a paper size that does not match the tray’s configured settings, the printer commonly displays a message prompting the user to insert the correct paper. The fact that the same document prints successfully on another printer of the same model confirms that the driver, permissions, and connectivity are functioning correctly, further isolating the issue to the local printer’s tray configuration.

An incorrect driver would cause consistent problems across printers, not just one. Connectivity issues would prevent communication with the printer entirely, and insufficient permissions would generate access or authorization errors rather than a paper prompt.

CompTIA emphasizes verifying tray assignments and paper size configuration as a primary troubleshooting step when printers incorrectly request paper that is already loaded.

Improper seating is the most common reason an SSD isn’t recognized. Ensuring it is correctly connected resolves the issue.

Why Not A (Faulty SSD): A faulty SSD is possible but less likely than an installation issue.

Why Not B (Not formatted): Formatting affects data usability, not drive detection.

Why Not C (Incompatibility): SSD compatibility issues are rare with modern hardware.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.3, storage troubleshooting​.

Bluetooth is a wireless technology designed for short-range communication between devices. It is a classic example of a Personal Area Network (PAN), which supports communication between devices like smartphones, headsets, keyboards, and mice within a few meters. PANs are smaller in scope compared to LANs or WANs.

The correct answer is D. Verify the audio output assignment.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Troubleshooting:

HDMI carries both video and audio signals. If video displays correctly but audio is not heard, it is often because the computer is still outputting sound to its internal speakers rather than the HDMI-connected device.

The user should check the audio output settings in the operating system and ensure the HDMI device (TV or projector) is selected as the audio output device.

Why the other options are incorrect:

A. Adjust the volume settings: Volumes are already at 50%, so adjusting them will not solve the problem if the audio output is assigned incorrectly.

B. Swap the HDMI cable: The video is working fine, so the cable is likely functional.

C. Reinsert the HDMI cable: Unlikely to resolve audio assignment issues if the connection is already working for video.

The correct answer is A. The internal antenna has been damaged.

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Networking:

Many laptop Wi-Fi antennas are embedded in the display panel and connected via small cables to the wireless card on the motherboard.

If the display panel is replaced and the Wi-Fi antenna is disconnected, damaged, or improperly routed, the laptop will experience weak or intermittent Wi-Fi connectivity.

Why the other options are incorrect:

B. Airplane mode is enabled: Would completely disable wireless radios; the question specifies difficulty staying connected, not a total lack of connectivity.

C. The inverter is not connected: The inverter powers the backlight of the display, unrelated to wireless connectivity.

D. The wireless drivers have not been updated: While outdated drivers can cause connectivity issues, a sudden problem after a display replacement strongly points to physical antenna damage.

The correct answer is B. Header pinouts.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware:

Header pinouts on a motherboard are designated connectors for internal components such as USB ports, audio connectors, and front panel buttons/LEDs.

When adding additional internal USB ports, a technician typically connects them to the motherboard’s USB header pinouts. These headers provide the necessary data and power connections to enable USB functionality for front-panel or expansion USB ports.

Why the other options are incorrect:

A. TPM (Trusted Platform Module): Used for hardware-based security functions like encryption, not USB connectivity.

C. M.2 connector: Used primarily for SSDs and other small-form-factor expansion devices, not standard USB ports.

D. Expansion slots: Typically PCIe or PCI slots are used for expansion cards such as GPUs, network cards, or USB controller cards, but not for connecting internal USB headers directly.

Input voltage must be validated to ensure desktop PCs can operate in different regions with varying power standards (e.g., 110V in North America vs. 220V in Europe). Failure to verify input voltage compatibility can lead to hardware damage or operational issues.

Option B (BIOS language support): Incorrect. While language support may be helpful, it is not critical for hardware deployment across regions.

Option C (Supply chain security): Incorrect. This refers to ensuring secure sourcing of components but does not directly impact deployment.

Option D (Power efficiency): Incorrect. Power efficiency may be important for energy savings but is not relevant to regional compatibility.

When an application fails to install on a smartphone despite being supported by the OS and device type, CompTIA A+ stresses that the most common cause is insufficient storage. Mobile devices require not only space for the app itself but also additional temporary space for the installation process, cached data, and updates. If internal storage is nearly full, the app store will display installation errors—even if the OS and hardware meet requirements.

Battery health has no impact on app installation. A SIM card is unrelated to installing local applications—it only affects cellular connectivity. Processor architecture issues would have been caught during compatibility checking, but the technician already verified the device supports the application.

Therefore, after confirming compatibility, the next logical step is to check available storage space. If storage is low, deleting unused apps, clearing cached data, or transferring media to cloud storage or an SD card typically resolves the installation issue.

Thus, Option A: Storage is the correct answer.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

The CompTIA A+ wireless networking section describes key differences between 2.4 GHz and 5 GHz Wi-Fi frequencies.

2.4 GHz provides:

Better range

Better wall penetration

Better performance through structures and obstacles

This means less interference from physical structures, which is the primary advantage of 2.4 GHz over 5 GHz.

This maps directly to:

✔ C. Minimized structural interference

Why the other options are incorrect

A. Communication without external power

Not related to Wi-Fi frequencies.

B. Security for close-proximity connections

No Wi-Fi frequency provides inherent security advantages.

D. Increased channel options

5 GHz has more channels, not 2.4 GHz.

Single-mode fiber (as well as multi-mode fiber) transmits data using beams of light, allowing for high-speed data transfer over flexible fiber-optic cables.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.1 – Networking media:

“Fiber optic cables transmit data using light. Single-mode fiber is used for long-distance, high-speed communication.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Media

CompTIA Exam Objectives 220-1101, Domain 2.1

============

The correct answer is D. Injector.

Power over Ethernet (PoE) allows network cables to carry electrical power to devices such as wireless access points, IP cameras, and VoIP phones, eliminating the need for separate power supplies. According to the CompTIA A+ Core 1 220-1201 objectives under Networking, PoE can be implemented in the following ways:

PoE-enabled switches: Switches that can supply power directly over the Ethernet ports.

PoE injectors: Devices that add power to an existing Ethernet connection when the switch or router does not provide PoE.

Why the other options are incorrect:

A. Modem: A modem connects a network to the Internet but does not provide PoE functionality.

B. Range extender: Extends the range of a wireless network; does not supply power over Ethernet.

C. Media converter: Converts one type of network media to another (e.g., fiber to copper) but does not implement PoE.

Therefore, when a switch does not natively provide PoE, a PoE injector is the standard solution to add power to the Ethernet line.

The correct answer is B. Change the resolution.

According to the CompTIA A+ Core 1 220-1201 objectives, troubleshooting display issues involves checking the display settings, including resolution, scaling, and orientation. When a projector is only showing part of a laptop screen:

The most common cause is that the laptop’s output resolution does not match the projector ' s native resolution. If the laptop is set to a resolution larger than what the projector supports, only a portion of the screen is visible.

The technician should first adjust the laptop ' s resolution to match the projector’s native resolution before attempting other options like extending or mirroring the desktop.

Why the other options are incorrect:

A. Extend the desktop: This is only used if the user wants to have two separate screens (dual monitors), not to fix partial display issues.

C. Mirror the desktop: Mirroring duplicates the laptop display but does not solve issues caused by resolution mismatch.

D. Switch the input source: Necessary only if the projector is on the wrong input, but the problem here is a partial display, not no display.

If print quality remains poor after replacing the ink cartridge, the next step is to clean the printheads. Printheads can become clogged with dried ink, especially in inkjet printers, causing streaks or faded output.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 4.3 – Troubleshoot printing problems:

“Poor print quality after replacing cartridges is commonly caused by clogged or dirty printheads. Use the printer ' s cleaning cycle or manually clean the printheads as needed.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Printer Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.3

============

The correct answer is C. DHCP (Dynamic Host Configuration Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

DHCP is used to automatically assign IP addresses and related network configuration (such as subnet mask, default gateway, and DNS servers) to devices on a network.

This eliminates the need for manually configuring IP addresses on each PC and helps prevent conflicts.

Why the other options are incorrect:

A. VLAN (Virtual Local Area Network): VLANs segment a network into logical subnets but do not assign IP addresses.

B. DNS (Domain Name System): DNS translates domain names to IP addresses; it does not assign IP addresses to devices.

D. TCP (Transmission Control Protocol): TCP is a transport layer protocol used for reliable communication between devices, not for IP assignment.

Packet loss

Plug an Ethernet cable into the workstation

A screenshot of a computer AI-generated content may be incorrect.

A VLAN (Virtual Local Area Network) is the correct solution because it logically separates devices into different broadcast domains on the same physical switching infrastructure. In CompTIA A+ Core 1 (220-1201), VLANs are described as a way to segment a network for security, performance, and management—for example, isolating departments like Accounting and Customer Service so their traffic is separated. Devices assigned to different VLANs cannot communicate directly at Layer 2; communication between VLANs requires a Layer 3 device (such as a router or a Layer 3 switch) using inter-VLAN routing and appropriate access control. This effectively prevents unnecessary broadcast traffic from crossing department boundaries and helps enforce separation policies.

A VPN is used to create an encrypted tunnel over an untrusted network (commonly for remote access or site-to-site connectivity), not for internal departmental segmentation. DNS resolves hostnames to IP addresses and does not isolate networks. DHCP automatically assigns IP configuration (IP address, gateway, DNS servers), but it does not provide segmentation by itself. Therefore, implementing VLANs is the best way to separate the two departments’ networks.

The correct answer is B. Secure Boot.

According to CompTIA A+ Core 1 220-1201 objectives under Security:

Secure Boot is a UEFI firmware feature that ensures a computer boots only with software that is trusted and digitally signed by the manufacturer.

This prevents malicious or unauthorized bootloaders and operating systems from loading, protecting the system from rootkits and other boot-time attacks.

Secure Boot does not require disabling USB devices; it simply checks that any bootable device contains a signed operating system.

Why the other options are incorrect:

A. BIOS password: Protects access to BIOS/UEFI settings but does not verify trusted software during boot.

C. USB settings: Can control USB access but cannot enforce boot validation for signed OS or prevent unauthorized boot devices.

D. Single sign-on: Provides authentication convenience for users, unrelated to boot security.

A Hardware Security Module (HSM) securely manages cryptographic keys, including those used to protect credit card chips.

Why Not A (TLS): TLS secures data in transit, not encryption key storage.

Why Not B (AMD): AMD refers to processors, not security modules.

Why Not D (ARM): ARM is a processor architecture, not a cryptographic security solution.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, cryptographic hardware​.

CompTIA A+ emphasizes that satellite internet connections inherently suffer from extremely high latency because the data must travel from the user ' s antenna to satellites orbiting tens of thousands of miles above Earth and back. Although satellite systems offer broad geographic coverage, this long travel distance introduces noticeable delays often 500ms or more.

Fiber, cable, and DSL operate through terrestrial wiring and have far lower latency due to short signal paths. Fiber, in particular, is the fastest and lowest-latency connection type.

Satellite delay significantly impacts VoIP calls, video conferencing, online gaming, and real-time applications. The A+ exam specifically notes latency as a major performance characteristic of satellite service, distinguishing it from other broadband technologies.

A switch is the device that primarily forwards traffic based on MAC addresses and is used to connect devices within the same local network. It operates at Layer 2 (Data Link) of the OSI model. When a switch receives an Ethernet frame, it reads the source MAC address and records it in its MAC address table along with the port it arrived on. Then, when the switch needs to send a frame to a destination, it looks up the destination MAC address in that table and forwards the frame only out the correct port. This makes switching efficient and reduces unnecessary traffic compared to older hub-based networks. In CompTIA A+ Core 1, recognizing that MAC-based forwarding is a key switch function is essential.

A router forwards traffic based on IP addresses at Layer 3 and is used to connect different IP networks or VLANs. A modem converts signals for ISP connectivity (e.g., cable/DSL/fiber handoff) and does not forward frames by MAC table learning. A firewall filters traffic based on security rules and is not primarily a MAC-forwarding device. Therefore, the best answer is Switch.

CompTIA A+ teaches that S.M.A.R.T. warnings indicate imminent drive failure. Even if the RAID controller reports the array as “healthy,” a S.M.A.R.T. alert means the drive should be replaced immediately.

RAID 5 provides redundancy for one drive failure, but technicians should replace the degrading drive before it fails fully, ensuring the rebuild happens proactively.

Running chkdsk affects file systems, not drive health. Disabling write caching is unrelated. Rebuilding the array should only occur after replacing the faulty drive.

Replacing the drive prevents a catastrophic dual-drive failure scenario, which RAID 5 cannot survive.

This approach aligns with CompTIA troubleshooting guidelines for RAID maintenance and S.M.A.R.T. diagnostics.

Wi-Fi assistance in mobile devices helps improve location accuracy by using nearby wireless networks to triangulate the device’s position, even when GPS signals are weak (like indoors or in dense areas).

A container is the ideal environment for software testing when access to the underlying operating system must be restricted. CompTIA A+ explains that containers isolate applications from the host OS by packaging the app and all its dependencies into a controlled environment. This prevents the application from modifying or interfering with the host system and ensures predictable, consistent behavior across environments.

Unlike virtual machines, containers do not include a full OS installation; they share the host OS kernel but run in isolated user-space environments. This makes them lightweight, fast to deploy, and secure—perfect for developers testing new or potentially unstable applications.

A Type 2 hypervisor hosts full virtual machines but does not inherently limit OS access. A VDI provides remote desktops but is not designed for controlled application testing. A quarantined PC is used for isolating infected or suspicious systems, not structured development testing.

Thus, containers provide the controlled, restricted environment required.

To ensure seamless connectivity during (and after) migrating an application server, the best DNS approach in CompTIA A+ Core 1 (220-1201) terms is to use a CNAME (Canonical Name) record, which creates an alias from one hostname to another. Instead of users connecting directly to a server’s changing hostname, they connect to a consistent service name (for example, app.company.com). That name can be configured as a CNAME pointing to the current host (such as server1.company.com). When the application is moved to a new server, the technician updates what the alias ultimately resolves to (or updates the target host’s A/AAAA record), and clients continue using the same familiar application URL/name—minimizing disruption and avoiding the need to reconfigure endpoints across devices.

The other record types are not designed for this purpose. TXT records store text-based information (often verification or policy data). SPF and DKIM are email authentication-related mechanisms (typically implemented via TXT records) used to validate authorized mail senders and message integrity—not application server migration. Because the goal is maintaining a stable name for a service while the underlying host changes, CNAME is the correct record type.

The correct answer is A. RJ11.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

RJ11 connectors are commonly used for telephone lines and data cables that use two pairs of wires (four wires total).

This connector is standard for analog telephone connections and DSL connections.

Why the other options are incorrect:

B. F-type: Used for coaxial cables, commonly in cable TV or broadband internet, not for two-pair data cables.

C. ST: A type of fiber optic connector, not used for copper two-pair wiring.

D. Molex: Primarily used for power connections in computer hardware, not for network or phone cabling.

Amaintenance kitfor a laser printer often includesrollers, fuser, and other partsthat wear out over time. If the printer issmudging and misfeeding, it ' s a sign thatmultiple components are failing, which a maintenance kit is designed to resolve.

Option A (Fuser):May cause smudging if it ' s not heating correctly, but it won’t resolve paper misfeeds alone.

Option C (Corona wire):Can cause poor image quality if dirty but doesn’t affect paper feeding.

Option D (Toner cartridge):Can cause streaks if defective, but not paper feed issues.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.

CompTIA A+ explains that DMARC (Domain-based Message Authentication, Reporting, and Conformance) relies on TXT DNS records to define its policies. TXT records allow administrators to publish arbitrary text-based configuration data, including DKIM and SPF policies, which DMARC references.

MX records identify mail servers, A records map IP addresses, and CNAME records create aliases none are used to store DMARC policy rules.

DMARC improves email authenticity by requiring SPF and DKIM alignment and specifying how receiving servers should handle failed validations. The A+ exam explicitly mentions TXT records as the method used for SPF, DKIM, and DMARC storage.

Therefore, the correct answer is the TXT record, which stores the policy used by DMARC to authenticate senders and prevent spoofing.

Display flickering is most commonly caused by an incorrect or unstable refresh rate setting. The refresh rate is the number of times per second (measured in Hz) that a monitor redraws the image. CompTIA A+ teaches that LCD, LED, and especially older CRT displays can exhibit flickering if the refresh rate is set too low or to a value unsupported by the monitor.

For modern displays, typical refresh rates are 60 Hz, 75 Hz, 120 Hz, 144 Hz, and higher. If the refresh rate is mismatched—such as manually set above the monitor’s rated capability—the screen may flicker, blank intermittently, or show instability. Similarly, if the refresh rate is set too low, the user may perceive visible flicker, eye strain, or shimmering on the display.

Checking and adjusting the refresh rate through the operating system’s display settings (or GPU control panel) is the first and most direct troubleshooting step for flickering issues.

The LCD type (A) has no bearing on flickering once installed. Screen resolution (C) affects clarity and scaling but does not cause flicker by itself. Pixel density (D) is a hardware characteristic and cannot cause flickering.

Thus, the correct component to check when diagnosing display flicker is the refresh rate.

A. Check the product manual for the procedure:

When hardware is not easily accessible, always consult the product manual for proper disassembly procedures. Forcing the cover can damage the laptop or void the warranty.

Product manuals often provide step-by-step instructions for safely accessing internal components.

Incorrect Options:

B. Use a pry tool to force the cover open: Forcing the cover can cause physical damage to the device.

C. Insert the wireless card into the M.2 slot: This step cannot be performed until the cover is properly removed.

D. Try to move the cover by sliding it in all directions: Randomly sliding the cover can cause damage if the correct removal method is not followed.

Key Takeaway: Always refer to the product manual to ensure safe and proper disassembly of laptop components.

2.4GHz Wi-Fi signals have better penetration through walls and other obstacles compared to 5GHz and 6GHz. Lower frequency waves (like 2.4GHz) travel farther and are less absorbed by physical barriers.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 2.5 – Compare and contrast wireless networking protocols:

“The 2.4GHz frequency band offers greater range and better penetration through walls and obstacles than higher frequencies like 5GHz and 6GHz. Higher frequencies provide faster speeds but are more easily absorbed by walls.”

NFC (Near Field Communication) is not a Wi-Fi technology and works only over very short distances (a few centimeters).

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Wireless Networking

CompTIA Exam Objectives 220-1101, Domain 2.5

============

A fileshare becoming slow over time and then failing completely strongly suggests storage subsystem degradation, often due to a failing RAID array. CompTIA A+ explains that slow file access is an early sign of a degraded array, and eventual unavailability indicates the array may have failed or entered a critical state.

Since the technician can still RDP into the server, the OS is functioning, meaning memory is likely not the issue. Network connectivity is sufficient for remote login. Backup integrity does not affect real-time file availability.

Thus, the next step is to check the RAID array status, which directly controls the server’s storage performance and availability precisely what CompTIA identifies as the primary point of failure in such scenarios.

A bulge under the trackpad on a laptop is a strong and well-known indicator of a swollen lithium-ion battery. According to CompTIA Core 1 (220-1201) mobile device hardware and troubleshooting objectives, laptop batteries are often located directly beneath the palm rest or trackpad area. When a lithium-ion battery begins to fail, it can swell due to internal chemical reactions, causing physical deformation of nearby components.

This swelling can interfere with the normal operation of the trackpad, leading to cursor control issues, clicking problems, or unresponsive behavior. More importantly, a swollen battery presents a serious safety risk, including the potential for overheating, leakage, or fire. For this reason, CompTIA emphasizes that battery replacement should be the first corrective action when physical swelling is observed.

Replacing the trackpad would not resolve the underlying pressure caused by the expanding battery. The motherboard and heat sink are unrelated to the physical bulge and cursor control symptoms described. Proper troubleshooting requires identifying and addressing the root cause, not the secondary symptom.

CompTIA best practices also stress safe handling and immediate replacement of damaged or swollen batteries to prevent further hardware damage or personal injury.

A hybrid cloud combines on-premises infrastructure with public cloud services. One significant advantage is that it allows organizations to keep sensitive data in a private environment to meet regulatory or data residency requirements, while still utilizing the scalability and cost-efficiency of the public cloud for other workloads. This ensures compliance with legal mandates about data location.

Satellite internet is commonly used in rural or remote locations where wired broadband options such as cable and fiber are not available and where DSL service may be limited by distance from the provider’s equipment. CompTIA A+ Core 1 emphasizes understanding internet connection types and where each is typically deployed. Satellite works by using a dish at the customer site to communicate with a satellite, which then relays traffic to a ground station connected to the internet backbone. Because it does not depend on local cable plant, telephone central office proximity, or neighborhood fiber buildouts, it can be deployed in areas with minimal infrastructure.

Fiber (A) provides very high speeds and low latency but requires extensive physical infrastructure that is often lacking in rural regions. Cable (D) also requires a local cable network buildout and is usually concentrated in more populated areas. DSL (C) uses existing telephone lines, but performance and availability depend heavily on distance from the DSL provider’s equipment, making it unreliable or unavailable in sparsely populated regions. While satellite often involves higher latency and can be affected by weather, it remains a primary option when traditional broadband services are not present.

Intermittent freezing followed by unexpected restarts after the system has been running for a while often points to a hardware stability problem that worsens with heat and time, rather than an immediate configuration or “not enough resources” issue. When diagnostics show no errors, the next CompTIA A+-style step is to look for physical signs of failing components. Swollen or leaking capacitors on the motherboard or in the power delivery area can cause unstable voltage regulation as the system warms up, leading to input lag, lockups, and spontaneous reboots even during light tasks like reading email. A visual inspection can quickly confirm this failure mode and is an appropriate next troubleshooting action when software and basic diagnostics are inconclusive.

Replacing the power supply with a higher wattage is not the best next step because the workload described is not high draw, and the symptom is not clearly tied to peak load; if a PSU is suspect, the usual step is testing with a known-good PSU of correct specs, not simply “higher wattage.” Increasing RAM is unnecessary because the system meets requirements and this would more commonly cause persistent slowness, not sudden restarts. A CMOS battery issue typically causes time resets or BIOS setting loss, not freezing and random reboots after hours.

A PoE (Power over Ethernet) switch transmits both data and electrical power over Ethernet cables to devices like wireless access points or VoIP phones. This is especially useful in areas where separate power sources are not available.

Assigning a static IP to network printers ensures the printer ' s address does not change after outages or DHCP lease expirations, preventing connectivity issues.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – Printer network configuration:

“Printers should use static IPs to ensure they remain reachable and do not change addresses after network events.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Printer Networking

CompTIA Exam Objectives 220-1101, Domain 3.4

RAID 1 is known as mirroring. It duplicates all data to both drives simultaneously, providing redundancy in the event of a single drive failure. CompTIA A+ teaches that RAID 1 is ideal when reliability is the priority and only two drives are available exactly matching this scenario.

RAID 0 offers no redundancy. RAID 5 requires three or more drives. RAID 10 requires four or more drives.

Since the workstation has only two drives, RAID 1 is the only RAID configuration providing data protection and is heavily featured in CompTIA’s coverage of RAID technologies, their requirements, and their purposes in fault tolerance.

APrivate Cloudis operated solely for a single organization. It ishosted on-premises or in a dedicated off-site data center, giving the company full control over data, security, and compliance often hosted in theorganization’s own local data center.

Option B (Public):Hosted by third-party providers and shared by multiple clients.

Option C (Hybrid):Combines private and public cloud resources.

Option D (Community):Shared by several organizations with similar goals.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

When a laptop screen is replaced, the technician typically removes the display assembly components and works near the hinge area where the Wi-Fi antenna leads are routed. In most laptops, the Wi-Fi antennas are built into the display bezel and connect to the wireless adapter using thin coax cables labeled MAIN/AUX. If one or both antenna leads are left disconnected, pinched, or not fully seated during reassembly, the Wi-Fi adapter may still appear in the OS, but the radio signal strength becomes extremely weak. A common symptom is no SSIDs found or only very close/strong networks intermittently.

Bluetooth working does not rule this out because Bluetooth can have separate antennas or may still function at short range even when Wi-Fi reception is poor. Ethernet working confirms general network access and suggests the issue is isolated to the Wi-Fi radio path rather than the router, ISP, or OS networking stack. The wireless access point is unlikely to be the cause if the issue started immediately after hardware service and other devices can see SSIDs. Therefore, the first hardware check should be the wireless antenna connections and routing.

The correct answer is D. DVI (Digital Visual Interface).

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

DVI is primarily a video-only interface that transmits digital or analog video signals from a source (like a computer) to a display.

Unlike HDMI or USB-C, DVI does not carry audio signals, making it strictly for video.

Why the other options are incorrect:

A. DisplayPort: Supports video and audio as well as other features such as daisy-chaining multiple monitors.

B. HDMI: Transmits both video and audio signals over a single cable.

C. USB-C: Can carry data, power, and video/audio signals depending on the device and protocol (e.g., DisplayPort Alt Mode).

The correct answer is A. Clean the feed rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams, particularly in high-use shared printers, are commonly caused by dirty or worn feed rollers.

Cleaning the feed rollers removes dust, paper debris, and toner residue that can prevent smooth paper feeding, especially when printing double-sided documents.

This is a standard preventive maintenance procedure that improves reliability and extends the printer’s operational life.

Why the other options are incorrect:

B. Use a different paper weight: A4 standard paper is appropriate; changing paper weight is unnecessary unless the paper is damaged or incompatible.

C. Replace the fuser unit: Fuser problems generally cause smudging or incomplete fusing, not frequent paper jams.

D. Change the toner cartridge: Toner issues affect print quality (light or streaky prints), not paper feeding or jamming.

The correct answer is D. WLAN (Wireless Local Area Network).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A WLAN is a wireless network that covers a limited area such as an office, building, or campus.

Using a heat map helps administrators determine optimal placement of access points, identify areas of weak signal, and plan coverage for employees’ devices.

Why the other options are incorrect:

A. SAN (Storage Area Network): Connects storage devices over a network; not used for wireless coverage.

B. PAN (Personal Area Network): Covers a very small area, such as a single person’s devices (Bluetooth, USB, etc.), not a whole office.

C. MAN (Metropolitan Area Network): Covers a city or large geographic area; too large for a floor plan.

For the highest possible stability, the best power-supply choice is a redundant power supply. In CompTIA A+ Core 1 (220-1201) hardware concepts, redundant PSUs are used in systems where uptime and reliability are critical. A redundant PSU configuration typically includes two power supply units operating together (often in a hot-swappable bay). If one PSU fails, the other continues supplying power, allowing the workstation to remain operational and preventing unexpected shutdowns that could interrupt CAD work or corrupt data. This directly matches the requirement for maximum stability.

A UPS improves resilience to power loss and brownouts by providing battery backup and line conditioning, but it is not a power supply type and doesn’t protect against the PSU itself failing. A surge protector helps guard against voltage spikes, but it also does not ensure system operation if the PSU fails. A modular PSU mainly improves cable management and airflow by allowing detachable cables; it can be convenient and neat, but it does not inherently increase stability compared with redundancy. Therefore, the most stability-focused PSU option is Redundant.

The correct answer is C. Synchronized system clocks.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Server Services, NTP (Network Time Protocol) is used to synchronize the clocks of computers across a network to a common time source. This is critical for:

Ensuring accurate timestamps for logs and events.

Coordinating scheduled tasks across multiple systems.

Preventing authentication issues in environments that rely on time-based credentials (e.g., Kerberos).

Why the other options are incorrect:

A. Defined network transport protocols: NTP itself is a protocol that uses UDP, but its primary purpose is not defining transport protocols.

B. Enabled print services on the server: NTP does not relate to printing.

D. Defined server options in DHCP: NTP may be referenced by DHCP options, but the act of adding NTP to a server is focused on time synchronization, not DHCP configuration.

According to the CompTIA A+ Core 1 (220-1201) virtualization objectives, a Type 1 hypervisor is known as a bare-metal hypervisor because it installs directly onto the physical hardware of a system rather than running on top of a traditional operating system. This architecture allows the hypervisor to manage hardware resources—such as CPU, memory, storage, and networking—without the overhead of a host operating system. Because of this direct interaction with the hardware, Type 1 hypervisors typically provide higher performance, better scalability, and improved stability compared to Type 2 hypervisors.

Examples of Type 1 hypervisors include VMware ESXi, Microsoft Hyper-V (bare-metal deployment), and Citrix XenServer. These hypervisors are commonly used in enterprise data centers, cloud infrastructure, and large virtualization environments where multiple virtual machines must run efficiently on a single physical server. ???? ️

Option A (Host OS required) describes a Type 2 hypervisor, such as VMware Workstation or Oracle VirtualBox, which runs on top of an existing operating system. Option C (Lightweight OS) may describe some hypervisor environments but is not the defining characteristic. Option D (Local configuration options) is also not specific to Type 1 hypervisors.

Therefore, the key characteristic that defines a Type 1 hypervisor is that it performs a bare-metal server installation directly on the hardware

solution as

A screenshot of a network settings AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is A. Virtual LAN (VLAN).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

VLANs are used to segment a physical network into multiple logical networks. By assigning the accounting department to a separate VLAN, users on other VLANs cannot access its network traffic without routing, thereby isolating sensitive departments while using the same physical switch.

VLANs improve security, reduce broadcast traffic, and allow network administrators to enforce access controls at the layer 2 level.

Why the other options are incorrect:

B. DHCP reservations: Ensure that specific devices always receive the same IP address, but do not restrict network access.

C. Content filtering: Controls web or application traffic based on content, not segmenting network access between departments.

D. Port security: Limits which devices can connect to a port but does not provide full network segmentation for an entire department.

The correct answer is B. USB.

In the CompTIA A+ Core 1 (220-1201) objectives under mobile devices and connectivity methods, tethering refers to sharing a mobile device’s internet connection with another device such as a laptop. There are several tethering methods, including USB tethering, Bluetooth tethering, and Wi-Fi hotspot.

USB tethering is considered the most stable and reliable (tethered) connection because:

It uses a physical cable connection, eliminating wireless interference.

It provides consistent bandwidth and low latency.

It also charges the phone while connected, which is an added benefit.

It is less prone to disconnections compared to wireless methods.

Why the other options are incorrect:

A. Bluetooth

Bluetooth tethering is slower and less stable due to limited bandwidth and susceptibility to interference. It is not ideal for high-performance or stable connections.

C. Hotspot

A mobile hotspot uses Wi-Fi, which is wireless, not tethered. While convenient, it is less stable than a wired USB connection and can be affected by interference and signal range.

D. NFC

NFC (Near Field Communication) is used for very short-range communication like payments or quick pairing. It is not used for maintaining a continuous network connection.

Final Answer: B. USB

The correct answer is B. Switches connect devices within a network; routers connect networks.

According to the CompTIA A+ Core 1 220-1201 networking objectives:

Switches operate at the Data Link layer (Layer 2) and sometimes Layer 3, connecting multiple devices within the same local area network (LAN). They manage data traffic between devices by using MAC addresses to forward frames only to the intended recipient.

Routers operate at the Network layer (Layer 3) and connect different networks together, such as connecting a LAN to the internet. They use IP addresses to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Routers are programmable; switches are not programmable: Both devices can have programmable configurations in enterprise environments, so this is not a defining difference.

C. Switches are programmable; routers are not programmable: Same reasoning as above; not accurate.

D. Routers connect devices within a network; switches connect networks: This reverses the actual roles and is incorrect.

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

In CompTIA A+ Core 1 (220-1201) networking and troubleshooting, a common cause of “can’t reach internal resources” while docked is that the laptop is still using the wireless interface (or has a higher interface priority for Wi-Fi) instead of the docking station’s wired Ethernet connection. If the Wi-Fi network is a guest/isolated VLAN, uses different routing, or has stricter access controls, the user may be blocked from reaching department file servers even though an Ethernet cable is physically connected to the dock. Disabling Wi-Fi is a fast, low-risk step that forces the system to use the wired NIC path through the docking station, which typically provides the correct corporate network access, DHCP scope, and routing to internal servers.

Restarting the computer might help in some cases, but it’s less targeted and not the “best next step” when the likely issue is interface selection. Replacing the Ethernet cable is appropriate if link lights are off or the wired connection is clearly down, but the scenario highlights that the dock has a hardwired connection—suggesting the physical layer may be fine. Dock firmware updates are not a first-line fix for basic connectivity/access symptoms.

The correct answer is B. Moving to a supported system under a Type 2 hypervisor.

In the CompTIA A+ Core 1 (220-1201) objectives, virtualization is a key concept for maintaining compatibility with legacy systems. A Type 2 hypervisor (hosted hypervisor) runs on top of an existing operating system and allows users to run a virtual machine (VM) with an older OS.

This solution is ideal because:

It allows the legacy application to run in its required OS environment.

It avoids replacing the application (which could cause data loss or compatibility issues).

It is cost-effective, as it uses existing hardware.

It minimizes user disruption, since users can continue using the application within a VM.

Why the other options are incorrect:

A. Setting up a bare-metal hypervisor

A Type 1 (bare-metal) hypervisor is more complex, costly, and disruptive. It typically requires dedicating hardware and is not ideal for a single department use case.

C. Upgrading to an alternative product and importing the data

Although this may be a long-term solution, it involves higher cost, potential data loss, retraining, and disruption.

D. Uploading the database to a private cloud

This does not solve the compatibility issue of the legacy application with the new OS.

Final Answer: B. Moving to a supported system under a Type 2 hypervisor

The correct answer is B. Near-field communication (NFC).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC is commonly used for secure access control. Many organizations implement NFC-enabled ID badges or mobile devices to unlock doors, gates, or secure areas.

The mobile device communicates over a very short range (a few centimeters) with a reader to authenticate the user.

Why the other options are incorrect:

A. Hotspot: Provides internet access, not physical building access.

C. Infrared scanner: While used in some legacy devices, it is not commonly implemented for secure mobile access.

D. Geolocation: Can provide location awareness but does not grant direct access to secure physical spaces.

The correct answer is A. Loopback plug.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A loopback plug is used to test a network interface card (NIC) port by sending a signal out of the port and back into the same port, verifying that the NIC can send and receive data properly.

This is a common diagnostic tool when troubleshooting network connectivity issues on individual devices.

Why the other options are incorrect:

B. Toner probe: Used for tracing and locating cables, not for testing NIC ports.

C. Cable tester: Checks the integrity of network cables but does not verify NIC send/receive functionality.

D. Network tap: Passively monitors network traffic but does not test the NIC port itself.

In the CompTIA A+ Core 1 (220-1201) exam objectives, cloud deployment models describe how and where computing resources are hosted and who has access to them. A private cloud is defined as a cloud environment that is dedicated to a single organization and may be hosted on-premises within the company’s own data center or in a dedicated external facility. Since the question states that the directory services server is located on premises, it indicates that the organization is hosting and managing its own infrastructure internally. This aligns directly with the definition of a private cloud deployment model.

Directory services—such as Microsoft Active Directory or LDAP-based services—are commonly deployed internally to manage user authentication, authorization, group policies, and resource access within an organization. When these services run on company-owned hardware inside the organization’s network, the infrastructure remains under the organization’s full administrative control, security policies, and management.

The other options do not match this scenario. A public cloud is hosted by third-party providers and shared among multiple customers ☁. A hybrid cloud combines on-premises infrastructure with public cloud services. A community cloud is shared by multiple organizations with similar requirements. Because the system is hosted internally for a single organization, the correct classification is Private Cloud .

The correct answer is D. Replace the drive with a cold-swappable drive.

According to CompTIA A+ Core 1 220-1201 objectives under Storage and RAID:

RAID 5 provides both data striping and parity for fault tolerance, but if the RAID controller does not support hot swapping, replacing a failed drive while the system is running is not possible.

Cold-swappable drives are designed to be safely removed and replaced when the system is powered down, which allows maintenance without damaging the array or system.

Why the other options are incorrect:

A. Update the RAID controller firmware to support hot swapping: Firmware updates may add hot swap functionality, but this is not guaranteed and may require a system reboot.

B. Implement a software-based RAID solution: Software RAID requires a system reconfiguration and downtime; it does not immediately resolve the degraded RAID 5 array.

C. Change the drive during off-peak hours: While feasible, this is essentially the same as using a cold-swappable drive but is less precise; using cold-swappable drives ensures safe replacement without downtime considerations.

The correct answer is D. Decreased burn-in.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

Mini-LED displays use an array of tiny LEDs as a backlight for LCD panels.

Unlike OLED displays, which are susceptible to burn-in (permanent image retention when static content is displayed for long periods), mini-LEDs reduce the risk because the pixels themselves do not emit light individually and are less prone to permanent image retention.

Why the other options are incorrect:

A. Increased contrast: OLED typically provides better contrast because it can turn off individual pixels completely.

B. No backlight: Mini-LEDs still use a backlight, whereas OLEDs do not.

C. Improved viewing angle: OLEDs generally offer wider viewing angles than mini-LED LCDs.

The correct answer is D. Data is being throttled.

Data throttling refers to the intentional slowing down of internet speeds by a mobile carrier after a user reaches a certain data usage limit or during network congestion. In this scenario, the employee can still successfully upload files, but the speed has decreased compared to before—this is a classic symptom of throttling.

Why the other options are incorrect:

A. Wireless is turned off

If wireless were turned off, the employee would not be able to upload anything at all. The question clearly states that uploads are still successful.

B. 5G is disabled

Disabling 5G could reduce speeds slightly if the device falls back to 4G/LTE, but it would not typically cause a significant or noticeable degradation unless compared under ideal conditions. It is not the most likely cause.

C. Roaming is turned on

Roaming allows connectivity outside the home network. While it may incur additional charges, it does not inherently cause significant speed reduction in most modern networks. It is less likely than throttling.

Exam Tip (Core 1 220-1201):

Slow but working connection → Think throttling or congestion

No connection → Think disabled wireless or network issues

Final Answer: D. Data is being throttled

The correct answer is B. Elasticity.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud Concepts:

Elasticity refers to the cloud computing capability to automatically allocate and deallocate resources based on current demand. This ensures that applications have the necessary compute, storage, and network capacity during peak loads, and resources can be scaled down when demand decreases, optimizing efficiency and cost.

Why the other options are incorrect:

A. Hybrid deployment: Refers to using a combination of public and private clouds; it does not describe dynamic resource allocation.

C. Multitenancy: Describes the architecture where multiple users share the same infrastructure securely.

D. Metered utilization: Refers to charging based on resource consumption; it is a billing mechanism, not a dynamic allocation feature.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is A. 2.4GHz.

In the CompTIA A+ Core 1 220-1201 networking objectives, wireless networking technologies include frequency bands such as 2.4GHz, 5GHz, and 6GHz, along with related concepts like channels, regulations, channel selection, Bluetooth, 802.11 standards, NFC, and RFID.

The 2.4GHz band supports the most devices because it is the oldest and most widely adopted Wi-Fi frequency listed. Many legacy devices, including older laptops, printers, IoT devices, smart home devices, and wireless peripherals, still rely on 2.4GHz. It also has better range and wall penetration than higher-frequency bands, although it is usually more crowded and slower.

Why the other options are incorrect:

B. 5GHz

5GHz is newer than 2.4GHz and generally provides faster speeds with less interference, but it does not support as many older legacy devices.

C. 6GHz

6GHz is the newest Wi-Fi frequency option used with newer Wi-Fi standards, so it has the least legacy device support among the Wi-Fi frequency choices.

D. NFC

NFC is a short-range communication technology, not a Wi-Fi frequency band. It is used for close-proximity functions such as tap-to-pay, pairing, and access cards, so it is not the best answer.

Final Answer: A. 2.4GHz

The correct answer is C. Virtualization.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Virtualization allows a single physical server to host multiple virtual machines (VMs), each running its own operating system and applications.

This reduces hardware costs because fewer physical servers are required to run multiple workloads, and it improves resource utilization, scalability, and management.

Why the other options are incorrect:

A. Containerization: Optimizes application deployment by packaging applications and dependencies, but containers share the host OS kernel and are not full OS instances.

B. Cloud computing: Refers to delivering computing services over the internet; it can use virtualization but is broader and not specifically focused on reducing physical hardware.

D. Remote desktop services: Provides remote access to desktops or applications; it does not reduce hardware requirements for hosting multiple OS environments.

The correct answer is D. Replace the failed drive.

RAID 6 is a redundant array of independent disks that can tolerate up to two drive failures while still maintaining data integrity. According to CompTIA A+ Core 1 (220-1201) objectives, a red LED on a drive in a RAID array indicates that the drive has failed or is in a critical state.

Next Step: In RAID 6, a single failed drive should be replaced immediately to prevent additional failures and maintain redundancy. The array can continue to operate in a degraded state, but performance may be slow during rebuilds. Replacing the failed drive allows the RAID controller to rebuild data onto the new drive, restoring full redundancy.

Why the other options are incorrect:

A. Reconfigure the RAID array: This would erase existing data; unnecessary if only one drive failed.

B. Run a S.M.A.R.T. test: While useful for diagnosing drive health, the red LED already indicates failure, so immediate replacement is required.

C. Reinstall the controller drivers: This does not address a physically failed drive and would not fix the degraded RAID array.

The correct answer is D. Dual channel.

In the CompTIA A+ Core 1 (220-1201) hardware objectives, memory bandwidth refers to the amount of data that can be transferred between RAM and the CPU in a given amount of time.

Dual channel memory architecture increases bandwidth by:

Allowing the memory controller to access two memory modules simultaneously

Effectively doubling the data transfer rate compared to single-channel configurations

Improving overall system performance, especially in memory-intensive tasks

Why the other options are incorrect:

A. CAS latency

CAS latency measures the delay before data is available after a request. Lower latency improves response time, but it does not significantly increase total bandwidth.

B. ECC

ECC (Error-Correcting Code) improves reliability by detecting and correcting errors, but it does not increase data transfer bandwidth.

C. High clock speed

Higher clock speed does increase bandwidth, but not as significantly as enabling dual channel, which allows parallel data transfer paths and provides a greater overall increase.

Final Answer: D. Dual channel

The correct answer is A. Adjust the SMTP server configurations for email.

Scan-to-email functionality on a multifunction printer relies on proper configuration of an SMTP (Simple Mail Transfer Protocol) server. The printer must know how to send outgoing email, which requires settings such as:

SMTP server address

Port number (commonly 25, 465, or 587)

Authentication credentials (username/password)

Encryption method (SSL/TLS if required)

If scan-to-email is not working, the most common cause is incorrect or missing SMTP configuration. Without this setup, the printer cannot send scanned documents via email.

Why the other options are incorrect:

B. Check the printer ' s IP address configuration

This ensures network connectivity, but since the printer is already in use and the issue is specific to email functionality, IP configuration is unlikely the root cause.

C. Install the printer ' s driver software on all computers

Drivers are needed for printing from computers, but scan-to-email is handled directly by the printer and does not depend on client-side drivers.

D. Configure user authentication settings for email access

While authentication may be required in some setups, it is part of the broader SMTP configuration. The primary and most direct fix is ensuring SMTP settings are correct.

Exam Tip (Core 1 220-1201):

Scan-to-email issues → Check SMTP settings first

Multifunction printers rely on network services (email protocols), not just drivers

Final Answer: A. Adjust the SMTP server configurations for email

The correct answer is A. NFC (Near Field Communication).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices, NFC is commonly used for short-range wireless communication between devices. In the context of mobile printing:

NFC-enabled printers allow a user to tap a mobile device (phone or tablet) to the printer to initiate a print job instantly without needing to configure Wi-Fi credentials or use cables.

This is particularly common in mobile-friendly environments like offices or public kiosks.

Why the other options are incorrect:

B. Hotspot: Provides an Internet connection, not a direct mobile-to-printer interface.

C. Infrared: Legacy technology largely replaced by NFC and Wi-Fi; rarely used in modern printers.

D. USB: Requires a wired connection, not suitable for sending a print job wirelessly from a mobile device.

The correct answer is D. Channel width.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Wireless:

Channel width refers to the size of the frequency band used for Wi-Fi communication.

Increasing channel width (e.g., from 20 MHz to 40 MHz, 80 MHz, or 160 MHz) allows more data to be transmitted at once, effectively increasing wireless throughput speed.

Why the other options are incorrect:

A. Licensed bands: Licensed spectrum is used for certain types of communication and does not directly increase Wi-Fi throughput.

B. Maximum transmission unit (MTU): MTU defines the largest packet size transmitted over a network but is not the primary factor for increasing Wi-Fi throughput.

C. Transmit power: Adjusting transmit power affects signal range and coverage but does not significantly increase throughput; it may improve connectivity but not data rates.

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.
