2V0-11.24 VMware Cloud Foundation 5.2 Administrator Questions and Answers

Aria Operations for Logs (formerly known as vRealize Log Insight) is used to collect, analyze, and troubleshoot logs from various components within VMware Cloud Foundation, including the vSAN cluster. It provides detailed insights into the logs, allowing administrators to perform in-depth troubleshooting of issues like degraded health statuses.

Encrypted vSphere vMotion ensures that network traffic is protected from interception and tampering during VM migration activities by encrypting the vMotion traffic. This feature secures the transfer of virtual machines across hosts in the vSphere environment.

vSphere HA (High Availability) is designed to automatically restart virtual machines on other hosts in the cluster in case of a host failure. If there is an issue with vSphere HA host states, the primary symptom is that HA-protected VMs do not restart after a host failure, which indicates a problem with HA configuration or functionality.

In a VMware Cloud Foundation environment, it is recommended to use static IP addresses that are managed via VMware NSX IP Pools. This method ensures consistency, scalability, and centralized management of IP addresses, which is essential for large environments. NSX IP Pools allow for efficient IP address allocation and management.

Using vMotion to migrate all virtual machines off the host ensures that there is no downtime for the VMs during the maintenance process.

The administrator should then select the host and initiate maintenance mode from the vSphere Client to begin the maintenance process.

Ensuring the host is not part of a vSphere HA cluster before maintenance is important to avoid triggering unnecessary VM restarts or failovers during the process.

Configure the AVNs in the NSX Manager: AVNs (Application Virtual Networks) are configured within NSX Manager to define the network segments and ensure proper network segmentation for workloads.

Assign AVNs to specific ESXi hosts: After configuring the AVNs in NSX Manager, they need to be assigned to the appropriate ESXi hosts to ensure they are properly mapped to the compute resources.

Define the IP address ranges for the AVNs: Each AVN must have an associated IP address range to provide network addressing for the workloads deployed on them.

To configure backups for the VMware Cloud Foundation management components, you must set up an external SFTP backup repository within the SDDC Manager. This repository will store the backup files for management components like vCenter, NSX Manager, and SDDC Manager itself.

Creating a backup schedule within the SDDC Manager ensures that regular, automated backups are taken, helping to maintain data integrity and recovery options for the management domain.

Aria Operations (formerly vRealize Operations) is the most appropriate tool for analyzing detailed network performance metrics in a vSphere environment. It provides comprehensive monitoring, analytics, and performance management, including network performance metrics across the vSphere infrastructure.

To verify the successful installation of the Tanzu CLI tools, you can use the tanzu version command. This command displays the version of the Tanzu CLI, confirming that the tools are properly installed on the developer workstation.

NSX provides network virtualization, offering secure, isolated networking that is crucial for ensuring robust availability and disaster recovery. It supports micro-segmentation and advanced network management features.

VMware Live Site Recovery (VLSR) provides orchestrated disaster recovery capabilities, enabling the organization to efficiently recover workloads and applications in case of a disaster.

vSphere Replication enables VM-level data replication, allowing for recovery and continuity of business operations by ensuring data is replicated across sites for high availability and disaster recovery.

When placing a vSAN host into maintenance mode, choosing "Ensure Accessibility" ensures that all data remains accessible during the maintenance operation. It moves data off the host only if necessary, prioritizing accessibility while minimizing downtime. This option is designed to minimize the time required to complete the operation compared to "Full Data Migration."

Storage Type: The storage type needs to be specified during the commissioning of new hosts in VMware Cloud Foundation, as it is important for the configuration of storage resources for the hosts.

SSO Domain Name: The Single Sign-On (SSO) domain is an essential parameter to associate the hosts with the existing authentication domain.

Username: The administrator needs to provide a username with appropriate permissions to configure the hosts during the commissioning process.

VLAN-backed Port Groups are used in traditional network environments where VLANs are configured on the physical switches. These port groups can be configured in the management domain to support network connectivity.

Overlay-backed NSX Segments use NSX to create virtual networks overlaid on existing physical networks, which is essential for network virtualization and communication between virtual machines, especially in a VMware Cloud Foundation environment.

VMware vCenter Content Libraries provide a centralized location for storing and managing virtual machine templates, ISO images, and scripts, making it easier to distribute these resources across multiple vCenter instances. This helps streamline the deployment process, ensuring consistency and reducing the overhead of managing these resources manually.

A Virtual Distributed Switch (VDS) in a vSphere environment enables centralized management of network configurations across multiple ESXi hosts. It simplifies network administration by allowing the administrator to configure network settings, such as VLANs, port groups, and policies, for multiple hosts at once, ensuring consistency and scalability.

Port group settings and VLAN configurations need to be correct for VMs to communicate with each other on the same network. Ensuring they are properly configured is essential.

It's important to check that the VM is connected to the correct port group that matches the network configuration of the other VMs.

The network adapter settings in vCenter Server should be reviewed to ensure there are no misconfigurations that could prevent network communication.

When creating a new Content Library, you first need to specify a name and description to define the library's purpose.

For a Local Content Library, you need to choose the datastore where the library contents will be stored. This is essential for proper organization and accessibility of content.

To create and manage content libraries, you must navigate to the Content Libraries section in the vSphere Client.

If the hardware version of the virtual machines is incompatible with the new vSphere environment, the VMs may not appear or may fail to register properly. Ensuring compatibility between the VM hardware version and the vSphere environment is essential for successful VM migration.

If the VMs are not correctly registered in the new vSphere environment after migration, they won't show up in the vCenter inventory. Checking the registration status helps to identify if this is the issue.

Filtering the logs by the ESXi host name and error severity helps narrow down the logs to those relevant to the specific host and allows for easier identification of significant errors.

Checking for patterns or repeated error messages over a specific time frame helps identify the root cause of the issue and determine if the errors are linked to a specific event or condition.

Enabling Workload Management on a vSphere Cluster allows the use of VMware vSphere with Tanzu, which enables the deployment and management of Kubernetes clusters directly on vSphere. This integration allows for container orchestration, making it easier to deploy, manage, and scale containerized applications alongside traditional VMs in the same environment.

Ensuring network connectivity between the Aria Operations for Logs server and VMware Cloud Foundation components is crucial. If there are network connectivity issues, logs may fail to be transmitted to the Aria Operations for Logs server.

The syslog configuration on each ESXi host must be set correctly to point to the Aria Operations for Logs server to ensure that log data from ESXi hosts is collected and sent to the log management system.

The NSX Edge Cleaner tool is typically run on the Edge cluster node VM(s) to clean up the previous configuration and ensure that the node(s) are properly removed before re-deploying the NSX Edge cluster. This process helps to reset the environment and remove any leftover configurations that may affect the re-deployment.

To verify if high memory usage is due to memory contention, the administrator should check the memory usage and ballooning metrics in VMware Aria Operations. Ballooning occurs when the hypervisor reclaims memory from a virtual machine due to memory contention, and monitoring these metrics can help identify whether the VMs are experiencing memory pressure or being forced to swap memory.

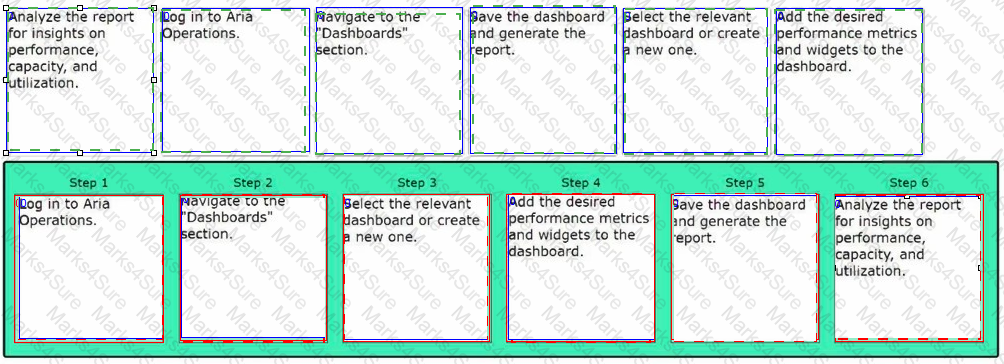

Creating custom dashboards in Aria Operations allows administrators to visualize and monitor performance metrics specific to the organization's needs, making it easier to analyze the infrastructure.

Using Aria Operations for Logs helps correlate log data with performance issues, enabling a deeper analysis and understanding of the root causes of performance problems.

Running predefined reports on capacity and utilization provides valuable insights into how resources are being consumed, helping identify areas that need optimization or adjustment.
