300-445 Designing and Implementing Enterprise Network Assurance(300-445 ENNA) Questions and Answers

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, application health is not just about reachability, but about the functionality of business-critical paths. For an e-commerce checkout process, which involves multiple interactive steps such as "Add to Cart," "Enter Shipping Info," and "Finalize Payment," Transaction monitoring (Option B) is the most beneficial functionality.

Transaction tests provide a high-level view of application performance by executing a script that simulates a real user's interaction with the site's various components. Unlike HTTP server monitoring (Option A), which merely verifies that a single URL returns a specific status code (like 200 OK), Transaction monitoring validates that the underlying application logic and database transactions are working as expected across the entire session. If a user can reach the homepage but the "Checkout" button fails due to a slow backend API call or a JavaScript error, only a Transaction test will identify the failure and provide a granular waterfall chart to show exactly where the process broke down.

While DNS monitoring (Option C) and Routing visibility (Option D) are crucial for identifying foundational connectivity issues, they are insufficient for monitoring complex transactional workflows. A DNS failure would prevent access to the site entirely, but a "broken" checkout process often occurs while the network and DNS appear perfectly healthy. Transaction monitoring bridges this gap by providing "layer 7" visibility into the end-to-end user experience, making it the definitive choice for e-commerce performance assurance.

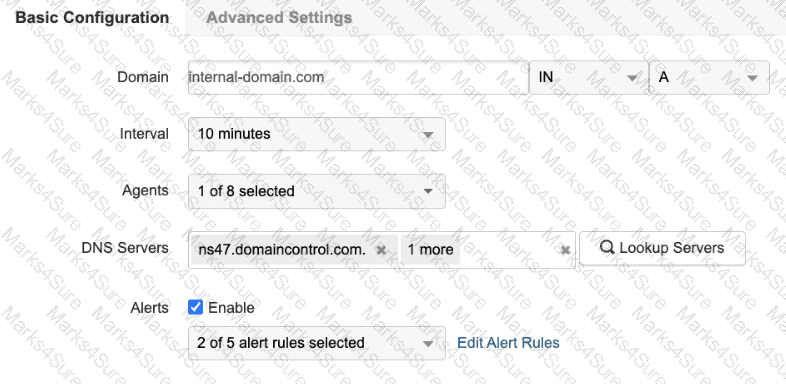

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, DNS testing is a fundamental component of ensuring application availability and performance. The ThousandEyes platform provides two primary types of DNS tests: DNS Server and DNS Trace .

To satisfy the specific requirements of monitoring IPv6 records and name server resolution times , the engineer must utilize the DNS Server test . This test type is designed to measure the performance of specific DNS servers by querying them for particular resource records.

Monitoring IPv6 Records: In the DNS system, IPv6 address records are known as AAAA records . Therefore, to monitor the availability and resolution of IPv6 addresses for a domain, the engineer must create a DNS Server test and set the query type to AAAA (Option B).

Monitoring Name Server Resolution Times: To measure how long it takes for a DNS server to return the authoritative name servers for a domain, the engineer must query for NS (Name Server) records . By creating a DNS Server test targeting the NS record (Option D), the platform can provide granular metrics on the response time and availability of those specific records from the perspective of the selected agents.

DNS Trace tests (Options C and E) are less suitable for measuring specific resolution times of a single server; instead, they are used to visualize the entire delegation path from the root servers down to the authoritative servers to identify where a "break" in the chain occurs. Furthermore, an A record query (Option A) only provides the IPv4 address, failing the requirement to monitor IPv6. By selecting DNS Server tests for AAAA and NS records, the administrator ensures they have the precise performance data needed to baseline and troubleshoot the organization's DNS health.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, a common architectural hurdle is monitoring applications protected by Multi-Factor Authentication (MFA). ThousandEyes transaction tests utilize automated browser sessions to simulate user behavior, but they face inherent limitations when interacting with "out-of-band" security mechanisms.

Specifically, ThousandEyes agents cannot natively interact with external hardware tokens, biometric prompts, or mobile-app-based OTP generators (Option A). Since an OTP is dynamic and time-sensitive, manually entering it into a static test configuration (Option B) is impossible for an automated, recurring test. While some complex workhooks (Option C) might theoretically interface with a virtual MFA service, this introduces significant security risks and architectural complexity that is generally discouraged in a standard assurance design.

The verified and most practical approach is to exclude the MFA step from the transaction test and focus only on the SAML login (Option D). For monitoring purposes, IT teams often create a "synthetic user" account within the Identity Provider (IdP) that is specifically exempted from MFA policies when originating from known ThousandEyes Enterprise Agent IP addresses. This allows the transaction script to validate the availability and performance of the SAML-based SSO redirect, the credential challenge, and the final application landing page. This strategy ensures that the network and application health can be baselined without the test being blocked by a security gate it was never intended to pass.

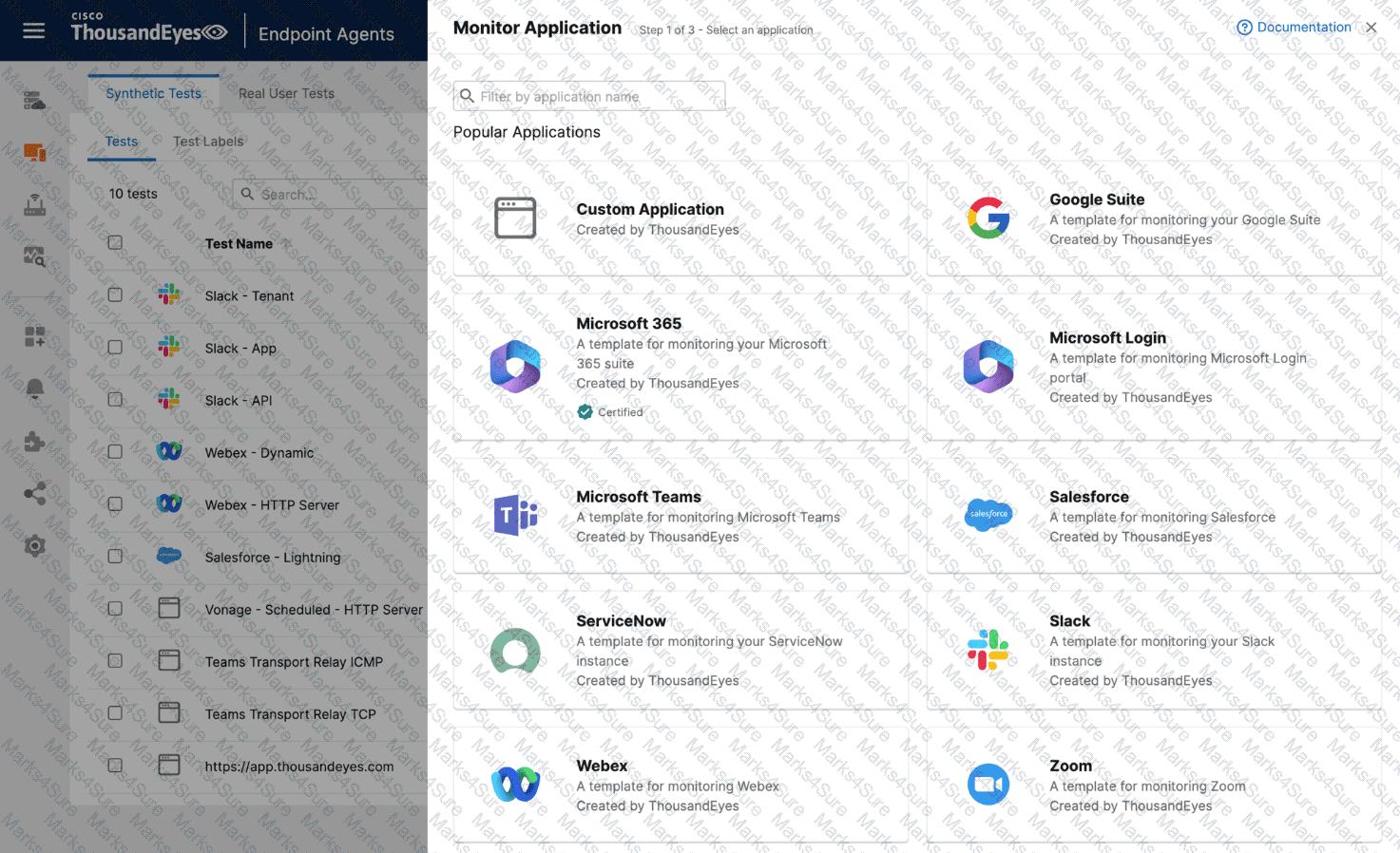

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, monitoring the digital experience of internal employees requires leveraging ThousandEyes Endpoint Agents to simulate or record traffic from the user's specific vantage point. When an engineer needs to monitor a specific, potentially internal or non-standard web application, they must utilize the Custom Application workflow within the Endpoint Experience settings.

According to the ENNA implementation standards, the first necessary action is to Create a new custom application monitor (Option A). In the ThousandEyes portal under Endpoint Experience > Test Settings > Synthetic Tests , the "Monitor Application" button provides access to pre-defined templates for popular services like Microsoft 365 or Webex. However, for a unique enterprise application, the engineer must select "Custom Application" to define the application's identity, including its name and the relevant domain or URL.

The second required action is to Add a new scheduled test to the monitor (Option C). Endpoint Agents perform Scheduled Tests at regular, predefined intervals—such as every 5 or 10 minutes—to proactively check the application's availability, response time, and network path health without requiring user interaction. By adding a scheduled HTTP Server or Network test to the custom monitor, the engineer ensures a consistent baseline of the application's performance as seen from the employee's machine.

Reviewing the incorrect options:

Google Suite monitor (Option B): This is a specific template for Google Workspace and is not suitable for a custom application.

Dynamic Tests (Option D): These are specifically designed for collaboration tools like Zoom or Microsoft Teams to capture ad-hoc sessions; they are generally not used for baselining a standard custom web application.

Test Template (Option E): While all monitors are based on templates, "adding a new template" is not a configuration action but rather a result of the monitoring setup.

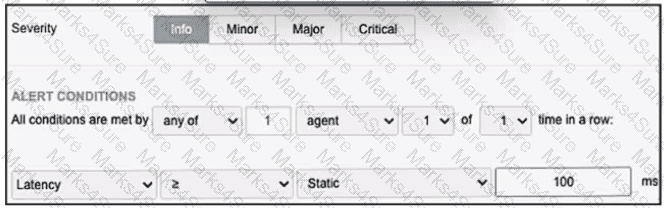

Alert fatigue is a major operational challenge in network assurance. To make a CPU utilization alert for Endpoint Agents less sensitive and reduce "noise," an engineer must implement statistical filters that ignore transient spikes or isolated events.

The two most effective methods are:

Increase the agent count (Option A): By requiring a higher number or percentage of agents to simultaneously exceed the threshold, the system ensures the alert represents a widespread environmental issue rather than a single user running a CPU-intensive background process.

Require more rounds of data (Option C): Instead of alerting on a single measurement (1 of 1 round), the engineer can configure the rule to require the threshold to be breached for multiple consecutive checks (e.g., 2 of 3 rounds). This filters out brief, non-impactful CPU spikes that occur naturally during OS updates or browser startups.

Other options would have the opposite effect:

Option B: Lowering the percentage threshold (e.g., from 90% to 50%) would cause the alert to trigger much more frequently, increasing noise.

Option D: Enabling the alert on more agents increases the pool of potential triggers, which typically leads to more notifications unless the logic in Option A is also applied.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, capacity planning and optimization are driven by telemetry data such as NetFlow. When NetFlow identifies that delay and jitter—metrics highly impactful to real-time traffic—spike during peak hours, it indicates that high-priority packets are competing for resources with bulk data.

The most appropriate recommendation is to tune the existing QoS configuration (Option C). This involves adjusting the Queuing and Scheduling policies on the routers to ensure that voice and video traffic (typically marked with EF and AF41/AF42 DSCP values) is serviced before other traffic classes during periods of congestion. This solution is targeted, cost-effective, and directly addresses the observed jitter issues without the need for massive capital expenditure.

Reviewing other options:

Option A: A complete QoS redesign is often unnecessary and too invasive for solving peak-hour jitter if a basic QoS framework is already in place.

Option B: Increasing bandwidth on "all" links is a "brute force" approach that is expensive and fails to address the underlying problem of traffic prioritization.

Option D: Hardware replacement is a last resort and would not resolve delay/jitter if the new hardware still lacks a properly tuned QoS policy.

In wireless network assurance, high channel utilization and increased retransmissions are clear indicators of RF interference or over-subscription. Retransmissions are particularly damaging to voice call quality because they introduce significant jitter and late-arrival packet loss that the jitter buffer cannot overcome.

The recommended optimization is to change the access point to a different, less congested channel (Option B). This directly reduces the competition for airtime (Channel Utilization) and the likelihood of collisions from neighboring access points (Co-Channel Interference), which in turn lowers the retransmission rate. Modern wireless controllers using Radio Resource Management (RRM) often automate this, but a manual adjustment based on SNMP telemetry is a valid operational fix.

Other options are technically flawed:

Option A: Increasing transmit power often increases interference and channel utilization for surrounding cells, making the problem worse for everyone.

Option C: Disabling all non-voice traffic is an extreme measure that is rarely feasible in a real business environment.

Option D: Admission control limits the number of users but doesn't solve the underlying issue of poor channel health for those already connected.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, monitoring site-to-site connectivity between managed locations requires vantage points at both ends of the connection. In this scenario, the organization needs to measure performance between branch offices (San Francisco and Texas) and a central data center (North Virginia).

The most appropriate combination is using Enterprise Agents with the Agent-to-agent test type (Option C). Enterprise Agents are software probes deployed on infrastructure owned or controlled by the organization, such as switches or routers in the branch offices and servers in the data center. Unlike Agent-to-server tests, which only provide one-way metrics and approximate path data, an Agent-to-agent test provides bi-directional network metrics. This includes detailed throughput, packet loss, latency, and jitter measurements in both directions, which is critical for identifying asymmetric routing or link saturation that might affect application performance.

Alternative options are less suitable for this specific internal monitoring requirement:

Cloud Agents (Options A and B): These are located in global ISP data centers and cannot be placed inside the organization's private data center or branch LAN to measure internal path characteristics.

HTTP/DNS Server tests (Options B, D, and E): These target specific services but do not provide the granular, bi-directional network-layer performance data (like throughput or path visualization) that an Agent-to-agent test delivers.

Agent-to-server (Option E): While useful for reaching a target that cannot host an agent, it loses the benefit of the destination agent's ability to measure the "return" path independently.

By deploying Enterprise Agents at each site and configuring Agent-to-agent tests, the engineer gains the highest level of visibility into the health of the private WAN or SD-WAN fabric connecting the branches to the data center.

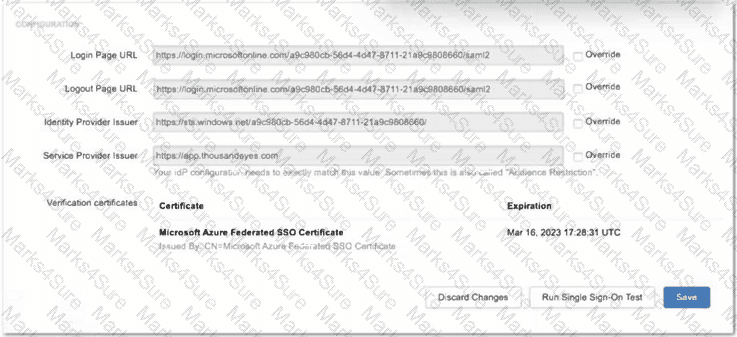

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, secure administrative access via Single Sign-On (SSO) is a critical component of platform governance. The exhibit illustrates the ThousandEyes SSO configuration panel being integrated with Microsoft Entra ID (formerly Azure AD). When configuring SAML-based authentication, the "Identity Provider Issuer" (Option D) is a unique identifier provided by the IdP (Microsoft) that must match exactly between the two systems.

According to ENNA implementation guidelines, ThousandEyes populates default fields based on standard SAML metadata. However, Microsoft Entra ID often utilizes a specific GUID-based format for the Issuer URL (e.g., https://sts.windows.net/tenant-id/) that may differ from the generic URL format expected by the platform's initial auto-fill. To ensure a successful SAML handshake, the engineer must select the "Override" checkbox next to the Identity Provider Issuer field. This action unlocks the field, allowing the engineer to manually paste the exact string provided in the Entra ID Federation Metadata document. If this value is not overridden and matched precisely, the SAML assertion will be rejected, resulting in a failed authentication attempt.

While the Login and Logout URLs (Options B and C) are also critical, they are typically correctly identified during the initial setup or metadata import; the Identity Provider Issuer is the most frequent point of mismatch requiring an manual override in Entra ID environments due to its strict "Audience Restriction" requirements. The Service Provider Issuer (Option A) is generally a fixed value (https://app.thousandeyes.com) that rarely requires overriding as it defines ThousandEyes' own identity to the IdP.

Therefore, selecting the override for the Identity Provider Issuer is the necessary step to complete the integration and allow enterprise users to authenticate securely using their corporate credentials.

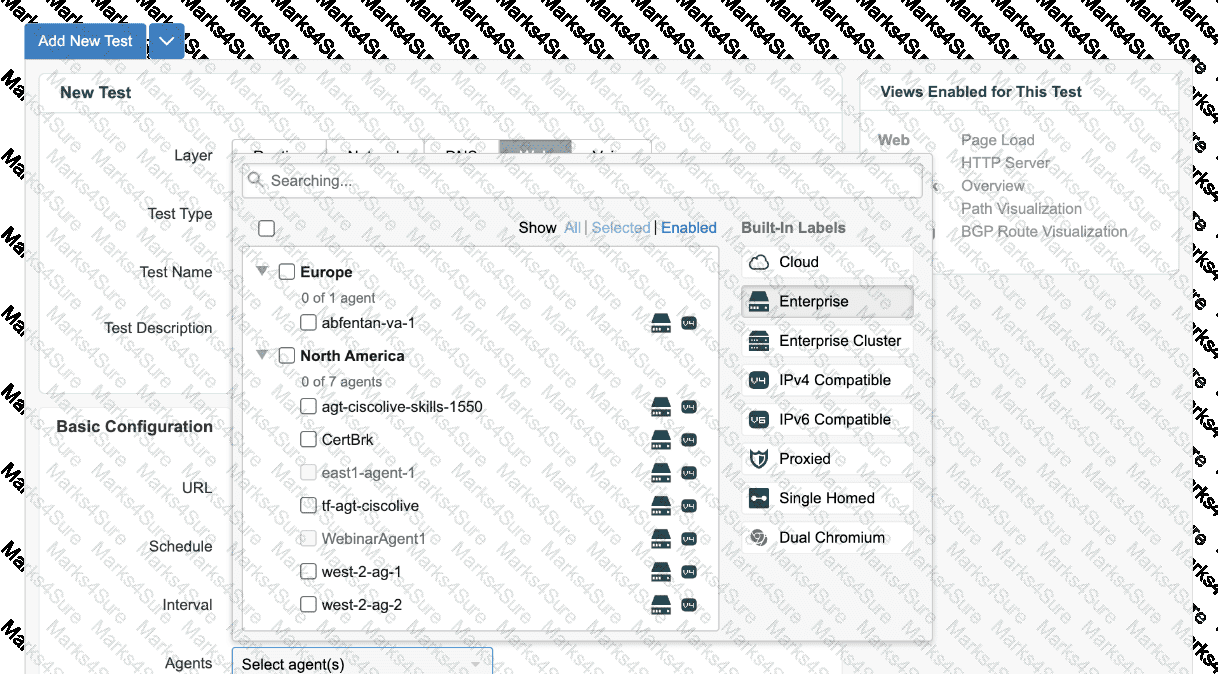

In the framework of Designing and Implementing En 8 terprise Network Assurance (300-445 ENNA) , selecting the correct agent type depends heavily on the vantage point required for the specific observation. For this scenario, the architect must collect metrics from the internal network access layer —the point closest to where the users or devices reside within the corporate perimeter—towards a cloud-hosted destination.

The Enterprise Agent (Option B) is the most appropriate choice because it is specifically designed to be deployed on infrastructure owned and managed by the organization. These agents are "inside-out" vantage points that can be installed directly on Cisco Catalyst 9300 or 9400 Series switches at the access layer using Docker containers. By deploying an Enterprise Agent at the access layer, the architect gains visibility into the entire network path, starting from the internal LAN, traversing the edge/WAN, and reaching into the cloud-hosted web server. This allows for the identification of issues such as local congestion, ISP peering problems, or cloud provider latency.

Other options do not meet the criteria:

Synthetic Agent (Option A): This is a distractor term. All ThousandEyes agents (Cloud, Enterprise, and Endpoint) are synthetic agents because they all perform active synthetic testing.

Cloud Agent (Option C): These are pre-deployed by Cisco in global ISP data centers and provide an "outside-in" view. 14 While useful for monitoring public-facing availability, they cannot provide visibility into the internal network or the access layer of the organization.

Endpoint Agent (Option D): While these are installed on end-user machines and provide a "user-centric" view, they are generally not used for infrastructure-level path analysis from the access layer switches themselves.

Thus, the Enterprise Agent is the definitive choice for monitoring from the access layer to the cloud.

Within the framework of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , network monitoring is categorized into two primary methodologies: active and passive monitoring. 1 Active monitoring (Option C) is characterized by the generation of synthetic or "probes" traffic specifically designed to measure network performance. 2 These probes simulate real-world user activity, such as HTTP requests, DNS queries, or ICMP pings, to baseline performance metrics like latency, jitter, and packet loss.

The core benefit of the active approach is its independence from actual user traffic. By sending a continuous ping or synthetic HTTP probe, an engineer can verify path availability and performance even during off-peak hours when no real users are on the network. In the context of Cisco ThousandEyes—a central platform in the ENNA certification—this is the primary mode of operation for Cloud, Enterprise, and Endpoint agents. For instance, a ThousandEyes network test proactively sends packets to a target IP or URL to visualize the hop-by-hop underlay and overlay paths.

Conversely, options A, B, and D represent passive monitoring techniques. Passive monitoring involves observing and analyzing traffic that is already traversing the network. 3 Methods such as SNMP (Option A) provide device-level health data like CPU load and interface utilization, while packet captures (Option B) and NetFlow (Option D) analyze the characteristics of existing user flows to determine top talkers or traffic patterns. While passive monitoring is excellent for volume and utilization analysis, it lacks the proactive capability to test a path's performance before a user encounters a failure. Therefore, sending a synthetic probe like a continuous ping is the definitive example of active monitoring.

For the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) exam, understanding enterprise-scale deployment of the Endpoint Agent (EPA) is vital for ensuring comprehensive user-centric visibility. When an organization utilizes a Microsoft Domain Controller to manage its internal domain, the standard mechanism for automated software distribution is Group Policy Objects (GPOs) (Option B).

Deploying the ThousandEyes Endpoint Agent via GPO allows a network administrator to push the .msi installer package to all Windows-based workstations joined to the domain. This method is highly effective for large-scale environments because it ensures that the agent is installed automatically upon machine startup or user login, without requiring manual intervention from the end-user or the IT staff at each individual machine. The GPO can be configured to perform a "silent installation," which runs in the background, ensuring a seamless experience for the employees while providing the IT team with the necessary performance metrics.

While Microsoft Intune (Option A) is a modern cloud-based endpoint management solution, the question specifically references a Microsoft Domain Controller , making GPO the most direct and traditional choice for that specific infrastructure. JAMF (Option C) is specifically for Apple (macOS/iOS) device management and would not be used for a Windows domain deployment. 8 PowerShell (Option D) can be used for scripting, but it lacks the centralized policy enforcement and automatic compliance checking provided by GPOs in an Active Directory environment. Therefore, Group Policy Objects is the verified deployment method for this scenario.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, the evolution of network monitoring includes moving from periodic polling to real-time data streaming. The exhibit displays a curl command targeting the ThousandEyes API v7 /stream endpoint. When integrating ThousandEyes with high-performance observability platforms like Grafana , the standardized and recommended method for machine-to-machine data exchange is through OpenTelemetry (OTel) .

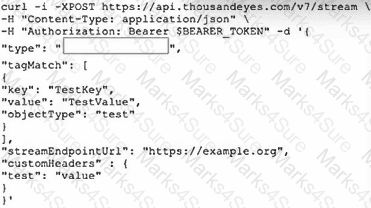

According to the ENNA architecture guidelines, the ThousandEyes Streaming API allows users to push granular test metrics (such as network latency, packet loss, and jitter) to external collectors in an OTel-compatible format. In the provided JSON payload, the "type" field is a mandatory parameter that defines the integration protocol. For Grafana, which natively supports OpenTelemetry Protocol (OTLP) via its OpenTelemetry Collector, the value must be set to "opentelemetry" (Option A). This tells the ThousandEyes streaming engine to encapsulate the data according to the OTel semantic conventions, ensuring that Grafana can correctly interpret and visualize the metrics without additional custom parsing logic.

While other options exist in the ThousandEyes ecosystem, they do not fit the specific API call shown for this use case:

Custom Webhooks (Option B) are typically used for event-driven alerts and notifications (e.g., sending a POST request when a threshold is breached) rather than continuous high-fidelity metric streaming.

Push-api and poll-api (Options C and D) are not valid "type" values within the context of the v7 /stream endpoint, as the streaming service specifically utilizes the OpenTelemetry framework for real-time delivery.

By selecting opentelemetry , the network engineer enables a robust "push-based" integration that provides real-time visibility into application performance and network health, leveraging Grafana's advanced dashboarding capabilities to analyze ThousandEyes telemetry data alongside other enterprise infrastructure metrics.

Introduction to ThousandEyes for OpenTelemetry

This video provides a foundational understanding of how ThousandEyes uses modern streaming frameworks to export critical performance data to external observability platforms.

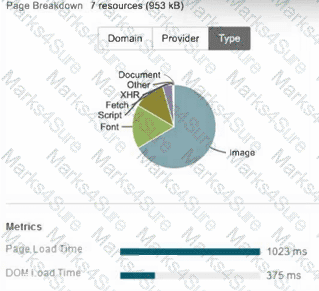

In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , analyzing page-load metrics within Cisco ThousandEyes requires identifying the primary bottlenecks that contribute to the Total Page Load Time . The provided screenshot displays a "Page Breakdown" of 7 resources totaling 953 kB. A critical observation of the pie chart reveals that Images (the teal-colored segment) constitute the vast majority of the page's payload and resource count.

When the goal is to reduce the page-load time from 1023 ms to below 500 ms , the engineer must target the heaviest components. Lazy loading is a design pattern that defers the initialization of non-critical resources at page load time. Instead of loading all images simultaneously when the user first navigates to the URL, lazy loading ensures that images are only downloaded as they are about to enter the viewport. This significantly reduces the initial DOM load time and the total Page Load Time because the browser does not have to wait for large image files to be fully retrieved before declaring the page "loaded."

Alternative options are less effective in this specific scenario based on the data:

AJAX (XHR/Fetch): The chart shows that XHR and Fetch resources represent a negligible sliver of the total weight; optimizing them would yield minimal gains.

Moving IMG elements: While moving scripts to the bottom can help with rendering, moving image elements to the bottom of the body does not stop the browser from initiating the download requests immediately, thus failing to significantly reduce the total load time.

CDN for Fonts: The "Font" category is also a small fraction of the total 953 kB. While a CDN is a best practice for latency, it does not address the primary "weight" issue caused by the images.

Therefore, implementing lazy loading (Option C) is the most impactful recommendation. It directly addresses the largest resource consumer (Images) identified in the ThousandEyes Page Breakdown, allowing the engineer to reach the sub-500 ms performance target.

In the ThousandEyes platform, alert rules are the primary mechanism for notifying operations teams when performance thresholds are breached. When configuring alerts for Endpoint Agent HTTP Server tests , the available metrics are limited to those that the Endpoint Agent captures during its synthetic browser-based or network-layer probes.

The two correct metrics for this test type are Response Time (Option A) and Error Type (Option C).

Response Time: This metric measures the time-to-first-byte. It is essential for detecting degradations in web application performance as seen from the user's specific machine.

Error Type: This allows administrators to trigger alerts based on specific HTTP response codes or protocol errors (e.g., DNS failures or SSL handshake issues).

Other options are incorrect because they apply to different agent types or monitoring layers:

BGP Reachability (Option B): BGP metrics are not applicable to Endpoint Agent tests. These metrics require the BGP route visualization layer, which is typically associated with Cloud or Enterprise Agents monitoring public internet paths.

Interface Throughput (Option D): This is an infrastructure-level metric rather than a synthetic application metric. While ThousandEyes can monitor device health via SNMP, it is not a metric used in a synthetic HTTP Server test.

By utilizing Response Time and Error Type, an architect can ensure that the operations team is alerted as soon as users experience slow loading or actual failures when accessing critical internal or SaaS-based web applications.

The Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework emphasizes that the goal of internet intelligence is to enable rapid and accurate escalation to the party responsible for a service degradation. Based on the evidence of a BGP Hijack identified in the previous question, the issue is occurring entirely within the public internet ecosystem.

The most appropriate next step is to reach out to the Internet Service Provider (ISP) to report the suspected BGP hijacking incident (Option B). Since the traffic is being misdirected by an external Autonomous System (AS 10297) before it reaches the intended destination (AS 16509), the fix must occur at the routing policy level of the major transit providers. The network administrator should provide the ISP with the ThousandEyes "Share Link" or screenshots showing the path change and the unauthorized AS announcement, as this data serves as proof to accelerate the ISP's mitigation efforts, such as implementing prefix filters or contacting the offending network.

Other options are ineffective for this specific scenario:

Option A: The path visualization shows that traffic is successfully leaving the local network and reaching the public internet; the problem is many hops away from the internal routers.

Option C: Blocking traffic from AS 10297 does not solve the problem of your traffic being attracted to it. The hijack affects how the rest of the world (including your ISP) sees the route to your destination.

Option D: DNS is not the issue; the agent successfully resolved the hostname to the correct IP, but the BGP layer misdirected the packets at the routing level.

By identifying the issue as an external routing event, the administrator avoids wasting internal resources and directly triggers the necessary external remediation.
