300-730 Implementing Secure Solutions with Virtual Private Networks (SVPN) Questions and Answers

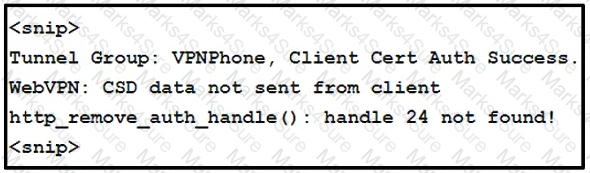

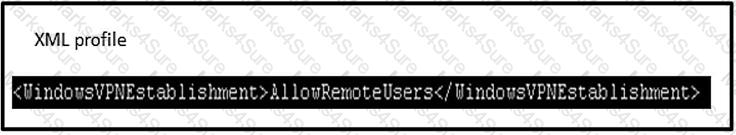

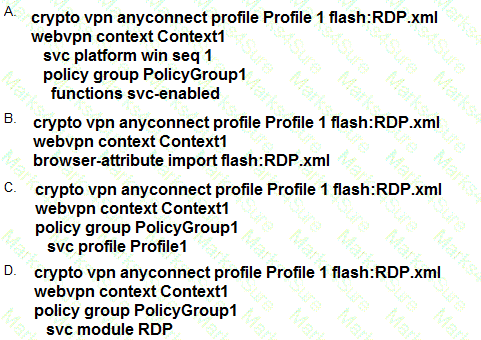

CSD and IP phones: Currently, IP phones do not support Cisco Secure Desktop (CSD) and do not connect when CSD is enabled for the tunnel group or globally in the ASA.

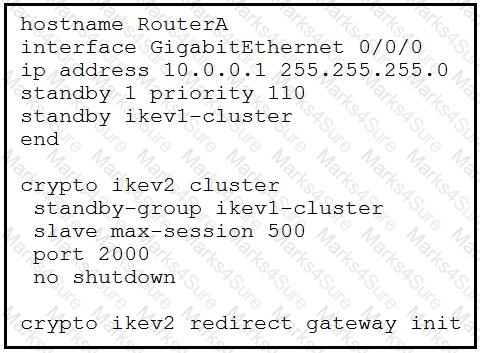

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_ike2vpn/configuration/xe-16-10/sec-flex-vpn-xe-16-10-book/sec-cfg-clb-supp.html

https://www.cisco.com/c/en/us/support/docs/security/flexvpn/116000-flexvpn-config-00.html

crypto ikev2 profile CProfile

match fvrf internet // ( " out vrf " )

virtual-template 1

interface virtual-template 1 type tunnel

vrf forwarding internal // (internal vrf)

tunnel vrf internet // (out vrf)

https://www.cisco.com/c/en/us/support/docs/security/flexvpn/200555-FlexVPN-AnyConnect-IKEv2-Remote-Access.pdf

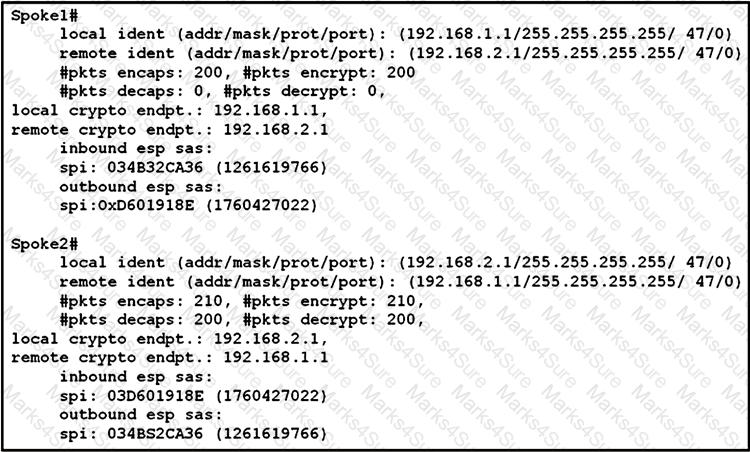

https://www.networkworld.com/article/2288666/chapter-4--common-ipsec-vpn-issues.html

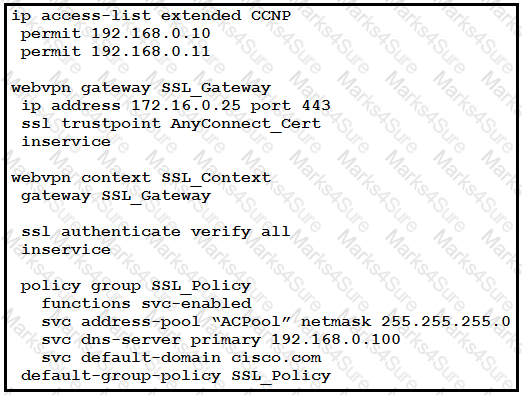

By default, the ASA generates a self-signed X.509 certificate upon startup. This certificate is used in order to serve client connections by default. It is not recommended to use this certificate because its authenticity cannot be verified by the browser. Furthermore, this certificate is regenerated upon each reboot so it changes after each reboot. https://www.cisco.com/c/en/us/support/docs/security-vpn/webvpn-ssl-vpn/119417-config-asa-00.html

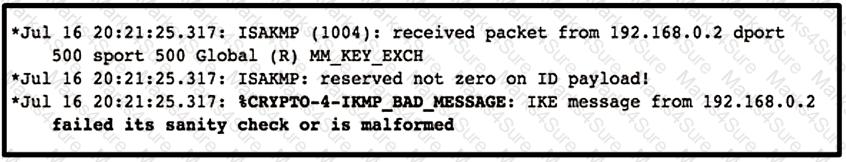

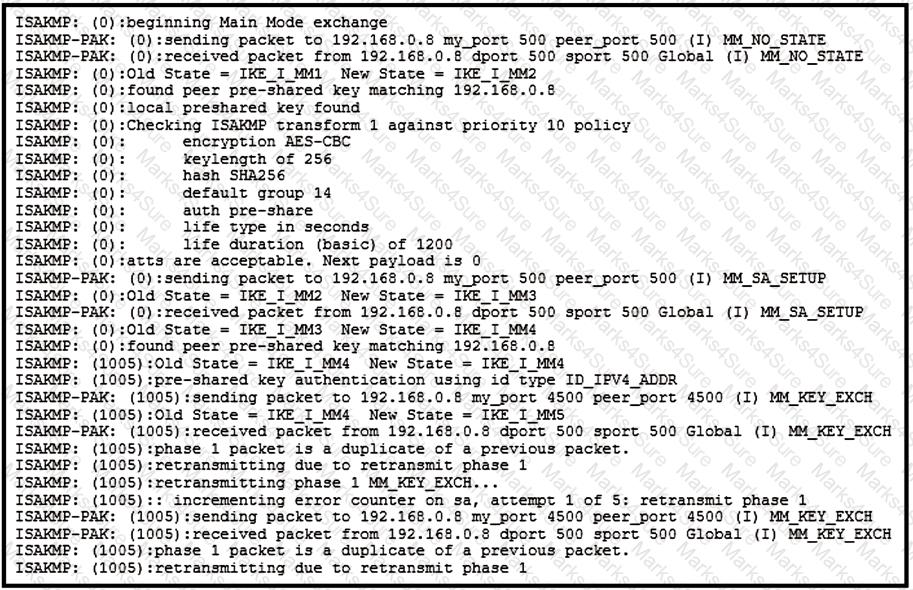

IKE Message from X.X.X.X Failed its Sanity Check or is Malformed

This debug error appears if the pre-shared keys on the peers do not match. In order to fix this issue, check the pre-shared keys on both sides.

1d00H:%CRPTO-4-IKMP_BAD_MESSAGE: IKE message from 198.51.100.1 failed its

sanity check or is malformed

https://www.cisco.com/c/en/us/support/docs/security-vpn/ipsec-negotiation-ike-protocols/5409-ipsec-debug-00.html#anc17

The VPN technology that must be used for this task is GETVPN (Group Encrypted Transport VPN). GETVPN is designed to encrypt both unicast and multicast traffic while preserving the original source and destination IP addresses, and it does not require any changes to the existing routing infrastructure. Additionally, GETVPN provides a scalable and efficient solution for encrypting traffic within a network, making it a good choice for this scenario.

The correct interface type to meet these requirements is the virtual template interface. This interface allows for the creation of multiple virtual access interfaces, which can be used for various types of remote access VPN connections, including site-to-site and AnyConnect VPNs. The virtual template interface can be configured to terminate VPN requests from other routers and allow for dynamic creation of VPN sessions, while also supporting AnyConnect VPN connections.

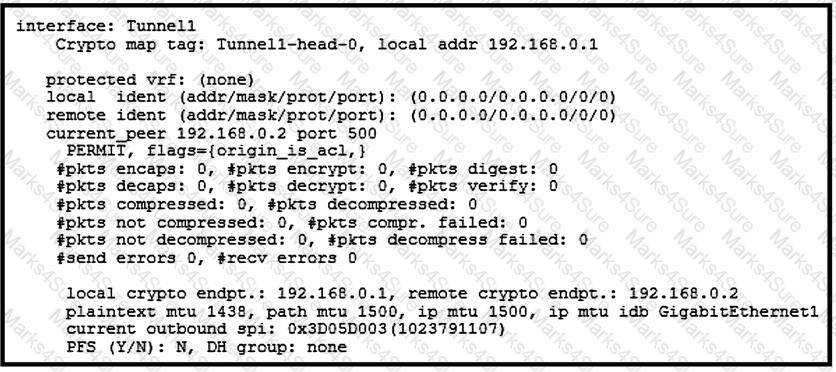

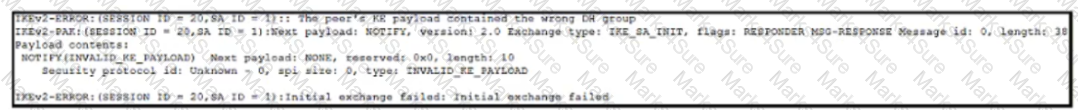

https://www.cisco.com/c/en/us/support/docs/security-vpn/ipsec-negotiation-ike-protocols/113594-trouble-ios-ike-00.html#anc12

https://www.cisco.com/c/en/us/td/docs/security/asa/compatibility/asa-vpn-compatibility.html#Cisco_Reference.dita_60cec583-01b8-4cb2-a6e3-2fe87a6b0f82

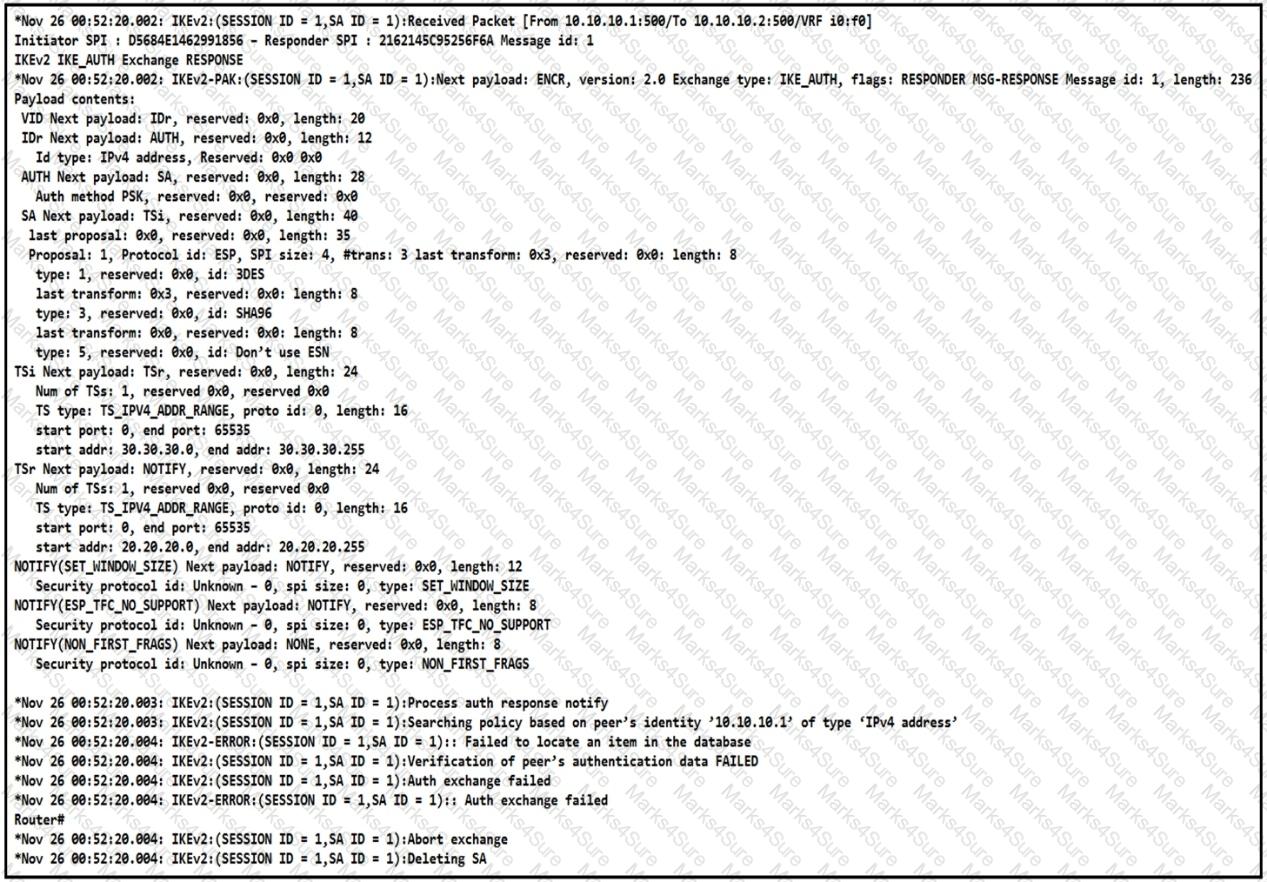

The first of the two TS payloads is known as TSi (Traffic Selector- initiator). The second is known as TSr (Traffic Selector-responder). TSi specifies the source address of traffic forwarded from (or the destination address of traffic forwarded to) the initiator of the Child SA pair. https://www.rfc-editor.org/rfc/rfc5996#page-40

If the responder ' s policy does not allow it to accept any part of the proposed Traffic Selectors, it responds with a TS_UNACCEPTABLE Notify message.

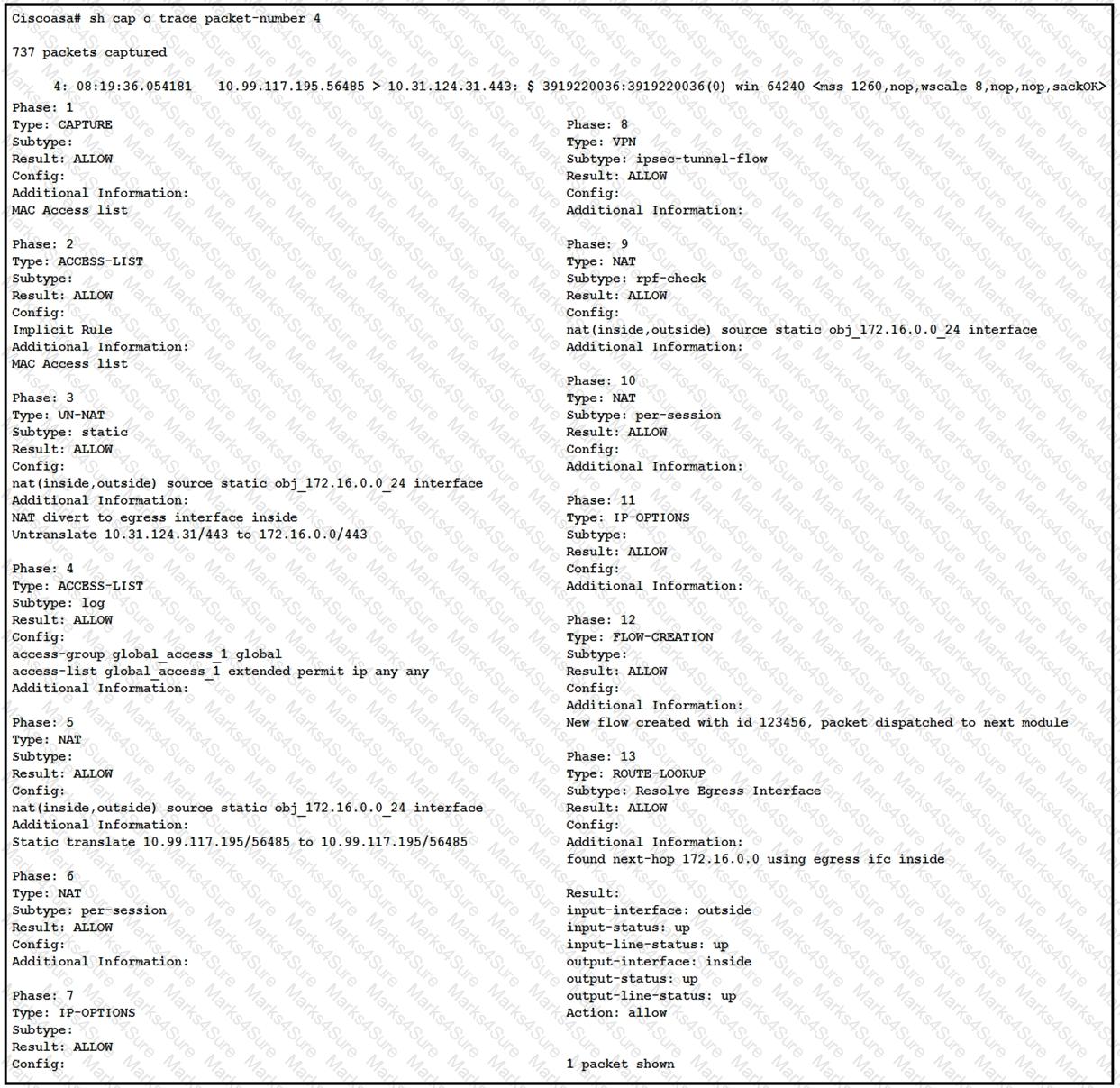

The same-security-traffic intra-interface command lets traffic enter and exit the same interface, which is normally not allowed. This feature might be useful for VPN traffic that enters an interface, but is then routed out the same interface. The VPN traffic might be unencrypted in this case, or it might be reencrypted for another VPN connection. For example, if you have a hub and spoke VPN network, where the security appliance is the hub, and remote VPN networks are spokes, for one spoke to communicate with another spoke, traffic must go into the security appliance and then out again to the other spoke.

" If the end user disables antivirus or personal firewall after successfully establishing the VPN connection, our Advanced Endpoint Assessment feature attempts to re-enable that application within approximately 60 seconds. " https://www.cisco.com/c/en/us/td/docs/security/vpn_client/anyconnect/anyconnect40/administration/guide/b_AnyConnect_Administrator_Guide_4-0/configure-posture.html#ID-1407-00000047

Plug-ins are extensions to the Clientless SSL VPN feature that enable the ASA to handle non-standard applications and Web resources so that they display correctly over a Clientless SSL VPN connection. Plug-ins are software components that the ASA downloads to the remote user’s browser. The plug-ins provide support for applications and protocols that are not natively supported by Clientless SSL VPN, such as Java, ActiveX, SSH, Telnet, and RDP. Plug-ins can also provide enhanced functionality and security for Web applications, such as Outlook Web Access and Lotus iNotes.

You can read more about plug-ins and how to configure them in the document [ASDM Book 3: Cisco ASA Series VPN ASDM Configuration Guide, 7.7]  1 .

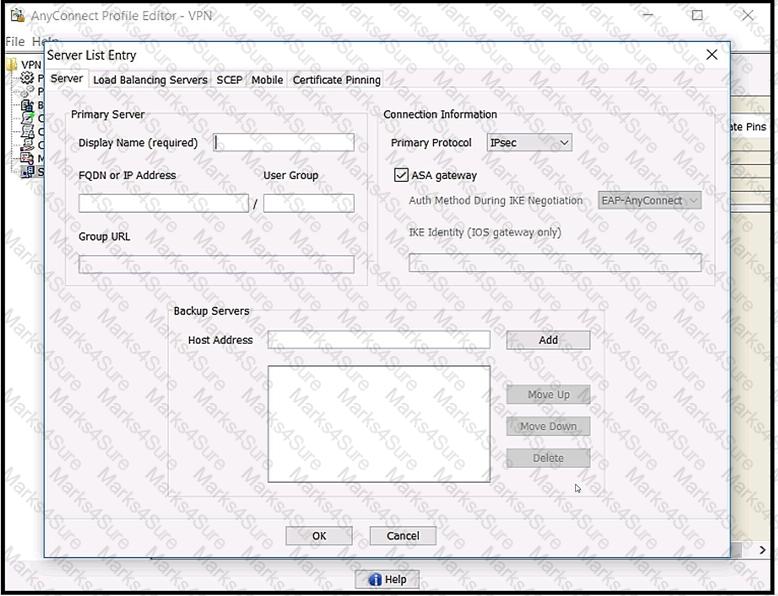

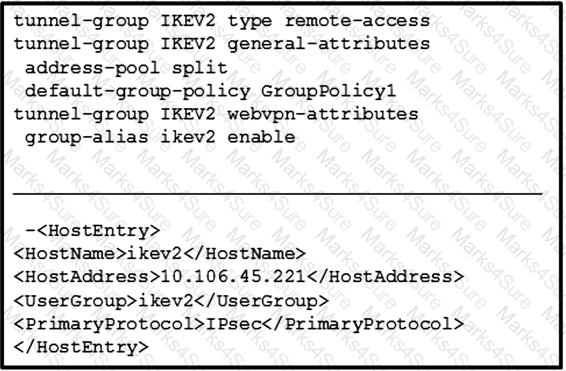

The user group is used in conjunction with Host Address to form a group-based URL. If you specify the Primary Protocol as IPsec, the User Group must be the exact name of the connection profile (tunnel group). For SSL, the user group is the group-url of the connection profile. https://www.cisco.com/c/en/us/td/docs/security/vpn_client/anyconnect/anyconnect40/administration/guide/b_AnyConnect_Administrator_Guide_4-0/anyconnect-profile-editor.html#ID-1430-0000026c

HTTP (Hypertext Transfer Protocol) is used for transferring web resources, such as web pages and HTML documents, across the internet. CIFS (Common Internet File System) is used for sharing files and printers between computers on a network. ICA (Citrix), VNC (Virtual Network Computing), and RDP (Remote Desktop Protocol) are not enabled by default on the Cisco ASA Clientless SSL VPN portal.

https://www.cisco.com/c/en/us/td/docs/security/asa/asa94/config-guides/cli/vpn/asa-94-vpn-config/webvpn-configure-gateway.html

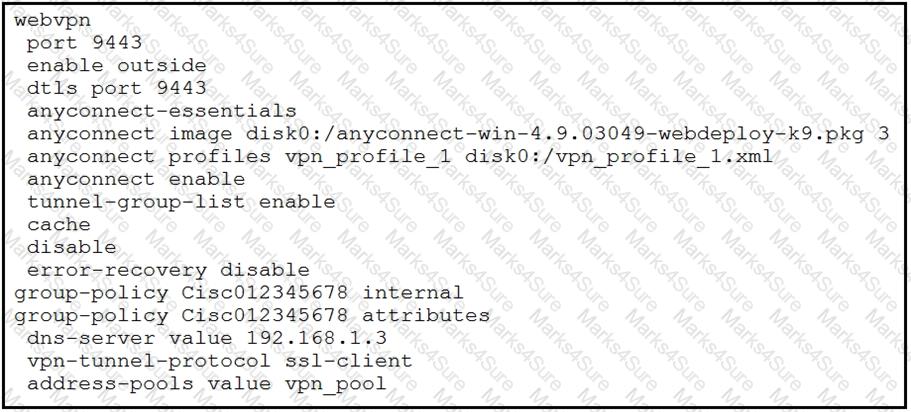

https://community.cisco.com/t5/vpn/anyconnect-service-port-not-enabled/td-p/2968124

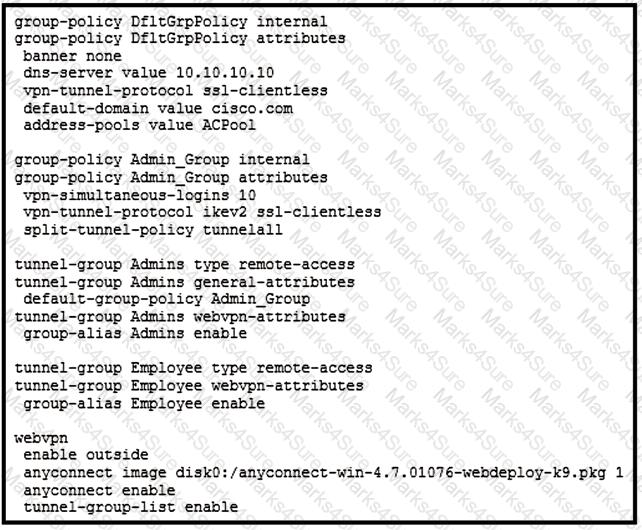

https://www.cisco.com/c/en/us/support/docs/security/asa-5500-x-series-next-generation-firewalls/98580-enable-group-dropdown.html

According to the Implementing Secure Solutions with Virtual Private Networks (SVPN) documents and learning resources available at cisco.com, the two features that provide headend resiliency for Cisco AnyConnect clients are:

AnyConnect Backup Servers : This feature allows the AnyConnect client to automatically connect to a backup server in case the primary server is unreachable or fails. The backup server list is configured on the ASA or IOS headend and pushed to the client during the VPN connection establishment. The client can also manually select a backup server from the list if needed.  This feature enhances the availability and reliability of the VPN service for the clients 1 2 .

ASA failover : This feature enables two identical ASAs to be paired together as an active/standby or active/active pair. The ASAs synchronize their configuration and state information and monitor each other’s health. If the active ASA fails or becomes unreachable, the standby ASA takes over the traffic and VPN sessions without any disruption for the clients.  This feature provides high availability and redundancy for the VPN headend 3 4 .

1 : AnyConnect Backup Servers  2 :  Redundancy options for IOS Headend for AnyConnect Clients   3 : ASA Failover  4 :  AnyConnect Implementation and Performance/Scaling Reference for COVID-19 Preparation

HSRP (Hot Standby Router Protocol). HSRP is a Cisco proprietary protocol that provides stateful failover for IPsec virtual private networks (VPNs). It is used to create a virtual router in order to provide redundancy in the event of an IPsec VPN failure. HSRP works by assigning a single primary router to manage the connection and forwarding traffic to the secondary router if the primary router fails.

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_vpnav/configuration/15-mt/sec-vpn-availability-15-mt-book/sec-state-fail-ipsec.html

https://www.globalknowledge.com/us-en/resources/resource-library/articles/understanding-next-hop-resolution-protocol-commands/

Reverse route injection (RRI) is a method that dynamically installs the network routes for remote tunnel endpoints. The RRI feature allows the router to automatically learn the routes for the remote networks and automatically install these routes into the routing table. This eliminates the need for the administrator to manually configure and maintain the routes for the remote networks. This feature is commonly used in VPN environments, where the router at the VPN endpoint needs to learn the routes for the remote networks behind the other VPN endpoint. The other options such as policy-based routing, CEF, and route filtering are not used to dynamically install the network routes for remote tunnel endpoints

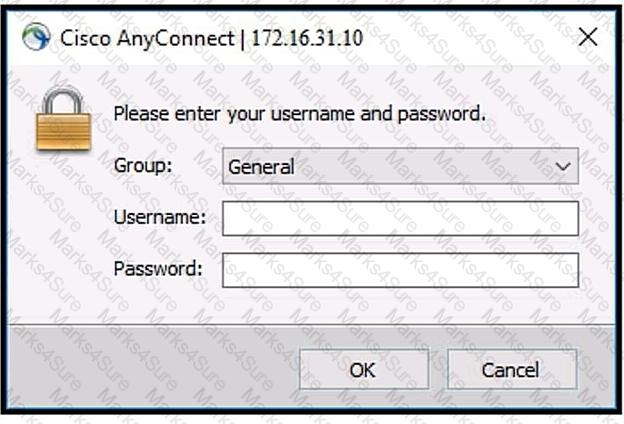

https://www.cisco.com/c/en/us/support/docs/security/asa-5500-x-series-next-generation-firewalls/98580-enable-group-dropdown.html

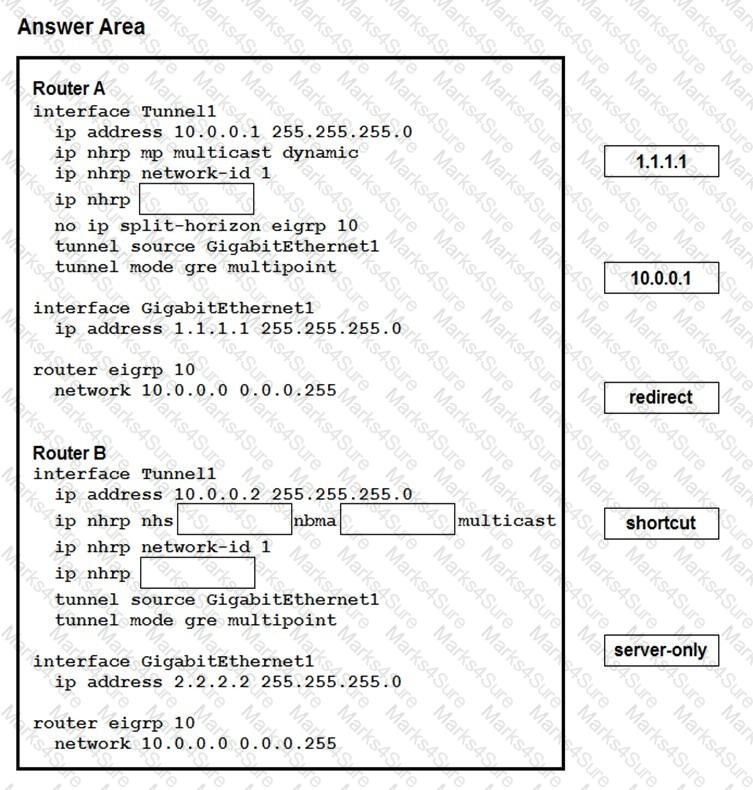

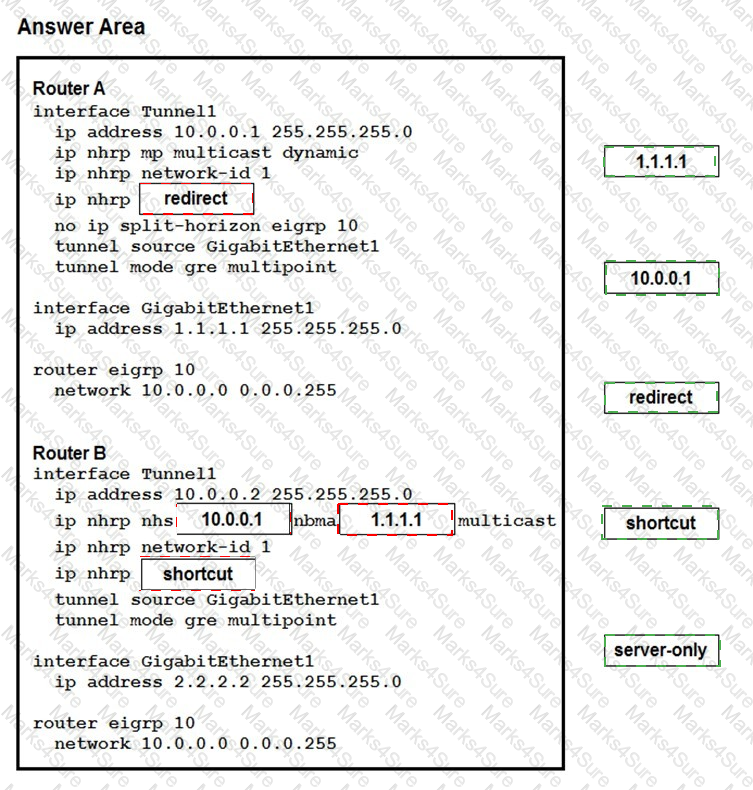

DMVPN disables the EIRGP next-hop-self with " no ip next-hop-self eigrp xxx " in DMVPN phase 2, and to go from Phase 2 to 3 you need use the NHRP protocol, and again enable EIRGP next-hop-self with " ip next-hop-self eigrp 134 " under the tunnel interface https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_dmvpn/configuration/15-mt/sec-conn-dmvpn-15-mt-book/sec-conn-dmvpn-dmvpn.html#GUID-BF561439-BCC0-4AAF-80D9-1F7876CB7B81

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_ikevpn/configuration/xe-3s/sec-ike-for-ipsec-vpns-xe-3s-book/sec-call-addmsn-ike.html

KS (key server) is ‘caretaker’ of the GM group. Group registrations and authentication of GMs is taken care of by KS server. Any GM who wants to join the group is required to be successfully authenticated in the group and sends encryption keys and policy to be used within the group.

===

https://ipwithease.com/introduction-to-getvpn/

The IKEv2 CREATE_CHILD_SA packet is used to establish a new security association (SA) between two peers. This packet contains the details of the exchange, including the traffic selectors, the cryptographic algorithms and keys to be used, and any other relevant information

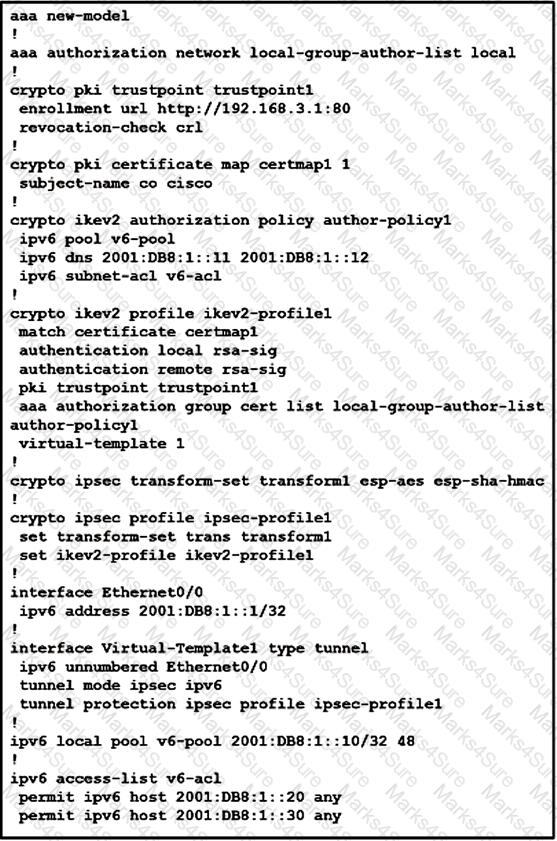

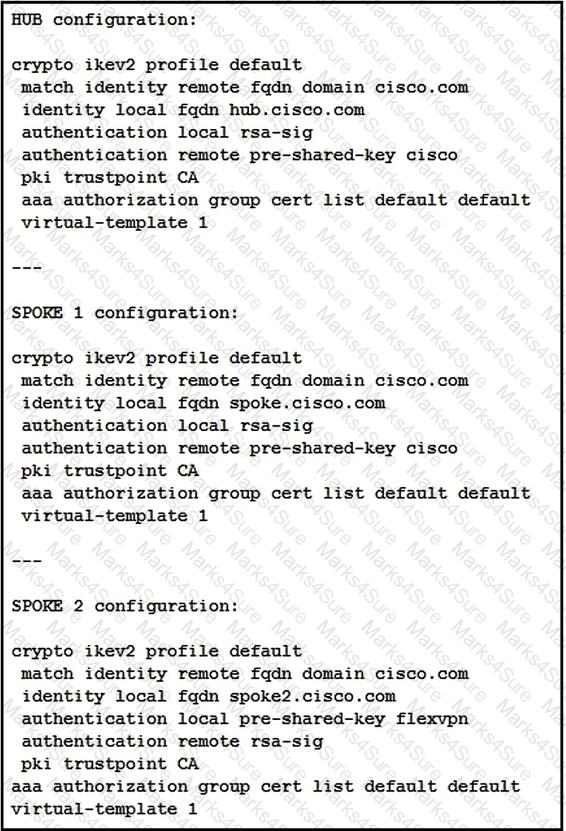

On a FlexVPN hub-and-spoke topology where spoke-to-spoke tunnels are not allowed, the command that is needed for the hub to be able to terminate FlexVPN tunnels is interface virtual-template. The interface virtual-template command is used to configure a virtual template interface which provides a secure tunnel for FlexVPN connections. The other commands listed - interface virtual-access, ip nhrp redirect, and interface tunnel - are not related to FlexVPN and are not used to terminate FlexVPN tunnels.
