300-815 Implementing Cisco Advanced Call Control and Mobility Services (CLACCM) Questions and Answers
Refer to the exhibit.
An engineer configures Cisco Unified Border Element to connect the enterprise VoIP network with a SIP telephony provider. Calls are not working in either direction. What must be configured in the dial peer 1 to fix the issue?
An administrator is configuring a cluster for ILS and wants to limit the amount of entities that Cisco Unified Communications Manager can write to the database for data that is learned through ILS. Which service parameter is used to adjust this limit?
An engineer configured extension mobility to allow users to roam between phones while taking their numbers and specific device settings with them. Users are now getting " Error:- XML Error [4| Parse Error " on their phones. Which action will resolve this issue?
Refer to the exhibit. An engineer is implementing the Cisco UCME and must set up a dial plan for the 7961 SIP phones to recognize digit strings dialed by users.
Which code snippet completes the configuration?
Users in a small location report that audio calls work Tine, but only one video call works before the next one gets a busy signal. Three video conference rooms were recently installed by a third party. The audio and video devices are Cisco endpoints. The site uses video and audio calls, and a network investigation does not show saturation on the link The site is configured with QoS and CoS. All devices are registered on the headquarters Cisco UCM duster. What is the cause of this problem?
A new solution is configured to support internal, local, and international calling. Calling [+44 1111 1111] from one of the registered internal phones does not work. Local and internal calls seem to work without any problems. The configuration has patterns configured to match the failing dialed number [+44 …. ….] . The other configured patterns show [2…] for internal numbers and [555 …] for local numbers. International numbers use E.164 as recommended. What is missing to make this solution work?

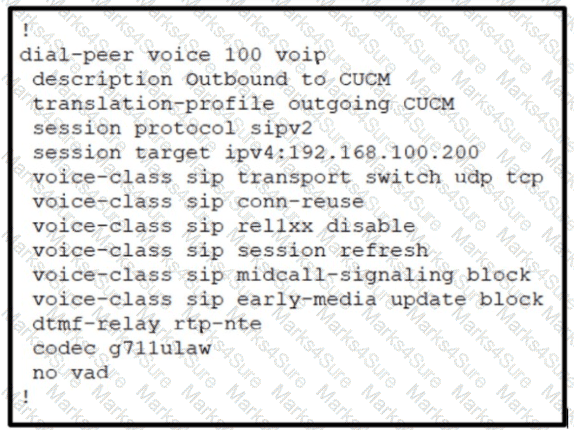

An engineer is reviewing the dial peer configuration on the Cisco Unified Border Element after users reported that DTMF digits are not recognized when they make an outbound SIP call to a phone system that supports only out-of-band DTMF.
Which configuration under outbound dial peer resolves the issue?
Refer to the exhibit.

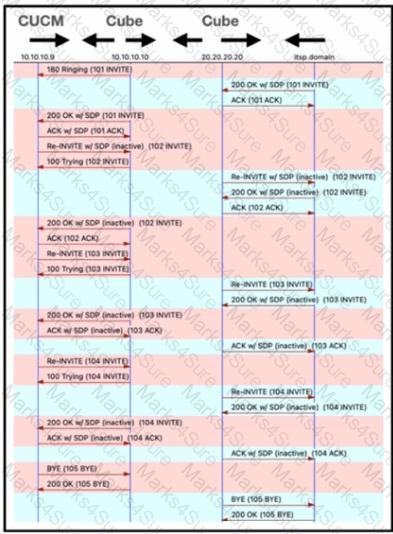

A no-way audio situation was experienced after the calling party on an outbound call placed the call on hold and then resumed from hold. Which action will resolve the issue?

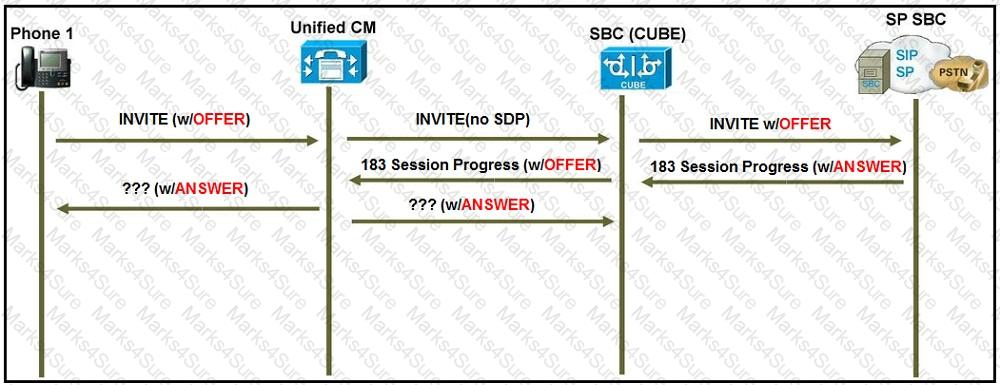

Refer to the exhibit.
An engineer is troubleshooting an issue where inbound calls to Cisco UCM with early media fail to establish. While investigating the issue, the engineer finds that Cisco UCM is set to require a PRACK. but the Cisco Unified Border Element is not sending it. Which command is causing this issue?
An engineer is troubleshooting an intersite call between two endpoints where the call fails and the message “Not Enough Bandwidth” is displayed. G.729 codec is in use on both sites. First, calls are being properly routed, and the issue happens after the third call is established and the bandwidth utilization between the two sites is under 50%. Which configuration in Cisco UCM must be adjusted to resolve the issue?
A company is using a H.323 gateway for PSTN calls from Cisco phones connected to a Cisco UCM cluster. There are reports of problems getting audio on these incoming calls from the PSTN. The phone rings, but nothing is heard and the call disconnects.
Which command troubleshoots this issue?
If all patterns below are configured in Cisco Unified Communications Manager which would be used when dialing the pattern “123”?
Refer to the exhibit.
The Cisco UCM is configured with four route patterns. When phone A dials 1515, which pattern does Cisco UCM choose as the correct match?
ABC company has decided to implement hunt groups to help distribute calls between members. In order to implement this, administrator must configure hunt list, hunt group, and line groups on Cisco UCM. Which distribution algorithms should the administrator implement?
Refer to the exhibit.
ILS has been configured between two hubs using this configuration. The hubs appear to register successfully, but ILS is not functioning as expected. Which configuration step is missing?
Phone A calls to phone B, but phone B has Call Forward All set to a PSTN number. The route list responsible for the phone B call to the PSTN has a standard local route group configured. Which route group must be used to send the call to the PSTN?

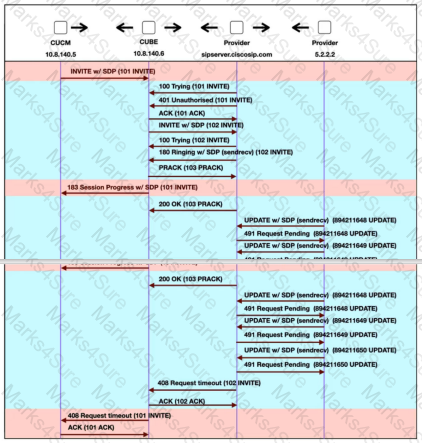

Refer to the exhibit.

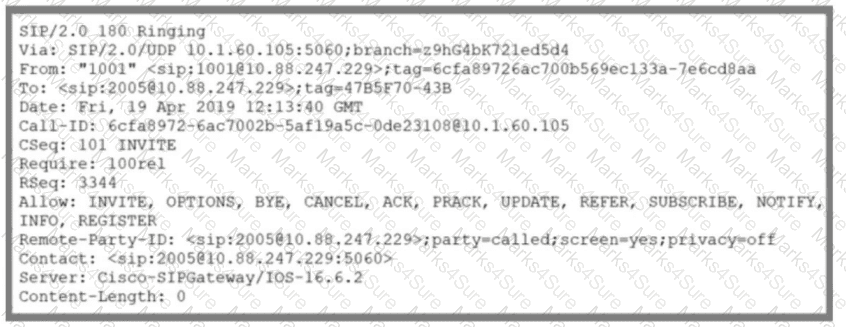

A Cisco Unified Border Element continues to send 180/183 with the required: 100rel header to Cisco UCM. and the call eventually disconnects How is the issue resolved?

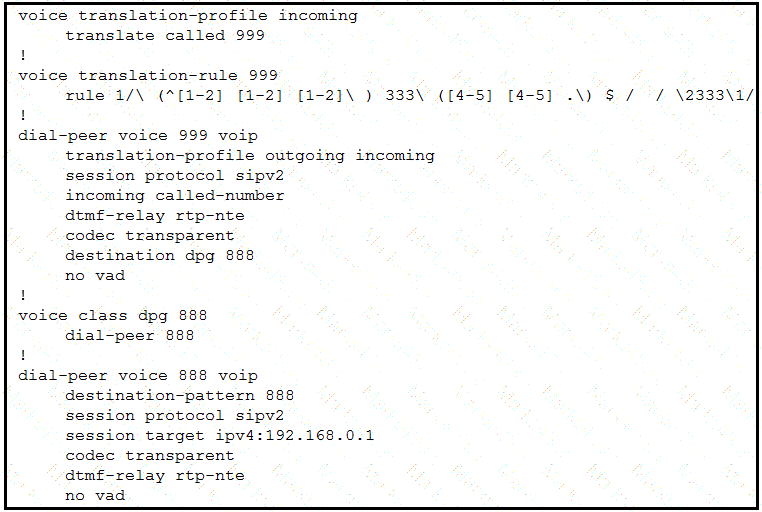

Refer to the exhibit.
A user dials 84969010 and observes that the call is not routed immediately. The administrator notices that after matching the fixed-length translation pattern, the call hits the \+! pattern and waits for interdigit timeout What should be configured to ensure that the call routes out immediately?

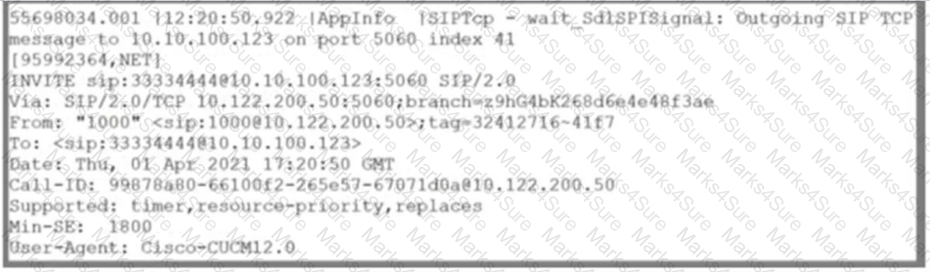

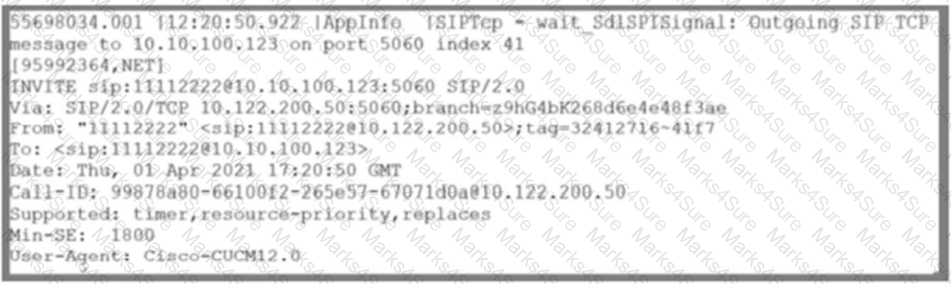

Refer to the exhibit. An administrator is trying to test outbound calls toward the ITSP but cannot complete the call and receives a SIP error. ITSP is consulted, and the issue is that the ANI that is being sent is not the DID provided 8005532447. Which configuration change sends the correct ANI on the INVITE sent to ITSP to fix the error?
Exhibit.
Refer to the exhibit. All calls from site A to site B are failing, and the issue has been identified as a media negotiation problem. Which configuration change resolves the issue?
Refer to the exhibit.
An administrator just Implemented SIP trunking on their Cisco UCM and reports that calls using the SIP trunk are using Media Termination Point resources unnecessarily. Which action resolves the issue?
An administrator is troubleshooting call failures on an H.323 gateway via the CLI. To see signaling for media and call setup, which debug must the Administrator turn on?
Refer to the exhibit.
An administrator just upgraded to Cisco UCM to version 14 and started SIP implementation with some new SIP trunks. During the testing, an error was reported when making a call. Which action resolves the issue?
An engineer configures several calling party transformation patterns in Cisco UCM so that calling numbers are shown in the +E.164 format. The route patterns match seven-digit internal numbers and prefix the numbers with 1408. The SIP trunk matches 1408XXXXXXX and prefixes the number with +. When users make outbound calls, the calling number still shows as seven digits. What is the cause of this problem?
What is a function of the metadata carried in SIP sessions between the recording client and the recording server?
Calls to a particular extension are not routing to voicemail. The user reaches the voicemail system from the handset by pressing the Messages button Which configuration parameter causes this problem?
Refer to the exhibit.
An administrator is troubleshooting a problem in which some outbound calls from an internal network to the Internet telephony service provider are not getting connected, but some others connect successfully. The firewall team found that some call attempts on port 5060 came from an unrecognized IP that has not been defined in the firewall rule. What should the administrator configure in the Cisco Unified Border Element to fix this issue?
Some users report having issues dialing some external numbers when traveling to other locations within the company. The company has five locations in five cities in one country and has an egress gateway in each location for TEHO. The configuration has no specific entry stating that the roaming users are using the local gateway, but calls are going out. How is a verification of the call routing in such a specific configuration performed to further identify the problem?
The Cisco Unified Communications Manager Dialed Number Analyzer allows analysis of calls from which two devices? (Choose two.)

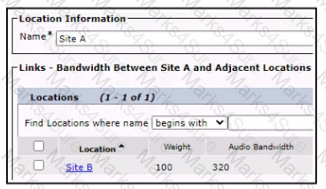

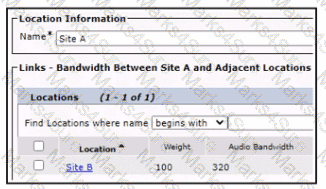

Refer to the exhibit. An engineer deploys CAC to Cisco UCM. UptofiveG.711 calls must be supported on the WAN link between Site A and Site B. Users report that only four concurrent calls are possible between Site A and Site B. Why isn ' t the filth concurrent call successful?
An administrator is configuring Cisco UCM and the system to send *.webex.com traffic to a Cisco UCM Session Ma n agement Edition cluster. The administrator wants to limit which endpoints can reach *.webex.com. Which two items must the administrator configure for the SIP route pattern? (Choose two.)
An administrator is troubleshooting call failures on an H.323 gateway via the CLI. To see signaling for media and call setup, which two debugs must the administrator turn on? (Choose two).
Refer to the exhibit.

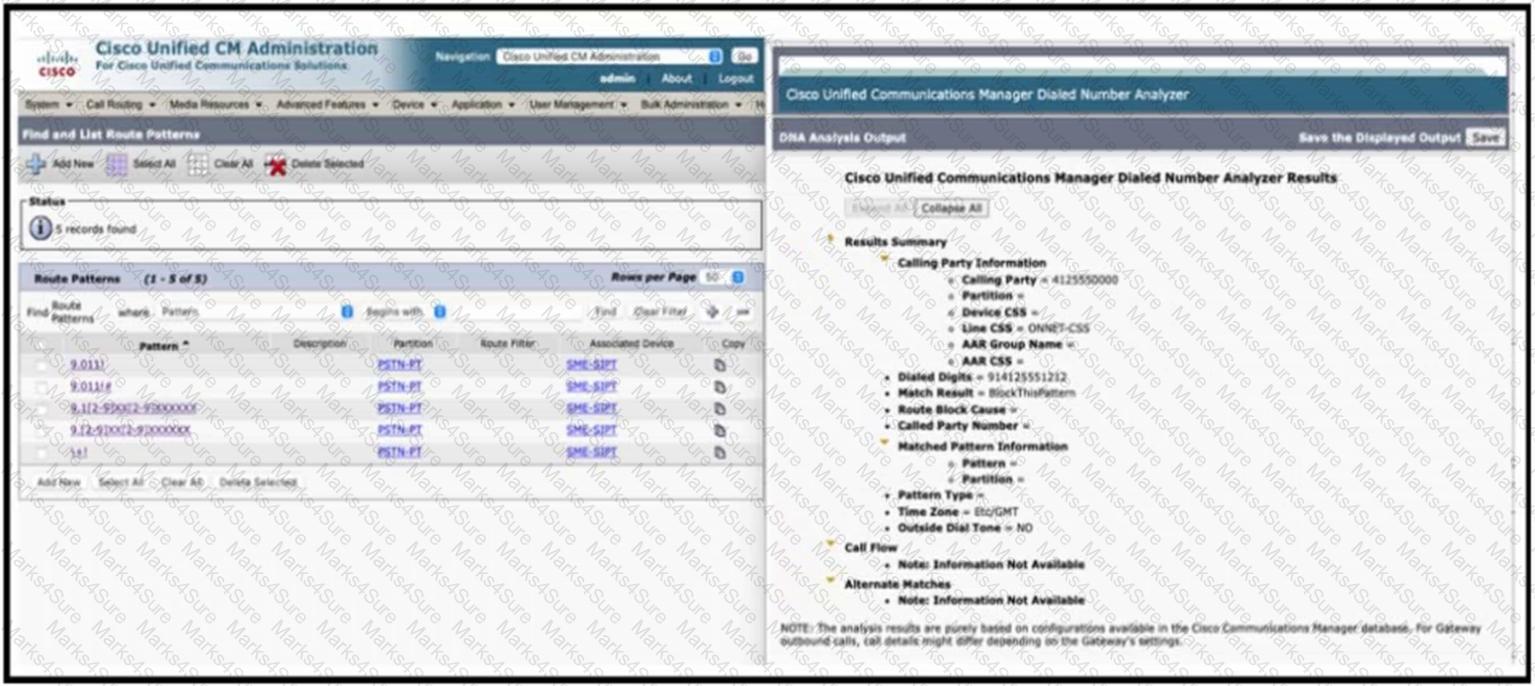

Users report high delays when calling national numbers in the United States. An engineer analyzes the route patterns in Cisco UCM. What must be done to resolve this issue?
A company is using third-party phones on the internal network at a location behind a Cisco Unified Border Element. These phones seem to work with only two types of codecs, which are high-complexity codecs.
Which configuration ensures that calls are completed with the correct and working media each time?
A single site reports that when they dial select numbers, the call connects, but they do not get audio. The administrator finds that the calls are not routing out of the normal gateway but out of another site ' s gateway due to a TEHO configuration. What is the next step to diagnose and solve the issue?
A user in location X dials an extension at location Y. The call travels through a QoS-enabled WAN network, but the user experiences choppy or clipped audio. What is the cause of this issue?
When a third-party SIP Phone System is dialed inbound across a Cisco Unified Border Element, DTMF is failing. The third-party vendor accepts only out-of-band DTMF. Which configuration should be added to the outgoing dial peer to resolve this issue?
An engineer Is configuring a Cisco Unified Border Element. The SIP ITSP requires a DNIS of 10-digits and DTMF tones sent in the RTP stream on the outbound leg of a call. Which code completes this configuration?
A)
B)
C)
D)
When the services key is pressed Cisco Extension Mobility does not show up. What is the cause of the issue?
An engineer is implementing survivability for a collaboration environment. The environment is utilizing a centralized Cisco UCM at the headquarters and Cisco IOS-XE gateways in the remote branches. Which action must the engineer take to enable both shared lines and B-ACD for SIP branch phones during a WAN outage?

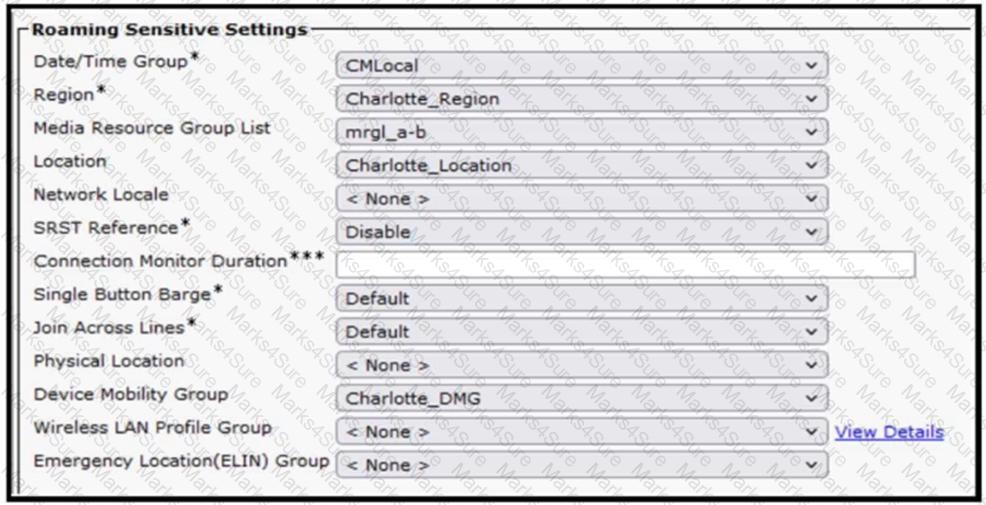

An administrator manages an environment with mobile users who commonly move between locations and take IP phones to remote sites. When mobile users are at one of the sites, users report issues with call quality, such as the audio cutting in and out. In addition, the affected area has a low bandwidth connection compared to other sites, so the administrator has put these devices in a region with an inter-region restriction of 8 kbps per call. Which feature must the administrator configure to mitigate the issue?

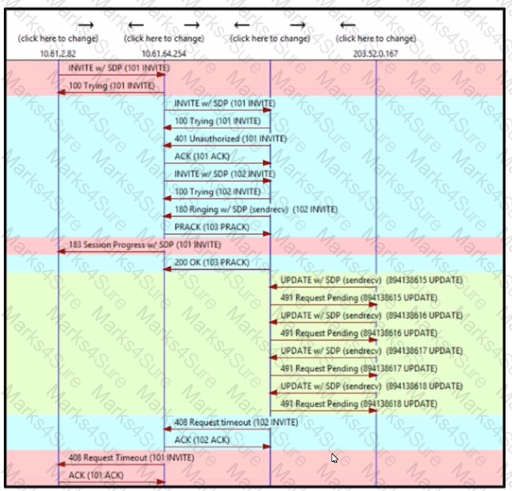

Refer to the exhibit. During a troubleshooting session, an engineer was presented with this call flow output diagram after a user reported issues with a call via the SIP ITSP to a counterpart. What is occurring with this call flow?
An administrator configured Cisco Unified Mobility to block access to remote destinations for certain caller IDs. A user reports that a blocked caller was able to reach a remote destination. Which action resolves the issue?
What is first preference condition matched in a SIP-enabled incoming dial peer?

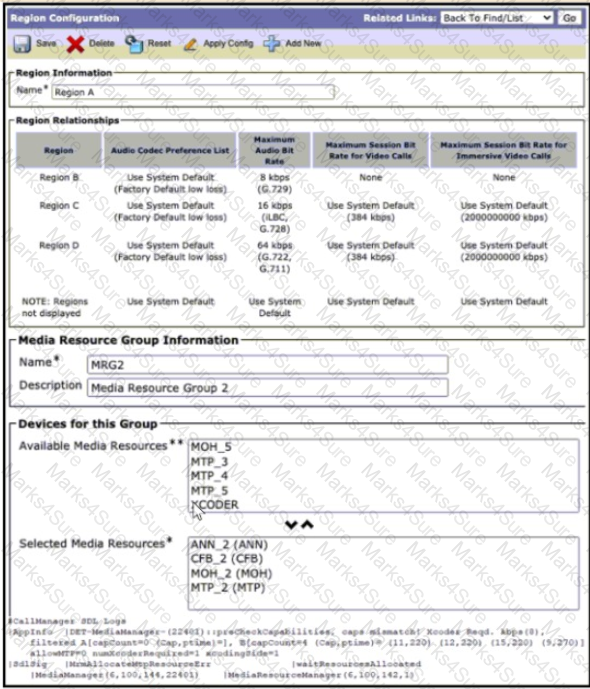

Refer to the exhibits.

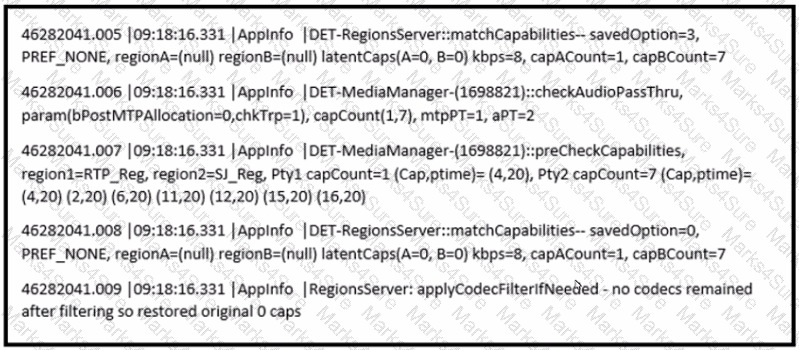

Regions have been configured for all major branches based on the available circuit bandwidth. Some calls from Region A endpoints to Region B endpoints are failing to connect. How is this issue resolved?
An administrator is implementing a new dial-plan on Cisco Unified Border Element. The administrator must ensure that incoming dial-peers are matched based on the IP address from where the incoming request originates. Which dial-peer configuration should be applied to accomplish this requirement?
A network engineer designs a new dial plan and wants to block a certain range of numbers (8135100 through 8135105). What is the most specific route pattern that can be configured to block only the numbers in this range?
Why would RTP traffic that is sent from the originating endpoint fail to be received on the far endpoint?
Which section under the Real-Time Monitoring Tool allows for reviewing the call flow and signaling for a SIP call in real time?
An engineer needs to configure a translation pattern in Cisco UCM to match dialed numbers that start with 9011 so that the calls can be routed with a single route pattern of VH If the engineer uses translation pattern 9011.! which two called party transformation settings must be configured in Cisco UCM? (Choose two.)
An administrator sees the voice register pool 1 command in a Cisco UCME configuration. Which configuration is occurring in this section?
An administrator has configured two route patterns, 9.911 and 9.[2-9]XXXXXX. When a user dials 9911. Cisco UCM waits for the T302 timer before routing the call. How will the administrator force interdigit timeout and route the call as soon as the user has finished dialing 9911, without waiting for the T302 timer to expire?
A company is using Cisco Jabber on-premises to make B2B calls on video. The calls are using Cisco Expressway-C and Expressway-E and have been configured in Cisco UCM to be able to call any URI on the internet. The Jabber client also has voice enabled and must be able to call local, regional, and international numbers. Where must Cisco UCM be configured to meet this requirement for URI dialing?

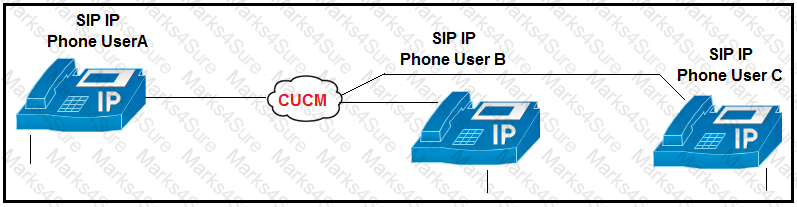

Refer to the exhibit.
In an active SIP call between phone user A and phone user B, phone A initiates a call transfer to phone user C. Which two scenarios are correct? (Choose two.)
Refer to the exhibit.
An administrator is troubleshooting why users are not hearing audio when dialing long distance numbers across their Cisco Unified Border Element. The customer’s carrier has a requirement that dialing long distance requires an access code to be entered. Looking at the exhibit, what two actions can be taken to correct signaling? (Choose two.)
Which configuration must an administrator perform to display Translation Pattern operations in Cisco Unified Communications Manager SDL traces?
A voice administrator enabled secure media between multiple Cisco UCM clusters that are connected via a SIP trunk.
Which configuration parameter in the SIP trunk must be enabled to allow encrypted media traffic to traverse the SIP trunk?
An engineer needs to deploy Cisco Extension Mobility. The engineer already activated the required services, configured the Extension Mobility Phone Service, and created an Extension Mobility device profile that is associated with end users. Which two additional steps are required to complete the configuration? (Choose two.)
An engineer has two cisco UCM Clusters and wants to integrate them using ILS with TLS certificates. Cluster A (pub and 1 subscriber) will be the hub, and Cluster B (pub and 1 subscriber) will be the spoke. Both Clusters have self-signed certificates. The engineer has exchanged Publisher A and subscriber B Tomcat certificates, but the connection fails. What is the cause of the failure?
Refer to the exhibit. An administrator configured a new SIP trunk between Cisco UCM and Cisco Unified Border El e ment. Calls that use this new trunk are failing, and debugs from the Cisco Unified Border Element do not show any signaling received from Cisco UCM. The administrator verified that OPTIONS is enabled on the SIP profile configured on the trunk on Cisco UCM. The route pattern matched for this call is correctly configured to send calls to the Cisco Unified Border Element using this new trunk. What is the cause of this failure?
Which call pickup feature allows users to pick up incoming calls in a group that is associated with their own group?
Refer to the exhibit.

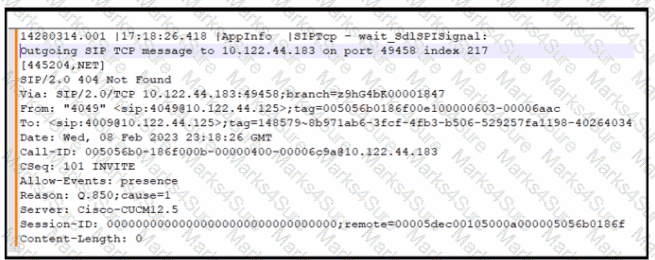

Calls incoming from the provider are not working through newly set up Cisco Unified Border Element. Provider engineers get the 404 Not Found SIP message. Incoming calls are coming from the provider with called number “222333444” and Cisco Unified Communications Manager is expecting the called number to be delivered as “444333222”. The administrator already verified that the IP address of the Cisco Unified CM is set up correctly and there are no dial peers configured other than those shown in the exhibit. Which action must the administrator take to fix the issue?
The company Cisco UCM cluster has two different gateways for off-net calls. The current configuration uses 9 as a prefix to get to the main gateway. The secondary gateway is for any calls that start with 9713, but this is not yet configured. The admin does not want to add more route patterns other than the current 9 prefix for the gateway to the Cisco UCM. How must the Cisco UCM be configured to meet the requirements?
Refer to the exhibit. Users report that outgoing calls do not work on the new SIP trunk for outgoing calls. The solution consists of a Cisco UCM Cluster linked to a Cisco Unified Border Element where the SIP trunk is terminated. The provider required 10 digits. The logs show a line going toward the Cisco Unified Border Element. Which code snippet must be added to the configuration to meet the requirement?

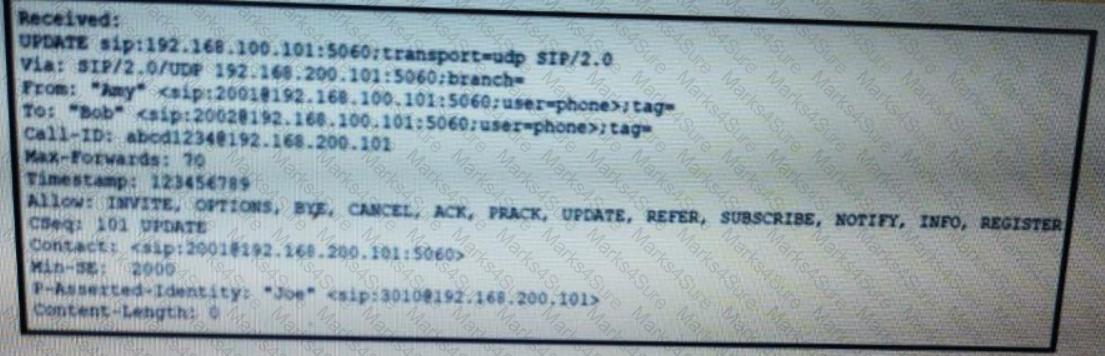

The SIP session refresh timer allows the RTP session to stay active during an active call. The Cisco UCM sends either SIP-INVITE or SIP-UPDATE messages in a regular interval of time throughout the active duration of the call. During a troubleshooting session, the engineer finds that the Cisco UCM is sending SIP-UPDATE as the SIP session refresher, and the engineer would like to use SIP-INVITE as the session refresher. What configuration should be made in the Cisco UCM to achieve this?
End users at a new site report being unable to hear the remote party when calling or being called by users at headquarters. Calls to and from the PSTN work as expected. To investigate the SIP signaling to troubleshoot the problem, which field can provide a hint for troubleshooting?
