350-101 Implementing and Operating Cisco Wireless Core Technologies (350-101 WLCOR)v1.0 Questions and Answers

Layer 3 roaming is the process that allows a wireless client to retain its original IP address when roaming across different Layer 3 client subnets or controller client VLAN contexts. Cisco describes intercontroller Layer 3 roaming as occurring when wireless LAN interfaces are on different IP subnets. During this roam, the controllers exchange mobility messages, but instead of simply moving the client database entry, the original controller marks the client as anAnchor, while the new controller marks the copied client entry asForeign. Cisco explicitly states that the roam remains transparent to the wireless client and that the client maintains its original IP address.

In decibel calculations, the formula used to convert a power ratio to decibels (dB) is:

Thus, the power ratio of 10:1 corresponds to a10 dBchange in power.

Option A: -20 dBwould correspond to a ratio of 0.01:1, not 10:1.

Option B: 5 dBwould correspond to a power ratio of approximately 3.16:1, not 10:1.

Option D: 15 dBwould correspond to a ratio of 31.62:1, not 10:1.

Therefore,Option C: 10 dBis the correct answer, as it is the result of a power ratio of 10:1.

Thus, the power ratio of 10:1 corresponds to a10 dBchange in power.

Option A: -20 dBwould correspond to a ratio of 0.01:1, not 10:1.

Option B: 5 dBwould correspond to a power ratio of approximately 3.16:1, not 10:1.

Option D: 15 dBwould correspond to a ratio of 31.62:1, not 10:1.

Therefore,Option C: 10 dBis the correct answer, as it is the result of a power ratio of 10:1.

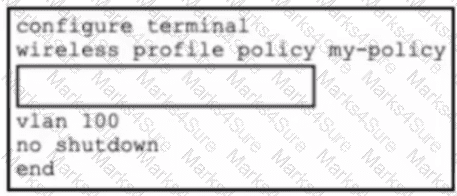

The correct configuration isaaa-overridefollowed bynacunder the existing Catalyst 9800 wireless policy profile. The exhibit already places the administrator in policy-profile configuration mode with wireless profile policy my-policy, so the missing commands must be policy-profile subcommands, not another profile declaration. Cisco’s Catalyst 9800 configuration examples show the exact sequence: enter wireless profile policy < policy-profile-name > , enable aaa-override, enable nac, then configure VLAN and no shutdown.

aaa-override permits authorization attributes returned by AAA or Cisco ISE, such as VLAN, ACL, QoS, redirect ACL, or posture-related access controls, to override the locally defined policy. Cisco’s documentation explicitly states that AAA override applies policies coming from AAA or ISE servers, while nac enables Network Access Control in the policy profile. This is the required behavior when endpoints must be posture-validated before normal network access is granted. Cisco also notes that NAC State is enabled in the policy profile and can only be enabled when AAA override is enabled.

Option A is invalid because nac-policy is not the correct CLI keyword. Options B and D omit NAC. Reference topic:Client Connectivity Configuration — Catalyst 9800 policy profiles, AAA override, NAC State, posture enforcement, and ISE-based access control.

The correct configuration is option C because Cisco IOS XE restricts inbound protocols on VTY lines with thetransport inputcommand. Cisco’s Catalyst 9800 best-practice guidance states that administrators should confirm SSH is enabled and Telnet is disabled for better controller security, and that the Catalyst 9800 follows standard Cisco IOS XE behavior for enabling or disabling Telnet and SSH. Cisco IOS XE SSH documentation explicitly showsline vty line_number [ending_line_number]followed bytransport input ssh, and explains that this prevents non-SSH Telnet connections, limiting access to SSH only.

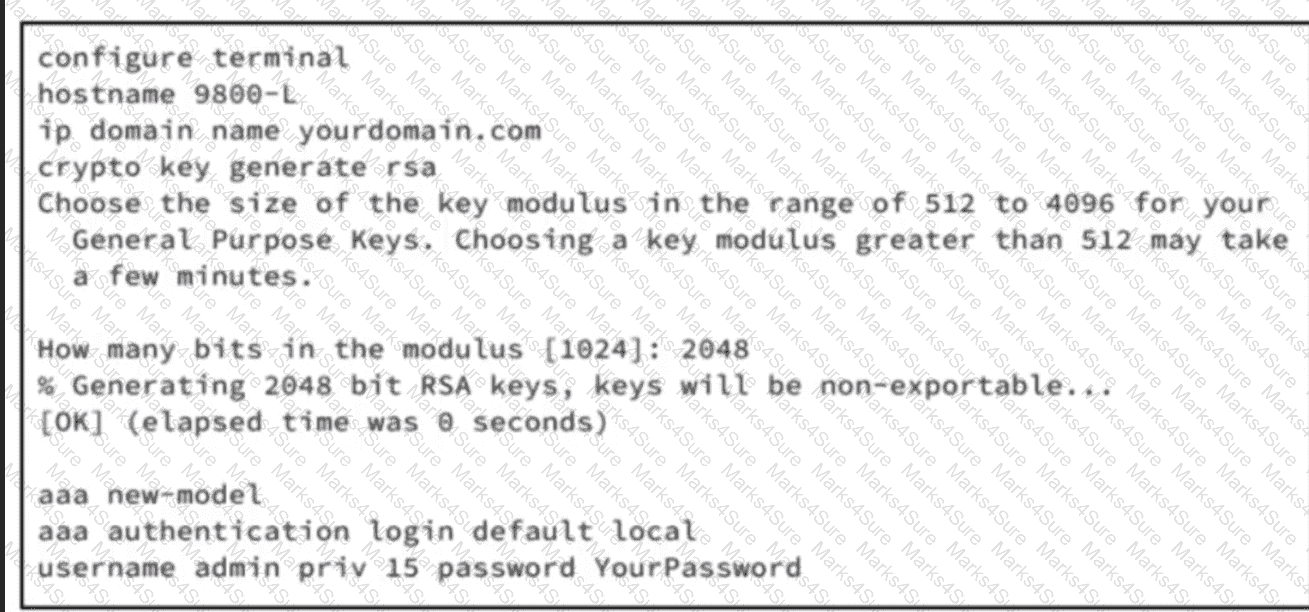

The existing exhibit already includes the SSH prerequisites: hostname, domain name, RSA key generation, AAA new-model, a default login method using local credentials, and a local privileged user. The missing VTY configuration must therefore apply that default AAA login list to the VTY lines withlogin authentication defaultand restrict inbound transport to SSH. Cisco AAA documentation confirms thatlogin authentication defaultapplies the configured default authentication list to the line or set of lines. Option A is incomplete and does not explicitly permit SSH. Option B uses invalid syntax. Option D omits the requiredinputkeyword. Reference topics:Catalyst 9800 secure management, VTY access control, SSH, Telnet hardening, AAA login authentication, and IOS XE device administration.

The correct element is theget() method. In the script, each device object is treated as a Python dictionary created from parsed JSON API output. The lines device.get("macAddress", "N/A") and device.get("ipAddress", "N/A") perform direct key-based lookup against the dictionary and return the associated value when the key exists. Python documentation defines dictionaries as key-value mappings and states that get() is used to avoid a KeyError by returning None or a specified default value when the key is absent.

This behavior is exactly what automation scripts need when consuming controller or wireless inventory APIs, because returned device records may not always contain every field. Cisco API inventory models commonly return structured device objects containing properties such as MAC address, model, network ID, product type, and wireless-related inventory attributes, which are then parsed by automation code. The pop operation would remove a dictionary key, not safely read it. The import function only loads modules such as requests and json. The format expression only builds the printed output string. Reference topics:Automation and AI — Python scripting, REST API consumption, JSON parsing, and wireless inventory automation.

Fast secure roaming in enterprise wireless networks is achieved using the 802.11r standard, also known as Fast BSS Transition (FT). 802.11r allows clients to authenticate with a new access point (AP) before disassociating from the current AP, significantly reducing the time required for the re-authentication process. This pre-authentication mechanism ensures that client sessions, such as voice or video calls, are maintained seamlessly when moving between APs in a mobility domain. DCA (Dynamic Channel Assignment) optimizes channel selection but does not affect roaming speed. 802.11ax enhances overall throughput and spectral efficiency but does not directly provide fast roaming. MIMO (Multiple Input Multiple Output) improves signal reliability and capacity but is unrelated to the authentication handoff process. Cisco Wireless Core Technologies highlight the deployment of 802.11r in conjunction with PMK caching and Opportunistic Key Caching (OKC) to further accelerate roaming in high-density environments. Implementing 802.11r is critical for environments requiring minimal packet loss and low latency during client movement, such as voice over Wi-Fi or real-time video applications. Reference topics:Client Connectivity Configuration — 802.11r, Fast BSS Transition, secure fast roaming, mobility domains, PMK caching.

WPA2 Personal (PSK) authentication relies on a shared secret (preshared key) configured on both the wireless LAN controller (WLC) and the client device. In the exhibit, the WLAN is configured with WPA2 and PSK (set-key ascii MyKey123), which means the network expects clients to use the same preshared key to authenticate. To enable client connectivity, the preshared key must be manually entered on each client device; this aligns the client and WLC authentication parameters. Options B, C, and D are unrelated to WPA2 Personal: MAC filtering is a security policy mechanism, Active Directory integration supports WPA2 Enterprise with 802.1X authentication, and client certificates are used for certificate-based EAP methods, not PSK. Cisco Wireless Core Technologies emphasize that PSK deployments require consistent key configuration across the WLAN and clients, and that the preshared key is the critical element for successful authentication. This ensures secure, encrypted communication while providing simple setup for small or branch deployments without an enterprise RADIUS infrastructure. Reference topics:Client Connectivity Configuration — WPA2 Personal, preshared key authentication, WLAN configuration, branch deployment WLAN security.

The correct AP-side command iscapwap ap primary-base WLC-PRIMARY 192.168.100.10. Cisco’s Catalyst AP command reference shows the syntax for configuring the primary controller ascapwap ap primary-base < controller-name > < controller-ip-address > , and provides the same structure in its example:capwap ap primary-base wlc-5520 209.165.200.224. Cisco’s Catalyst 9800 AP join documentation also identifies the primary controller discovery entry ascapwap ap primary-base < wlc-hostname > < wlc-IP-address > .

This command statically primes the lightweight AP with the preferred WLC when DHCP option 43, DNS discovery, broadcast discovery, or prior learned controller information is unavailable. The hostnameAP053540555is only the AP’s local identity and is not part of the WLC discovery command. Option A omits theprimary-basekeyword, so it is not valid syntax. Option B places keywords in the wrong order and does not match Cisco CAPWAP AP CLI. Option C omits the required controller name before the IP address. Reference topics:Wireless Network Implementation — CAPWAP discovery, AP priming, Catalyst 9100 AP onboarding, static WLC discovery, and Catalyst 9800 AP join process.

AI Enhanced Radio Resource Management (RRM) in Cisco wireless networks improves upon traditional RRM by leveraging historical data in addition to real-time measurements to optimize network performance. Traditional RRM reacts primarily to instantaneous conditions, such as current interference or load, and adjusts parameters like transmit power and channel assignment accordingly. In contrast, AI Enhanced RRM uses historical telemetry to identify patterns, predict congestion, and preemptively adjust network parameters, providing a more stable and high-performing wireless environment. This predictive capability allows the system to make informed adjustments for channel reuse, load balancing, and interference mitigation before network degradation occurs. While real-time adjustments are still made, the inclusion of historical data allows for smarter decisions and more consistent client experience. Options A and B do not describe the core benefits of AI Enhanced RRM, as legacy client support or telemetry encryption are unrelated to predictive or adaptive resource management. Option C only highlights reactive behavior, which is a characteristic of traditional RRM, not AI Enhanced RRM. Cisco documentation and design guides emphasize that AI Enhanced RRM’s key advantage is its predictive approach using historical analytics, enabling proactive network optimization across high-density or dynamic wireless environments. Reference topics:Automation and AI — AI Enhanced RRM, predictive network management, historical telemetry, channel and power optimization.

In a centrally switched deployment, the WLAN traffic is tunneled via CAPWAP from the AP to the WLC, where VLAN assignment occurs. To ensure that client devices are placed into the correct VLAN (in this case, VLAN 10), the WLAN policy profile must define the VLAN mapping. This allows the WLC to tag client traffic appropriately when forwarding to the upstream switch. Option C is correct because it configures the WLAN profile (policy profile) with VLAN 10, ensuring all clients associating with the WLAN are mapped to the proper VLAN automatically. Option A is incorrect because VLAN tagging is managed centrally on the WLC, and access ports at the AP are typically trunked or transparent in central switching mode. Option B is invalid; manually configuring VLAN on client devices is not feasible or scalable in enterprise deployments and does not integrate with CAPWAP central switching. Option D is also incorrect; relying on MAC-based redirection introduces complexity and is not standard practice for VLAN assignment in centrally switched networks. Cisco Wireless Core Technologies recommend using policy profiles to centrally enforce VLANs, simplifying management, ensuring security compliance, and supporting consistent enterprise Wi-Fi connectivity. Reference topics:Client Connectivity Configuration — VLAN assignment, WLAN policy profiles, centrally switched deployments, Cisco Catalyst 9800 WLC.

Central Web Authentication is the correct design for an open guest SSID that redirects users to a captive portal before allowing network access. Cisco describes CWA as a guest-redirection method where the redirect URL and redirect ACL are centrally controlled and communicated to the WLC through RADIUS, with the external authentication system handling the login workflow. On a Catalyst 9800 WLAN, Cisco’s configuration flow for Central Web Authentication requires AAA/ACL configuration, including the AAA server list and an ACL tied to the WLAN so client access can be controlled before and after authentication.

Option D is the only answer that satisfies all requirements: captive portal redirection, post-authentication restriction to Internet-only access, and policy enforcement through ACLs. VLAN-level segmentation is implemented through the WLAN policy profile, which maps guest clients to the guest VLAN rather than the staff VLAN. WPA2-PSK is invalid because the guest SSID must not require a password. A local web server alone does not enforce Internet-only authorization or staff-network isolation. mDNS is unrelated to captive portal authentication or guest segmentation. Reference topics:Guest WLAN design, Central Web Authentication, Catalyst 9800 policy profiles, ACL enforcement, VLAN segmentation, and captive portal client onboarding.

The switch interfaces connected to the APs must be configured as 802.1Q trunk ports. The requirement states that AP management and guest Wi-Fi traffic must remain separate, and additional VLANs for IoT and voice are expected. An access port supports only one VLAN, so it cannot scale for multiple locally tagged client VLANs. Cisco’s Catalyst AP guidance states that when multiple VLANs are used for client traffic, the AP switch port should trunk the VLANs, and management traffic is untagged; when a management VLAN is used, it should be configured as the native VLAN on the switch port. Cisco’s Catalyst 9800 FlexConnect documentation also shows the AP connected to a trunk port with a native VLAN for AP IP connectivity and a separate VLAN for locally switched client traffic.

Option C is therefore correct: configure a trunk, set the AP management VLAN as native, and restrict the allowed VLAN list to only required management and client VLANs such as guest, IoT, and voice. This supports segmentation and prevents unnecessary internal VLAN exposure. Reference topics:AP switch-port design, 802.1Q trunks, native VLANs, client VLAN tagging, FlexConnect/local switching, and guest traffic segmentation.

The correct answer isBbecause Wi-Fi antenna gain is expressed usingdBi, which means decibels relative to an isotropic radiator. Cisco’s Wireless RF Reference Guide states that antenna gain is measured in decibels relative to isotropic gain, ordBi. Cisco RF design documentation also explains that dBi is used to describe the power gain rating of antennas by comparing real antennas against an ideal isotropic antenna that radiates equally in all directions.

Antenna gain is not a measurement of physical antenna length. Length may influence antenna design and resonance, but it is not the operational unit used to express gain. It is also not measured as voltage against dBm.dBmis an absolute power reference relative to one milliwatt, commonly used for transmit power or received signal strength, whiledBidescribes antenna gain. Cisco’s EIRP calculation reinforces this separation: transmitter power is in dBm, antenna gain is in dBi, and cable loss is in dB. A “blend of analog and digital signals” has no RF measurement relevance. Reference topic:RF Fundamentals — antenna gain, dB/dBi/dBm, isotropic radiator reference, EIRP, and RF propagation behavior.

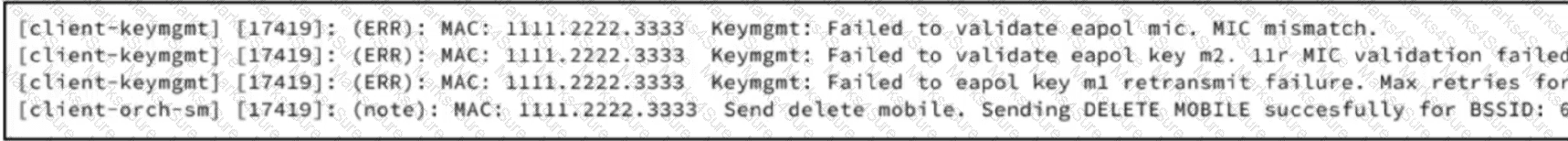

The failure is occurring during WPA/WPA2 key management, not during mobility anchoring. The radioactive trace showsFailed to validate eapol mic. MIC mismatchfollowed byFailed to validate eapol key m2, which means the authenticator and supplicant derived different key material during the PSK handshake. Cisco’s Catalyst 9800 client-connectivity troubleshooting maps this log pattern directly to a wrong password condition and lists the corrective actions as fixing the password on the endpoint or on the SSID/WLAN. The11r MIC validation failedphrase does not automatically make 802.11r the root cause; it only shows that the failed MIC validation occurred while Fast Transition key logic was in use. Disabling 802.11r would be a workaround only for client capability or FT interoperability issues, but the trace points to PSK mismatch. Removing the anchor WLC would break the intended DMZ anchoring design, and matching WLANs on foreign and anchor is required for anchor deployments, but it would not produce this EAPOL M2 MIC failure. The correct remediation is to ensure the client-entered PSK matches the WLAN PSK. Reference topics: WPA/WPA2-PSK authentication, EAPOL 4-way handshake, Catalyst 9800 radioactive trace analysis, and client connectivity troubleshooting.

When deploying Meraki APs, it is essential to claim each AP in the Meraki dashboard to ensure that they are automatically assigned to the correct network and can be managed remotely. This process involves registering the APs with the Meraki cloud, which is done by adding the AP serial numbers to the network within the Meraki dashboard before physically installing them at the branch.

Option B: "Add the AP serial numbers to the required network within the Meraki dashboard."This is the correct answer. Before the APs are physically connected, the administrator needs to log into the Meraki dashboard and add the serial numbers of the new APs to the intended network. This ensures that once the APs are powered on and connected, they automatically join the correct network and are ready for monitoring and management without requiring further configuration.

Option A: "Activate mesh networking mode for all the new APs before installation."Mesh networking mode is used when APs need to communicate wirelessly to extend coverage, but it is not a requirement for the deployment and registration process. The APs should be connected normally for initial setup, and mesh mode can be enabled later if needed.

Option C: "Preconfigure SSID names and VLAN tags on the local page of each AP in the Meraki dashboard."While configuring SSID and VLAN settings is essential, this is not the first action required for ensuring the APs are claimed by the correct network. The priority is to add the AP serial numbers to the Meraki dashboard for proper network assignment.

Option D: "Create a separate DHCP scope for all the new APs on the local server."DHCP scope configuration is important for assigning IP addresses, but this is not the primary step for ensuring the APs are correctly registered in the Meraki dashboard. The APs can obtain IP addresses from an existing DHCP scope once they are connected and claimed in the dashboard.

Therefore, the best approach isOption B, as it ensures that the APs are correctly assigned to the intended network in the Meraki cloud, ready for management and monitoring once connected.

MIMO, or Multiple-Input Multiple-Output, is a core 802.11n and later wireless technology that uses multiple transmit and receive radio chains and antennas to improve wireless performance. Cisco’s Wireless RF Reference Guide explains that IEEE 802.11n introduced MIMO, replacing the older single-radio SISO model with multiple radios, each using its own antenna, to increase data rates and improve reception in multipath environments. Cisco also notes that weak or distorted multipath signals can be received by more than one radio and reconstructed, improving decode quality and reliability.

This directly supports option A: MIMO exploits multiple RF paths rather than treating multipath as purely destructive. Depending on implementation, MIMO can use spatial diversity, maximal ratio combining, and spatial streams to increase throughput, improve signal-to-noise ratio, reduce retries, and make more efficient use of airtime. Cisco describes spatial stream notation such as 4x4:4 as four transmitters, four receivers, and four spatial streams. Option B describes frequency hopping, not MIMO. Option C is not a MIMO function. Option D is the opposite of MIMO because MIMO deliberately uses multiple antennas and radio paths. Reference topics:802.11 Technology Fundamentals — MIMO, spatial streams, multipath, SISO versus MIMO, and 802.11n/ac/ax PHY enhancements.

The correct answer isMake-before-break handover logic. This is a key feature in Cisco's Ultra-Reliable Wireless Backhaul (URWB) process that allows devices to establish a connection to the next AP (Access Point) before disconnecting from the current AP. This seamless transition ensures that there is no disruption in the wireless connection as the client roams between APs, which is especially important in environments where consistent, low-latency connectivity is essential, such as in real-time applications (e.g., voice or video).

Option A (Open roaming)refers to a method of allowing devices to roam freely across networks, but it doesn't address the specific need for a seamless handover process.

Option B (Fast client handoff)refers to methods used to speed up the roaming process, but it doesn’t specifically ensure that the next AP is connected before disconnecting from the current one.

Option C (802.11v high speed roaming)is an IEEE standard feature that helps optimize roaming behavior for fast-moving devices, butmake-before-break handover logicis the specific mechanism that allows for a seamless roaming experience.

Therefore,Make-before-break handover logic(Option D) is the correct answer as it directly addresses the need for devices to establish a reliable connection to the next AP during roaming before losing connectivity with the current one.

Cisco Catalyst Center Assurance is the correct solution because the requirement is centralized, scalable, multi-site client monitoring with aggregated health and troubleshooting data. Cisco states that Catalyst Center Assurance provides aClient health dashboardand supports both wired and wireless clients. It is specifically used to obtain a global view of all client device health and determine whether issues require action.

This directly matches the need for monitoring clients across branch locations and responding faster during performance degradation. Catalyst Center Assurance also provides location-based visibility, health scoring, client trend analysis, onboarding failure reasons such as AAA or DHCP, and Client 360 views for detailed troubleshooting. Cisco documents that Client 360 provides detailed client connectivity troubleshooting, including what problem occurred, when it occurred, why it occurred, and whether the impact is isolated or widespread. Cisco’s Catalyst Center data sheet further describes Network and Client Health dashboards as giving administrators a high-level overview of every network device and client, with expansion by geographical site, device list, client list, or topology. Syslog, WLC CLI logging, and a local WLC dashboard are useful operational tools, but they do not provide enterprise-scale assurance analytics. Reference topics:Wireless Monitoring and Management — Catalyst Center Assurance, Client Health, Client 360, centralized wireless monitoring, and operational analytics.

For Cisco Catalyst 9176 APs deployed at remote sites without DHCP option 43, automatic WLC discovery can be accomplished using DNS-based CAPWAP controller discovery. By creating a DNS A record namedcisco-capwap-controller. < domain > that resolves to the WLC management IP address, APs can query DNS and locate their centralized controller automatically, eliminating the need for site visits or manual configuration. This method is preferred for large-scale or satellite deployments where APs may exist on different subnets and traditional DHCP-based discovery is unavailable. Option A is impractical because manually assigning static IPs to hundreds of APs is operationally complex and error-prone. Option B, using a multicast group, is not supported for cross-subnet controller discovery in CAPWAP; multicast is limited to local subnets. Option D (ap-discovery) is not a recognized standard for WLC discovery; Cisco specifically documentscisco-capwap-controlleras the required DNS entry for CAPWAP-based automatic discovery. This approach ensures zero-touch provisioning, simplifies network operations, and guarantees that APs join the correct controller, supporting centralized management and consistent configuration across multiple campuses. Reference topics:Wireless Network Implementation — CAPWAP discovery, DNS-based controller discovery, Catalyst 9800 WLC onboarding, zero-touch provisioning.

For configuring guest access on a Cisco Catalyst 9800 WLC using an external WebAuth server, the WLAN must be explicitly associated with the external server through a parameter map. The correct command syntax in Cisco IOS XE iswireless wlan < wlan-name > followed bysecurity web-auth external < parameter-map > . This configuration links the WLAN to the external WebAuth server defined in the parameter map, allowing guests to be redirected to the portal for authentication. The parameter map (webauth-ext) contains details such as server IP, port, and other authentication parameters required for the external WebAuth interaction. Option B is incorrect because it improperly uses multiple WLAN names in one command, which is not valid syntax. Option C usesparameter external security-map, which is invalid and does not associate the WLAN correctly with the WebAuth server. Option D incorrectly combines the security and parameter-map syntax and is not supported in IOS XE for external WebAuth. Cisco Wireless Core Technologies recommends this approach for centralized guest management, allowing consistent enforcement of guest policies, seamless authentication, and integration with external WebAuth servers across multiple WLANs and APs. Reference topics:Client Connectivity Configuration — WebAuth, external guest portal, WLAN parameter map configuration, Cisco IOS XE 17.x.

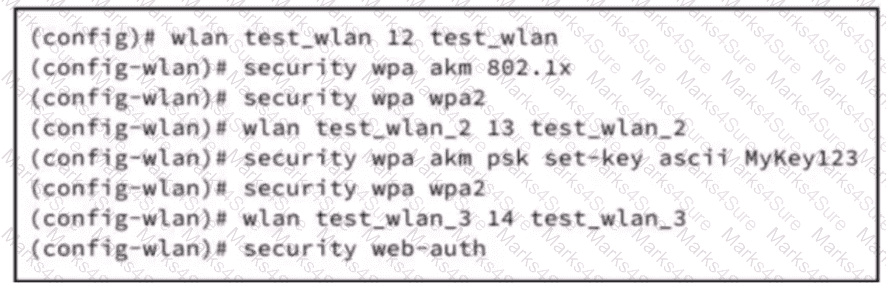

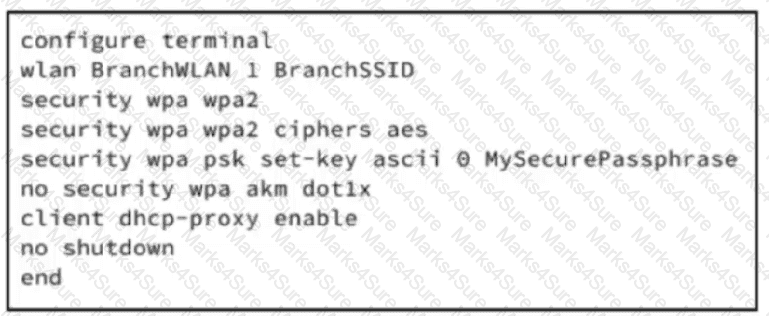

WPA2-Personal authenticates clients with a preshared key, not with 802.1X. Cisco documents WPA/WPA2 as supporting multiple authentication methods, including 802.1X and PSK, and specifically states that when PSK is selected, a preshared key or passphrase must be configured. The configuration element that enables client authentication in this scenario is the PSK ASCII key function represented by option D. On Catalyst 9800 IOS XE, the PSK method is enabled with PSK authentication key management, and the passphrase is defined withsecurity wpa psk set-key {ascii | hex} {0 | 8} password; Cisco’s example issecurity wpa psk set-key ascii 0 test.

Option A disables 802.1X AKM, which is appropriate for Personal mode, but it does not by itself authenticate clients. Option B controls DHCP proxy behavior and has no role in WPA authentication. Option C enables AES for WPA2 encryption, which protects traffic confidentiality but does not supply the authentication secret. Reference topics:Client Connectivity Configuration — WPA2-Personal, PSK authentication, AKM selection, AES encryption, and Catalyst 9800 WLAN security configuration.

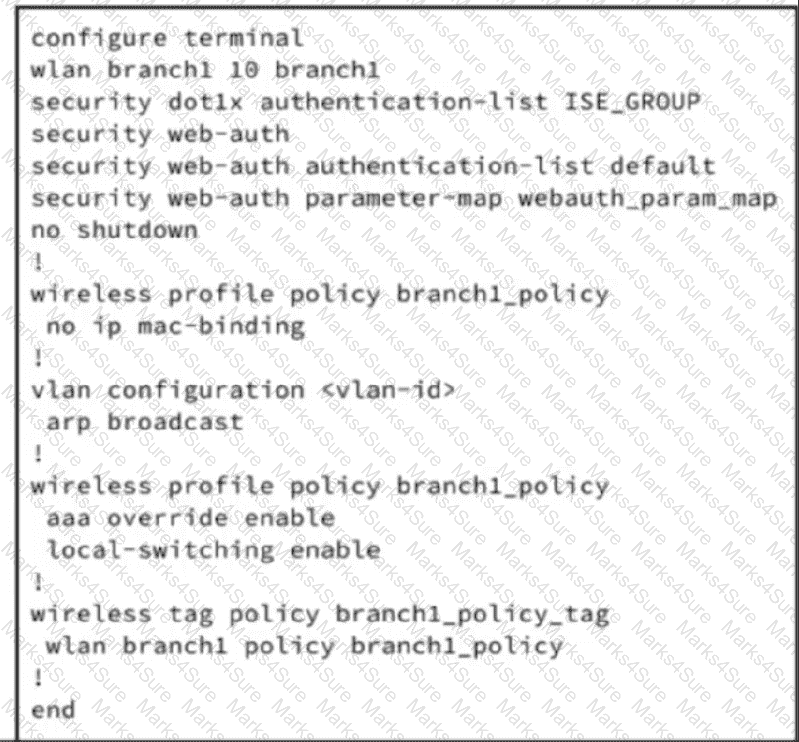

The command that enables 802.1X client authentication for this WLAN issecurity dot1x authentication-list ISE_GROUP. On a Cisco Catalyst 9800 WLC, the WLAN configuration defines Layer 2 security behavior, including whether the SSID uses 802.1X and which AAA method list is used for EAP/RADIUS authentication. Cisco documents the CLI workflow for 802.1X WLAN authentication as entering WLAN configuration mode and applyingsecurity dot1x authentication-list < authenticate-list-name > , explicitly describing this as the step to enable the authentication list for 802.1X security. Cisco’s Catalyst 9800 configuration example also shows the exact formsecurity dot1x authentication-list ISE_GROUPand states that the WLAN is then configured with 802.1X authentication.

no ip mac-bindingdisables IP-to-MAC binding checks and does not select a RADIUS method list.aaa override enableallows authorization attributes from AAA/ISE to be applied after authentication, but it does not initiate 802.1X authentication.wlan branch1 policy branch1_policymaps the WLAN to a policy profile through a policy tag, but it is not the authentication command. Reference topics:802.1X WLAN security, RADIUS AAA method lists, Catalyst 9800 WLAN configuration, and secure client onboarding.

Optimized roaming is a Cisco WLC feature designed to reduce sticky-client behavior. A sticky client remains associated to an AP even after moving far enough away that another AP would provide better RF service. Cisco describes optimized roaming as actively monitoring client data RSSI and disconnecting clients when received signal strength falls below the configured threshold. The official Catalyst 9800 documentation states that optimized roaming “disassociates client when the RSSI is lower than the set threshold,” which directly matches option A.

This function does not calculate device location through peer-to-peer beaconing, does not depend on external experience services, and is not static load balancing. It is an RF/client-roaming enforcement mechanism controlled by the wireless infrastructure. In practical operation, the AP/WLC evaluates client signal quality and, when the configured optimized roaming criteria are met, forces the client to disconnect so it can reassess the RF environment and roam to a better AP. Cisco also notes that optimized roaming helps maintain client connectivity by managing disassociationn based on RSSI and data-rate thresholds. Reference topics:Client Connectivity Configuration — client roaming behavior, sticky-client mitigation, RSSI thresholds, and WLC roaming optimization

The correct answer isfast BSS transition protocol, which is IEEE 802.11r Fast Transition. Cisco describes 802.11r BSS Fast Transition as the mechanism used to provide seamless roaming for wireless clients by reducing the time required to roam between access points. It achieves this by allowing keying material to be prepared or cached so that the client does not perform a full authentication exchange every time it moves to another AP within the same mobility domain.

This is specifically relevant to Layer 2 roaming because the client remains in the same Layer 2 network while reassociating to a different BSS. Fast Transition reduces roam latency, which is critical for voice, video, collaboration, barcode scanners, and other real-time applications. Cisco also classifies fast secure roaming as the method used to accelerate client roaming when Layer 2 security is configured on the WLAN. Increased beacon intervals do not provide handoff acceleration. Optimized roaming helps with sticky-client behavior but is not the secure handoff protocol. Deferred probe response is an RF/client steering behavior, not an 802.11 Layer 2 roaming key-transition method. Reference topics:802.11r Fast BSS Transition, Layer 2 roaming, fast secure roaming, WLAN mobility, and Catalyst 9800 roaming design.

To enforce adaptive policies based on user identity, device posture, and provide comprehensive visibility into device activity and location, Cisco recommends integrating Cisco Catalyst Center, Cisco ISE, and Cisco Spaces. Cisco ISE provides identity-based access control and posture assessment, allowing dynamic policy enforcement for users and devices. Mobile device management integration further extends posture checks for endpoint compliance. Cisco Catalyst Center enables real-time assurance and monitoring of network performance, device activity, and service health, while Cisco Spaces provides location analytics and visibility of client devices across the wireless environment. Option B relies solely on ACLs and MDM, which cannot provide full network-wide visibility or context-aware policy enforcement. Option C enables visibility via Catalyst Center but lacks dynamic identity and posture-based policies because it omits ISE integration. Option D integrates ISE but neglects device posture and location visibility, failing to meet all requirements. The combination in Option A ensures that adaptive policies can respond to real-time user and device conditions, enforce compliance, and provide actionable insights for network operations. Reference topics:Wireless Monitoring and Management — Catalyst Center assurance, Cisco ISE integration, mobile device posture, Cisco Spaces location analytics.

Dynamic endpoint profiling in Cisco wireless networks is used to classify devices based on type, behavior, and attributes, enabling policy enforcement that adapts to device posture. In a deployment integrated with Cisco ISE, profiling groups are created to define rules and categories for device types such as smartphones, laptops, printers, and IoT devices. These profiling groups allow the wireless controller to map devices to the correct ISE policy sets dynamically, ensuring that security policies, VLAN assignments, and access controls are applied according to the device profile. Option A (device-type groups) is a generic categorization that does not fully leverage ISE dynamic profiling capabilities. Option C (user ID groups) focuses on user identity rather than device characteristics. Option D (endpoint group mapping) is typically applied after device profiling and classification, but initial enforcement requires creating profiling groups. By configuring profiling groups, the IT team ensures that the network can classify endpoints automatically, enforce access policies consistently, and integrate with ISE for context-aware security and compliance monitoring. Reference topics:Wireless Monitoring and Management — Dynamic endpoint profiling, Cisco ISE policy integration, profiling groups, device classification for secure access.

The log is a Layer 2 802.1X authentication failure, not an AP join or WLAN encryption mismatch. In WPA3-Enterprise, the client authenticates with 802.1X/EAP through the configured AAA path. Cisco’s Catalyst 9800 WPA3 Enterprise configuration requires the necessary RADIUS or AAA servers and authentication lists before enabling WPA3 Enterprise, and the WLAN must reference the dot1x authentication list. Therefore, aCred Failreason points directly at the user/device credential validation path: the supplicant credentials, Active Directory identity source, RADIUS policy match, or RADIUS reachability.

Cisco’s 9800 802.1X configuration workflow also shows the controller defining a RADIUS server, adding it to a RADIUS group, creating a dot1x AAA authentication method list, and applying that list to the WLAN. It further recommends checking whether the RADIUS server is alive and using ISE RADIUS Live Logs to inspect authentication requests and results. Option A is wrong because the AP is not the supplicant in this WLAN client authentication event. Option B downgrades the security model and avoids 802.1X rather than fixing it. Option D addresses NAC behavior, not a credential authentication failure. Reference topics:Client Connectivity Configuration — WPA3-Enterprise, 802.1X/EAP, RADIUS authentication, and client authentication troubleshooting.
