Free Practice Questions for the Cisco CCNP Security 350-701 Exam (2026 Updated)

Explanation

In its essence, FlexVPN is the same as DMVPN. Connections between devices are still point-to-point GRE tunnels, spoke-to-spoke connectivity is still achieved with NHRP redirect message, IOS routers even run the same NHRP code for both DMVPN and FlexVPN, which also means that both are Cisco’s proprietary technologies.

Explanation

Explanation

A Directory Harvest Attack (DHA) is a technique used by spammers to find valid/existent email addresses at a domain either by using Brute force or by guessing valid e-mail addresses at a domain using different

permutations of common username. Its easy for attackers to get hold of a valid email address if your

organization uses standard format for official e-mail alias (for example: jsmith@example.com). We can

configure DHA Prevention to prevent malicious actors from quickly identifying valid recipients.

Note: Lightweight Directory Access Protocol (LDAP) is an Internet protocol that email programs use to look up contact information from a server, such as ClickMail Central Directory. For example, here’s an LDAP search translated into plain English: “Search for all people located in Chicago who’s name contains “Fred” that have an email address. Please return their full name, email, title, and description.

Explanation

Explanation

Cisco Umbrella protects users from accessing malicious domains by proactively analyzing and blocking unsafe destinations – before a connection is ever made. Thus it can protect from phishing attacks by blocking suspicious domains when users click on the given links that an attacker sent.

In order to send web traffic transparently to the Web Security Appliance (WSA), the system administrator can use one of these two methods:

Policy-based routing (PBR) on the network infrastructure: This method allows the administrator to define routing policies based on the source or destination IP address, port number, protocol, or other criteria of the web traffic. The administrator can then apply these policies to the network interfaces or subinterfaces and redirect the matching traffic to the WSA. This method does not require any configuration on the client side and can be applied to any type of web traffic, including HTTPS and FTP. However, this method may require additional network resources and maintenance, as well as coordination with other network administrators.

Web Cache Communication Protocol (WCCP) on the WSA and the network device: This method allows the administrator to configure the WSA and the network device (such as a router, switch, or firewall) to communicate with each other using WCCP, a Cisco proprietary protocol. The network device acts as a WCCP router and redirects the web traffic to the WSA, which acts as a WCCP client. The WSA then processes the traffic and returns it to the network device, which forwards it to the original destination. This method does not require any configuration on the client side and can be applied to HTTP, HTTPS, and native FTP traffic. However, this method requires that the network device supports WCCP and that the WSA and the network device are in the same Layer 2 domain.

The forwarder must know every receiving indexer and receive that configuration through a scalable deployment mechanism. In outputs.conf, a TCP output target group lists the indexer addresses and receiving ports, allowing forwarding traffic to be load-balanced automatically among those destinations. With thousands of Universal Forwarders, the practical method is to package outputs.conf in an application and distribute it through a Splunk deployment server. Disabling load balancing contradicts the distribution requirement. A local file share and scheduled copy operation bypass normal continuous forwarding and introduce delivery and integrity risks. Configuring a single forced primary indexer would concentrate traffic and create a potential bottleneck or failure point. Queue sizing may improve buffering but does not define the indexer destinations or distribute the configuration centrally. Splunk outputs.conf specification

================

The exhibit shows an access rule for URL filtering that has the following conditions:

The action is Block

The URL category is Botnets

The URL reputation is 3

The URL list is empty

This means that the rule will block any URL that matches the category and reputation criteria, regardless of the individual URL. According to the Cisco documentation1, the URL reputation is a score from 1 to 5 that indicates the risk level of a URL, where 1 is the most risky and 5 is the least risky. Therefore, a reputation score of 3 means a moderate risk level. The rule will not block URLs for botnets with reputation scores of 1, 2, 4, or 5, nor will it block any other URL category or list. The rule will also not allow any URL, as the action is Block, not Allow.

References := 1: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 4: Securing the Cloud, Lesson 4.3: Cloud Application Security, Topic 4.3.2: Cisco Umbrella, page 4-58.

Explanation

Cisco Cognitive Threat Analytics helps you quickly detect and respond to sophisticated, clandestine attacks that are already under way or are attempting to establish a presence within your environment. The solution automatically identifies and investigates suspicious or malicious web-based traffic. It identifies both potential and confirmed threats, allowing you to quickly remediate the infection and reduce the scope and damage of an attack, whether it’s a known threat campaign that has spread across multiple organizations or a unique threat you’ve never seen before.

Detection and analytics features provided in Cognitive Threat Analytics are shown below:

+ Data exfiltration: Cognitive Threat Analytics uses statistical modeling of an organization’s network to identify anomalous web traffic and pinpoint the exfiltration of sensitive data. It recognizes data exfiltration even in HTTPS-encoded traffic, without any need for you to decrypt transferred content

+ Command-and-control (C2) communication: Cognitive Threat Analytics combines a wide range of data, ranging from statistics collected on an Internet-wide level to host-specific local anomaly scores. Combining these indicators inside the statistical detection algorithms allows us to distinguish C2 communication from benign traffic and from other malicious activities. Cognitive Threat Analytics recognizes C2 even in HTTPSencoded or anonymous traffic, including Tor, without any need to decrypt transferred content, detecting a broad

range of threats

…

 Cisco Stealthwatch is the only solution that detects threats across your private network, public clouds, and encrypted traffic. It uses network telemetry and advanced behavioral analytics to monitor network activity and identify anomalies that indicate potential threats. It also leverages Cisco Encrypted Traffic Analytics (ETA) to detect malware in encrypted traffic without decryption. Cisco Stealthwatch provides visibility, threat detection, and response across your entire network and cloud environment1234 References := 1: Cisco Stealthwatch detects threats across private networks, public clouds, and encrypted traffic - Cisco Blogs 2: The XDR Solution to the Ransomware Problem - Cisco Blogs 3: Network Threat Detection and Response with Cisco Stealthwatch - Locuz 4: Cisco Secure Network Analytics (Stealthwatch) - Cisco

To add switches into the fabric for private cloud management, administrators can use the following two methods:

PowerOn Auto Provisioning (POAP): This method allows the switches to be automatically discovered and provisioned by DCNM using a POAP configuration file. The switches are assigned an IP address and a startup configuration based on the fabric settings and policies. The switches are then added to the fabric and deployed with the VXLAN EVPN configuration. This method is suitable for greenfield deployments or adding new switches to an existing fabric12.

Seed IP: This method allows the administrators to manually specify the IP address of the switches that they want to add to the fabric. The switches must have a reachable IP address and a username and password that match the fabric settings. The switches are then added to the fabric and deployed with the VXLAN EVPN configuration. This method is suitable for brownfield deployments or transitioning existing switches to DCNM management12. References: Cisco NDFC Fabric Controller Configuration Guide, Release 12.0.x, Cisco DCNM LAN Fabric Configuration Guide, Release 11.5(x).

 Cisco Workload Optimization Manager (CWOM) is a decision-automation engine that provides workloads with the exact resources they need at the right time in accordance with business policies, freeing IT teams to focus on innovation rather than the maintenance of their IT environment1. CWOM is part of the Cisco SecureX platform, which integrates various security solutions, including endpoint protection platforms (EPPs), to provide a unified and simplified security experience2. CWOM does not deploy an AWS Lambda system, optimize a flow path, or set up a workload forensic score. These are not related to CWOM’s functionality or EPP solutions. CWOM automates resource resizing, which means it can dynamically adjust the CPU, memory, disk, and network resources allocated to each workload based on real-time demand and performance metrics1. This helps EPP solutions to solely address performance issues by ensuring that workloads have the optimal resources to run efficiently and securely, without overprovisioning or underutilizing resources3. References: 1: Cisco Workload Optimization Manager (CWOM) - Cisco, 2: Endpoint Protection Platform (EPP) Definition - Cisco, 3: Cisco Intersight Workload Optimizer Data Sheet

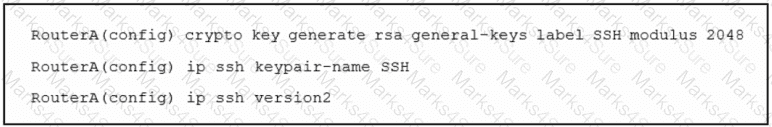

A passphrase is a type of protection that encrypts RSA keys when they are exported and imported. A passphrase is a sequence of characters that the user enters to decrypt the key. The passphrase acts as a symmetric key that is used to encrypt and decrypt the RSA key with a symmetric algorithm, such as AES. This way, the RSA key is protected from unauthorized access or tampering when it is transferred or stored. A passphrase can also provide additional security by adding entropy to the RSA key generation process. A file, NGE, and nonexportable are not types of protection that encrypt RSA keys when they are exported and imported. A file is a container that stores the RSA key, but does not encrypt it. NGE stands for Next Generation Encryption, which is a set of cryptographic standards and algorithms that Cisco recommends, but it is not a specific type of protection. Nonexportable is a property that prevents the RSA key from being exported at all, but it does not encrypt it. References: RSA/Schannel Key BLOBs, Common Encryption Types, Protocols and Algorithms Explained, Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 (Module 5: Implementing Secure Communications with VPNs, Lesson 5.1: Implementing Site-to-Site VPNs, Topic 5.1.2: Implementing Site-to-Site VPNs with Pre-Shared Keys)

The zero-trust model is a modern security strategy that assumes breach and verifies each request as though it originates from an open network. The main concept behind the zero-trust model is “never trust, always verify”, which means that users and devices should not be trusted by default, even if they are connected to a permissioned network such as a corporate LAN and even if they were previously verified12

One of the principles of the zero-trust model is to verify explicitly, which means to always authenticate and authorize based on all available data points, including user identity, location, device health, service or workload, data classification, and anomalies13 To achieve this, the zero-trust model recommends using multifactor authentication (MFA), which is a method of verifying a user’s identity by requiring two or more pieces of evidence, such as something the user knows (e.g., password, PIN), something the user has (e.g., token, smart card), or something the user is (e.g., fingerprint, face scan). MFA provides a higher level of security than using only a single factor, such as a password, which can be easily compromised or guessed. MFA also reduces the risk of unauthorized access to corporate applications and resources, which may contain sensitive or confidential information.

Therefore, the recommendation in a zero-trust model before granting access to corporate applications and resources is to use multifactor authentication, as it ensures that only verified and authorized users and devices can access the data they need, and nothing more13

References := 1: Zero Trust Model - Modern Security Architecture | Microsoft Security 2: Zero trust security model - Wikipedia 3: What is Zero Trust? | Microsoft Learn : Multifactor Authentication (MFA) | Cisco

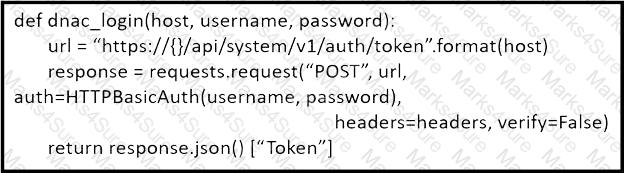

 The Python script of the Cisco DNA Center API in the exhibit uses the requests module to send a GET request to the /dna/intent/api/v1/network-device endpoint, which returns a list of network devices managed by Cisco DNA Center. The script also uses HTTPBasicAuth to provide the username and password for authentication. The script then parses the JSON response and prints the hostname, type, management IP address, and software version of each device in a table format using the prettytable module. Therefore, the result of this script is to receive information about a switch or switches from Cisco DNA Center. References:

Python Scripting APIs in Cisco DNA Center Let You Improve Effectiveness, Topic: Network device’s script, simple and easy to create

Intro to Cisco DNA Center REST API with Python, Module 2: Using Python to Retrieve a Network Device List

Cisco DNA Center API Call Python Script Example, Topic: Cisco DNA CENTER SANDBOX Call DNA Center API Call Python Script Example

Cisco Security Intelligence is a feature that allows you to block or monitor traffic based on IP addresses or domain names that are known to be malicious or suspicious. Cisco Security Intelligence requires a Protect license on the Cisco Next Generation Intrusion Prevention System (NGIPS), which is part of the Firepower Threat Defense (FTD) software. A Protect license allows you to perform intrusion detection and prevention, file control, and Security Intelligence filtering1. The other license options (control, malware, and URL filtering) do not enable Cisco Security Intelligence on the NGIPS. References:

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, section “Security Intelligence”

Firepower Management Center Configuration Guide, Version 6.0, section “Licensing the Firepower System”

Northbound APIs (SDN northbound APIs) are typically RESTful APIs that are used to communicate between the SDN controller and the services and applications running over the network. Such northbound APIs can be used for the orchestration and automation of the network components to align with the needs of different applications via SDN network programmability1. The management solution is an example of an application that can use the northbound APIs to interact with the SDN controller and configure, monitor, and troubleshoot the network devices and services2. Therefore, the main function of northbound APIs in the SDN architecture is to enable communication between the SDN controller and the management solution. References: 1: What are SDN Northbound APIs (and SDN Rest APIs)? - SDxCentral 2: Software-Defined Networking Security and Network Programmability

Explanation

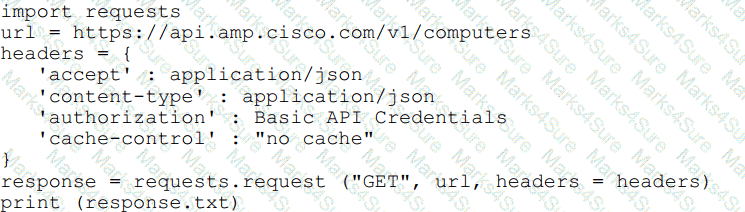

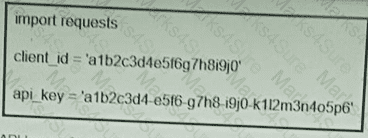

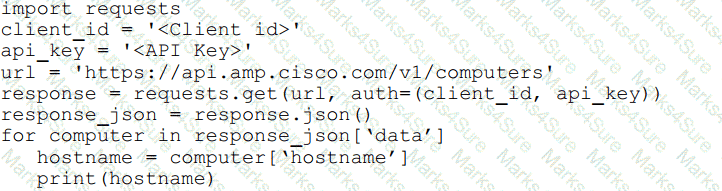

The call to API of “https://api.amp.cisco.com/v1/computers” allows us to fetch list of computers across your

organization that Advanced Malware Protection (AMP) sees

Microsegmentation is a network security technique that enables security architects to logically divide the data center or cloud environment into distinct security segments down to the individual workload level, and then define security controls and deliver services for each unique segment. Microsegmentation software with network virtualization technology is used to create zones in cloud deployments. These granular secure zones isolate workloads, securing them individually with custom, workload-specific policies. Microsegmentation uses a zero-trust model, which means that no traffic is allowed by default, and only explicitly authorized traffic is permitted based on the principle of least privilege. Microsegmentation helps to reduce the attack surface, prevent the lateral movement of threats, and strengthen regulatory compliance. The other options are incorrect because they do not describe microsegmentation accurately. Option B is incorrect because container orchestration platforms, such as Kubernetes, are used to automate the deployment, scaling, and management of containerized applications, but they do not provide microsegmentation by themselves. Option C is incorrect because private VLAN segmentation is a network security technique that isolates hosts within the same VLAN, but it does not provide granular security controls at the workload level. Option D is incorrect because host-based firewall rules are one of the components of microsegmentation, but they are not sufficient to implement microsegmentation without network virtualization and policy automation. References : What Is Microsegmentation? - Palo Alto Networks, What Is Micro-Segmentation? - Cisco, What is Micro-Segmentation? | VMware Glossary

DMVPN and sVTI are both VPN technologies that use IPsec to secure the tunnel traffic. However, they differ in how they establish and manage the tunnels. DMVPN supports dynamic tunnel establishment, which means that the VPN endpoints can create and delete tunnels on demand, based on the routing information. This allows for a scalable and flexible VPN topology, where the endpoints can communicate directly with each other without going through a central hub. sVTI, on the other hand, supports static tunnel establishment, which means that the VPN endpoints have to manually configure the tunnel source and destination addresses. This requires a one-to-one mapping between the endpoints, and limits the VPN topology to a hub-and-spoke model, where the endpoints can only communicate with the hub. Therefore, DMVPN is more suitable for large and dynamic VPN networks, while sVTI is more suitable for small and stable VPN networks. References:

[Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0], Module 5: Secure Connectivity, Lesson 5.2: Implementing Site-to-Site VPNs, Topic 5.2.3: Dynamic Multipoint VPN (DMVPN)

what is difference between svti and DVTI? - Cisco Community

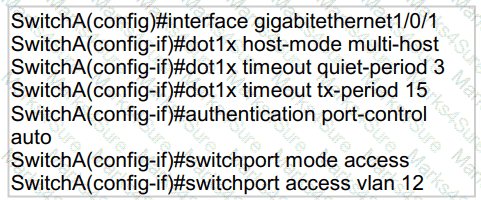

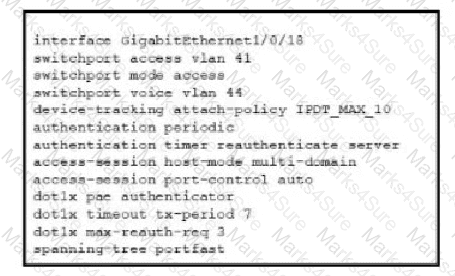

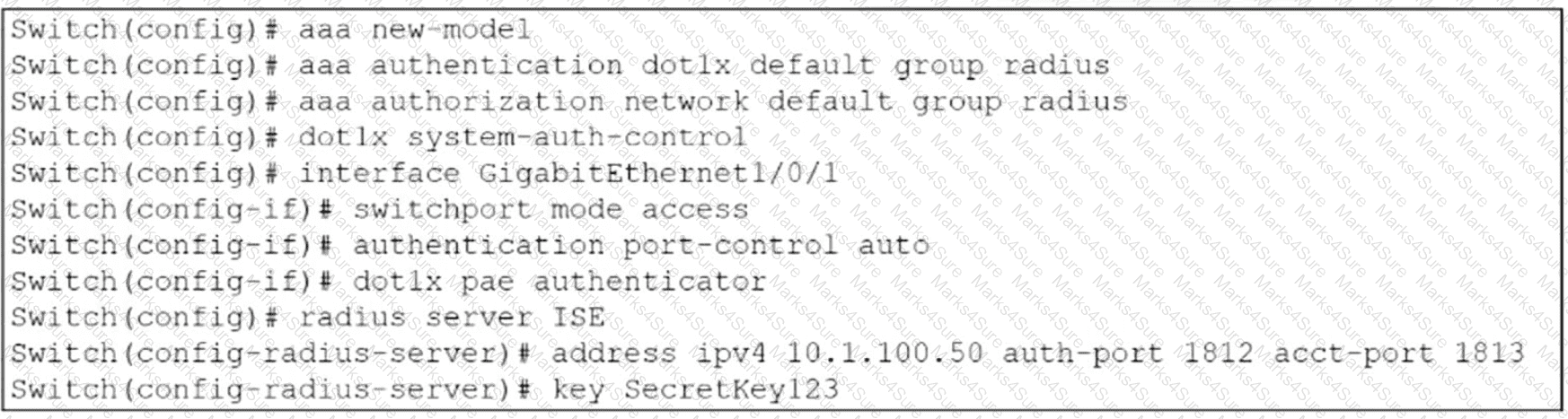

The dot1x pae authenticator command enables 802.1x authentication on the port and configures the port as an authenticator. This command is required for the port to initiate the authentication process with the connected client. Without this command, the port will not send EAPOL packets to the client and will not receive the client credentials. Therefore, the client will not be authenticated and will remain in the unauthorized state. The other options are not mandatory for 802.1x authentication, although they can be used to modify the default behavior of the port. For example, authentication open allows the port to grant access to the client before authentication, dot1x reauthentication enables periodic reauthentication of the client, and cisp enable enables Cisco Identity Services Protocol (CISP) on the port. References: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 5: Secure Network Access, Lesson 5.1: Implementing 802.1X Authentication, Topic 5.1.2: Configuring 802.1X Authentication, Page 5-9.

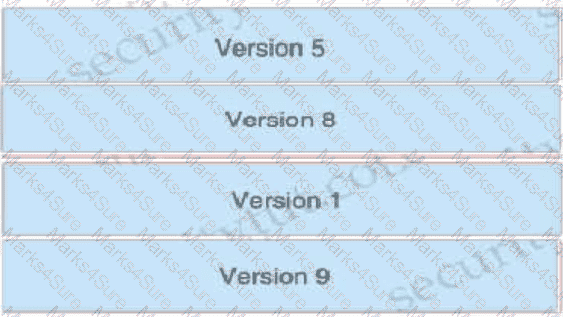

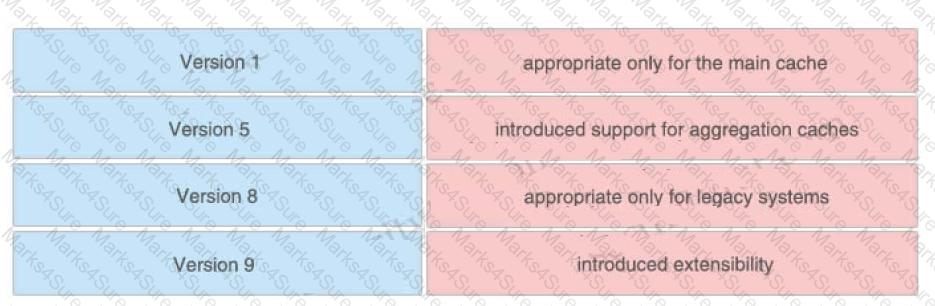

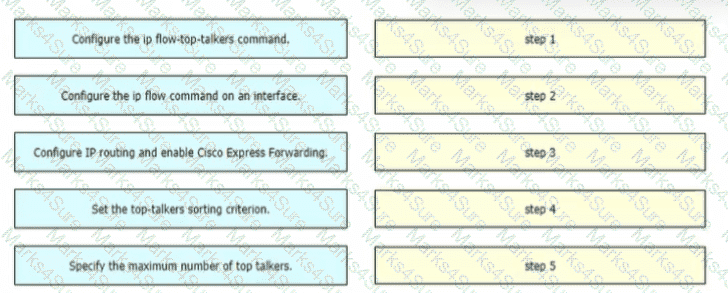

NetFlow is a Cisco IOS application that provides statistics on packets flowing through the router. NetFlow is based on 7 key fields that identify a flow, such as source and destination IP addresses, source and destination port numbers, layer 3 protocol type, ToS byte, and input logical interface. To enable NetFlow on a router, IP routing must be configured first, because NetFlow relies on IP addresses to classify and monitor traffic. SNMPv3, syslog, and VRF are not required for NetFlow configuration, although they can be used for other purposes such as network management, logging, and virtualization. References:

Getting Started with Configuring Cisco IOS NetFlow and NetFlow Data Export (Section: NetFlow Data Capture)

How to configure NetFlow on Cisco routers (Section: Enable NetFlow)

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 (Module 5.1.1)

A multicontext firewall is a feature that allows a single physical firewall to be divided into multiple virtual firewalls, also known as security contexts. Each context operates as an independent device, with its own security policy, interfaces, and administrators. This feature is useful for service providers, large enterprises, or any network that requires more than one firewall. One of the problems that a multicontext firewall can solve is an overlapping IP addressing plan. This means that different contexts can use the same IP addresses without causing conflicts, as long as they are separated by different interfaces or VLANs. This allows for more efficient use of IP address space and easier management of multiple networks. A multicontext firewall can also support dynamic routing protocols and VPNs within each context, providing more flexibility and functionality12 References := 1: What Are Multi-Context Firewalls? - Franklin Fitch 2: Multiple Context Mode - Cisco

https://learn-umbrella.cisco.com/i/802005-umbrella-security-report/3?

https://www.cisco.com/site/us/en/products/security/endpoint-security/secure-endpoint/index.html#:~:text=Powerful%20EDR%20capabilities,from%20Kenna%20Security.

Cisco Advanced Malware Protection (AMP) for endpoints can be seen as a replacement for the traditional antivirus solution. It is a next generation, cloud delivered endpoint protection platform (EPP), and advanced endpoint detection and response (EDR). Providing Protection – Detection Response

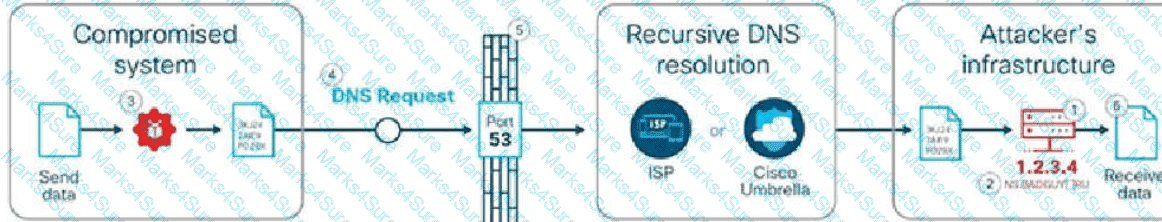

While Cisco Umbrella can enforce security at the DNS-, IP-, and HTTP/S-layer, this report does not require that blocking is enabled and only monitors your DNS activity. Any malicious domains requested and IPs resolved are indicators of compromise (IOC).

Any malicious domains requested and IPs resolved are indicators of compromise (IOC)

Cisco Stealthwatch Cloud is a cloud-delivered and SaaS-based solution that provides visibility and threat detection across the AWS network. It does not require any software agents to be installed on the AWS instances, and it relies on AWS VPC flow logs to collect network traffic metadata. Cisco Stealthwatch Cloud analyzes the flow logs using machine learning and behavioral modeling to detect anomalies and threats, such as data exfiltration, lateral movement, reconnaissance, and compromised instances. Cisco Stealthwatch Cloud also provides contextual information and actionable alerts to help users respond to incidents and remediate issues.

Cisco Umbrella is a cloud-delivered and SaaS-based solution that provides DNS-layer security and web filtering for internet traffic. It does not provide visibility and threat detection for internal AWS network traffic, and it requires software agents to be installed on the endpoints or network devices to enforce policies and redirect DNS requests.

NetFlow collectors are devices or software applications that collect and analyze NetFlow records, which are generated by network devices to capture information about IP traffic flows. NetFlow collectors can provide visibility and threat detection for network traffic, but they are not cloud-delivered or SaaS-based solutions. They also require NetFlow exporters to be configured on the network devices, which may not be supported by AWS.

Cisco Cloudlock is a cloud-delivered and SaaS-based solution that provides cloud security posture management (CSPM) and cloud access security broker (CASB) capabilities for cloud applications and environments. It does not provide visibility and threat detection for AWS network traffic, and it does not rely on AWS VPC flow logs. It focuses on protecting cloud data, users, and configurations from misconfigurations, compliance violations, and malicious activities. References :=

Cisco Stealthwatch Cloud for AWS

Cisco Umbrella

NetFlow

[Cisco Cloudlock]

Explanation

The RADIUS Change of Authorization (CoA) feature provides a mechanism to change the attributes of an

authentication, authorization, and accounting (AAA) session after it is authenticated.

Explanation

Each of the ASAs interfaces need to be grouped into one or more bridge groups. Each of these groups acts as an independent transparent firewall. It is not possible for one bridge group to communicate with another bridge group without assistance from an external router.

As of 8.4(1) upto 8 bridge groups are supported with 2-4 interface in each group. Prior to this only one bridge group was supported and only 2 interfaces.

Up to 4 interfaces are permitted per bridge–group (inside, outside, DMZ1, DMZ2)

 The open standard that creates a framework for sharing threat intelligence in a machine-digestible format is STIX (Structured Threat Information Expression). STIX is a language and serialization format that enables the exchange of cyber threat information across organizations, tools, and platforms. STIX defines a common vocabulary and data model for representing various types of threat intelligence, such as indicators, observables, incidents, campaigns, threat actors, courses of action, and more. STIX also supports the expression of context, relationships, confidence, and handling of the threat information. STIX aims to improve the speed, accuracy, and efficiency of threat detection, analysis, and response.

STIX is often used in conjunction with TAXII (Trusted Automated Exchange of Indicator Information), which is a protocol and transport mechanism that enables the secure and automated communication of STIX data. TAXII defines how to request, send, receive, and store STIX data using standard methods and formats, such as HTTPS, JSON, and XML. TAXII supports various exchange models, such as hub-and-spoke, peer-to-peer, or subscription-based. TAXII enables the interoperability and scalability of threat intelligence sharing among different systems and organizations.

Explanation

The command “snmp-server user user-name group-name [remote ip-address [udp-port port]] {v1 | v2c | v3 [encrypted] [auth {md5 | sha} auth-password]} [access access-list] ” adds a new user (in this case “andy”) to an SNMPv3 group (in this case group name “myv3”) and configures a password for the user.

In the “snmp-server host” command, we need to:

+ Specify the SNMP version with key word “version {1 | 2 | 3}”

+ Specify the username (“andy”), not group name (“myv3”).

Note: In “snmp-server host inside …” command, “inside” is the interface name of the ASA interface through which the NMS (located at 10.255.254.1) can be reached.

Cisco AMP for Endpoints is a solution that enables protection, detection, and response on the endpoint against known and unknown threats. It provides continuous visibility and analysis of endpoint activity, as well as automated threat prevention and response capabilities. It leverages cloud-based intelligence, sandboxing, and machine learning to block malware, fileless attacks, ransomware, and other advanced threats. It also allows security teams to quickly investigate and remediate incidents, as well as hunt for indicators of compromise across all endpoints. Cisco AMP for Endpoints is part of the Cisco SecureX platform, which integrates with other Cisco security solutions to provide a unified and simplified security experience. The other options are not correct because they do not offer the same level of endpoint protection, detection, and response as Cisco AMP for Endpoints. Cisco AnyConnect is a VPN solution that provides secure access to the network for remote workers, but it does not monitor or respond to endpoint threats. Cisco Umbrella is a DNS security solution that blocks malicious domains, IPs, and URLs, but it does not analyze or remediate endpoint activity. Cisco Duo is a multi-factor authentication solution that verifies the identity of users and devices, but it does not protect or detect endpoint attacks. References :=

Some possible references are:

Cisco AMP for Endpoints

Cisco SecureX

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 - Module 5: Endpoint Protection and Detection

Workload security models refer to the ways of protecting applications, services, and capabilities that run on a cloud resource. There are different types of cloud deployment models, such as public, private, hybrid, and multicloud, and different types of cloud service models, such as IaaS, PaaS, and SaaS. However, these are not workload security models, but rather ways of describing the cloud environment and the level of abstraction. Workload security models are more focused on the location and ownership of the workloads, and how they are secured. The two main workload security models are off-premises and on-premises. Off-premises workload security model means that the workloads are hosted and managed by a third-party cloud service provider, such as AWS, Azure, or GCP. The cloud service provider is responsible for the security of the underlying infrastructure, such as the physical servers, network devices, storage systems, and hypervisors. The customer is responsible for the security of the workloads themselves, such as the guest operating systems, applications, data, and users. The customer can use various tools and techniques to secure their workloads, such as encryption, firewalls, identity and access management, vulnerability scanning, and logging and monitoring. On-premises workload security model means that the workloads are hosted and managed by the customer on their own data center or private cloud. The customer is responsible for the security of both the infrastructure and the workloads, and has full control and visibility over them. The customer can use similar tools and techniques as the off-premises model, but also has to deal with the physical security, network security, and compliance requirements of their own environment. References:

What Is Workload Security? On-Premises, Cloud, Kubernetes, and More

What is Cloud Workload Security? - CyberArk

What is Cloud Workload Protection? | Workload Security | VMware

What is Cloud Workload Security? - Check Point Software

Introduction To Classic Security Models - GeeksforGeeks

Explanation

All IKE policies on the device are sent to the remote peer regardless of what is in the selected policy section.

The first IKE Policy matched by the remote peer will be selected for the VPN connection. Choose which policy is sent first using the priority field. Priority 1 will be sent first.

 Transparent mode is a Cisco ASA deployment model that allows the ASA to act as a bump in the wire, or a stealth firewall. In this mode, the ASA does not have an IP address on the network, and it does not participate in routing. Instead, it filters traffic between hosts in the same IP subnet using higher-level protocols such as TCP, UDP, and ICMP. Transparent mode is useful when you want to apply security policies without readdressing the network or changing the default gateway of the hosts. Some of the benefits of transparent mode are:

It preserves the original source and destination IP addresses of the packets, which can be useful for logging and auditing purposes.

It simplifies the configuration of the ASA, as you do not need to configure routing protocols, NAT, or DHCP.

It allows the ASA to inspect non-IP traffic, such as ARP, STP, and CDP.

It supports multiple contexts, which can provide logical separation of traffic for different tenants or customers.

Some of the limitations of transparent mode are:

It does not support VPN, dynamic routing, multicast routing, or QoS.

It requires the use of EtherType ACLs to filter non-IP traffic, which can be complex and cumbersome.

It requires the use of bridge groups and bridge domains to define the interfaces and VLANs that belong to the same broadcast domain.

It requires the use of MAC address learning and aging to maintain a MAC address table for each bridge group.

References :=

Some possible references are:

Cisco ASA Series Firewall CLI Configuration Guide, 9.10 - Transparent Firewall Mode

Deploying ASA - Cisco

Cisco ASA 5500-X Series Firewalls - Configuration Guides - Cisco

Dynamic ARP Inspection (DAI) is a security feature that validates ARP packets on untrusted interfaces by comparing the MAC address to IP address bindings in the DHCP snooping database or an ARP access-list. If the ARP packet contains invalid or spoofed information, it is dropped and logged. DAI also inspects ARP packets on trusted interfaces, but it does not drop them if they are invalid. Instead, it forwards them to the destination without validation. This allows the switch to support devices that use static IP addresses or have legitimate reasons to send ARP packets with different MAC address to IP address bindings. However, this also means that if a spoofed ARP packet is received on a trusted interface, it will bypass the DAI validation and be forwarded to the destination. This could allow an attacker to poison the ARP cache of other devices and perform a man-in-the-middle attack. Therefore, the correct answer is option B. The switch drops the packet after validation by using the IP & MAC Binding Table. References:

Understanding and Configuring Dynamic ARP Inspection

DAI (Dynamic ARP Inspection)

Dynamic ARP Inspection (DAI) Explanation & Configuration

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0

Explanation

Micro-segmentation secures applications by expressly allowing particular application traffic and, by default,

denying all other traffic. Micro-segmentation is the foundation for implementing a zero-trust security model for

application workloads in the data center and cloud.

Cisco Tetration is an application workload security platform designed to secure your compute instances across

any infrastructure and any cloud. To achieve this, it uses behavior and attribute-driven microsegmentation

policy generation and enforcement. It enables trusted access through automated, exhaustive context from

various systems to automatically adapt security policies.

To generate accurate microsegmentation policy, Cisco Tetration performs application dependency mapping to

discover the relationships between different application tiers and infrastructure services. In addition, the

platform supports “what-if” policy analysis using real-time data or historical data to assist in the validation and risk assessment of policy application pre-enforcement to ensure ongoing application availability. The

normalized microsegmentation policy can be enforced through the application workload itself for a consistent approach to workload microsegmentation across any environment, including virtualized, bare-metal, and container workloads running in any public cloud or any data center. Once the microsegmentation policy is enforced, Cisco Tetration continues to monitor for compliance deviations, ensuring the segmentation policy is up to date as the application behavior change.

Cisco Tetration, which is a hybrid-cloud workload protection platform that uses machine learning, behavior analysis, and algorithmic approaches to secure compute instances in both the on-premises data center and the public cloud1. Cisco Tetration can process behavior baselines, monitor for deviations, and review for malicious processes in data center traffic and servers while performing software vulnerability detection. It can also provide zero-trust microsegmentation, proactive identification of security incidents, and reduction of the attack surface1. The other options are not correct because they do not offer the same level of workload protection as Cisco Tetration. Cisco ISE is an identity and access control platform that provides secure network access, endpoint compliance, and device administration2. Cisco AMP for Network is a network-based malware prevention solution that detects and blocks malicious files and URLs before they reach the endpoints3. Cisco AnyConnect is a VPN client that provides secure remote access, endpoint visibility, and posture enforcement4. References:

1: Cisco Secure Workload Platform Data Sheet

2: Cisco Identity Services Engine Data Sheet

3: Cisco Advanced Malware Protection for Networks Data Sheet

4: Cisco AnyConnect Secure Mobility Client Data Sheet

https://www.cisco.com/c/en/us/td/docs/security/wsa/wsa11-0/user_guide/b_WSA_UserGuide/b_WSA_UserGuide_chapter_01101.html Policy Order The order in which policies are listed in a policy table determines the priority with which they are applied to Web requests. Web requests are checked against policies beginning at the top of the table and ending at the first policy matched. Any policies below that point in the table are not processed. If no user-defined policy is matched against a Web request, then the global policy for that policy type is applied. Global policies are always positioned last in Policy tables and cannot be re-ordered.

Explanation

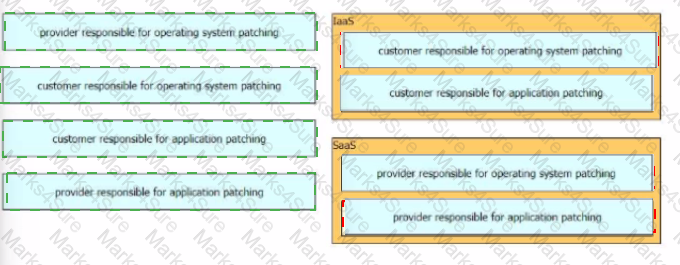

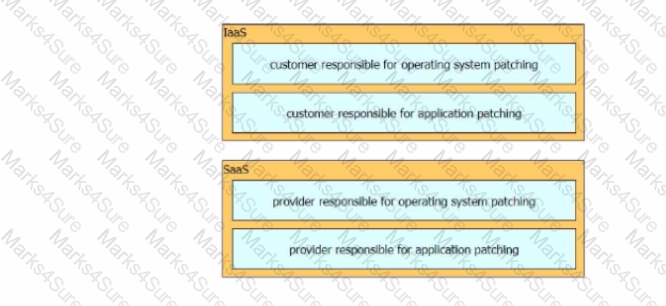

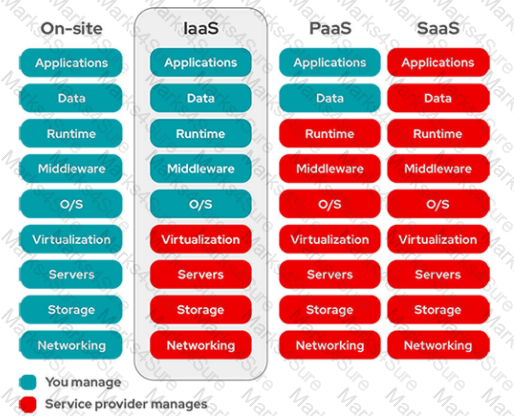

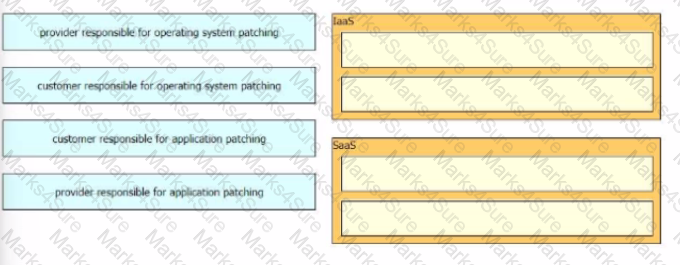

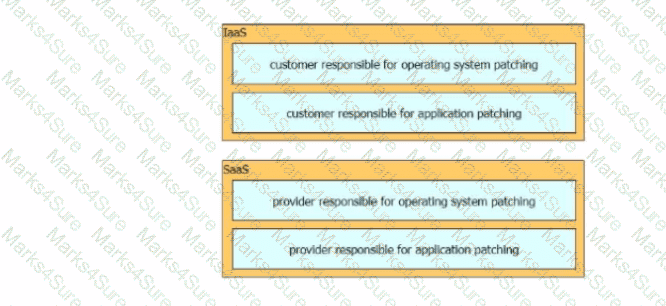

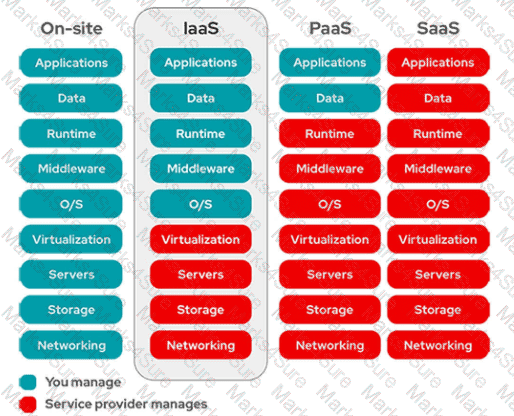

Cloud computing can be broken into the following three basic models:

+ Infrastructure as a Service (IaaS): IaaS describes a cloud solution where you are renting infrastructure. You purchase virtual power to execute your software as needed. This is much like running a virtual server on your own equipment, except you are now running a virtual server on a virtual disk. This model is similar to a utility company model because you pay for what you use.

+ Platform as a Service (PaaS): PaaS provides everything except applications. Services provided by this

model include all phases of the system development life cycle (SDLC) and can use application programming interfaces (APIs), website portals, or gateway software. These solutions tend to be proprietary, which can cause problems if the customer moves away from the provider’s platform.

+ Software as a Service (SaaS): SaaS is designed to provide a complete packaged solution. The software is rented out to the user. The service is usually provided through some type of front end or web portal. While the end user is free to use the service from anywhere, the company pays a peruse fee.

According to the NIST 800-145 guide1, a community cloud is a cloud infrastructure that is provisioned for exclusive use by a specific community of consumers from organizations that have shared concerns (e.g., mission, security requirements, policy, and compliance considerations). It may be owned, managed, and operated by one or more of the organizations in the community, a third party, or some combination of them, and it may exist on or off premises. A community cloud is different from a hybrid cloud, which is a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities, but are bound together by standardized or proprietary technology that enables data and application portability (e.g., cloud bursting for load balancing between clouds). A private cloud is a cloud infrastructure that is provisioned for exclusive use by a single organization comprising multiple consumers (e.g., business units). It may be owned, managed, and operated by the organization, a third party, or some combination of them, and it may exist on or off premises. A public cloud is a cloud infrastructure that is provisioned for open use by the general public. It may be owned, managed, and operated by a business, academic, or government organization, or some combination of them. It exists on the premises of the cloud provider. References :=

Some possible references are:

1: NIST SP 800-145, The NIST Definition of Cloud Computing, 1 2: Evaluation of Cloud Computing Services Based on NIST SP 800-145, 3 3: What Is Community Cloud? Definition, Architecture, Examples, and Best Practices, 6

Explanation

Explanation

The traditional use of the pull model, where the client requests data from the network does not scale when what you want is near real-time data. Moreover, in some use cases, there is the need to be notified only when some data changes, like interfaces status, protocol neighbors change etc.

Model-Driven Telemetry is a new approach for network monitoring in which data is streamed from network devices continuously using a push model and provides near real-time access to operational statistics.

Applications can subscribe to specific data items they need, by using standard-based YANG data models over NETCONF-YANG. Cisco IOS XE streaming telemetry allows to push data off of the device to an external collector at a much higher frequency, more efficiently, as well as data on-change streaming.

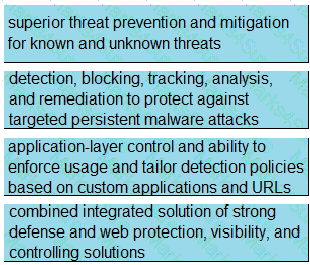

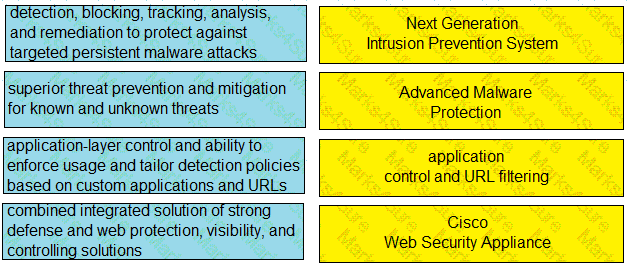

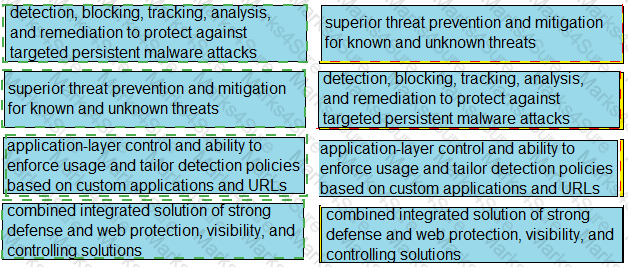

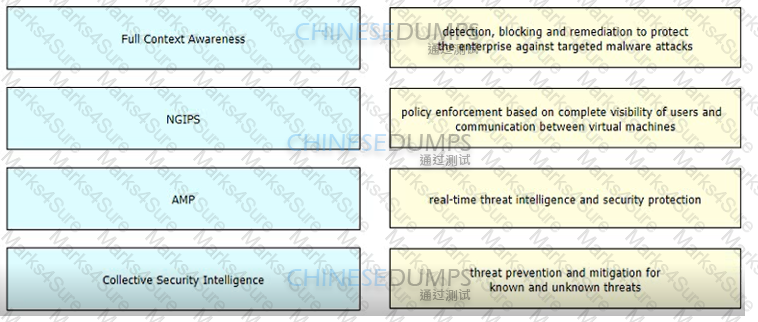

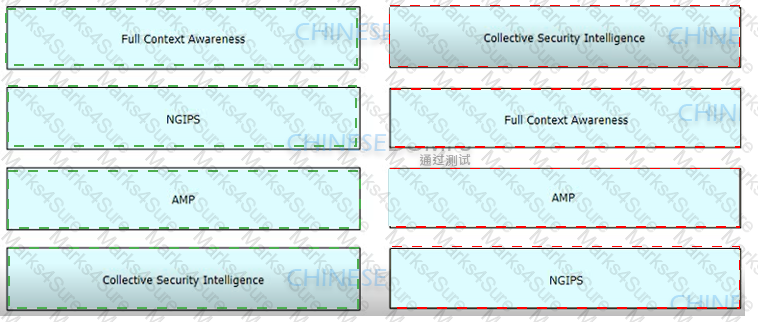

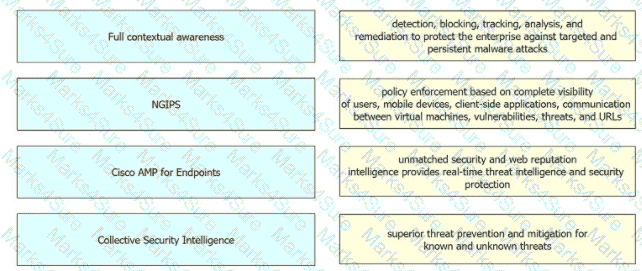

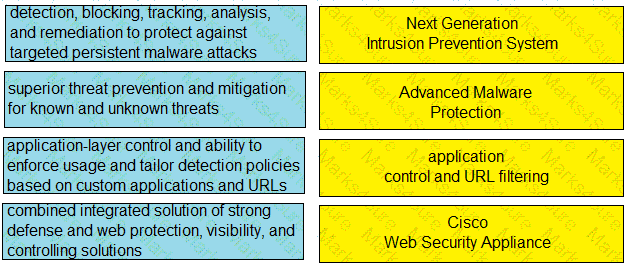

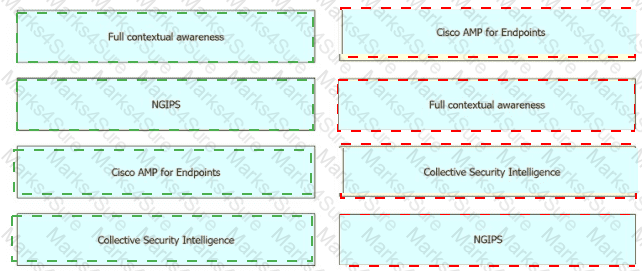

Full Context Awareness - policy enforcement

NGIPS - threat prevention

AMP - real-time

Collective Sec Intel - Detection, blocking an remediation

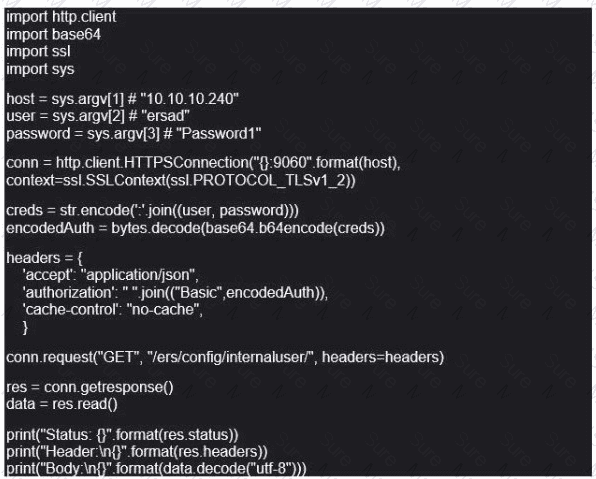

 The Python script accomplishes the following tasks:

It imports the required libraries for HTTP, base64, SSL, and sys modules.

It takes the host, user, and password information from the command line arguments and assigns them to variables.

It creates an HTTPS connection object using the host and port 9060, and specifies the SSL protocol as TLSv1_2.

It encodes the user and password information in base64 format for basic HTTP authentication.

It sets the headers for the HTTP request, including the accept, authorization, and cache-control fields.

It sends a GET request to the Cisco ISE server to retrieve information from the “/ers/config/internaluser/” endpoint, which returns the list of internal users configured on Cisco ISE.

It reads the response from the server and prints the status, headers, and body in a human-readable format.

The script authenticates to the Cisco ISE server using the username of ersad and the password of Password1, and retrieves the internal user information from the server.

Regular security awareness training directly addresses the human manipulation on which social engineering depends. Effective programs teach users to recognize phishing, pretexting, impersonation, malicious links, unusual payment requests, and attempts to obtain credentials or confidential information. Cisco Secure Awareness Training combines employee education with phishing simulations so organizations can reinforce safe behavior and measure susceptibility, as described in Cisco’s security awareness documentation. NAT traversal enables connectivity through address translation and does not educate users or validate deceptive requests. Port security and DHCP-spoofing controls address unauthorized devices and Layer 2 attacks, not psychological manipulation. Restricting outbound TCP traffic can limit certain command-and-control paths, but it does not prevent users from revealing information or approving fraudulent actions. Therefore, recurring awareness training is the most relevant preventive control.

================

A virus is a type of malware that infects a computer system by attaching itself to another program or file. Once executed, the virus can replicate itself and spread to other files or systems. A virus can be used to gain unauthorized access to a computer system by exploiting software vulnerabilities, stealing credentials, or installing backdoors. A virus can also cause damage to the system by deleting, modifying, or encrypting data, or consuming system resources. According to the Implementing and Operating Cisco Security Core Technologies (SCOR) course, viruses are one of the most common forms of malware and can be classified into different types based on their behavior, such as boot sector viruses, file infectors, macro viruses, or polymorphic viruses1. References: 1: Implementing and Operating Cisco Security Core Technologies (SCOR) course, Module 1: Malware Analysis, Lesson 1: Malware Types and Characteristics, Topic: Virus.

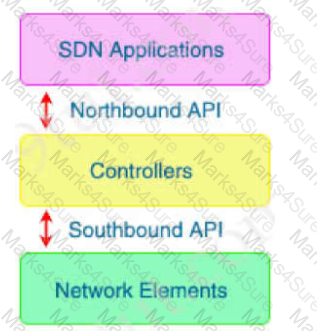

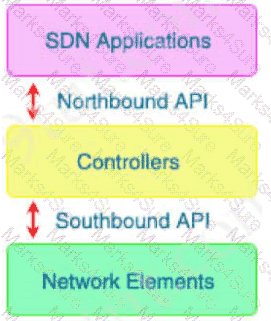

Northbound and southbound APIs are two types of interfaces that enable communication between different layers of the SDN architecture. Northbound APIs relay information between the controller and the applications or policy engines, while southbound APIs relay information between the controller and the network devices.

Northbound APIs allow applications to request network services or resources from the controller, such as bandwidth, latency, security, or routing. The controller then translates these requests into network configurations and applies them to the network devices via the southbound APIs. Northbound APIs typically use RESTful API methods such as GET, POST, and DELETE to communicate with the controller.

Southbound APIs allow the controller to program the network devices to perform forwarding and other functions. The controller can use different protocols or standards to communicate with the network devices, depending on their capabilities and vendor-specific features. Some common examples of southbound APIs are CLI, SNMP, RESTCONF, NETCONF, OpenFlow, and OpFlex.

 The vulnerability that allows the attacker to see the passwords being transmitted in clear text is the lack of encryption on the VPN links. Encryption is a process of transforming data into an unreadable form, so that only authorized parties can access it. VPN (Virtual Private Network) is a technology that creates a secure tunnel between two or more devices over a public network, such as the Internet. VPN links should be encrypted to prevent eavesdropping, tampering, or spoofing of the data that passes through them. If the VPN links are not encrypted, an attacker can use a packet sniffer to intercept and read the data, including the passwords, that are sent over the network. This is called a sniffing attack, and it can lead to credential theft, identity spoofing, or data manipulation. Therefore, VPN links should always use strong encryption protocols, such as IPsec or SSL/TLS, to protect the confidentiality and integrity of the data. References :=

Some possible references are:

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 - Cisco: This is the official course page for the SCOR 350-701 exam, which covers the topics of implementing and operating Cisco security core technologies. It provides the course objectives, outline, duration, and prerequisites. It also offers various learning options, such as instructor-led training, e-learning, and practice exams.

SCOR 350-701 Official Cert Guide - Cisco Press: This is the official study guide for the SCOR 350-701 exam, written by Omar Santos, a principal engineer at Cisco’s Security Research and Operations group. It covers all the exam topics in depth, with explanations, examples, exercises, and practice questions. It also includes a companion website with online resources, such as videos, quizzes, flashcards, and more.

Cleartext submission of password - PortSwigger: This is a web security article that explains the vulnerability of transmitting passwords over unencrypted connections, and how to exploit it using Burp Suite, a web application testing tool. It also provides some remediation advice, such as using HTTPS and HSTS to enforce encryption.

What Are Sniffing Attacks, and How Can You Protect Yourself? - EC-Council: This is a blog post that describes what sniffing attacks are, how they work, and what are the common types and tools of sniffing attacks. It also provides some tips on how to prevent or detect sniffing attacks, such as using encryption, VPN, firewall, IDS, and anti-sniffing software.

OWASP Application Security FAQ | OWASP Foundation: This is a frequently asked questions page about application security, maintained by the Open Web Application Security Project (OWASP), a non-profit organization that promotes web security awareness and best practices. It covers various topics, such as authentication, authorization, session management, input validation, output encoding, cryptography, error handling, logging, and more.

Explanation

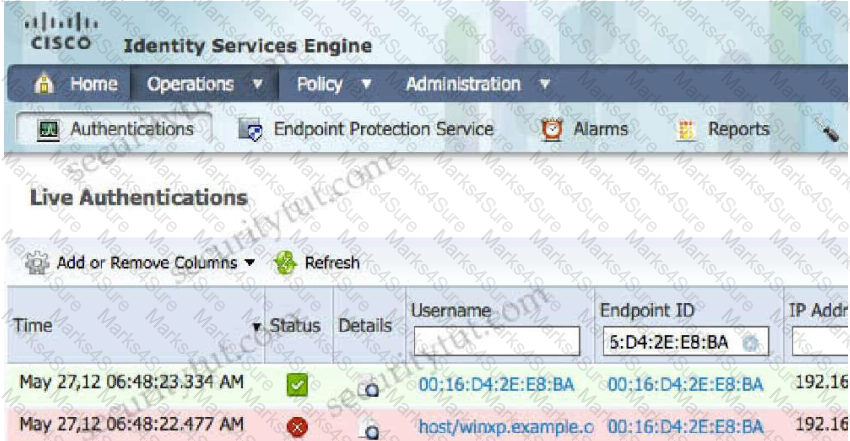

The profiling service issues the change of authorization in the following cases:

– Endpoint deleted—When an endpoint is deleted from the Endpoints page and the endpoint is disconnected

or removed from the network.

An exception action is configured—If you have an exception action configured per profile that leads to an

unusual or an unacceptable event from that endpoint. The profiling service moves the endpoint to the

corresponding static profile by issuing a CoA.

– An endpoint is profiled for the first time—When an endpoint is not statically assigned and profiled for the first time; for example, the profile changes from an unknown to a known profile.

+ An endpoint identity group has changed—When an endpoint is added or removed from an endpoint identity group that is used by an authorization policy.

The profiling service issues a CoA when there is any change in an endpoint identity group, and the endpoint identity group is used in the authorization policy for the following:

++ The endpoint identity group changes for endpoints when they are dynamically profiled

++ The endpoint identity group changes when the static assignment flag is set to true for a dynamic endpoint – An endpoint profiling policy has changed and the policy is used in an authorization policy—When an endpoint profiling policy changes, and the policy is included in a logical profile that is used in an authorization policy. The endpoint profiling policy may change due to the profiling policy match or when an endpoint is statically assigned to an endpoint profiling policy, which is associated to a logical profile. In both the cases, the profiling service issues a CoA, only when the endpoint profiling policy is used in an authorization policy.

 The error 403: Forbidden indicates that the web server denied access to the requested resource, which in this case is the PCAP file. One possible reason for this error is that the HTTPS server is not enabled for the device platform policy, which is a configuration that applies to the FTD devices managed by the FMC. The device platform policy defines the settings for the management interface, the SSH access, the SNMP, the NTP, the DNS, and the HTTPS server. The HTTPS server allows the FMC to access the FTD devices via HTTPS and perform tasks such as packet capture, packet tracer, and file transfer. If the HTTPS server is not enabled for the device platform policy, the FMC cannot access the PCAP file from the FTD device via HTTPS. Therefore, the engineer must enable the HTTPS server for the device platform policy in order to resolve this issue. To enable the HTTPS server for the device platform policy, the engineer must follow these steps:

Log in to the FMC web interface and navigate to Devices > Platform Settings.

Select the device platform policy that applies to the FTD device and click Edit.

In the General tab, check the Enable HTTPS Server checkbox and click Save.

Deploy the policy changes to the FTD device and wait for the deployment to complete.

Try to access the PCAP file again from the FMC web browser using the same address.

Alternatively, the engineer can also enable the HTTPS server for the FTD device from the FTD CLI using the command configure network https-server enable. However, this method is not recommended because it may cause a configuration conflict with the FMC123

References := 1: Use Firepower Threat Defense Captures and Packet Tracer - Cisco 2: Cisco Firepower Threat Defense Configuration Guide for Firepower Device Manager, Version 6.6 - Device Management Basics [Cisco Firepower NGFW] - Cisco 3: Cisco Firepower Threat Defense Command Reference - C through D Commands [Cisco Firepower NGFW] - Cisco

The WSA uses a root certificate and a private key to decrypt HTTPS traffic. The root certificate must reside in the trusted store of the WSA, and it must be able to sign server certificates on the fly. The server certificates that the WSA generates must contain a SAN (Subject Alternative Name) field, which specifies the hostnames or IP addresses that the certificate is valid for. The SAN field is required by modern browsers and applications to verify the identity of the server. If the WSA does not include a SAN field in the server certificate, the browser or application may reject the connection or display a warning message.

The other options are not correct because:

A. The current date is not a criterion for the WSA to use a certificate to decrypt application traffic. The WSA checks the validity period of the certificate, which includes the start date and the end date. The current date must be within the validity period, but it does not have to be the same as the start date or the end date.

C. The root certificate that the WSA uses to decrypt HTTPS traffic does not have to reside in the trusted store of the endpoint. However, the endpoint must trust the root certificate in order to accept the server certificate that the WSA generates. This can be achieved by manually installing the root certificate on the endpoint, or by using a group policy or a certificate management system to distribute the root certificate to the endpoints.

D. The root certificate that the WSA uses to decrypt HTTPS traffic does not have to be signed by an internal CA. The WSA can generate its own self-signed root certificate, or it can use a root certificate that is signed by an external CA. However, the root certificate must be trusted by the endpoints, as explained in option C.

References := : WSA Certificate Usage for HTTPS Decryption : [User Guide for AsyncOS 12.0 for Cisco Web Security Appliances - GD (General Deployment) - Create Decryption Policies to Control HTTPS Traffic]

The kind of API that is used with Cisco DNA Center to provision SSIDs, QoS policies, and update software versions on switches is the Intent API. The Intent API is a category of APIs that allows users to express their desired network outcomes or intents, such as creating a site, adding a device, or deploying a network profile. The Intent API then translates these intents into specific network configurations and commands, and applies them to the relevant network devices and services. The Intent API simplifies and automates the network provisioning and management process, and enables users to focus on the business objectives rather than the technical details. Some examples of Intent APIs are:

Site Management API: This API allows users to create, update, delete, and retrieve sites and buildings in Cisco DNA Center. A site is a logical grouping of network devices and services that share common characteristics, such as location, policies, or functions. A site can have one or more buildings, and a building can have one or more floors. Sites are used to organize and manage the network hierarchy and topology.

Network Settings API: This API allows users to configure and manage network-wide settings, such as global credentials, network discovery, IP address pools, DHCP and DNS servers, and SNMP settings. These settings are applied to all network devices and services that are managed by Cisco DNA Center.

Network Profile API: This API allows users to create, update, delete, and retrieve network profiles in Cisco DNA Center. A network profile is a collection of network settings and policies that define how a network segment or service should operate, such as SSIDs, QoS policies, security policies, and device roles. Network profiles are used to standardize and simplify the network configuration and deployment process, and to ensure consistency and compliance across the network.

Software Image Management API: This API allows users to manage the software images and versions of network devices that are managed by Cisco DNA Center. Users can import, export, delete, and retrieve software images, as well as assign them to network devices or device groups. Users can also schedule and monitor software image updates, and view the software image compliance status of network devices.

Explanation

The ASA and ASASM implementations of NetFlow Secure Event Logging (NSEL) provide a stateful, IP flow tracking method that exports only those records that indicate significant events in a flow.

The significant events that are tracked include flow-create, flow-teardown, and flow-denied (excluding those flows that are denied by EtherType ACLs).

Explanation

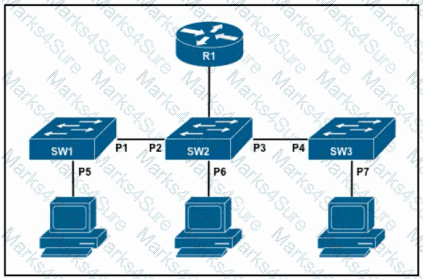

Dynamic ARP inspection (DAI) is a security feature that validates ARP packets in a network. It intercepts, logs, and discards ARP packets with invalid IP-to-MAC address bindings. This capability protects the network from certain man-in-the-middle attacks. After enabling DAI, all ports become untrusted ports.

 To configure a flow-export action on a Cisco ASA, you need to use the flow-export event-type command and the policy-map command. The flow-export event-type command specifies the type of events that trigger the export of NetFlow Security Event Logging (NSEL) records to a collector. The policy-map command creates or modifies a policy map that can be applied to one or more interfaces to specify a service policy. A service policy consists of a traffic class and one or more actions to be applied to the traffic class. One of the actions can be a flow-export action that matches the NSEL events and sends them to a collector. The other commands are not required for configuring a flow-export action. The access-list command creates or modifies an access list that can be used to filter traffic or match traffic classes, but it is not mandatory for a flow-export action. The flow-export template timeout-rate command specifies how often the ASA sends the template to the collector, but it is not part of the flow-export action configuration. The access-group command applies an access list to an interface, but it is not related to the flow-export action. References:

Cisco ASA 5500 Series Configuration Guide using the CLI, 8.4 and 8.6 - Configuring Network Secure Event Logging (NSEL)

Solved: Flow-Export problem - Cisco Community

How to configure NetFlow on Cisco ASA firewalls - Auvik Support

Configuring Cisco’s ASA for NSEL Export to the StealthWatch System

CoA stands for Change of Authorization, which is a feature that allows a RADIUS server to adjust an active client session after it is authenticated. For example, CoA can be used to reauthenticate a client, terminate a client session, or change the VLAN or group policy of a client. CoA is supported by several RADIUS vendors, including Cisco ISE. CoA is defined in RFC 5176 and uses a pushed model, where the request originates from the RADIUS server and is sent to the network device that acts as a listener. CoA requests can have two possible response codes: CoA-ACK (acknowledgment) or CoA-NAK (non-acknowledgment). References :=

Some possible references are:

RADIUS Change of Authorization

Change of Authorization with RADIUS (CoA) on MR Access Points

Change of Authorization with RADIUS (CoA) on MS Switches

Technical Tip: Radius COA behavior

Explanation

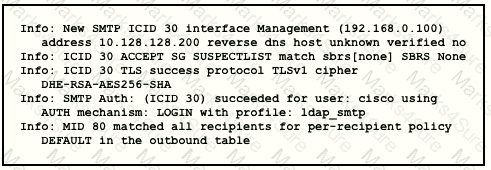

The TLS connections are recorded in the mail logs, along with other significant actions that are related to

messages, such as filter actions, anti-virus and anti-spam verdicts, and delivery attempts. If there is a

successful TLS connection, there will be a TLS success entry in the mail logs. Likewise, a failed TLS

connection produces a TLS failed entry. If a message does not have an associated TLS entry in the log file, that message was not delivered over a TLS connection.

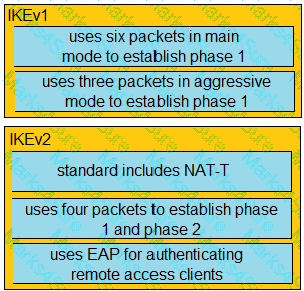

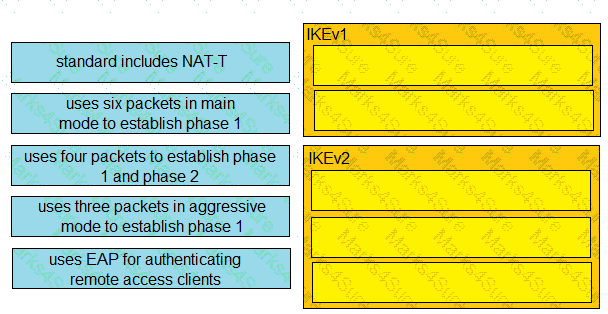

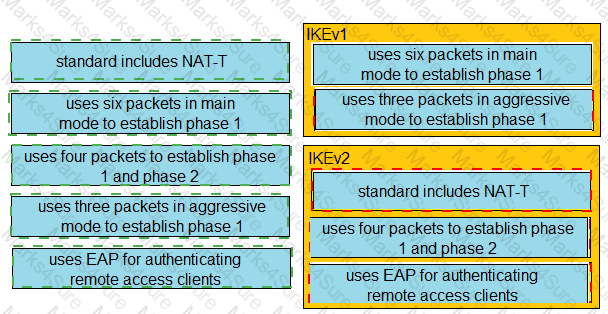

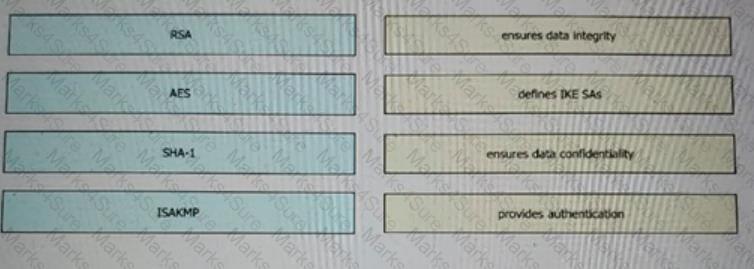

IKE is the control-plane protocol that authenticates IPsec peers and negotiates the parameters needed to establish secure associations. Those parameters include acceptable cryptographic algorithms, authentication methods, Diffie-Hellman groups, lifetimes, and keying material. Cisco explains that IKE establishes the secure VPN relationship and creates security associations for IPsec; therefore, negotiating tunnel parameters is the best answer. IKE does not itself filter packets, which is performed by access-control or firewall policy. It also does not manage application data transfer. After negotiation completes, IPsec mechanisms such as Encapsulating Security Payload protect user packets according to the negotiated security associations. Thus, option D incorrectly assigns data-plane packet encryption directly to IKE rather than to IPsec. Cisco’s IKE documentation confirms these functions.

================

Cisco AMP (Advanced Malware Protection) is a product that provides proactive endpoint protection and allows administrators to centrally manage the deployment. AMP uses cloud-based intelligence, sandboxing, and continuous analysis to detect and block advanced threats before they reach the endpoints. AMP also provides retrospective security, which means that it can alert and remediate endpoints if a file that was previously deemed benign is later found to be malicious. AMP can be integrated with other Cisco products, such as Firepower, Meraki, and Email Security Appliance, to provide comprehensive security across the network. AMP is available for Windows, Mac, Linux, Android, and iOS devices. References :=

Some possible references are:

Endpoint Protection Platform (EPP) Definition - Cisco: This page defines what an endpoint protection platform (EPP) is and how it differs from traditional antivirus solutions. It also explains the benefits of using Cisco Secure Endpoint, formerly known as AMP for Endpoints.

Cisco Secure Endpoint (Formerly AMP for Endpoints) - Cisco: This page provides an overview of the features and capabilities of Cisco Secure Endpoint, such as cloud-based intelligence, endpoint isolation, file trajectory, device flow correlation, and more. It also offers resources for getting started, deploying, and managing Cisco Secure Endpoint.

SCOR 350-701 Flashcards | Quizlet: This page contains flashcards for the SCOR 350-701 exam, which covers the topics of implementing and operating Cisco security core technologies. One of the flashcards is the same question as the one asked by the user, and it provides the correct answer and a brief explanation.

Explanation

SNMP polling can often be in the order of 5-10 minutes, CLIs are unstructured and prone to change which can often break scripts.

The traditional use of the pull model, where the client requests data from the network does not scale when what you want is near real-time data.

Moreover, in some use cases, there is the need to be notified only when some data changes, like interfaces status, protocol neighbors change etc.

Model-Driven Telemetry is a new approach for network monitoring in which data is streamed from network devices continuously using a push model and provides near real-time access to operational statistics. Referfence: https://developer.cisco.com/docs/ios-xe/#!streaming-telemetry-quick-start-guide/streaming telemetry

Explanation

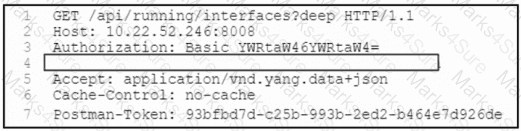

The ASA REST API gives you programmatic access to managing individual ASAs through a Representational State Transfer (REST) API. The API allows external clients to perform CRUD (Create, Read, Update, Delete) operations on ASA resources; it is based on the HTTPS protocol and REST methodology.

All API requests are sent over HTTPS to the ASA, and a response is returned.

Request Structure

Available request methods are:

GET – Retrieves data from the specified object.

PUT – Adds the supplied information to the specified object; returns a 404 Resource Not Found error if the object does not exist.

POST – Creates the object with the supplied information.

DELETE – Deletes the specified object

PATCH – Applies partial modifications to the specified object.

RADIUS Change of Authorization (CoA) is a feature of Cisco ASA that allows VPN users to be postured against Cisco ISE without requiring an inline posture node. RADIUS CoA enables the ISE to send a message to the ASA to change the authorization attributes of an existing VPN session, such as the assigned IP address, ACL, or group policy. This way, the ISE can dynamically adjust the access level of the VPN user based on the posture assessment results, without the need for an intermediate device to enforce the policy change12. RADIUS CoA is supported by the ASA since version 9.2.13. References: 1: ASA Version 9.2.1 VPN Posture with ISE Configuration Example - Cisco 2: How To: ISE and ASA Integration using CoA for Posture - Cisco Community 3: How To Configure Posture with AnyConnect Compliance … - Cisco CommunityQUESTION NO: 94

What two mechanisms are used to redirect users to a web portal to authenticate to ISE for guest services?

(Choose two)

A. multiple factor auth

B. local web auth

C. single sign-on

D. central web auth

E. TACACS+

Answer: B, D

 Local web authentication (LWA) and central web authentication (CWA) are two mechanisms that are used to redirect users to a web portal to authenticate to ISE for guest services. Both methods involve the use of a redirect access control list (ACL) that allows the user to access only the web portal URL and blocks all other traffic until the user is authenticated. The difference between LWA and CWA is where the web portal and the authentication logic are hosted.

LWA: The web portal and the authentication logic are hosted on the wireless LAN controller (WLC). The WLC sends a RADIUS access-accept message to the network access device (NAD) along with the redirect ACL and the web portal URL. The NAD then redirects the user to the web portal on the WLC, where the user enters their credentials. The WLC verifies the credentials with the ISE and grants or denies access to the user. The advantage of LWA is that it does not require any configuration on the ISE, but the disadvantage is that it does not support advanced features such as posture assessment, profiling, or authorization policies.

CWA: The web portal and the authentication logic are hosted on the ISE. The WLC sends a RADIUS access-challenge message to the NAD along with the redirect ACL and the web portal URL. The NAD then redirects the user to the web portal on the ISE, where the user enters their credentials. The ISE verifies the credentials and sends a RADIUS access-accept message to the WLC with the authorization profile and the final ACL. The WLC then applies the authorization profile and the final ACL to the user session. The advantage of CWA is that it supports advanced features such as posture assessment, profiling, or authorization policies, but the disadvantage is that it requires more configuration on the ISE.

References :=

Configure Guest Access

Web Authentication Redirection to Original URL

Configure Local Web Authentication with External Authentication

Explanation

The version 9 export format uses templates to provide access to observations of IP packet flows in a flexible and extensible manner. A template defines a collection of fields, with corresponding descriptions of structure and semantics.

A next-generation endpoint security solution is a modern approach of combining user and system behavior analytics with AI and machine learning to provide endpoint security12. These solutions are specifically designed to detect unknown malware and zero-day threats, which other non-next-generation solutions might fail to detect3. Two key deliverables that help justify the implementation of a next-generation endpoint security solution are:

Continuous monitoring of all files that are located on connected endpoints. This feature allows the solution to scan and analyze all files on the endpoints, regardless of their origin or type, and identify any malicious or suspicious behavior. This helps to prevent malware from infecting the endpoints or spreading to other devices on the network4.

Real-time feeds from global threat intelligence centers. This feature enables the solution to leverage the latest information and insights from various sources, such as security researchers, vendors, and customers, to detect and block new and emerging threats. This helps to keep the endpoints updated and protected from the most advanced and sophisticated attacks5.

References := 1: Overview of next-generation protection in Microsoft Defender for Endpoint 2: What Is Next-Generation Endpoint Security? 2024 Ultimate Guide - SelectHub 3: [Next

Explanation

Explanation

There are three basic categories of attack:

+ volume-based attacks, which use high traffic to inundate the network bandwidth

+ protocol attacks, which focus on exploiting server resources

+ application attacks, which focus on web applications and are considered the most sophisticated and serious type of attacks Reference: https://www.esecurityplanet.com/networks/types-of-ddos-attacks/

One of the key capabilities of endpoint security is to prevent phishing attacks by ensuring that antivirus and anti malware software is up to date. This helps to detect and block malicious attachments or links that may be embedded in phishing emails. Antivirus and anti malware software can also scan the endpoint for any signs of compromise or infection that may have resulted from a successful phishing attack. Additionally, endpoint security can provide data loss prevention (DLP) features that can prevent sensitive data from being exfiltrated by attackers who have gained access to the endpoint through phishing. References :=

Some possible references are:

Endpoint Security and Phishing: What to Know

Protect Against Spear Phishing with Endpoint Security

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 (source book)

 Mobile Device Management (MDM) is a solution that allows an organization to manage, monitor, and secure mobile devices such as smartphones, tablets, and laptops. MDM provides two main advantages to an organization with regards to device management:

Asset inventory management: MDM helps an organization keep track of all the mobile devices that are connected to its network, including their location, status, configuration, and usage. MDM also enables an organization to remotely wipe or lock devices that are lost, stolen, or compromised, preventing data loss and unauthorized access. Asset inventory management helps an organization optimize its resources, reduce costs, and comply with regulations12.

Allowed application management: MDM allows an organization to control what applications can be installed and run on the mobile devices, as well as how they can access and share data. MDM can also push updates and patches to the devices, ensuring that they are always running the latest and most secure versions of the applications. Allowed application management helps an organization enhance security, productivity, and performance of the mobile devices34.

 1: 7 Advantages and Disadvantages of Mobile Device Management [2024] 2: 5 Benefits of Mobile Device Management - ESET 3: Top 10 Benefits of Mobile Device Management (MDM) - TechFunnel 4: Benefits of Mobile Device Management (MDM) for Businesses

Explanation

The HMAC-SHA-1-96 (also known as HMAC-SHA-1) encryption technique is used by IPSec to ensure that a message has not been altered. (- > Therefore answer “integrity” is the best choice). HMAC-SHA-1 uses the SHA-1 specified in FIPS-190-1, combined with HMAC (as per RFC 2104), and is described in RFC 2404.

Explanation

Domain name system (DNS) is the protocol that translates human-friendly URLs, such as securitytut.com, into IP addresses, such as 183.33.24.13. Because DNS messages are only used as the beginning of each communication and they are not intended for data transfer, many organizations do not monitor their DNS traffic for malicious activity. As a result, DNS-based attacks can be effective if launched against their networks. DNS tunneling is one such attack.

An example of DNS Tunneling is shown below:

The attacker incorporates one of many open-source DNS tunneling kits into an authoritative DNSnameserver (NS) and malicious payload.2. An IP address (e.g. 1.2.3.4) is allocated from the attacker’s infrastructure and a domain name (e.g. attackerdomain.com) is registered or reused. The registrar informs the top-level domain (.com) nameservers to refer requests for attackerdomain.com to ns.attackerdomain.com, which has a DNS record mapped to 1.2.3.43. The attacker compromises a system with the malicious payload. Once the desired data is obtained, the payload encodes the data as a series of 32 characters (0-9, A-Z) broken into short strings (3KJ242AIE9, P028X977W,…).4. The payload initiates thousands of unique DNS record requests to the attacker’s domain with each string as

To prevent rogue NTP servers from inserting themselves as the authoritative time source, the administrator needs to configure NTP authentication and specify the interface for syncing to the NTP server. NTP authentication allows the ASA to verify the identity and integrity of the NTP packets received from the server, using a shared secret key. Specifying the interface for syncing to the NTP server ensures that the ASA uses the correct source address for sending and receiving NTP packets, and avoids potential routing issues. The other options are not required or relevant for this task. Specifying the NTP version is optional and does not affect security. Configuring the NTP stratum is only applicable for NTP servers, not clients. The ASA can only act as an NTP client, not a server. Setting the NTP DNS hostname is not recommended, as it introduces a dependency on DNS resolution and may cause synchronization problems if the DNS server changes the IP address of the NTP server. References :=

Some possible references are:

Configure NTP Authentication on Secure Network Analytics

CLI Book 1: Cisco ASA Series General Operations CLI Configuration Guide, 9.6 - Basic Settings

Cisco ASA NTP and Clock Configuration with Examples

A DoS (Denial of Service) attack is a type of cyberattack that aims to disrupt the normal functioning of a server, service, or network by overwhelming it with a large amount of traffic or requests. A DoS attack typically uses a single computer or device to launch the attack, sending TCP (Transmission Control Protocol) or UDP (User Datagram Protocol) packets to the target server. TCP and UDP are two common protocols used to send data over the internet. TCP packets require a connection to be established between the sender and the receiver, and ensure that the data is delivered reliably and in order. UDP packets do not require a connection, and do not guarantee the delivery or order of the data. Both TCP and UDP packets can be used to flood a server with requests, consuming its resources and bandwidth, and preventing legitimate users from accessing the service.

A DDoS (Distributed Denial of Service) attack is a type of DoS attack that uses multiple computers or devices to launch the attack, creating a large network of attackers that can generate more traffic or requests than a single source. A DDoS attack often involves a botnet, which is a network of compromised computers or devices that are controlled by a malicious actor, usually through malware or hacking. The botnet can send TCP or UDP packets to the target server from different locations and IP addresses, making it harder to trace and block the attack. A DDoS attack can also target multiple servers or services that are distributed over a LAN (Local Area Network), such as a web hosting service or a cloud computing platform, affecting the availability and performance of the entire network.

The main difference between a DoS attack and a DDoS attack is the number and diversity of the sources that are involved in the attack. A DoS attack comes from a single source, while a DDoS attack comes from multiple sources. This makes a DDoS attack more powerful, faster, and harder to stop than a DoS attack.

Explanation

The telemetry information consists of three types of data:

+ Flow information: This information contains details about endpoints, protocols, ports, when the flow started,

how long the flow was active, etc.

+ Interpacket variation: This information captures any interpacket variations within the flow. Examples include

variation in Time To Live (TTL), IP and TCP flags, payload length, etc

+ Context details: Context information is derived outside the packet header. It includes details about variation in buffer utilization, packet drops within a flow, association with tunnel endpoints, etc.

Southbound APIs are used to communicate between the SDN Controller and the switches and routers of the network. They can be open-source or proprietary. They facilitate control over the network and enable the SDN Controller to dynamically make changes according to real-time demands and needs. OpenFlow and OpFlex are two examples of southbound APIs. OpenFlow, which was developed by the Open Networking Foundation (ONF), is the first and probably most well-known southbound interface. OpenFlow defines the way the SDN Controller should interact with the forwarding plane to make adjustments to the network, so it can better adapt to changing business requirements. With OpenFlow, entries can be added and removed to the internal flow-table of switches and routers to make the network more responsive to real-time traffic demands. OpFlex, which was proposed by Cisco, is another southbound interface that uses a declarative model to communicate policies and state between the controller and the network devices. OpFlex allows the network devices to retain some intelligence and autonomy, while still being managed by the controller. OpFlex is designed to be flexible and extensible, and can support different types of network devices and services. Services running over the network, external application APIs, and applications running over the network are not southbound APIs, as they do not directly communicate between the controller and the network devices. Therefore, the correct answer is B and E. References :=

Some possible references are:

What are SDN Southbound APIs? - Where they are used. - SDxCentral

SDN North-bound and South-bound APIs and Interfaces

Cisco Application Centric Infrastructure Fundamentals

Explanation

Explanation

Depending on your company policy, you might be able to use your mobile phones, tablets, printers, Internet radios, and other network devices on your company’s network. You can use the My Devices portal to register and manage these devices on your company’s network.

To force a session to be adjusted after a policy change is made, two configurations are required on Cisco ISE and on Cisco TrustSec devices: Dynamic Authorization and Change of Authorization (CoA). Dynamic Authorization allows Cisco ISE to send commands to network devices to change the authorization status of a user session. CoA is a feature that enables Cisco ISE to send a RADIUS message to a network device to reauthenticate or disconnect a user session. These two configurations enable Cisco ISE to apply the updated policy to the user session without requiring the user to log out and log in again.

According to the source book, the steps to configure Dynamic Authorization and CoA are as follows1:

On Cisco ISE, navigate to Administration > Network Resources > Network Devices and select the network device that supports TrustSec.

On the Edit Network Device page, select the Advanced TrustSec Settings tab and check the Support for CoA check box.

On the same tab, select the appropriate CoA type from the drop-down list. The options are RADIUS Disconnect, Port Bounce, and Reauth.

Click Submit to save the changes.

On the network device, enter the global configuration mode and issue the command aaa server radius dynamic-author to enable Dynamic Authorization.

Optionally, you can specify the source interface, authentication key, and port number for the Dynamic Authorization messages.

Exit the global configuration mode and save the configuration.

 1: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 4: Secure Connectivity, Lesson 4.2: Implementing TrustSec, Topic 4.2.3: Configuring TrustSec on Cisco ISE and Network Devices, pp. 4-83 to 4-85.

Cisco Catalyst Center Software Image Management separates image deployment into distribution and activation operations. POST /dna/intent/api/v1/image/distribution copies a previously imported software image from Catalyst Center to the selected device. After the image is present in device flash, POST /dna/intent/api/v1/image/activation/device schedules or triggers activation by using the device UUID and image UUID. Both operations are asynchronous, so automation should monitor the returned task information. The Plug and Play import endpoint onboards device records and does not distribute software. The network site endpoint manages hierarchy or site data, while the template-programmer endpoint creates configuration templates. Neither performs Software Image Management. Therefore, requests A and C are the two calls that implement the required distribute-then-activate workflow. Cisco Catalyst Center distribution API Cisco Catalyst Center activation API

Explanation

Explanation

Telemetry – Information and/or data that provides awareness and visibility into what is occurring on the network

at any given time from networking devices, appliances, applications or servers in which the core function of the

device is not to generate security alerts designed to detect unwanted or malicious activity from computer

networks.

To block a website based on a custom list, the customer should add the websites to a blocked type destination list. A destination list is a custom list of domains or URLs that the customer wants to allow or block for their identities. The customer can create destination lists through the Policy Components > Destination Lists page, or within the policy wizard when creating or editing a policy. The custom URL destination block lists feature enables Umbrella to extend a domain level block list to encompass full and partial URLs. In turn, this allows the customer to block certain portions of a website based specifically on the full or partial URL. This feature requires the customer to enable the intelligent proxy and install a root certificate for SSL decryption. References:

Configure Web Policies and Destination Lists - Cisco Umbrella

Control Access to Custom URLs - Umbrella SIG User Guide

Cisco 350-701: How should customer block websites based on custom list

Umbrella Dashboard: New Features—Custom blocked URLs

Understanding Destination lists supported entries and … - Cisco Umbrella

An on-premises Firewall Management Center high-availability pair provides centralized policy administration without making management access dependent on an Internet-hosted service. The dedicated out-of-band network separates administrative reachability from production traffic, so engineers can retain access during major data-plane or routing outages. Cisco states that an FMC HA pair synchronizes policy, lets a secondary unit assume management duties after primary failure, and receives event streams on both peers for uninterrupted monitoring in its FMC high-availability guide. Separate independent managers would fragment policy control, and in-band management could fail with the production network. Security Cloud Control contradicts the no-Internet-dependency requirement. Local Device Manager administration provides neither unified policy management nor management-plane redundancy. Option A is therefore the only design that satisfies all three conditions.

================

 Patching is important for security, compliance, stability, and reputation reasons. Patches are released to fix security vulnerabilities in software and systems, which can be exploited by cybercriminals to cause data breaches, data loss, or other damage. Failure to patch these vulnerabilities leaves the company’s systems exposed to potential security risks. Patch management helps to minimize these risks by ensuring that all software and systems are up-to-date with the latest security patches. Patch management also helps to comply with regulatory and industry standards that require a certain level of security, and to avoid legal consequences for non-compliance. Additionally, patches provide bug fixes and other updates that improve the stability and performance of software and systems, and prevent system crashes, downtime, and other issues that can negatively impact the business operations. Finally, patch management helps to maintain a positive reputation for the company, as a security breach or downtime caused by unpatched vulnerabilities can damage the customer trust and loyalty, and result in revenue loss. References:

5 Patch Management Best Practices for Success in 2023 - TechRepublic

Six Patch Management Best Practices [Updated 2024] - Heimdal Security

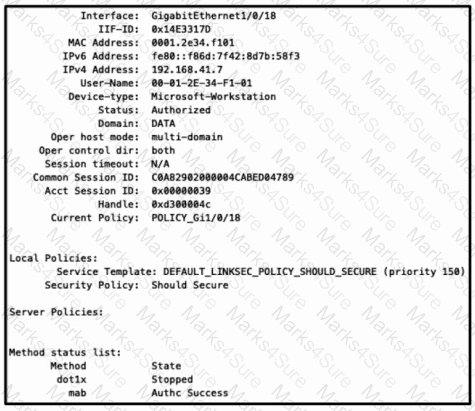

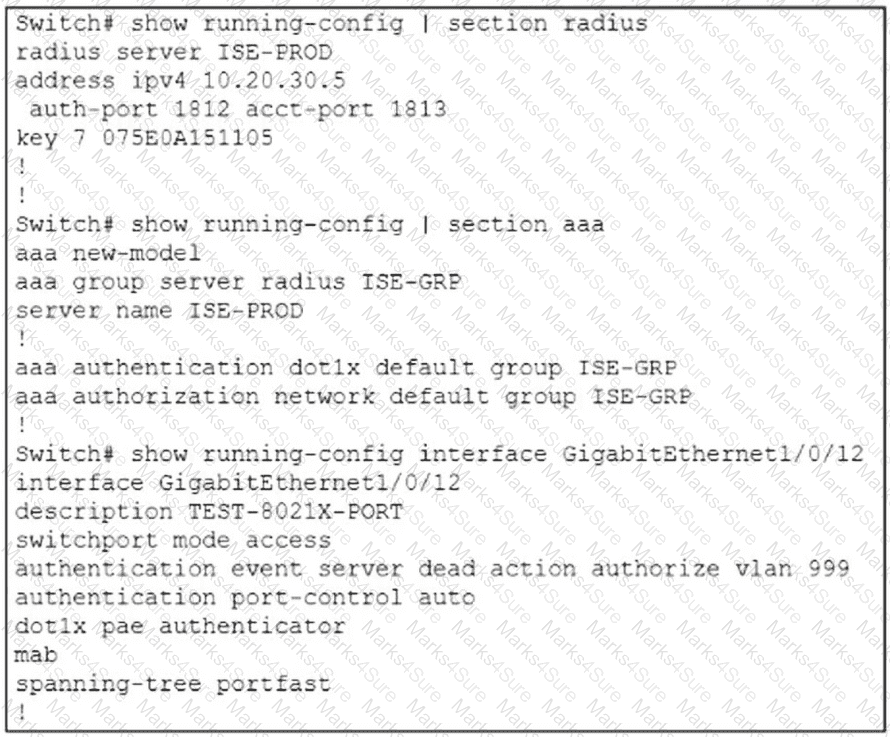

the interface configuration. MAB stands for MAC Authentication Bypass, which is a feature that allows devices that do not support 802.1X, such as printers and video cameras, to bypass the authentication process and gain network access based on their MAC addresses1. By adding mab to the interface configuration, the Cisco ISE administrator can enable MAB as a fallback method after 802.1X fails or times out. This way, the devices that support 802.1X can use their machine certificate credentials, while the devices that do not support 802.1X can use their MAC addresses to authenticate with Cisco ISE2. The other options are not correct because they either compromise the security controls or do not address the problem. Changing the default policy in Cisco ISE to allow all devices not using machine authentication would weaken the security posture and expose the network to unauthorized access. Enabling insecure protocols within Cisco ISE in the allowed protocols configuration would also reduce the security level and increase the risk of attacks. Configuring authentication event fail retry 2 action authorize vlan 41 on the interface would only apply to the devices that fail authentication twice, and would not solve the issue for the devices that do not support 802.1X at all3. References:

1: MAC Authentication Bypass Deployment Guide

2: Configuring MAC Authentication Bypass

3: Cisco Identity Services Engine Administrator Guide, Release 3.1 - Segmentation

A Cisco ISE downloadable ACL is delivered as part of RADIUS authorization using Cisco vendor-specific attributes. The switch must therefore be enabled to process authentication VSAs with radius-server vsa send authentication, making D correct. The exhibit already contains switchport mode access, so B adds nothing. ip access-group ACL-NAME out applies a locally configured static ACL and does not enable ISE to download a per-session ACL. authentication order mab dot1x changes the order of endpoint authentication methods; it does not enable dACL delivery. Cisco’s documented ISE switch configuration guidance describes radius-server vsa send authentication as the command that enables authentication vendor-specific attributes. Once the switch accepts the Cisco AV-pairs returned by ISE, it can request and apply the authorized dACL dynamically to the authenticated session.

================

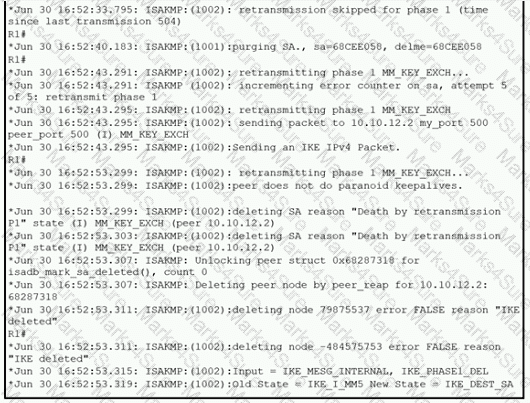

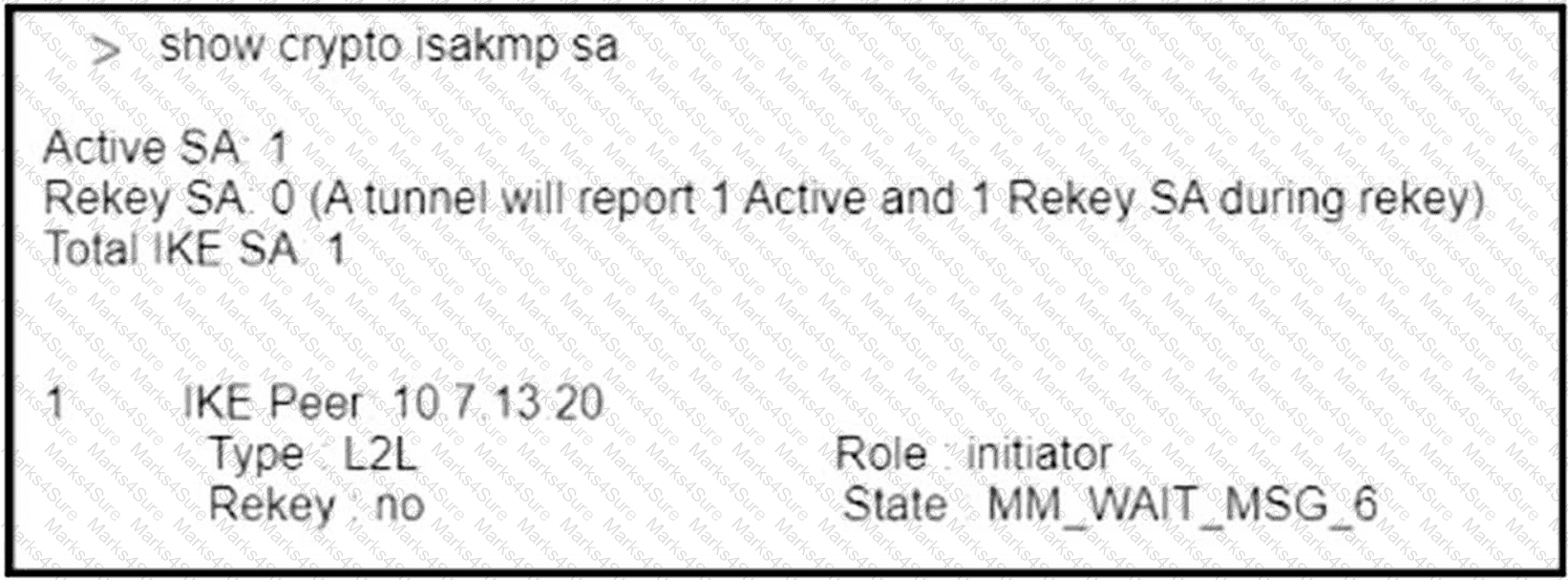

MM_WAIT_MSG_6 means the initiator has reached the authentication portion of IKEv1 Main Mode but has not completed Phase 1. Cisco’s troubleshooting guidance specifically associates this state with a mismatched pre-shared key and directs administrators to re-enter matching keys on both peers. Connectivity and UDP port 500 have already been validated, eliminating basic reachability as the cause. The question also confirms that encryption, hashing, DH group, and lifetime match, so option C cannot resolve the failure. IPsec transform sets apply to Phase 2, whereas the displayed failure occurs in Phase 1; therefore, option D is irrelevant. Peer identity can matter in some tunnel-group selection scenarios, but the documented diagnosis for this exact state is an inconsistent PSK. The correct action is option B. Cisco IPsec VPN troubleshooting guide

Option B is the only offered configuration that combines network-location awareness, pre-logon operation, and device-based credentials. Trusted Network Detection identifies whether the endpoint is on the trusted corporate network and can initiate the VPN when the network is untrusted. Start Before Login makes Cisco Secure Client available before Windows logon, while machine-certificate authentication uses the computer identity rather than credentials belonging to a signed-in user. Cached domain credentials do not provide certificate-based device authentication. Options A and D specify user certificates, which are unavailable before a user context exists and therefore contradict the unattended device-authentication requirement. Although a Management VPN tunnel is designed for transparent pre-logon connectivity, Cisco documentation states that it supports only machine-store certificate authentication, so option A is invalid as written. Cisco Secure Client Administrator Guide

ZBFW stands for Zone-Based Firewall, which is a feature that allows unidirectional application of IOS firewall policies between groups of interfaces known as zones. Interfaces are assigned to zones, and firewall rules are applied to specific types of traffic moving in one direction between the zones. ZBFW enforces a secure inter-zone policy by default, meaning traffic cannot pass between security zones until an explicit policy allowing that traffic is defined. The zone itself is an abstraction of multiple interfaces with the same or similar security requirements that can be logically grouped together. ZBFW is CBAC’s replacement and offers intuitive policies for multiple-interface routers, increased granularity of firewall policy application, and a default deny-all policy that prohibits traffic between firewall security zones until an explicit policy is applied to allow desirable traffic. ZBFW is supported on IOS devices running 12.4(6)T or later, and ASR devices running 12.2(33) or later. References:

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 4: Securing the Cloud, Lesson 4.1: Introducing Cisco Cloud Services Router 1000V Series, Topic 4.1.2: Zone-Based Firewall

Understand the Zone-Based Policy Firewall Design

Managing Zone-based Firewall Rules

Zone Based Firewall Overview

CBAC vs. Zone-based firewall

Cross-site scripting (XSS) is a web security vulnerability that allows an attacker to inject malicious code into a web page that is viewed by other users. XSS can compromise the user’s interaction with the web application, steal sensitive data, perform unauthorized actions, and more. To prevent XSS, web developers need to apply various defensive techniques to ensure that user-supplied data is not interpreted as code by the browser. Two of these techniques are:

Incorporate contextual output encoding/escaping: This means that any user-supplied data that is displayed on the web page should be properly encoded or escaped according to the context where it appears. For example, if the data is inserted into an HTML attribute, it should be HTML attribute encoded; if the data is inserted into a JavaScript string, it should be JavaScript string encoded; and so on. This prevents the data from breaking out of its intended context and being executed as code by the browser. Output encoding should be done by using a reliable library or framework that supports different contexts and encodings.

Run untrusted HTML input through an HTML sanitization engine: This means that any user-supplied data that is intended to contain HTML markup should be filtered and validated by a sanitization engine that removes or escapes any potentially dangerous elements, attributes, or scripts. This prevents the attacker from injecting malicious HTML code that can execute scripts, load external resources, redirect the user, or perform other malicious actions. HTML sanitization should be done by using a well-tested and maintained library or framework that follows the best practices and standards for HTML filtering.

References :=

[Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0], Module 5: Securing the Cloud, Lesson 5.2: Web Application Security, Topic 5.2.2: Cross-Site Scripting (XSS)

Cross Site Scripting Prevention Cheat Sheet - OWASP

What is cross-site scripting (XSS) and how to prevent it? - Web Security Academy

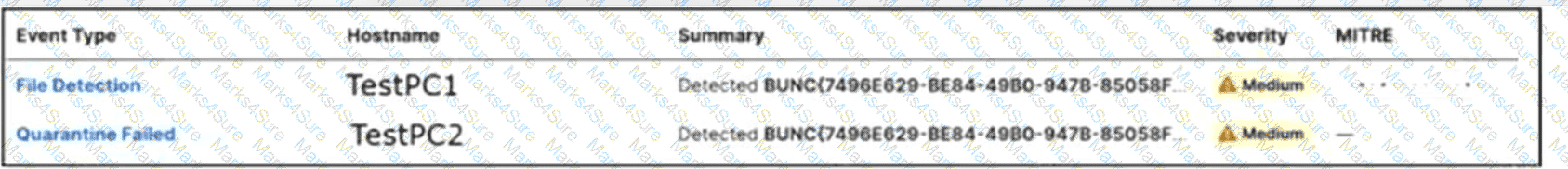

In Cisco Secure Endpoint, to create a custom detection file list for detecting and quarantining future files, an advanced custom detection should be created, and the hash of each file to be detected and quarantined should be uploaded. This allows the system to uniquely identify and take action on files based on their hash values, providing a precise method for targeting specific malicious or unwanted files.

 To add switches into the fabric, administrators can use PowerOn Auto Provisioning (POAP) or Seed IP methods. POAP is a feature that automates the process of upgrading software images and installing configuration files on Cisco switches that are being deployed in the network for the first time. Seed IP is a method that allows administrators to specify the IP address of a switch that is already part of the fabric, and then use it to discover and add other switches that are connected to it. Both methods enable administrators to control how switches are added into DCNM for private cloud management. References:

POAP, section “PowerOn Auto Provisioning (POAP)”.

Seed IP, section “Add Switches”.

https://www.cisco.com/c/en/us/td/docs/security/ise/1-4-1/admin_guide/b_ise_admin_guide_141/b_ise_admin_guide_141_chapter_01110.html

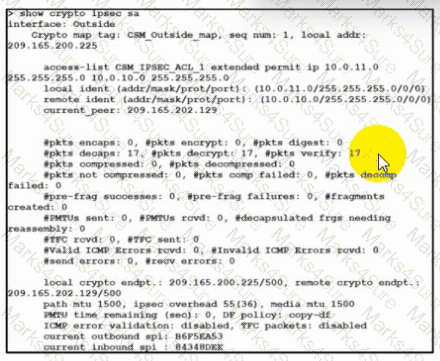

NAT exemption is required because the packet capture proves that the protected private traffic is being translated before IPsec processing. That changes the source address so the packet no longer matches the configured interesting-traffic selectors, preventing it from entering the intended security association. Cisco’s Secure Firewall NAT guidance states that traffic crossing a site-to-site VPN must be exempted from interface NAT rules; otherwise, it can be dropped or routed outside the tunnel. An identity NAT/NAT-exemption rule matching the local and remote subnet pair preserves the original addresses. The IKEv2 proposal, preshared key, transform set, access policy, and crypto-map placement are already validated. Fragmentation does not correct address translation, and neither a new tunnel group nor a prefilter attachment resolves the selector mismatch shown in the capture.

================

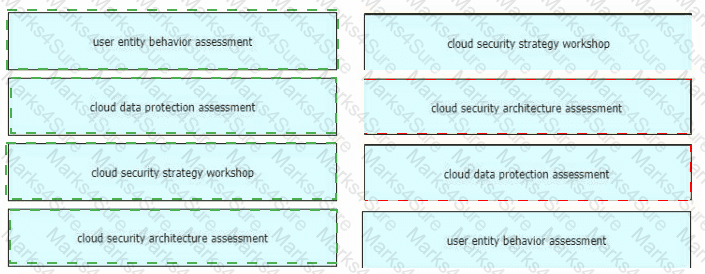

Cisco Talos Incident Response provides proactive readiness services in addition to emergency incident handling. Threat hunting searches customer environments for concealed or previously undetected malicious activity, while cyber range training lets response teams practise investigation, coordination, and decision-making in realistic attack scenarios. Cisco’s Talos Incident Response service page explicitly identifies Talos IR Threat Hunting, and the Talos incident-response portal lists Cyber Range Training among available service engagements. Security policy authorization is an internal governance responsibility, not an incident-response service. Product bug discovery and coordination belong more closely to vulnerability research and PSIRT functions. Talos experts can recommend containment and remediation, but the service does not automatically remediate every vulnerability in a customer environment. Consequently, threat hunting and cyber range training are the two valid services.

================

Explanation

Explanation

Cisco’s DNA Center is the only centralized network management system to bring all of this functionality into a single pane of glass.

The Cisco ASA and the Cisco IOS router with Zone-Based Policy Firewall (ZFW) have different default behaviors when it comes to traffic filtering. The Cisco ASA follows a default deny-all policy that prohibits traffic between firewall security zones until an explicit policy is applied to allow desirable traffic1. The Cisco IOS router with ZFW, on the other hand, starts out by allowing all traffic, even on untrusted interfaces, until a zone-pair policy is applied to restrict or inspect traffic2. This means that the Cisco ASA provides a higher level of security by default, while the Cisco IOS router with ZFW requires more configuration to harden the router. However, the Cisco IOS router with ZFW also offers more flexibility and granularity in defining firewall policies, as well as more advanced features such as DMVPN, GET VPN, and Policy-Based Routing, which are not supported by the Cisco ASA23. References:

2: IOS Firewall vs. ASA - Cisco Community

1: Understand the Zone-Based Policy Firewall Design - Cisco

4: What is a functional difference between a Cisco ASA and a Cisco IOS router with Zone-based policy firewall?

5: What is a functional difference between a Cisco ASA and Cisco IOS router with Zone-based policy firewall?

3: Cisco Zone-Based Firewall Reporting – Plixer

Explanation

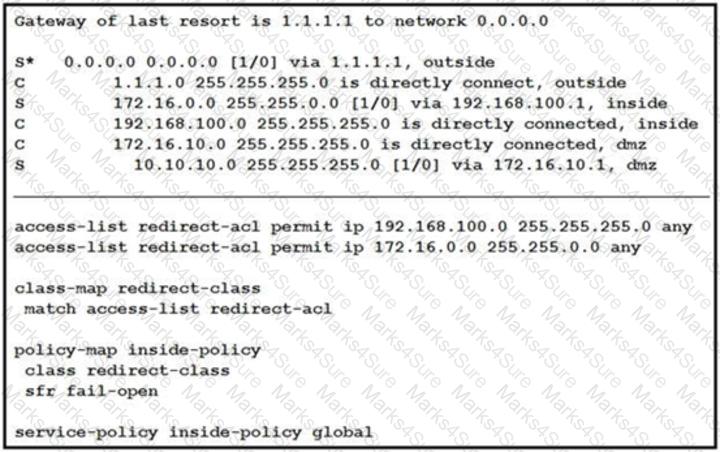

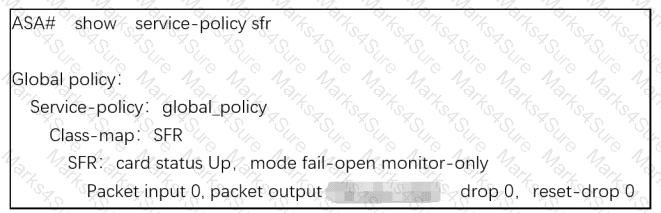

The purpose of above commands is to redirect traffic that matches the ACL “redirect-acl” to the Cisco

FirePOWER (SFR) module in the inline (normal) mode. In this mode, after the undesired traffic is dropped and

any other actions that are applied by policy are performed, the traffic is returned to the ASA for further

processing and ultimate transmission.

The command “service-policy global_policy global” applies the policy to all of the interfaces.

 The dot1x system-auth-control command enables 802.1X globally on a Cisco switch. This command allows the switch to act as an authenticator for 802.1X clients connected to the switch ports. The switch will then communicate with a RADIUS server to authenticate the clients and grant or deny access to the network. The other commands are not related to enabling 802.1X globally. The dot1x pae authenticator command enables 802.1X authentication on a specific interface. The authentication port-control aut command enables automatic port-based authentication on an interface. The aaa new-model command enables the AAA framework for authentication, authorization, and accounting. References :=

https://www.cisco.com/c/en/us/support/docs/smb/switches/cisco-small-business-300-series-managed-switches/smb5635-configure-global-802-1x-properties-on-a-switch-through-the-c.html

https://www.cisco.com/c/en/us/td/docs/routers/nfvis/switch_command/b-nfvis-switch-command-reference/802_1x_commands.html

 The destination command is required to complete the flow record and specify the IP address of the Stealthwatch collector that will receive the NetFlow data. The transport udp 2055 command is also needed, but it is part of the flow exporter configuration, not the flow record. The match ipv4 ttl and cache timeout active 60 commands are optional and can be used to customize the flow record, but they are not mandatory. The flow record defines the fields that are collected and exported for each flow, such as source and destination IP addresses, ports, protocols, etc. The flow exporter defines the destination, source, transport protocol, and port for sending the NetFlow data. The flow monitor binds the flow record and the flow exporter together and applies them to an interface. The following is an example of a complete NetFlow configuration for sending data to Stealthwatch:

flow exporter EXPORTER description Export NetFlow to Stealthwatch destination 1.1.1.1 export-protocol netflow-v9 source Vlan100 transport udp 2055 ! flow record RECORD description NetFlow record match datalink mac source address input match datalink mac destination address input match datalink vlan input match ipv4 ttl match ipv4 tos match ipv4 protocol match ipv4 source address match ipv4 destination address match transport source-port match transport destination-port match interface input collect interface output collect counter bytes long collect counter packets long collect timestamp absolute first collect timestamp absolute last ! flow monitor IPv4_NETFLOW record RECORD exporter EXPORTER cache timeout active 60 ! interface < > ip flow monitor IPv4_NETFLOW input ! References : Configuring and Troubleshooting NetFlow for Stealthwatch, Cisco NetFlow Configuration, Building a Better Monitoring Solution with Flexible Netflow

 The Atomic ARP engine is a signature engine that defines basic Layer 2 ARP signatures and provides more advanced detection of the ARP spoof tools dsniff and ettercap. ARP spoofing is an attack that involves sending spoofed ARP messages over a local area network to associate the attacker’s MAC address with the IP address of the target. The Atomic ARP engine inspects the Layer 2 ARP protocol and compares the ARP requests and replies with the MAC address table to detect any anomalies or inconsistencies. The Atomic ARP engine can also detect gratuitous ARP messages, which are unsolicited ARP replies that can be used to poison the ARP cache of other hosts. The Atomic ARP engine is different from other IPS engines because most engines are based on Layer 3 IP protocol. References :=

https://www.cisco.com/c/en/us/td/docs/security/ips/6-1/configuration/guide/cli/cliguide/cli_signature_engines.html

https://security.stackexchange.com/questions/71023/can-suricata-ips-detect-and-prevent-arp-poisoning-attacks

A Trojan malware attack is a type of malicious code or software that disguises itself as a legitimate program or file to trick users into executing it. Once executed, the Trojan can perform various harmful actions on the infected system or network, such as stealing data, deleting files, or installing other malware. There are different types of Trojan malware attacks, depending on their purpose and behavior. Two common types are:

Rootkit: A rootkit is a type of Trojan that hides itself and other malware from detection and removal by antivirus software or system tools. A rootkit can modify the operating system or the firmware of the device to gain persistent and privileged access to the system. A rootkit can also intercept and manipulate system calls, network traffic, or user input to conceal its activities or redirect them to malicious servers.

Backdoor: A backdoor is a type of Trojan that creates a secret or unauthorized access point to the infected system or network. A backdoor can allow an attacker to remotely control the system, execute commands, upload or download files, or monitor the system activity. A backdoor can also be used to install other malware or launch further attacks on other systems or networks.

 On Cisco Firepower Management Center, a health policy is used to collect health modules alerts from managed devices. A health policy is a collection of tests, or health modules, that monitor the health status of the hardware and software in the system. You can apply a health policy to one or more appliances and configure the frequency and conditions for running the health modules and generating alerts. The health monitor on the Firepower Management Center tracks the health events based on the health policy settings and displays them on the Health Monitor page and the event views. You can also use external alerting mechanisms, such as SNMP traps or syslog messages, to notify you of health events. References :=

https://www.cisco.com/c/en/us/td/docs/security/firepower/60/configuration/guide/fpmc-config-guide-v60/Health_Monitoring.html

https://www.cisco.com/c/en/us/td/docs/security/secure-firewall/management-center/admin/710/management-center-admin-71/health-health.html

Explanation

Explanation

… we will showcase Cisco Threat Intelligence Director (CTID) an exciting feature on Cisco’s Firepower

Management Center (FMC) product offering that automates the operationalization of threat intelligence. TID has the ability to consume threat intelligence via STIX over TAXII and allows uploads/downloads of STIX and simple blacklists. Reference: https://blogs.cisco.com/developer/automate-threat-intelligence-using-cisco-threat-intelligencedirector

 Tools like Jenkins, Octopus Deploy, and Azure DevOps provide continuous integration and continuous deployment (CI/CD) capabilities for application and infrastructure automation. CI/CD is a process that enables developers to deliver code changes more frequently and reliably by automating the building, testing, and deployment stages. CI/CD tools help to integrate various components of the software delivery pipeline, such as source control, testing frameworks, configuration management, security scanning, and deployment platforms. By using CI/CD tools, developers can achieve faster feedback loops, improved quality, reduced errors, and increased efficiency123.

According to the Cisco course on Implementing and Operating Cisco Security Core Technologies (SCOR), CI/CD is one of the key concepts of DevSecOps, which is a culture and practice that aims to embed security into every stage of the software development lifecycle. DevSecOps requires collaboration and communication between development, security, and operations teams, as well as the use of automation tools and techniques to ensure security is integrated throughout the process45. References: 1: Configuring Jenkins in Azure and deploying with Octopus 2: Octopus Deploy vs. Azure DevOps (VSTS/TFS) 3: Building .NET Core Apps in Azure DevOps and integrating Octopus Deploy 4: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 5: 350-701 SCOR - Cisco

 The product that allows Cisco FMC to push security intelligence observable to its sensors from other products is Threat Intelligence Director (TID). TID is a feature of Cisco FMC that enables you to integrate third-party threat intelligence feeds into your security policies. TID collects, aggregates, and correlates observables from multiple sources, such as Cisco Talos Intelligence, Cisco Umbrella, and other external providers. TID then pushes the observables to the sensors that are managed by FMC, such as Firepower Threat Defense (FTD) devices, Firepower appliances, and Cisco Secure Firewall Cloud Native. The sensors can then use the observables to block or monitor traffic based on the reputation and threat level of the IP addresses, URLs, and domains12.

 1: Firepower Management Center Configuration Guide, Version 6.6 - Threat Intelligence Director [Cisco Secure Firewall Management Center] - Cisco 2: Cisco Firepower Threat Defense Configuration Guide for Firepower Device Manager, Version 6.6 - Threat Intelligence Director [Cisco Firepower NGFW] - Cisco

Cisco Umbrella Investigate is a cloud-based service that provides interactive threat intelligence on domains, IPs, and files. It helps security analysts to uncover the attacker’s infrastructure and predict future threats by analyzing the relationships and evolution of internet domains, IPs, and files. It also integrates with other Cisco security solutions, such as Cisco Secure Network Analytics, Cisco Secure Cloud Analytics, and Cisco pxGrid, to provide a holistic view of the network and cloud security posture. Cisco Umbrella Investigate is based on the data collected by Cisco Umbrella, which processes more than 620 billion DNS requests per day from over 190 countries. Cisco Umbrella Investigate uses statistical and machine learning models to automatically score and classify the data, and provides a risk score for each domain, IP, and file, along with the contributing factors and historical context. Cisco Umbrella Investigate also allows security analysts to query the data using a web-based console or an API, and to visualize the results using graphs, tables, and maps. Cisco Umbrella Investigate is the most complete and interactive threat intelligence solution that helps to prevent cyber attacks before they happen. References :=

Some possible references are:

Cisco Umbrella Investigate

Cyber Attack Prevention - Cisco Umbrella

Cisco Umbrella Investigate - Cisco Umbrella

MDM stands for Mobile Device Management, which is a system that performs compliance checks and remote wiping on mobile devices. MDM allows administrators to enforce security policies, monitor device status, and remotely manage devices in case of loss, theft, or compromise. MDM can also integrate with other Cisco security solutions, such as ISE, AMP, and Umbrella, to provide enhanced protection and visibility for mobile devices. References:

Mobile Device Management (MDM) - Cisco

Implementing and Operating Cisco Security Core Technologies (SCOR) - Module 5: Secure Network Access

The Cisco DNA Center RESTful PNP API allows external applications to interact with the Plug and Play (PNP) service of Cisco DNA Center, which automates the onboarding and provisioning of network devices. The PNP API has several endpoints for different operations, such as importing, claiming, updating, and deleting devices. The endpoint that adds and claims a device into a workflow is api/v1/onboarding/pnp-device/import, which takes a JSON payload with the device information and the workflow ID. This endpoint creates a new device entry in the PNP database and associates it with the specified workflow. The workflow defines the configuration template, image, and license to be applied to the device during the provisioning process12. References:

1: See How to Use the Plug and Play API in DNA Center – Part 2

2: Cisco DNA Center Platform User Guide, Release 2.2.3

The Cisco DNA Center API provides the ability to program and monitor networks from somewhere other than the DNAC GUI. The API is a set of RESTful web services that allow users to interact with Cisco DNA Center programmatically. The API can be used to automate tasks, integrate with third-party applications, or create custom applications. The API exposes the same functionality as the DNAC GUI, such as design, provision, policy, assurance, and platform1. The API also provides documentation, examples, and testing tools for each API call1. References :=

Cisco DNA Center User Guide, Release 2.3.3

Cisco DNA Center User Guide, Release 2.2.2

DNAC Tour Part 1: Introduction to Cisco DNA Center

Cisco DNA Center Platform User Guide, Release 2.2.2

Explanation

Explanation

As the new device does not have a supplicant, we cannot use 802.1X.

MAC Authentication Bypass (MAB) is a fallback option for devices that don’t support 802.1x. It is virtually

always used in deployments in some way shape or form. MAB works by having the authenticator take the

connecting device’s MAC address and send it to the authentication server as its username and password. The authentication server will check its policies and send back an Access-Accept or Access-Reject just like it would with 802.1x.

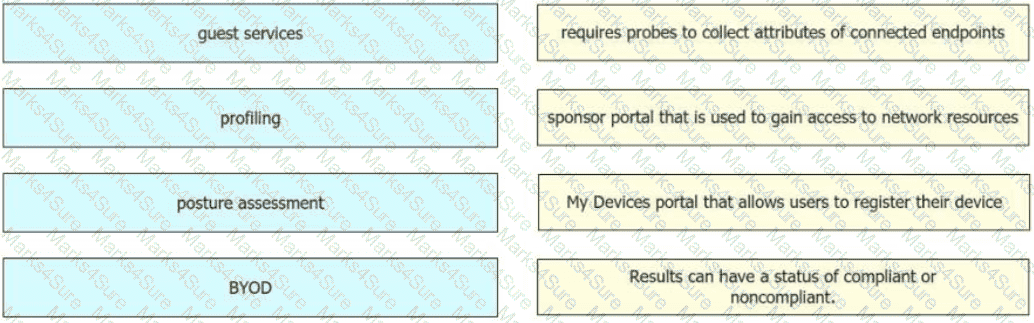

Cisco ISE Profiling Services provides dynamic detection and classification of endpoints connected to the

network. Using MAC addresses as the unique identifier, ISE collects various attributes for each network

endpoint to build an internal endpoint database. The classification process matches the collected attributes to prebuilt or user-defined conditions, which are then correlated to an extensive library of profiles. These profiles include a wide range of device types, including mobile clients (iPads, Android tablets, Chromebooks, and so

on), desktop operating systems (for example, Windows, Mac OS X, Linux, and others), and numerous non-user systems such as printers, phones, cameras, and game consoles.

Once classified, endpoints can be authorized to the network and granted access based on their profile. For example, endpoints that match the IP phone profile can be placed into a voice VLAN using MAC Authentication Bypass (MAB) as the authentication method. Another example is to provide differentiated network access to users based on the device used. For example, employees can get full access when accessing the network from their corporate workstation but be granted limited network access when accessing the network from their personal iPhone.

The Cisco WSA can participate in the Cisco SensorBase Network, which is a threat management database that collects and shares data from Cisco security products. By participating in the SensorBase Network, the WSA can receive web reputation scores and URL categories for the requested web content, and also contribute data to improve the accuracy and efficacy of the service. The data that the WSA sends to the SensorBase Network servers includes information about request attributes and how the appliance handles requests. However, to protect the privacy and confidentiality of the users and the organization, the WSA does not send the complete URL, but only the summarized server-name information and the MD5-hashed path information. The MD5 hash is a one-way encryption algorithm that converts the path information into a fixed-length string that cannot be reversed. This way, the SensorBase Network can identify the URL without revealing the actual content or parameters of the request. The WSA also does not send any personal or confidential information such as usernames and passwords, or any information about HTTPS transactions, except for the IP address, web reputation score, and URL category of the server name in the certificate. The SensorBase Network Participation is enabled by default, but it can be disabled by the administrator if desired123. References: 3: Web Base Network Participation (WBNP) and Sender Base Network Participation (SBNP) - Cisco 2: User Guide for AsyncOS 15.0 for Cisco Secure Web Appliance - GD (General Deployment) - Introduction 1: User Guide for AsyncOS 12.0 for Cisco Web Security Appliances - GD (General Deployment) - Introduction

Cisco Workload Optimization Manager provides specific real-time actions that ensure workloads get the

resources they need when they need them, enabling continuous placement, resizing, and capacity decisions that can be automated, driving continuous health in the environment. You can automate the software’s decisions according to your level of comfort: recommend (view only), manual (select and apply), or automated (executed in real time by software).

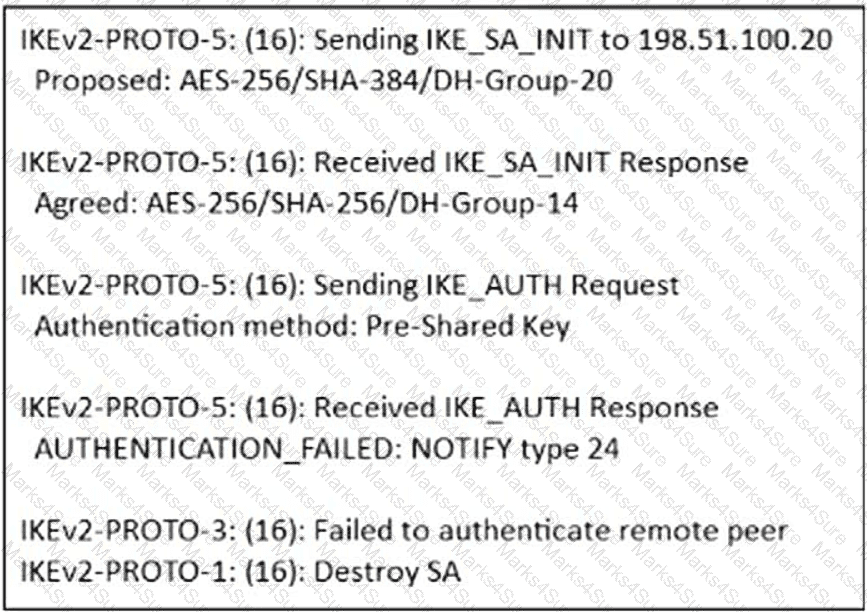

The debug shows that IKE_SA_INIT completed successfully and the peers agreed on AES-256, SHA-256, and DH Group 14. That proves a mutually acceptable Phase 1 proposal was selected, so changing the DH group or removing SHA-384 is unnecessary. The failure occurs later during IKE_AUTH, where the peer returns AUTHENTICATION_FAILED notification type 24. Because the displayed authentication method is a pre-shared key, the first corrective action is to verify that both peers use exactly the same key; capitalization, whitespace, or character differences change the calculated AUTH value. RFC 7296 defines the AUTH value as being derived from the shared secret and states that an AUTHENTICATION_FAILED notification prevents creation of the IKE SA. Replacing PSK authentication with certificates is not required to correct a PSK mismatch. IETF IKEv2 specification

REST stands for Representational State Transfer, which is an architectural style for designing web services. RESTful web services use HTTP as the application protocol and support the standard HTTP methods, such as GET, PUT, POST, and DELETE, to perform CRUD (Create, Read, Update, Delete) operations on resources. Cisco DNA Center exposes its functionality through a set of RESTful APIs that allow external applications to interact with the network controller and automate various tasks. The RESTful architecture used within Cisco DNA Center has the following characteristics12:

It is simple, extensible, and secure to use. The APIs are based on open standards and use JSON as the data format. The APIs also support HTTPS for secure communication and authentication.

It is stateless, meaning that each request contains all the information necessary to process it, and the server does not store any session or client state. This improves scalability and performance of the web services.

It is resource-oriented, meaning that each API endpoint represents a logical entity or a resource that can be manipulated by the HTTP methods. For example, the /dna/intent/api/v1/network-device endpoint represents the network devices resource, and the GET method can be used to retrieve the list of network devices from Cisco DNA Center.

It is uniform, meaning that the same interface and conventions are used across all the APIs. For example, the APIs use the same authentication mechanism, error handling, pagination, filtering, and sorting parameters. References:

1: Introduction to Cisco DNA Center REST APIs - Cisco DevNet Learning Labs

2: Cisco DNA Center Platform User Guide, Release 2.2.3

Quarantine Failed reports the result of a specific quarantine attempt; it does not establish the file’s current presence or execution state. A quarantine can fail because the file was renamed, moved, deleted, locked, or otherwise unavailable when the connector attempted remediation. The artifact might therefore still exist, or it might already have been removed through another mechanism. The log shown does not provide enough trajectory or error-detail evidence to decide between those possibilities. Option B overstates the observation as failure of an entire configured remediation policy. Options C and D make even stronger unsupported claims that the file remained accessible or continued running. The analyst should review event details, device/file trajectory, the connector logs, and the endpoint itself before declaring containment or compromise. Therefore, A is the only defensible conclusion from the displayed data. Cisco Secure Endpoint quarantine-failure discussion

 Cisco Cloudlock is a cloud-native security solution that secures public, private, hybrid, and community clouds. It provides visibility, compliance, threat protection, and data security for cloud applications and environments. Cisco Cloudlock integrates with various cloud platforms and services, such as AWS, Azure, Google Cloud, Office 365, Salesforce, Dropbox, and more. Cisco Cloudlock monitors user activities, configurations, and sensitive data across the cloud, and alerts or blocks any violations of policies or regulations. Cisco Cloudlock also leverages user and entity behavior analytics (UEBA) to detect and respond to anomalous or malicious behaviors in the cloud. Cisco Cloudlock helps organizations protect their cloud assets and data, while enabling them to embrace the benefits of cloud computing. References :=

Cloud and Application Security - Cisco

Cloud Security Products and Solutions - Cisco

What Is Cloud Security? - Cisco

[Cisco Cloudlock: Cloud-Native CASB and Cloud Cybersecurity Platform]

To collect full metadata information about the traffic going through their AWS cloud services, the organization needs to send VPC Flow Logs to Cisco Stealthwatch Cloud and configure Cisco Stealthwatch Cloud to ingest AWS information. VPC Flow Logs is a feature that enables the organization to capture information about the IP traffic going to and from network interfaces in their VPC. Flow log data can be published to Amazon CloudWatch Logs, Amazon S3, or Amazon Kinesis Data Firehose1. Cisco Stealthwatch Cloud is a SaaS-based network and cloud security solution that provides behavioral analytics across the network to help the organization improve threat detection and achieve a stronger security posture2. By sending VPC Flow Logs to Cisco Stealthwatch Cloud, the organization can leverage the rich network flow metadata to perform various types of flow analysis, such as troubleshooting connectivity issues, monitoring the traffic patterns, detecting anomalous or malicious activity, and verifying compliance3. To send VPC Flow Logs to Cisco Stealthwatch Cloud, the organization needs to create a flow log for their VPC, subnet, or network interface, and specify Cisco Stealthwatch Cloud as the destination4. To configure Cisco Stealthwatch Cloud to ingest AWS information, the organization needs to add their AWS account as a data source in the Cisco Stealthwatch Cloud portal, and grant the necessary permissions for Cisco Stealthwatch Cloud to access their VPC Flow Logs5. By doing so, the organization can view and analyze the flow log data in the Cisco Stealthwatch Cloud dashboard, and receive valuable security alerts and insights based on the network behavior6.

References := 1: Logging IP traffic using VPC Flow Logs - Amazon Virtual Private Cloud 2: Cisco Secure Cloud Analytics (Stealthwatch Cloud) - Cisco 3: Cisco Secure Cloud Analytics - AWS VPC Flow Logs: A New Tool for Your … 4: Publish flow logs to Cisco Stealthwatch Cloud - Amazon Virtual Private Cloud 5: AWS Data Source Setup - Cisco Stealthwatch Cloud 6: AWS Workload Protection - Cisco Stealthwatch Cloud

The IP and Domain Reputation Center is a service provided by Talos, Cisco’s Security Intelligence and Research Group, that tracks the reputation of IP addresses and domains for email and web traffic. The IP and Domain Reputation Center collects and analyzes data from millions of deployed web, email, firewall and IPS appliances, as well as open-source data sets, endpoint intelligence, and network intrusions. The IP and Domain Reputation Center transforms this data into actionable threat intelligence and tools to improve security posture. The IP and Domain Reputation Center allows users to look up websites, URLs and IP addresses and the information Talos has about them, such as their reputation score, category, volume, and threat level. The IP and Domain Reputation Center also provides threat data overviews, such as the top email and spam senders by country, and the standard categories used to classify website content and attack types123. References := 1: Reputation Center - A Real Time Threat Detection Service || Cisco Talos Intelligence Group - Comprehensive Threat Intelligence 2: IP & Domain Reputation Center - Talos Intelligence 3: Talos Reputation Center overview | Talos Support Documents

A playbook is the Splunk SOAR component that links multiple actions and decision points into an automated, reusable security workflow. For example, a playbook can enrich an indicator, query reputation services, isolate a host, create a ticket, and notify an analyst in a defined sequence. Splunk’s documentation explains that a workflow is created by linking a series of app-provided actions in the playbook editor. Therefore, option D is correct. An alert is an event or finding that can trigger investigation or automation; it is not the workflow itself. An action is one operation performed through an integrated app, so several actions may be components of a playbook. A data model structures information for searching or analysis but does not orchestrate response steps. Splunk’s SOAR playbook documentation verifies this distinction.

================

Explanation

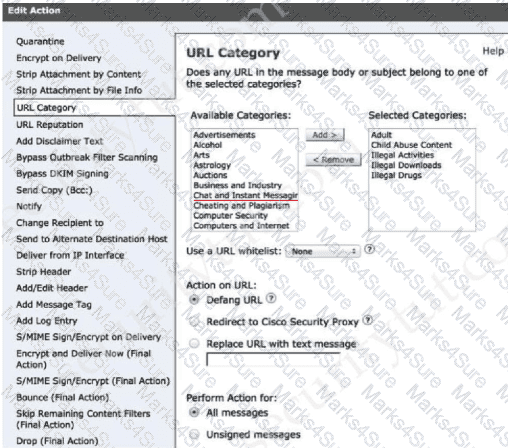

We choose “Chat and Instant Messaging” category in “URL Category”:

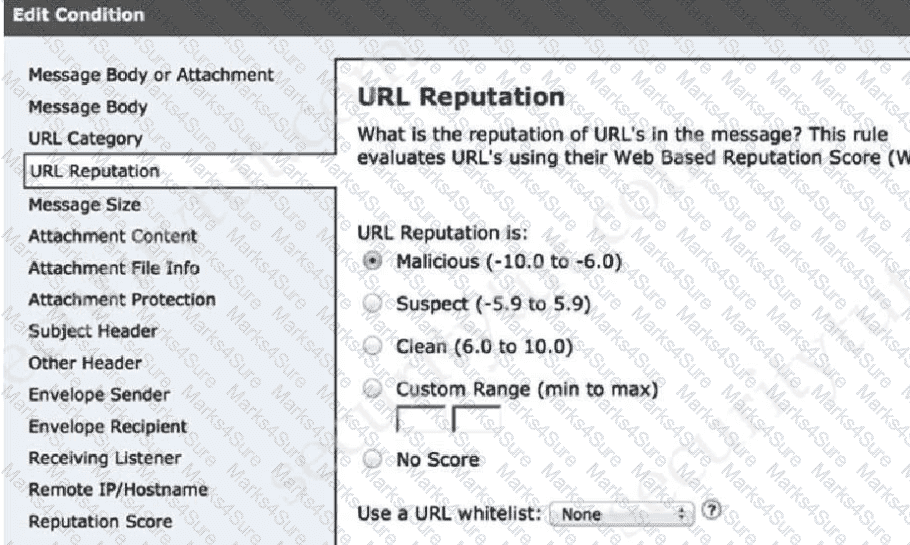

To block certain URLs we need to choose URL Reputation from 6 to 10.

DNS tunneling is a technique that exploits the DNS protocol to tunnel malware and other data through a client-server model. DNS tunneling can be used for data exfiltration, command and control, or IP-over-DNS tunneling. DNS tunneling works by encoding the information of other protocols or programs in DNS queries and responses. An attacker registers a domain, such as badsite.com, and sets up a malicious DNS server that can interpret the encoded data. The attacker then infects a client with malware that can send and receive DNS queries to the attacker’s domain. The malware can use DNS queries to request commands from the attacker, or to send sensitive data to the attacker. The DNS queries and responses look like normal DNS traffic, but they contain hidden data that can bypass network defenses123. References := 1: What Is DNS Tunneling? - Palo Alto Networks 2: What is DNS Tunneling? - Check Point Software 3: What Is DNS Tunneling and How to Detect and Prevent Attacks

Joining Cisco WSAs to an appliance group simplifies the task of patching multiple appliances. An appliance group is a collection of WSAs that share the same configuration settings and software versions. Administrators can use appliance groups to apply configuration changes and software updates to multiple WSAs at once, instead of performing these tasks individually for each appliance12. This reduces the administrative overhead and ensures consistency across the WSAs. References:

Appliance groups, section “Appliance Groups”.

What is the purpose of joining Cisco WSAs to an appliance group?

This is a type of Outbreak Control list that allows the administrator to create a list of files based on their SHA-256 hash values that will be detected, blocked, and quarantined by the AMP for Endpoints connectors. The Simple Custom Detection list can be applied to a policy and synchronized with the devices that have the AMP connectors installed. This way, the administrator can prevent the execution of specific files without having to quarantine them on the devices.

The other options are incorrect because:

Advanced Custom Detection is a type of Outbreak Control list that allows the administrator to create custom rules based on file attributes, such as file name, size, path, or parent process. These rules can be used to detect and block files that match certain criteria, but they cannot be used to quarantine them.

Blocked Application is a type of Outbreak Control list that allows the administrator to create a list of applications based on their SHA-256 hash values that will be blocked from running on the devices that have the AMP connectors installed. However, this list does not detect or quarantine the applications, only prevents them from executing.

Isolation is a feature of AMP for Endpoints that allows the administrator to isolate a device from the network if it is compromised by malware. This prevents the device from communicating with other devices or the internet, but does not affect the files on the device.

Cisco Defense Orchestrator (CDO) is a cloud-based management solution that allows you to manage security policies and device configurations with ease across multiple Cisco and cloud-native security platforms. CDO centrally manages elements of policy and configuration across Cisco ASA, Cisco Firepower, Cisco Meraki, and AWS1. CDO also provides visibility, automation, and orchestration capabilities to simplify and unify security operations2. The other options are not cloud security software that can centrally manage policies on multiple platforms. Cisco Configuration Professional is a device management tool for Cisco routers and switches. Cisco Secureworks is a security services provider that offers threat intelligence and incident response. Cisco DNAC is a network controller that automates and assures services across campus, branch, and edge networks. References :=

Cisco Defense Orchestrator Data Sheet

Cisco Defense Orchestrator

Cisco DNA Center is an open and extensible platform that allows third-party applications and processes to exchange data and intelligence with Cisco DNA Center1. One of the features of the open platform capabilities of Cisco DNA Center is the intent-based APIs, which enable DNA Center to provide automation to applications2. Intent-based APIs allow applications to express their intent or desired outcome, and let DNA Center translate that intent into network configurations and policies3. Intent-based APIs simplify the interaction between applications and the network, and enable faster and more consistent service delivery.

 1: Cisco DNA Center 2.3.5 Data Sheet - Cisco 2: Intent-Based Networking’s Next Evolution: The DNA Center Platform - Cisco Blogs 3: Unlocking the Power of Open Platforms with Cisco DNA Center Platform

Cisco defines Zero Trust Network Access as verifying users and devices and granting access to specific applications according to identity and context policies. Identity policy determines who or what is making the request through attributes such as user, group, authentication strength, and device identity. Context policy evaluates the circumstances of the request, which can include device posture, location, risk, time, and other trust signals. Together, these policies let the trust broker make a least-privilege, per-application decision and re-evaluate it when conditions change. “Site-to-site” and “remote access” describe connectivity models rather than ZTNA policy types. “Access” describes the resulting authorization or may label a product policy container, but the two policy categories stated in Cisco’s ZTNA definition are identity and context. Therefore, the correct choices are A and D. Cisco ZTNA overview

Explanation

Explanation

Southbound APIs enable SDN controllers to dynamically make changes based on real-time demands and

scalability needs.

Explanation

With Cisco pxGrid (Platform Exchange Grid), your multiple security products can now share data and work together. This open, scalable, and IETF standards-driven platform helps you automate security to get answers and contain threats faster.

A site-to-site VPN establishes an encrypted connection between VPN gateways so that hosts on two protected private networks can communicate across an untrusted network. A remote-access VPN instead provides an individual user or endpoint with an encrypted connection to a private network, normally through client software or a clientless access method. Therefore, D accurately states the architectural difference. GET VPN, GRE over IPsec, and virtual tunnel interfaces are particular technologies or implementation choices; they do not define the universal distinction between the two VPN categories. Option A reverses the roles and incorrectly makes software endpoints characteristic of site-to-site VPNs. The determining factor is whether the tunnel joins entire networks through VPN gateways or connects an individual remote endpoint to protected organizational resources. Cisco VPN overview

================

Software composition analysis inventories third-party and open-source packages, identifies their versions and dependencies, and compares them with vulnerability and licensing information. Running SCA during the build stage shifts dependency checking left, allowing a vulnerable component to fail policy before the application is released. Therefore, B directly addresses the risk in the question. The joint CISA and security-agency guidance on managing open-source software and software bills of materials explains that SCA tools analyze application dependencies for vulnerabilities and open-source license violations. Static and dynamic routing choices affect packet forwarding, while round-robin DNS affects service distribution. None of those networking mechanisms examines software libraries, transitive dependencies, known CVEs, or component licenses within a DevSecOps pipeline.

================

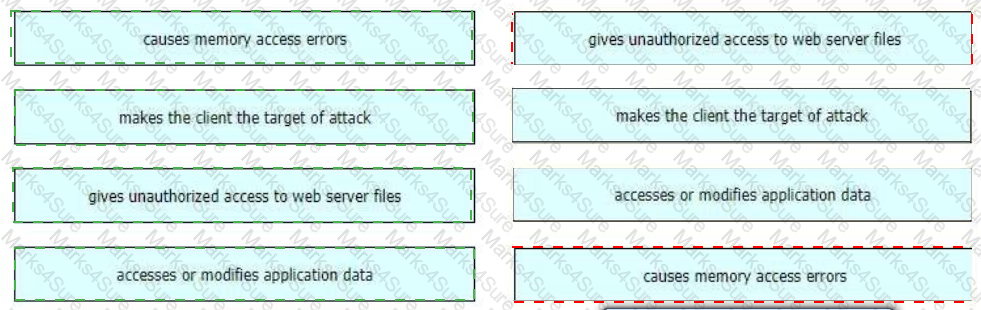

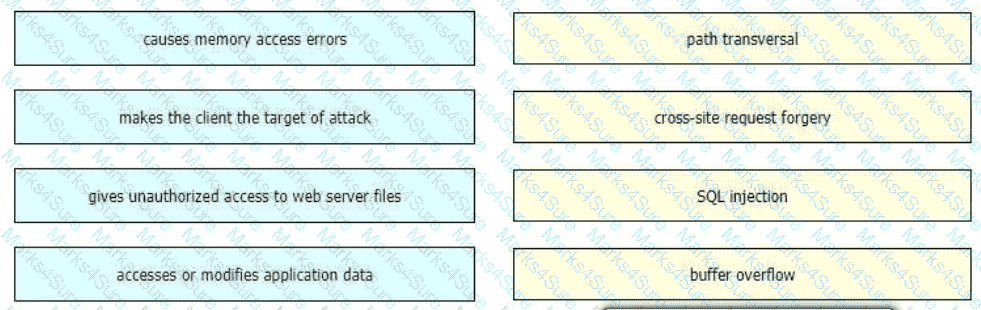

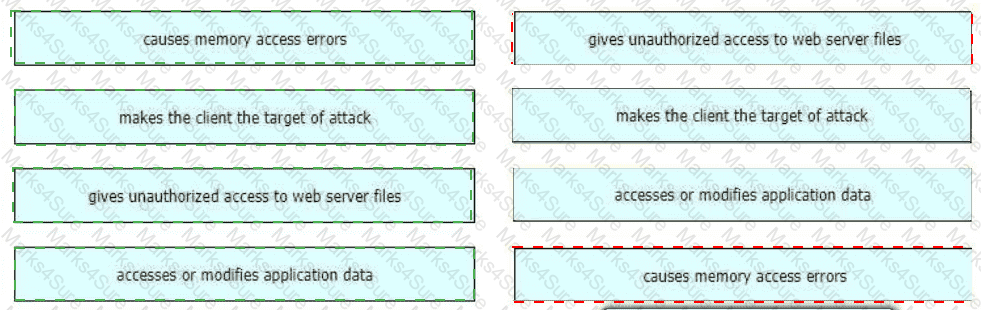

A SQL injection attack is a type of attack that exploits a vulnerability in a web application that uses user-supplied data to construct SQL statements that interact with a database. By inserting malicious commands into the database, an attacker can execute arbitrary SQL queries or commands on the database server, which may result in data theft, data manipulation, or command execution. Machine 1 is vulnerable to SQL injection because it does not properly validate or sanitize the user input before using it in a SQL statement. Therefore, inserting malicious commands into the database would allow the attacker to gain access to machine 1.

A buffer overflow attack is a type of attack that exploits a vulnerability in a program that does not check the boundaries of a buffer (a temporary storage area for data) before copying data into it. By overflowing the buffer’s memory, an attacker can overwrite adjacent memory locations, which may result in corrupting data, crashing the program, or executing malicious code. Machine 2 is vulnerable to buffer overflow because it does not properly handle the size or length of the data that it receives from the user or another source. Therefore, overflowing the buffer’s memory would allow the attacker to gain access to machine 2.

Sniffing the packets between the two hosts is a passive attack that involves capturing and analyzing the network traffic that flows between the two machines. This attack may reveal sensitive information, such as credentials, session tokens, or database queries, but it does not directly allow the attacker to gain access to either machine. Sending continuous pings is a type of denial-of-service attack that involves flooding the target machine with ICMP echo request packets, which may consume its network bandwidth or processing resources, but it does not directly allow the attacker to gain access to either machine. Therefore, neither sniffing the packets nor sending continuous pings would allow the attacker to gain access to machine 1 but not machine 2. References :=

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 3: Web Security, SQL Injection Attacks

Understanding SQL Injection - Cisco, SQL Injection Explained

Buffer Overflow and SQL Injection: To Remotely Attack and … - Springer, Buffer Overflow and SQL Injection Attacks

Mobile device management (MDM) is a solution that allows organizations to monitor and manage mobile devices such as smartphones, tablets, and laptops. MDM provides features such as inventory and device tracking, remote view, live troubleshooting, remote device locking, device wipe, application management, certificate management, and self-service PIN changes. MDM can help organizations secure their devices, control access to corporate data, and enforce security policies on mobile endpoints. Cisco offers MDM solutions such as Cisco Meraki Systems Manager and Cisco Business Mobile app, which are cloud-based and integrated with other Cisco security products. References:

Cisco Meraki Systems Manager

Mobile Device Management in the Meraki Cloud

What Is Endpoint Management?

Device Management using Cisco Business Mobile App

 The Decrypt for Application Detection feature within the WSA Decryption options enhances the ability of AsyncOS to detect HTTPS applications. The HTTPS Proxy can decrypt HTTPS connections to web applications. This allows the Application Visibility and Control (AVC) engine to more accurately detect and block web applications that use HTTPS. This feature can help improve the security and performance of the network by identifying and controlling the usage of web applications that may consume bandwidth, pose security risks, or violate compliance policies.

In XSS, an attacker will try to inject his malicious code (usually malicious links) into a database. When other users follow his links, their web browsers are redirected to websites where attackers can steal data from them. In a SQL Injection, an attacker will try to inject SQL code (via his browser) into forms, cookies, or HTTP headers that do not use data sanitizing or validation methods of GET/POST parameters.

Explanation

Explanation

Southbound APIs enable SDN controllers to dynamically make changes based on real-time demands and

scalability needs.

Explanation

A destination list is a list of internet destinations that can be blocked or allowed based on the administrative

preferences for the policies applied to the identities within your organization. A destination is an IP address

(IPv4), URL, or fully qualified domain name. You can add a destination list to Umbrella at any time; however, a

destination list does not come into use until it is added to a policy.

Explanation

Explanation

Cisco Defense Orchestrator is a cloud-based management solution that allows you to manage security policies

and device configurations with ease across multiple Cisco and cloud-native security platforms.

Cisco Defense Orchestrator features:

….

Management of hybrid environments: Managing a mix of firewalls running the ASA, FTD, and Meraki

MX software is now easy, with the ability to share policy elements across platforms.

The event explicitly reports Audit mode and states that the malicious file was not quarantined, making B correct and C false. Audit mode records detections without applying the normal blocking or quarantine action. The telemetry also records the file as created and executed, identifies winword.exe as its parent, and shows outbound TCP and DNS activity to external infrastructure; therefore, D accurately summarizes the observed execution chain. Cisco explains that Secure Endpoint malware events can include information captured at execution time, including the file path and invoking application, in its file and malware event guidance. The retrospective verdict means a previously unknown file was later classified as malicious, not that signature updates were infrequent. Nothing in the exhibit indicates that winword.exe was allow-listed. Thus, B and D are supported directly by the evidence.

================

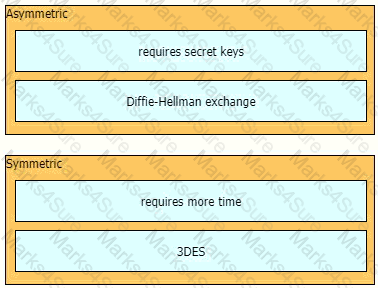

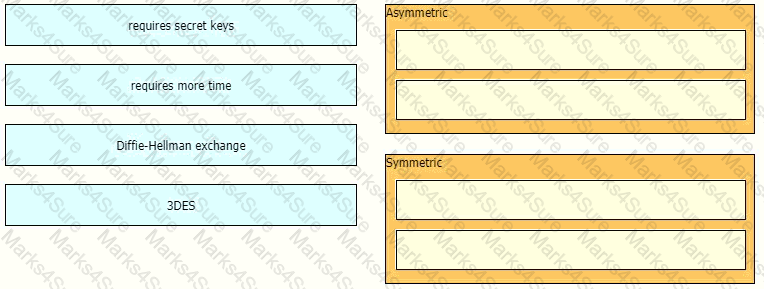

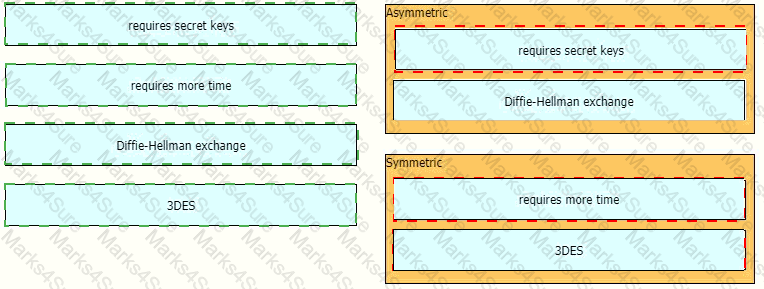

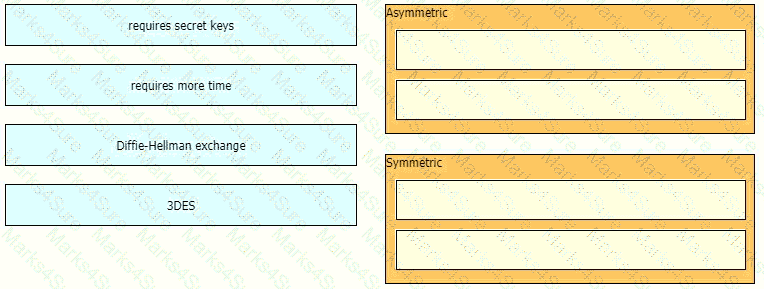

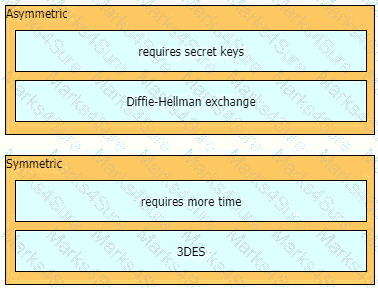

3DES is a symmetric-key block cipher that applies the DES algorithm three times to each data block. It was developed to improve the security of DES, which has a small key size and is vulnerable to brute-force attacks. 3DES encrypts traffic by using three different keys, each 56 bits long, to perform three rounds of encryption on the plaintext. The encryption process can be described as follows:

Encrypt the plaintext with the first key (K1).

Decrypt the result with the second key (K2).

Encrypt the result again with the third key (K3).

The final ciphertext is the output of the third encryption. The decryption process is the reverse of the encryption process, using the same keys in reverse order:

Decrypt the ciphertext with the third key (K3).

Encrypt the result with the second key (K2).

Decrypt the result again with the first key (K1).

The final plaintext is the output of the third decryption. 3DES is more secure than DES because it uses a longer effective key length of 168 bits (56 x 3), which makes brute-force attacks more difficult. However, 3DES is also slower than DES because it requires three times more computations. Moreover, 3DES has some weaknesses, such as the meet-in-the-middle attack, which can reduce the effective key length to 112 bits. Therefore, 3DES is not recommended for new applications and has been deprecated by NIST since 201712

References := 1: NIST Special Publication 800-67 Revision 2 Recommendation for the Triple Data Encryption Algorithm (TDEA) Block Cipher 2: What is 3DES encryption and how does DES work? | Comparitech

 The RADIUS CoA feature supports five IETF attributes as defined in RFC 5176. These are:

Event-Timestamp: This attribute indicates the time when the CoA request was generated by the server.

State: This attribute contains a value that is copied from the Access-Accept message that authorized the session.

Session-Timeout: This attribute specifies the maximum number of seconds of service provided to the user before termination of the session or prompt.

Idle-Timeout: This attribute specifies the maximum number of consecutive seconds of idle connection allowed to the user before termination of the session or prompt.

Filter-Id: This attribute identifies the filter list to be applied to the user session.

The RADIUS CoA feature also supports vendor-specific attributes (VSAs) that are defined by Cisco or other vendors. These VSAs can be used to perform additional actions such as port shutdown, port bounce, or security and password accounting. References :=

Some possible references are:

RFC 5176: This document describes the dynamic authorization extensions to RADIUS, including the CoA request and response codes, and the supported IETF attributes.

RADIUS Change of Authorization - Cisco: This document provides the configuration guide for the RADIUS CoA feature on Cisco IOS devices, including the supported IETF and Cisco VSAs.

Supported IETF attributes in RFC 5176 - Ruckus Networks: This document lists the supported IETF attributes and error clause values for the RADIUS CoA feature on Ruckus devices.

V

The reason for the failure is that detections for MD5 signatures must be configured in the advanced custom detection policies, not in the simple detection policy section. The simple detection policy section allows users to create a list of SHA-256 hashes of files that they want to block or quarantine on the endpoints. The SHA-256 hash is a more secure and unique identifier of a file than the MD5 hash, which can have collisions or duplicates. The advanced custom detection policy section allows users to create more complex and flexible rules to detect and block files based on various criteria, such as file name, size, type, signature, or MD5 hash. The advanced custom detection policy section also supports wildcards and regular expressions to match multiple files or patterns. Therefore, if the administrator wants to add specific MD5 signatures to the custom detection policy, they should use the advanced custom detection policy section instead of the simple detection policy section.

to configure GigabitEthernet0/1 as promiscuous port, GigabitEthernet0/2 as isolated port and GigabitEthernet0/3 and GrgabitEthernet0/4 as community ports. This way, the default gateway can communicate with all servers, the isolated port can only communicate with the promiscuous port, and the community ports can communicate with each other and the promiscuous port. This prevents the file server from communicating with the DNS servers, as required by the question.

To understand the concept of private VLANs and port types, you can refer to the following sections of the source book:

Section 1.1.2: Describe the concepts of network security

Section 1.1.2.1: Describe the concepts of private VLANs

Section 1.1.2.2: Describe the concepts of port types

Section 1.1.2.3: Describe the concepts of PVLAN edge

Section 1.1.2.4: Describe the concepts of protected ports

Section 1.1.2.5: Describe the concepts of PVLAN configuration

Explanation

Malware means “malicious software”, is any software intentionally designed to cause damage to a computer, server, client, or computer network. The most popular types of malware includes viruses, ransomware and spyware. Virus Possibly the most common type of malware, viruses attach their malicious code to clean code and wait to be run.

Ransomware is malicious software that infects your computer and displays messages demanding a fee to be paid in order for your system to work again.

Spyware is spying software that can secretly record everything you enter, upload, download, and store on your computers or mobile devices. Spyware always tries to keep itself hidden.

An exploit is a code that takes advantage of a software vulnerability or security flaw.

Exploits and malware are two risks for endpoints that are not up to date. ARP spoofing and eavesdropping are attacks against the network while denial-of-service attack is based on the flooding of IP packets.

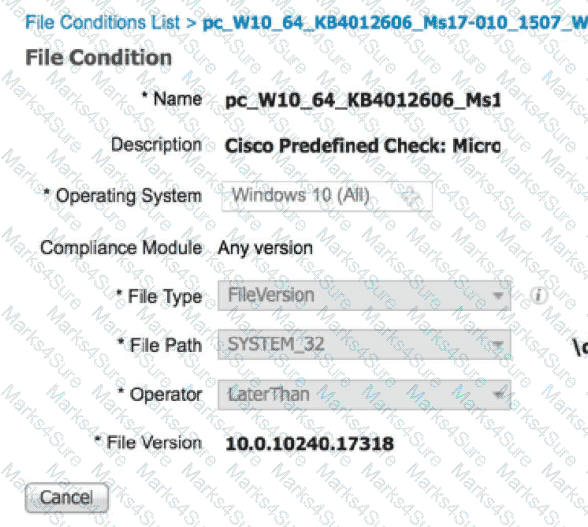

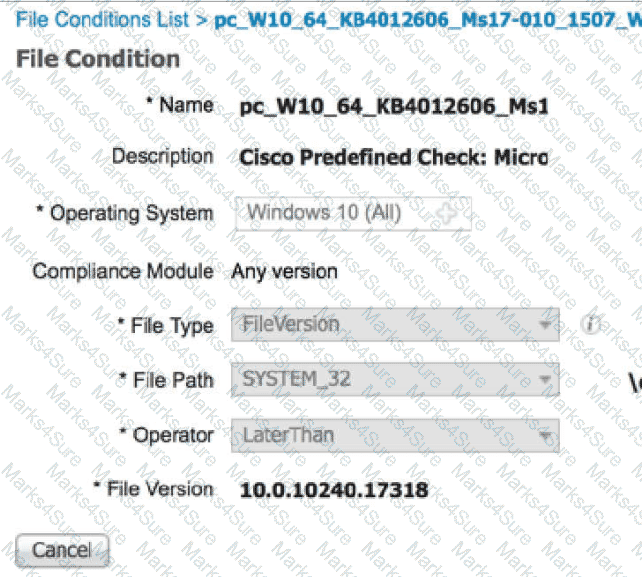

Device compliance checks are a feature of Cisco Identity Services Engine (ISE) that allows you to verify the posture of endpoints before allowing them to access your network. Posture is the state of the endpoint in terms of security, such as the presence of anti-virus software, firewall, patches, and so on. A posture agent, such as the AnyConnect ISE Posture Agent, runs on the endpoint and collects posture information, which is then sent to the ISE server for evaluation. Based on the posture policy, the ISE server can grant or deny network access, or apply remediation actions to the endpoint. One of the benefits of conducting device compliance checks is that it validates if anti-virus software is installed on the endpoint, which can prevent malware infections and protect your network from threats. The other options are not benefits of device compliance checks, as they are not related to the posture of the endpoint. References:

Compliance - Cisco

Device Compliance - Cisco

Explanation

Explanation

DevSecOps (development, security, and operations) is a concept used in recent years to describe how to move

security activities to the start of the development life cycle and have built-in security practices in the continuous

integration/continuous deployment (CI/CD) pipeline. Thus minimizing vulnerabilities and bringing security closer

to IT and business objectives.

Three key things make a real DevSecOps environment:

+ Security testing is done by the development team.

+ Issues found during that testing is managed by the development team.

+ Fixing those issues stays within the development team.

Cisco FTDv in AWS can be deployed in two different deployment models: single-instance and cluster. In both models, the FTDv can be configured in routed mode and managed by either an FMCv installed in AWS or a physical FMC appliance on premises. The FTDv can also use Geneve encapsulation for traffic interfaces to support AWS Gateway Load Balancer (GWLB) integration. The following table summarizes the supported deployment model configurations for FTDv in AWS:

Table

Deployment Model

Management Mode

Traffic Mode

Geneve Encapsulation

Single-instance

FMCv in AWS

Routed

Optional

Single-instance

FMC on premises

Routed

Optional

Cluster

FMCv in AWS

Routed

Required

Cluster

FMC on premises

Routed

Required

References :=

Deploy the Threat Defense Virtual on AWS - Cisco

Deploy a Threat Defense Virtual Cluster on AWS - Cisco

Configure Geneve Interfaces in Secure FTDv - Cisco

Deployment of Cisco Secure FTDv and FMCv instances in AWS - Terraform

Solved: FTD virtual appliance in AWS - Cisco Community

Explanation

Explanation

Talos Threat Source is a regular intelligence update from Cisco Talos, highlighting the biggest threats each week and other security news.

 Grafana is an open source tool that displays graphs and counters for data streamed from network devices. Cisco uses Grafana to create graphical visualizations of network telemetry on Cisco IOS XE devices, which support model-driven telemetry. Model-driven telemetry is a new approach for network monitoring in which data is streamed from network devices continuously using a push model and provides near real-time access to operational statistics. Applications can subscribe to specific data items they need, by using standard-based YANG data models over NETCONF-YANG. Cisco IOS XE streaming telemetry allows to push data off of the device to an external collector at a much higher frequency, more efficiently, as well as data on-change streaming. Grafana uses the data from InfluxDB database to build dashboards and graphs. InfluxDB is a time-series database that stores the telemetry data received from the network devices. Telegraf is an agent that collects the telemetry data from the network devices and pushes it to InfluxDB. The TIG software stack refers to the three open-source software components that enable receiving, storing, and visualization the telemetry data: Telegraf, InfluxDB, and Grafana. References :=

Enterprise Streaming Telemetry and You: Getting Started with Model Driven Telemetry - Cisco Blogs

Explore Model-Driven Telemetry - Cisco Blogs

Telemetry Configuration Guide for Cisco 8000 Series Routers, IOS XR Release 7.8.x - Dial-Out Telemetry Session from Router to Destination

Free 350-701 Implementing and Operating Cisco Security Core Technologies Practice Test Questions

A network administrator can transparently identify users using Active Directory on the Cisco WSA in two ways:

Create NTLM or Kerberos authentication realm and enable transparent user identification. This option allows the WSA to use the NTLM or Kerberos protocol to authenticate users without prompting them for credentials. The WSA must join the Active Directory domain and have a valid service principal name (SPN) for this option to work1.

Deploy a separate Active Directory agent such as Cisco Context Directory Agent (CDA). This option allows the WSA to receive user-to-IP mappings from the CDA, which monitors the Active Directory domain controllers for user logon events. The CDA must be installed on a Windows server and have access to the domain controllers and the WSA2.

The other options are not ways to transparently identify users using Active Directory on the Cisco WSA. Creating an LDAP authentication realm and disabling transparent user identification will require users to enter their credentials manually. Installing the eDirectory client on each client workstation or deploying a separate eDirectory server are not related to Active Directory, but to Novell eDirectory, which is a different directory service3.

References := 1: User Guide for AsyncOS 11.0 for Cisco Web Security Appliances, Chapter: Acquire End-User Credentials, Topic: Active Directory/Kerberos, page 4-3. 2: User Guide for AsyncOS 11.0 for Cisco Web Security Appliances, Chapter: Acquire End-User Credentials, Topic: Active Directory Agent, page 4-5. 3: User Guide for AsyncOS 11.0 for Cisco Web Security Appliances, Chapter: Acquire End-User Credentials, Topic: eDirectory, page 4-8.

ETHOS is one of the many detection engines that AMP uses to continuously protect you from malware. It is only available in the public cloud, as it requires a large amount of data and processing power to operate. ETHOS uses machine learning to analyze the behavior and characteristics of files and determine their maliciousness. It can detect both known and unknown threats, as well as polymorphic and metamorphic malware that can change their appearance or code. ETHOS is part of the AMP cloud’s dynamic analysis capabilities, which also include SPERO and Threat Grid12.

The private cloud instance of AMP does not have ETHOS, as it is meant to be an on-premises, self-contained solution that satisfies stringent privacy requirements. The private cloud instance also does not have SPERO or Threat Grid, unless they are deployed separately as additional appliances. The private cloud instance relies on the TETRA detection engine, which is a signature-based engine that can identify known malware. TETRA is updated regularly with new signatures from the AMP cloud, but it cannot detect unknown or zero-day threats as effectively as ETHOS34.

Therefore, the capability that is exclusive to the AMP public cloud instance as compared to the private cloud instance is the ETHOS detection engine. References: 1: Cisco Advanced Malware Protection Private Cloud Appliance Data Sheet 2: What is AMP Private Cloud 3: Deploy Cisco AMP Private Cloud on Cisco HyperFlex Systems 4: AMP Private Cloud vs Public Cloud Dashboard different

Explanation

Explanation

The following are the prerequisites to integrate Active Directory with Cisco ISE.

+ Use the Network Time Protocol (NTP) server settings to synchronize the time between the Cisco ISE server

and Active Directory. You can configure NTP settings from Cisco ISE CLI.

+ If your Active Directory structure has multidomain forest or is divided into multiple forests, ensure that trust

relationships exist between the domain to which Cisco ISE is connected and the other domains that have user

and machine information to which you need access. For more information on establishing trust relationships,

refer to Microsoft Active Directory documentation.

+ You must have at least one global catalog server operational and accessible by Cisco ISE, in the domain to

which you are joining Cisco ISE.

A PAC file, or proxy auto-configuration file, is a script that tells the web browser how to use a proxy server for different URLs. A PAC file can be hosted on a web server or on the WSA itself, and can be deployed to the client web browser manually or automatically. A WSA HTTP proxy configuration with a PAC file is defined as an explicit proxy deployment, because the client web browser is aware of the proxy and sends requests to it directly. This is different from a transparent proxy deployment, where the client web browser is unaware of the proxy and the requests are redirected to it by a network device such as a router or a firewall. A bridge proxy deployment is a type of transparent proxy deployment where the WSA acts as a layer 2 bridge between two network segments and intercepts the traffic passing through it. A PAC file is not used in a bridge proxy deployment. In a dual-NIC configuration, the WSA has two network interfaces, one for the client-side network and one for the server-side network. The PAC file does not direct traffic through the two NICs to the proxy, but rather tells the client web browser to send requests to the proxy’s IP address and port number. The WSA then forwards the requests to the server-side network through the other NIC. Therefore, option B is incorrect. References :=

Some possible references are:

1: What is a Proxy Pac file and are there any examples? - Cisco

2: What is a PAC file and where is it located on WSA? - Cisco

3: [WSA Training Series] How to configure the HTTPS Proxy on the Cisco Web Security Appliance

4: Proxy Auto-Configuration (PAC) file

5: Use proxy auto-configuration (.pac) files with IEAK 11

The crypto isakmp key command is used to configure a preshared key for ISAKMP authentication between two peers. The address 0.0.0.0 indicates that the key is valid for any peer address. Therefore, the same command must be entered on hostB with the same password in order to establish the tunnel with hostA. Changing the protocol to ikev2, using a different password, or changing the password to the default will not solve the problem, as they will create a mismatch in the authentication parameters. References:

Dynamic Multipoint VPN Configuration Guide, Cisco IOS Release 15M & T, section “Prerequisites for Dynamic Multipoint VPN (DMVPN)”

DMVPN - Concepts & Configuration, section “DMVPN - What is it?”

DMVPN Hub as the CA Server for the DMVPN Network Configuration Example, section “Prerequisites”

The debug output shows that IKE Phase 1 completed and the security association was authenticated, eliminating the preshared secret as the problem. It also reports IPSec policy invalidated proposal, phase 2 SA policy not acceptable, PROPOSAL_NOT_CHOSEN, and QM rejected. These messages identify an IPsec Phase 2 proposal mismatch. The peers must have compatible transform-set parameters, including encryption, integrity, tunnel mode, and any Perfect Forward Secrecy settings. The crypto ACL determines interesting traffic, but an ACL mismatch normally produces proxy-identity or traffic-selector symptoms rather than rejection of the offered IPsec proposal. NAT traversal concerns encapsulation through NAT devices and is irrelevant because the debug explicitly states that no NAT was found. Configuring matching transform sets on FTD1 and FTD2 resolves the negotiation failure. Cisco IPsec VPN troubleshooting guide

Explanation

Explanation

Many enterprises prefer to deploy development workloads in the public cloud, primarily for convenience and

faster deployment. This approach can cause concern for IT administrators, who must control the flow of IT

traffic and spending and help ensure the security of data and intellectual property. Without the proper controls,

data and intellectual property can escape this oversight. The Cisco Intercloud Fabric solution helps control this

shadow IT, discovering resources deployed in the public cloud outside IT control and placing these resources

under Cisco Intercloud Fabric control.

Cisco Intercloud Fabric addresses the cloud deployment requirements appropriate for two hybrid cloud

deployment models: Enterprise Managed (an enterprise manages its own cloud environments) and Service

Provider Managed (the service provider administers and controls all cloud resources).

Explanation

Explanation

NetFlow is a network protocol developed by Cisco for the collection and monitoring of network traffic flow data

generated by NetFlow-enabled routers and switches. The flows do not contain actual packet data, but rather the

metadata for communications. It is a standard form of session data that details who, what, when, and where of

network traffic - > Answer A is not correct.

A NetFlow version 9 template record is a record that contains information about the fields that will be present in the data records that follow the template. A template record consists of a template ID, a field count, and a list of field types and lengths. A template record is sent periodically by the NetFlow exporter to the NetFlow collector, so that the collector can parse and interpret the data records correctly. A template record can also be requested by the collector using an options template record. The purpose of a template record is to define the format of data records, which contain the actual information about the IP flows1234.

A. It specifies the data format of NetFlow processes. - This is incorrect, because a template record does not specify the data format of NetFlow processes, but rather the data format of data records. NetFlow processes are the functions that perform flow creation, aggregation, export, and analysis on the NetFlow device or the collector. B. It provides a standardized set of information about an IP flow. - This is incorrect, because a template record does not provide any information about an IP flow, but rather the information about the fields that will be present in the data records. The data records are the ones that provide the information about an IP flow, such as source and destination IP addresses, ports, protocols, bytes, packets, timestamps, and so on. C. It defines the format of data records. - This is correct, because a template record defines the format of data records by specifying the field types and lengths that will be present in the data records. A template record allows the NetFlow collector to parse and interpret the data records correctly, and also enables the NetFlow exporter to use different formats for different types of flows. D. It serves as a unique identification number to distinguish individual data records. - This is incorrect, because a template record does not serve as a unique identification number, but rather as a description of the fields. A template record has a template ID, which is a 16-bit value that identifies the template record uniquely within an export packet, but this ID is not used to distinguish individual data records. The data records are distinguished by their position within the export packet and their association with a template record.

References := 1: NetFlow Version 9 Flow-Record Format [IP Application Services] - Cisco … 2: NetFlow V9 formats - IBM 3: Netflow :: Version 9 - Caligare 4: NetFlow Versions > NetFlow for Cybersecurity | Cisco Press

Endpoint Protection Platform (EPP) and Endpoint Detection and Response (EDR) are both important components of an endpoint security strategy, but they have different goals and capabilities. EPP is designed to act as a preventive security measure, blocking known and unknown malware and malicious activity on endpoint devices using various techniques such as antivirus, data encryption, and data loss prevention. EPP solutions are mainly cloud-managed and assisted by cloud data, and use multiple detection engines such as signature-based, machine learning, and behavioral analysis. EPP solutions prevent breaches by leveraging threat intelligence and sandboxing capabilities to continuously protect endpoints from emerging threats12.

EDR, on the other hand, focuses on detecting and responding to advanced threats that have already evaded the front-line defenses and infiltrated the environment. EDR solutions provide continuous and comprehensive visibility into endpoint activity in real time, allowing security teams to quickly and effectively identify and remediate cyberattacks such as ransomware and fileless malware. EDR solutions offer advanced threat detection, investigation, and response capabilities, including incident data search and investigation, alert triage, suspicious activity validation, threat hunting, and malicious activity detection and containment. EDR solutions serve as a safety net to capture threats that go undetected by traditional antivirus software and uncover incidents that would otherwise remain invisible34.

Therefore, the primary difference between an EPP and an EDR is that EPP focuses on prevention, and EDR focuses on advanced threats that evade perimeter defenses. References: 1: Endpoint Protection Platform (EPP) Definition - Cisco 2: EPP vs. EDR: Why You Need Both - CrowdStrike 3: Endpoint Detection and Response (EDR) Definition - Cisco 4: EDR vs EPP: Why Should You Have to Choose? - Check Point Software

Explanation

Device sensor is a feature of access devices. It allows to collect information about connected endpoints. Mostly,

information collected by Device Sensor can come from the following protocols:

+ Cisco Discovery Protocol (CDP)

+ Link Layer Discovery Protocol (LLDP)

+ Dynamic Host Configuration Protocol (DHCP)

The Cisco WSA supports two main authentication protocols: LDAP and NTLM. LDAP is a protocol for accessing and managing directory information over a network. NTLM is a Windows proprietary protocol that uses a challenge-response mechanism for authentication. The Cisco WSA can use both LDAP and NTLM to authenticate users and apply policies based on their identity. The Cisco WSA does not support WCCP, TLS, or SSL as authentication protocols, although it can use them for other purposes, such as traffic redirection or encryption. References:

User Guide for AsyncOS 11.0 for Cisco Web Security Appliances, Chapter: Acquire End-User Credentials

Cisco Web Security Appliance Best Practices Guidelines, Section: Active authentication

Cisco WSA Authentication, Blog post by Kareem CCIE

Authentication and Authorization, PDF document by Cisco

Explanation

Message tracking helps resolve help desk calls by giving a detailed view of message flow. For example, if a message was not delivered as expected, you can determine if it was found to contain a virus or placed in a spam quarantine — or if it is located somewhere else in the mail stream.

 Cisco Cloudlock is a cloud-native cloud access security broker (CASB) that helps you move to the cloud safely. It protects your cloud users, data, and apps. Cloudlock’s simple, open, and automated approach uses APIs to manage the risks in your cloud app ecosystem. Cloudlock integrates with cloud applications like Dropbox and Office 365 by providing visibility, compliance, threat protection, and data security. Cloudlock can detect and prevent data exfiltration by applying data loss prevention (DLP) policies, encrypting sensitive data, and alerting or blocking unauthorized activities. Cloudlock also supports cloud app discovery and risk assessment, user and entity behavior analytics (UEBA), and cloud app firewall12. References: 1: Cisco Cloudlock - Cisco 2: Cisco Cloudlock Privacy Data Sheet

 IKEv1 is the authentication protocol that is reliable and supports ACK and sequence for IPsec VPN. IKEv1 is a key management protocol that is used in conjunction with IPsec to establish secure and authenticated connections between IPsec peers. IKEv1 uses UDP port 500 and consists of two phases: phase 1 and phase 2. In phase 1, the peers authenticate each other and negotiate a shared secret key that is used to encrypt the subsequent messages. In phase 2, the peers negotiate the security parameters for the IPsec tunnel, such as the encryption and authentication algorithms, the lifetime, and the mode (transport or tunnel). IKEv1 uses ACK and sequence numbers to ensure the reliability and integrity of the messages exchanged between the peers. ACK is an acknowledgment message that confirms the receipt of a previous message. Sequence number is a unique identifier that is assigned to each message to prevent replay attacks and to detect missing or out-of-order messages. IKEv1 also supports various authentication methods, such as pre-shared keys, digital certificates, and extended authentication (XAUTH). References : Internet Key Exchange for IPsec VPNs Configuration Guide, Security for VPNs with IPsec Configuration Guide, IPSec Architecture

A Cisco ISE dACL is delivered through Cisco vendor-specific RADIUS authorization attributes in the authentication exchange. The switch configuration already contains aaa authorization network default group ISE-GRP, so adding another network-authorization command that references a differently named group would not solve the attribute-processing failure. The required command is radius-server vsa send authentication, which enables Cisco vendor-specific attributes for RADIUS authentication and authorization processing. The accounting variant applies VSAs to accounting messages and does not enable receipt and interpretation of the authorization attributes carrying the dACL. Executive authorization controls administrative shell access rather than endpoint network authorization. Therefore, option C directly corrects the condition in which Cisco ISE sends the dACL information but the switch fails to recognize the Cisco-specific attributes. Cisco ISE switch configuration guidance

the file to Cisco Threat Grid for dynamic analysis. Cisco Threat Grid is a cloud-based service that provides malware analysis and threat intelligence. It can analyze suspicious files and URLs, and provide detailed reports on the behavior, indicators, and severity of the threat1. By sending the file to Cisco Threat Grid, the custom file policy can leverage the dynamic analysis results to detect the file as an indicator of compromise, and prevent other endpoints from executing the infected file. The other options are not correct because they do not address the root cause of the problem, which is the lack of detection by the custom file policy. Creating an IP block list, blocking the application, or uploading the hash for the file may help to mitigate the attack, but they do not ensure that the custom file policy is functioning as it should. References:

2: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 - Module 5: Endpoint Protection and Detection

3: Cisco AMP for Endpoints User Guide - Custom Detection Lists

4: Cisco AMP for Endpoints User Guide - File Analysis and Cisco Threat Grid

1: Cisco Threat Grid - Overview

 The Cisco Umbrella roaming client is a cloud-delivered security service for Cisco’s next-generation firewall that protects employees when they are off the VPN. No additional agents are required. Simply enable the Umbrella functionality in the Cisco AnyConnect client. One of the advantages of the Umbrella roaming client is that it provides visibility into IP-based threats by tunneling suspicious IP connections to the Umbrella cloud for inspection and blocking. This way, the roaming client can prevent malware, phishing, and command-and-control callbacks from reaching malicious domains and IPs, regardless of the port or protocol. The Umbrella roaming client also provides DNS-layer security when the VPN is off, and proactive blocking of emerging threats using real-time data analysis. References:

Cisco Umbrella Roaming

3 Benefits of Using Roaming Client with Cisco Umbrella

Secure remote workers with the Cisco Umbrella roaming client

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 (Module 5.1.1)

https://www.cisco.com/c/dam/en/us/products/collateral/security/cognitive-threat-analytics/at-a-glance-c45-736555.pdf

 A CI/CD pipeline is a process of automating the development, testing, and deployment of software applications. A CI/CD pipeline typically involves multiple tools and stages, such as source code management, build automation, testing, security scanning, and deployment. To secure a CI/CD pipeline, one of the best practices is to avoid hardcoding secrets in config files and CI/CD build tools, and instead use a secure access solution that can authenticate and authorize the access to the pipeline resources.

Duo Network Gateway is a cloud-based solution that provides secure access to internal web applications without requiring a VPN or modifying firewall rules. Duo Network Gateway integrates with Duo’s two-factor authentication (2FA) service to verify the identity of users and devices before granting access to the web applications. Duo Network Gateway also supports single sign-on (SSO) and identity federation with various identity providers, such as Active Directory, Azure AD, Google, and Okta.

By using Duo Network Gateway, you can leverage a CI/CD pipeline without exposing your internal web applications to the internet or compromising security. Duo Network Gateway can protect access to your source code repositories, build servers, testing tools, and deployment platforms. You can also enforce granular access policies based on user roles, device health, location, and time. Duo Network Gateway can help you achieve compliance with industry standards and regulations, such as PCI DSS, HIPAA, and GDPR.

The other options are not as suitable for securing access to a CI/CD pipeline as Duo Network Gateway. A remote access client is a software that allows users to connect to a remote network or server, such as a VPN client. However, a VPN client may not provide sufficient security for a CI/CD pipeline, as it may expose the entire network to potential attacks, or require complex firewall configurations and network segmentation. A VPN client may also introduce performance and reliability issues, as it depends on the quality and availability of the network connection.

SSL WebVPN is a feature of Cisco Adaptive Security Appliance (ASA) that allows users to access web-based resources securely over SSL/TLS. SSL WebVPN can provide secure access to web applications, email, file shares, and other network services. However, SSL WebVPN may not be able to support all the tools and stages of a CI/CD pipeline, as some of them may require non-web protocols, such as SSH, RDP, or VNC. SSL WebVPN may also require additional licenses and hardware resources to support a large number of concurrent users and connections.

Cisco FTD network gateway is a unified platform that combines the features of Cisco ASA and Cisco Firepower. Cisco FTD network gateway can provide firewall, intrusion prevention, malware protection, and VPN services. Cisco FTD network gateway can also integrate with Cisco Identity Services Engine (ISE) to provide identity-based access control and visibility. However, Cisco FTD network gateway may not be the best solution for securing access to a CI/CD pipeline, as it may require complex network design and deployment, and may not support all the CI/CD tools and protocols. Cisco FTD network gateway may also incur additional costs and maintenance efforts.

References := : Secure CI/CD Pipelines: Best Practices for Managing CI/CD Secrets : Duo Network Gateway | Duo Security : VPN vs. Duo Network Gateway | Duo Security : SSL VPN Deployment Guide for Cisco ASA - Cisco : Cisco Firepower Threat Defense Configuration Guide for Firepower Device Manager, Version 6.7 - VPN Overview [Cisco Firepower NGFW]

 Cisco Advanced Malware Protection (AMP) for Endpoints is a cloud-based solution that provides endpoint protection against malware and advanced threats. It can be deployed in different architectures depending on the customer’s needs and preferences. One of the deployment options is the private cloud, which is designed to keep data within a network perimeter. In this option, the customer hosts the AMP for Endpoints console and the AMP cloud on their own infrastructure, and the endpoints connect to the private cloud for analysis and policy enforcement. This option provides more control and privacy over the data, but also requires more resources and maintenance from the customer. The other deployment options are the public cloud, which uses the Cisco-hosted AMP cloud and console, and the hybrid cloud, which uses a combination of the public and private clouds123 References: 1: Protecting Against Malware Threats with Cisco AMP for Endpoints (SSFAMP) course overview 2: Cisco Secure Endpoint (Formerly AMP for Endpoints) - Cisco 3: Cisco Advanced Malware Protection for Endpoints - Zones

The WCCP-configured router identifies if the Cisco WSA is functional by exchanging periodic messages with the WSA. The WSA sends a Here-I-Am message every 10 seconds to the router, which contains information such as the WSA’s IP address, service group, and hash assignment. The router responds with an I-See-You message, which acknowledges the receipt of the Here-I-Am message and provides information such as the router’s IP address, service group, and view of the WCCP topology. These messages allow the router and the WSA to maintain a bidirectional communication and to detect any changes or failures in the WCCP network12.

Option C is the correct answer, as it describes the correct message exchange between the WCCP-configured router and the Cisco WSA. Option A is incorrect, as the router does not use ICMP ping to check the WSA’s functionality, and the traffic is not transmitted to the router, but redirected by the router. Option B is incorrect, as the router does not use ICMP ping to check the WSA’s functionality, and the traffic is not transmitted to the WSA, but redirected by the WSA. Option D is incorrect, as the router does not send a Here-I-Am message, but an I-See-You message, and the WSA does not acknowledge with an I-See-You message, but a Here-I-Am message. References: WCCP Router Configuration Example - Cisco. Cisco ASA WCCP Traffic Redirection Guide - Cisco.

Cisco FMC is assigned the role of a client in the pxGrid ecosystem. A client is a partner that subscribes to the contextual data published by other partners or by ISE. A client can also publish its own data, but it does not have to. A client can use the contextual data to enforce security policies, perform threat analysis, or provide visibility. Cisco FMC can subscribe to various topics from ISE or other partners, such as user identity, session directory, endpoint profile, SGT mapping, threat events, or vulnerability assessment. Cisco FMC can also publish its own threat events to ISE or other partners. Cisco FMC can use the contextual data to apply access control rules, correlation policies, or network discovery policies based on the attributes of the users, endpoints, or sessions12.

The other options are not correct because they are not the roles assigned for Cisco FMC. A server is a partner that publishes contextual data to other partners or to ISE. A server can also subscribe to data, but it does not have to. A server can provide valuable information about the network, such as device inventory, configuration, or compliance. An example of a server is Cisco Prime Infrastructure3. A controller is the core component of the pxGrid ecosystem that manages the communication, authentication, and authorization between the partners. The controller is always ISE, and it is responsible for creating and maintaining the pxGrid domain, distributing the certificates, and facilitating the data exchange4. A publisher is a partner that publishes contextual data to other partners or to ISE, but does not subscribe to any data. A publisher can provide useful information about the network, such as security events, alerts, or incidents. An example of a publisher is Cisco Stealthwatch. References :=

Integrate FMC with ISE using pxGrid | Blue Network Security

How To: Integrate Firepower Management Center (FMC) 6 … - Cisco Community

Cisco Prime Infrastructure and ISE pxGrid Integration - Cisco

pxGrid Overview - Cisco

[Cisco Stealthwatch and ISE pxGrid Integration - Cisco]

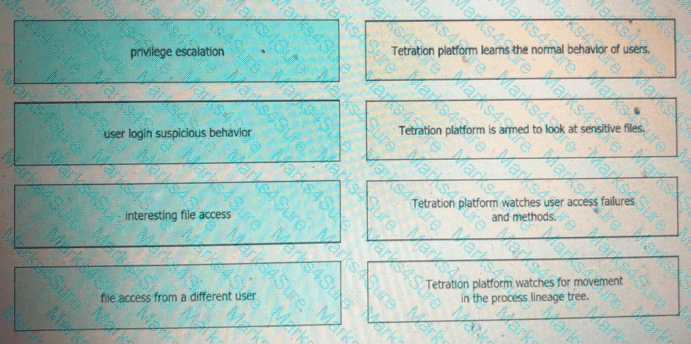

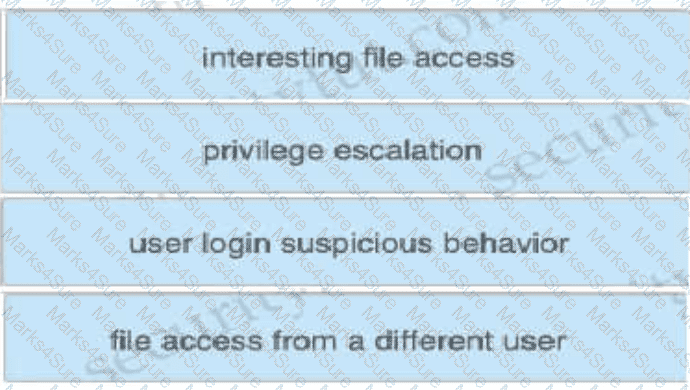

 Tetration is the solution that protects hybrid cloud deployment workloads with application visibility and segmentation. Tetration enables a zero-trust model using segmentation, which allows you to identify security incidents faster, contain lateral movement, and reduce your attack surface. Tetration supports both on-premises and public cloud workloads and provides real-time telemetry data, behavior analysis, software inventory, and policy enforcement. Tetration is part of the Cisco Zero Trust portfolio, which also includes solutions for securing the workforce and workplace. References:

Cisco Tetration Platform - Cisco, Topic: Cisco Tetration offers holistic workload protection for multicloud data centers by enabling a zero-trust model using segmentation.

[Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0], Module 5: Securing the Cloud, Lesson 5.3: Cloud Workload Security, Topic 5.3.1: Tetration

Cisco Zero Trust Tetration, Topic: Tetration provides zero-trust security for workloads as part of the Cisco Zero Trust portfolio.

Explanation

Cisco Cloudlock is a cloud-native cloud access security broker (CASB) that helps you move to the cloud safely. It protects your cloud users, data, and apps. Cisco Cloudlock provides visibility and compliance checks, protects data against misuse and exfiltration, and provides threat protections against malware like ransomware.

To deploy Cisco WSA in transparent mode, the configuration component that must be used is WCCP on switch. WCCP stands for Web Cache Communication Protocol, which is a protocol that allows a network device (such as a switch) to redirect web traffic to a proxy server (such as Cisco WSA) transparently. This means that the client does not need to configure any proxy settings on the browser, and the proxy server can intercept and process the web requests and responses without the client’s knowledge. WCCP can also provide load balancing and failover capabilities for multiple proxy servers.

The other options are incorrect because they are not required or relevant for transparent mode deployment. Option A is incorrect because MDA (Multilink PPP Dial Access) is a feature that allows multiple physical links to be aggregated into a single logical link for dial-up connections. It has nothing to do with transparent mode. Option B is incorrect because PBR (Policy-Based Routing) is a feature that allows routing decisions to be based on criteria other than the destination IP address, such as source IP address, protocol, port, etc. It is not necessary for transparent mode, as WCCP can handle the traffic redirection. Option D is incorrect because DNS resolution on Cisco WSA is not a configuration component, but a function that allows the proxy server to resolve domain names to IP addresses. It is not specific to transparent mode, as it is also used in explicit mode. References:

What is the difference between transparent and forward proxy mode?

User Guide for AsyncOS 12.7 for Cisco Web Security Appliances - LD (Limited Deployment) - Acquire End-User Credentials

Cisco WSA : Is it possible to use web proxy in transparent mode without WCCP?

Cisco Secure Firewall implements website control through URL filtering conditions in access control rules. Category-and-reputation filtering classifies websites by type, enabling a blocking access control rule to deny categories such as social networking while permitting unrelated web use. This is web filtering applied through an access control policy, making option C correct. A global default setting alone does not define the category-specific enforcement required. File policies inspect or control files transferred through permitted connections and do not provide website-category blocking. Option D is incorrectly worded because URL categories are configured as URL conditions, not as destination-network objects in the rule’s destination-network condition. After defining and ordering the blocking rule, the administrator must deploy the access control policy to the managed Threat Defense device. Cisco Secure Firewall URL-filtering guide

Mobile device management (MDM) is a solution that allows organizations to manage and secure mobile devices such as smartphones and tablets. MDM can provide two security benefits:

Robust security policy enforcement: MDM can enforce strong security practices and hygiene by defining unified settings that can be applied across your fleet. This centralized software ensures all devices are continuously staying in compliance. For example, MDM can configure settings like full-disk encryption, screen locks, password policies, device restrictions, VPN, firewall, antivirus, and more. MDM can also prevent unwanted or risky software from being installed, and remotely lock or wipe devices if they are lost, stolen, or compromised1.

Privacy control checks: MDM can help organizations stay compliant with privacy regulations and protect sensitive data from unauthorized access. MDM can segment personal and corporate data on devices, and selectively wipe only corporate data when needed. MDM can also monitor device usage and location, and alert administrators of any suspicious or anomalous behavior. MDM can also provide secure containers for sensitive documents and content, and encrypt data in transit and at rest23.

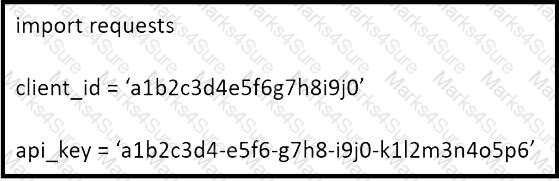

 The API key is used for HTTP authentication when working with APIs, including https://api.amp.cisco.com/v1/computers. It ensures that the user or system making the API request is authenticated and authorized to access the resources requested. The image you sent shows a Python code snippet that imports the requests module, assigns a client ID and an API key to variables, and uses them to make an API call. The API key is passed as a header parameter in the requests.get() function, which is a common way of implementing HTTP authentication. The other options are not correct because they do not describe the role of the API key. The client ID is a different parameter that identifies the user or system making the request, but it does not authenticate them. HTTP authorization is a process of granting or denying access to resources based on the user’s identity and permissions, but it is not the same as authentication. Importing requests is a Python statement that loads the requests module, which is a library for making HTTP requests, but it has nothing to do with the API key. References :=

Some possible references are:

Cisco AMP for Endpoints API

requests - HTTP for Humans

HTTP authentication - MDN Web Docs

IKEv1 has two modes of operation: main mode and aggressive mode. Main mode uses six messages to establish the IKE SA, while aggressive mode uses only three messages. Therefore, aggressive mode is faster than main mode, but less secure, as it exposes the identities of the peers in cleartext. This makes it vulnerable to man-in-the-middle attacks. IKEv2 does not have these modes, but uses a single four-message exchange to establish the IKE SA. IKEv2 also encrypts the identities of the peers, making it more secure than IKEv1 aggressive mode.

IKEv1 uses EAP authentication only for remote access VPNs, not for site-to-site VPNs. IKEv2 supports EAP authentication for both types of VPNs. EAP authentication allows the use of various authentication methods, such as certificates, tokens, or passwords.

IKEv1 conversations are initiated by the ISAKMP header, which contains the security parameters and the message type. IKEv2 conversations are initiated by the IKE_SA_INIT message, which contains the security parameters, the message type, and the message ID. The message ID is used to identify and order the messages in the IKEv2 exchange.

NAT-T is supported by both IKEv1 and IKEv2. NAT-T stands for Network Address Translation-Traversal, and it is a mechanism that allows IKE and IPsec traffic to pass through a NAT device. NAT-T detects the presence of NAT and encapsulates the IKE and IPsec packets in UDP headers, so that they can be translated by the NAT device. References:

IKEv1 vs IKEv2 – What is the Difference?

Comparison between IKEv1 and IKEv2

IKEv2 vs IKEv1: What are the differences?

 To prevent rogue NTP servers from inserting themselves as the authoritative time source, the administrator needs to configure NTP authentication and specify the interface for syncing to the NTP server. NTP authentication allows the ASA to verify the identity and integrity of the NTP packets received from the server, using a shared secret key. Specifying the interface for syncing to the NTP server ensures that the ASA uses the correct source address for sending and receiving NTP packets, and avoids potential routing issues. The other options are not required or relevant for this task. Specifying the NTP version is optional and does not affect security. Configuring the NTP stratum is only applicable for NTP servers, not clients. The ASA can only act as an NTP client, not a server. Setting the NTP DNS hostname is not recommended, as it introduces a dependency on DNS resolution and may cause synchronization problems if the DNS server changes the IP address of the NTP server. References :=

Some possible references are:

Configure NTP Authentication on Secure Network Analytics

CLI Book 1: Cisco ASA Series General Operations CLI Configuration Guide, 9.6 - Basic Settings

Cisco ASA NTP and Clock Configuration with Examples

Explanation

Explanation

Cisco Cloudlock: Secure your cloud users, data, and applications with the cloud-native Cloud Access Security Broker (CASB) and cloud cybersecurity platform.

Cisco AMP (Advanced Malware Protection) is a technology that provides a combination of endpoint protection, endpoint detection, and response. Cisco AMP protects endpoints from malware and other threats by using multiple prevention engines, including signatures, machine learning, and file reputation. Cisco AMP also continuously monitors and analyzes endpoint activity to detect malicious behavior and indicators of compromise. Cisco AMP can respond to threats by blocking, isolating, or removing malicious files, processes, or devices across the network. Cisco AMP leverages the cloud-based intelligence of Cisco Talos and Cisco Threat Grid to provide global threat visibility and analysis. Cisco AMP can also integrate with Cisco Umbrella and other security solutions to provide a comprehensive and unified approach to endpoint security. References:

Cisco Secure Endpoint (Formerly AMP for Endpoints)

Prevent, Detect and Respond with Cisco AMP for Endpoints

Provide State-of-the-Art Endpoint Protection as a Managed Service

Explanation

Two-factor authentication adds a second layer of security to your online accounts. Verifying your identity using a

second factor (like your phone or other mobile device) prevents anyone but you from logging in, even if they

know your password.

Note: Single sign-on (SSO) is a property of identity and access management that enables users to securely

authenticate with multiple applications and websites by logging in only once with just one set of credentials

(username and password). With SSO, the application or website that the user is trying to access relies on a

trusted third party to verify that users are who they say they are.

Endpoint Detection and Response (EDR) continuously records endpoint activity, applies behavioral analytics to suspicious actions, supports investigation, and enables response actions such as isolating or remotely containing a compromised host. This provides visibility into previously unknown or zero-day behavior while integrating automated prevention and response for known threats. An Endpoint Protection Platform can block known malware, but pairing it only with host intrusion detection does not provide the complete behavioral investigation and remote-containment capability stated. Offline antivirus updates emphasize signature maintenance and cannot deliver live investigation or console-driven containment. A Secure Email Gateway protects the email channel and can sandbox attachments, but it does not monitor and contain general endpoint activity. Therefore, EDR with behavioral analytics and remote containment is the only solution satisfying all parts of the requirement. Cisco EDR overview

 Multi-factor authentication (MFA) is an authentication method that requires the user to provide two or more verification factors to gain access to a resource such as an application, online account, or a VPN. MFA is a core component of a strong identity and access management (IAM) policy1. MFA is important to implement inside of an organization because it can prevent brute force attacks from being successful. A brute force attack is a type of cyberattack that tries to guess the user’s password or PIN by trying different combinations until it finds the correct one. This can be done manually or with automated tools. MFA can stop brute force attacks by requiring an additional factor of authentication that the attacker does not have, such as a phone, a token, a biometric, or a location. MFA can also reduce the risk of other types of attacks that rely on stealing or compromising the user’s credentials, such as phishing, keylogging, or credential stuffing. References := 1: What is Multi-Factor Authentication (MFA)? | OneLogin

 The Cisco Umbrella package that supports selective proxy for inspection of traffic from risky domains is SIG Advantage. SIG stands for Secure Internet Gateway, and it is a cloud-based service that provides comprehensive web security and threat intelligence. SIG Advantage includes all the features of DNS Security Advantage, such as DNS-layer protection, intelligent proxy, and cloud-delivered firewall, plus additional features such as full proxy, SSL decryption, advanced malware protection, and data loss prevention. Selective proxy is a feature that allows Umbrella to route risky domain requests to a proxy for deeper URL and file inspection, without impacting the performance or latency of legitimate traffic. Selective proxy is based on the reputation of the domains, which are classified into three categories: good, bad, and grey. Good domains are allowed without proxying, bad domains are blocked at the DNS layer, and grey domains are proxied for further inspection. Selective proxy is available in both DNS Security Advantage and SIG Advantage packages, but only SIG Advantage offers full proxy for all web traffic, which provides more granular control and visibility over web transactions and file types. References:

Cisco Umbrella Packages

Why Umbrella DNS Security?

Manage the Intelligent Proxy

Cisco Umbrella - Selected Proxy versus Full Proxy

 Platform as a Service (PaaS) is a cloud service model that delivers and manages all the hardware and software resources to develop applications through the cloud. The service provider is responsible for the infrastructure, middleware, runtime, and operating system, while the customer only has to focus on the application and data. PaaS enables the customer to avoid the hassle of patching, updating, or maintaining the operating system, as well as the underlying hardware and network12. Infrastructure as a Service (IaaS) is a cloud service model that delivers on-demand infrastructure resources, such as compute, storage, networking, and virtualization, to the customer via the cloud. The service provider hosts and manages the infrastructure, but the customer is responsible for the operating system, middleware, virtual machines, and any apps or data. IaaS requires the customer to handle the patch management of the operating system, as well as the security and configuration of the virtual machines34. References := 1: Use platform as a service (PaaS) options - Azure Architecture Center 2: What is Platform-as-a-Service (PaaS)? - Cloudflare 3: PaaS vs IaaS vs SaaS: What’s the difference? | Google Cloud 4: SaaS vs PaaS vs IaaS: What’s The Difference & How To Choose – BMC Software | Blogs

 The Cisco ESA uses the Sender Domain Reputation (SDR) service to assign a reputation verdict to each message based on the sender’s domain and other attributes. The SDR verdicts range from Awful to Good, and each verdict has a corresponding reputation score. The administrator can configure a message or content filter to take action on messages based on their SDR verdict or score. For example, the administrator can set a threshold score to drop messages that have a poor or awful reputation. However, if the SDR service cannot determine a verdict for a message, it assigns an undetermined verdict with a score of -1. This means that the message will not be dropped by the filter unless the administrator explicitly sets the threshold to -1 or lower. Therefore, the reason why the Cisco ESA is not dropping files that have an undetermined verdict is because the file has a reputation score that is above the threshold. References :=

Some possible references are:

Configure Sender Domain Reputation for ESA

Sender Domain Reputation Filtering

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 (source book)

The Python script is using the dnac_login function to authenticate to a Cisco DNA Center server and obtain a token that can be used for subsequent API calls. The function takes three parameters: host, username, and password. It constructs a URL for the authentication endpoint, which is https://{}/api/system/v1/auth/token. It then uses the requests library to send a POST HTTP request to the URL, passing the username and password as HTTP Basic Authentication credentials, and setting the headers to indicate the expected content type and response format. The function also disables the SSL verification by setting the verify parameter to False. This is not recommended for production environments, as it exposes the script to potential security risks. The function then returns the token value from the JSON response, which is accessed by using the response.json()[ " Token " ] syntax. The token can then be used as a bearer token for subsequent API calls to the Cisco DNA Center server. References:

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 9: Content Security, Lesson 9.3: Cisco DNA Center APIs

Cisco DNA Center Platform API Reference, Authentication API

Refer to the exhibit. What will happen when the Python script is executed?

Explanation

Obviously, if you allow all traffic to these risky domains, users might access malicious content, resulting in an infection or data leak. But if you block traffic, you can expect false positives, an increase in support inquiries, and thus, more headaches. By only proxying risky domains, the intelligent proxy delivers more granular visibility and control.

The intelligent proxy bridges the gap by allowing access to most known good sites without being proxied and only proxying those that pose a potential risk. The proxy then filters and blocks against specific URLs hosting malware while allowing access to everything else.

Explanation

The AES encryption algorithm encrypts and decrypts data in blocks of 128 bits (block size). It can do this using 128-bit, 192-bit, or 256-bit keys

Explanation

Cisco Hybrid Email Security is a unique service offering that combines a cloud-based email security deployment

with an appliance-based email security deployment (on premises) to provide maximum choice and control for

your organization. The cloud-based infrastructure is typically used for inbound email cleansing, while the onpremises appliances provide granular control – protecting sensitive information with data loss

prevention (DLP) and encryption technologies.

Explanation

Explanation

A teardrop attack is a denial-of-service (DoS) attack that involves sending fragmented packets to a target

machine. Since the machine receiving such packets cannot reassemble them due to a bug in TCP/IP

fragmentation reassembly, the packets overlap one another, crashing the target network device. This generally happens on older operating systems such as Windows 3.1x, Windows 95, Windows NT and versions of the Linux kernel prior to 2.1.63.

Anycast IP is a component of Cisco umbrella architecture that increases reliability of the service by allowing the same IP address to exist on multiple servers around the world. This way, the user’s request is automatically routed to the nearest and fastest data center, and failover is seamless in case of an outage. Anycast IP also reduces latency and improves performance by using BGP to select the shortest path to the destination12. References := 1: Why Cisco Umbrella uses anycast routing - Cisco Umbrella 2: Cisco Umbrella At a Glance

 MFA stands for multi-factor authentication, which is a security method that requires users to provide two or more pieces of evidence to verify their identity before accessing a system. MFA can prevent unauthorized access to the system if a user’s password is compromised, because the attacker would also need to obtain the other factors, such as a one-time code, a biometric scan, or a physical token. MFA can be implemented using various technologies, such as SMS, email, phone call, mobile app, or hardware device. According to Microsoft, adopting MFA can prevent approximately 99.9% of compromised user accounts, significantly bolstering security measures against unauthorized access12. References:

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 6: Secure Network Access and Visibility, Lesson 6.1: Implementing Secure Network Access

350-701 SCOR - Cisco, Exam Topics, 6.1 Implement secure network access

What Is Unauthorized Access? 5 Key Prevention Best Practices - Cynet, Best Practice #3: Implement multi-factor authentication

Unauthorized Access: Top 8 Practices for Detecting and Responding - Ekran System, Best Practice #3: Use multi-factor authentication

Explanation

You can configure discovery rules to tailor the discovery of host and application data to your needs.

The Firepower System can use data from NetFlow exporters to generate connection and discovery events, and to add host and application data to the network map.

A network analysis policy governs how traffic is decoded and preprocessed so it can be further evaluated, especially for anomalous traffic that might signal an intrusion attempt - > Answer D is not correct.

Asymmetric encryption, also known as public key cryptography, uses two different keys for encryption and decryption: a public key and a private key. The public key can be shared with anyone, while the private key must be kept secret. Data encrypted with the public key can only be decrypted with the private key, and vice versa. This ensures that only the intended recipient can access the encrypted data, and that the sender can prove their identity with a digital signature. Asymmetric encryption is widely used for securing Internet communications, such as TLS/SSL, which enables HTTPS. Some examples of asymmetric encryption algorithms are RSA, Diffie-Hellman, and Elliptic Curve Cryptography. The other options are not correct because they do not use a public key and private key. Symmetric encryption uses the same key for encryption and decryption, and is faster and more efficient than asymmetric encryption. However, symmetric encryption requires a secure way to exchange the key between the sender and the receiver, which can be facilitated by asymmetric encryption. Linear and nonlinear encryption are not types of encryption, but rather properties of encryption algorithms. A linear encryption algorithm is one that can be expressed as a linear function, such as XOR. A nonlinear encryption algorithm is one that involves more complex mathematical operations, such as modular arithmetic or S-boxes. Nonlinear encryption algorithms are generally more secure and resistant to cryptanalysis than linear encryption algorithms. References :=

Public-key cryptography - Wikipedia

How does public key cryptography work? - Cloudflare

Public and private encryption keys | PreVeil

AES encryption, what are public and private keys?

Explanation

Explanation

The following are the benefits of deploying Cisco Advanced Phishing Protection on the Cisco Email Security

Gateway:

Prevents the following:

+ Attacks that use compromised accounts and social engineering.

+ Phishing, ransomware, zero-day attacks and spoofing.

+ BEC with no malicious payload or URL.

A Sender/Recipient pair is the most precise exception because the requirement concerns communications between a particular sender and recipient, not every message involving either party. Cisco Secure Email Threat Defense policy exceptions act as exceptions to the base policy and can be matched using sender and recipient conditions. Cisco’s product update specifically describes Sender/Recipient Pair Policy Exceptions as providing more granular controls for gateway customers. Therefore, option B meets the requirement while limiting the exception’s scope. A wildcard can exempt unrelated messages and weaken enforcement. A sender-only rule would affect that sender’s mail to all recipients, while a recipient-only rule would affect messages from every sender to that recipient. Applying least privilege to email policy means defining only the exact relationship that needs special handling. Cisco Policy Exceptions supports this configuration.

================

Active Directory (AD) is an ID store that requires that a shadow user be created on Cisco ISE for the admin login to work. A shadow user is a user account that is defined in the ISE internal database, but has the password set to external. This means that the user authentication is performed against an external identity source, such as AD, while the user authorization is based on the ISE admin group membership. A shadow user is useful when the admin wants to assign different roles or permissions to specific AD users, rather than using AD groups. To create a shadow user, the admin must check the External checkbox in the ISE admin user configuration, and make sure that the username matches the AD username. The shadow user must also be assigned to an ISE admin group that has the Type set to External123. References := 1: ISE Admin User Shadow AD Account Issue 2: ISE Admin user authentication from AD 3: Which ID store requires that a shadow user be created on Cisco ISE for the admin login to work?

In a Cisco Secure Workload implementation, telemetry data can be generated from IPFIX (Internet Protocol Flow Information Export) records using NetFlow connectors and Cisco Secure Workload itself. NetFlow provides insights into network traffic flow and volume, while Cisco Secure Workload uses this data for visibility, segmentation, and security analytics within the data center.

Explanation

Cisco Cloudlock is a cloud-native cloud access security broker (CASB) that helps you move to the cloud safely.

It protects your cloud users, data, and apps. Cisco Cloudlock provides visibility and compliance checks,

protects data against misuse and exfiltration, and provides threat protections against malware like ransomware.

URL conditions in access control rules allow you to limit the websites that users on your network can access. This feature is called URL filtering. There are two ways you can use access control to specify URLs you want to block (or, conversely, allow):

– With any license, you can manually specify individual URLs, groups of URLs, and URL lists and feeds to achieve granular, custom control over web traffic.

– With a URL Filtering license, you can also control access to websites based on the URL’s general

classification, or category, and risk level, or reputation. The system displays this category and reputation data in connection logs, intrusion events, and application details.

Using category and reputation data also simplifies policy creation and administration. It grants you assurance that the system will control web traffic as expected. Finally, because Cisco’s threat intelligence is continually updated with new URLs, as well as new categories and risks for existing URLs, you can ensure that the system uses up-to-date information to filter requested URLs. Malicious sites that represent security threats such as malware, spam, botnets, and phishing may appear and disappear faster than you can update and deploy new policies.

Mobile device management (MDM) is a toolset that provides a workforce with mobile productivity tools and applications while keeping corporate data secure1. One of the essential capabilities of an MDM solution is the unified management of mobile devices, Macs, and PCs from a centralized dashboard2. This allows IT and security departments to manage all of a company’s devices, regardless of their operating system, and perform tasks such as provisioning, configuration, update, lock, wipe, and troubleshoot2. Another important capability of an MDM solution is the enforcement of device security policies from a centralized dashboard3. This enables IT and security departments to protect the device’s applications, data, and content, and ensure compliance with organizational and regulatory standards3. For example, an MDM solution can set minimum password strength, encrypt data, restrict access, and detect threats3.

 1: What is Mobile Device Management (MDM)? | IBM 2: 5 Essential Capabilities of an MDM Solution | Macworld 3: What is device management? | Microsoft Learn

 IOS zone-based firewalls (ZBFW) are a feature that provides stateful firewall policies between groups of interfaces known as zones. A zone is a logical grouping of one or more interfaces that have similar security requirements. A zone can be applied to physical interfaces, subinterfaces, port channels, VLAN interfaces, or tunnel interfaces. However, an interface can be assigned only to one zone, and it cannot be shared between zones. This is because the ZBFW policy is applied between zones, not interfaces, and it controls the bidirectional traffic flow between them. Therefore, an interface can belong to only one zone at a time, and it must be removed from one zone before it can be added to another zone. This ensures that the firewall policy is consistent and unambiguous for each interface.

References :=

Security Configuration Guide: Zone-Based Policy Firewall, Cisco IOS XE Gibraltar 16.12.x, Configuring Zones

Understand the Zone-Based Policy Firewall Design, Zone-Based Policy Overview

IOS Zone Based Firewall Step-by-Step Basic Configuration, Zone Based Firewall Vs CBAC

 Secret key cryptography, also known as symmetric key cryptography, is a type of encryption where a single secret key is used for both encryption and decryption of a message. The cryptographic key is kept secret between the sender and receiver, making it difficult for anyone else to decipher the message. Some of the functions of secret key cryptography are:

Key selection without integer factorization: Secret key cryptography does not rely on complex mathematical problems such as integer factorization or discrete logarithms to generate keys. Instead, the keys are chosen randomly or derived from a passphrase or a shared secret. This makes the key generation process faster and simpler than in public key cryptography.

Utilization of less memory: Secret key cryptography uses less memory than public key cryptography, as it only requires one key to be stored and managed. Public key cryptography, on the other hand, requires two keys (public and private) for each user, which increases the memory overhead and complexity of key management.

The other options are not functions of secret key cryptography, but rather characteristics of public key cryptography or asymmetric cryptography, which is a different type of encryption where different keys are used for encryption and decryption. Public key cryptography has the following features:

Utilization of different keys for encryption and decryption: Public key cryptography uses a pair of keys, one public and one private, for each user. The public key can be shared with anyone, while the private key must be kept secret. The public key is used to encrypt messages, while the private key is used to decrypt them. This allows users to communicate securely without having to exchange a secret key beforehand.

Utilization of large prime number iterations: Public key cryptography relies on hard mathematical problems such as integer factorization or discrete logarithms to generate keys. These problems involve finding the prime factors of large numbers or finding the discrete logarithms of numbers in a finite field. These problems are easy to solve in one direction, but hard to solve in the reverse direction. For example, it is easy to multiply two large prime numbers, but hard to find the prime factors of the product. This makes the keys hard to break by brute force or other methods.

Provides the capability to only know the key on one side: Public key cryptography enables users to encrypt messages without knowing the recipient’s key, and vice versa. This is possible because the encryption and decryption keys are different and mathematically related. For example, Alice can encrypt a message with Bob’s public key, and only Bob can decrypt it with his private key. Alice does not need to know Bob’s private key, and Bob does not need to know Alice’s key. This also enables public key cryptography to support digital signatures, which are a way of verifying the identity and integrity of a message.

References :=

What Is Secret Key Cryptography? A Complete Guide - Helenix

Definition of Secret-key Cryptography - Gartner

Cisco Secure Email Threat Defense public APIs require the API key in the x-api-key request header in addition to the authorization mechanism used for the request. Cisco’s Message Search API documentation states that API keys are created under Administration > API Clients and that rate limiting is applied by sending x-api-key in request headers. The API error table also identifies a missing x-api-key as a forbidden-request condition. Therefore, option A is correct. A client secret is used when obtaining credentials or tokens and should not be substituted as an arbitrary request header. token-id and x-auth-token are not the documented headers for this API workflow. The external application must preserve the bearer token and add the API-key header to every applicable call. Cisco API documentation verifies this requirement.

================

The IOS AAA login method-list syntax is aaa authentication login {default | list-name} method-list. Option C creates the default login list, selects the named TACACS+ server group first, and specifies the local user database as the next method when the group is unavailable. Cisco’s AAA authentication guidance confirms that aaa authentication login default group tacacs+ local prefers TACACS+ and uses local authentication when the servers do not respond. Option A reverses the desired priority and uses invalid method-list construction. Option B omits the required default or named-list position before the methods. Option D applies neither the correct login method-list syntax nor the SSH access requirement. The fallback occurs for a server error or timeout, not for an explicit TACACS+ rejection. Therefore, C is the correct command.

Explanation

Protect sensitive content in outgoing emails with Data Loss Prevention (DLP) and easy-to-use email

encryption, all in one solution.

Cisco Email Security appliance can now handle incoming mail connections and incoming messages from

specific geolocations and perform appropriate actions on them, for example:

– Prevent email threats coming from specific geographic regions.

– Allow or disallow emails coming from specific geographic regions.

To enable a separated email transfer flow from the Internet and from the LAN, the engineer must use the two-interface deployment mode on the Cisco WSA. This mode allows the WSA to have two separate network interfaces, one for the Internet traffic and one for the LAN traffic. This way, the WSA can apply different policies and settings for each interface, and isolate the email flows from each other. The two-interface mode also provides better performance and security than the single-interface mode, which uses only one network interface for both Internet and LAN traffic12. The other deployment modes, such as multi-context, transparent, or single-interface, do not support a separated email transfer flow from the Internet and from the LAN. References:

Two-interface mode, section “Deployment”.

WSA network configuration, section “Interfaces”.

Always-On VPN enforces use of the Cisco Secure Client tunnel whenever an endpoint is outside a trusted network. The client automatically establishes the VPN after user logon, keeps the session active, and continually attempts to restore it if connectivity is interrupted. Administrators can remove the user’s ability to disconnect by disabling the Allow VPN Disconnect setting in the client profile. Smart Tunnel is a legacy application-access technique and does not enforce continuous full-client VPN connectivity. Path MTU Discovery determines a usable packet size and is unrelated to session enforcement. Allow Local LAN Access permits access to local resources while the tunnel is active, which can weaken isolation but does not keep the tunnel connected. Consequently, Always-On is the feature that meets the requirement. Cisco Secure Client Always-On VPN guide

 A security application that notifies a controller within a software-defined network architecture about a specific security threat is using a northbound API. A northbound API is an interface that enables communication between the SDN controller and the applications or management systems that use the network services1. A security application can use a northbound API to send alerts, requests, or commands to the SDN controller, which can then take appropriate actions on the network devices or policies2. For example, a security application can use a northbound API to inform the SDN controller about a malicious traffic pattern, and the SDN controller can then block or redirect the traffic using a southbound API3.

 1: What is Software-Defined Networking (SDN)? | VMware Glossary 2: Intent-Based Networking’s Next Evolution: The DNA Center Platform - Cisco Blogs 3: Cisco SDN Security: Securing the Software Defined Network - Cisco

Option D satisfies all three requirements: inline inspection, tunable PHI detection, and application-category scoping. Cisco Secure Access Real-Time DLP examines web traffic inline through the secure web gateway, whereas SaaS API DLP examines stored application data out of band. A custom PHI classification permits the organization to tune identifiers, proximity, and match-count thresholds to reduce false positives. The web profile can then limit enforcement to the Generative AI application category instead of inspecting all general browsing traffic. Option A is overly broad and retains default thresholds. Option B uses API-based DLP rather than the required real-time inspection. Option C uses vendor-domain lists and a built-in classification, which does not satisfy the requirement for proximity-based custom tuning. Cisco Generative AI controls

================
