3V0-22.25 Advanced VMware Cloud Foundation 9.0 Operations Questions and Answers

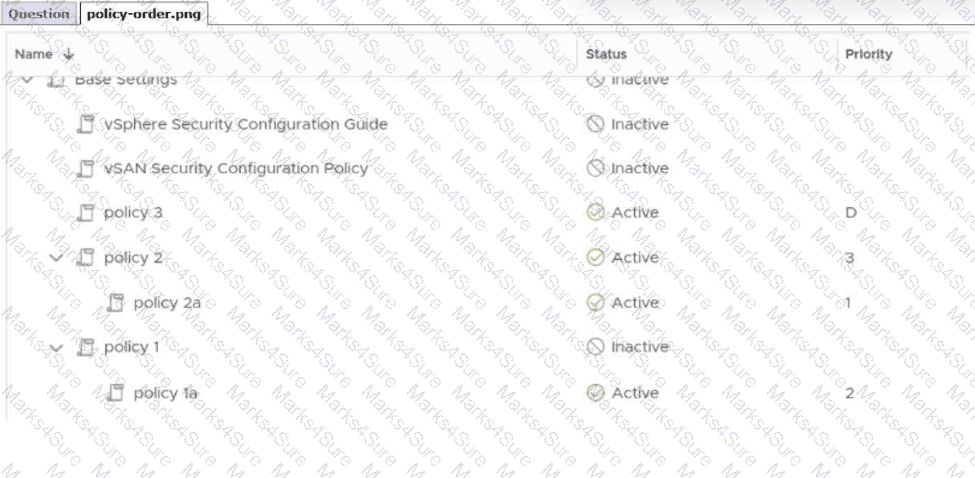

The applied policy is policy 2a because VCF Operations resolves multiple policy assignments by using active policy priority , not by custom group name, policy inheritance tree location, or alphabetical order. The exhibit shows policy 2a as active with priority 1 , policy 1a as active with priority 2 , and policy 2 as active with priority 3 . policy 1 is inactive, so it is not eligible to become the effective policy for the workload. VCF Operations documentation states that policies are applied in priority order as shown on the Active Policies tab, and that priority 1 is the highest priority. It further states that when an object is a member of multiple object groups and each group has a different policy assigned, VCF Operations associates the highest ranking policy with that object . Therefore, even though Workload-01 belongs to all four custom groups, the effective policy is the active policy with the highest rank: policy 2a . Reference topic: Objective 4.5 – Managing VCF Operations with VCF Policy / Policy Hierarchy / Policy Assignment / Active Policy Priority .

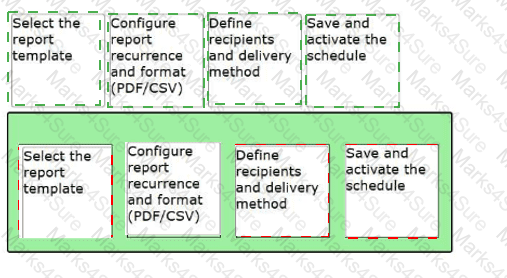

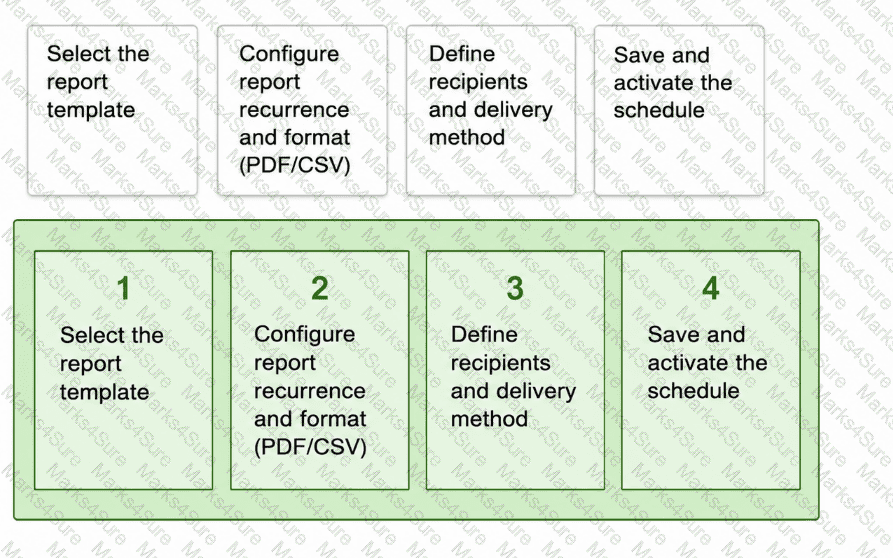

The correct sequence starts by selecting the relevant report template , because VCF Operations schedules are created against an existing predefined or custom report template. The documented workflow is accessed from Infrastructure Operations > Dashboards & Reports > Reports , where the administrator selects the required template from the Report Templates tab and chooses Schedule from the template actions . After the template and target object are selected, the administrator configures the schedule parameters, including time zone, start date, start time, and Recurrence . For a weekly report, the recurrence is set to Weekly . Report output is based on the template format, and VCF Operations supports both PDF and CSV report formats . The next step is to define delivery, such as enabling Email report , entering recipients, and selecting the outbound rule, or saving the report to an external location such as a network share . Finally, the administrator saves the configuration to activate the schedule. Reference topic: Objective 4.10 – Creating Custom Dashboards, Views and Reports / Schedule a Report / Report Templates / Recurrence and Delivery Options .

The correct administrative action is to clone the predefined dashboard and then modify the cloned copy. “Live! Heavy Hitters” is a predefined dashboard used to analyze shared infrastructure misuse and identify virtual machines with high activity against shared resources. Because it is delivered as predefined content, the supported customization pattern is not to directly edit the original dashboard, but to clone it and make changes to the copy. Broadcom’s dashboard documentation states that administrators can clone and edit predefined dashboards or create new dashboards from scratch. This preserves vendor-provided content while allowing operational teams to add site-specific widgets or metrics such as Cost | VM Cost Trend . Option A is not the best answer because changing ownership is used for ownership/sharing administration, not the preferred method for altering predefined dashboard content. Options B and C imply direct editing of the original dashboard, which is not the expected process for built-in dashboards. Option D is incorrect because exporting is used for portability or backup, not live customization. Reference topic: Objective 4.10 – Creating Custom Dashboards, Views and Reports in VCF Operations / predefined dashboards / clone and customize dashboard workflow .

The administrator should create a Committed Scenario for the migration project. In VCF Operations, a standard What-If scenario models possible capacity impact, but a committed scenario is used when the organization has decided that capacity must be reserved for an upcoming or planned workload. The documentation states that when you are sure capacity must be reserved, you commit the scenario so VCF Operations sets aside resources for the planned workload, even before the actual changes are implemented . This directly satisfies the requirement that the migration capacity must not be consumed by other projects over the 12-month migration window. VCF Operations also explains that committed scenarios help capacity and operations teams understand current capacity and future capacity requirements, and that committed capacity prevents ad hoc resource increases from consuming resources while capacity planning is underway . Option B merges unrelated planning events and does not reserve capacity independently. Option C is for migration to VMware Cloud services, not unmanaged vCenter-to-VCF workload-domain migration. Option D delays future projects but does not reserve the migration capacity. Reference topic: Objective 4.3 – What-If Analysis / Committed Scenarios / Capacity Reservation .

The scheduled oversized action remains valid for acme001, so the VM is reduced by 2 vCPU . Excluding the VM from the undersized list affects subsequent undersized resize actions, not the oversized action that was already scheduled. VCF Operations Rightsize separates oversized and undersized workflows. For oversized VMs, the administrator selects the Oversized VM tab, optionally excludes VMs, selects the target VMs, and schedules or runs the resize action to reduce vCPU or memory . For undersized VMs, the administrator separately selects the Undersized VMs tab, optionally excludes VMs, and then schedules or runs the scale-up action . The Rightsize table explicitly provides separate actions for oversized and undersized VMs, with Schedule Action , Resize VM(s) , and Exclude VM(s) available within each category . Because acme001 was selected for the oversized scheduled action before any undersized exclusion was applied, its vCPU reduction is still scheduled. Because the administrator then excluded acme001 from the undersized list before scheduling the undersized scale-up for the remaining VMs, acme001 is not included in that memory increase. Reference topic: Objective 4.2 – Rightsizing / Oversized and Undersized VM Actions / Exclude VM(s) / Scheduled Actions .

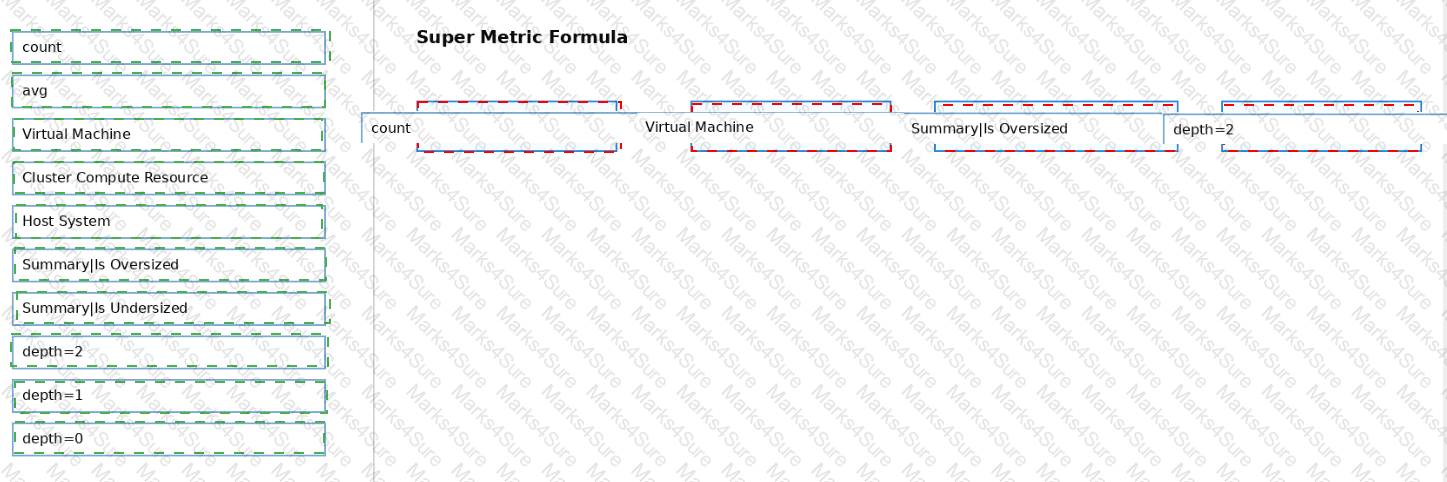

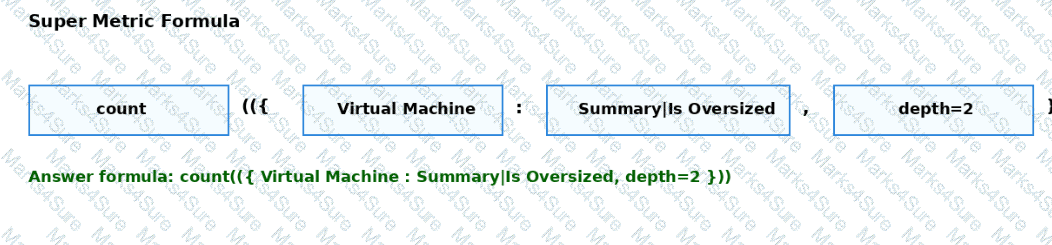

The report must count oversized Virtual Machine objects beneath the workload domain cluster. The correct aggregate function is count , because the requirement is a total number, not an average. The correct object type is Virtual Machine , because the oversized state is a VM-level metric. The correct metric is Summary|Is Oversized , which maps to the VM metric key summary|oversized and returns whether the VM is oversized . The correct relationship depth is depth=2 , because the VCF Operations super metric guidance states that when a super metric is assigned to a cluster and calculates across virtual machines, the cluster is two levels above the VM in the relationship chain, so depth must be changed to 2

The administrator should configure Workload Optimization - Consolidate . In VCF Operations, Operational Intent defines how workload placement and optimization should behave across clusters. The Consolidate mode is specifically intended to minimize the number of clusters used by workloads while still maintaining acceptable performance. Broadcom’s Workload Automation policy documentation describes Consolidate as the mode used to proactively minimize the number of clusters used by workloads, which directly aligns to the requirement to use the smallest possible number of clusters in the data center while continuing to meet performance goals. ( TechDocs ) Admission Control based on slots is a vSphere HA construct and does not provide VCF Operations workload-placement intent across multiple clusters. DRS aggressiveness affects balancing inside a cluster, not strategic placement across 10 clusters. Cluster Headroom reserves capacity buffer, but by itself it does not drive consolidation behavior. Reference topic: Objective 4.6 – Workload Optimization in VCF Operations / Operational Intent / Consolidate, Balance, and Moderate modes .

The administrator must create the scheduled action directly from the Rightsize feature. VCF Operations Rightsize is the capacity-optimization workflow used to adjust CPU and memory allocations for oversized and undersized virtual machines. For oversized VMs, the administrator selects the target VM, opens the resize workflow, reviews the recommended vCPU and memory reduction, and can use the edit controls to modify the recommendation before execution. In this scenario, the default recommendation is a 4 vCPU reduction, but the agreed action is only 50 percent of that value, so the administrator adjusts the reduction to 2 vCPU . The Rightsize page also provides SCHEDULE ACTION , which opens a scheduling dialog so the resize action can run later during the maintenance window; scheduled jobs are then managed through Automation Central . Automation Central is used to manage scheduled jobs, but the rightsizing task is initiated from Rightsize. Reclaim is used for powered-off VMs, idle VMs, snapshots, and orphaned disks, not vCPU rightsizing. vSphere scheduled tasks bypass VCF Operations recommendations. Reference topic: Objective 4.2 – Manage VCF Capacity / Rightsize Workloads / Oversized VMs / Scheduled Actions .

The correct action is to adjust the Troubleshooting Workbench time range to cover the incident window, then inspect the Property Changes evidence. VCF Operations states that the workbench investigates potential evidence within a selected scope and time range, and that the time range can be changed up to seven days using the date and time controls . Property changes are one of the key evidence types displayed in the Potential Evidence tab, alongside Events and Anomalous Metrics. The documentation specifically describes Property Changes as important configuration changes that occurred within the selected scope and selected time, including both single and multiple property changes . Therefore, the administrator must set the Time Range to Last 7 days and review the listed Property Changes for the affected VM. Option B is incorrect because the maximum is not 24 hours. Option C is incorrect because evidence is tied to the selected time range. Option D is less precise because “Last week” may represent a calendar week rather than the last seven days. Reference topic: Objective 4.9 – VCF Operations Troubleshooting Tools and Methodologies / Troubleshooting Workbench / Potential Evidence / Property Changes .

The correct troubleshooting sources are the Request Log , the Management Pack Builder Adapter log , and the Integration Designer Controller log . Management Pack Builder troubleshooting is centered on validating the API requests, collection execution, adapter behavior, and server-side design processing. The VCF 9.0 documentation states that every test request or test collection in Management Pack Builder exposes request tabs showing the body, headers, and logs; these are used to diagnose response-code errors and request/response issues . For collection problems after installation, the administrator should review Management Pack Builder Adapter logs , located under $VCOPS_BASE/user/log/adapters/MPBAdapter on the selected node or cloud proxy, because these logs show adapter-side warnings and errors during collection . If the issue appears to be with Management Pack Builder itself, the official guidance identifies /usr/lib/vmware-vcops/user/log/integration-designer-controller.log as the server-side log to review . The Design Screen is used to build and verify definitions, but it is not one of the listed troubleshooting data sources. Observability Workbench is for infrastructure troubleshooting, not Management Pack Builder design diagnostics. Reference topic: Objective 4.8 – Management Pack Builder / Troubleshooting a Design .

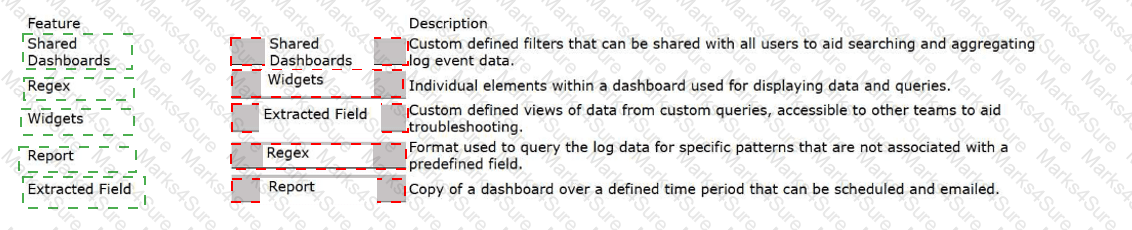

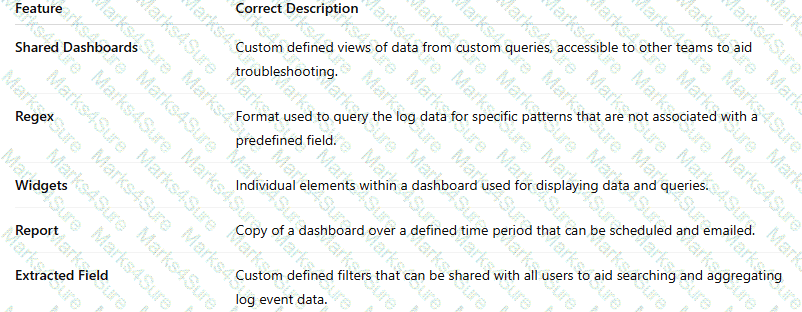

VCF Operations for Logs uses queries made from keywords, regular expressions, field operations, and aggregations. Regular expressions provide sophisticated pattern matching when keyword or glob searches are not sufficient. Extracted fields add structure to unstructured logs and can be used in filters and aggregations. Dashboards are created from widgets and views, while reports are scheduled snapshots of dashboards or views that can be distributed for offline review.

The required action is to perform an inventory sync . In VCF Operations Fleet Management, vertical scale-up depends on current inventory data from the managed component. The scale workflow first validates that the Fleet Management appliance has an accurate view of the VCF Operations cluster, including node inventory and placement information. The documented vertical scale-up workflow states that after selecting Fleet Management > Lifecycle > Components , choosing the component, and selecting Vertical Scale Up , the administrator must acknowledge the downtime warning and click Trigger Inventory Sync to synchronize the VCF Operations Fleet Management appliance with the latest data from the cluster. After the inventory sync completes successfully, the administrator can click Proceed and continue selecting nodes and target scale-up sizing . Mandatory snapshots are not the corrective action for stale inventory. Taking the cluster offline is not the manual remediation for the “Needs Attention” inventory condition, although nodes are restarted during the scale operation. Scaling Cloud Proxies is unrelated to vertically increasing VCF Operations management-node resources. Reference topic: Objective 4.14 – Complete Fleet Management activities in VCF Operations / scaling VCF Fleet Management Lifecycle / vertical scale up for VCF Operations .

The warnings persist because the issuing certificate chain , not the renewed leaf certificates, is approaching expiration. VCF Operations Fleet Management can view certificate details and certificate alerts across VCF Management and VCF Instance components, including vCenter, NSX Manager, SDDC Manager, ESX, and VCF Operations components . Auto-renewal only renews supported component TLS certificates and occurs 60 days before certificate expiration; it does not renew root certificates . When certificates are issued by an enterprise Microsoft CA, the validity of endpoint certificates is constrained by the validity of the issuing chain. vSphere documentation states that a certificate cannot be renewed with an expiration date beyond the expiration of the trusted root certificate . Therefore, even if the component certificates were recently rotated and the template is configured for one year, the generated certificates may still inherit a shorter effective validity period if the Microsoft CA root or intermediate certificate is expiring soon. The correct remediation is to renew or replace the CA chain, not repeatedly clear alerts or manually renew endpoint certificates. Reference topic: Objective 4.14 – Fleet Management / Certificate Management / Auto-Renewal / CA Chain Validity .

The administrator must configure the overcommit ratio and activate the appropriate custom profile at the datastore policy level. In VCF Operations, the Allocation Model is enabled from the policy Capacity card by unlocking Allocation Model and setting the overcommit ratio for CPU, memory, or disk space. For a Datastore , the allocation model specifically allows the administrator to set the overcommit ratio for datastore disk space, which controls how allocated storage capacity is calculated rather than relying only on demand-based usage . The second requirement is to use the current disk space usage of an existing VM to determine how many similar VMs can fit on the datastore. That is handled by a custom profile . Custom profiles define a hypothetical VM configuration and calculate VM remaining for objects such as datastores, datastore clusters, and cluster compute resources . The custom profile wizard also allows metric values to be copied from an existing object, including by VM name, vCenter, VM tag, or custom group . Peak utilization and capacity buffer do not enable allocation modeling or define VM-fit profiles. Reference topic: Objective 4.2 – Manage VCF Capacity / Allocation Model / Custom Profiles / Policy Capacity Settings .

The Aggregator Management Pack controls what data is collected from remote VCF Operations instances through its configuration file, not through policy permissions, object tagging, or an interactive metric selector. The official VCF 9.0 documentation states that when an Aggregator adapter instance is configured, a configuration file must be specified, and that file defines the type of information the adapter instance collects. Therefore, when management requests additional metrics, the administrator must update or create the appropriate federation_config file containing the additional metric/property definitions and then associate that file with the relevant aggregator adapter connections. This ensures the Federation instance receives the expanded data set from each contributing VCF Operations instance. Option A is incorrect because policies influence metric activation, thresholds, alerts, and analysis behavior after data exists, but they do not define the Aggregator collection schema. Option C is incorrect because the Federation instance does not use a simple per-connection metric-pick workflow for this function. Option D is incorrect because tagging resources as “aggregator” is not the mechanism used by the Management Pack. Reference topic: Objective 4.8 – Installing Management Packs and configuring Management Packs / Federation Management Pack / Aggregator configuration files .
