VMware Cloud Foundation 9.0 documents a dedicated backup-and-restore approach forWorkload Managementwhere different components use different tools. Forworkloadsrunning on vSphere Supervisor–based Kubernetes (bothvSphere PodsandVKS cluster workloads), the documented solution isVelero, specifically theVelero Plugin for vSphereinstalled and configured on the Supervisor. The “Considerations for Backing Up and Restoring Workload Management” table explicitly lists: “Backup and restore vSphere Pods — Velero Plugin for vSphere” and “Backup stateless and stateful workloads on a VKS cluster and restore to a cluster provisioned by VKS — Velero Plugin for vSphere.”

The same section also clarifies thatSupervisor backups(via vCenter file-based backup) are for restoring theSupervisor control plane/stateand VKS node VMs—not for restoring workloads themselves—so workloads must be backed up separately.

Therefore, the correct tool for backing up and restoring workloads on clusters provisioned by vSphere Supervisor isVelero (using the Velero Plugin for vSphere).

In Kubernetes RBAC, cluster-wide permissions are defined withClusterRoleand granted to a user, group, or service account by creating aClusterRoleBinding. The VCF 9.0 documentation for VKS cluster access describes the RBAC workflow used to grant access: first you “define a Role or ClusterRolefor the user or group,” and then you “create a RoleBinding or ClusterRoleBindingfor the user or group and apply it to the cluster.” This wording reflects the RBAC distinction:RoleBindingis scoped to a namespace, whereasClusterRoleBindingis used when the permissions must apply at thecluster scope(cluster-wide resources and/or across namespaces).

VCF 9.0 further illustrates the purpose of ClusterRoleBinding in a token-auth example: it lists the required objects, including “ClusterRole: This defines the access to the Kubernetes cluster” and “ClusterRoleBinding: This binds the created Service Account with the defined ClusterRole.” That binding step is what grants the subject the cluster-level privileges defined in the ClusterRole, makingClusterRoleBindingthe correct object for permissions to cluster-wide resources.

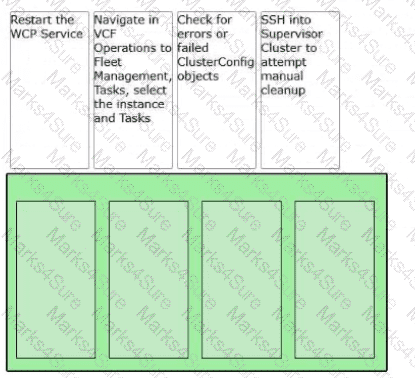

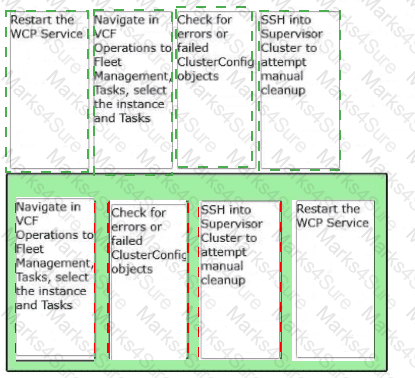

Answer (Correct Order):

Navigate in VCF Operations to Fleet Management → Tasks, select the instance and review Tasks

Check for errors or failed ClusterConfig objects

SSH into the Supervisor Cluster to review logs / attempt manual cleanup if required

Restart the WCP Service

To determinewhya Supervisor upgrade failed, you start where the platform records the most actionable failure context: themanagement-plane task history. The Fleet/Task view surfaces the upgrade workflow steps, timestamps, and the specific operation that failed, which gives you the fastest pointer to the failing phase (precheck, image staging, reconciliation, add-on updates, etc.). Next, you validate the Kubernetes-side reconciliation state by checking forfailed ClusterConfigobjects, because Supervisor enablement/upgrade actions commonly drive configuration via controller reconciliation; a failed ClusterConfig often contains the clearest “reason” and “message” fields that explain what blocked progress (validation errors, dependency issues, unreachable endpoints, incompatible components).

If the management-plane/task view and ClusterConfig status still don’t isolate the root cause, the next escalation is toSSH into the Supervisorto inspect component logs/events and identify low-level failures that may not bubble up cleanly (for example, admission failures, controller crashes, or connectivity/auth issues). Finally,restarting WCPis a remediation step that can clear stuck states, but it’s placed last because it can alter evidence and should not be your first action when you’re still trying to identify the original failure cause.

In VMware Cloud Foundation 9.0 and vSphere Supervisor architectures, the decision to deploy aSingle-Zoneor aMulti-ZoneSupervisor is made at the time ofinitial enablement. A Single-Zone Supervisor is tied to a specific vSphere Cluster. A Multi-Zone Supervisor requires a minimum of three vSphere Zones (each mapped to a cluster) to be defined before the Supervisor is deployed so that the Control Plane VMs can be distributed for high availability.

Currently, there is no supported " in-place " migration path to convert a deployed Single-Zone Supervisor into a Multi-Zone Supervisor by simply adding zones later. If an organization requires the high availability provided by a three-zone architecture, the administrator must decommission the existing Single-Zone Supervisor and then re-enable the Supervisor Service using the Multi-Zone configuration wizard. This design ensures that the underlying Kubernetes Control Plane components are correctly instantiated with the necessary quorum and anti-affinity rules that can only be established during the initial " Workload Management " setup phase.

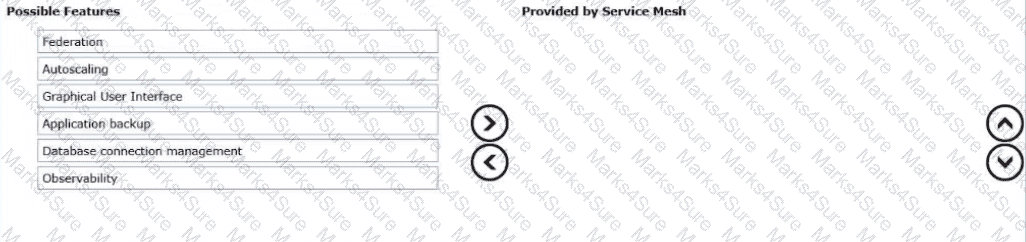

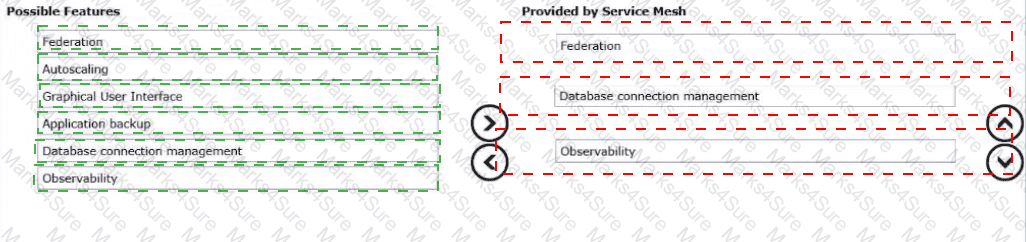

Provided by Service Mesh (choose three, in order):

Federation

Graphical User Interface

Observability

A service mesh is an application networking layer that managesservice-to-service communicationacross Kubernetes clusters, providing consistent connectivity, policy enforcement, and visibility without requiring application code changes.Federationis a service-mesh capability because modern meshes (especially multi-cluster/enterprise implementations) can connect services across multiple clusters and environments, enabling shared identity, cross-cluster service discovery, and uniform policy application (often described as multi-cluster or federated service connectivity). AGraphical User Interfaceis commonly provided alongside the service mesh platform to centrally configure policies (traffic routing, access controls, security settings) and to visualize service topology and health.Observabilityis a core service-mesh outcome: by inserting sidecar proxies (or equivalent dataplane components) into the data path, the mesh can generate consistentmetrics, logs, and distributed tracesfor service traffic, enabling latency/error monitoring and dependency mapping.

The other options are not service-mesh features:Autoscalingis handled by Kubernetes/HPA and metrics pipelines,application backupis typically provided by backup tools (e.g., Velero-like solutions), anddatabase connection managementis handled by application frameworks or database proxies rather than the service mesh itself.

VCF 9.0 explicitly lists thecomponents that run in a VKS clusterand groups them into areas such as authentication/authorization, storage integration, pod networking, and load balancing. In that list, the documentation names:“Container Storage Interface Plugin”(a paravirtual CSI plug-in that integrates with CNS through the Supervisor),“Container Network Interface Plug-in”(a CNI plugin that provides pod networking), and“Cloud Provider Implementation”(supports creating Kubernetes load balancer services).

These three items map directly to the answer choicesD (Container Storage Interface),F (Container Network Interface), andA (Cloud Provider Implementation). The same VCF 9.0 section also mentions an authentication webhook, but that component is not offered as a selectable option in this question, so the best three matches among the provided choices are the CSI, CNI, and cloud provider implementation entries that the document explicitly states are present inside a VKS cluster.

The errors described—specifically the memcache.go failure, the inability to fetch resource lists for Antrea, and the YAML context error—are classic symptoms of aConfiguration Context mismatch. In VCF 9.0, there are two distinct layers of API interaction: theSupervisor Cluster API(used for management tasks like creating clusters) and theGuest Cluster API(used for deploying workloads within the VKS).

When an administrator upgrades a Supervisor, the API endpoint or the available API groups may change. If the administrator attempts to run kubectl commands against a VKS cluster while their kubeconfig context is still pointing to the Supervisor (or vice versa), the client will encounter " mapping values " errors and " unable to handle request " errors because it is sending requests to an endpoint that does not recognize those specific resource definitions (like Antrea stats in the wrong context). To resolve this, the administrator must ensure they have switched to the correct context using kubectl config use-context < cluster-name > after the Supervisor update to ensure the local client is communicating with the correct API server and version of the Kubernetes binaries.

Within the VMware Cloud Foundation (VCF) 9.0 ecosystem, managing security and multi-tenancy in the vSphere Supervisor and associated workload clusters relies on Kubernetes Role-Based Access Control (RBAC). A Role is the specific Kubernetes object used to define a set of permissions that are scoped to a single namespace. While a ClusterRole defines permissions at the cluster level (across all namespaces or for cluster-scoped resources), a Role is explicitly designed to govern what actions a user or service account can perform within the boundaries of a specific Supervisor Namespace.

In a VKS environment, when a platform administrator grants a user access to a namespace, the system creates or references a Role (or a ClusterRole bound to a specific namespace via a RoleBinding) to specify allowed operations such as " get, " " list, " " create, " or " delete " on pods, deployments, and services. VCF 9.0 documentation highlights that utilizing namespaced Roles is a best practice for implementing the principle of least privilege, ensuring that developers or applications in one namespace cannot impact or view resources in another. This granular control is essential for enterprise environments where multiple teams share the same vSphere infrastructure. While " User " represents the identity and " Networkpolicy " handles traffic flow, the Role is the foundational object that defines the administrative or operational capabilities allowed within the namespace ' s logical boundary.

VCF 9.0 describes a vSphere Namespace as the control point where administrators defineresource boundariesfor workloads, explicitly stating that vSphere administrators can create namespaces and “configure them with specified amount ofmemory, CPU, and storage,” and that you can “set limits forCPU, memory, storage” for a namespace. This directly supports stepAas a day-2 control to keep multi-tenant clusters governed and prevent resource contention across different teams and workload types.

For monitoring and optimization, VCF 9.0 explains that day-2 operations include visibility into utilization and operational metrics for VKS clusters, noting that application teams can use day-2 actions and gain insights intoCPU and memory utilizationand advanced metrics (including contention and availability) for VKS clusters. In addition, VCF 9.0 monitoring guidance for VKS clusters states thatTelegraf and Prometheusmust be installed and configured on each VKS cluster before metrics and object details are sent for monitoring, and that VCF Operations supports metrics collection for Kubernetes objects (namespaces, nodes, pods, containers) via Prometheus. Since the Prometheus stack commonly includes Grafana dashboards for visualization, deployingPrometheus + Grafanamatches the required monitoring/optimization outcome inC.

In VMware Cloud Foundation (VCF) 9.0 and vSphere Kubernetes Service (VKS) environments, the kubectl logs command is the essential tool for retrieving the standard output (STDOUT) and standard error (STDERR) streams from containers within a pod. When a microservice like an API gateway enters a CrashLoopBackOff state, it signifies that the container is starting, failing, and being restarted by the kubelet in an exponential back-off loop. To diagnose the root cause—such as a syntax error in a configuration file or a failed connection to a backend database—the administrator must inspect the application ' s internal execution logs.

The kubectl logs command is particularly powerful in this scenario when used with the -p (or --previous) flag. This flag allows the administrator to retrieve logs from the specific container instance that just crashed, rather than the one currently attempting to restart. While kubectl describe provides critical metadata about the pod ' s lifecycle events, resource constraints, and status, it does not capture the internal application stream. In VCF 9.0, where the vSphere Supervisor manages the lifecycle of these clusters, utilizing the standard Kubernetes toolset ensures that platform operators have a consistent and familiar troubleshooting experience. This logging mechanism is a core part of the observability stack in VKS, enabling rapid identification of application-level failures within the software-defined data center.

VCF 9.0 documentation explicitly indicates thatvCenter upgrades and the Supervisor/cluster (Workload Management) upgrade are distinct, noting that “if you have only upgraded vCenter and not the cluster” then DevOps engineers have reduced permissions until the cluster is upgraded. This supports the stated standard that VKS/Workload Management lifecycle can be treated separately from vCenter. For the private registry requirement, VCF 9.0 provides an operational mechanism to authenticate and pull artifacts from private registries: “Registry secrets allow package and repository consumers to authenticate to and pull images from private registries,” implemented via a standard Kubernetes Secret of type kubernetes.io/dockerconfigjson.

Taken together, the standard implies (1)asynchronoushandling (separate lifecycle from vCenter) and (2)privatesourcing (images pulled from an internal registry with registry secrets). Therefore, selectingAsynchronous Privatebest matches both requirements in a single configuration choice, aligning with the documented separation of upgrades and the documented need to use authenticated access to private registries.

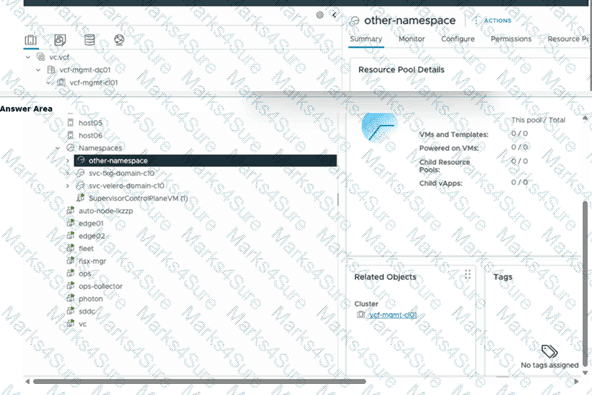

Configure tab

In the context of VMware Cloud Foundation (VCF) 9.0 and vSphere with Tanzu, a vSphere Zone is a critical infrastructure object used to represent a failure domain. Specifically, it allows the vSphere Supervisor to span across multiple vSphere clusters (typically three) to provide high availability against a complete cluster failure. This " zoned " deployment model ensures that the Supervisor Control Plane and workload cluster nodes (VKS) are distributed across different physical racks or data centers.

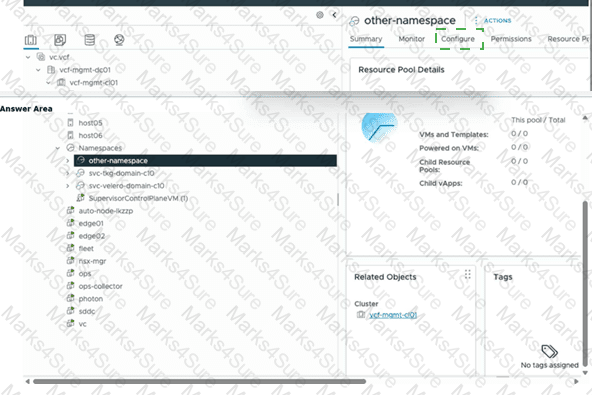

To start the process of creating a new vSphere Zone, an administrator must navigate to the Configure tab. While the provided screenshot highlights a specific namespace (other-namespace), the creation of the underlying infrastructure zones is an administrative task performed at the vCenter Server or Cluster level. However, within any object’s view in the vSphere Client, the Configure tab serves as the primary gateway for all lifecycle management and setup tasks. For a vCenter-level configuration, the path is vCenter Server > Configure > vSphere Zones . Once a zone is created and mapped to a vSphere cluster, it can then be associated with a Supervisor. In the namespace-specific view shown, the Configure tab is also where the administrator would verify the placement of the namespace on a zoned Supervisor and manage the association with specific Supervisor Services. By clicking Configure , the administrator accesses the sub-menus required to define and modify these high-level SDDC constructs, bridging the gap between traditional vSphere resource management and the declarative Kubernetes environment provided by VKS.

Amulti-zone Supervisorin VCF 9.0 is designed to deliverplatform resiliency and high availability at the vSphere cluster (zone) failure-domain level. The VCF 9.0 documentation states that a multi-zone Supervisor “leverages three vSphere clusters” (each mapped to a vSphere Zone) and that these zones are used by both “workloads and Supervisor management components to deliver high availability,” exposing “each cluster as an independent, consumable availability zone,” resulting in a “resilient, HA-capable platform.”

This is reinforced in the vSphere Zones guidance: deploying the Supervisor onthree vSphere Zones spreads the control plane VMs across three zones, providing “cluster-level high availability” that protects the Supervisor control plane against asingle cluster-level failure(one control plane VM per management zone).

Because VKS (vSphere Kubernetes Service) runs on Supervisor, distributing Supervisor control plane and workload placement across zones improves overall availability of Supervisor services and Kubernetes consumption in that Supervisor instance.

Hosts and Clusters

To create avSphere Zone(used as a Supervisor Management Zone and/or Workload Zone), the administrator must start from the vSphere Client inventory wherevCenterand its clusters are managed. That’s why the correct starting point in the “Inventories” toolbar isHosts and Clusters—it is the entry point used to select the vCenter object and the target clusters.

VCF 9.0 documents the zone-creation workflow as:navigate to vCenter, thenSelect Configure, thenselect vSphere Zones, and finally clickAdd New vSphere Zone. After naming the zone, youselect a vSphere cluster to add to the zoneand finish the wizard.

This sequence matches the intent of the hotspot: you must first open the inventory view that exposes vCenter and clusters (Hosts and Clusters), then perform the configuration steps under vCenter to define vSphere Zones. Once created, these zones can later be selected during Supervisor deployment (for multi-zone placement) or assigned to namespaces for workload placement.

Kubernetes Service

When adding a Kubernetes cluster to anexisting vSphere Namespace, the workflow is initiated from within that namespace’s context in the vSphere Client. The administrator first opens the target namespace (as shown in the left navigation where the namespace is selected), then uses theKubernetes Servicearea to create and manage Kubernetes clusters associated with that namespace. In the namespaceSummaryview, theKubernetes Servicetile/card provides the entry point for cluster lifecycle actions, typically via an action link such asManage(and from thereCreate Cluster). This is because the Kubernetes cluster is anamespace-scoped resourcein the Supervisor environment: it inherits namespace-level policies and configuration such as permissions/RBAC, resource limits, storage policies, and networking selections that have already been defined for that namespace. Navigating to other areas likeStorageorNetworkis used to validate or adjust prerequisites (for example, storage policy availability or network settings), but the actual “create cluster” operation is launched fromKubernetes Servicewithin the namespace to ensure the cluster is created under the correct tenant boundary and governance model.

VCF 9.0 describes a standardized approach to deploying optional capabilities on VKS clusters viastandard packages. In the VCF Automation cloud services overview, VMware listsIstioamong the packages that “can be optionally installed” for VKS. For installing those packages, the VCF CLI provides a dedicatedpackage pluginthat “works on a workload cluster” and exposes explicitinstallworkflows.

The VCF CLI command reference shows the syntax for installing a package:

vcf package install INSTALLED_PACKAGE_NAME --package PACKAGE_NAME --version VERSION (with optional values files and overlays). This is the supported, VCF-aligned way to install standard packages such as Istio onto a VKS workload cluster in a controlled, declarative manner, including tracking reconciliation status and providing configuration via a values file.

Options that rely on ad-hoc downloads (curl) or building tooling (docker build) do not match the documented VCF package-management workflow for VKS standard packages. Therefore, the correct command family isvcf package install.

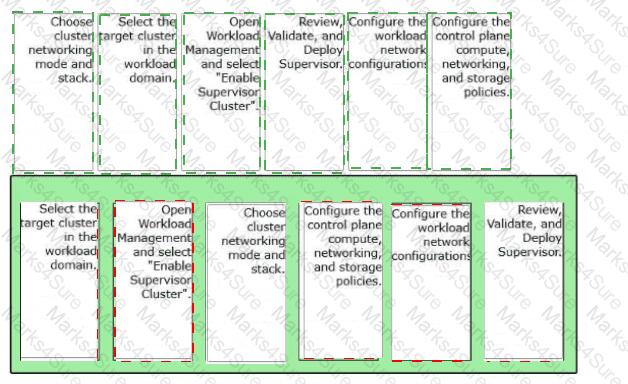

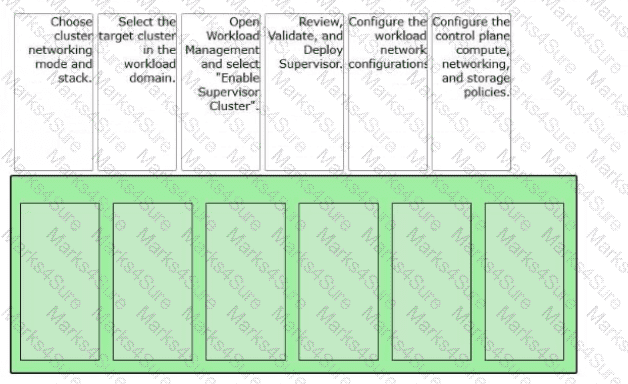

Answer (Correct Order):

Select the target cluster in the workload domain.

Open Workload Management and select “Enable Supervisor Cluster”.

Choose cluster networking mode and stack.

Configure the control plane compute, networking, and storage policies.

Configure the workload network configurations.

Review, Validate, and Deploy Supervisor.

You start by selecting theexact vSphere cluster(in the workload domain) that will host the Supervisor, because Supervisor enablement is performedagainst a specific cluster. From there you launch the enablement workflow inWorkload Management(“Enable Supervisor Cluster”). Early in the wizard you must decide thenetworking mode(for example, VDS-based vs NSX-backed) and theIP stack, because those choices drive the remaining configuration screens and what inputs are required. Next you define theSupervisor control plane settings—compute sizing and the core policies the Supervisor will use (including storage policy selections and related defaults). After the control plane foundation is defined, you configure theworkload networkingused by namespaces and Kubernetes workloads (IP ranges, routing/LB integration depending on the selected mode). Finally, youreview/validateall inputs anddeployso the platform can create and configure the Supervisor control plane and supporting components.

VCF 9.0 distinguishes betweenbacking up the Supervisor control planeandbacking up workloadsthat run on the Supervisor, includingvSphere Pods. In the “Considerations for Backing Up and Restoring Workload Management” table, the scenario “Backup and restore vSphere Pods” explicitly lists the required tool as“Velero Plugin for vSphere”, with the guidance to “Install and configure the plug-in on the Supervisor.”

The same document is explicit thatstandalone Velero with Restic is not valid for vSphere Pods, stating: “You cannot use Velero standalone with Restic to backup and restore vSphere Pods. You must use the Velero Plugin for vSphere installed on the Supervisor.”

vCenter file-based backup is documented for restoring theSupervisor control plane state, not for backing up and restoring vSphere Pod workloads themselves. Therefore, to meet the requirement to protect third-party applications running asvSphere Pods, the architect should propose theVelero Plugin for vSphere.

A Global Namespace in a service-mesh-driven, multi-cluster design is fundamentally anorganizational and policy boundarythat lets platform teams treat multiple Kubernetes namespaces—across multiple clusters/regions—as one logical application domain. That is whyBis correct: it defines an application boundary spanning clusters, which is exactly what “GovApp” needs when its tiers are distributed across regions but must still behave as one application. It also explains whyAis correct: the value of a Global Namespace is that you can applyconsistent identity, security, and traffic policiesacross all member namespaces and clusters, rather than configuring them separately per cluster. This supports uniform mTLS/authorization posture, consistent service-to-service access rules, and standardized routing behaviors regardless of where a service instance runs.

The other options describe outcomes that may be enabled by additional service-mesh features, but they are not the corerequirementsthat define a Global Namespace: distributed ingress/egress is not guaranteed simply by the namespace construct, automatic workload placement is typically handled by schedulers/placement engines rather than the namespace boundary, and centralized logging is an observability capability outside the namespace requirement itself.

VCF 9.0 defines VKS as an upstream Kubernetes offering that isbuilt for vSphereand delivered with “well-thought-out defaults” to reduce operational burden. It states VKS provides an“opinionated installation of Kubernetes”with defaults “optimized for vSphere,” which “reduce[s] the amount of time and effort” typically spent deploying and running an enterprise Kubernetes cluster—this directly supportssimplified management and operations (A).

VCF 9.0 also emphasizes VKS is“integrated with the vSphere infrastructure”(storage, networking, authentication) and is built on a Supervisor that maps to vSphere clusters, creating a “unified product experience.” This supportsconsistent Kubernetes deployment on vSphere (B)because clusters are provisioned and operated in a standardized, vSphere-native way.

Finally, VCF 9.0 states VKS clusters “use open source Linux-based” components from VMware by Broadcom and notes key integrations (for example, CNI options) are open source—supportingleveraging open-source technologies (D).

OptionsCandEare not VKS benefits as stated: VKS targets VKS-provisioned upstream Kubernetes clusters (not “any distribution”), and “pods directly on ESXi” is described asvSphere Pods(Workload Management), not a defining benefit of VKS clusters.

In the architecture of VMware Cloud Foundation (VCF) 9.0, the vSphere Supervisor represents the evolution of the vSphere control plane into a Kubernetes-native platform. The Supervisor is not simply a management tool; it is a specialized Kubernetes cluster that runs directly on the ESXi hypervisor layer. Its primary function is to deliver a consistent Service consumption experience by embedding a declarative Kubernetes API into the infrastructure. This allows both platform administrators and developers to provision and manage resources—such as Tanzu Kubernetes clusters, Virtual Machines, and vSphere Pods—using standard Kubernetes manifests and tools.

By leveraging a declarative model, the vSphere Supervisor ensures that the actual state of the environment always matches the " desired state " defined by the user. This " infrastructure-as-code " approach is central to VCF 9.0, as it bridges the gap between traditional IT operations and modern DevOps workflows. Unlike Option B, the Supervisor is specifically designed for vSphere environments and is not a multi-cloud hyperscaler abstraction. Furthermore, while it integrates deeply with vSphere ' s Distributed Resource Scheduler (DRS) for optimal placement, it adheres to Kubernetes API standards rather than operating a completely proprietary, non-standard scheduler. This integration enables VCF to provide a robust, enterprise-grade platform that treats infrastructure services as first-class Kubernetes objects, simplifying the deployment and scaling of complex, modern applications.
