3V0-25.25 Advanced VMware Cloud Foundation 9.0 Networking Questions and Answers

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

With the introduction of the Virtual Private Cloud (VPC) consumption model in VCF 9.0 and late 5.x releases, Role-Based Access Control (RBAC) has become more granular to support true multi-tenancy. A VPC is designed to be a self-contained "container" for a department's or user's networking resources.

To meet the specific requirement where a user can configure aspects of an individual VPC but is restricted from creating new subnets (which involves modifying the underlying network CIDR blocks and IPAM), a combination of specific roles is required.

VPC Admin: This is the primary role for the user within their assigned VPC. It allows the user to manage the overall VPC environment, including high-level settings and monitoring. However, the VPC Admin's power is often limited by the specific quotas and policies set by the Enterprise Admin.

Security Operator: This role allows the user to view security configurations and policies without having the permission to modify the network fabric or create new infrastructure components like subnets. It provides the "read-only" visibility into the security posture of the VPC.

Network Operator: Similar to the Security Operator, the Network Operator role provides visibility into the networking state—such as routing tables, segment status, and connectivity—without granting the "Write" permissions required to provision new subnets or alter the network topology.

Assigning Network Admin (Option B) or Security Admin (Option A) would grant too much privilege, as these roles typically include the ability to create, delete, and modify subnets and firewall policies at a structural level. By combining the VPC Admin role with Operator-level roles , the administrator ensures the user has the necessary context to manage their assigned resources while strictly adhering to the restriction against creating new network subnets.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In VMware Cloud Foundation networking, the relationship between segments and gateways is governed by the underlying Transport Zone (TZ) configuration. A Transport Zone defines the potential span of a virtual network—specifically, which hosts and edges can participate in that network.

When an administrator creates an NSX Segment , they must associate it with a specific Transport Zone (either Overlay or VLAN). Similarly, when a Tier-1 Gateway is created, its reach is determined by the Transport Zones available on the Transport Nodes (Edges and ESXi hosts) where it is instantiated. For a Segment to be attached to a Tier-1 Gateway, both objects must reside within the same Transport Zone .

If the Segment was created in "Overlay-TZ-01" but the new Tier-1 Gateway is only associated with "Overlay-TZ-02" (or if one is in a VLAN TZ and the other in an Overlay TZ), the NSX Manager UI will filter out the incompatible gateway to prevent an invalid configuration. The logical switch (Segment) cannot bind to a gateway if they do not share a common broadcast or encapsulation domain defined by the Transport Zone.

Option A is incorrect because a Tier-1 Gateway does not strictly require an Edge Cluster unless it is providing stateful services (like NAT, LB, or Firewall). It can exist purely as a distributed component on the hypervisors. Option B (Connectivity Policy) determines if the T1 advertises routes to the T0, but it doesn't prevent a segment from connecting to it. Option D is also incorrect, as a Tier-1 Gateway can be moved between Tier-0s, or even exist without a Tier-0 connection initially. Therefore, the Transport Zone mismatch is the fundamental architectural barrier preventing the gateway from appearing in the selection list.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the advanced networking architecture of VMware Cloud Foundation (VCF) 9.0 and the evolution of NSX VPCs , the control of route propagation is managed through the relationship between the consumer (the VPC) and the provider (the Tier-0 or Tier-1 Gateway). When a VPC is created, it is logically connected to the provider's infrastructure via a Transit Gateway (or a Provider-side logical router acting as a transit point).

To control the flow of routing information—specifically to prevent the data center's physical network from learning about internal VPC subnets (prefixes) while ensuring the VPC can still reach the outside world via a default route—the routing policy must be applied at the point of intersection. The Transit Gateway serves as this demarcation point. By applying a route filter or prefix list on the Transit Gateway, the administrator can explicitly deny the advertisement of internal VPC prefixes "upstream" to the provider's BGP process. Simultaneously, the provider can still inject or "advertise" a default route ($0.0.0.0/0$) "downstream" into the VPC.

Applying the policy on the VPC Gateway Firewall (Option D) would impact the data plane (blocking traffic) but would not prevent the routing table from being populated. The BGP peer template (Option C) is too broad, as it would likely affect all VPCs connected to that provider, rather than just the "new VPC" in question. The default route advertiser (Option A) only controls the egress of the default route, not the suppression of internal prefixes. Therefore, the Transit Gateway is the verified location for granular route control in a multi-tenant VCF VPC environment.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In a VMware Cloud Foundation (VCF) environment, pinpointing the exact location of packet drops within the software-defined data center requires tools that can see into the logical forwarding pipeline. While traditional networking tools like pings only provide a "binary" up/down status, Traceflow is the definitive diagnostic tool within the NSX Manager UI for deep packet path analysis.

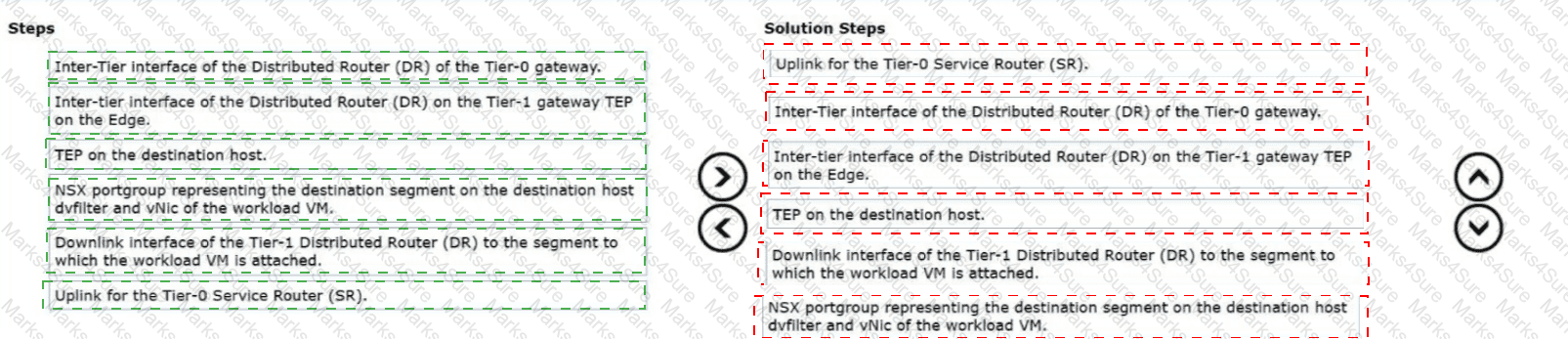

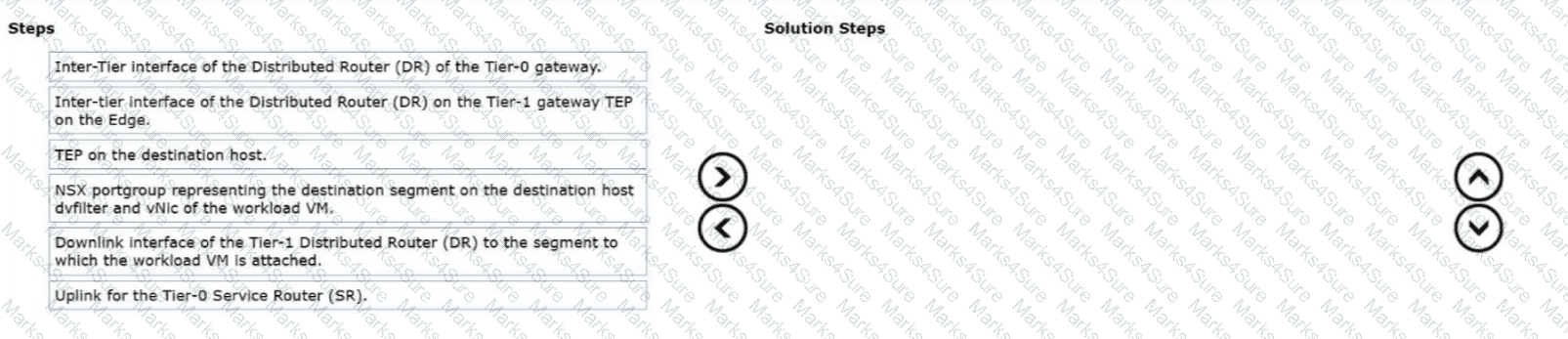

Traceflow works by injecting a synthetic "trace packet" into the data plane, originating from a source vNIC of a specific VM. This packet is uniquely tagged so that every NSX component it touches—including the Distributed Switch (VDS), Distributed Firewall (DFW) rules, Distributed Routers (DR), and Service Routers (SR) on Edge nodes—reports back an observation.

When an administrator observes packet drops, Traceflow provides a step-by-step visualization of the packet's journey. If the packet is dropped, Traceflow will explicitly identify the component responsible. For example, it might show that the packet was "Dropped by Firewall Rule #102" or "Dropped by SpoofGuard." It can also identify if the packet was lost during Geneve encapsulation or at the physical uplink interface.

Option A (Flows Monitoring) is useful for long-term traffic patterns and session statistics but lacks the packet-level "hop-by-hop" granular detail provided by Traceflow. Option C (Port Mirroring) is used to send a copy of traffic to a physical or virtual appliance (like a Sniffer or IDS), which is more complex to set up and usually reserved for external deep packet inspection (DPI) rather than internal path troubleshooting. Option D (Live Traffic Analysis) is a broader term, but within the context of the NSX troubleshooting toolkit for "packet flow analysis" between two points, Traceflow is the verified and documented solution for verifying the logical path and identifying drops.

===========

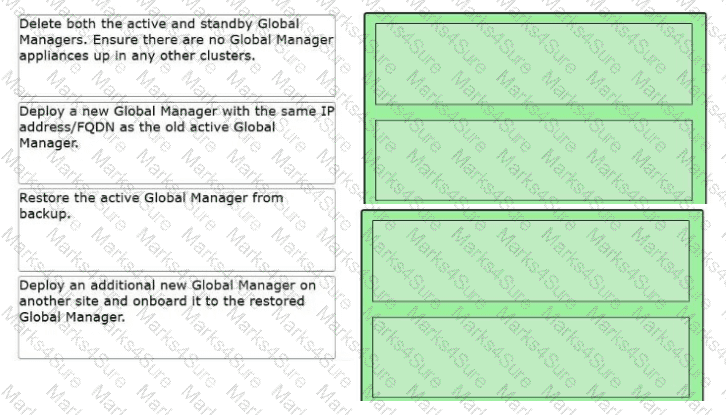

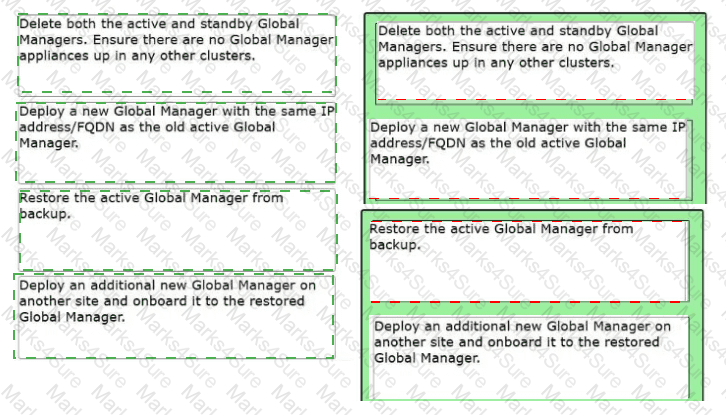

Step 1: Delete both the active and standby Global Managers. Ensure there are no Global Manager appliances up in any other clusters.

Step 2: Deploy a new Global Manager with the same IP address/FQDN as the old active Global Manager.

Step 3: Restore the active Global Manager from backup.

Step 4: Deploy an additional new Global Manager on another site and onboard it to the restored Global Manager.

In a VMware Cloud Foundation multi-site deployment using NSX Federation , the Global Manager (GM) manages the global networking configuration across multiple sites. If the entire GM cluster (Active and Standby) fails, the following architectural principles apply:

Cleanup (Step 1): Before initiating a restore, the environment must be "cleaned." If old, failed VMs remain in the inventory or on the hosts, they can cause IP address conflicts or UUID mismatches during the deployment of the new appliance. You must ensure the management plane is clear of the original failed nodes.

Identity Consistency (Step 2): When restoring an NSX appliance (Local or Global) from backup, the new appliance must be deployed with the exact same IP address and FQDN as the original active node. This is critical because the existing Local Managers (LMs) at each site already have established thumbprints and communication channels tied to that specific identity.

The Restore Operation (Step 3): Once the "seed" appliance is deployed, the restore process is triggered through the NSX Manager UI/API. This process re-populates the database with the global segments, firewall rules, and Tier-0/Tier-1 configurations.

Restoring Redundancy (Step 4): The backup only contains the configuration of the cluster. It does not "restore" the standby VM itself. High Availability (HA) must be manually re-established by deploying a second GM appliance at the secondary site and joining it to the newly restored Global Manager cluster to act as the standby.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

NSX Federation , a core component of large-scale VCF deployments across multiple sites or "fleets," introduces a hierarchical management model where a Global Manager (GM) orchestrates security policies and networking objects across multiple Local Managers (LMs) .

To ensure stability and compatibility in the communication between the Global Manager and the Local Managers, VMware documentation specifies strict version parity requirements. When onboarding a site into a Federation, the Local Manager at that site must be running the same NSX version and build as the other sites in the Federation and must be compatible with the Global Manager’s version. Discrepancies in versions can lead to synchronization failures, as the API schemas and internal database structures for Global Objects (like Global Segments or Groups) may differ between builds.

While Federation allows for geographic and administrative separation, the underlying software-defined networking stack must be synchronized. Option A is incorrect; in fact, VTEP/TEP VLANs and IP pools should be unique to each site to avoid IP conflicts in the transport network, though they must have Layer 3 reachability to one another. Option B is incorrect; unique BGP AS numbers are often preferred for multi-site routing to prevent loops. Option C is also incorrect, as Federation is specifically designed to link different VCF instances (sites) together into a single manageable entity.

In a VCF 5.x or 9.0 context, the SDDC Manager helps maintain this requirement by ensuring that the "Bill of Materials" (BOM) is consistent across sites intended for Federation. Before the GM can successfully register and "push" configuration to an LM, the handshake process validates the build version to prevent the corruption of the global intended state.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

NSX Federation is the architectural framework used within VMware Cloud Foundation (VCF) to provide consistent networking and security across multiple sites. The core of this framework is the relationship between the Global Manager (GM) and one or more Local Managers (LMs) .

The registration process is the critical first step in establishing this "parent-child" relationship. According to the "NSX-T Data Center Administration Guide" and Federation-specific documentation, the registration is initiated from the Active Global Manager .

Initiation and Credentials (Requirement E): The administrator logs into the Global Manager UI and navigates to the "System > Fabric > Locations" section. To add a new site, the GM-Active requires the IP address or FQDN of the target Local Manager and the Admin credentials . This allows the GM to authenticate with the LM, exchange security certificates, and establish a secure thumbprint-verified connection.

Stable Communication Endpoint (Requirement C): For the ongoing management and synchronization of "Global Objects" (like Tier-0s or Security Groups), the GM must communicate with the LM cluster as a whole rather than a single individual node. Therefore, the LM Cluster Virtual IP (VIP) or a FQDN pointing to that VIP is provided. Using the VIP ensures that if the specific LM node that initially handled the registration fails, the GM can continue to communicate with the remaining nodes in the LM cluster without administrative intervention.

Option A is incorrect because the Global Manager typically manages the licensing for the federation, not the LM validating the GM. Option B is incorrect as an external load balancer is not a prerequisite for the native GM-LM registration handshake. Option D is incorrect because providing the IP of an individual node (one of the three) does not provide the high availability required for a production Federation environment. Thus, the use of the Cluster VIP and the GM-Active's request for LM credentials are the verified procedural requirements.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In VMware Cloud Foundation (VCF) , the lifecycle of the NSX Manager cluster is strictly managed by SDDC Manager . During the initial deployment of a Management Domain or the creation of a new Workload Domain (if using a separate NSX instance), the administrator selects a "Form Factor" (Small, Medium, Large, or Extra Large) based on the expected scale of the environment.

As of current VCF versions (including 5.x), the Form Factor is a parameter defined during the deployment workflow that determines the resource reservations (CPU/RAM) and the disk partitioning of the appliance OVA. Unlike a standard virtual machine where you might simply adjust the vCPU and RAM settings in vCenter, the NSX Manager appliance is an opinionated system. Changing resources manually through vCenter (Option C) is not supported and can lead to stability issues or "Out of Sync" errors within SDDC Manager, as the database and internal services are tuned for the specific size selected at install.

There is currently no supported "in-place" upgrade or downgrade for the form factor of an existing NSX Manager node via the UI or API (Option B). To change the size, the administrator must redeploy the manager nodes. In a VCF context, this often involves using SDDC Manager to delete the cluster or manually replacing nodes one by one—essentially deploying a new node of the correct size, joining it to the management cluster, syncing the data, and then removing the old, oversized node.

VCF Operations (formerly vRealize Operations) can provide "Right-sizing" recommendations (Option D), but it cannot execute the physical resizing of an NSX Manager appliance within the VCF framework. Therefore, the manual or orchestrated redeployment of the nodes is the only verified method to change the appliance footprint.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

The architecture of NSX Federation within a VCF Multi-Site design is built upon a separation of the Control Plane and the Data Plane . This "decoupled" architecture ensures high availability and resiliency even when management components become unavailable.

In NSX Federation, the Global Manager (GM) handles the configuration of objects that span multiple locations, while the Local Manager (LM) is responsible for pushing those configurations down to the local Transport Nodes (ESXi hosts and Edges) within its specific site. When a configuration is pushed, the Local Manager communicates with the Central Control Plane (CCP) and subsequently the Local Control Plane (LCP) on the hosts.

If an NSX Local Manager goes offline, the "Management Plane" for that site is lost. This means no new segments, routers, or firewall rules can be created or modified at that site. However, the existing configuration is already programmed into the Data Plane (the kernels of the ESXi hosts and the DPDK process of the Edge nodes).

According to VMware's "NSX Multi-Location Design Guide," the data plane remains fully operational during a Management Plane outage. Existing VMs will continue to communicate, BGP sessions on the Edges will remain established, and Distributed Firewall (DFW) rules will continue to be enforced based on the last known good configuration state cached on the hosts. The data plane does not require constant heartbeats from the Local Manager to forward traffic. Therefore, operations continue normally "headless" until the LM is restored and can resume synchronization with the Global Manager and local hosts. Failover to a primary site (Option D) is only necessary if the actual data plane (hosts/storage) fails, not just the management components.

===========

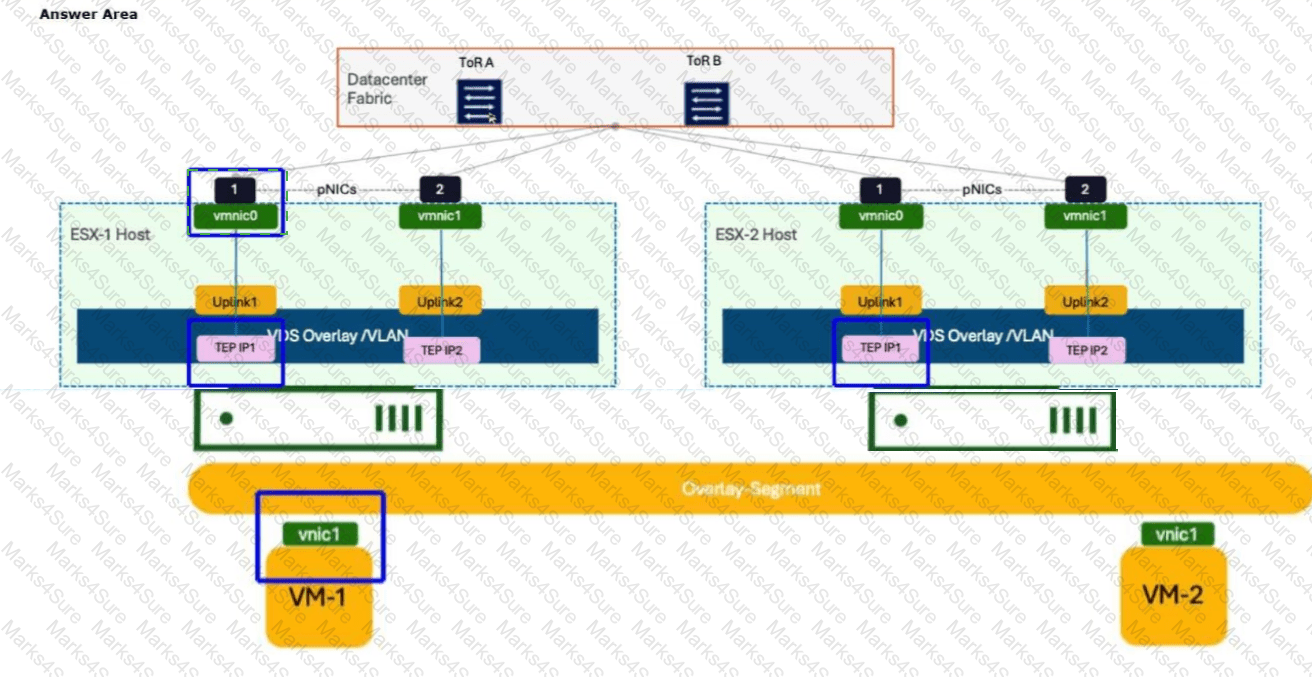

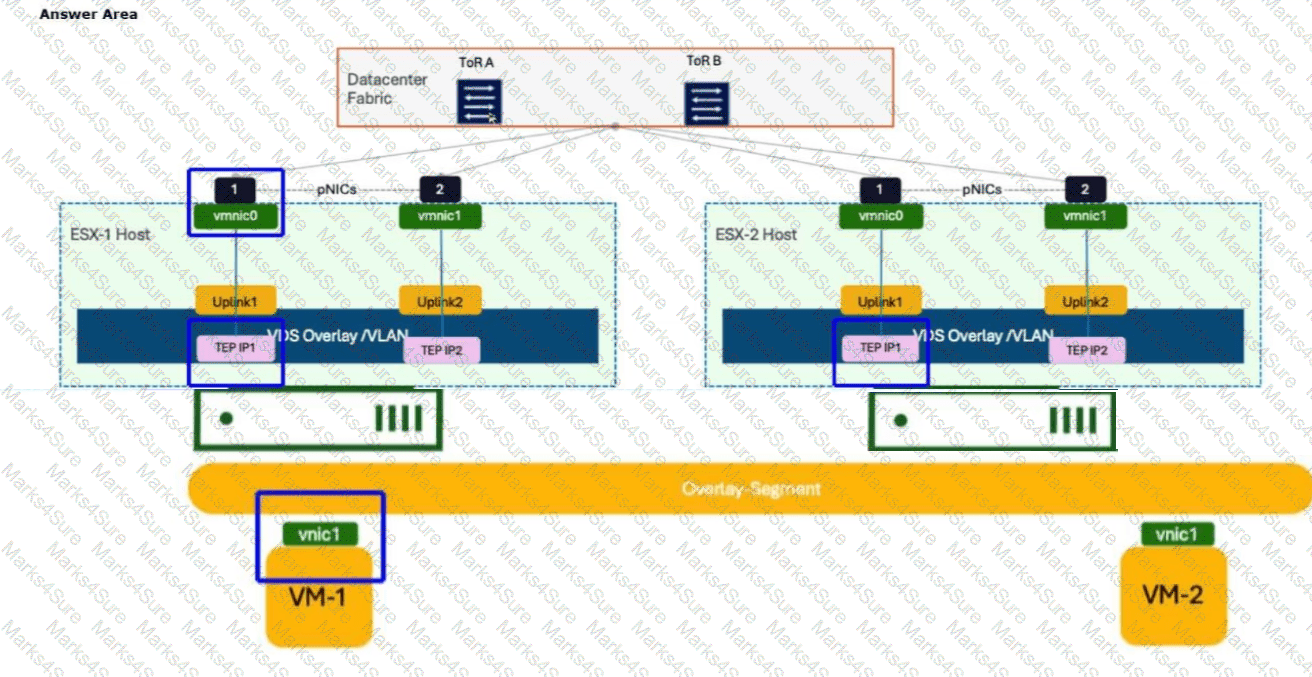

The administrator should click the vmnic0 interface on the ESX-1 Host .

In a VMware Cloud Foundation (VCF) environment, the GENEVE (Generic Network Virtualization Encapsulation) protocol is the industry-standard tunnel format used by NSX to create an overlay network. This protocol allows Layer 2 traffic from virtual machines to be "tunneled" over a Layer 3 physical IP fabric, enabling workloads to communicate as if they were on the same segment even when separated by physical routers.

When VM-1 on ESX-1 sends an ICMP request to VM-2 on ESX-2, the packet starts as a standard Ethernet frame at the virtual machine's vnic1 . At this stage, the packet contains no encapsulation. As the frame enters the Virtual Distributed Switch (VDS) and hits the Tunnel End Point (TEP) , the host's kernel performs the encapsulation process. The TEP adds a GENEVE header, a UDP header (port 6081), and an outer IP header.

The vmnic0 (physical NIC) on the source host ( ESX-1 ) is the specific "egress" point where this transformation is complete. A packet capture taken at this physical interface will show the "Outer IP" address of the source TEP and destination TEP, with the original ICMP packet hidden inside the GENEVE payload. If the administrator were to click on the VM's vnic, they would only see standard ICMP. By selecting the vmnic0 , the administrator captures the traffic as it is placed onto the physical wire, which is the verified location to troubleshoot MTU issues, encapsulation errors, or physical fabric connectivity in a VCF environment.

In NSX Multi-Tenancy (Projects), the Enterprise Admin acts as the provider-level administrator who owns global objects in the default space. This ensures central control over resources that are shared across different projects.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the context of VMware Cloud Foundation (VCF) networking, understanding how an ESXi host (acting as a Transport Node) handles East-West traffic is fundamental. East-West traffic refers to communication between workloads within the same data center, often on the same logical segment.

When a Virtual Machine sends a frame to another VM on the same logical segment, the ESXi host's virtual switch must determine the "location" of the destination MAC address to perform frame forwarding . The MAC Table (also known as the Forwarding Table or L2 Table) is the primary structure used for this decision. For each logical segment, the host maintains a MAC table that maps the MAC addresses of virtual machines to their specific "locations."

If the destination VM is residing on the same host , the MAC table points the frame toward a specific internal port (vUUID) associated with that VM's vNIC. If the destination VM is on a different host (in an overlay environment), the MAC table entry for that remote MAC address will point to the Tunnel End Point (TEP) IP of the remote ESXi host. While the TEP table (Option C) contains the list of known Tunnel Endpoints and the ARP table (Option A) maps IP addresses to MAC addresses, neither is the primary table used for the final frame forwarding decision.

The MAC Table is the authoritative source for Layer 2 forwarding. In an NSX-managed VCF environment, these tables are dynamically populated and synchronized via the Local Control Plane (LCP) , which receives updates from the Central Control Plane. This ensures that even as VMs move via vMotion, the MAC table remains updated across all transport nodes, allowing for seamless East-West connectivity without the need for traditional MAC learning (flooding) in the physical fabric.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In a VMware Cloud Foundation (VCF) environment, particularly with the high-performance requirements of North-South routing, BGP and BFD (Bidirectional Forwarding Detection) are used in tandem to ensure rapid failure detection. A common but subtle issue in fresh or modified environments is an MTU (Maximum Transmission Unit) mismatch on the physical or virtual uplinks.

When BGP establishes a neighborship, it initially exchanges small keepalive packets. These small packets easily pass through interfaces even if there is an MTU mismatch (e.g., the Edge is set to 9000 bytes but a physical switch in the path is limited to 1500 bytes). However, once the BGP state reaches "Established," the routers begin exchanging full routing tables. These BGP Update packets are often large and will be fragmented or dropped if they exceed the MTU of any hop in the path.

The symptom described—where the session is stable for a few minutes (during the initial handshake) and then flaps—is the hallmark of an MTU issue. The "Detect Time Expired" diagnostic in BFD occurs because the BGP hold timer expires when it fails to receive the large update packets, or the BFD packets themselves are delayed/lost due to the congestion caused by retrying large, failed transmissions. According to VMware NSX troubleshooting documentation, if pings (small packets) succeed but the BGP session fails specifically when traffic load or route counts increase, the MTU should be the first setting verified.

VCF 9.0 and 5.x designs mandate consistent MTU settings (typically 9000 MTU for the overlay and at least 1500+ for the uplinks) across the entire path, including the virtual switch (VDS), the Edge VM vNICs, and the physical ToR switches. A mismatch here prevents the completion of the BGP state machine's full synchronization, leading to the cyclic "flapping" observed by the administrator.

===========

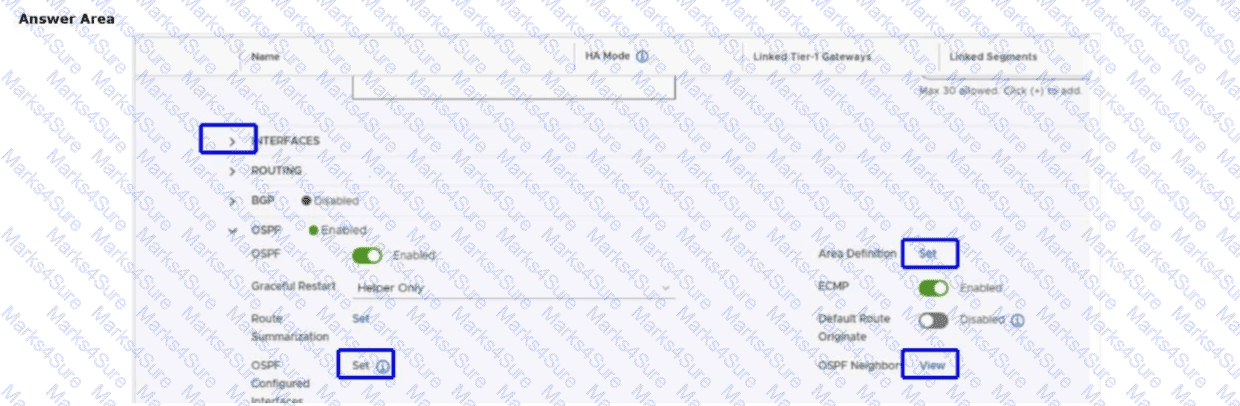

To enable OSPF on a Tier-0 Gateway within a VMware Cloud Foundation (VCF) or NSX environment, an administrator must define the areas where the gateway will participate and the specific interfaces it will use for peering.

Based on the NSX Manager configuration interface, the two required items to be configured are:

Area Definition : This is necessary to define the OSPF area (e.g., Area 0) the Tier-0 gateway will participate in.

OSPF Configured Interfaces : OSPF must be explicitly configured on the relevant uplink interfaces to establish neighbor relationships and exchange routing information with physical routers.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In VMware Cloud Foundation (VCF) and NSX, Traceflow is a powerful diagnostic tool designed to provide visibility into the logical and physical path of a packet as it traverses the SDDC. Unlike standard ping or traceroute utilities that use real ICMP traffic from the Guest OS, Traceflow operates by injecting synthetic traffic directly into the data plane at the source point (usually the vNIC of a Virtual Machine).

When Traceflow is initiated, the NSX Manager creates a "trace packet" that mimics the characteristics of the traffic being investigated (such as TCP, UDP, or ICMP with specific headers). This synthetic packet is marked with a special metadata tag. As the packet moves through the virtual switches (VDS), logical routers (DR/SR), and distributed firewalls (DFW) on the ESXi Transport Nodes, each component recognizes the tag and reports an "observation" back to the Central Control Plane (CCP) . The CCP then aggregates these observations and presents them in the NSX Manager UI.

For VLAN-backed segments , Traceflow functions similarly to how it works on Overlay segments. It tracks the packet as it is switched at Layer 2 and processed by any applicable distributed services. The inclusion of In-band Network Telemetry (INT) in modern VCF versions (5.x and 9.0) enhances this by allowing the synthetic packet to collect telemetry data from INT-capable physical switches in the fabric. This provides a "hop-by-hop" view that includes both the virtual and physical segments of the journey.

Option A is incorrect because Traceflow is not limited to ICMP; it can simulate various protocols. Option C is incorrect as Traceflow fully supports VLAN segments. Option D is incorrect as it describes a state-comparison mechanism rather than the active injection process that defines Traceflow. Therefore, the injection of synthetic traffic to observe data plane behavior via the control plane is the verified mechanism.

===========
