ANVE Axis Network Video Exam Questions and Answers

The feature in Axis cameras that allows a fixed box style camera to tell a PTZ camera to move to a preset is the HTTP server. Axis cameras can use HTTP commands to communicate with each other over the network. By sending an HTTP request from a fixed camera, the PTZ camera can be directed to move to a specific preset position, enabling coordinated surveillance coverage.

Fluorescent lighting can cause flickering effects in video due to the way these lights operate. Fluorescent lamps typically flicker at twice the power line frequency (50 Hz or 60 Hz), which can interfere with the camera ' s frame rate and shutter speed, leading to visible flickering in the recorded video. This effect is more pronounced when the camera ' s exposure settings are not synchronized with the frequency of the lighting. Axis Network Video documentation discusses the importance of using cameras with anti-flicker settings or adjusting the shutter speed to match the lighting frequency to mitigate this issue.

" Axis body worn cameras are designed to offload their recordings via docking stations, ensuring secure and efficient transfer of video files. "

— Axis Body Worn Solutions Overview

" Docking stations are used for offloading, charging, and management of body worn camera data. "

— Axis Communications Academy, Network Video Fundamentals, 2022

The most efficient method for sending a video stream to multiple recipients simultaneously is multicast. Multicast allows a single video stream to be transmitted to multiple recipients, reducing the bandwidth required compared to unicast, where separate streams are sent to each recipient. This approach optimizes network resources and ensures efficient distribution of video data. Axis Communications ' networking and video streaming guidelines confirm multicast as the preferred method for such scenarios.

Disconnecting the power and network cables before replacing a camera lens is crucial because there is a risk of short-circuiting the camera electronics. If the camera is powered on while the lens is being replaced, accidental contact with electronic components can cause a short circuit, potentially damaging the camera.

" A longer focal length (such as 48 mm) results in a shorter depth of field compared to shorter focal lengths, meaning only a narrow range of distances will be in focus. "

— Axis Communications Academy, Network Video Fundamentals, 2022

" Depth of field decreases as the focal length increases. "

— Axis Lens Guide White Paper

PoE (Power over Ethernet) Class 3 corresponds to a power level of 15.4 W at the Power Sourcing Equipment (PSE). This classification allows the delivery of up to 15.4 W of power over standard Ethernet cables to devices such as IP cameras and VoIP phones. This information is based on the IEEE 802.3af standard, which defines the power levels for different PoE classes. Axis Communications ' documentation on PoE standards confirms this power level for Class 3.

A deep learning processing unit (DLPU) in a camera is used to provide AI capability on the edge. This enables the camera to perform complex analytical tasks, such as object detection, classification, and behavior analysis, directly within the camera itself without the need for external processing. This approach reduces latency and bandwidth usage while enhancing the camera’s ability to make real-time decisions. Axis Communications ' product information on cameras with DLPU highlights this capability.

Motion blur in recordings is typically caused by a slow shutter speed, which allows the camera sensor to capture light for a longer period, resulting in blurred images of moving objects. Increasing the shutter speed reduces the exposure time, which helps to freeze motion and reduce blur. Adjusting the shutter speed is the most effective way to address motion blur in fixed cameras. [Reference: Axis Communications - Image Quality Settings]

Axis recommends shielded cables for outdoor installations primarily to ensure surge protection. Shielded cables help to protect the system against electrical surges and electromagnetic interference, which can cause damage to the cameras and other connected devices. By using shielded cables, the integrity and reliability of the surveillance system are maintained, even in environments prone to electrical disturbances. [Reference: Axis Communications - Installation and Maintenance of Network Video Products]

Top of Form

Bottom of Form

Existing coaxial cables can be repurposed for use with network cameras through the use of media converters. These devices convert the analog signals transmitted over coaxial cables into digital signals that can be used by network cameras, allowing for the continued use of existing cabling infrastructure. This approach can be cost-effective and less disruptive compared to installing new network cables. Axis Network Video documentation provides detailed guidance on the use of media converters to leverage existing coaxial cabling for network camera installations.

AXIS Device Manager is the tool that enables easy upgrade of device firmware. It provides a comprehensive solution for managing multiple Axis devices, including firmware upgrades, configuration, and maintenance. AXIS Device Manager allows administrators to schedule and deploy firmware updates efficiently across multiple devices, ensuring that all devices are running the latest firmware with minimal downtime. This information is confirmed by Axis Communications ' documentation on device management tools.

" Bandwidth refers to the maximum rate of data transfer across a given network path. It is measured in bits per second (bps) and determines how much data can be transmitted over a network in a given amount of time. "

— Axis Communications Academy, Network Video Fundamentals, 2022

" Bandwidth is a measure of the network ' s capacity to carry data, not the amount of data a device produces or the storage available. "

— Axis Communications, Understanding Bandwidth

A decoder allows for displaying digital live video on a monitor. Axis decoders convert digital video streams from network cameras into standard video signals that can be displayed on monitors. This is particularly useful in surveillance setups where live monitoring on standard displays is required. Axis offers various decoders designed for seamless integration with their camera systems, as detailed in their product documentation and solution guides.

On layer 3 of the OSI model, the protocol that enables network traffic is IP (Internet Protocol). IP is responsible for addressing and routing packets of data so that they can travel across networks and reach the correct destination. It provides logical addressing and handles the path through which data is transferred between source and destination nodes. Axis documentation confirms that IP is crucial for network communication and is fundamental for the operation of network video systems.

Zipstream’s Dynamic GOP (Group of Pictures) conserves bandwidth and storage by skipping new I-frames if the scene is unchanged. I-frames (intra-coded frames) are larger than P-frames (predictive frames) and B-frames (bi-directional frames) because they contain the full image data. By reducing the frequency of I-frames when there is no motion or change in the scene, Zipstream significantly lowers the data rate without compromising image quality. Axis documentation explains how Zipstream’s Dynamic GOP feature optimizes video encoding to conserve resources effectively.

The IP51 and IP52 ratings indicate that the camera is protected against dust and dripping water. IP51 means the camera is protected against dust ingress to a level that would interfere with the operation and against vertically dripping water. IP52 offers the same dust protection but also protects against dripping water when tilted up to 15 degrees. These ratings make the cameras suitable for indoor use where dust and minor water exposure might occur. Axis Network Video documentation specifies the IP rating system and the levels of protection provided by different ratings.

Axis cameras offer several advanced focus technologies to enhance image clarity and ease of use. Focus Pinpoint allows for precise manual focus adjustments, ensuring sharpness in critical areas. Focus Recall enables cameras to remember and quickly return to pre-set focus positions, which is useful for surveillance scenarios where the camera frequently moves between different points of interest. According to Axis documentation, these technologies are designed to improve the accuracy and efficiency of camera setup and operation.

The AXIS P1344-E and AXIS P3344-VE are outdoor-rated products designed to withstand harsh environmental conditions. The " E " in AXIS P1344-E denotes an enclosure suitable for outdoor use, providing protection against weather and vandalism. Similarly, the AXIS P3344-VE is specifically designed for outdoor environments, offering features such as weather resistance and rugged casing to ensure reliable operation in various conditions. [Reference: Axis Communications - Outdoor Surveillance Products Specifications]

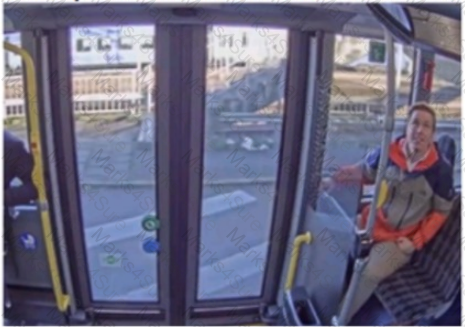

Axis ' Corridor Format is designed to provide a vertically oriented video stream, which is ideal for monitoring narrow areas such as aisles. This format minimizes wasted space in the field of view and focuses on the desired area. For a retailer wanting to capture more of the aisle and less of the shelves, enabling Corridor Format on the AXIS M3204 camera would be the best solution. Detailed setup instructions can be found in Axis Communications ' user manuals and configuration guides for Corridor Format.

A PoE switch with a power budget of 90 W can power 12 class 2 devices. Class 2 PoE devices typically require up to 7.5 W each. By dividing the total power budget (90 W) by the power requirement per device (7.5 W), we get 12 devices. This calculation aligns with the PoE standards defined in IEEE 802.3af/at, as outlined in Axis Communications ' technical resources.

“Adjusting the white balance setting can correct color inaccuracies caused by different lighting conditions, such as the orange tint seen under sodium-vapor street lamps.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“White balance ensures that white objects are rendered as white in the image, improving overall color fidelity.”

— Axis White Balance Technical Guide

Accelerometers are used in Axis cameras primarily for shock detection. They detect sudden movements or impacts that might indicate tampering or vandalism. When a shock is detected, the camera can trigger alerts or initiate protective actions to safeguard the device and maintain surveillance integrity. Axis technical specifications detail the use of accelerometers in various models for enhanced security through shock detection.

" Radar devices provide detection and tracking capabilities, including real-time geographical position and speed of people and vehicles within their coverage area. "

— Axis Radar Technology Overview

" Axis security radars accurately detect, classify, and track moving people and vehicles, providing precise GPS coordinates. "

— Axis Communications Academy, Network Video Fundamentals, 2022

“Modular cameras (also called sensor units) are ideal for discreet and flexible installations in tight or unconventional spaces, such as ATMs, vending machines, and door intercoms, because the sensor and main unit can be separated and mounted independently.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“Axis modular cameras are specifically designed for integration into machines, kiosks, and other compact environments where space is limited.”

— Axis Modular Cameras Product Overview

In environments with rain or snow, an Axis bullet camera benefits from having a weather shield that tilts with the camera. This shield helps protect the camera ' s glass front from raindrops and snow, ensuring clear visibility and reducing the need for frequent cleaning. The design helps maintain optimal image quality in various weather conditions.

For AXIS P3247-LVE, the last digit ' 7 ' indicates the camera resolution. Axis uses a numerical system where the last digit often denotes the resolution of the camera. In this case, ' 7 ' represents a camera with a resolution of 5 MP (megapixels), providing high-quality video surveillance suitable for detailed monitoring.

" Lossy compression algorithms such as H.264 and H.265 achieve greater bitrate reduction by discarding some image information, which is not recoverable. This enables efficient transmission and storage while maintaining acceptable image quality. "

— Axis Communications Academy, Network Video Fundamentals, 2022

" Lossy compression reduces the file size significantly by removing information that is not needed for human viewing. The removed content cannot be restored. "

— Axis Web Article: Video Compression

RAID (Redundant Array of Independent Disks) and NAS (Network Attached Storage) are two common methods to extend server storage for video. RAID allows for increased storage capacity and data redundancy by combining multiple hard drives into a single logical unit, improving per formance and fault tolerance. NAS provides additional storage over the network, enabling easy expansion and accessibility for video data. Both solutions are widely used in video surveillance systems to ensure ample storage and data reliability. This information is verified from Axis Communications’ best practices and technical guidelines on storage solutions for video surveillance.

Concrete has the lowest reflectance among the listed surfaces. Reflectance refers to the ability of a surface to reflect light, and concrete typically reflects less light compared to sand, grass, or snow. This characteristic is important for surveillance in terms of minimizing glare and ensuring better image quality. Axis Communications ' documentation on environmental considerations supports this information.

Reducing the frames per second (FPS) by 50% will reduce the bitrate by less than 50%. This is because the bitrate is influenced not only by the frame rate but also by the complexity of the image content and the compression efficiency. While lowering the FPS reduces the amount of data being processed, other factors like scene complexity and motion still impact the overall bitrate. Axis documentation on video compression and bitrate management indicates that halving the FPS typically results in a less than proportional reduction in bitrate.

Color temperature is measured in Kelvin (K). This unit of measurement describes the hue of a specific type of light source, ranging from warm (yellow/red) to cool (blue). Understanding color temperature is crucial for setting up cameras in varying lighting conditions to ensure accurate color reproduction. Axis provides detailed guidance on configuring cameras for optimal performance based on color temperature in their user manuals and technical documentation.

A 1080p camera with a 1/2 " sensor typically has larger pixels compared to a 4K camera with a 1/2 " sensor. Larger pixels can capture more light, which improves performance in low-light con ditions and enhances image quality by reducing noise. This is a critical advantage when clear image capture in various lighting conditions is necessary. Axis documentation on camera sensors and image quality highlights that larger pixels provide better light sensitivity and dynamic range.

" Increasing the compression setting reduces the amount of data in the video stream, thereby reducing the bitrate. "

— Axis Communications Academy, Network Video Fundamentals, 2022

" Raising the compression setting will result in a lower bitrate. "

— Axis Web Article: Video Compression

Germanium is used for thermal camera lenses because it is transparent to infrared wavelengths. This transparency allows infrared radiation to pass through the lens and reach the camera sensor, enabling the capture of thermal images. Germanium ' s optical properties make it an ideal material for thermal imaging applications. References: Axis Communications thermal camera specifications and technical documentation.

"

OptimizedIR technology in Axis cameras adjusts the IR illumination to match the camera ' s field of view. This ensures that the IR light is evenly distributed across the scene, reducing the risk of overexposure and enhancing image quality. Furthermore, this alignment helps to maintain image clarity and detail by preventing hot spots and ensuring a balanced exposure across the entire frame. According to Axis documentation, these benefits help improve the effectiveness of night-time surveillance and reduce the need for additional external IR illuminators.

Quality of Service (QoS) in networking means that different data packets can have different priorities on the network. QoS mechanisms ensure that critical or time-sensitive data, such as video or voice, receive higher priority and guaranteed bandwidth over less critical data. This helps maintain the performance and reliability of essential services even when the network is congested. Axis Communications ' technical guides on networking principles and QoS confirm this definition and its importance in IP surveillance systems.

The most effective way to improve the image quality in the provided scene is to add lighting. The image appears to be very dark and grainy, which is a typical result of low light conditions. Adding additional lighting will significantly enhance the camera’s ability to capture clearer and more detailed images. This solution is supported by Axis Communications ' documentation on optimizing image quality, which highlights the importance of adequate lighting in achieving optimal camera performance.

A multidirectional camera is equipped with multiple sensors that can be independently adjusted to cover different areas. This flexibility allows for optimal usage of the camera by positioning each sensor to capture specific scenes or angles. These sensors are typically fixed in place once set up, but their initial placement can be adjusted to ensure comprehensive coverage. Axis documents specify that multidirectional cameras are designed for customizable installation to meet varying surveillance needs.

" An IR-corrected lens is designed to keep the image in focus for both visible and infrared light, ensuring the camera stays in focus when switching from day (color) mode to night (IR) mode. "

— Axis Communications Academy, Network Video Fundamentals, 2022

" IR-corrected lenses prevent focus shift when the camera switches between visible and infrared illumination. "

— Axis Lens Accessories Guide

When replacing an analog camera with an IP camera, a video encoder is useful because it allows the integration of analog cameras into an IP-based system. The encoder converts analog video signals into digital streams that can be transmitted over an IP network, enabling the continued use of existing analog cameras while transitioning to modern IP infrastructure. Axis provides detailed information on their video encoders and their applications in various scenarios in their technical documentation and product brochures.

Top of Form

Bottom of Form

AXIS Site Designer offers various types of reports to assist in project planning and implementation. These include:

License keys report: Provides details on all license keys required for the project.

Installation report: Offers a comprehensive overview of installation details, including camera placements and configurations.

Bill of materials: Lists all the hardware and components needed for the project, ensuring that nothing is overlooked during the procurement process.

These reports help streamline the design, installation, and management of surveillance systems.

A visual camera enables the detection and identification of a person’s face. Visual cameras capture detailed images using visible light, which is necessary for facial recognition and identification applications. While radar, passive infrared sensors, and thermal cameras are useful for detecting movement and heat signatures, they do not provide the detailed imagery required for facial identification. This functionality is detailed in Axis Communications ' documentation on camera capabilities.

The AXIS P3807-PVE and AXIS Q3819-PVE are multi-sensor cameras. Multi-sensor cameras have multiple image sensors within a single camera housing, providing wide-area coverage and high-resolution images. These cameras can capture different angles simultaneously, making them ideal for large areas where comprehensive coverage is needed. References: Axis Communications product specifications for multi-sensor cameras.

The main benefit of using Power over Ethernet (PoE) is cost reduction in installation. PoE allows network cables to carry both data and power, eliminating the need for separate power lines and reducing the amount of cabling required. This simplifies installation, reduces material costs, and allows greater flexibility in camera placement. Axis Communications notes that PoE significantly cuts down on installation expenses by streamlining the infrastructure needed for network devices.

Fiber optic cables are ideal for long-distance data transmission due to their low signal attenuation and high bandwidth capabilities. Unlike copper cables, fiber optics can transmit data over several kilometers without significant loss of signal quality. They are also immune to electromagnetic interference, making them suitable for environments with high electrical noise. Axis technical references on networking confirm that fiber optic cables are preferred for long-distance and high-performance networking applications.

Firmware upgrades are efficiently installed using AXIS Device Manager. This tool allows for centralized management of Axis devices, enabling easy firmware updates, configuration changes, and maintenance tasks across multiple devices simultaneously. Axis Device Manager streamlines the process, ensuring that devices remain up-to-date with the latest features and security improvements. Detailed instructions for using AXIS Device Manager are available in Axis ' support documentation and user manuals.

AXIS M3057-PLVE MkII and AXIS P1378-LE both have built-in IR LED illumination. This feature is crucial for enhancing visibility in low-light conditions or complete darkness, making them suitable for various surveillance applications. The built-in IR LEDs ensure that these cameras can provide clear images even in challenging lighting environments.

" The AXIS Camera Application Platform (ACAP) enables the development and deployment of edge applications directly on Axis devices, allowing for advanced analytics and custom functionality. "

— Axis Camera Application Platform Overview

" ACAP is an open platform that allows partners and users to develop and run applications on Axis network devices. "

— Axis Communications Academy, Network Video Fundamentals, 2022

To calculate the storage used per hour by a camera’s recording stream with a bitrate of 8 Mbit/s, you can use the following formula:

Storage (GB/hour)=bitrate (Mbit/s)×seconds per hour8×1024\text{Storage (GB/hour)} = \frac{\text{bitrate (Mbit/s)} \times \text{seconds per hour}}{8 \times 1024} Storage (GB/hour) = 8 × 1024bitrate (Mbit/s) × seconds per hour ​

Since there are 3600 seconds in an hour:

Storage (GB/hour)=8×36008×1024=288008192=3.6 GB\text{Storage (GB/hour)} = \frac{8 \times 3600}{8 \times 1024} = \frac{28800}{8192} = 3.6 \text{ GB} Storage (GB/hour) = 8 × 10248 × 3600 ​ = 819228800 ​ = 3.6 GB

Thus, the camera uses 3.6 GB of storage per hour. Axis documentation on storage requirements for video streams provides similar calculations to estimate storage needs based on bitrate.

Axis Secure Remote Access simplifies making Axis cameras available over the internet without the need for complex network configurations. This service provides a secure, encrypted connection to access and manage Axis devices remotely. By using Axis Secure Remote Access, users can avoid issues related to NAT traversal and firewall configurations, ensuring a reliable and se cure remote connection. Detailed instructions and benefits of using Axis Secure Remote Access are outlined in Axis ' support documentation.

" A parapet mount is designed for rooftop installations or building edges, allowing a camera to be installed on the side of a roof or wall to overlook streets or other areas below. "

— Axis Communications, Installation Accessories Guide

" Parapet mounts are ideal for rooftop and wall edge camera installations, providing a stable platform for outdoor surveillance. "

— Axis Communications Academy, Network Video Fundamentals, 2022

" Color temperature describes the color characteristics of a light source and is measured in Kelvin. Lower values (e.g., 2700K) are perceived as warm (yellow/red), while higher values (e.g., 6500K) are cool (blue/white). "

— Axis Communications Academy, Network Video Fundamentals, 2022

" Lower color temperatures are described as warm, higher values as cool. "

— Axis White Balance and Color Temperature Guide

The fisheye view from a 360° panoramic camera can be dewarped both on live video streams and stored video material. Dewarping is a process that corrects the distortion inherent in fisheye lenses to present a more natural-looking image. This feature is supported in Axis cameras and video management software, allowing users to view undistorted video in real-time and from recorded footage. Axis documentation confirms that dewarping functionality is available for both live and archived video streams.

For an outdoor school playground, the most appropriate IP rating is IP67. This rating indicates that the camera is completely protected against dust (the first digit ' 6 ' ) and can withstand immersion in water up to 1 meter for 30 minutes (the second digit ' 7 ' ). This level of protection is ideal for outdoor environments where the camera may be exposed to dust, rain, and other environmental factors.

Pixel density increases when the field of view decreases. By narrowing the field of view, the same number of pixels are concentrated over a smaller area, resulting in higher pixel density. This means that more detail can be captured in a given area, which is essential for applications requiring high image resolution and clarity. This concept is confirmed by Axis Communications ' documentation on image quality and pixel density.

Lowering the shutter speed can produce motion blur because the camera sensor is exposed to light for a longer period, capturing the movement of objects within the frame. This results in a blurry representation of moving objects, which can be useful for artistic effects but undesirable for capturing fast-moving subjects clearly. References: Axis Communications camera user guides and image capture documentation.

" Axis recording appliances can function as servers (handling video data and management), clients (providing user interfaces for playback and live viewing), and PoE sources (powering connected network cameras and devices). "

— Axis S Series Recording Solutions Overview

" Many Axis recording appliances integrate server, client, and PoE switch functions in one device. "

— Axis Communications Academy, Network Video Fundamentals, 2022

In a switched network with Unicast, data packets are sent from the source to a single specific recipient. No other computers on the network will receive the data intended for that recipient. This method ensures that the communication is direct and private between the sender and the receiver, which helps in managing network bandwidth efficiently. [Reference: Axis Communications - Networking Basics for IP Surveillance]

Arctic Temperature Control is a feature designed to ensure the longevity and reliable performance of network cameras in extremely low-temperature environments. This feature allows the camera to perform a stepped start-up at low ambient temperatures, gradually warming up the camera to avoid potential damage caused by sudden exposure to extreme cold. This controlled start-up process helps protect the camera ' s internal components and ensures consistent performance. Therefore, option D is correct. For more detailed information, refer to Axis Communications ' product documentation on Arctic Temperature Control technology.

The capability to view and record up to four different areas of the whole image of an AXIS P1346 camera is called Multi-view streaming. This feature allows multiple cropped views to be created from a single high-resolution video stream, enabling more efficient use of bandwidth and storage while focusing on specific areas of interest within the full image. For more information, refer to the Axis Communications product documentation and technical notes on Multi-view streaming capabilities.

The most noticeable difference between progressive scan and interlaced video is apparent when viewing frame-by-frame recorded video of moving vehicles. Progressive scan captures and displays all lines of each frame in sequence, resulting in smoother and clearer images, especially for fast-moving subjects. In contrast, interlaced video captures and displays alternate lines per frame, which can cause motion artifacts and blurring in fast-moving scenes. Axis Network Video documentation highlights that progressive scan is preferred for applications where clarity and detail in moving objects are critical.

The inverse square law of light intensity states that the intensity of light is inversely proportional to the square of the distance from the light source. Given that the light intensity is 1024 lux at 1 meter, we can calculate the distance at which the intensity would be 256 lux.

Since 256 lux is one-fourth of 1024 lux, and the inverse square law states that intensity is proportional to 1/d21/d^2 1/d2 , the distance must be doubled to reduce the intensity by a factor of four. Therefore, the distance at which the light intensity is 256 lux is 2 meters. [Reference: Axis Communications - Illumination Basics]

Changing the capture mode on an AXIS P1346 from 2048x1536 (3 MP) to 1920x1080 (HDTV) affects both the minimum illumination and maximum frame rate. When switching to a lower resolution (HDTV), the camera ' s sensitivity to light improves, resulting in a decrease in the minimum illumination required to produce a clear image. Additionally, the maximum frame rate increases as the camera processes fewer pixels, allowing it to capture and transmit frames at a higher rate. Axis Network Video documentation provides detailed information on how different capture modes impact camera performance, including light sensitivity and frame rates.

Top of Form

Bottom of Form

Video motion detection (VMD) in PTZ (Pan-Tilt-Zoom) cameras is feasible but primarily when the camera is used as a stationary camera. PTZ cameras can activate motion detection when they are not moving, as movement of the camera itself would otherwise trigger the VMD. When the camera is stationary, it can effectively detect motion within its field of view similar to a fixed camera. Therefore, option B is correct. For more detailed information, refer to Axis Communications ' guidelines on VMD functionality in PTZ cameras.

When controlling an analog PTZ camera using the Pelco D protocol, the Device ID (sometimes referred to as the address or camera ID) is crucial for ensuring that the correct commands are sent to the intended camera. If channel 1 is controlling the wrong analog PTZ camera, adjusting the Device ID will correct this without the need to change physical cables. Each PTZ camera must have a unique Device ID to ensure proper control within the system. Axis Network Video documentation details the setup and configuration of PTZ control protocols, including the importance of correctly assigning Device IDs.

Axis thermal cameras are designed to detect activity in both daylight and complete darkness by capturing the heat emitted by objects and people. Unlike traditional cameras that rely on visible light, thermal cameras are effective in various lighting conditions, including complete darkness, fog, smoke, and even camouflaged objects. This makes them suitable for perimeter protection and monitoring in challenging environments. [Reference: Axis Communications - Thermal Cameras]

When installing a network camera with PoE, the following best practices should be considered:

C. The correct PoE standards are being used. This ensures compatibility between the camera and the PoE switch or injector, preventing power issues.

E. The correct cabling standards are being used. Category 5e or higher cabling is recommended to ensure reliable power delivery and data transmission over PoE.

Following these practices helps in achieving a stable and efficient PoE camera installation.

Exposure time can become a limiting factor for the camera in delivering full frame rate. Longer exposure times allow more light to hit the camera sensor, improving image quality in low light conditions but also reducing the number of frames per second (fps) that the camera can capture. Shorter exposure times allow higher frame rates but may result in underexposed images in low light conditions.

The H.264 compression standard is highly efficient and can significantly reduce bandwidth and storage requirements compared to Motion JPEG. This is because H.264 uses both intra-frame and inter-frame compression, which reduces the amount of data needed to represent video by eliminating redundant information between successive frames. Axis Network Video documentation states that H.264 can reduce the required bandwidth and storage by up to 50% or more in typical surveillance scenarios, making it an advantageous choice for video compression in surveillance systems.

VAPIX® is Axis ' proprietary API (Application Programming Interface) that enables integration and management of Axis network video products. It allows developers to access a wide range of functionalities, such as video streaming, event management, and configuration settings, specifically tailored to leverage the latest capabilities of Axis cameras. ONVIF (Open Network Video Interface Forum) is an industry standard that facilitates interoperability between IP-based security products regardless of manufacturer, supporting basic functionalities for video and audio streaming, PTZ control, and event handling but not exclusively tailored to the latest Axis camera features.

Axis P-iris technology is designed to optimize the iris position for optimal depth of field, resolution, and image contrast. It also helps in managing challenging lighting conditions such as backlighting by controlling the amount of light reaching the image sensor. This allows the camera to produce clear images even when facing direct sunlight or other bright light sources.

Multicast is a method of data transmission in which a single stream of data is sent from a source to multiple destinations simultaneously. This technique is especially useful in video surveillance because it allows multiple viewers to receive the same video stream without duplicating the data sent across the network. In other words, the video stream only needs to be sent once from the camera, even though there are multiple viewers, reducing network bandwidth usage. This makes option C correct. For more detailed information, refer to Axis Communications ' official documentation on network video fundamentals and multicast usage.

The AXIS Camera Application Platform (ACAP) is a powerful tool that allows users to install and run third-party applications directly on Axis cameras. This capability transforms the cameras into intelligent devices that can perform a variety of tasks, such as video analytics, object recognition, and event detection, without the need for additional hardware. By running applications directly on the camera, ACAP enhances the flexibility and functionality of surveillance systems. Axis Network Video documentation explains how ACAP leverages the processing power of the cameras to deliver advanced features and capabilities.

When connecting and powering a PIR sensor from an Axis camera ' s I/O port, the output DC voltage provided is 3.3 V. This is a standard output voltage for many Axis network cameras, which allows integration of various low-power devices and sensors directly with the camera’s I/O ports.

A DNS (Domain Name System) server translates human-readable domain names (like www.axis.com ) into IP addresses that computers use to identify each other on the network. This process is essential for accessing websites and other resources on the Internet using user-friendly domain names instead of numerical IP addresses. [Reference: Axis Communications - Networking Basics]

To improve the overall quality of the image:

A. Decrease image compression setting: Lowering the compression setting will reduce artifacts and improve image clarity by preserving more of the original data in each frame. E. Change to a camera with higher resolution: Using a camera with higher resolution will capture more detail and improve the clarity of the enlarged image.

These adjustments ensure better image quality by enhancing the detail and reducing compression artifacts.

The P-iris (Precise Iris Control) technology in Axis cameras ensures optimal image quality by precisely controlling the iris position. In bright lighting conditions, P-iris prevents the iris from closing too much, which can cause blurring due to diffraction. Instead, it maintains an optimal iris opening to balance depth of field and image sharpness. For more information, consult Axis Communications ' technical notes on P-iris technology.

If the live Motion JPEG video appears pixelated without digital zoom, decreasing the image compression would be the best approach to improve the image quality. Higher compression reduces the amount of data and can result in pixelation. By lowering the compression, the image retains more data and detail, thus reducing pixelation.

The ONVIF (Open Network Video Interface Forum) standard provides several benefits to end users. One key benefit is that it helps create future-proof systems and more secure investments by ensuring interoperability between different manufacturers ' devices, which protects against obsolescence. Additionally, ONVIF increases flexibility and offers greater freedom of choice, allowing users to mix and match devices from different vendors, thereby tailoring their security systems to specific needs without being locked into a single manufacturer ' s ecosystem.

For multicast streaming to be effective, the network infrastructure must support multicast protocols. This involves network switches and routers that can handle multicast traffic, allowing video streams to be efficiently distributed to multiple clients simultaneously. Multicast reduces the load on the network by sending a single stream of data to multiple receivers, making it essential for large-scale surveillance deployments. [Reference: Axis Communications - Multicast Streaming Requirements]

Top of Form

Bottom of Form

When setting up PTZ control for an Axis encoder, after connecting the communication wires, it is crucial to set the Baud Rate to match the analog PTZ ' s. This step ensures proper communication between the encoder and the PTZ camera. The Baud Rate must align with the camera ' s communication settings to function correctly. For more detailed setup instructions, refer to the Axis Communications installation guides and user manuals for PTZ configuration.

A camera with a fixed iris is best mounted outside in a shadowed position. Fixed iris lenses do not adjust to changes in light levels, making them less suitable for environments with varying lighting conditions. By placing the camera in a shadowed position, you minimize the impact of direct sunlight and glare, which can cause overexposure and poor image quality. Therefore, the correct answer is C. For more detailed information, refer to Axis Communications ' documentation on camera installation and fixed iris lenses.

Broadcast network traffic involves sending data packets to all devices on a network segment, regardless of whether they need the data. This method can lead to unnecessary network congestion and is not efficient for video transmission, which typically requires sending data to specific recipients. Broadcast is generally avoided in network video transmission in favor of more efficient methods like Unicast or Multicast. [Reference: Axis Communications - Network Traffic Management]

The Arctic Temperature Control functionality in Axis cameras is designed to protect the camera electronics by ensuring the device can operate in extremely cold temperatures. This feature helps maintain the internal temperature of the camera, preventing the electronics from freezing and ensuring reliable performance in harsh environments. Detailed information on Arctic Temperature Control can be found in Axis Communications product specifications and user manuals.

DHCP (Dynamic Host Configuration Protocol) is a network management protocol used on IP networks. It automates the process of configuring devices on IP networks by assigning IP addresses to devices, allowing them to communicate on the network. The DHCP server dynamically assigns IP addresses from a predefined pool and leases them to devices for a specified period. This eliminates the need for manual IP configuration and helps avoid IP address conflicts. References to Axis documentation confirm that DHCP is essential for managing and automating IP address allocation in networked environments.

When changes made to image clarity within the camera web interface are not reflected within a Video Management Software (VMS), it is often due to the VMS having its settings and configurations that can overwrite those made directly on the camera. Many VMS solutions are designed to manage and standardize settings across multiple cameras, ensuring consistency in video quality and performance. This functionality can override local changes made on the camera interface. According to Axis Network Video documentation, this behavior is typical in integrated systems where VMS settings take precedence to maintain uniformity across all connected devices.

The AXIS P3301 is a fixed mini dome camera that features a DC-iris lens, a 2.8-10 mm varifocal lens, and wide dynamic range (WDR). This combination of features makes it the only suitable choice among the listed options to meet the customer ' s requirements for a fixed mini dome camera with these specific capabilities. More details can be found in the Axis Communications product specifications and data sheets for the AXIS P3301.

The Guard Tour function allows a PTZ camera to automatically move between predefined positions at set intervals. This feature is particularly useful for monitoring multiple areas with a single camera. By configuring a Guard Tour, the camera can sequentially switch between different positions, providing comprehensive coverage without manual intervention. [Reference: Axis Communications - PTZ Camera Configuration]

When dealing with a poorly lit scene, adding light is the most effective option to improve image quality. Proper illumination ensures that the camera ' s sensor can capture clear and detailed images, reducing noise and enhancing visibility. While adjusting exposure settings, brightness, or changing camera placement can help, they are secondary to the fundamental requirement of adequate lighting.

Thermal network cameras are viable alternatives to standard network cameras for several purposes:

B. Detection at daylight: Thermal cameras can detect heat signatures from objects and people regardless of lighting conditions.

C. Detection at night: They can effectively detect heat signatures in complete darkness, making them suitable for nighttime surveillance.

D. Detection in smoke and light fog conditions: Thermal cameras can see through obscurants like smoke and light fog that might block visible light, providing reliable detection in such conditions.

Thermal cameras are not suitable for identification purposes or license plate recognition as they do not capture fine details needed for these applications.

When zooming in on an object with a varifocal or zoom lens, the light sensitivity of the camera generally decreases. This is because zooming in reduces the amount of light reaching the sensor due to the longer focal length and narrower aperture, which can result in a darker image. This effect is more pronounced in cameras with lower-quality lenses or insufficient lighting. Axis Network Video documentation explains how lens properties and zoom settings can impact light sensitivity and overall image quality.

Top of Form

Bottom of Form

When dealing with a poorly lit scene, adding light is the most effective option to improve image quality. Proper illumination ensures that the camera ' s sensor can capture clear and detailed images, reducing noise and enhancing visibility. While adjusting exposure settings, brightness, or changing camera placement can help, they are secondary to the fundamental requirement of adequate lighting.

An increase in bandwidth and storage can be caused by high noise levels and high image resolution. High noise levels, often due to low-light conditions, result in larger file sizes because the noise needs to be encoded along with the actual image data. Higher image resolution increases the amount of data captured, thus requiring more bandwidth for transmission and more storage space. [Reference: Axis Communications - Bandwidth and Storage Considerations]

Continuous guard tours involve constant movement of the camera, which limits the effectiveness of H.264 compression. H.264 achieves high compression ratios by identifying and removing redundancies between frames, but continuous motion reduces these redundancies, leading to higher bit rates and, consequently, increased storage consumption. For more details, refer to Axis Communications ' technical documentation on H.264 compression and PTZ camera operations.

Incorrect colors due to faulty calibration or configuration in network cameras can lead to a false representation of the video footage. This is because the colors captured and displayed by the camera do not accurately reflect the actual scene, which can be critical in surveillance applications where precise color reproduction is necessary for identification and evidence purposes. While other options could be related issues, they do not directly address the primary consequence of incorrect color calibration. For more detailed information, refer to Axis Communications ' technical notes on camera calibration and color accuracy.
