A project-closeout handover package should contain verified record models populated with the asset information required by the owner’s operational and facilities-management processes. Depending on the defined information requirements, this may include asset identifiers, classification, manufacturer and model data, installation information, warranty details, maintainability fields, commissioning status, spatial relationships, and links to associated documentation.

The record model must represent the accepted project condition rather than an intermediate coordination state. It should undergo final validation for required parameters, naming, file format, model structure, and information completeness before delivery. Where COBie or another structured asset-data format is required, the embedded model information should correspond with the exported dataset.

Federated clash-detection models and temporary 3D coordination views are process artifacts. They may be archived where the contract or organizational retention policy requires them, but they are not normally the principal operational deliverable. Internal coordination notes likewise document project activity but do not provide the owner with a usable digital representation of the completed facility.

The defining characteristic of a BIM handover deliverable is verified, structured information that supports the owner’s specified post-project uses.

Reference topics: BIM closeout; record models; asset-information requirements; COBie; facilities-management handover; data validation; digital deliverables.

===============

The project should retain a common View Template for consistent graphics, visibility, filters, discipline settings, detail level, and other documentation standards, while excluding View Range from the parameters controlled by that template. Deselecting the corresponding Include checkbox allows each floor-plan view to maintain a level-specific View Range without losing the other standardized template settings.

Plan Regions are intended for localized conditions within a plan, such as a raised platform, clerestory, split level, or isolated area requiring a different cut plane. They are not an efficient substitute when the entire floor requires a different View Range because its floor-to-floor height differs from other levels.

Removing the View Template would weaken graphical and documentation consistency. Visibility/Graphics also does not control the View Range; it controls the visibility and appearance of categories and elements. Creating a separate template for every floor would produce unnecessary template proliferation and increase maintenance risk because future standard changes would need to be repeated across numerous nearly identical templates.

Excluding only the variable parameter provides the correct balance between corporate standardization and project-specific view configuration.

Reference topics: View Templates; View Range; template-controlled parameters; Plan Regions; floor-plan standards; graphical consistency.

===============

Before releasing an editable or reference model to a contractor, the BIM manager must confirm that the required digital-content release has been executed. Verbal acknowledgement that the construction documents govern does not adequately define permitted model uses, reliance limitations, intellectual-property restrictions, model status, or responsibility for downstream fabrication decisions.

A digital-content release should identify the purpose of the transfer, authorized recipients, accepted file formats, issue date, model-development status, and limitations on modification or redistribution. It should also clarify that the model may contain incomplete, approximate, or non-contractual information and that the recipient remains responsible for verifying fabrication and construction requirements against the governing documents.

Adding the contractor directly to the project environment could expose additional data and does not replace formal release authorization. Sending a copied model immediately bypasses document-control and risk-management procedures. Exporting sheets to DWG may not satisfy the contractor’s stated need for model geometry and does not eliminate the requirement to control digital information distribution.

Once the release is confirmed, the BIM manager should prepare a controlled model package containing only the information required for the authorized purpose.

Reference topics: Digital-content release; external model distribution; contractual reliance; intellectual-property controls; authorized BIM uses; information-risk management.

===============

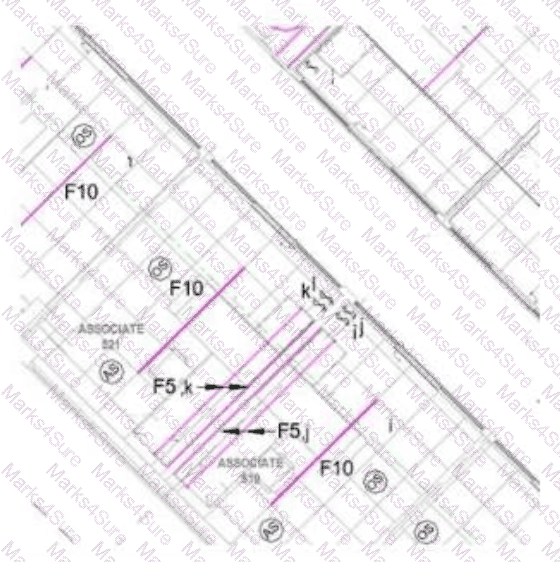

A view filter can be configured to act only on ceilings meeting specific criteria, such as family name, type name, material, height, or another parameter. Because the missing ceiling is a 2x4 type while the visible ceilings are 2x2 types, a filter targeting the 2x4 ceiling could hide it or override its graphics without affecting the other ceilings.

A Plan Region can also impose a localized View Range that differs from the parent Reflected Ceiling Plan. If the hallway contains a Plan Region with a higher cut plane or an otherwise incompatible view range, the ceiling can fall outside the region’s visible range even though it remains present and visible in a 3D view.

The ceiling was not deleted because it is still visible in 3D. Turning off the Ceilings category through a View Template would ordinarily hide all ceilings governed by that category in the view, contradicting the fact that the 2x2 ceilings remain visible. Similarly, Hide in View by Category affects the entire Ceilings category within that view rather than one ceiling type or a single hallway element.

Reference topics: Reflected Ceiling Plans; View Range; Plan Regions; view filters; category visibility; view-template troubleshooting.

===============

The revised BEP must be distributed to every party whose work or information access is governed by it, including consultants already modelling, late-onboarding participants, and relevant external stakeholders. Formal distribution with confirmation of receipt establishes that each organization has received the current requirements and understands its modelling scope, coordination obligations, information exchanges, approval responsibilities, and communication procedures.

The controlled copy should also be stored in the project’s Common Data Environment. Uploading it to the shared data-management location provides centralized access, version history, revision traceability, and a consistent source of truth. The BIM manager must verify that each stakeholder has appropriate folder permissions rather than assuming that uploading the document automatically makes it accessible.

Issuing the BEP only to newly onboarded consultants would leave existing participants working under obsolete requirements. A contractual addendum may be required when the revision changes contractual obligations, but it is not automatically the correct mechanism for routine distribution management. Delaying access until construction coordination would undermine design-stage coordination and prevent external stakeholders from following the approved procedures.

Reference topics: BEP distribution; document control; Common Data Environment; version management; stakeholder access; receipt confirmation; project onboarding.

===============

A model checker or structured data-validation tool provides the repeatable, rules-based assessment required for this scenario. The BIM manager can configure checks against the project’s naming standard, required COBie fields, shared-parameter bindings, permissible values, and Model Element Table requirements. The resulting report identifies missing, invalid, or inconsistent information by category and element, creating an auditable basis for corrective action before coordination or information delivery.

Manual element-by-element inspection is slow, difficult to reproduce, and vulnerable to omissions, particularly in large models. It also provides weak evidence that the complete model was evaluated consistently. Verbal clarification is not an acceptable substitute for documented information requirements, and asking for another export without first identifying the specific failures is inefficient. Hiding incomplete elements does not correct their data and may conceal deficiencies from coordination participants.

Systematic validation also allows the BIM manager to compare successive submissions, monitor closure rates, and distinguish modelling defects from information-quality failures. This is especially important where downstream COBie or asset-data deliverables depend on consistent parameter structures rather than visual model appearance alone.

Reference topics: Automated model checking; COBie; Model Element Tables; shared-parameter validation; naming standards; quality assurance; information-completeness assessment.

===============

The project requires a structured delivery plan that assigns responsibility and timing for each information exchange. The plan must define what information is required, which task team produces it, who verifies and authorizes it, the required format, the delivery milestone, and the receiving party. This is particularly important where design packages overlap and asset-data requirements must develop alongside spatial coordination rather than being added retrospectively.

A task information-delivery plan provides detailed commitments at the team level, while the consolidated information-delivery plan coordinates those commitments across the project. Together they align model production, structured data, coordination submissions, review periods, and final handover requirements.

Allowing each discipline to determine its own formats independently would produce inconsistent data structures and make late consolidation expensive and unreliable. Naming conventions are necessary but represent only one small component of information management. Postponing asset information until construction creates a high risk of missing parameters, unassigned responsibilities, incomplete records, and extensive rework.

The delivery strategy must therefore be established early and integrated with the design programme, BIM Execution Plan, client information requirements, and quality-assurance process.

Reference topics: Task Information Delivery Plans; Master Information Delivery Planning; information-exchange requirements; asset-data handover; structured data; responsibility matrices; delivery milestones.

A defensible technology business case must address both implementation risk and measurable organizational value. Option D evaluates the reliability of the developer and the internal effort required to install, validate, document, support, and train users on the add-on. This is critical because a third-party tool that modifies or suppresses model warnings can affect model-health reporting, software stability, upgrade compatibility, and quality-control procedures. The BIM manager must understand those operational risks before approving enterprise deployment.

Option E identifies the actual user population and compares the cost of supplying that group against quantifiable benefits such as reduced review time, more consistent warning triage, lower coordination risk, and improved model-health oversight. Limiting the calculation to relevant users produces a credible return-on-investment assessment.

Option A incorrectly assumes that every employee requires a licence and training, which can substantially overstate deployment costs. Competitor adoption may provide market context, but it does not establish technical suitability or financial value for the firm. The language of training materials is a secondary deployment consideration rather than a primary business-case metric.

Together, D and E provide the necessary technical-risk, implementation-effort, cost, user-demand, productivity, and risk-reduction evidence for an informed approval decision.

Reference topics: Project technology assessment; add-on governance; business-case development; software validation; deployment planning; training requirements; return on investment; model-risk management.

A BIM Execution Plan establishes the operational framework by which BIM will be implemented on a project. Two core components are the modeling standards that govern how information is authored and the technology ecosystem that enables production, exchange, review, coordination, and delivery. Modeling standards typically address file structure, naming conventions, model segmentation, coordinates, units, worksharing, content requirements, quality-control procedures, and information expectations. The technology ecosystem identifies approved authoring applications, software versions, cloud platforms, coordination tools, interoperability formats, add-ins, and supporting hardware or infrastructure.

An LOD or level-of-information matrix may be attached to or referenced by the BIM Execution Plan, but general project specifications are contract or technical-design documents rather than defining components of the BEP itself. Likewise, collaboration protocols are normally covered by a BEP, but “project playbook” is not the precise paired component represented by the Autodesk curriculum. A conventional project schedule may influence BIM deliverables, yet it is not equivalent to the BIM production and information-delivery plan.

Therefore, option B contains two elements that directly belong to BIM implementation planning and govern consistent execution across disciplines. These provisions prevent incompatible software, inconsistent modeling practices, and uncontrolled information exchanges.

Reference topics: Corporate BIM standards; BIM Execution Plan development; model-authoring requirements; software and technology planning; interoperability; quality-control standards.

===============

The lighting team should correct the source CAD file so that it conforms to the project’s approved coordinate framework and then reissue it. External discipline files must be delivered with a predictable origin, orientation, and elevation that correspond to the architectural or designated site-control model. Correcting the source ensures that every recipient can link the file consistently and that subsequent updates retain the same placement.

Manually moving the linked CAD file in Revit creates an unmanaged instance offset. Although the file may appear aligned temporarily, reloading, replacing, or distributing it can reproduce the original problem or create inconsistent positioning among team members. Adding gridlines may help visually diagnose the offset but does not establish a reliable coordinate relationship.

Acquiring coordinates from the misaligned lighting file is particularly inappropriate because it would redefine the host model’s shared-coordinate relationship based on a non-authoritative and incorrectly positioned reference. The architectural or site model should remain the approved source of project positioning.

The BIM manager should provide the lighting team with the agreed coordinate protocol, reference model, control points, units, and required vertical datum, then validate the corrected file before accepting it for coordination.

Reference topics: Consultant file requirements; shared-coordinate governance; CAD-link positioning; authoritative coordinate sources; model exchange; coordination quality control.

===============

Clash analysis is only valid when the federated inputs represent the correct model versions, include current references, and use the agreed coordinate system. Because the BIM manager has identified outdated links and local-coordinate exports, the current federation is technically unreliable. The appropriate response is to return the affected submissions to the responsible teams, require verification of model references and coordinates, and then reassemble the federation from corrected source files.

Adjusting clash tolerances would suppress or reclassify symptoms without correcting the underlying spatial and version-control defects. This could hide genuine clashes while leaving falsely positioned elements in the coordination environment. Freezing the model and asking trades to work around invalid information transfers avoidable risk into design and construction. Excluding entire models may temporarily reduce clash totals but produces an incomplete coordination dataset and should not precede a controlled correction request.

The BIM manager should validate file versions, export views, linked-model status, shared-coordinate settings, and model origin behavior before rerunning the clash matrix. Only after the federation passes these input-quality checks should coordination analysis resume.

Reference topics: Federated-model assembly; shared-coordinate verification; model-reference currency; coordination input validation; clash-detection governance; multidisciplinary model exchange.

The BIM manager should first create a controlled package containing only the models, documents, and supporting information required for the interior-partition scope. A package establishes a defined information exchange and prevents subcontractors from relying on unrelated or uncontrolled project content.

Role-based permissions and folder-level access must then be configured according to the principle of least privilege. The subcontractors should receive only the minimum viewing, downloading, uploading, or editing rights necessary to perform their contractual tasks. Structural, MEP, scheduling, commercial, and other restricted folders should remain inaccessible rather than merely hidden within a broader model set.

Watermarking does not prevent unauthorized viewing or access. Granting full project access and relying on verbal instructions provides no enforceable technical control and creates an unacceptable information-security risk. Hiding coordination issues is unrelated to controlling access to model files and may obstruct legitimate issue resolution within the subcontractors’ assigned scope.

The BIM manager should test the permissions using an equivalent user role, confirm that inherited folder permissions do not expose restricted information, and document the approved access configuration as part of the onboarding record.

Reference topics: Common Data Environment security; role-based access; folder permissions; information packages; least-privilege access; subcontractor onboarding.

The designer should inspect the view’s Visibility/Graphics settings. Area Lines, also referred to as Area Boundary Lines, are view-specific elements whose visibility can be controlled by the active view, an applied view template, or category-level visibility settings. If the applicable line category is disabled, Revit can create the boundaries successfully while warning that the newly created elements are not visible in the current Area Plan.

The review should include the Model Categories and Annotation Categories tabs, any active view filters, temporary hide/isolate status, and the view template controlling the Area Plan. Where a template governs visibility, the correction should normally be made in the template rather than as an isolated view override, particularly when the same standard must apply to multiple Area Plans.

A Plan Region changes the local view range and does not govern Area Boundary Line visibility. Detail Level affects how certain model geometry is represented but does not normally suppress Area Lines. The Area Scheme determines the type and organizational purpose of an Area Plan, such as Gross Building or Rentable Area, but it is not the direct location for correcting hidden linework.

Reference topics: Area Plans; Area Boundary Lines; Visibility/Graphics; view templates; view-specific elements; graphical troubleshooting.

===============

Exhibit 3 represents the correct multi-building coordination condition. It shows the three building models occupying their intended and separate locations while referencing a common site-coordinate framework. Each building retains the model reference required for its individual internal setup, but all models are related to one consolidated site reference, thereby preserving their geographic placement and orientation when linked into the site model.

Exhibit 1 displays multiple displaced site-reference indicators, suggesting that the building models have not been reconciled to one authoritative shared-coordinate system. This condition creates a risk that models will appear correctly only when manually positioned and will subsequently shift when reloaded or exchanged. Exhibit 2 does not demonstrate the required relationship between the individual building origins and the shared site reference. Exhibit 4 places the building geometries on top of one another, which is characteristic of models linked using a common internal origin without applying their correct site positions.

For a campus or multi-building project, the site model should function as the authoritative spatial reference. Each building model is positioned against that site definition, and the coordinated relationship is retained through shared positioning rather than repeated manual movement. This allows consistent federation, consultant exchange, reload behavior, and downstream coordination.

Reference topics: Shared coordinates; multi-building projects; site-model authority; linked-model positioning; survey and internal reference management; model federation.

===============
