The aisle pitch is the total width of a rack row plus cold aisle plus rack row. For 1.0 m racks on each side with cold aisle containment, ASHRAE and TIA-942 recommend the 7-tile rule (each tile ~0.6 m). This ensures enough width for equipment clearance, airflow distribution, and human access.

5-tile pitch is too narrow, restricting containment effectiveness.

8–10 tiles may be used in some hyperscale layouts but are not standard for 1 m racks.

Thus, the correct design recommendation is the 7 tiles pitch rule .

Attenuation is the logarithmic ratio between input and output signals. For power, we use 10 log; for voltage or current, 20 log. Since EMF shielding is measured as field strength (V/m or A/m) , power relationship is proportional to the square of field. Thus the correct attenuation calculation for shielding effectiveness is:

A black text on a white background AI-generated content may be incorrect.

where:

M = maximum permissible field strength

R = measured field strength after shielding

This ensures the shield reduces field intensity to below allowable limits.

Given the customer’s requirement to limit Total Harmonic Distortion (THDi) to below 3% and the presence of a 6-pulse SCR/Thyristor-based rectifier , an active harmonic filter is the best solution. A 6-pulse rectifier typically generates higher harmonic distortion, often exceeding 3%, especially under substantial loads like 80%. An active harmonic filter dynamically monitors and compensates for harmonic distortion, effectively reducing THDi and supporting a more power-efficient operation, aligning with the customer’s energy efficiency goals.

Detailed Explanation:

Passive harmonic filters can reduce harmonics but are less effective at maintaining low THDi levels under varying loads. Active filters offer real-time correction and can achieve lower THDi levels than passive filters, especially in systems with fluctuating loads or where strict harmonic limits are required. Installing an active harmonic filter will ensure compliance with the specified THDi limits and optimize power quality.

EPI Data Center Specialist References:

EPI guidance on power quality management recommends active harmonic filters for environments where strict THDi levels are necessary. Active filters offer better control over harmonic levels, supporting both compliance and operational efficiency.

A spirit level bar should not be used for leveling a raised floor, as measurement errors are likely to propagate from one pedestal to the next. Spirit levels can introduce cumulative errors, leading to uneven floors, particularly in large installations where precise leveling is critical.

Detailed Explanation:

Using a laser level or a precision leveling device is recommended to ensure accuracy across all floor tiles. Spirit levels, while adequate for short spans, can transfer small inaccuracies from one pedestal to another, which can cause alignment issues and floor instability over time.

EPI Data Center Specialist References:

EPI data center guidelines discourage the use of spirit levels for raised floors. Instead, they advocate for precision tools like laser levels that ensure consistency and accuracy in large-scale installations, aligning with best practices for raised floor construction.

Perforated tiles with integrated dampers are common in raised-floor data centers because they allow airflow regulation at the rack level. However, even when the damper is fully open, the mechanism inside the tile restricts airflow. This typically reduces the delivered airflow by around 10% compared to a non-dampered tile of the same type.

Option A is incorrect because dampers do not affect supply temperature; they only throttle volume.

Option B is wrong since dampers cannot increase volume—they only add resistance.

Option D is partially true that dampers help with temperature balancing, but the main effect (in open position) is volume reduction.

Thus, the technical impact of dampers in open position is a slight airflow reduction , usually quantified as ~10%.

Halocarbon agents such as FM-200 (HFC-227ea) and Novec-1230 (FK-5-1-12) are both defined under NFPA 2001 and ISO 14520 as clean agents, but their required design concentrations and physical properties differ. When calculating agent quantity, the minimum extinguishing concentration (MEC) and safety factor (S) must be taken into account. The S-factor is specific to each agent and reflects differences in molecular weight, density, and flame suppression chemistry.

For Novec-1230, the required design concentration is generally lower than for FM-200 (around 4.5–6% vs. 7–9%), but the calculation formula is the same except for substituting the correct S-factor. Therefore, you cannot reuse the exact formula parameters from FM-200; you must change the S-factor and apply Novec-1230’s physical constants.

This ensures compliance with NFPA 2001 Annex C, which provides correction formulas for room volume, temperature, and specific agent type. Using the wrong S-factor could result in underfilling or overfilling, compromising fire safety or increasing cost unnecessarily.

Battery charging current is typically sized at 10% of the total Ah capacity to ensure safe charging without overheating.

Charging Current=800Ah×0.1=80A

40 A or 60 A would undercharge, extending recovery time after discharge.

160 A would be too high, causing heat and reducing battery life.

Thus, 80 A is correct.

The amount of FM200 gas required can be calculated using the formula:

Weight of Gas=Net Volume×Design Concentration×S-Factor\text{Weight of Gas} = \text{Net Volume} \times \text{Design Concentration} \times \text{S-Factor}Weight of Gas=Net Volume×Design Concentration×S-Factor

Using metric units:

Net Volume : 2,500 m³

Design Concentration : 7% (or 0.07)

S-Factor : 0.1359

Calculation:

2,500 m3×0.07×0.1359=821.325 kg2,500 \, \text{m}^3 \times 0.07 \times 0.1359 = 821.325 \, \text{kg}2,500m3×0.07×0.1359=821.325kg

Rounded to the closest answer: 820 kg

In imperial units:

Net Volume : 88,287 ft³

S-Factor : 1.885

Calculation:

88,287 ft3×0.07×1.885=1,165.27 lbs88,287 \, \text{ft}^3 \times 0.07 \times 1.885 = 1,165.27 \, \text{lbs}88,287ft3×0.07×1.885=1,165.27lbs

Rounded, this is approximately 1,800 lbs .

EPI Data Center Specialist References:

EPI instructs on using specific formulas and S-factors provided by manufacturers for each gas type, ensuring that calculations reflect the correct concentration for the given room volume.

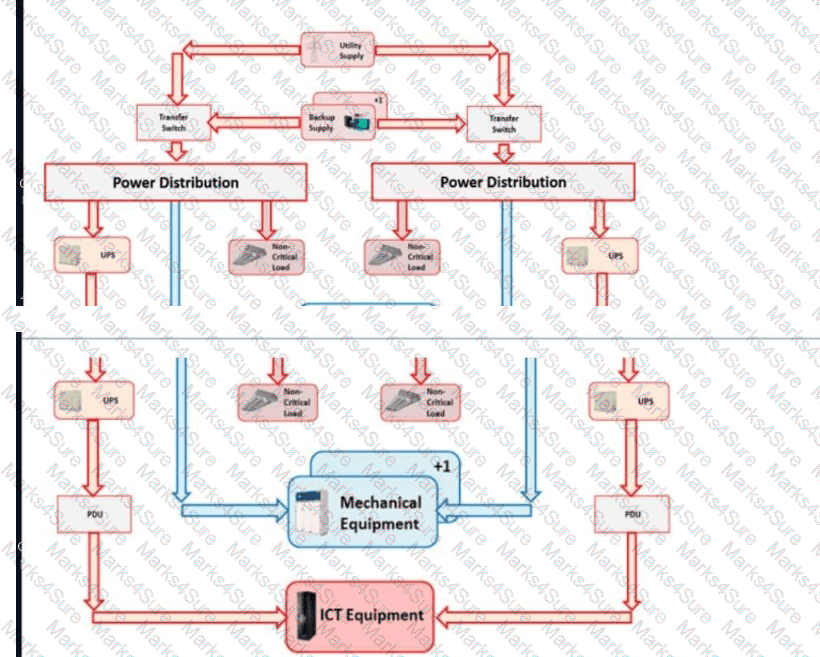

The electrical design shown in the diagrams represents a TIA-942 Rating-4 configuration. This design includes full redundancy and fault tolerance , as demonstrated by the dual power distribution paths from the utility supply to the critical loads. Each power distribution path is equipped with its own UPS, ensuring that the ICT equipment and mechanical equipment have uninterrupted power in case of any single point of failure.

Detailed Explanation:

A Rating-4 data center requires two independent power paths that are fully redundant and capable of supporting the load independently. In the diagrams:

There are dual feeds from the utility supply, each going through separate transfer switches and power distribution paths.

Both paths have backup sources (+1) and serve critical components through separate UPS systems, providing a completely redundant setup.

The design also includes redundant paths to the mechanical equipment and ICT equipment, which further indicates the fault-tolerant characteristics of a Rating-4 infrastructure.

This setup allows for concurrent maintainability and ensures that no single failure in power distribution or UPS can impact the data center’s operation, which is characteristic of the highest Tier/Rated-4 classification.

EPI Data Center Specialist References:

EPI guidelines confirm that TIA-942 Rating-4 requires full redundancy and fault tolerance for electrical infrastructure, ensuring continuous operation even during maintenance or failure events. This design meets all those requirements, thus aligning with Rating-4 standards.

In locations with consistently cold temperatures , such as above the Arctic Circle , an airside economizer is the most energy-efficient cooling solution. Airside economizers use cool outside air to lower indoor temperatures, reducing or even eliminating the need for mechanical cooling. Given the consistently low temperatures, this method maximizes energy efficiency by leveraging natural cooling.

Detailed Explanation:

Airside economizers are ideal in environments where outside temperatures are consistently low. By drawing in and filtering cold outdoor air, they directly cool the indoor environment, thereby reducing energy consumption significantly compared to traditional air conditioning. This cooling approach aligns with energy efficiency goals by minimizing mechanical cooling demands.

EPI Data Center Specialist References:

EPI recommends the use of airside economizers in cold climates to achieve high energy efficiency, as they allow data centers to capitalize on ambient conditions for cooling, aligning with sustainability and cost-saving practices.

Electromagnetic field (EMF) strength around cables is primarily influenced by current, not voltage . In a single-phase system, the live and neutral conductors are separated, creating a larger magnetic loop area. This produces stronger stray EMF when current increases.

In a balanced three-phase system, the magnetic fields from the three conductors largely cancel each other out , resulting in much lower net EMF, even at higher currents.

Therefore, the correct statement is that increasing current in single-phase cables produces higher EMF compared to three-phase cables . Options B, C, and D incorrectly link EMF to voltage or incorrect current behavior.

Raised floor tiles with air deflectors or louvers are typically heavier than standard tiles due to the additional materials and mechanisms used to direct airflow. The added weight can pose challenges for installation and adjustment, and consideration must be given to the floor’s load capacity and ease of maintenance.

Detailed Explanation:

Tiles with deflectors or louvers help direct airflow, enhancing cooling efficiency by focusing cool air where needed. However, these tiles are often heavier, which can affect handling and require reinforced raised floor systems. It ' s essential to factor in the weight for any floor tile replacements or installations to ensure they are compatible with the raised floor ' s structural capacity.

EPI Data Center Specialist References:

EPI data center design training mentions the potential impact of heavy tiles on floor handling and load capacity. Data center operators need to plan for safe handling and load-bearing capacity when using such specialized tiles.

High levels of H2S (hydrogen sulfide) gas contamination in a computer room are best addressed by installing air-scrubbers . Air-scrubbers can effectively filter out contaminants, including corrosive gases like H2S, ensuring clean air circulation and protecting sensitive IT equipment from potential corrosion and damage.

Detailed Explanation:

Air-scrubbers are designed to remove various airborne contaminants and are particularly useful in environments where corrosive gases are present. These systems use filters or chemical reactions to neutralize harmful substances, making them ideal for data centers that need to maintain high air quality for equipment reliability.

EPI Data Center Specialist References:

EPI guidelines suggest air-scrubbing technologies to remove contaminants that pose risks to electronic equipment, maintaining air quality and reducing corrosion risk.

ANSI/TIA-942 requires a risk assessment–based approach to physical security; ballistic protection is not mandated but may be justified by threat analysis.

A is incomplete (it may still be required by risk).

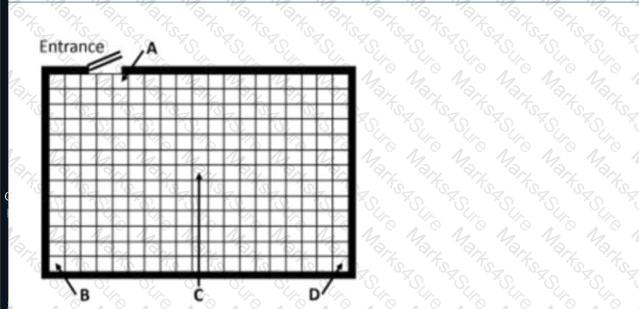

When installing a raised floor , the best starting point is typically from the farthest corner away from the entrance , in this case, Point B . This method allows for the floor installation to progress towards the entrance, ensuring that workers can avoid walking over the newly installed tiles, thus minimizing the risk of damage and maintaining cleanliness during installation.

Detailed Explanation:

Starting at the farthest corner (Point B) and working towards the entrance (Point A) is a standard practice in raised floor installation. This approach ensures that installers do not walk over freshly laid tiles, which could lead to shifting or misalignment. Additionally, it allows for more controlled placement and alignment, as well as convenient egress when installation is complete.

EPI Data Center Specialist References:

EPI guidelines for raised floor installation emphasize beginning at the farthest point from the entrance and working back towards it, which aligns with industry best practices for efficiency and quality assurance. This method reduces potential damage and supports precise alignment across the floor area.

For a cooling audit in a data center, it is essential to measure temperature and humidity where air enters the servers to accurately assess cooling performance. In this case, since all servers have a front-to-rear (F-R) airflow design , measuring at the front/intake of the server will provide a precise understanding of the cooling conditions that the equipment is experiencing.

Detailed Explanation:

Servers with a front-to-rear airflow design draw in cool air from the cold aisle at the front, which is then exhausted into the hot aisle at the rear. By measuring temperature and humidity 50 mm/2 inches from the front intake , you gather data on the air conditions right before it enters the servers, providing an accurate representation of the cooling environment as it directly impacts the equipment.

Measuring in the cold aisle at the front intake ensures that the readings reflect the actual conditions of the incoming air that the servers depend on for effective cooling. This approach is consistent with best practices for maintaining thermal conditions in a data center, as it helps confirm that the cooling systems are delivering air within the required temperature and humidity specifications.

EPI Data Center Specialist References:

According to the EPI Data Center Specialist curriculum, the optimal placement for temperature and humidity sensors is at the intake of the equipment in the cold aisle, as it directly correlates to the environmental conditions affecting the servers. This positioning allows for a more effective audit of cooling performance, which is critical for maintaining the reliability and efficiency of the data center’s operations.

When the window area exceeds the maximum exposed area specified for fire-rated glass, it is necessary to split the window into sections that comply with the fire rating requirements. This means creating smaller sections that are each within the 3 sqm/32 sqft limit and using fire-rated frames to ensure that the entire assembly meets fire safety standards. This approach maintains the fire-rated integrity of the glass, while allowing for larger window areas.

Detailed Explanation:

Fire-rated glass is designed to contain fire and prevent it from spreading. If the window exceeds the maximum exposed area defined by the supplier, the integrity of the fire-rated glass could be compromised. By dividing the window into compliant sections with fire-rated frames, you ensure that each pane performs as intended in the event of a fire. Fire-rated frames help maintain the fire resistance across the entire assembly, making this option the best for safety and compliance.

EPI Data Center Specialist References:

EPI recommends adhering strictly to fire safety standards, especially when using materials like fire-rated glass. The guidelines emphasize that modifications should always respect the manufacturer’s specifications to ensure the system remains effective in containing and preventing the spread of fire.

High relative humidity (above 80%) creates a serious risk for corrosion of electronic contacts, printed circuit boards (PCBs), and metallic components . Moisture in the air condenses more easily, especially when surfaces are cooler than ambient dew point. This can lead to oxidation of connectors, degradation of solder joints, and eventual failures in ICT hardware.

Electrostatic discharge (ESD) risks, by contrast, increase at low humidity (below 30%) because dry air promotes charge buildup. Therefore, option C is incorrect here. Similarly, option D (cooling risk from wet-bulb temperature) applies to evaporative cooling efficiency, not directly to ICT risk.

ASHRAE recommends data centers maintain RH between 40–60% for optimal reliability. Values above 80% RH are considered outside the recommended operating envelope and significantly increase the risk of corrosion, especially in the presence of airborne contaminants like sulfur dioxide (SO₂) or hydrogen sulfide (H₂S).

Therefore, the verified risk at 85% RH is corrosion-related degradation .

An imbalance in load sharing between UPS systems connected in parallel can often result from unequal cable lengths to the common busbar. If the cabling from each UPS to the busbar varies significantly in length, it can lead to differences in impedance, resulting in uneven load distribution. Ensuring that cable lengths are consistent helps to balance the load sharing across the UPS systems.

Detailed Explanation:

Parallel UPS systems rely on uniform impedance to share loads evenly. Differences in cable lengths cause variations in resistance, leading to one or more UPS units carrying a disproportionate share of the load. Standardizing cable lengths ensures equal impedance, which promotes balanced load sharing and prevents one UPS from being overburdened, thus maintaining overall system reliability.

EPI Data Center Specialist References:

EPI guidelines recommend checking cable lengths when load imbalances occur in parallel UPS configurations. Ensuring equal lengths is a common method to resolve impedance issues that affect load distribution, which is critical for the stable operation of redundant power systems.

Inert gas systems (e.g., Inergen, Argonite, Nitrogen) extinguish fire by reducing oxygen concentration, which typically requires reducing oxygen levels to ~12–15%. This means a very large volume of gas must be discharged into the room (up to 40–50% of the protected volume). Because inert gases have a low extinguishing effectiveness by weight, more total gas is required .

Halocarbon agents (FM-200, Novec 1230) extinguish fire chemically by interrupting the combustion chain reaction. They require only a small percentage (6–9%) concentration in the room volume. As a result, the storage space for cylinders is much smaller compared to inert gas systems.

Therefore, inert gas systems generally require a larger gas volume to achieve extinguishing concentrations.

The diagram shows two independent utility feeds , each backed up by generators, connected to two separate distribution paths. Each path supplies its own UPS system in an N+1 configuration , which then feeds PDUs and ICT loads. Mechanical equipment also has dual redundant feeds . This means the electrical design ensures concurrent maintainability (systems can be maintained without downtime) and fault tolerance (a single fault anywhere in the power path will not impact ICT load).

According to ANSI/TIA-942-B , the electrical infrastructure for a Rated-4 data center must have two active distribution paths , each independently capable of supporting the ICT load. It also requires full redundancy (N+1 or greater) on critical components such as UPS and generators. This diagram clearly illustrates that architecture: dual feeds, dual UPS, and fault tolerance.

In contrast, Rating-3 offers concurrent maintainability but does not guarantee full fault tolerance. Rating-2 and Rating-1 are less stringent and would not provide the dual power distribution seen here.

According to ASHRAE TC 9.9 Thermal Guidelines (2016) , the recommended intake temperature range for Class A1 ICT equipment is 18–27 °C (64–81 °F) . The allowable lower limit is 15 °C (59 °F). Setting supply to 4 °C (39 °F) falls far below these limits.

Operating at such low temperatures would:

Cause condensation risk when surfaces drop below dew point.

Create severe energy inefficiency , as chillers would run at extremely low setpoints.

Possibly damage hardware due to thermal shock.

Options A and B are misleading—system capability or dew point alone does not override ASHRAE guidelines. Option D is incorrect since 20 °C is a common design target, not a requirement.

Thus, supplying 4 °C is not acceptable.

The correct formula for calculating Phase-to-Neutral Voltage in a three-phase power system is Phase-to-Neutral Voltage = Phase-to-Phase Voltage / 1.732 . This formula applies to balanced three-phase systems , where 1.732 (or √3) represents the relationship between line-to-line and line-to-neutral voltages.

Detailed Explanation:

In three-phase systems, Phase-to-Phase Voltage is higher than Phase-to-Neutral Voltage by a factor of √3. Dividing the phase-to-phase voltage by 1.732 gives the phase-to-neutral voltage, which is critical for understanding power distribution in three-phase electrical systems commonly found in data centers.

EPI Data Center Specialist References:

EPI electrical training highlights the importance of knowing these calculations for designing and maintaining balanced power systems, which are essential for stable and efficient data center operations.

In a wet pipe system , the piping is always filled with water under pressure. When a sprinkler head is triggered by heat, water is discharged immediately. This is the most common sprinkler system for general buildings.

Dry pipe : Pipes contain air or nitrogen; water enters only after valve activation.

Deluge : Pipes are empty, and all heads open simultaneously, releasing water everywhere.

Pre-action : Pipes are dry until detection and valve activation; reduces accidental discharge risk, recommended for IT rooms.

Since the definition describes immediate discharge from water-filled pipes, this is a wet pipe system .

According to ANSI/TIA-942 standards , the overall data center rating is determined by the lowest rating among all evaluated categories. Therefore, if a data center is rated 2 in architectural, despite being rated higher in mechanical and electrical, the overall rating is Rated-2 . This approach ensures that all aspects meet a minimum standard and prevents a higher rating if any critical area does not comply.

Detailed Explanation:

ANSI/TIA-942 evaluates data centers across several areas, including mechanical, electrical, architectural, and telecommunications. The overall rating reflects the lowest rated category, ensuring that no aspect of the data center’s design or operation falls below the specified level. Thus, in this case, the architectural rating of 2 dictates the final rating, ensuring a comprehensive and balanced assessment of reliability and resilience across all aspects.

EPI Data Center Specialist References:

EPI Data Center Specialist training aligns with ANSI/TIA-942, stating that the final rating must reflect the lowest score to ensure comprehensive reliability across all critical infrastructure categories. This avoids overstating the data center ' s resilience and ensures uniform standards across areas.

The life cycle begins with planning and design . The very first step is to clearly define the project scope : business requirements, capacity, availability targets, compliance standards, and budget. Without scope definition, design validation or vendor selection would be premature.

Vendor selection (A) happens much later during procurement.

Validation (B) occurs after conceptual and detailed designs are prepared.

Freezing design (D) is the final stage before implementation.

Therefore, defining the project scope is the correct initial step.

As relative humidity decreases, Electrostatic Discharge (ESD) risks increase. Lower humidity levels reduce the amount of moisture in the air, which normally helps dissipate static charges. When the humidity drops from 50% to 35%, the likelihood of static electricity accumulating on surfaces rises, leading to a higher potential for ESD incidents that could damage sensitive IT equipment.

Detailed Explanation:

ESD events are more common in dry environments because there is less atmospheric moisture to neutralize electrical charges. Maintaining relative humidity above 40% helps minimize the risk of ESD, which is why data centers often control humidity levels tightly to protect equipment from static discharge that could cause hardware failures or data loss.

EPI Data Center Specialist References:

EPI data center best practices stress the importance of maintaining stable humidity levels to prevent ESD, particularly in computer rooms. Recommended humidity ranges are typically above 40% to prevent conditions that would foster static buildup.

When installing an automated lighting system , especially in a security-sensitive area like a data center, it’s essential to ensure that lighting levels support security camera functionality at all times. Sufficient lighting is necessary for cameras to capture clear footage, ensuring continuous monitoring and security regardless of occupancy.

Detailed Explanation:

Automated lighting based on occupancy or time settings can reduce energy costs, but it must be configured to maintain adequate illumination for surveillance. Security cameras require minimum lighting levels to operate effectively, so lighting should be configured to avoid compromising security.

EPI Data Center Specialist References:

EPI emphasizes security and safety in data centers, advising that lighting systems should maintain levels conducive to effective surveillance, ensuring operational security even when lights are automatically controlled.

Hypoxic air systems continuously reduce the oxygen concentration in the protected area to below the level required for combustion (typically 15–16%), while still remaining safe for human occupancy ( > 14%). By lowering oxygen concentration, ignition and flame propagation are prevented.

This is different from halocarbon or inert-gas clean agents, which flood the room only upon detection of fire. Hypoxic systems are preventive , creating a permanent fire-retardant environment.

They do not remove heat (A), fuel (C), or use water (D). Their key mechanism is oxygen displacement .

High dust levels in a computer room are often due to improperly fitted floorboards . When floorboards are not securely installed or do not fit tightly, they allow dust and particles from the subfloor to enter the room. In a data center, this can lead to high levels of dust that affect air quality and equipment performance.

Detailed Explanation:

Raised floors in data centers can accumulate dust and debris, especially if the floorboards are not properly sealed. Loose or improperly fitted floorboards allow contaminants from the subfloor to enter the data center environment, increasing the dust levels over time. Proper installation and maintenance of floor panels are essential to prevent dust infiltration and maintain clean conditions.

EPI Data Center Specialist References:

EPI training emphasizes proper flooring installation and maintenance to control air quality within data centers. Correctly fitted floorboards prevent dust accumulation from the subfloor, which helps protect sensitive equipment and maintains a cleaner environment.

A Rated-4 facility requires dual active utility feeds , each from an independent substation, but they may come from the same utility provider if substations are geographically separate and independent.

Option A is too strict; ANSI/TIA-942 does not mandate two different companies.

Options C and D do not provide true independence and would fail Rated-4 requirements.

Thus, the minimum is two substations, possibly same provider .

To determine the required capacity of the battery bank for the 15-minute runtime at full load, one must know the total power requirement that the battery bank must supply. The specifications provided include most of the necessary details, such as rated power, input voltage, battery voltage, and discharge voltage. However, one critical piece of information is missing: the UPS efficiency .

Detailed Explanation:

In a data center UPS system, the battery bank is designed to supply power for a set duration when there is an input power failure. The UPS efficiency affects the actual power the UPS can deliver to the load compared to the power it draws from the batteries. The efficiency factor is necessary to accurately calculate the required capacity of the battery bank since it determines how much input power is needed from the batteries to supply the load at full capacity. The formula typically used to determine battery capacity involves factoring in UPS efficiency, as it allows you to understand the losses within the UPS system.

If UPS efficiency is not considered, there would be an inaccurate estimation of the actual power needed from the batteries. For instance, if a UPS has 90% efficiency, only 90% of the power drawn from the batteries reaches the load. Without knowing this efficiency, it is not possible to calculate the battery bank size accurately, as you cannot accurately estimate the losses within the UPS itself.

EPI Data Center Specialist References:

According to EPI Data Center Specialist training, understanding the UPS efficiency is essential for battery sizing. Without it, the calculations could lead to either undersizing or oversizing the battery bank, which affects both reliability and cost-effectiveness of the UPS system. The EPI Data Center Specialist course emphasizes that battery sizing must account for all losses within the UPS system, with efficiency being a primary factor in these calculations.

The Top-of-Rack (ToR) cabling layout places an access switch directly inside each rack. Each server in that rack only requires a short patch cable to connect to the switch, and only one or two uplinks per rack connect to aggregation switches. This greatly reduces the number of long horizontal cables across the data hall.

In contrast, an End-of-Row (EoR) design centralizes switches at the row end, requiring long horizontal cables from each server to the row cabinet. This can lead to thousands of extra copper or fiber runs in large deployments.

ANSI/TIA-942 and Cisco Design Guides emphasize that ToR is the best solution for minimizing cable bulk, improving airflow, and reducing cost in hyperscale or dense rack environments.

Thus, if the explicit design goal is to minimize cable quantity , ToR design is superior.
