Free Practice Questions for the Linux Foundation Cloud & Containers Cilium-Associate Exam (2026 Updated)

Technical explanation

The Cilium Operator handles IP address management responsibilities in IPAM modes that require cluster-wide or cloud-integrated allocation. Current documentation identifies the operator as responsible for IPAM in Azure IPAM, AWS ENI, and cluster-scope mode. Cloud-specific operators populate the appropriate allocation information in CiliumNode resources, after which node-local agents allocate addresses to endpoints from the available ranges.

The phrase “when available” is important because responsibilities vary by IPAM mode. Under Kubernetes host-scope IPAM, Kubernetes allocates each node’s PodCIDR, and the Cilium agent consumes that range from the Kubernetes Node object. Nevertheless, among the supplied components, the operator is the component specifically associated with centralized IPAM requests and allocation management.

The Cilium agent implements each node’s datapath and endpoint lifecycle but is not the general cluster-wide IPAM answer intended here. Cilium API Server is not the documented allocation component. The misspelled Cilium CNIPIugin refers to the CNI plugin, which requests networking setup when a pod is created but does not replace the operator’s IPAM responsibilities.

Official references

Cilium Operator , Cilium IP Address Management

Study Guide topic: Cilium Operator responsibilities and IPAM modes.

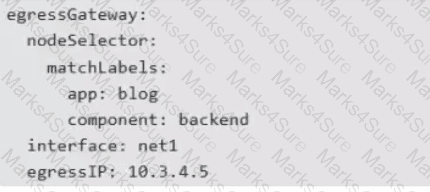

Cilium's official documentation confirms that a CiliumEgressGatewayPolicy selects traffic originating from matching pods , routes traffic destined for the configured destinationCIDRs through the selected egress gateway node, and SNATs that traffic using the configured egressIP.

Technical explanation

A is a supported recommendation: Cilium’s WireGuard implementation provides transparent encryption between Cilium-managed endpoints, works with Cluster Mesh, and distributes node public keys to remote clusters through clustermesh-apiserver . All participating clusters must enable WireGuard, and inter-cluster firewalls must permit UDP port 51871. IPv6-only pod traffic does not inherently disqualify WireGuard.

However, this question is no longer uniquely answerable from current Cilium documentation. Current IPsec documentation supports IPv6 pod-to-pod connectivity and sets its cluster or Cluster Mesh limit at more than 65,535 nodes. The described mesh contains 10,002 nodes, so option B is also technically supportable under the stated facts. The older distinction apparently assumed by the supplied key is no longer sufficient to exclude IPsec.

Options C and D are definitively false. Ten thousand and two nodes remain below the documented IPsec ceiling, and transparent encryption is not restricted to IPv4. WireGuard may still be selected for its automatic per-node key-pair distribution and simpler Cluster Mesh integration, but workload performance, kernel support, firewall rules, key-management requirements, and operational testing should inform a production recommendation.

Official references

WireGuard Transparent Encryption , IPsec Transparent Encryption

Study Guide topic: Transparent-encryption selection, IPv6, Cluster Mesh, and scaling limits.

Technical explanation

Hubble is Cilium’s integrated observability layer and consumes flow events produced by Cilium’s eBPF datapath and embedded Hubble servers. The Hubble CLI is only a client; downloading its binary does not install a standalone datapath or create flow data on a cluster that lacks Cilium. Option B is therefore the operation that is not possible.

The other approaches represent recognized Cilium deployment or migration models. A direct migration can replace the CNI configuration and recycle workloads or nodes, although a naive cluster-wide transition can disrupt connectivity. CNI chaining allows Cilium to operate with another CNI: the existing plugin continues to provide basic connectivity and IP address management, while Cilium attaches eBPF programs to the created interfaces to provide visibility, policy, and other functions. Cilium also documents migration through dual overlays. In that model, the old and new networks coexist temporarily, nodes are moved in a controlled sequence, and workloads attached to either overlay retain connectivity when the documented addressing and routing requirements are met.

The supplied bank incorrectly marks A. The verified answer is B because Hubble requires Cilium-managed observability data.

Official references

Setting up Hubble Observability ; CNI Chaining ; Migrating a cluster to Cilium .

Study Guide topic: Installation and Configuration.

Technical explanation

Cluster Mesh extends Cilium’s identity-aware networking and policy enforcement across connected Kubernetes clusters. A CiliumNetworkPolicy can authorize communication with workloads in a particular remote cluster by selecting their workload labels together with the synthetic io.cilium.k8s.policy.cluster label. Therefore, A accurately describes a direct network-policy function.

The policies themselves are not automatically copied between clusters. Administrators remain responsible for applying the required policy resources in the appropriate clusters, but enforcement can select and govern remote endpoints once Cluster Mesh has propagated their identities.

Option B confuses authorization with transport encryption. WireGuard or IPsec configuration enables transparent encryption; it is not established by a network-policy rule. Option C is also separate from policy enforcement: cross-cluster load balancing is configured through global-service facilities and service annotations, not through CiliumNetworkPolicy . Option D is incorrect under current documentation because Cilium mutual authentication does not provide a single trust domain spanning Cluster Mesh clusters and is not presently compatible with that multi-cluster arrangement.

Official references

Cluster Mesh Network Policy , Cluster Mesh Services , Mutual Authentication Limitations

Study Guide topic: Cross-cluster identity, endpoint selection, and policy enforcement.

Technical explanation

In cluster-scope IPAM, the Cilium Operator allocates a PodCIDR to each node from the configured cluster-wide address pool. It records those allocations in each node’s CiliumNode custom resource, specifically under spec.ipam.podCIDRs . The Cilium agent waits for this allocation during startup and then performs host-local allocation of individual pod addresses from the CIDR assigned to its node.

This division of responsibility explains why C is correct. The agent consumes its assigned range and allocates endpoint addresses locally, but it does not independently choose the cluster-wide per-node PodCIDR. The Operator coordinates those ranges to prevent nodes from receiving overlapping allocations.

Options A and D describe Kubernetes host-scope IPAM rather than Cilium cluster-scope IPAM. In Kubernetes host-scope mode, the Kubernetes controller manager assigns PodCIDRs and exposes them through spec.podCIDR or spec.podCIDRs in the standard Kubernetes Node resource. Cluster-scope mode is specifically useful when Kubernetes is not configured to perform that allocation or when Cilium should control the cluster address pool.

Therefore, the managing component and resource are the Cilium Operator and CiliumNode , respectively.

Official references

Cluster-Pool IPAM ; Cluster Scope IPAM .

Study Guide topic: Installation and Configuration.

Technical explanation

Cilium uses Envoy as its userspace Layer 7 proxy. When a Cilium policy contains HTTP or another supported application-layer rule, Cilium’s eBPF datapath identifies matching traffic and redirects it to a node-local Envoy instance. Envoy evaluates the application-layer attributes—such as HTTP method, path, or headers—against the generated policy configuration and then forwards or rejects the request.

The proxy can operate in embedded mode as a separate process inside the Cilium agent pod or as the independently life-cycled cilium-envoy DaemonSet. Both deployment forms use Cilium’s optimized Envoy distribution and custom policy-enforcement filters. Communication between the agent and Envoy uses local UNIX-domain sockets for configuration, access logs, and administrative operations.

HAProxy is a capable general-purpose load balancer, but it is not Cilium’s L7 policy proxy. Squid primarily serves forward and caching proxy use cases. linkerd2-proxy belongs to the Linkerd service mesh and is not used by Cilium for network-policy enforcement. Consequently, only D identifies the proxy integrated into Cilium’s L7 datapath.

Official references

Cilium Envoy , Cilium eBPF Datapath Introduction

Study Guide topic: Envoy proxy integration and Layer 7 policy enforcement.

Technical explanation

Option B correctly represents the Ingress as a Gateway and an attached HTTPRoute . The Gateway is named cilium , uses gatewayClassName: cilium , and exposes an HTTP listener on port 80. The HTTPRoute uses parentRefs with the same Gateway name, cilium , so the route attaches to the declared listener. Its two rules preserve the original routing behavior: /details with PathPrefix targets the details Service on port 9080, while / with PathPrefix targets productpage on port 9080.

Option A declares a Gateway named cilium but attaches its route to nginx-gateway . Because the parent reference does not identify the displayed Gateway, it is not equivalent. Options C and D use kind: Route ; the correct resource kind for HTTP path routing is HTTPRoute . They also contain malformed or altered backend and matching fields. Option D changes the details backend name, while option C contains incorrect route structure and path content.

Cilium’s official migration example uses the same conversion pattern: the Ingress class becomes the Gateway’s class, paths move into HTTPRoute.rules , and the route identifies its Gateway through parentRefs .

The supplied key incorrectly identifies A. The verified answer is B.

Official references

HTTP Migration Example .

Study Guide topic: Service Mesh.

Technical explanation

Hubble provides network and security flow observability derived from Cilium’s datapath. Its flow records include source and destination workloads, namespaces, identities, ports, protocols, forwarding verdicts, and drop reasons. Hubble can therefore identify services or workloads whose connections were rejected by network policy. The Hubble CLI supports filtering by verdict, such as --verdict DROPPED , and official examples show events labeled Policy denied DROPPED . These capabilities directly answer the question posed in option D.

Option B, which is marked as correct in the supplied bank, is not supported by the stated functionality. Hubble may expose network-layer or supported application-layer metadata, including DNS and HTTP information when Layer 7 visibility is configured, but it is not a database query profiler and cannot determine which internal SQL statement ran longest merely from ordinary Hubble flows. Similarly, CPU utilization is a workload-resource metric normally obtained through Kubernetes metrics, Prometheus, or another monitoring system. Cilium BGP configuration is examined through Cilium configuration and BGP status commands rather than inferred from Hubble network flows.

The supplied answer key should therefore be corrected from B to D.

Official references

Inspecting Network Flows with the Hubble CLI ; Hubble internals .

Study Guide topic: Network Observability.

Technical explanation

Remote service affinity directs a global Service to prefer healthy backend endpoints located in remote clusters. This can support maintenance or staged rollouts in which the local copy of an application is temporarily unavailable or intentionally removed from service. Requests originating in the local cluster continue through the same global Service but are forwarded to the preferred remote backends, matching the use case described by D.

Cilium configures this behavior through the service.cilium.io/affinity: "remote" annotation. The preference affects backend selection; it does not require clients to use a different Service address. If remote backends are available, they are marked as preferred. This provides operators with a controlled way to direct traffic away from the local deployment during an update.

Option A describes local affinity from the perspective of the cluster containing the client, not remote affinity. Option B incorrectly introduces the Egress Gateway, which provides controlled source addresses and routing for outbound traffic rather than Cluster Mesh global-Service affinity. Option C describes the normal none affinity behavior, under which Cilium has no local-or-remote preference and can load-balance across both categories.

Remote affinity therefore enables temporary cross-cluster continuity while local application instances are updated or otherwise unavailable.

Official references

Cluster Mesh Service Affinity .

Study Guide topic: Cluster Mesh.

Technical explanation

The status output shows Envoy DaemonSet: disabled (using embedded mode) . In embedded mode, Cilium starts Envoy as a separate process inside the Cilium agent pod when a feature requiring Layer 7 processing—such as an L7 network policy, protocol visibility, Ingress, or Gateway API—is used. This is precisely the behavior described in option B.

The remaining choices contradict the exhibit. The Cilium DaemonSet has a desired count of three, which ordinarily indicates three schedulable nodes running Cilium, not four. Hubble Relay: OK means the aggregation component is healthy. Hubble Relay connects to the Hubble instances associated with Cilium agents and presents a multi-node API to clients such as Hubble CLI and Hubble UI. Finally, ClusterMesh: disabled rules out the claim that the installation is currently configured for Cilium Cluster Mesh service discovery and cross-cluster load balancing.

Cilium can alternatively run Envoy through the independently life-cycled cilium-envoy DaemonSet. That is not the deployment displayed here because the DaemonSet is explicitly disabled and embedded mode is reported.

Official references

Envoy deployment modes ; Hubble internals .

Study Guide topic: Architecture.

Technical explanation

A Cluster Mesh can be created after assigning each cluster a unique name and numeric cluster ID. Cilium uses the cluster ID when constructing Cluster Mesh security identities, so duplicate values cannot safely identify endpoints from different clusters. The name must likewise be unique. These values can be changed after installation, although all existing workloads must then be restarted so their security identities are regenerated.

The other listed conditions are compatible. Both clusters use the same encapsulation datapath mode, their PodCIDRs are intended to be non-overlapping, and the nodes possess the required inter-cluster connectivity. Different Kubernetes patch or minor versions do not inherently prevent Cluster Mesh. Cilium versions may differ by one minor release, so versions 1.14 and 1.13 satisfy the documented compatibility rule.

Different certificate authorities are not an irreversible blocker under current documentation. Every cluster must trust certificates presented by the others. Operators may use a shared root CA or configure a CA bundle containing all trusted CA certificates. Consequently, B is too absolute. C is also false because changing the cluster identity is possible, subject to workload restarts. D is unnecessary because a one-minor Cilium difference is supported.

The source’s option A is truncated, but its intended corrective action is technically accurate.

Official references

Setting up Cluster Mesh .

Study Guide topic: Cluster Mesh.

Technical explanation

Policy Audit Mode allows administrators to evaluate the consequences of network policies before enforcing their deny decisions. Traffic that would ordinarily be rejected remains permitted, while Cilium records an audit verdict. These verdicts can be examined with Cilium monitoring tools and used to identify legitimate communications that are missing from the proposed policies.

This is especially valuable when introducing host policies or default-deny controls into an existing environment. An incomplete policy might otherwise block access to the Kubernetes API, node-management interfaces, DNS, monitoring systems, or other operational dependencies. The recommended workflow is to enable audit mode, observe traffic and policy verdicts, adjust the rules, confirm that all required communications receive allow verdicts, and then disable audit mode to begin enforcement.

DNS enforcement mode and HTTP audit mode are not the general Cilium configuration requested. “Policy enforcement mode” describes whether policies are normally enforced, but it does not provide the non-disruptive learning behavior in the question.

Audit mode should be treated as a temporary validation mechanism because it does not actually block disallowed traffic and does not persist across every agent-restart scenario.

Official references

Cilium Policy Audit Mode

Study Guide topic: Policy validation, audit verdicts, and safe policy rollout.

Technical explanation

B expresses the principal scalability distinction intended by the question. In kube-proxy’s iptables mode, Kubernetes Services and endpoints are represented by chains of netfilter rules. As the number of Services and backends grows, rule creation, synchronization, and packet traversal can involve increasingly large rule sets. Matching through those chains is generally described as having linear scaling characteristics.

Cilium’s kube-proxy replacement stores service and backend state in eBPF maps. Hash-map lookups allow the datapath to locate service entries without sequentially scanning a rule for every Service, providing effectively constant-time lookup behavior for the relevant map operations. This makes the approach better suited to large and frequently changing Kubernetes environments.

Option A is false because iptables and netfilter also operate within the Linux kernel. Option C is false because kube-proxy’s iptables implementation supports IPv6 when the surrounding Kubernetes and host configuration supports it. Option D does not explain kube-proxy’s primary scaling limitation and introduces an unrelated SmartNIC/XDP claim.

The constant-time description is a useful architectural simplification; total performance still depends on map sizing, backend selection, connection tracking, and kernel behavior.

Official references

Cilium eBPF Datapath , Cilium Tuning Guide

Study Guide topic: kube-proxy replacement, eBPF maps, and datapath scalability.

Technical explanation

Cilium tunnel mode supports VXLAN and Geneve encapsulation. In this routing model, Cilium nodes form an overlay mesh, and traffic exchanged between nodes is carried inside UDP-encapsulated packets. VXLAN is the default tunnel protocol and normally uses UDP port 8472. Geneve is the alternative and normally uses UDP port 6081. Operators select the protocol through the tunnel-protocol configuration setting, whose documented values are vxlan and geneve .

Encapsulation reduces the requirements placed on the underlying network. The underlay only needs to provide IP connectivity between the Kubernetes nodes and permit the selected UDP tunnel port. It does not need to learn or route individual PodCIDRs. Cilium also uses the tunnel metadata to carry information such as the source security identity, avoiding an additional identity lookup on the receiving node.

MPLS, OTV, STT, and EVPN are not supported values for Cilium’s tunnel-protocol setting. EVPN may be used in broader data-center network designs, and MPLS is a carrier-routing technology, but neither is a Cilium overlay encapsulation choice. Therefore, B is the only supported pair.

Official references

Cilium Routing ; System Requirements .

Study Guide topic: Architecture.
