CIS-DF Certified Implementation Specialist - Data Foundations (CMDB and CSDM) Questions and Answers

When usingImport Sets and Transform Mapsto ingest data into the CMDB, it is critical that records are processed through theIdentification and Reconciliation Engine (IRE)to prevent duplicates and enforce source precedence. InServiceNow, this is achieved by invoking the IREafterthe transform logic has completed.

TheonAftertransform script is the correct place to call the IRE API. At this stage, the transformed data has already been mapped and prepared, allowing the IRE to correctly identify whether a CI already exists and reconcile updates according to defined rules.

TheonBeforeandonStartscripts execute too early—before data mapping is complete—making them unsuitable for IRE processing. TheonCompletescript runs after the entire import job finishes and is not intended for per-record CI identification and reconciliation.

Because Import Sets can bypass IRE if not configured correctly, using anonAfter scriptis a critical Data Foundations safeguard when this ingestion method is chosen.

Therefore, the correct answer isC – onAfter.

TheCMDB Data Foundations Dashboardis designed to providevisibility, insight, and guidanceinto the overall health of CMDB data. Its purpose is not to automate ITSM workflows, but to enable informed decision-making and continuous improvement of configuration data.

One of its primary benefits is providingactionable insights to improve data quality and completeness(Option B). The dashboard highlights gaps in CI attributes, missing relationships, and compliance issues, enabling CMDB administrators and data owners to take targeted corrective actions using Get Well Playbooks.

Another core benefit is enabling organizations tomonitor and track CMDB health over time(Option D). The dashboard presents trends across health dimensions—completeness, correctness, and compliance—allowing teams to measure progress, justify investments, and demonstrate maturity improvements aligned to CSDM adoption stages.

Option A is incorrect because Change Management approvals are handled by workflow and policy engines, not the Data Foundations Dashboard. Option C is also incorrect because duplicate detection and remediation are handled throughde-duplication tools and the Duplicate CI Remediator, not directly by the dashboard itself.

Therefore, the correct answers areB and D, which accurately reflect the strategic and operational value of the CMDB Data Foundations Dashboard.

Service Graph Connectorsare a keyData Foundations ingestion capabilityinServiceNow. They provideout-of-the-box, upgrade-safe integrationsthat ingest data into the CMDB using theIdentification and Reconciliation Engine (IRE), ensuring data quality and source governance.

Two primary categories of Service Graph Connectors are:

Cloud(Option A): These connectors integrate with major cloud providers and platforms (such as AWS, Azure, and GCP) to ingest infrastructure, platform, and service data into the CMDB. They are essential for managing hybrid and multi-cloud environments and maintaining accurate cloud CI relationships.

Observability(Option B): These connectors integrate with monitoring and observability tools (such as APM, infrastructure monitoring, and telemetry platforms). They provide near-real-time operational data that enriches CI records and supports incident correlation, impact analysis, and service health insights.

Option C (DevOps) is incorrect because DevOps integrations are typically handled through CI/CD tools and workflow integrations rather than Service Graph Connectors. Option D (Workflow Automation) is unrelated; Service Graph Connectors focus ondata ingestion, not process orchestration.

Therefore, the correct connector categories areCloudandObservability, makingOptions A and Bthe correct answers.

Application Service Mapping is a critical capability inServiceNowfor enablingbusiness-aware Change Management. Its primary value is not in identifying physical shutdown sequences or CI locations, but in translating technical changes intobusiness impact.

When an organization plans a data center move, multiple infrastructure components—servers, databases, network devices—may be affected. On their own, these technical CIs provide little insight into business risk. Application Service Mapping connects these CIs toApplication Services and Business Servicesas defined by the Common Service Data Model (CSDM). This relationship allows Change Managers to seewhich business services, customers, and processes are impactedby the planned change.

By leveraging service maps, Change Management can answer critical questions such as:

Which customer-facing services may experience downtime?

What revenue-generating or mission-critical services are at risk?

Which stakeholders must be notified or involved in approvals?

Option A is incorrect because service mapping does not determine shutdown order; that is handled by infrastructure planning. Option C focuses on physical location data, which is typically managed through Location CIs and Discovery, not service mapping.

Therefore, the correct answer isB – To understand the business impact of CIs, which aligns directly with ITIL 4, CSDM, and Change Management best practices.

Principal Classesare a key CMDB configuration concept used to controlwhich CI classes are selectable in reference fieldsacross ITSM processes. This helps reduce noise, prevent incorrect CI selection, and improve data quality.

InServiceNow, Principal Classes are designated within theCI Class Manager. This tool allows CMDB administrators to manage the CI class hierarchy, define ownership, and explicitly mark classes asprincipal. Once a class is marked as principal, its CIs become available in CI reference fields such as those on Incident, Change, and Problem forms.

Option A (CMDB Workspace) provides operational and analytical views but does not control schema-level class behavior. Option C (System Properties) does not manage class designation. Option D (CMDB Data Manager) governs lifecycle and data quality policies, not reference field behavior.

By configuring Principal Classes in theCI Class Manager, organizations ensure that only relevant, high-value CI classes are exposed to end users, aligning with Data Foundations best practices.

Therefore, the correct answer isB – CI Class Manager.

The CMDB plays a critical role in security operations by providing trusted, structured insight into the organization’s IT landscape. When built according to Data Foundations principles—accurate discovery, governed relationships, and alignment to CSDM—the CMDB becomes an essential enabler for security incident response and vulnerability management.

Option D is correct because the CMDB allows security teams to identify exactly which IT infrastructure components are affected by a vulnerability. By correlating vulnerability scan results with configuration items (CIs), security teams can determine whether an issue exists on a server, application, cloud resource, or network device—and understand where that CI sits within the broader service context. This eliminates blind spots and reduces time spent investigating unknown or unmanaged assets.

Option A is also correct because the CMDB supports assessment and remediation activities during security incidents. Once affected CIs are identified, the CMDB provides ownership, support group, environment, and service relationships. This enables security teams to quickly route remediation tasks to the correct resolver groups, assess business impact, and prioritize response based on service criticality. While the CMDB does not perform remediation itself, it enables informed and coordinated action.

Option B is incorrect because vulnerabilities are not auto-resolved by the CMDB; remediation requires human decision-making and execution through security, patching, or change processes. Option C, while related to governance and compliance use cases, is more aligned with GRC and audit functions rather than day-to-day security operations, making it less appropriate for this question.

In summary, the CMDB’s primary value in security operations is visibility and actionable insight, enabling faster identification, assessment, and response to security threats.

TheCMDB Data Managercapability inServiceNowis designed to supportCMDB governance, specifically arounddata lifecycle management. Its primary purpose is to ensure that CI records areretained, archived, and deletedin accordance with definedretention policies, regulatory requirements, and organizational data governance standards.

As CMDBs mature, they naturally accumulate obsolete, retired, or decommissioned CIs. If these records are not properly managed, they negatively impact CMDB health, reporting accuracy, discovery reconciliation, and performance. CMDB Data Manager addresses this byautomating the archival and deletion of recordsonce lifecycle conditions and retention thresholds are met.

Option A is incorrect because encryption of archived records is handled by platform-level security and data protection features, not CMDB Data Manager. Option B is also incorrect becauserelationship rule enforcementis managed through CSDM guidance, CMDB relationship rules, and identification/reconciliation logic—not by CMDB Data Manager.

By automating retention-based archival and cleanup, CMDB Data Manager helps organizations maintain alean, compliant, and high-quality CMDB, which directly supports CMDB Health metrics such as correctness and compliance.

Therefore, the correct and verified answer isOption C.

InServiceNow, Service Graph Connectors deliver data ingestion patterns usingprotected, upgrade-safe artifacts, including script transforms. When a customercustomizesa script transform provided by a Service Graph Connector, ServiceNow follows standardupdate set and upgrade behaviorto protect customer customizations.

During a subsequent upgrade, if theout-of-box (default) script transform definition changes, ServiceNowdoes not overwrite the customized version. Instead, the platform records askipped change, indicating that an update was available but intentionally not applied due to a local customization. This ensures customer-specific logic is preserved while still maintaining transparency about what changed in the newer release.

Option A is incorrect because upgrades do not halt due to customized transforms. Option C is also incorrect because Service Graph Connector upgrades proceed normally; they do not refuse to start because of customizations.

This behavior aligns with Data Foundations best practices:avoid modifying OOTB content when possible, but when customization is necessary, ensure it is protected during upgrades. Administrators should review skipped changes after upgrades to decide whether to manually adopt new OOTB logic.

Therefore, the correct answer isB – A skipped change is created and no change is made to the script transform definition.

Within ServiceNow CMDB governance,AttestationandData Certificationserve distinct but complementary purposes. The key difference lies inwhat is being validated.

Attestationis focused onexistence and ownership confirmation. When a CI is attested, the assigned user or group is asked to confirm that the CIstill exists, is still relevant, and is still owned or managed by the appropriate team. No detailed attribute-level validation is required. This lightweight process is commonly used to prevent “ghost CIs” from lingering in the CMDB.

Data Certification, on the other hand, is more rigorous. It requires the certifier tovalidate specific attributesof the CI, such as lifecycle status, support group, environment, or service relationships. Certification ensuresdata correctness and completeness, which directly impacts CMDB Health scores and downstream processes like Change and Incident Management.

Options A, B, and C incorrectly describe these mechanisms or their assignment and scheduling capabilities. Both attestation and certification can be scheduled and assigned flexibly, but theirvalidation depthis what truly differentiates them.

Therefore,Option Dcorrectly describes the distinction: attestation confirms existence, while data certification validates CI attributes.

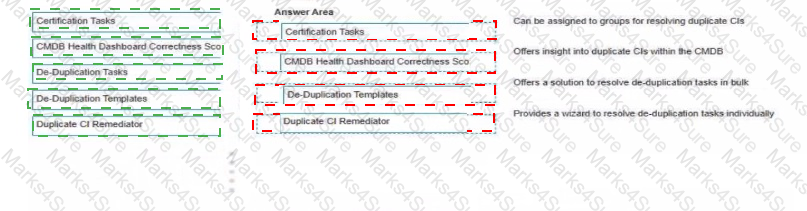

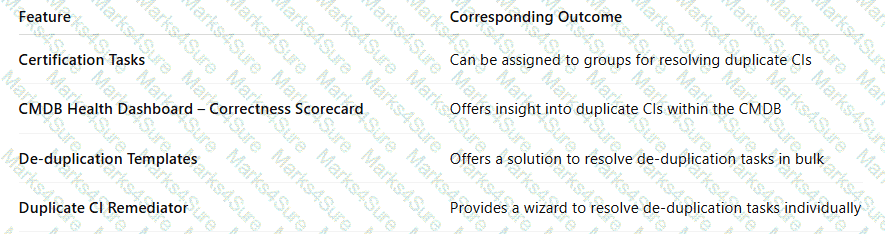

InServiceNow, duplicate CI management spansdetection, insight, and remediation:

TheCMDB Health Dashboard – Correctnesssurfaceswhere duplicates existand their impact, providing visibility and prioritization.

Certification Taskssupportgoverned resolution, allowing assignment to individuals or groups to validate and correct data.

De-duplication Templatesenablebulk remediation, ideal when standardized merge rules can be applied across many duplicates.

TheDuplicate CI Remediatoroffers aguided, record-by-record wizard, preserving relationships and history for safer individual resolutions.

De-duplication Tasksare the work items generated by these processes, but they do not themselves represent an outcome—hencenot applicable.

This mapping aligns withCMDB Data Foundations best practices, ensuring duplicates are identified, prioritized, and remediated efficiently and safely.

In CSDM version 5, enterprise-wide capability tracking is firmly positioned within the Design and Planning domain. This domain is specifically intended to support Enterprise Architecture, Portfolio Management, and Strategic Planning use cases, making it the correct choice for an Enterprise Architect working across the organization.

The Design and Planning (Design) domain focuses on answering “what the business needs and how it should be designed” before services are built or delivered. It includes core concepts such as Business Capabilities, Value Streams, Information Objects, Business Applications, and Architectural relationships. Business capabilities represent what an organization does to achieve its objectives, independent of organizational structure, technology, or implementation. This abstraction is essential for enterprise architects, especially in highly regulated industries like financial services, where strategic alignment and impact analysis are critical.

The other domains do not fit this requirement:

Foundation provides shared reference data (companies, locations, users) but does not model enterprise capabilities.

Build and Integration focuses on application development, CI/CD pipelines, and integration layers.

Service Consumption is concerned with customers, offerings, and how services are consumed.

Service Delivery models the operational and technical delivery of services, including infrastructure and runtime environments.

From a Data Foundations and CSDM governance perspective, tracking enterprise capabilities in the Design and Planning domain ensures:

Clear separation between strategy, design, and operations

Alignment with ITIL 4 strategy and planning practices

Strong support for impact analysis, rationalization, and transformation initiatives

Therefore, Design and Planning (D) is the correct and fully aligned CSDM 5 domain for tracking enterprise capabilities.

The Unified Map is designed to provide enhanced visual insight and analysis across the CMDB by consolidating configuration item (CI) relationships from multiple sources—such as Discovery, Service Mapping, and manual relationships—into a single, interactive view. While traditional Service Mapping maps are optimized for modeling and understanding application-to-infrastructure dependencies, the Unified Map extends this capability with more flexible visualization and exploration features.

Option B is correct because the Unified Map allows users to zoom in and out, enabling both high-level overviews and detailed inspections of complex CI relationships. This capability is particularly valuable in large enterprise environments where services may span hundreds or thousands of infrastructure components. Zoom functionality supports impact analysis, troubleshooting, and architectural reviews without overwhelming the user with unnecessary detail.

Option C is also correct because the Unified Map supports filtering of map nodes based on user preferences. Administrators and analysts can filter by CI class, relationship type, lifecycle state, or other attributes, allowing them to focus on what is most relevant to their task—such as identifying only production CIs, security-relevant components, or a specific technology stack. This aligns strongly with Data Foundations principles by improving usability and decision-making without altering underlying data.

Option A is incorrect because modifying the number of levels displayed is a characteristic more closely associated with Service Mapping configuration rather than an added Unified Map capability. Option D is incorrect because visibility into an application and its host is a core Service Mapping function, not an enhancement unique to the Unified Map.

In summary, the Unified Map adds value by improving interactivity, flexibility, and user-driven insight across the CMDB.

Creating acustom CI classin the CMDB is adictionary-level configuration activityand must be performed with the correct minimum privileges to ensure governance and upgrade safety inServiceNow.

Thesn_cmdb_adminrole is required because it grants administrative access to CMDB structures, including CI class hierarchy management. This role ensures that changes align with CMDB governance controls and Data Foundations practices.

Thepersonalize_dictionaryrole is also required because adding a new CI class involvescreating or extending dictionary entries(tables, attributes, inheritance). Without dictionary-level access, a user cannot define new classes or attributes in the CMDB schema.

Option A is incorrect becausesn_cmdb_adminalone is insufficient without dictionary privileges. Option B and D focus onform personalization, which affects UI layout only and does not allow creation of new CI classes. Additionally,itil_adminis not the correct role for schema-level CMDB changes.

Therefore, the minimal and correct role combination issn_cmdb_admin and personalize_dictionary, makingOption Cthe verified answer.

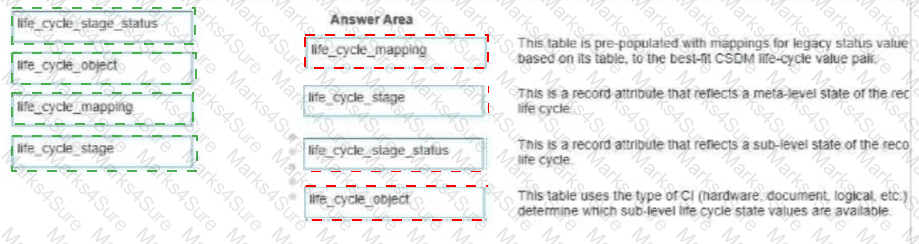

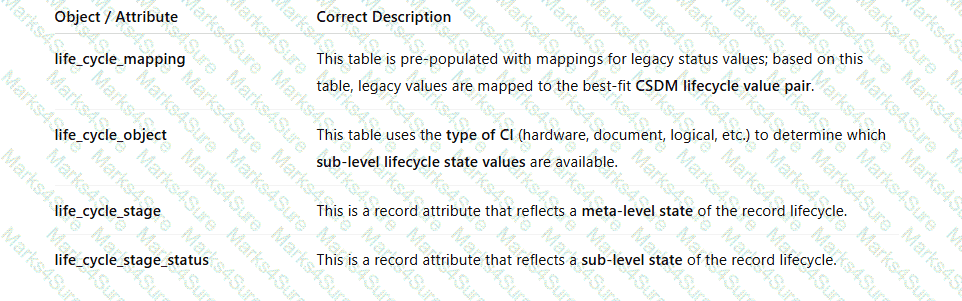

When transitioning toCSDM-aligned lifecycle management, ServiceNow introduces a structured lifecycle framework that separateshigh-level intentfromdetailed operational state.

Life Cycle Stagerepresents themacro phaseof a CI’s existence (for example:Plan, Build, Deploy, Operate, Retire).

Life Cycle Stage Statusrefines that phase withgranular, sub-level statesthat vary by CI type.

Life Cycle Objectdetermineswhich lifecycle stages and statuses apply, based on what kind of CI is being managed (hardware, application, document, etc.).

Life Cycle Mappingensures asafe transitionfrom legacy status fields by translating existing values into standardized CSDM lifecycle values—avoiding data loss or process disruption.

Together, these objects enableconsistent lifecycle governance, improve reporting accuracy, and support automation across ITSM, ITOM, and IRM use cases—while remaining backward compatible with legacy CMDB data.

In a mature CMDB implementation withinServiceNow, CI operational attributes are leveraged toautomate ITSM workflows. One of the most important outcomes of accurate Configuration Management isautomatic incident routing.

When a CI is selected on an Incident record, ServiceNow evaluates the CI’sSupport Groupattribute. If populated correctly, the platform automatically copies this value into theAssignment Groupfield on the Incident. This ensures incidents are routed to the correct resolver group without manual triage, reducing mean time to resolution (MTTR).

TheSupport Groupis a CI attribute, not an incident field that drives workflow directly. TheAssignment Groupis the operational field used by Incident Management to assign ownership. Managed by Group, Approval Group, and Change Group are used in other governance and lifecycle contexts and are not auto-populated during incident creation.

This behavior is a direct result of Data Foundations best practices: maintaining accurate CI-to-support-group relationships to enableautomation and consistencyacross ITSM processes.

Therefore, the correct answer isC – Assignment Group.

Creating new CI classes is ahigh-impact configuration activityand must follow strictData Foundations and CSDM-aligned best practicesto avoid long-term technical debt and upgrade risk.

Option Bis a recommended first step. Before creating any new CI class, administrators shouldinstall or update the CMDB CI Class Models Store applicationand verify whether an appropriate class already exists. ServiceNow frequently delivers new CI classes through updates and class model packages, and duplicating an existing or planned class can lead to fragmentation and governance issues.

Option Cis also correct. When a new class is truly required, it should beadded under an appropriate parent classto inherit attributes, behaviors, and discovery patterns. For an IoT Sensor, this might be under a hardware or device-related parent class, ensuring consistency and minimizing customization.

Option A is incorrect and dangerous—deleting unused classes can break dependencies and historical data. Option D is also discouraged; modifying existing classes to repurpose them violates upgrade-safe design principles and can negatively impact discovery, integrations, and reporting.

By verifying existing models first and extending the class hierarchy correctly, organizations maintain aclean, scalable, and upgrade-safe CMDB.

Therefore, the correct answers areB and C.

Within the CMDB class dictionary inServiceNow, attributes can be inherited from parent classes or defined directly on a specific class. To identify attributes createdspecifically for the Windows Server class, administrators must use theAddedtab.

TheAddedtab displays attributes that areunique to the selected classand not inherited from parent classes (such as Server or Computer). This is essential for understanding class-specific extensions—like Windows-only configuration details—that were introduced to support platform requirements, discovery enhancements, or organizational needs.

TheAlltab shows every attribute available to the class, including inherited and added attributes, which makes it difficult to isolate class-specific additions. TheChildtab focuses on attributes inherited by subclasses, not attributes introduced at the current class level. TheDerivedtab shows attributes calculated or derived from other data, not necessarily those created specifically for the class.

Using theAddedtab supports best practices for configuration transparency, impact analysis during upgrades, and governance—especially important in Data Foundations to minimize unnecessary customization and maintain upgrade-safe designs.

Therefore, the correct answer isB – Added.

To specifically improvedata quality related to CSDM, the most effective and prescribed action is to use theCSDM Data Foundations Dashboard. InServiceNow, this dashboard is purpose-built to assess and improveCSDM alignment, not just general CMDB hygiene.

The CSDM Data Foundations Dashboard focuses onservice modeling readiness, highlighting gaps such as missing service ownership, incomplete relationships between Business Applications and Application Services, unmanaged services, and misaligned lifecycle states. It providesGet Well Playbooksthat guide administrators through structured remediation using Analyze Data, Fix Data, and Govern Data plays—directly tied to CSDM outcomes.

Option C (default CMDB Health Dashboard) is valuable, but it measuresgeneric CMDB data quality dimensions(completeness, correctness, compliance) and does not specifically evaluateCSDM constructs or service modeling maturity. Option B (ServiceNow Health Scan) provides platform-wide configuration and performance recommendations, but it is not focused on CMDB or CSDM data quality.

Therefore, to improveCSDM-specific data quality, the administrator should use theCSDM Data Foundations Dashboard, makingOption Athe correct answer.

InServiceNow, theDuplicate CI Remediatoris a governed tool designed to safely resolve duplicate Configuration Items while preserving themost valuable and authoritative record. The first step in the remediation wizard is identifying theMain CI, which will be retained after remediation.

ServiceNow uses two primary attributes to help determine the best candidate for theMain CI:

Oldest Created (Option A)

The oldest CI is often preferred because it typically has alonger operational history, may be referenced by historical incidents, changes, problems, or audits, and is more likely to be embedded in downstream processes and reports. Retaining the oldest CI helps avoid breaking historical references.

Most Related Items (Option B)

A CI with themost relationships(for example, links to applications, services, incidents, or other CIs) is generally the most valuable from abusiness and operational contextperspective. Preserving these relationships is critical for impact analysis, Change Management, and CSDM-aligned service modeling.

Options C (Newest Created) and D (Least Related Items) are not used as selection criteria because newer or weakly-related CIs typically contain less historical and relational value and are better candidates for removal or merging.

By prioritizingOldest CreatedandMost Related Items, the Duplicate CI Remediator aligns withCMDB Data Foundations best practices, ensuring minimal data loss, preserved business context, and safer de-duplication outcomes.

Therefore, the correct answers areA and B.

When building advanced CMDB queries usingCMDB Query BuilderinServiceNow, the correct approach is to modelCI scope,relationships, andtask contextexplicitly on the canvas.

To limit results to databases in a specific location, the administrator mustfilter the Database CI nodeby the Location attribute. Therefore,Option Cis required to scope the query toDatabase CIs where Location = Seattle.

To includeIncidents related to those databases, the Incident table must be added from theNon-CMDB Tableslist and linked through thetask_cirelationship. This is exactly whatOption Aprovides. CMDB Query Builder separates CMDB tables (CIs) from task and transactional tables, so incidents must be explicitly added from the Non-CMDB section.

Option B is incorrect because property columns on Application Services do not scope databases or incidents. Option D is unnecessary because relationship depth alone does not include non-CMDB task data and does not filter by location.

Thus, the correct actions areA (add Incident table)andC (filter Database by location).
