CTAL-TTA Certified Tester Advanced Level Technical Test Analyst Questions and Answers

To achieve 100% decision coverage, we need to ensure that every decision (if statement) in the code has been tested for both true and false outcomes. Let ' s analyze the code and count the decisions:

IF (Room_price > 200)

IF (Loyalty_level = Platinum) inside Room_price > 200

ELSE within the same decision above

IF (Loyalty_level = Gold) inside the ELSE of decision 2

IF (Room_price > 150)

IF (Loyalty_level = Platinum) inside Room_price > 150

ELSE within the same decision above

IF (Discount_factor < 100%)

To cover all these decisions, we need test cases for each possible combination:

Room_price > 200 and Loyalty_level = Platinum.

Room_price > 200 and Loyalty_level = Gold.

Room_price > 200 and Loyalty_level not Platinum or Gold.

Room_price < = 200 and Room_price > 150, and Loyalty_level = Platinum.

Room_price < = 200 and Room_price > 150, and Loyalty_level not Platinum.

Room_price < = 150.

From these scenarios, we can see that the minimum number of test cases required to achieve 100% decision coverage is four:

Test with Room_price > 200 and Loyalty_level = Platinum (tests decision 1 true, 2 true, and 8 true).

Test with Room_price > 200 and Loyalty_level = Gold (tests decision 1 true, 2 false, 4 true, and 8 true).

Test with Room_price > 200 and Loyalty_level not Platinum or Gold (tests decision 1 true, 2 false, 4 false, and 8 true).

Test with Room_price < = 200 and Room_price > 150, and Loyalty_level = Platinum (tests decision 1 false, 5 true, 6 true, and 8 true).

Test with Room_price < = 200 and Room_price > 150, and Loyalty_level not Platinum (tests decision 1 false, 5 true, 6 false, and 8 true).

Test with Room_price < = 150 (tests decision 1 false, 5 false, and 8 false).

Given that these six cases test all branches, four test cases are required to ensure that all decisions are covered at least once.

Therefore, the correct answer is A. 4.

To achieve multiple condition coverage with the least number of tests, the selected test data set must cover all possible combinations of the conditions (A > B) or (C > D) and (E = F) . Set 2, where each condition has been tested in both true and false states across the minimal test set, is the most efficient way to ensure coverage. It triggers different paths in the code with minimal redundancy, ensuring that each unique path is verified.

The scenario written in correct Gherkin format and appropriate for the User Story described is Option D:

Given that three Purchase Orders with a total value of £21.75 have been placed so far this month,

When the Purchasing Manager requests the list of Purchase Orders placed this month,

Then the 3 orders and their total value of £21.75 are displayed.

This scenario correctly uses the Gherkin syntax with Given-When-Then structures that clearly specify the context, the action taken by the user, and the expected outcome, making it directly relevant to the user story’s intent .

Analysis:

Model-Based Testing (MBT) tools are designed to generate test cases based on models of the system under test.

D. MBT tools can generate test cases using a model of the system under test, but they cannot reduce the very large number of possible paths that can be generated in the model:

MBT tools create test cases from models, but managing the large number of possible test paths generated remains a challenge. These tools help automate the generation of test cases but often require additional strategies to handle the complexity and volume of test paths.

Explanation of Incorrect Options:

A. MBT tools can help by generating a model of the system under test, based on the test results derived from both systematic and experience-based testing techniques:

MBT tools generate test cases from existing models, not create models from test results.

B. MBT tools can generate different levels of load on the system under test simulating predefined usage models for trial system:

This describes performance testing tools rather than MBT tools.

C. MBT tools can be used to generate large sets of distinct execution threads which can be saved and used as test cases:

While partially true, it does not capture the essence of the challenge with the large number of possible paths.

References:

The ISTQB CTAL-TTA syllabus covers Model-Based Testing tools, emphasizing their capabilities and limitations in generating and managing test cases.

Sources:

ISTQB-CTAL-TTA Syllabus

General knowledge on Model-Based Testing tools.

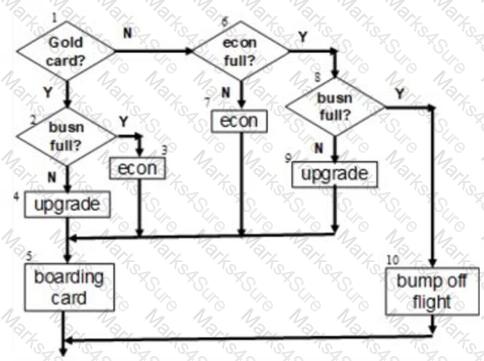

The control flow graph provided illustrates the decision points for an airline ' s upgrade and boarding process. Decision coverage is a measure of the percentage of decision points executed during testing:

Test 1 covers the decision points: Gold card? (Yes) and Business full? (No).

Test 2 covers: Gold card? (No) and Economy full? (No).

Test 3 covers the decision that leads to being bumped from the flight, which is Economy full? (Yes) and Business full? (Yes).

From the given tests, the decision points for Gold card? (No) and Business full? (No) are not tested, leaving us with 4 out of 6 decision points covered, which is approximately 67% decision coverage.

Analysis:

When performance efficiency is a critical requirement, the involvement of the Technical Test Analyst (TTA) is crucial from the early stages of the project to ensure performance goals are met.

Key Activity:

A. Designing an operational profile that does not exceed hardware, software, and network bandwidth test environment budgets:

This activity involves creating a realistic operational profile that reflects how the system will be used in production. It ensures that performance testing is aligned with actual usage patterns and resource constraints. By doing this early, TTAs can identify potential performance issues and make necessary adjustments before development progresses too far.

Explanation of Incorrect Options:

B. Participating in code reviews that focus on database and component interactions as well as error handling:

While useful, this is more relevant to ensuring code quality and correctness rather than the first step in addressing performance efficiency.

C. Assisting the developers in determining CPU utilization for critical components during component testing:

This is a more detailed activity that follows the establishment of the operational profile and overall performance requirements.

D. Implementing the performance tool ' s load test scripts for execution in a production-like environment during system test:

This occurs later in the testing process, after the operational profile has been designed and the initial performance considerations have been addressed.

References:

The ISTQB CTAL-TTA syllabus highlights the importance of designing operational profiles and understanding resource constraints as initial steps in performance testing.

Sources:

ISTQB-CTAL-TTA Syllabus

General knowledge on performance testing practices.

Analysis:

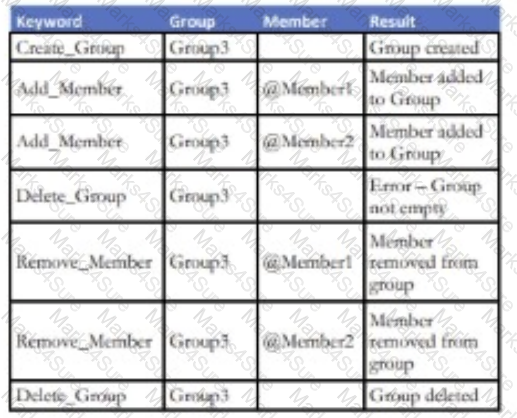

Understanding the characteristics of data-driven and keyword-driven automation is crucial for identifying the correct statements.

Correct Pairing:

C. Data Driven = a; Keyword-driven = c:

Data Driven = a: " The data used for a test is held external to the automated script " is a key characteristic of data-driven testing, where test data is stored separately from the test scripts, allowing the same script to run with different data sets.

Keyword-driven = c: " It uses a high-level language to separate the action to be performed on the test data from the test script " is characteristic of keyword-driven testing, where keywords representing actions are used to describe test steps, separating the business logic from the test scripts.

Explanation of Incorrect Options:

A. Data Driven = a; Keyword-driven = d: Statement d does not accurately describe keyword-driven testing.

B. Data Driven = b; Keyword-driven = c: Statement b does not accurately describe data-driven testing.

D. Data Driven = d; Keyword-driven = d: Statement d is not accurate for either data-driven or keyword-driven testing.

References:

The ISTQB CTAL-TTA syllabus and standard practices in test automation clearly differentiate between data-driven and keyword-driven testing methodologies.

Sources:

ISTQB-CTAL-TTA Syllabus

General knowledge on test automation methodologies.

In addressing the scenario described in the question, the primary considerations for choosing a test approach include the focus on overhauling the user interface, adding new features, and addressing customer complaints in a high-risk environment due to potential customer loss. A regression-averse strategy is also highlighted as critical due to significant changes in design and functionality.

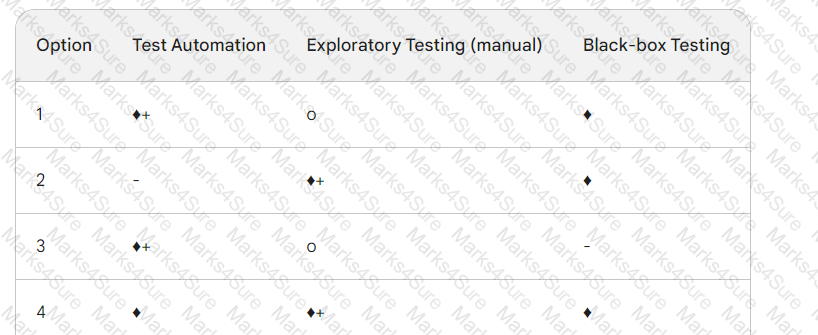

Option D (2) is marked with ♦+ for Exploratory Testing (manual) and ♦ for Black-box Testing, with Test Automation marked as not to be used (−). This selection aligns best with the project ' s needs for several reasons:

Exploratory Testing (Highly Recommended) : This type of testing is crucial in Agile projects, especially when dealing with UI changes and new functionalities. Exploratory testing allows testers to interact with the system in ways that typical scripted testing may not cover, making it ideal for catching unforeseen issues in new interfaces and features.

Black-box Testing (Recommended) : This testing focuses on the functionality of the application without needing to understand the internal workings. Given the UI overhaul and feature additions, ensuring that the system behaves as expected from an end-user ' s perspective is necessary.

Avoidance of Test Automation (Not to be Used) : While automation is valuable, focusing primarily on manual testing techniques like exploratory testing is suggested for this specific release due to the extensive UI changes and the need for creative and intuitive testing approaches that adapt quickly to newly developed features.

By using Option D, the test approach supports the dynamic and user-focused nature of the release, addressing both the technical aspects of functionality and the user experience enhancements that are central to this overhaul .

In UI testing, especially for e-commerce applications where query information is captured from users, it ' s crucial to ensure that all user messages are accurate and clear. This includes error messages, information prompts, and any feedback provided to the user based on their input. Inaccurate user messages can lead to user confusion, dissatisfaction, and potentially improper use of the application, which might compromise data integrity or lead to user errors. Testing for inaccurate user messages ensures that users receive correct and useful information that guides their interaction with the application effectively. This focus aligns with UI testing best practices that prioritize user experience and error handling, as detailed in standards like ISO 9241, which focuses on ergonomics of human-system interaction.

Considering the functionalities described for the Health Insurance Calculation system, the keywords would represent the main actions that can be performed in the system. ' Enter_Client ' would be a keyword for entering new client information, which is a primary feature of the system as described. ' Select_Client ' would be used to retrieve information for an existing client using the client’s ID number, which is another main functionality. Other options such as ' Remove_Client ' , ' Print_Premium ' , and ' Exclude_Client ' are not explicitly mentioned in the provided system functionalities, therefore, ' Enter_Client ' and ' Select_Client ' are the most likely keywords for automation.

To determine the percentage of decision testing coverage achieved by the given suite of test cases, we need to analyze the decisions and outcomes in the provided logic.

Detailed Analysis

Identify all decisions in the logic:

IF account number is valid

IF customer account is active

IF oldBalance < zero

IF balance now > = zero

IF account holder is VIP customer

Calculate the number of unique decisions:

There are 5 unique decision points in the logic.

Determine the possible outcomes for each decision:

IF account number is valid → 2 outcomes (True, False)

IF customer account is active → 2 outcomes (True, False)

IF oldBalance < zero → 2 outcomes (True, False)

IF balance now > = zero → 2 outcomes (True, False)

IF account holder is VIP customer → 2 outcomes (True, False)

Test Cases Analysis

Test Case A

Account number valid → True

Account is active → True

OldBalance = -100 → True (less than zero)

Balance now = +200 → True (greater than zero)

Not a VIP customer → False

Test Case B

Account number valid → True

Account is active → True

OldBalance = -100 → True (less than zero)

Balance now = -50 → False (less than zero)

Is a VIP customer → True

Coverage Calculation

To calculate the decision coverage, we need to see how many of the possible outcomes are covered by the test cases:

IF account number is valid (True in both A and B, False not tested)

IF customer account is active (True in both A and B, False not tested)

IF oldBalance < zero (True in both A and B, False not tested)

IF balance now > = zero (True in A, False in B, both outcomes tested)

IF account holder is VIP customer (False in A, True in B, both outcomes tested)

Out of the 10 possible outcomes (2 for each decision), the given test cases cover 6 outcomes:

Account number valid → True

Account number valid → False (not covered)

Customer account active → True

Customer account active → False (not covered)

OldBalance < zero → True

OldBalance < zero → False (not covered)

Balance now > = zero → True

Balance now > = zero → False

Account holder is VIP → True

Account holder is VIP → False

Thus, 6 out of the 10 outcomes are covered by the test cases, giving us a decision coverage percentage of:

Decision Coverage=(610)×100%=60%\text{Decision Coverage} = \left(\frac{6}{10}\right) \times 100\% = 60\%Decision Coverage=(106​)×100%=60%

References:

The sample questions and answers provided in the ISTQB CTAL-TTA documentation confirm this calculation method and the expected coverage percentage for similar logical scenarios​​​​​​.

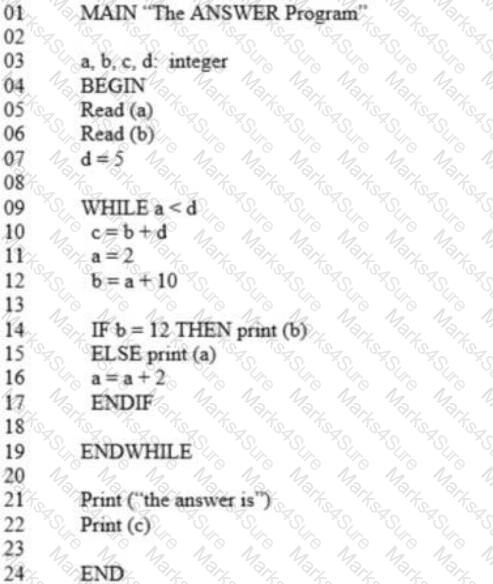

The provided pseudo code for the Answer program shows a WHILE loop that will always execute because the condition for the loop to terminate (a > = d) is never met within the loop ' s body. This results in an infinite loop. Additionally, since the value of ' b ' is initialized with ' a + 10 ' and ' a ' starts from a value that is read and then set to 2, ' b ' will never be equal to 12. Therefore, the ' THEN ' branch of the IF statement, which includes ' print(b) ' , is unreachable. These are control flow anomalies because they represent logic in the code that will not function as presumably intended.

In Agile projects, test cases may need to be refactored to make them simpler and less costly to modify. This is crucial because Agile methodologies prioritize adaptability and frequent changes to the codebase and documentation. Refactoring test cases in this context ensures that they remain aligned with the continuously evolving project requirements, are easier for teams to manage, and can be quickly adjusted to accommodate new or changed functionality without significant rework costs .

Analysis:

Given the problems encountered with the first two websites, the types of testing needed for the BestForFood website should address similar issues related to performance under peak load and data volume growth.

Load Testing:

Load testing helps identify the behavior of the website under expected user load conditions. It simulates multiple users accessing the website simultaneously to ensure it can handle peak traffic without performance degradation. This is essential given the underestimation of concurrent user access for the first two websites.

Scalability Testing:

Scalability testing evaluates how well the system can handle increased loads by scaling up its resources, such as adding more servers or increasing database capacity. This is crucial for ensuring that the website can manage rapid data volume growth and increased user traffic over time.

Explanation of Incorrect Options:

B. Stress Testing:

Stress testing pushes the system beyond its normal operational capacity to identify breaking points. While important, it is more extreme than necessary for addressing the issues of underestimated user access and data volume growth.

D. Portability Testing:

Portability testing assesses how well the software can be moved from one environment to another, which is not directly related to the performance issues described.

E. Recoverability Testing:

Recoverability testing ensures the system can recover from failures, which is not the primary concern here.

References:

The ISTQB CTAL-TTA syllabus covers different types of non-functional testing and their relevance. Load and scalability testing are emphasized for addressing performance and capacity-related risks.

Sources:

ISTQB-CTAL-TTA Syllabus

General knowledge on non-functional testing practices.

Analysis:

For a system to meet its reliability requirements, it must maintain a mean time between failure (MTBF) of three months or longer and a mean time to repair (MTTR) of ten minutes or less. When planning and specifying reliability tests, several factors must be considered to ensure these requirements are met.

Key Factor:

B. Determining the target availability for the system:

Availability is a critical factor that encompasses both the MTBF and MTTR. Availability is calculated based on the uptime and downtime of the system, which directly correlates with MTBF and MTTR. Determining the target availability helps ensure that the system can meet the required reliability standards by specifying acceptable levels of uptime and downtime.

Explanation of Incorrect Options:

A. Defining the replaceability requirements:

Replaceability pertains to the ease with which components can be replaced or updated. While important for maintainability, it is not the primary focus for reliability testing in this context.

C. Monitoring reliability in production:

Monitoring in production is important for ongoing reliability assessment but is not a primary consideration when planning and specifying tests before release.

D. Configuring a production-like test environment:

This is essential for accurate testing but is a logistical consideration rather than a direct factor in the reliability requirements.

References:

The ISTQB CTAL-TTA syllabus and standard practices in reliability testing emphasize the importance of availability metrics in planning reliability tests.

Sources:

ISTQB-CTAL-TTA Syllabus

General knowledge on reliability testing and availability.

For a product that has reached its capacity limits and requires testing to ensure it can handle projected growth, scalability testing is the most appropriate. Scalability testing evaluates a system ' s ability to manage an increasing workload without compromising performance or other operational capabilities. This type of testing will help confirm whether the system can handle the estimated increase in load, which is aligned with the strict performance efficiency and growth requirements for the next three years

In portability testing for a video game that is anticipated to be highly popular, the key area to emphasize is installability. This involves ensuring that the game can be successfully installed across different platforms and configurations that potential players might use. Focusing on installability helps minimize technical barriers to entry, crucial for a successful launch and widespread adoption of the game .

Performance efficiency testing is most commonly associated with system testing. This is the level at which the complete, integrated system is evaluated, and it is typically where performance, load, and stress testing are conducted to assess the system ' s behavior under various conditions and loads. Performance efficiency testing at this level helps to ensure that the system meets the necessary performance criteria as a whole.

Analysis:

One of the common technical issues that can lead to the failure of an automation project is the improper management of test environments, particularly the failure to reset the system to a known state after tests are executed.

Key Technical Issue:

B. Not returning the system to a pre-defined state after completing the execution of a suite of automated tests:

Ensuring that the system is reset to a known state after each test run is crucial for maintaining test consistency and reliability. Without this, subsequent tests may produce unreliable results due to residual data or configurations from previous tests.

Explanation of Incorrect Options:

A. Technical Test Analysts not developing business domain expertise for keyword-driven testing:

While domain expertise is beneficial, the lack of it is not a primary technical issue that would cause an automation project to fail.

C. Having to manually plan how to handle software failures in a test automation design:

Manual planning for handling failures is part of test design and does not inherently cause project failure.

D. Automated tests uncovering a higher than expected rate of defects in the software under test:

Finding defects is the purpose of testing and does not represent a failure of the automation project.

References:

The ISTQB CTAL-TTA syllabus and standard practices in test automation emphasize the importance of environment management and maintaining a consistent test state.

Sources:

ISTQB-CTAL-TTA Syllabus

General knowledge on test automation and environment management.

For Multiple Condition Coverage, each combination of conditions must be tested to ensure all possible outcomes are covered. Given the decision IF X < 5 OR Y > 10 THEN and the test inputs X=6 and Y=12 and X=5 and Y=10, we need to find additional test cases to achieve full coverage. The conditions are:

Condition 1: X < 5

Condition 2: Y > 10

Let ' s examine the options:

Option A :

X=4 and Y=7 (X < 5 is true, Y > 10 is false; overall decision true)

X=10 and Y=15 (X < 5 is false, Y > 10 is true; overall decision true)

X=8 and Y=8 (X < 5 is false, Y > 10 is false; overall decision false)

This set covers all possible outcomes but does not provide the minimal set for MC/DC.

Option B :

X=0 and Y=10 (X < 5 is true, Y > 10 is false; overall decision true)

X=4 and Y=4 (X < 5 is true, Y > 10 is false; overall decision true)

This set does not fully achieve multiple condition coverage as it misses the combination where X < 5 is false and Y > 10 is true.

Option C :

X=2 and Y=12 (X < 5 is true, Y > 10 is true; overall decision true)

X=6 and Y=4 (X < 5 is false, Y > 10 is false; overall decision false)

This set, combined with the initial inputs (X=6 and Y=12, X=5 and Y=10), ensures that all condition combinations are tested, achieving full multiple condition coverage.

Option D :

X=3 and Y=10 (X < 5 is true, Y > 10 is false; overall decision true)

X=0 and Y=15 (X < 5 is true, Y > 10 is true; overall decision true)

This set does not fully achieve multiple condition coverage as it does not test the combination where both conditions are false.

Therefore, the correct answer is C. X=2 and Y=12, X=6 and Y=4.

To achieve 100% decision coverage, you must ensure every decision in the code has been evaluated both to true and false. Given the code:

If x > y and z = 3 statement1 elseif z = 4 statement2 endif;

Two tests are required:

Test 1 : Set x > y true and z = 3 to evaluate the first decision as true and execute statement1 .

Test 2 : Set z = 4 (ensuring the first condition x > y and z = 3 evaluates to false) to evaluate the elseif condition as true and execute statement2 .

This testing ensures that both branches of the decision have been evaluated.

Reliability testing is aimed at verifying the software ' s ability to function under expected conditions for a specified period of time. It is typically conducted during system testing, where the software is tested in its entirety to ensure that all components work together as expected in an environment that closely simulates the production environment. Reliability testing is not typically associated with static testing, component testing, or functional acceptance testing, as these levels of testing do not address the overall behavior of the system over time.

In the context of API testing, the defect types generally found are related to the specific interactions with the API, such as issues with data formatting, handling, validation, and the sequencing or timing of API calls. Architectural structural complexity is not typically a defect that would be identified at the API testing level. API tests are concerned with the interface and immediate integration points, not the overarching system architecture, which would be more relevant to design or system-level testing.

Increasing automated test coverage frees up valuable time for testers, allowing them to focus more on exploratory testing, particularly in high-risk areas. This approach leverages the efficiency of automation to handle routine, repeatable testing tasks, while human testers can focus their expertise on more complex, risk-prone areas that require creative and critical thinking .

For a keyword-driven testing approach involving operations on an order number, the minimal essential columns for the input table would be ' Action ' , ' Order ID ' , and ' Expected Result ' . This setup supports clearly defined operations (Action) on specific entities (Order ID) and validation against expected outcomes (Expected Result), thereby facilitating structured and efficient testing. This configuration provides the required information for executing actions and verifying outcomes without redundancy or ambiguity​​.

In this scenario, the project ' s stakeholders have expressed concerns about several risk factors related to the new sales and merchandising system. As a Technical Test Analyst, it ' s essential to identify the quality characteristics that contain the highest levels of technical risk.

Stakeholder Concerns:

Length of the Batch Job Runs:

This directly impacts the time behavior of the system, which is a sub-characteristic of performance efficiency.

Ease of Parameter Entry for Users:

This impacts operability , a sub-characteristic of usability, but considering the given options, it’s not the highest technical risk compared to others.

Unauthorized Access to Stored Sales Data:

This is a critical concern under security , which involves protecting the system from unauthorized access and ensuring data integrity and confidentiality.

Limited Time for Testing:

This relates to testability , which is the ease with which the system can be tested, but it’s less critical compared to time behavior and security in this context.

Quality Characteristics with Highest Technical Risk:

Time Behavior (Option B):

The efficiency of batch job runs is crucial since delays can impact other dependent jobs and overall system performance. Ensuring that batch jobs complete within the scheduled time is vital to maintain system reliability and performance efficiency.

Security (Option D):

Unauthorized access to sales data is a significant risk. Ensuring robust security measures to protect sensitive data is essential to prevent data breaches and maintain data integrity.

Explanation of Incorrect Options:

A. Operability: While ease of use is important, it’s not the highest technical risk compared to performance and security.

C. Interoperability: This relates to how well the system interacts with other systems, which is not a primary concern based on the given stakeholder issues.

E. Testability: Although important, the limited testing time is less critical compared to the risks associated with system performance and data security.

References:

The ISTQB CTAL-TTA syllabus discusses quality characteristics and their sub-characteristics, emphasizing the importance of understanding different types of risks in software testing. In this case, performance efficiency (time behavior) and security are the most critical aspects given the stakeholder concerns.

Sources:

ISTQB-CTAL-TTA Syllabus

General knowledge on quality characteristics in software testing.

A key practice in a regression-averse test approach is to increase automated test coverage. This strategy allows the testing team to cover more ground routinely and reliably with automated checks, thus freeing resources to focus on exploratory testing. Exploratory testing is crucial for uncovering issues in areas less well-served by scripted testing, particularly in complex or high-risk functionalities. This approach helps maintain a balance between routine regression checks and adaptive, risk-focused testing strategies .

A service virtualization tool is used to simulate the behavior of specific components in heterogeneous component-based applications such as APIs, services, and third-party apps that are not readily accessible during development and testing stages. These tools help create stable, controllable, and predictable testing environments by mimicking the interactions with the missing components. This is particularly useful when dealing with server or network traffic log data to develop a shareable testing service that replicates the real systems ' behavior without their actual implementations.

Analyzing the given pseudocode for potential anomalies in data flow:

Declare C, F, Z Decimal Set Z = 32 Read F Set C = (F-Z) * 5/9 Free C, F, Z Print F

The potential anomaly is with variable F . It is used after being freed, which typically indicates an error in managing the variable ' s lifecycle within the code.

Explanation : Freeing a variable typically indicates that it is no longer available for use, but F is used after this operation, which could result in undefined behavior or errors.

Analysis:

The given pseudo code for the Vowel Counter module contains potential issues that can be identified using a checklist.

Checklist Items:

B. Are all loops, branches, and logic constructs complete, correct, and properly nested?:

This item will help identify errors in the structure and nesting of loops and conditional statements. Proper nesting and completeness are crucial for the code to execute as intended.

C. Are all cases covered in an IF-ELSEIF, including ELSE or DEFAULT clauses?:

This item ensures that all possible cases are accounted for in conditional statements, including a final ELSE clause to handle unexpected values. This is important to avoid logical errors where certain conditions are not handled.

Explanation of Incorrect Options:

A. Are all variables properly declared?:

While important, this item does not directly address the issues related to loop and conditional logic completeness and correctness.

D. Are loop termination conditions obvious and invariably achievable?:

This item focuses on ensuring that loops will always terminate correctly, but does not address the completeness and correctness of the nested logic.

E. Are there any redundant or unused variables?:

This item helps identify variables that are declared but not used, which is not directly relevant to the correctness of the logic constructs.

References:

The ISTQB CTAL-TTA syllabus and standard code review practices emphasize the importance of checking for proper nesting and completeness of logic constructs to ensure reliable and maintainable code.

Sources:

ISTQB-CTAL-TTA Syllabus

General knowledge on code review and checklist practices.

Service virtualization is used in test environments to simulate the behaviors, data, and performance characteristics of dependent systems that are not available for testing due to limitations such as cost, access, or complexity. This allows for more thorough testing of the product under test in a controlled, stable environment that mimics real-world conditions without the need for actual live systems .

Cyclomatic complexity is a measure of the number of linearly independent paths through a program ' s source code. Segment 3 has two conditions: if (a > b) or (c <</b> d) and the associated else . This structure introduces multiple decision points, thereby increasing the number of potential execution paths. Comparatively, the other segments have fewer conditions and straightforward loops, which contribute to a lower cyclomatic complexity. Segment 3, with its compound condition and branching logic, likely has the highest cyclomatic complexity.
