CTAL-TTA_Syll19_4.0 ISTQB Certified Tester Advanced Level - Technical Test Analyst (V4.0) Questions and Answers

The comment frequency in a code fragment relates to the number of comments in relation to the code size. A good level of comment frequency can significantly contribute to the maintainability of the software. Maintainability is a non-functional quality characteristic that refers to the ease with which a software system can be modified to correct defects, update features, improve performance or other attributes, or adapt to a changed environment. Comments in the code help developers understand the logic, purpose, and functionality of the code, which is crucial when modifications are required. This does not directly contribute to portability, usability, or performance efficiency, which are concerned with different aspects of the software ' s operation and user interaction.

The statement about performance testing tools that is NOT correct is that they typically drive the application by simulating user interaction at the graphical user interface (GUI) level to more accurately measure response times. In practice, performance testing tools often simulate user interactions at a protocol or service level rather than the GUI level. This approach allows the tools to generate a high load by simulating many virtual users, which would be challenging to achieve with GUI-level interactions due to the higher resource consumption and slower execution speed associated with GUI automation.

Performance testing tools are designed to assess the performance of a system under a particular load and are not primarily focused on the user interface. They simulate multiple users accessing the system simultaneously, which helps in identifying bottlenecks, understanding the system ' s behavior under load, and determining how the system scales with increasing load. The tools typically simulate user requests to the server, bypassing the GUI to directly test the backend, APIs, or other service endpoints. This method allows for more efficient and scalable testing, enabling the simulation of thousands of users without the overhead of rendering the GUI.

Reliability testing is the process of checking whether the software consistently performs according to its specifications. For a commercial system with a critical internet-based user interface, ensuring that the application can handle connection failures without abnormal terminations is essential. Reliability testing would include testing the system ' s ability to recover from failures and continue operating, which directly addresses the risk identified.

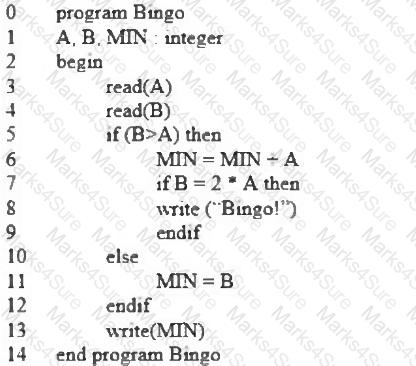

In the provided pseudo-code for the Bingo program, the variable MIN is used in the statement MIN = MIN + A without being initialized with a value beforehand. This represents a classic ' use before define ' anomaly, as the variable MIN must have an initial value before any operation like addition can be performed on it.

In the context of consumer electronics, where there is rapid growth in embedded software and pressure to minimize code size due to cost constraints, dynamic analysis can be particularly useful for improving system performance. Dynamic analysis involves examining the system ' s behavior during execution, which can provide insights into the efficiency of the code at runtime, memory utilization, and processing speed. In a high-end TV project where the use of ROM and RAM is under severe restrictions, dynamic analysis would be most appropriately applied to improve system performance, ensuring that the software runs efficiently within the available hardware resources. This supports the project context by contributing to the optimization of the software to run within the constraints of the microcontroller used, thereby potentially reducing costs.

Cyclomatic complexity is a measure of the number of linearly-independent paths through a program ' s source code, which is often used as a measure of the complexity of a program. The control flow graph provided represents the logic of a software component and has more than 5 nodes with decision points, indicating that the complexity would exceed the maximum allowed value of 5. The calculation for cyclomatic complexity is V(G) = E - N + 2P, where E is the number of edges, N is the number of nodes, and P is the number of connected components. In this case, the calculated cyclomatic complexity exceeds the allowed threshold, thus a defect should be reported.

For a project where the reuse of software components is a key objective, it is essential to ensure that all modules, data, and interfaces are uniquely identified. This facilitates the tracking, maintenance, and reuse of these components in different parts of the software or in other projects. Unique identification helps in preventing confusion and conflicts that may arise due to the reuse of components that have the same name but different functionalities or interfaces.

Reliability testing is aimed at verifying the software ' s ability to function under expected conditions for a specified period of time. It is typically conducted during system testing, where the software is tested in its entirety to ensure that all components work together as expected in an environment that closely simulates the production environment. Reliability testing is not typically associated with static testing, component testing, or functional acceptance testing, as these levels of testing do not address the overall behavior of the system over time.

Failure Mode and Effect Analysis (FMEA) is a structured approach to identify and address potential failures in a system, product, process, or service. The major factors involved in calculating risk priorities in FMEA are typically the severity of the potential failure, its likelihood of occurrence, and the ability to detect it. These factors are usually combined to form a Risk Priority Number (RPN) for each potential failure mode identified. However, the specific factors mentioned in the options like functionality, reliability, usability, maintainability, efficiency, and portability are quality characteristics that could be considered in an FMEA analysis but are not directly used for calculating risk priorities. Likewise, financial damage, frequency of use, and external visibility might influence the severity or impact of a failure, but they are not standard factors in calculating risk priorities in the context of FMEA. Therefore, the most relevant factors for calculating risk priorities in an FMEA context would typically be the likelihood of the failure occurring and its potential impact, which aligns with option C: Likelihood and impact.

It ' s important to note that while these explanations are based on general principles and practices related to fault seeding and FMEA, the specifics might vary slightly in different contexts or with different methodologies.

In the context of software testing, different safety integrity levels (SIL) require different levels of rigor in testing. According to the IEC61508 standard, for software components rated at SIL 2, achieving 100% statement coverage and 100% decision coverage is recommended. Statement coverage ensures that every line of code is executed at least once during testing, while decision coverage ensures that every decision in the code (e.g., every branch of an IF statement) is executed on both the true and false sides. These coverage criteria ensure a thorough testing of the software components to validate that they behave correctly in all circumstances. Multiple condition coverage and MC/DC coverage (Options A and B) are more rigorous and typically required for higher SIL levels, such as SIL 4.
