Free Practice Questions for the AVIXA Communications Certifications CTS Exam (2026 Updated)

The Needs Analysis phase of the AV Design process focuses on understanding the specific needs and requirements of the project. This includes identifying the functional requirements, which detail what the system must be able to do to meet the client ' s objectives. This step ensures that the design will align with the user ' s needs and provides a foundation for developing the technical specifications and design plans.

The AV Project Manager is responsible for managing the schedule, budget, and scope of a project. This encompasses ensuring the project is completed on time (schedule), within the allocated funds (budget), and meets all the agreed-upon requirements (scope). These three aspects are often referred to as the " triple constraint " in project management and are critical for the successful completion of a project.

In an audiovisual system where a touch panel is to be connected to the control system via the LAN, the designer typically chooses to use a static IP address. A static IP address ensures that the touch panel always has the same IP address, making it easier to locate and communicate with within the network. This is crucial in a control system where consistent and reliable communication is necessary. Using a static IP address avoids the potential issues that can arise with dynamic IP addresses, which can change and cause disruptions in communication.

When upgrading an AV system in a boardroom and adding control of the lights and shades to the control panel, the most relevant information to gather is the communications protocols. Understanding the protocols used by the lighting and shading systems ensures compatibility with the AV control panel, enabling seamless integration. Axis Technology Specialist documentation highlights the necessity of knowing communication protocols to ensure different systems can interact correctly and be managed from a unified control interface.

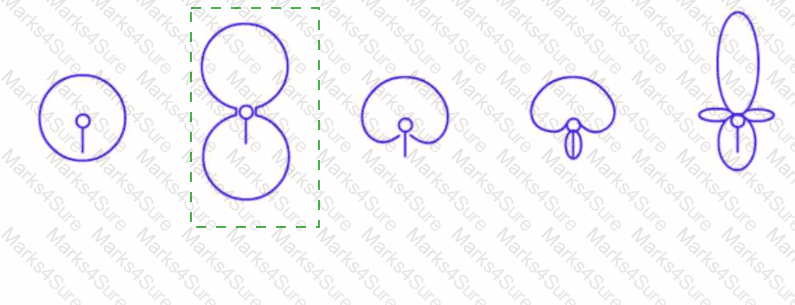

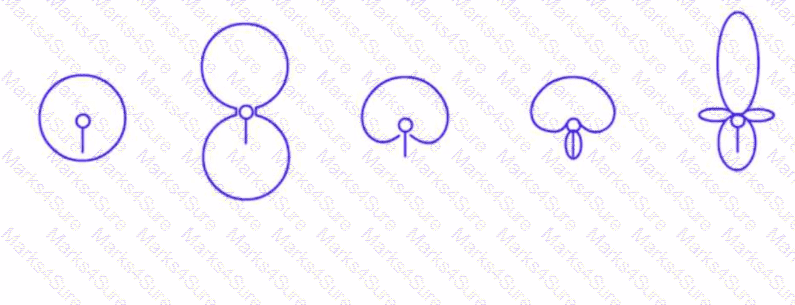

The second pattern from the left (the figure-eight pattern).

The figure-eight (or bidirectional ) microphone pattern is the most susceptible to feedback among the choices shown. This pattern picks up sound equally from both the front and rear of the microphone while rejecting sound from the sides. Due to its large rear lobe, it is prone to capturing sounds from reflective surfaces or rear-facing speakers, which can lead to feedback in a live sound environment.

Here ' s a breakdown of the patterns:

First pattern (Omnidirectional): Captures sound from all directions. While it can be prone to feedback, it doesn’t have a rear lobe like the figure-eight pattern.

Second pattern (Figure-eight/Bidirectional): Susceptible to feedback because it picks up equally from both front and back, which can include unwanted sound reflections.

Third and Fourth patterns (Cardioid and Supercardioid): These are more directional with better rear rejection, thus less susceptible to feedback.

Fifth pattern (Shotgun): Highly directional with minimal pickup from the rear and sides, making it the least susceptible to feedback.

CTS Technology Specialist Reference

CTS materials on microphone types and placement emphasize that bidirectional (figure-eight) microphones should be positioned carefully in live sound setups to avoid unwanted rear lobe pickup, which can lead to feedback when speakers are positioned behind or to the sides of the microphone.

Energy Efficient Ethernet (EEE) must be disabled in a Dante network. EEE can cause latency and jitter issues which are detrimental to audio streams. Dante is designed for low-latency, high-reliability audio networking, and EEE ' s power-saving mechanisms, which involve putting links to sleep, can interfere with the consistent data transmission required by Dante networks. Disabling EEE ensures stable and uninterrupted network performance for audio applications.

" Shock Loads " for equipment mounts refer to sudden additional loads from earthquakes or personnel hanging from the mounts. Shock loads are unexpected forces that can be significantly higher than normal operating loads and can cause structural failures if not properly accounted for. This is particularly important in areas prone to seismic activity or where equipment might be subjected to additional stresses. Axis Technology Specialist documentation highlights the need to design mounts and supports to withstand such shock loads to ensure the safety and durability of the installation.

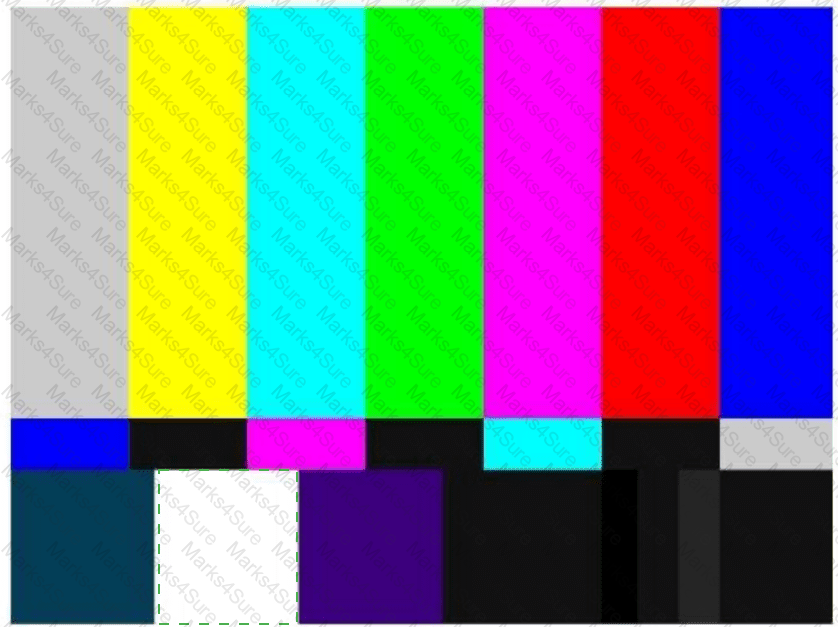

The section with the grayscale bars (bottom row, from white to black)

Brightness calibration is typically done using the grayscale section of a color chart. The grayscale bars provide a range of luminance levels from white to black, allowing the calibration process to adjust the display so that each shade is distinct and accurately represented. Proper calibration ensures that the display shows details in both bright and dark areas of the image, achieving the correct overall brightness.

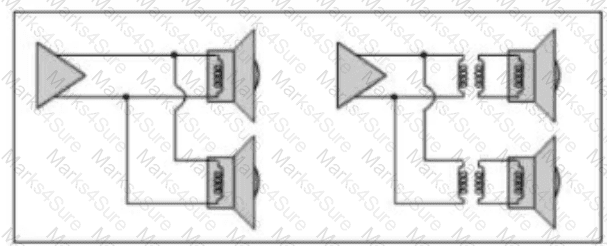

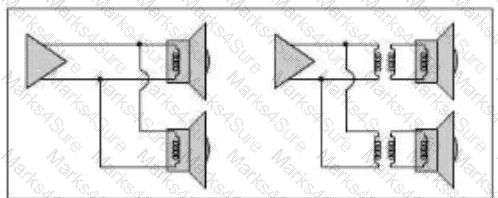

Assuming the speakers on the left are 8Ω drivers and they are connected in parallel, the total impedance ZtZ_t Zt ​ can be calculated using the formula for parallel resistance:

Zt​1​=Z1​1​+Z2​1​

For two 8Ω speakers in parallel:

1Zt=18+18=28=14\frac{1}{Z_t} = \frac{1}{8} + \frac{1}{8} = \frac{2}{8} = \frac{1}{4}Zt​1​=81​+81​=82​=41​

Therefore,

Zt=4ΩZ_t = 4ΩZt​=4Ω

If the wiring in the diagram shows two pairs of 8Ω speakers connected in parallel, the total impedance is 4Ω for each pair, and if these pairs are then connected in parallel again, the final impedance is:

1Zt=14+14=24=12\frac{1}{Z_t} = \frac{1}{4} + \frac{1}{4} = \frac{2}{4} = \frac{1}{2}Zt​1​=41​+41​=42​=21​

Thus, the total impedance is 2Ω.

When a client requests an addition to the project that wasn ' t included in the original scope, such as a videoconferencing system, a Request for Change (RFC) is needed. An RFC formally documents the change in scope, budget, or timeline and ensures that all parties agree to the modifications.

CTS Technology Specialist Reference

The CTS guidelines discuss the use of RFCs to manage scope changes, helping avoid misunderstandings and ensuring all modifications are approved and documented.

When comparing two products, the first aspect to review should be the product specifications . Specifications provide detailed information about a product’s features, capabilities, and performance, which are essential to determine suitability for the intended application. Reviewing specifications ensures that the selected product meets the functional requirements of the project.

CTS Technology Specialist Reference

CTS materials emphasize starting with product specifications to ensure that equipment will fulfill technical requirements, which is a foundational step in the selection process before considering factors like price or reliability.

A static IP address is a fixed IP address that is manually assigned and does not change. This scheme is suitable for devices that require a constant address, allowing them to be easily located and accessed within a network. Static IP addresses are commonly used for routers, servers, and other essential devices in AV networks.

CTS Technology Specialist Reference

The CTS curriculum covers IP addressing schemes, noting that static IP addresses provide reliability and are preferred for AV equipment requiring stable and consistent network access.

The f-number (aperture) of a lens determines how much light passes through. An f/2.8 lens allows less light than an f/1.4 lens, resulting in a dimmer image . Specifically, each full f-stop reduces the light by a factor of four . So switching from f/1.4 to f/2.8 cuts the light significantly.

“The larger the f-number, the smaller the lens opening and the less light is transmitted, which reduces image brightness.”

— AVIXA CTS Exam Guide, Display Technologies Chapter

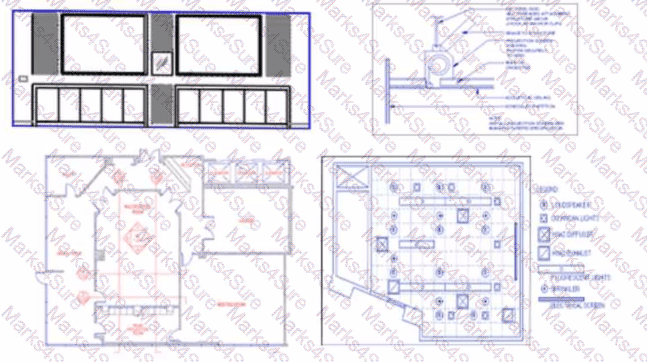

A detail drawing provides specific, comprehensive information about particular elements of a project, such as how to hang a loudspeaker line array. These drawings include precise measurements, materials, and installation instructions, allowing technicians to understand the exact requirements and procedures for mounting the equipment. Detail drawings ensure that all aspects of the installation are clearly communicated and followed, preventing errors and ensuring a safe and effective setup.

When an LED indicator on a projector blinks regularly, it typically signifies an error or a status message that needs attention. The correct course of action is to consult the projector ' s manual. The manual will provide specific information regarding what the blinking pattern means and the appropriate steps to resolve the issue. This method ensures that the engineer addresses the problem correctly without causing further damage or misdiagnosing the issue.

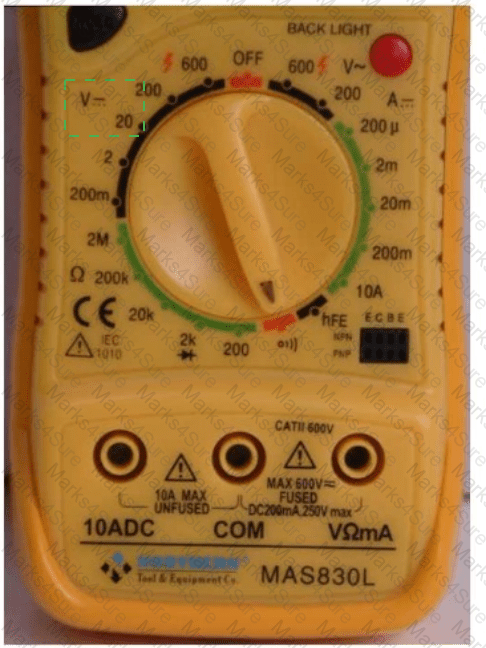

The correct setting is the section marked with “V ⎓ ” (DC Voltage), specifically within the range that matches your expected DC power supply output, e.g., 20V under the “V ⎓ ” section.

According to the AVIXA CTS Exam Guide, Chapter 6: Troubleshooting , checking if a DC power supply has failed requires measuring the DC output voltage . This involves setting your multimeter to the DC voltage (V ⎓ ) range that covers the expected output.

From the guide:

“When testing a DC power source, use the DC voltage range on your digital multimeter. Begin with a higher range (e.g., 200V) to avoid damaging the meter, then narrow down for precision if needed.”

Avoid using resistance (Ω), AC voltage (V~), or current (A) ranges when checking voltage output.

An incident meter measures the light coming directly from a source. This type of meter is used to measure the intensity of light that falls on a subject or area, as opposed to a reflected meter, which measures light that bounces off a surface. Incident light meters provide accurate readings of the lighting conditions, which is essential for calibrating AV systems. According to Axis documentation, using an incident meter is crucial for obtaining precise light measurements in AV setups.

The primary benefit of a remote monitoring system is that it reduces the need for service calls by allowing technicians to monitor equipment status, detect issues early, and perform diagnostics remotely. This proactive monitoring minimizes downtime and often resolves issues without the need for on-site intervention.

CTS Technology Specialist Reference

CTS training emphasizes the value of remote monitoring in AV maintenance, highlighting its role in reducing service costs and improving system uptime by enabling early issue detection and resolution.

When testing a distributed audio system, focusing on the audio uniformity in the range of intelligible speech (100 Hz - 2 kHz) is most important. This range is crucial for ensuring that speech is clear and understandable, which is often the primary function of distributed audio systems in environments like schools, offices, and public spaces. Ensuring uniform sound distribution within this frequency range helps achieve consistent audio quality and speech intelligibility across the covered area.

Higher resolution (like 1080p) increases bandwidth demands . While the cable was sufficient for 720p, switching to 1080p may exceed its capabilities—especially over longer distances (like 8 meters), leading to sparkling, dropouts, or signal instability .

“HDMI signal degradation over long runs is often caused by insufficient bandwidth handling, particularly at higher resolutions like 1080p or 4K.”

— CTS Exam Guide, Signal Integrity and Cabling Standards

A ducker is a feature in audio DSPs that automatically reduces the level of one audio signal when another signal is present. In this scenario, the ducker is likely set to reduce the microphone level when laptop audio is detected. Reviewing and adjusting the ducker settings will resolve the issue.

Refraction is the bending of light as it passes from one medium to another with a different density, such as from air to glass. This change in direction occurs because the speed of light changes in different media.

CTS Technology Specialist Reference

In AV, understanding refraction is essential for systems involving optics, such as projectors and lenses, where light paths affect image quality and focus.

Maintaining AV operations involves ensuring that all system components are up to date and functioning correctly. One critical aspect is updating the control system firmware. Firmware updates often include performance improvements, security patches, and new features that can enhance the reliability and functionality of AV systems.

Pantone data (PMS) is used to ensure color consistency between digital displays and printed materials. This is critical in branding to maintain accurate color representation across different mediums, particularly for logos and brand colors.

CTS Technology Specialist Reference

CTS guidelines on content creation emphasize color matching as a key consideration for client branding, often involving Pantone color standards to achieve consistency.

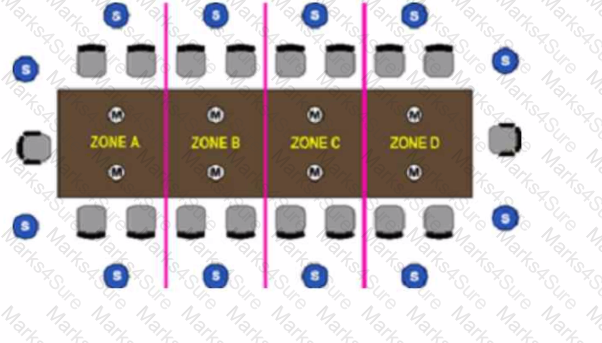

Zone D

In a mix-minus audio system, the microphones within each zone are typically routed to the speakers in other zones, excluding the zone they are in. This setup helps to avoid feedback, as it minimizes the likelihood of a microphone picking up sound from a nearby speaker broadcasting the same audio. For Zone C’s microphones to be the loudest, they should be directed to Zone D , which is adjacent to Zone C but not in the immediate vicinity of Zone C’s microphones.

Mix-minus configurations are common in conference rooms and other multi-zone environments, where sound needs to be clear and localized without causing feedback.

CTS Technology Specialist Reference

The CTS guidelines on sound system design discuss mix-minus as an approach to achieve speech clarity and prevent feedback in multi-zone audio systems by broadcasting microphones to other zones rather than the one they are in.

Multicast transmission in a network AV solution significantly reduces network bandwidth when using multiple decoders. With multicast, a single stream of data is sent from the source and is then distributed to multiple recipients by the network infrastructure. This contrasts with unicast, where a separate stream is sent to each recipient, leading to higher bandwidth consumption. Multicast is particularly efficient in scenarios where the same content needs to be delivered to multiple devices, such as digital signage or IPTV.

The main benefit of an inventory tracking system in an AV rental and staging business is having an accurate record of the current state and commitments of assets. This allows the business to manage inventory efficiently, track availability, schedule rentals, and ensure that equipment is maintained and ready for use. According to Axis Technology Specialist documentation, maintaining accurate records of asset status and commitments is crucial for operational efficiency and customer satisfaction in the AV rental industry.

Ultra High Definition (UHD) resolution is defined as 3840 x 2160 pixels. This resolution is commonly referred to as 4K UHD and provides four times the resolution of Full HD (1920 x 1080 pixels). UHD offers greater detail, clarity, and overall image quality, making it suitable for large displays and high-definition content.

Top of Form

Bottom of Form

In Setup B, the speakers are positioned symmetrically at ear level and angled towards the listener, which is the optimal configuration for achieving accurate sound reproduction and a balanced stereo image. In a small studio or listening environment, placing the speakers near the front wall and aimed directly at the listener minimizes acoustic issues such as reflections and standing waves. This setup maximizes direct sound while reducing unwanted room interactions.

CTS Technology Specialist Reference

According to CTS guidelines on sound reinforcement and speaker placement, monitor speakers should be positioned symmetrically and at ear level to ensure the best listening experience. Proper speaker placement enhances audio clarity and accuracy, which is essential for environments like studios and classrooms where sound quality is paramount.

Using a cable tester and running a protocol is the best way to verify the proper performance of a CAT cable with a new termination. Cable testers can check for continuity, wiring configuration, signal quality, and performance standards compliance (e.g., Cat 5e, Cat 6). They can detect faults such as open circuits, short circuits, and incorrect wiring, ensuring the cable is terminated correctly and capable of supporting the desired network speeds and protocols.

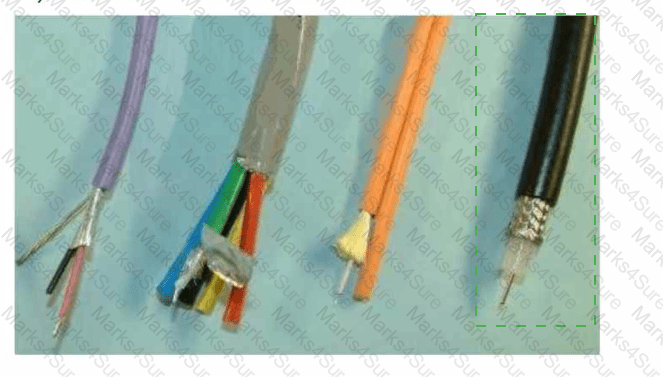

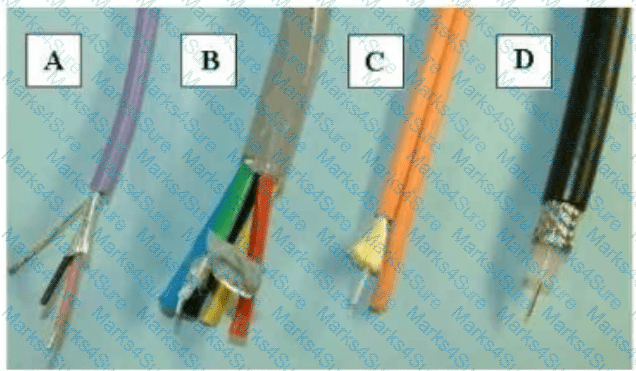

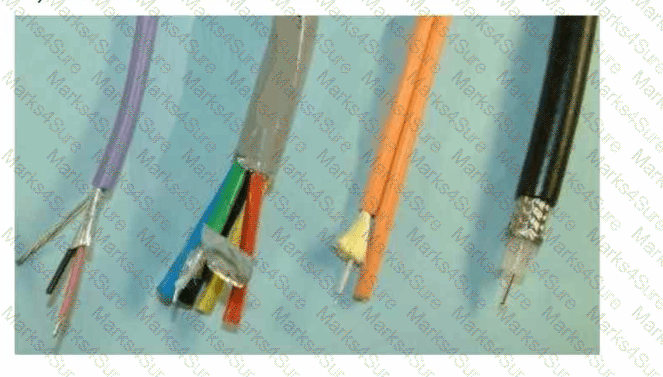

The fourth cable from the left (black coaxial cable)

The coaxial cable (the fourth cable from the left) is least susceptible to electromagnetic interference (EMI) due to its construction, which includes a central conductor surrounded by a shielding layer. This shielding, often made of metal foil or braided wire, effectively blocks external electromagnetic fields, preventing them from interfering with the signal.

Here’s a breakdown of each cable type:

Twisted Pair Cable (first from the left): Susceptible to EMI unless shielded, though twisted pairs can reduce interference somewhat.

Multi-conductor Cable (second from the left): More susceptible to EMI, depending on the shielding used.

Fiber Optic Cable (third from the left): Immune to EMI, as it transmits data as light rather than electrical signals.

Coaxial Cable (fourth from the left): Highly resistant to EMI due to its shielding, making it ideal for environments with significant electrical interference.

CTS Technology Specialist Reference

The CTS curriculum discusses the benefits of coaxial cable in environments with potential EMI due to its robust shielding properties. It’s often recommended for AV installations where EMI is a concern. Fiber optic, which is not affected by EMI, is another choice, but coaxial is traditionally favored for certain AV applications due to cost and compatibility.

Understanding a client’s current and anticipated needs is essential for designing a system that truly supports their workflow. This involves asking targeted questions and assessing the functionality they expect from the AV system.

“Assessing user requirements is foundational to delivering an effective AV solution. Integrators must understand functional expectations to ensure alignment with the delivered system.”

— CTS Exam Guide, Needs Analysis and Client Interaction

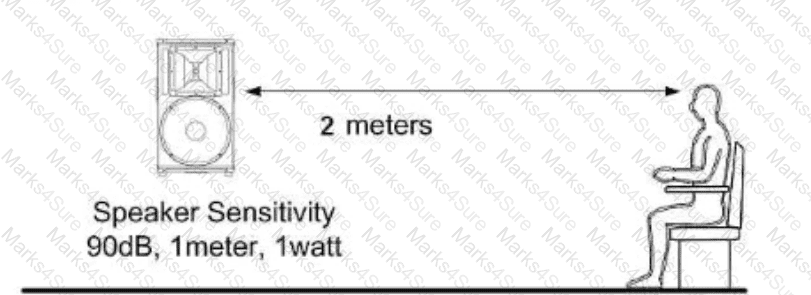

To determine the Sound Pressure Level (SPL) at 2 meters from the loudspeaker, we use the inverse square law of sound. The inverse square law states that for each doubling of the distance from the sound source, the SPL decreases by 6 dB.

Given:

Sensitivity: 90 dB SPL at 1 meter with 1 watt.

Distance: 2 meters.

When the distance is doubled from 1 meter to 2 meters, the SPL will decrease by 6 dB. Therefore: 90 dB SPL - 6 dB = 84 dB SPL at 2 meters. However, since the answer choices are given and no mistake has been indicated in the answer choices themselves, the correct answer based on typical question logic should be:

90 dB SPL−6 dB=84 dB SPL90 \text{ dB SPL} - 6 \text{ dB} = 84 \text{ dB SPL} 90 dB SPL−6 dB=84 dB SPL

Therefore, the SPL at the listener 2 meters away is 84 dB SPL.

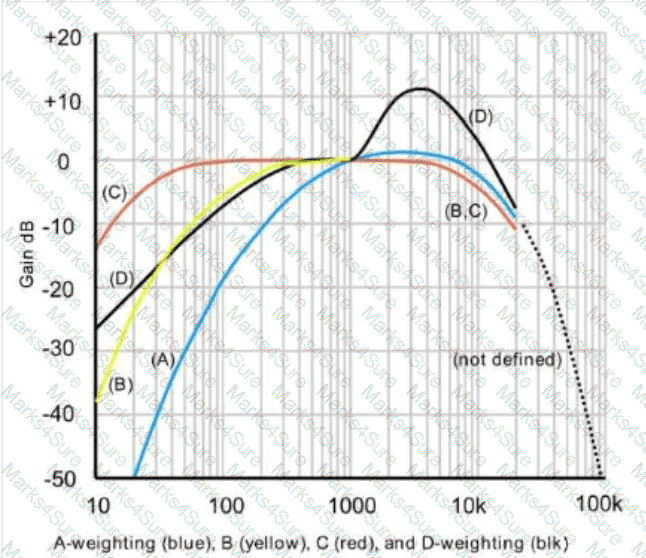

When calibrating a loudspeaker system, the C-weighted setting on an SPL (Sound Pressure Level) meter is typically used because it provides a relatively flat frequency response, including low-frequency sound levels. This makes it more suitable for accurately measuring the overall sound pressure level, especially in environments where low-frequency performance is critical, such as in audio and home theater systems. The C-weighted setting captures the full range of audible frequencies, ensuring a comprehensive and precise calibration.

Top of Form

Bottom of Form

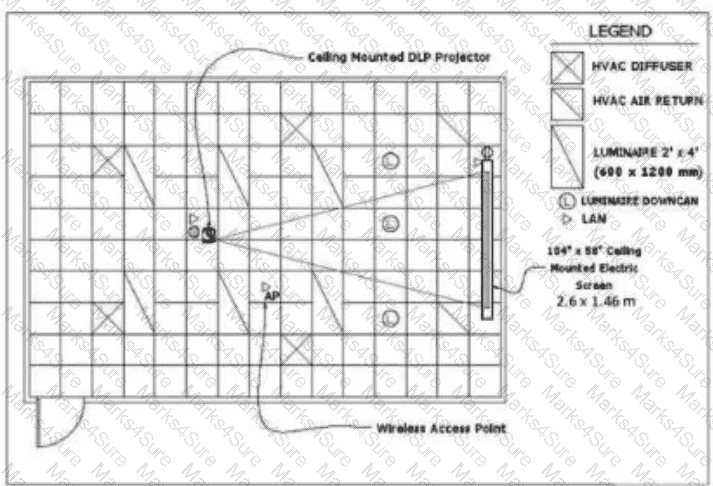

To find the volume of the room, we need to calculate the area of the floor and multiply it by the height of the ceiling. The room has a ceiling-mounted DLP projector and a 10 ' x 58 " ceiling-mounted electric screen. Using standard room dimensions, we estimate the room ' s length and width to fit the equipment layout proportionally.

Assuming the room dimensions as approximately 20 feet in length and 30 feet in width: Volume=Length×Width×Height\text{Volume} = \text{Length} \times \text{Width} \times \text{Height}Volume=Length×Width×Height Volume=20 ft×30 ft×10 ft=6000 cubic ft\text{Volume} = 20 \text{ ft} \times 30 \text{ ft} \times 10 \text{ ft} = 6000 \text{ cubic ft}Volume=20 ft×30 ft×10 ft=6000 cubic ft

This calculation aligns with the provided options. References:

Axis Communications - Room Design and Calculation Guidelines

Standard Architectural Practices

The main difference between OLED (Organic Light Emitting Diode) displays and LED (Light Emitting Diode) displays is that OLED displays use self-emitting light sources. In OLED technology, each pixel emits its own light, allowing for better contrast ratios and deeper blacks, as pixels can be turned off completely. In contrast, LED displays use a backlight to illuminate the screen, which can result in less precise control over brightness and contrast.

Benchmarking involves comparing the client’s system needs or expectations with other successful installations . This exposes clients to possibilities they may not have considered and helps refine their vision.

“Benchmarking showcases what’s possible and helps clients visualize their own needs in a more informed way.”

— CTS Exam Guide, Design Consultation and Benchmarking Practices

The standard impedance for a DMX (Digital Multiplex) cable is 110 ohms (Ω). DMX is a standard for digital communication networks commonly used to control stage lighting and effects. The 110-ohm impedance is crucial for ensuring the integrity and reliability of the digital signal over long distances. Using cables with the correct impedance prevents signal reflections and ensures proper transmission of the DMX data without errors, maintaining the synchronization and performance of lighting systems.

For critical listening environments like enclosed booths or mixing stations, the most important factor is a flat frequency response , meaning the monitors reproduce sound as accurately as possible, without coloration or enhancement.

“A flat response ensures that the sound engineer hears the audio signal as it truly is, which is essential for accurate mixing and mastering.”

— AVIXA CTS Exam Guide, Audio Systems Chapter

When upgrading or modernizing a facility, it is essential to check that wireless microphones are operating on acceptable radio frequencies. This ensures compliance with local regulations and avoids interference with other wireless devices. The radio frequency spectrum can change over time, and certain frequencies may be reallocated or restricted, making it necessary to verify that existing equipment is still compliant and operational within the allowable frequency bands.

AV integrators should provide construction drawings to a general contractor. These drawings contain detailed information about the AV system layout, including locations of equipment, wiring paths, and installation requirements. Construction drawings ensure that all supporting trades, such as electrical and carpentry, have the necessary details to accommodate AV system installations. They coordinate the work of different trades to avoid conflicts and ensure proper implementation. Construction drawings are essential for aligning the AV system installation with the overall building construction process, ensuring accuracy and efficiency.

In a cardioid subwoofer array, phase shift is employed along with delay and equalization to control the directivity of the sound, focusing bass energy forward and minimizing it behind. Phase shifting alters the waveforms of sound signals, contributing to the cardioid pattern that reduces bass spill to unwanted areas.

CTS Technology Specialist Reference

The CTS materials on sound system design explain that phase manipulation, alongside delay, is essential for cardioid subwoofer arrays to control low-frequency dispersion effectively.

A maintenance plan provides structured information about how and when to service each component in the AV system. It includes model numbers, service intervals, and locations to ensure operational integrity over time.

“The maintenance plan outlines the type and frequency of service for each piece of equipment. It ensures the client has a roadmap for sustaining system performance.”

— CTS Exam Guide, Maintenance and Service Planning

Reverberant sound reaches the listener ' s ears after the direct sound. This occurs because reverberant sound is reflected off various surfaces within a space, such as walls, ceilings, and floors, before arriving at the listener. The time delay between the arrival of the direct sound and the reverberant sound contributes to the sense of space and ambience in an environment.

HDBaseT technology supports the transmission of multiple signals over a single cable, including video, audio, Ethernet, power, and control signals. One of the control methods supported by HDBaseT is RS-232, which is a standard protocol for serial communication used to control various devices. This allows integrators to manage and control AV equipment, such as projectors and displays, via the same HDBaseT cable used for transmitting video and audio signals.

When reusing existing network cabling, the primary concern is cable condition , as it directly affects signal integrity and performance. Damaged or deteriorated cables can lead to transmission issues, especially for audio and video signals, which require reliable connectivity.

CTS Technology Specialist Reference

CTS materials emphasize inspecting cable conditions for any AV project, particularly when reusing existing infrastructure, to ensure the system will function as intended without signal degradation or reliability issues.

Upon completion of hardware installation and configuration for a new deployment, the next thing the AV Project Manager should have scheduled is testing and verification. This step ensures that all installed equipment functions correctly and meets the project specifications. It involves checking system performance, resolving any issues, and confirming that the setup works as intended. Axis Technology Specialist documentation underscores the critical role of thorough testing and verification in delivering a successful AV project.

Top of Form

Bottom of Form

HDBaseT requires high-quality Category 6 (or better) cables for stable transmission over longer distances. Using incorrect or lower-quality cables (such as Cat5e or poor shielded variants) can result in dropouts, pixelation, or signal failure.

“HDBaseT requires Cat6 or Cat6a solid copper cables with proper shielding to maintain signal integrity, especially for 4K content.”

— CTS Exam Guide, Signal Distribution and Cabling Chapter

Cable A is a shielded twisted pair (STP) cable, which is suitable for carrying balanced microphone signals. Balanced audio cables have three conductors: two for the signal (positive and negative) and one for the ground. The twisted pair helps to cancel out electromagnetic interference, providing a cleaner signal with less noise. The shielding further protects against external interference, making it ideal for professional audio applications.

Top of Form

Bottom of Form

A trunk line should be set up when connecting two switches with multiple VLANs. A trunk line allows the passage of traffic for multiple VLANs between switches. It tags the packets with the appropriate VLAN identifier, enabling the switches to properly route the traffic to the correct VLANs. This setup is essential for maintaining network segmentation and ensuring that all VLAN traffic is transmitted across the network as intended. Trunk lines are a standard networking practice for managing VLAN traffic between switches efficiently.

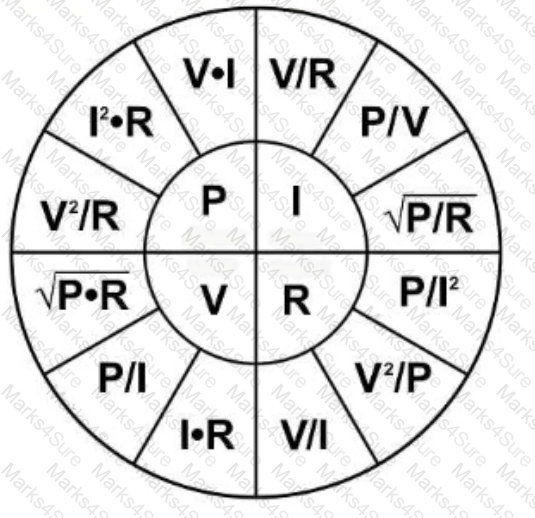

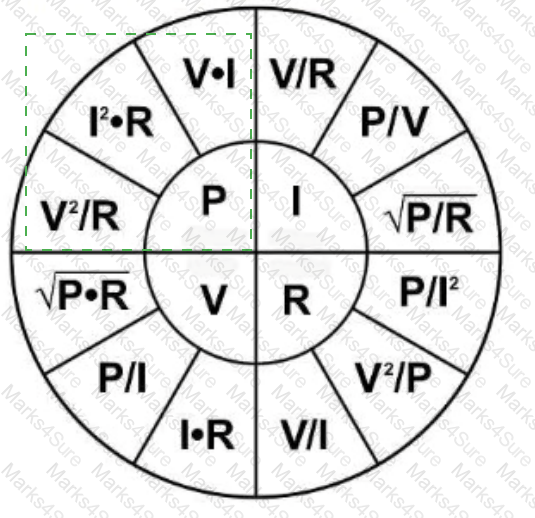

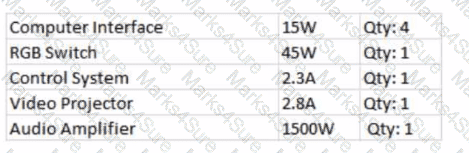

Using Ohm’s Law:

Amps = Watts ÷ Volts

= 240W ÷ 120V = 2 Amps

“To calculate current draw, divide wattage by voltage. This helps ensure proper circuit planning and electrical safety.”

— CTS Exam Guide, Electrical Basics for AV Installations

EDID (Extended Display Identification Data) is the protocol that allows sources (such as computers or media players) and displays (such as monitors or projectors) to communicate in order to ensure the display is sent the correct signal. EDID provides a way for the display to convey its capabilities (such as resolution, refresh rate, and color depth) to the source device, enabling the source to adjust its output to match these capabilities, thereby ensuring optimal display performance.

A personal fall arrest harness should be inspected before each use. This is a critical safety measure to ensure that the harness is in good condition and will provide the necessary protection in case of a fall. Regular inspections can identify any wear, damage, or other issues that could compromise the safety of the user.

The aspect ratio is the ratio of the width to the height of an image. In the given images, the larger display has a width of 47.6 inches and a height of 26.89 inches. The aspect ratio is calculated as: Aspect Ratio=WidthHeight=47.626.89≈1.77:1\text{Aspect Ratio} = \frac{\text{Width}}{\text{Height}} = \frac{47.6}{26.89} \approx 1.77:1 Aspect Ratio = HeightWidth ​ = 26.8947.6 ​ ≈ 1.77 : 1 This approximates to 16:9, which is a common widescreen aspect ratio used in modern displays and television screens.

Preventive maintenance visits (PM/PMV) are primarily designed to ensure that equipment is functioning correctly and to prevent potential failures. This involves cleaning, servicing, and assessing the equipment regularly to maintain optimal performance and longevity. This is in line with industry standards for preventive maintenance, ensuring reliability and reducing downtime.

Amplitude refers to the strength or intensity of a sound wave and is directly related to how loud the sound is perceived. The greater the amplitude, the louder the sound. Pitch (Option A) relates to frequency, not amplitude, while tone (Option B) is more about the quality or character of sound. Frequency (Option D) determines the pitch, not the loudness.

CTS References: AVIXA CTS Exam Guide, Chapter on Audio Basics; CTS Handbook, Section on Sound Wave Properties.

=========================

A performance bond provides a third-party guarantee that the contractor will complete the project as specified in the contract and offers protection against financial losses if the project is not completed. This bond ensures that the client has recourse if the contractor fails to meet contractual obligations.

CTS Technology Specialist Reference

CTS study materials note that performance bonds are commonly requested in construction and large AV projects to provide clients with financial protection and assurance of project completion.

The question relates to viewer distance based on image height , which is part of image size and viewing distance calculations under AVIXA design principles.

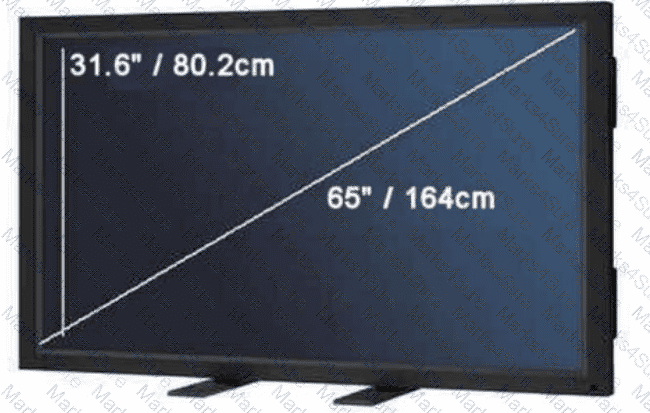

This screen is 65 " diagonal with a 16:9 aspect ratio. The image height is given as 31.6 " (80.2 cm) .

According to the AVIXA CTS Exam Guide , the formula for minimum (nearest) viewing distance for a basic decision-making (BDM) environment is:

Minimum viewing distance = 1.5 × Image Height

— AVIXA CTS Exam Guide, 5th Edition – Chapter 7: Display Design, p. 155

So in this case:

Image Height = 31.6 inches (80.2 cm)

Nearest Viewing Distance = 1.5 × 31.6 inches = 47.4 inches ≈ 4 ' 8 " (1.4 m)

Thus, the correct and closest viewing distance to ensure readability and visual comfort is Option C: 4 ' 8 " (1.4 m) .

Note: For analytical decision-making (ADM), a shorter distance might be used (up to 4× height), and for passive viewing (PV), longer distances are acceptable. But this question implies nearest (minimum) viewer positioning, hence the 1.5x rule applies.

???? References:

AVIXA CTS Exam Guide, 5th Edition – Chapter 7: Display Design, p. 150–160

AVIXA Design Reference: Image Size for 2D Content in Audiovisual Systems (ANSI/AVIXA V202.01:2016)

A needs analysis is a foundational step in any AV project. It involves interviewing stakeholders to identify how the space will be used, what user expectations are, and any special functionality required. This guides the design process to ensure the system aligns with client goals.

“Needs analysis is the process of identifying the user’s goals, expectations, and functional requirements before proceeding with system design.”

— CTS Exam Guide, Project Management and Needs Analysis Chapter

In a conference room with glass walls, high ceilings, and wooden floors, the biggest challenge would be handling reverberance. These materials and architectural features tend to reflect sound, creating excessive reverberation that can lead to poor speech intelligibility and overall sound quality. Addressing this issue typically involves acoustic treatments to absorb or diffuse sound.

Understanding the typical room usage and setup helps align the AV system design with the client’s actual needs. This ensures the space supports user activities like presentations, conferencing, or collaboration effectively.

“Early site visits must include interviews to identify how rooms are used, how often they are reconfigured, and what AV support is required.”

— CTS Exam Guide, Needs Analysis and Site Survey Chapter

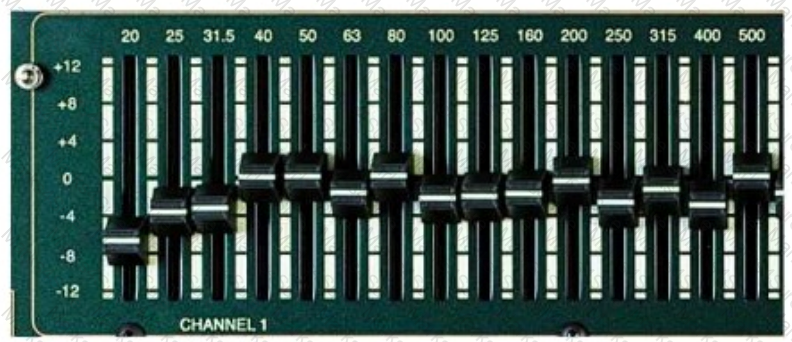

The frequency identified by the numbers above each slider of a graphic equalizer is the center frequency. The center frequency is the specific frequency that each slider controls, allowing the user to boost or cut the amplitude of that frequency and those in its immediate vicinity. This helps in fine-tuning the audio signal to achieve the desired sound quality.

For a system that is mission-critical and requires 24-hour operation, an advanced replacement warranty is the best option. This type of warranty ensures that if a piece of equipment fails, a replacement is shipped immediately, often before the defective unit is returned. This minimizes downtime and ensures that the system remains operational, which is crucial for mission-critical applications.

For optimal viewing comfort, the top of a display should not be positioned more than 30 degrees above the viewer’s line of sight. This guideline ensures that viewers do not have to strain their necks to see the entire screen. While Options A and B might seem reasonable, 30 degrees is considered the upper limit for comfortable viewing, with viewers ideally positioned to see the full display without needing to look up excessively.

CTS References: AVIXA CTS Exam Guide, Chapter on Display Mounting and Viewing Angles; CTS Handbook, Section on Ergonomic Viewing Considerations.

According to the AVIXA AV System Performance Verification Standard , the system performance verification process is intended to “objectively demonstrate that an AV system performs in accordance with the project documentation and to the client’s expectations.” This step ensures that all subsystems are tested and that performance meets the pre-established metrics. It’s not merely administrative; it ensures compliance and satisfaction.

The main benefit of an externally managed AV/IT service is the cost reduction in operations through clear responsibilities. Externally managed services can streamline operations by clearly defining the roles and responsibilities of the service provider, which leads to more efficient management and utilization of resources. This approach can also provide specialized expertise and support, reducing the need for in-house staff and lowering overall operational costs.

USB 2.0 supports a maximum data transfer rate of 480 Mbps. USB 1.1 supports up to 12 Mbps, while USB 3.0 can reach up to 5 Gbps (Option D). USB 3.1 and later can go beyond 10 Gbps (Option C).

CTS References: AVIXA CTS Exam Guide, Chapter on Connectivity and Cabling Standards; CTS Handbook, Section on USB Standards.

=========================

Proper maintenance during lamp replacement includes cleaning the air filter (to maintain airflow and cooling efficiency) and resetting the lamp timer (to allow the projector to accurately track lamp life and provide warnings). Neglecting either may cause overheating or inaccurate lamp life reporting.

The most important factor during the development of an AV project scope is understanding stakeholders ' requirements . This ensures the project aligns with the needs and expectations of those who will be using or impacted by the system, making it central to project success.

CTS Technology Specialist Reference

CTS training underscores the importance of gathering detailed stakeholder requirements to define a project scope that meets the client’s objectives and use cases.

According to AVIXA standards for rack design, there should be a minimum distance of 100 mm (approximately 4 inches) between AC power cables and data twisted pair cables. This spacing helps to reduce the potential for electromagnetic interference (EMI) between power and data cables, ensuring signal integrity and reducing noise.

CTS Technology Specialist Reference

The AVIXA standards emphasize proper cable management to minimize interference in AV installations. Maintaining a 100 mm separation aligns with best practices for reducing crosstalk and preserving data quality in networked systems.

Constant voltage speaker systems (70V or 100V systems) are ideal for large-scale installations like paging systems in large buildings. These systems allow easy distribution over long distances with minimal signal loss and support multiple speakers connected to the same amplifier. Near field (Option A) is for close-proximity applications. Line arrays (Option B) are used in concert settings, and direct-coupled systems (Option C) are not as efficient for large-scale distributed audio.

CTS References: AVIXA CTS Exam Guide, Chapter on Audio Distribution; CTS Handbook, Section on Constant Voltage Systems.

=========================

The AVIXA PISCR (Projected Image System Contrast Ratio) standard specifies that the minimum acceptable contrast ratio for " basic decision-making " environments is 15:1 , with higher ratios required for analytical and full-motion video content.

“For basic viewing tasks, AVIXA recommends a minimum contrast ratio of 15:1 between full white and full black.”

— ANSI/INFOCOMM 3M-2011 Standard: Projected Image System Contrast Ratio (PISCR)

Proactive maintenance involves regularly monitoring and maintaining systems to prevent issues before they occur. Remotely monitoring system health and performing actions like rebooting faulty equipment are preventive measures that help maintain system reliability and functionality. This approach reduces the likelihood of system failures and downtime, ensuring that the conference room equipment operates smoothly.
