CV0-003 CompTIA Cloud+ Certification Exam Questions and Answers

The best way to gracefully stop any new transactions from processing before applying updates to an application is to enable maintenance mode from the application dashboard. Maintenance mode is a feature that allows temporarily disabling the access or functionality of an application or service while performing maintenance tasks, such as updates, patches, or backups. It also displays a message or notification to the users or clients informing them about the maintenance and the expected downtime. This method will prevent any new transactions from being initiated or interrupted while the updates are being applied. Reference: [CompTIA Cloud+ Certification Exam Objectives], Domain 3.0 Maintenance, Objective 3.1 Given a scenario, apply appropriate changes to meet performance, security and user requirements.

To ensure the web servers in the public subnet allow only secure communications and remediate any possible issue, the analyst should remove rules 1, 2, and 5 from the stateful configuration. These rules are allowing insecure or unnecessary traffic to or from the web servers, which may pose security risks or performance issues. The rules are:

Rule 1: This rule allows inbound traffic on port 80 (HTTP) from any source to any destination. HTTP is an unencrypted and insecure protocol that can expose web traffic to interception, modification, or spoofing. The analyst should remove this rule and use HTTPS (port 443) instead, which encrypts and secures web traffic.

Rule 2: This rule allows outbound traffic on port 25 (SMTP) from any source to any destination. SMTP is a protocol that is used to send email messages. The web servers in the public subnet do not need to send email messages, as this is not their function. The analyst should remove this rule and block outbound SMTP traffic, which may prevent spamming or phishing attacks from compromised web servers.

Rule 5: This rule allows inbound traffic on port 22 (SSH) from any source to any destination. SSH is a protocol that allows remote access and management of systems or devices using a command-line interface. The web servers in the public subnet do not need to allow SSH access from any source, as this may expose them to unauthorized or malicious access. The analyst should remove this rule and restrict SSH access to specific sources, such as the administrator’s workstation or a bastion host.

Integration testing is the best technique to use to ensure the proper function of an API that receives an encrypted message that is passed to a calculator system. Integration testing is a type of testing that verifies and validates the functionality, performance, and reliability of different components or modules of a system or application when they are combined or integrated together. Integration testing can help to ensure the API can communicate and interact with the calculator system correctly and securely, as well as identify any errors or issues that may arise from the integration.

Creating a VPC (Virtual Private Cloud) and peering the networks is the best option to accommodate additional servers in a public cloud environment that has run out of IP addresses. A VPC is a logically isolated section of a cloud provider’s network that allows customers to launch and configure their own virtual network resources. Peering is a process of connecting two VPCs together so that they can communicate with each other as if they were in the same network.

An application whitelisting policy is a set of rules that specifies which applications are allowed to run on a system or a network. Application whitelisting is a security technique that can prevent unauthorized or malicious software from executing, and it is often used in VDI (Virtual Desktop Infrastructure) environments to provide end users with access to limited applications. A cloud administrator who is responsible for managing a VDI environment should make changes to the application whitelisting policy when a new application needs to be provided, as this would ensure that the new application is authorized and compatible with the VDI environment.

RPO (Recovery Point Objective) is what would help the administrator schedule the frequency of the backup job for a critical business application that is running in a private cloud. RPO is a metric that measures how much data can be lost or how far back in time a recovery point can be without causing significant impact or damage. RPO can help to schedule the frequency of the backup job by determining how often backups should be performed to minimize data loss in case of a disruption or disaster.

The best method to maintain data confidentiality after discovering that the servers have been compromised and sensitive files have been exfiltrated is encryption. Encryption is a process that transforms data into an unreadable format using an algorithm and a key. Encryption can protect data at rest, in transit, or in use from unauthorized access, tampering, or leakage. The systems administrator should encrypt the sensitive files and their backups using strong encryption algorithms and keys, and also encrypt the network traffic using protocols such as SSL or IPSec. Reference: CompTIA Cloud+ Certification Exam Objectives, Domain 2.0 Security, Objective 2.5 Given a scenario, apply data security techniques in the cloud.

Deduplication is a technique that reduces the amount of storage space required by eliminating duplicate or redundant data blocks. Deduplication can be performed at the file level, where entire files are compared and removed if they are identical, or at the block level, where chunks of data within a file are compared and removed if they are identical. Deduplication can be especially effective for VDI (Virtual Desktop Infrastructure) environments, where multiple virtual desktops share the same base image and have a high degree of similarity. By deduplicating the data blocks across the virtual desktops, the storage space required for the VDI volume can be significantly reduced, which can mitigate the situation of the storage being 80% full.

The best solution to simplify management of a more complex DNS and DHCP environment for a company that has grown over the last couple of years is IPAM (IP address management). IPAM is a tool or service that allows centralized management and automation of DNS and DHCP functions, such as IP address allocation, reservation, release, or renewal, as well as domain name registration or resolution. IPAM can also provide monitoring, auditing, reporting, and security features for DNS and DHCP resources. Reference: [CompTIA Cloud+ Certification Exam Objectives], Domain 3.0 Maintenance, Objective 3.4 Given a scenario, implement automation and orchestration to optimize cloud operations.

The most likely reason why the systems administrator gets an error while executing a vertical-scaling test of the vCPU on the VMs is that there is a licensing issue with the virtualization software or the operating system. Some virtualization software or operating systems have limitations on how many vCPUs can be assigned to each VM or each host, depending on the license type or edition. The systems administrator should check the license agreement and requirements and ensure that they are compliant with them. Reference: CompTIA Cloud+ Certification Exam Objectives, Domain 4.0 Troubleshooting, Objective 4.3 Given a scenario, troubleshoot capacity issues within a cloud environment.

The 3-2-1 backup policy states that there should be three copies of data, stored on two different media, with one copy being off-site. The current backup solution only has one copy of data on one media (the on-site storage server). To comply with the 3-2-1 policy, the systems administrator should configure an off-site storage server for backups, which will provide another copy of data on a different media and location. Reference: CompTIA Cloud+ Certification Exam Objectives, Domain 3.0 Maintenance, Objective 3.2 Given a scenario, implement backup, restore, disaster recovery and business continuity measures.

The correct answer is D. Migrate the data to flash storage. Flash storage is a type of solid-state storage that uses flash memory to store data. Flash storage has much faster performance and lower latency than NL-SAS storage, which is a type of hard disk drive that uses nearline serial attached SCSI interface. According to the web search results, NL-SAS devices have much higher response times than flash devices123. Therefore, migrating the data to flash storage can reduce the application latency and improve the user experience. Increasing the capacity of the data storage, migrating the data to SAS storage, or increasing the CPU of the VM are not likely to solve the latency issue, as they do not address the root cause of the problem, which is the slow performance of NL-SAS storage. For more information on flash storage and its benefits, you can refer to the Dell EMC Unity: FAST Technology Overview2 or the Dell Technologies website4.

A .yaml file is a common file type for defining the configuration and deployment of application containers in a cloud environment. YAML stands for YAML Ain’t Markup Language, and it is a human-readable data serialization language that uses indentation and keywords to represent the structure and values of the data1. A .yaml file can specify the properties of the container, such as the image, ports, environment variables, volumes, resources, and scaling rules. For example, to modify the replication factor of an automated application container from 3 to 5, the systems administrator can edit the .yaml file on the master controller and change the value of the replicas field under the spec section2. For example:

apiVersion: apps/v1 kind: Deployment metadata: name: my-app spec: replicas: 5 # change this value from 3 to 5 selector: matchLabels: app: my-app template: metadata: labels: app: my-app spec: containers: - name: my-app image: my-app-image ports: - containerPort: 80

A .txt file is a plain text file that can store any kind of text data, but it is not a standard format for defining container configurations. A .conf file is a configuration file that can store settings and parameters for various applications or services, but it is not commonly used for container deployments. A .etcd file is not a valid file type, but etcd is a distributed key-value store that provides a reliable way to store data across a cluster of machines3. Etcd is often used by Kubernetes, a popular platform for managing containerized applications, to store and synchronize the cluster state. However, etcd does not store the configuration files of the containers, but rather the runtime data of the cluster. Therefore, none of these options are correct.

A CDN (content delivery network) is a system of distributed servers that deliver web content to users based on their geographic location, the origin of the web page, and the content delivery server1. A CDN can improve the user experience by reducing the latency, bandwidth, and load on the origin server. By offloading the images to an object storage, such as Google Cloud Storage or Amazon S3, the web application can save costs and improve performance by storing and serving the images from a CDN edge location that is closer to the user2. A CDN can also provide caching, compression, and security features for the web content3.

According to the CompTIA Cloud+ Study Guide1, scaling is “the ability to increase or decrease the size or capacity of a cloud service”. There are two main types of scaling: horizontal and vertical.

Horizontal scaling is “the ability to increase or decrease the number of instances or nodes of a cloud service”. This means that horizontal scaling can add or remove servers or virtual machines to a cloud service, depending on the workload demand. Horizontal scaling can improve availability, reliability, and performance, but it can also increase complexity and cost.

Vertical scaling is “the ability to increase or decrease the resources allocated to an instance or node of a cloud service”. This means that vertical scaling can add or remove CPU, memory, disk, or network resources to a server or virtual machine, depending on the workload demand. Vertical scaling can improve performance and efficiency, but it can also have limitations and risks.

Cloud bursting is “a technique that allows a private cloud to use public cloud resources when it reaches its capacity limit”. This means that cloud bursting can extend the private cloud to the public cloud when there is a peak in demand that exceeds the private cloud resources. Cloud bursting can provide scalability, flexibility, and cost savings, but it can also introduce challenges such as security, compatibility, and latency.

Autoscaling is “the ability to automatically increase or decrease the number of resources allocated to a cloud service based on the current demand”. This means that autoscaling can adjust the size or capacity of a cloud service without human intervention, using predefined rules or policies. Autoscaling can optimize performance, availability, and cost, but it can also require careful monitoring and configuration.

Based on this information, I think the best answer to your question is C. Cloud bursting. Cloud bursting can help the company utilize its private cloud for the new application and also access public cloud resources when the private cloud resources can only meet 75% of the application’s requirements. This way, the company can accommodate 100% of the application’s requirements without having to purchase extra computing resources for their private cloud.

I hope this helps you understand the concept of cloud bursting better. If you want to learn more about CompTIA Cloud+, you can check out some of these resources:

CompTIA Cloud+ : Cloud High Availability & Scaling: A video course that covers the topics of high availability and scaling in cloud environments, including autoscaling, horizontal scaling, vertical scaling and cloud bursting.

Cloud+ (Plus) Certification | CompTIA IT Certifications: The official website of CompTIA Cloud+, where you can find exam details, preparation materials, renewal information and more.

The correct answer is B. Incorrect configuration in the message queue length.

A message queue is a data structure that stores messages or requests that are sent and received by web services. A message queue allows asynchronous communication between web services, as it decouples the sender and the receiver, and enables them to process messages at different rates. A message queue also provides reliability, scalability, and load balancing for web services, as it ensures that messages are not lost, duplicated, or corrupted, and that they are distributed evenly among the available servers .

However, a message queue also has a limit on how many messages it can store at a time. This limit is determined by the configuration of the message queue length, which is the maximum number of messages that can be in the queue before it becomes full. If the message queue length is too short, the queue may fill up quickly and reject new messages, causing errors or delays in communication. If the message queue length is too long, the queue may consume too much memory or disk space, affecting the performance or availability of the web service .

Therefore, if an organization provides integration services for finance companies that use web services, and a new company that sends and receives more than 100,000 transactions per second has been integrated using the web service, the most likely cause of the issue is an incorrect configuration in the message queue length. The new company may have generated a large volume of messages that exceeded the capacity of the message queue, resulting in slowness for the other integrated companies. The organization should adjust the message queue length to accommodate the increased traffic and optimize the resource utilization of the web service.

A password and a physical token are two factors of authentication that can provide a higher level of security than a password alone. A physical token is a device that generates a one-time code or password that the user must enter along with their password to access the cloud provider console. This is an example of multi-factor authentication (MFA), which requires the user to present two or more pieces of evidence to prove their identity. MFA can prevent unauthorized access even if the password is compromised, as the attacker would also need to have the physical token to log in.

Maximum resource consumption is what will help predict the operational expenditures in the cloud for an application that is being migrated from on premises to a public cloud provider. Operational expenditures are the ongoing costs of running and maintaining a system or service, such as cloud resources or services. Operational expenditures can vary depending on various factors, such as usage, demand, performance, etc. Maximum resource consumption is the highest amount of resources or capacity that are used or consumed by a system or service during peak periods of activity or load. Maximum resource consumption can help predict operational expenditures in the cloud by providing information such as:

Resource type: This indicates what type of resources are used or consumed by the system or service, such as compute, storage, network, etc.

Resource amount: This indicates how much of each resource type are used or consumed by the system or service, such as CPU cores, memory, disk space, bandwidth, etc.

Resource price: This indicates how much each resource type costs in the cloud provider’s pricing model, such as per hour, per GB, per Mbps, etc.

The best option to provide the desired service with the lowest cost and downtime after initial stress testing showed that a platform performed well with the specification of a single 32 vCPU node is to use three to six 8 vCPU nodes autoscaling group. An autoscaling group is a feature that allows dynamically adjusting the number of instances or nodes in a cluster based on the demand or load. This option will provide high availability, scalability, and performance for the service, while also optimizing the cost and resource utilization by adding or removing nodes as needed. Reference: [CompTIA Cloud+ Certification Exam Objectives], Domain 3.0 Maintenance, Objective 3.4 Given a scenario, implement automation and orchestration to optimize cloud operations.

Incorrect syslog configuration on the web servers is the most likely cause of the issue of storage team receiving incidents in their queue about web servers after new web servers were deployed in a cloud environment. Syslog is a standard protocol that allows network devices and systems to send log messages to a centralized server or collector. Syslog can help to consolidate and manage logs from different sources in one place, which can facilitate monitoring, analysis, troubleshooting, auditing, etc. Incorrect syslog configuration on the web servers can cause them to send log messages to the wrong destination or queue, such as the storage team’s queue, rather than the web server team’s queue.

The wrong gateway is the most likely cause of the connectivity issue for the new VM that cannot access the Internet or the VMs on any other subnet. A gateway is a device or software that connects two or more networks and routes traffic between them. A gateway is usually configured as the default route for a network device, which means that any traffic that is not destined for the local network will be sent to the gateway. If the gateway is configured incorrectly, the network device will not be able to communicate with other networks or the Internet. In this case, the new VM has an IP address of 172.16.31.40/24, which means that its subnet mask is 255.255.255.0 and its network ID is 172.16.31.0. However, its gateway is configured as 172.16.30.1, which belongs to a different network (172.16.30.0/24). This means that the new VM will not be able to reach its gateway or any other network through it. The administrator should change the gateway to an IP address that belongs to the same network as the new VM, such as 172.16.31.1 or 172.16.31.254.

The recovery point objective (RPO) is a metric that defines the maximum amount of data that can be lost or acceptable data loss in the event of a disaster or disruption. The RPO determines how frequently the backups should be performed and how far back in time the recovery should go. In this case, the RPO needs to be updated in the DR plan, as seven hours’ worth of data loss is deemed unacceptable. The RPO should be reduced to a lower value, such as one hour or less, to minimize the data loss and meet the business requirements. Reference: CompTIA Cloud+ Certification Exam Objectives, Domain 3.0 Maintenance, Objective 3.2 Given a scenario, implement backup, restore, disaster recovery and business continuity measures.

The most likely cause of the issue is C. Misconfiguration in the network ACL. A network ACL (access control list) is a set of rules that controls the inbound and outbound traffic for a subnet or a virtual network in a cloud environment. A misconfiguration in the network ACL can block the communication between the web application and the managed database, resulting in data loss or unavailability. For example, according to the Azure SQL Database documentation1, if you use a virtual network service endpoint to secure your database, you need to configure the network ACL to allow traffic from the web application subnet to the database subnet. Otherwise, the web application will not be able to connect to the database. Similarly, according to the DigitalOcean tutorial2, if you use a managed database cluster, you need to add the web application’s IP address or Droplet to the cluster’s trusted sources list. Otherwise, the web application will not be able to access the database.

A misconfiguration in the user permissions, the routing traffic, or the firewall can also cause connectivity issues between the web application and the managed database, but they are less likely than a misconfiguration in the network ACL. A misconfiguration in the user permissions can prevent the web application from authenticating or authorizing with the database, but it will not affect the data transmission. A misconfiguration in the routing traffic can cause packets to be lost or delayed, but it will not block the communication entirely. A misconfiguration in the firewall can filter out unwanted traffic, but it will not affect the traffic that is allowed by the network ACL. Therefore, these are not the most likely causes of the issue. For more information on how to troubleshoot connectivity issues between a cloud-hosted web application and a managed database, you can refer to the AWS documentation3 or the Google Cloud documentation.

Scalability is the ability of a system to handle increasing or decreasing demand by adding or removing resources accordingly. According to the web search results, scalability is one of the main benefits of using containers in a cloud environment, as containers are lightweight, portable, and independent units of software that can run on any compatible host . A containerized cluster is a group of hosts that run multiple containers and share resources and services. A containerized cluster can scale up or down easily by adding or removing hosts or containers as needed, without affecting the functionality or performance of the applications .

A blue-green deployment is a software deployment technique where two identical environments (X and Y) are used to switch between the old and new versions of the software. In this scenario, the X environment is patched/upgraded and tested while the Y environment is still serving the consumer workloads. Upon successful testing of the X environment, all workload is sent to this environment, and the Y environment is then upgraded before both environments start to manage the workloads. This is an example of a blue-green deployment, where one environment (blue) is active and serving the production traffic, while the other environment (green) is idle and ready to be updated. The advantage of this technique is that it allows for fast and easy rollbacks in case of any issues with the new version, as well as zero downtime for the users.

CI/CD tools are software tools that enable continuous integration and continuous delivery or deployment, which are methods to frequently deliver software products to customers by introducing automation into the stages of software development. CI/CD tools can help a product-based company to transition to a method that provides the capability to enhance the product seamlessly and keep the development iterations to a shorter time frame, as they can offer the following benefits:

Faster and more reliable delivery of software products, as CI/CD tools can automate the processes of building, testing, and deploying code changes, reducing manual errors and delays.

Higher quality and performance of software products, as CI/CD tools can facilitate ongoing feedback, monitoring, and improvement of the code, ensuring that it meets the customer expectations and requirements.

Greater collaboration and communication among the development teams, as CI/CD tools can integrate with various tools and platforms, such as version control systems, code repositories, testing frameworks, and cloud services, enabling a seamless workflow and visibility across the software lifecycle.

Some examples of popular CI/CD tools are Jenkins1, CircleCI2, GitLab CI/CD3, and AWS CodeBuild4.

The best way to restrict access to a set of sensitive files to a specific group of users is to change the file permissions and ownership of the files. File permissions and ownership are attributes that determine who can read, write, execute, or modify the files. By changing the file permissions and ownership, the systems administrator can grant or deny access to the files based on the user identity or group membership. Reference: CompTIA Cloud+ Certification Exam Objectives, Domain 2.0 Security, Objective 2.3 Given a scenario, implement appropriate access control measures for a cloud environment.

The licensing model of the SaaS provider is an important factor to consider before migrating to a SaaS-based solution for email infrastructure. The licensing model determines how much the organization will pay for the service, how many mailboxes they can create, what features they can access, and what SLAs they can expect. The organization should compare different SaaS providers’ licensing models and choose the one that best suits their needs and budget. Reference: CompTIA Cloud+ Certification Exam Objectives, Domain 1.0 Configuration and Deployment, Objective 1.4 Given a scenario, execute a provided deployment plan.

One possible cause for the incidents in which attackers are able to access sensitive data from a corporate application’s database is that the account credentials used by the web application to access the database are compromised or leaked. The log confirms that the attackers are using the WebApp user account to assume the DBA role and execute the GetData API call, which could allow them to retrieve any data from the database. The account credentials could be compromised or leaked due to various reasons, such as weak passwords, phishing attacks, code injection, or insecure storage or transmission. Therefore, one action that will most likely prevent future compromises is to rotate the account credentials, which means changing them periodically or after every incident occurrence. Rotating the account credentials can reduce the risk of unauthorized access by invalidating the old or stolen credentials and enforcing strong and unique passwords for each account.

The chain of custody is a process that documents and preserves the integrity and authenticity of evidence from the time it is collected until it is presented in court. The chain of custody includes information such as who collected, handled, stored, or transferred the evidence, when and where it was done, and how it was done. By accidentally deleting the perpetrator’s user data, the security administrator has violated the chain of custody, as the evidence has been altered or destroyed and can no longer be used in court. Reference: [CompTIA Cloud+ Certification Exam Objectives], Domain 2.0 Security, Objective 2.4 Given a scenario, implement security automation and orchestration in a cloud environment.

The best technology to provide speed acceleration and a secure connection for a public-facing API that is hosted on a cloud provider is SSL (Secure Sockets Layer). SSL is a protocol that encrypts and authenticates the data between a client and a server over an HTTP connection. It also compresses the data to reduce its size and improve its transmission speed. SSL can enhance the security and performance of an API by preventing unauthorized access, tampering, or interception of the data. Reference: [CompTIA Cloud+ Certification Exam Objectives], Domain 2.0 Security, Objective 2.2 Given a scenario, implement appropriate network security controls for a cloud environment.

Enable MFA with a one-time password. MFA stands for multi-factor authentication, which is a method of verifying a user’s identity by requiring two or more forms of authentication. A one-time password (OTP) is a code that is generated randomly and valid only for a short period of time. By enabling MFA with OTP, the administrator can make access to the SaaS email more secure without changing the password policy, as users will need to provide both their password and an OTP to sign in.

A site-to-site VPN is a type of VPN configuration that establishes a secure connection between two networks, such as a data center and a cloud environment. A site-to-site VPN allows all the devices in one network to communicate with all the devices in the other network, without requiring individual VPN clients or connections. A site-to-site VPN is suitable for a company that is migrating workloads from on premises to the cloud and would like to establish a connection between the entire data center and the cloud environment, as it can provide seamless and secure access to both networks.

Option B is what minimally complies with the SLA (Service Level Agreement) requirements of allowing for no more than five hours of downtime annually for a new application that will be hosted by a public cloud provider. An SLA is a contract or agreement that defines the level of service or performance that a customer expects from a provider, such as availability, reliability, scalability, security, etc. An SLA can help to measure and monitor the quality and satisfaction of service or performance, as well as identify any penalties or rewards for meeting or failing to meet the SLA. Option B minimally complies with the SLA requirements by using services that have availability percentages that are equal to or higher than 99.95%, which translates to no more than five hours of downtime annually. Option B uses services such as:

Compute: This is a service that provides computing resources such as servers, processors, memory, etc., to run applications or functions. Option B uses compute service with availability percentage of 99.95%, which means that it guarantees to be available for 99.95% of the time in a year, and allows for no more than five hours of downtime in a year.

Storage: This is a service that provides storage resources such as disks, volumes, files, etc., to store data or information. Option B uses storage service with availability percentage of 99.99%, which means that it guarantees to be available for 99.99% of the time in a year, and allows for no more than one hour of downtime in a year.

Database: This is a service that provides database resources such as tables, records, queries, etc., to store and retrieve data or information. Option B uses database service with availability percentage of 99.95%, which means that it guarantees to be available for 99.95% of the time in a year, and allows for no more than five hours of downtime in a year.

Implementing client-based certificate authentication is what the administrator should do to access the cloud administration console using corporate identity. Client-based certificate authentication is a method of verifying and authenticating users or devices based on digital certificates issued by a trusted authority. Digital certificates are electronic documents that contain information such as identity, public key, expiration date, etc., that can be used to prove one’s identity and establish secure communication over a network. Client-based certificate authentication can allow users or devices to access cloud resources or services using their corporate identity without requiring passwords or other credentials.

HIDS (Host-based Intrusion Detection System) is the tool that will provide the administrator with the most information about potential attacks on a cloud IaaS instance. HIDS is a software or agent that monitors and analyzes the activities and events on a host system or device, such as a cloud instance. HIDS can detect and alert on any malicious or anomalous behavior, such as unauthorized access, malware infection, configuration changes, etc., that may indicate an attack or compromise.

The firewall is the first thing that the administrator should check if an RDP (Remote Desktop Protocol) session from a desktop to a server in the cloud is refused even though the VM is responding to ICMP echo requests. A firewall is a device or software that controls the incoming and outgoing network traffic based on predefined rules or policies. A firewall may block RDP connections by default or require specific ports or rules to be opened or configured.

User backups are the file type that would benefit the most from compression to reduce storage consumption. Compression is a process of reducing the size of data by removing redundant or unnecessary information or using algorithms to encode data more efficiently. Compression can save storage space and bandwidth, but it may also affect the quality or performance of data depending on the compression method and ratio. User backups are typically large files that contain various types of data, such as documents, images, videos, etc., that can be compressed without significant loss of quality or functionality.

To calculate the maximum number of two-core machines with equal memory, we need to consider the resource pool capacity and the buffer requirement. The resource pool has 90 GB of memory and 120 cores, but the cloud administrator needs to maintain a 30% buffer for optimal performance. This means that only 70% of the resources can be used for VM allocation. Therefore, the available memory is 90 GB x 0.7 = 63 GB, and the available cores are 120 x 0.7 = 84 cores. To allocate two-core machines with equal memory, we need to divide the available memory by the available cores and multiply by two. This gives us the memory size per VM: (63 GB / 84 cores) x 2 = 1.5 GB. However, this is not a valid answer option, so we need to find the closest option that does not exceed the available resources. The best option is C, which allocates 45 VMs with 2 GB of memory each. This uses up 45 x 2 = 90 GB of memory and 45 x 2 = 90 cores, which are within the available limits.

Role-based access control (RBAC) is a type of access control model that assigns permissions and privileges to users based on their roles or functions within an organization or system. RBAC can help simplify and streamline the management and enforcement of access policies, as it can reduce the complexity and redundancy of assigning permissions to individual users or groups. RBAC can also help improve security and compliance, as it can limit or grant access based on the principle of least privilege and the separation of duties. RBAC is the best access control rule to change when the sales group is part of the finance group and the sales team members can access the financial application due to a single sign-on mechanism being implem

Setting custom notifications for exceeding budget thresholds is the best option to execute the task of monitoring the expense of the company’s cloud resources with minimal effort, as it can automate and simplify the process of tracking and alerting the cloud administrator about any overspending or wastage of cloud resources. Setting custom notifications can also help optimize the cost and performance of cloud resources, as it can enable timely and proactive actions to adjust or optimize the resource allocation or consumption based on the budget limits. References: CompTIA Cloud+ Certification Exam Objectives, page 13, section 2.5

Latency is the delay or time taken for data to travel from one point to another in a network or system. Latency can affect the performance of applications and processes that depend on fast and reliable data transfer. Synchronous replication is a method of data replication that ensures that data is written to two or more storage devices at the same time, providing high availability and consistency. However, synchronous replication can also introduce latency, as the write operation has to wait for the confirmation from all the replicated devices before completing. The new configuration of migrating some application VMs to synchronously replicated storage is most likely adding latency, which can lower the performance of the applications. References: [CompTIA Cloud+ Certification Exam Objectives], page 10, section 1.5

Containers are a type of deployment technology that packages an application and its dependencies into a lightweight and portable unit that can run on any platform or environment. Containers can help deploy a single application that has different versions in an existing IaaS instance, as they can isolate and run multiple versions of the same application without any conflicts or interference. Containers can also enable faster and easier deployment, scaling, and management of cloud-based applications. References: CompTIA Cloud+ Certification Exam Objectives, page 11, section 1.6

Replacing the equipment is the best action to take when a piece of networking equipment is about to reach its end of support. End of support means that the vendor or manufacturer will no longer provide technical assistance, updates, patches, or fixes for the equipment, which can affect its functionality, performance, security, and compatibility. Replacing the equipment with a newer model that has ongoing support can prevent any issues or risks associated with using outdated equipment. References: CompTIA Cloud+ Certification Exam Objectives, page 18, section 3.5

The best strategy to migrate the current on-premises workloads to the public cloud for the company that requires at least 80 instances running at all times and wants the workload to be highly available and cost-effective is to create /26 subnets in two regions and run 40 instances on each one. A /26 subnet can accommodate up to 62 hosts, which is enough for 40 instances. By creating subnets in two regions, the company can achieve high availability and redundancy in case one region fails due to a catastrophe. By running 40 instances on each subnet, the company can meet the minimum requirement of 80 instances and also save on costs by avoiding overprovisioning or underutilization of resources. Reference: What is VPN? How It Works, Types of VPN - Kaspersky

Quality of Service (QoS) rules can be configured to prioritize certain types of traffic, such as voice over IP (VoIP) traffic. This can help reduce audio lag during phone conferences by ensuring that VoIP packets are delivered faster and with less delay than other types of traffic. QoS rules can be applied at different levels of the network, such as the core switch, the router, or the firewall. By configuring QoS rules for VoIP traffic, the administrator can avoid packet drops and buffer overflows that can affect the quality of the audio. References: [CompTIA Cloud+ CV0-003 Study Guide], Chapter 3, Objective 3.2: Given a scenario, troubleshoot network connectivity issues.

A bucket Comprehensive Explanation: A bucket is a cloud storage solution that allows users to store and access objects, such as files, images, videos, etc. A bucket is typically associated with object storage services, such as Amazon S3, Google Cloud Storage, or Microsoft Azure Blob Storage123. A bucket has the following characteristics that match the requirements of the application:

The owner of the objects is the object writer. This means that the user who uploads or writes an object to the bucket becomes the owner of that object and can control its access permissions456.

The storage system enforces TLS encryption. This means that the data in transit between the client and the bucket is encrypted using the Transport Layer Security (TLS) protocol, which provides security and privacy for the communication .

A CIFS endpoint, a SAN, and an NFS mount are not cloud storage solutions, but rather network protocols or architectures that enable access to storage devices

The wrong template selection is the most likely cause of the issue of newly provisioned Linux VMs running an earlier version of OS than they should be in a private IaaS environment. A template is a preconfigured image or blueprint of a VM that contains an OS, applications, settings, etc., that can be used to create new VMs quickly and consistently. A template may have different versions or updates depending on when it was created or modified. If a template is selected incorrectly or not updated properly, it may result in creating VMs with an older or different version of OS than expected.

Affinity is what must be set up to ensure two VMs remain together on the same host. Affinity is a feature that allows customers to specify preferences or requirements for placing VMs on certain hosts or clusters within a cloud environment. Affinity can help to improve performance, availability, compatibility, or security of VMs by ensuring they are located on optimal hosts or clusters. Affinity can also help to keep two VMs together on the same host by creating an affinity rule that binds them together.

Checking the logs on the VM is the next step that the administrator should take if the cloud SQL database has stopped running after an update deployment. Logs are records of events and activities that occur on a system or application. Logs can provide useful information for troubleshooting and identifying the root cause of an issue. The administrator should look for any errors, warnings, or messages that indicate what happened to the SQL database service and why it stopped running.

Spinning up a new web server is what the administrator should perform first to speed up the response of the e-commerce platform that is hosted in a public cloud and starts to experience a slow response after announcing a big sales promotion. A web server is a system or service that hosts and delivers web content, such as web pages, images, videos, etc., to clients over a network or internet connection. A web server can affect the response of an e-commerce platform by determining how fast it can process and serve web requests or responses from clients. Spinning up a new web server can speed up the response of an e-commerce platform by providing benefits such as:

Scalability: Spinning up a new web server can increase the scalability of the e-commerce platform by adding more capacity or resources to handle the increased demand or load caused by the sales promotion, without affecting the existing web servers.

Performance: Spinning up a new web server can improve the performance of the e-commerce platform by reducing the latency or overhead of processing and serving web requests or responses from clients, which may cause delays or errors.

The target system’s API (Application Programming Interface) functionality has been deprecated is what will most likely cause the issue of configuration management tool no longer working as expected after using it to perform maintenance tasks in a system using its API, and applying features and security updates to it. An API is a set of rules or specifications that defines how different software components or systems can communicate and interact with each other. An API functionality is a feature or function that an API provides or supports, such as methods, parameters, responses, etc. An API functionality can be deprecated when it is no longer maintained or supported by the API provider or developer, and is replaced or removed by a newer or better functionality. The target system’s API functionality has been deprecated can cause the issue by making the configuration management tool unable to use or access the API functionality that it relies on to perform maintenance tasks in the system, which may result in errors or failures.

User quotas are what will help control the amount of space that is being used by a file server in the cloud that has a limited amount of disk space due to financial considerations. User quotas are the limits or restrictions that are imposed on the amount of space that each user can use or consume on a file server or storage device. User quotas can help to control the amount of space that is being used by:

Preventing or reducing wastage or overuse of space by users who may store unnecessary or redundant files or data on the file server or storage device.

Ensuring fair and equal distribution or allocation of space among users who may have different needs or demands for space on the file server or storage device.

Monitoring and managing the usage or consumption of space by users who may need to be notified or alerted when they reach or exceed their quota on the file server or storage device.

This is the best definition of serverless computing that explains how it is different from using VMs (Virtual Machines). Serverless computing is a cloud service model that provides customers with a platform to run applications or functions without having to manage or provision any underlying infrastructure or resources, such as servers, storage, network, OS, etc. Serverless computing is different from using VMs in the following ways:

Serverless computing allows developers to focus on writing code and organizations to focus on business, rather than spending time and effort on managing or scaling VMs or other infrastructure components.

Serverless computing is event-driven and pay-per-use, which means that applications or functions are executed only when triggered by a specific event or request, and customers are charged only for the resources consumed during the execution time.

Serverless computing is more scalable and flexible than using VMs, as it can automatically adjust the capacity and performance of applications or functions according to demand or workload, without requiring any manual intervention or configuration.

Modifying the configuration settings of the CMS (Content Management System) application to connect to the database in the current environment is what the cloud administrator should do to resolve the issue of web page displaying an error message stating the application is unavailable after deploying CMS application changes to the staging environment. A CMS is a software or platform that allows users to create, manage, and publish web content. A CMS may use a database to store and retrieve web content and information. A staging environment is a testing or pre-production environment that simulates the production environment and allows users to verify and validate changes or updates before deploying them to production. Modifying the configuration settings of the CMS application can help to resolve the issue by ensuring that the CMS application can access and communicate with the database in the current environment, rather than using the previous or default settings that may point to a different or non-existent database.

Artificial intelligence (AI) is the technology that, when used in conjunction with cloud services, would facilitate the best solution for finding content in images. AI is a branch of computer science that aims to create machines or systems that can perform tasks that normally require human intelligence, such as reasoning, learning, decision making, etc. AI can be used to analyze images and extract information such as objects, faces, text, emotions, etc., using techniques such as computer vision, machine learning, natural language processing, etc. AI can help to find content in images faster, more accurately, and more efficiently than manual methods.

Database replication is the best technique to migrate databases from an on-premises IaaS-hosted environment to a public DBaaS solution. Database replication is a process of copying data from one database server to another database server in real-time or near real-time. Database replication can ensure data consistency and availability across different locations and platforms. Database replication can facilitate migration by synchronizing data between on-premises databases and cloud databases.

Deploying two firewalls in a HA (High Availability) configuration is the best option to ensure all traffic passes through the firewall and meets the SLA (Service Level Agreement) of 99.999%. HA is a design principle that aims to minimize downtime and ensure continuous operation of a system or service. HA can be achieved by using redundancy, failover, load balancing, clustering, etc. Two firewalls in a HA configuration can provide redundancy and failover in case one firewall fails or becomes overloaded.

Serverless is what would be the best option to deploy a new cloud application and provision cloud services with minimal effort while reducing the tasks required for maintenance such as OS patching, VM and volume provisioning, and autoscaling configurations. Serverless is a cloud service model that provides customers with a platform to run applications or functions without having to manage or provision any underlying infrastructure or resources, such as servers, storage, network, OS, etc. Serverless can provide benefits such as:

Minimal effort: Serverless can reduce the effort required to deploy a new cloud application and provision cloud services by automating and abstracting away all the infrastructure or resource management or provisioning tasks from customers, and allowing them to focus only on writing code or logic for their applications or functions.

Reduced maintenance: Serverless can reduce the tasks required for maintenance by handling all the infrastructure or resource maintenance tasks for customers, such as OS patching, VM and volume provisioning, autoscaling configurations, etc., and ensuring that they are always up-to-date and optimized.

Storage live migration is the best restoration method to restore a VM from backup without changing the current VM’s operating state. Storage live migration is a process of moving or transferring storage resources or data from one location to another without affecting or interrupting the operation or performance of the VMs that use them. Storage live migration can help to restore a VM from backup by copying the backup data to a new storage location and switching the VM’s storage configuration to point to the new location, without requiring any downtime or reboot.

SR-IOV stands for Single Root Input/Output Virtualization, which is a technology that allows a physical device, such as a network interface card (NIC), to be shared by multiple virtual machines (VMs) without sacrificing performance or latency. By enabling SR-IOV capability, the integration application can communicate directly with the physical NIC, bypassing the hypervisor and the virtual switch, and reducing the network overhead and latency .

ROUTE PRINT is a command that displays the routing table of a system, which shows the destination network, the gateway, the interface, and the metric for each route. ROUTE PRINT can help identify the issue of the weekly backup failing for this server, as it can show if there is a valid route to the network backup segment (10.20.0.0/25) from the production traffic segment (10.10.0.0/24). If there is no route or an incorrect route, the backup will fail to reach the destination. The administrator can use ROUTE PRINT to verify and troubleshoot the routing configuration of the server. References: CompTIA Cloud+ Certification Exam Objectives, page 16, section 3.2

The correct answer is B. Missing license.

Some hypervisor features may require a valid license to work properly. If the license is missing, expired, or invalid, the hypervisor may not be able to use those features or may operate in a reduced functionality mode. For example, some features of Hyper-V, such as live migration, replication, and failover clustering, require a license for Windows Server or Windows 10 Enterprise1. Similarly, some features of VMware ESXi, such as vMotion, Storage vMotion, and Fault Tolerance, require a license for VMware vSphere2.

Therefore, if a cloud administrator deployed new hosts in a private cloud and found that some of the hypervisor features did not seem to be working after a few months elapsed, the most likely cause was a missing license. The administrator should check the license status of the hypervisor and renew or activate the license if needed.

Incorrect permissions are not a likely cause of the issue, as they would affect the access to the hypervisor or its resources, not the functionality of the hypervisor itself. Incorrect tags are also not a likely cause of the issue, as they are used for identification and classification of resources, not for enabling or disabling features. Oversubscription is not a likely cause of the issue either, as it would affect the performance or availability of the resources, not the functionality of the hypervisor itself.

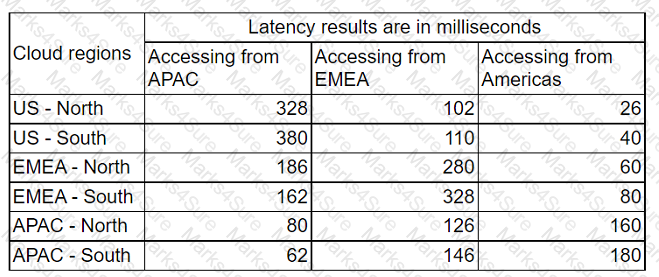

The best option to reduce the latency issues for the marketing team that is primarily based in Europe when retrieving the marketing materials that are hosted on a public IaaS service is to integrate a CDN (content delivery network) solution to distribute web content globally. A CDN is a network of geographically distributed servers that cache and deliver web content to users based on their proximity and network conditions. A CDN can improve the performance and availability of web content by reducing the distance and hops between the users and the servers, as well as offloading the traffic from the origin server. Reference: [CompTIA Cloud+ Certification Exam Objectives], Domain 3.0 Maintenance, Objective 3.4 Given a scenario, implement automation and orchestration to optimize cloud operations

A connection string is a parameter that specifies how to connect to a database server or instance. A connection string typically includes information such as the server name, database name, user name, password, and other options. Updating the connection string is the best way to fix the issue of application servers being unable to access the database servers after setting up a DR site on a different zone of the same CSP and replicating the application and database servers using VM replication and log shipping. Updating the connection string can ensure that the application servers can connect to the correct database server or instance in the DR site, as the server name or IP address may have changed after the replication. References: CompTIA Cloud+ Certification Exam Objectives, page 10, section 1.5

Moving the VM to a host with a faster CPU is the best way to solve the issue of the security appliance installer saying the CPU clock speed does not meet the requirements when building a new VM for a network security appliance. Moving the VM to a host with a faster CPU can ensure that the VM meets the minimum CPU clock speed requirement for the security appliance, as it can use the physical CPU resources of the host. Moving the VM to a host with a faster CPU can also improve the performance and reliability of the security appliance, as it can reduce latency, contention, and overhead. References: CompTIA Cloud+ Certification Exam Objectives, page 11, section 1.6

Identity federation is a type of authentication mechanism that allows users to access multiple systems or applications across different domains or organizations with a single login credential. Identity federation can help integrate the cloud resources of Company A and Company B after Company A has acquired Company B, as it can enable seamless and secure access to both companies’ cloud resources using the same IAM solution. Identity federation can also improve user convenience, productivity, and security, as it can simplify the login process, reduce login errors, and enhance password management. References: CompTIA Cloud+ Certification Exam Objectives, page 14, section 2.7

Mandatory access control (MAC) is a type of access control model that enforces strict security policies based on predefined rules and labels. MAC assigns security labels to subjects (users or processes) and objects (files or resources) and allows access only if the subject has the appropriate clearance and need-to-know for the object. MAC can mitigate the risk of users who have access to an instance modifying the system configurations, as it can prevent unauthorized or accidental changes to critical files or settings by restricting access based on predefined rules and labels. References: CompTIA Cloud+ Certification Exam Objectives, page 14, section 2.7

laaS (Infrastructure as a Service) is a public cloud service model that provides access to fundamental compute, network, and storage resources on demand over the public Internet or through dedicated connections. Customers can provision and configure these resources according to their needs, and they have full administrative control at the OS level. This means that customers can install, update, and manage any software or applications they want on the cloud servers, as well as apply their own security and compliance policies. laaS is suitable for companies that require high flexibility and customization of their cloud infrastructure, as well as scalability and cost-efficiency.

The best solution to resolve the issue of network slowness caused by high uplink bandwidth utilization on the core switch is to enable quality of service (QoS) to prioritize production traffic over other types of traffic. QoS is a mechanism that allows network administrators to classify and manage network traffic according to its importance, latency, bandwidth, and reliability requirements. By enabling QoS, the core switch can allocate more resources and guarantee better performance for production traffic, while limiting or dropping less critical traffic. Reference: CompTIA Cloud+ Certification Exam Objectives, Domain 4.0 Troubleshooting, Objective 4.1 Given a scenario, troubleshoot connectivity issues related to cloud implementations.

1. Understanding the Scenario:

Three-tier architecture: A common cloud-based architecture that separates web, application, and database servers for scalability and fault isolation.

Issues reported: Slow-loading web pages and intermittent connection timeouts.

Traceroute data: The traceroute shows significant latency (95-98 ms) to the final hop (database server) compared to previous hops, indicating potential network configuration or routing issues.

2. Analyzing the Options:

A. VPC firewall configuration:

Incorrect. A misconfigured firewall would typically block traffic altogether rather than cause intermittent slowdowns. Latency is more indicative of routing issues.

B. Router table mismatch:

Correct. A mismatch or misconfiguration in the routing table could cause suboptimal paths, leading to increased latency and timeouts. The traceroute data suggests delays in routing, as the final hop shows disproportionately higher latency.

C. Load balancer:

Incorrect. Load balancers manage traffic distribution to servers. Misconfiguration would lead to uneven distribution or service outages but not the high latency observed in the traceroute.

D. Database server virtual networking interface:

Incorrect. While a misconfigured virtual NIC could cause performance issues, the traceroute suggests a network routing problem rather than a NIC-level issue.

3. Troubleshooting Best Practices (CV0-003 Objective 5.0 - Troubleshooting):

Identify potential network configuration errors by reviewing the VPC routing table.

Validate network flow logs and use tools like traceroute and ping to isolate latency causes.

Implement corrective measures, such as fixing the routing table or optimizing network paths.

4. References:

CompTIA Cloud+ Objectives:

Section 5.0 - Troubleshooting, "Establish a theory to determine the cause and test to confirm."

Section 3.3 - Deployment, "Deploy cloud networking solutions, including routing and subnetting."​​

CompTIA Cloud+ Study Guide:

Importance of validating routing configurations and analyzing performance metrics in a VPC environment.

A digital signature is a type of cryptographic technique that verifies the authenticity, integrity, and non-repudiation of an electronic message or document. A digital signature can help configure an email client to ensure data integrity of the email messages, as it can prove that the email message has not been altered or tampered with during transmission by using a mathematical algorithm to generate a unique code (signature) based on the content and identity of the sender. A digital signature can also help prevent spoofing, phishing, or impersonation attacks, as it can confirm that the email message originates from a legitimate source. References: CompTIA Cloud+ Certification Exam Objectives, page 14, section 2.7

Deprecated features are features that are no longer supported or recommended by the software vendor or provider. They may be removed or replaced by newer features in future updates or versions. If a playbook relies on deprecated features, it may stop functioning after an update or patch is applied to the software. The administrator should check the release notes or documentation of the software to identify and replace any deprecated features in the playbook.

Infrastructure as code (IaC) is a method of provisioning and managing cloud resources using code or scripts, rather than manual processes or GUI tools. This allows for automation, consistency, scalability, and version control of the infrastructure layer. This would be the best option to deploy a solution to automate new application releases that come from the development team without modifying any configurations in the application code. Reference: CompTIA Cloud+ Certification Exam Objectives, Domain 3.0 Maintenance, Objective 3.4 Given a scenario, implement automation and orchestration to optimize cloud operations.

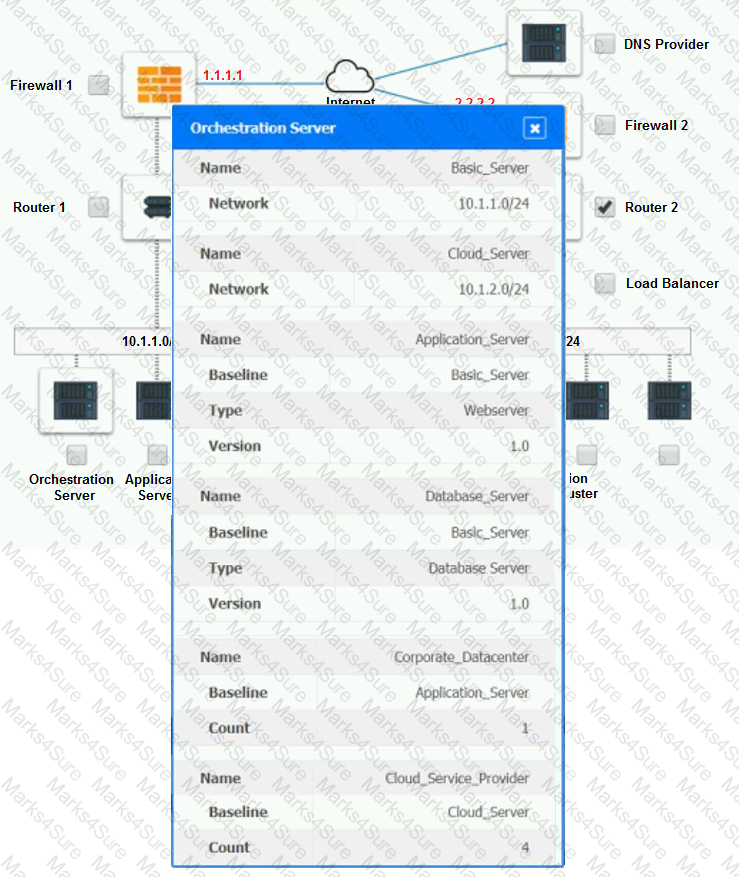

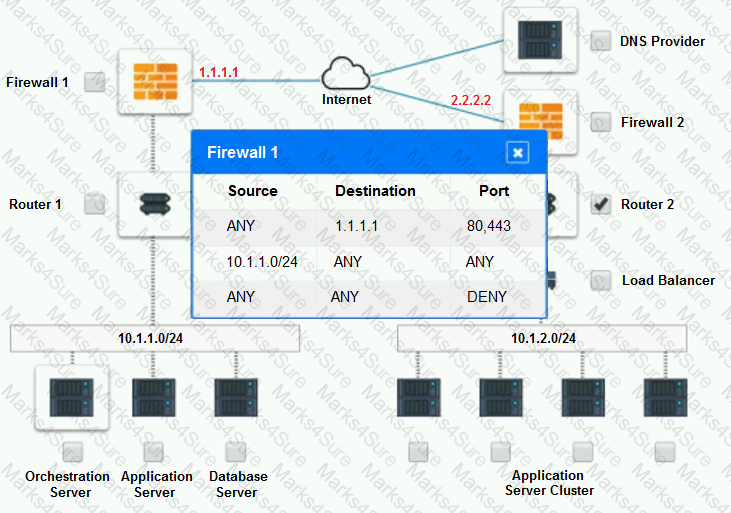

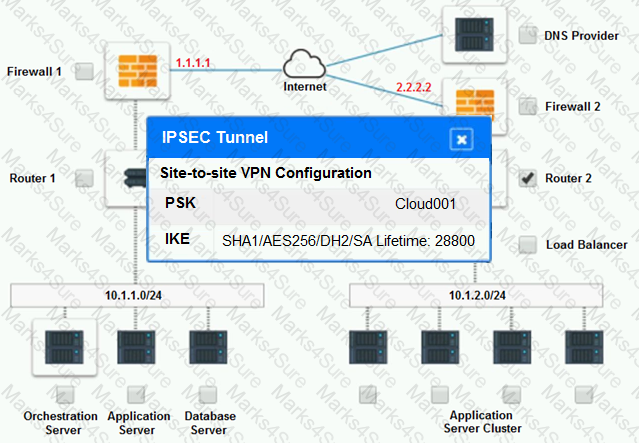

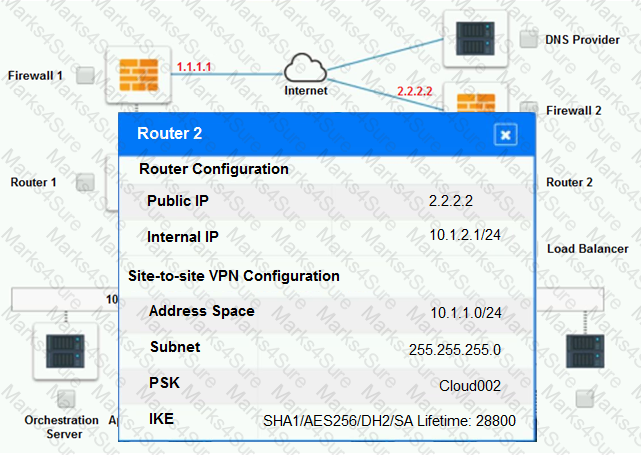

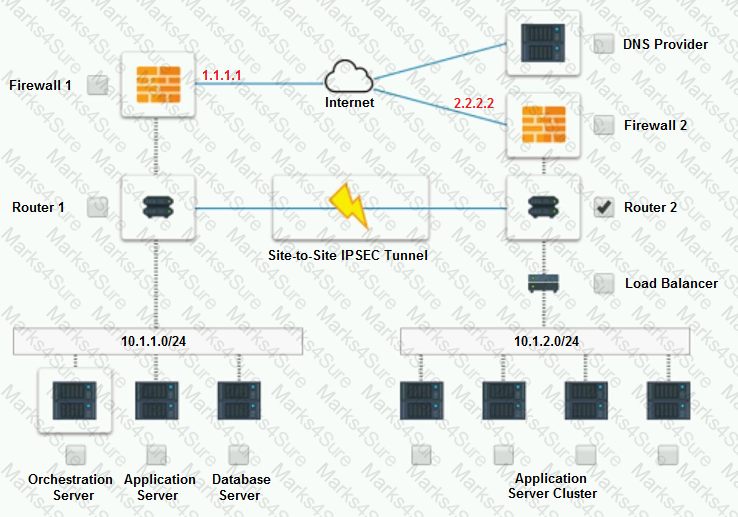

Part 1: Router 2

The problematic device is Router 2, which has an incorrect configuration for the IPSec tunnel. The IPSec tunnel is a secure connection between the on-premises datacenter and the cloud provider, which allows the traffic to flow between the two networks. The IPSec tunnel requires both endpoints to have matching parameters, such as the IP addresses, the pre-shared key (PSK), the encryption and authentication algorithms, and the security associations (SAs) .

According to the network diagram and the configuration files, Router 2 has a different PSK and a different address space than Router 1. Router 2 has a PSK of “1234567890”, while Router 1 has a PSK of “0987654321”. Router 2 has an address space of 10.0.0.0/8, while Router 1 has an address space of 192.168.0.0/16. These mismatches prevent the IPSec tunnel from establishing and encrypting the traffic between the two networks.

The other devices do not have any obvious errors in their configuration. The DNS provider has two CNAME records that point to the application servers in the cloud provider, with different weights to balance the load. The firewall rules allow the traffic from and to the application servers on port 80 and port 443, as well as the traffic from and to the VPN server on port 500 and port 4500. The orchestration server has a script that installs and configures the application servers in the cloud provider, using the DHCP server to assign IP addresses.

Part 2:

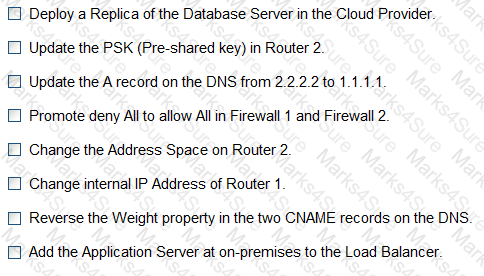

The correct options to provide adequate configuration for hybrid cloud architecture are:

Update the PSK in Router 2.

Change the address space on Router 2.

These options will fix the IPSec tunnel configuration and allow the traffic to flow between the on-premises datacenter and the cloud provider. The PSK should match the one on Router 1, which is “0987654321”. The address space should also match the one on Router 1, which is 192.168.0.0/16.

B. Update the PSK (Pre-shared key in Router2)

E. Change the Address Space on Router2

To improve performance, cache static content, protect against DDoS attacks, and reduce costs, the best solution is to use a Content Delivery Network (CDN) (Option C).

CDNs distribute static content across multiple geographically distributed edge servers, reducing latency and improving load times for users worldwide.

CDNs include built-in DDoS protection by absorbing traffic and filtering out malicious requests before they reach the origin server.

Cost savings: Instead of overloading the origin server, cached content is served from edge locations, reducing compute and storage costs.

Major CDN providers: AWS CloudFront, Azure CDN, Cloudflare, Akamai, and Google Cloud CDN.

A. Site-to-site VPN tunnel between multiple availability zones

VPN tunnels improve security and private connectivity but do not address caching or DDoS protection.

VPNs increase overhead costs and do not optimize content delivery for geographically distributed users.

B. Server-based caching within multiple availability zones

Server-based caching only helps within a specific cloud region but does not optimize performance for global users.

Managing cache across multiple instances increases complexity and costs compared to using a CDN.

D. DNS-based load balancing and caching

DNS-based load balancing helps distribute traffic but does not provide actual caching capabilities for static content.

DNS resolution alone does not mitigate DDoS attacks or reduce latency as effectively as a CDN.

A CDN is the most efficient and cost-effective solution for caching static content, improving global performance, mitigating DDoS attacks, and maintaining low operational costs.

Vulnerability testing and penetration testing are two types of security testing that can help to identify and mitigate potential risks in an application before publishing. Vulnerability testing is the process of scanning the application for known weaknesses or flaws that could be exploited by attackers. Penetration testing is the process of simulating real-world attacks on the application to test its defenses and find vulnerabilities that may not be detected by automated scans. Both types of testing can help to assure the security and compliance of the application by revealing and resolving any issues that could compromise the confidentiality, integrity, or availability of the application or its data. References: CompTIA Cloud+ CV0-003 Study Guide, Chapter 5: Maintaining a Cloud Environment, page 221.

Passthrough is a type of GPU configuration that allows a VM to directly access a physical GPU on the host system without any virtualization layer or sharing mechanism. Passthrough can provide optimal performance and compatibility for GPU-intensive applications, such as rendering or gaming, as it eliminates any overhead or contention caused by virtualization or sharing. Passthrough is also suitable for servers with limited CPU resources, as it reduces the CPU load and offloads the graphics processing to the GPU. Passthrough is the most optimal GPU configuration for virtualizing a new server with GPUs for render farms. References: CompTIA Cloud+ Certification Exam Objectives, page 11, section 1.6

The most likely cause of the increasing storage cost is suboptimal storage tier configuration for archival data (Option C). Cloud providers offer different storage tiers, such as:

Hot Storage: Expensive but optimized for frequent access.

Cool Storage (Warm Storage): More affordable for infrequently accessed data.

Cold Storage (Archival Storage): The cheapest option, designed for long-term storage with occasional access.

If archival data is stored in a more expensive hot storage tier instead of a cost-effective archival storage tier, the monthly costs can increase significantly without any real benefit.

A. The database (DB) data drive size is set to 512GB, and the DB size is 384GB.

This does not directly impact cost because cloud storage costs are typically based on actual usage, not allocated capacity (except in pre-provisioned volumes).

A 512GB allocated drive does not necessarily mean all space is being used.

B. The virtual memory in IaaS instances is utilizing space from the OS drive.

While virtual memory (swap space) can impact performance, it does not significantly contribute to increasing storage costs unless there is excessive swapping to premium storage.

However, swap usage is a compute-related issue, not a storage-tier pricing issue.

D. The DB backup drive is reaching 80% utilization and needs to be cleaned up.

While excessive backups can increase storage costs, cloud storage providers typically offer lifecycle management policies to automatically archive or delete old backups.

80% utilization does not necessarily correlate with a rapid increase in storage costs, and backup data should be managed separately.

The most likely reason for month-over-month increases in storage costs is that archival data is stored in an expensive storage tier rather than a cost-effective archival tier. Implementing proper storage lifecycle policies and moving data to cheaper cold storage can optimize costs.

The best answer is D. Metrics and time-series data measuring key performance indicators.

Metrics and time-series data are numerical values that represent the state and behavior of a system over time. They can measure key performance indicators (KPIs) such as availability, latency, throughput, error rate, and resource utilization. Metrics and time-series data can help a cloud administrator to monitor, analyze, and troubleshoot the performance characteristics of an application .

Metrics and time-series data are most likely to be used in a reporting dashboard, because they can provide a clear and concise overview of the application’s performance. A reporting dashboard is a graphical user interface that displays the most important information about a system or a process in a single view. A reporting dashboard can help a cloud administrator to:

Visualize the trends and patterns of the metrics and time-series data using charts, graphs, tables, or gauges .

Compare the actual performance of the application with the expected or desired performance based on the defined service level objectives (SLOs) or service level agreements (SLAs) .

Identify and diagnose any performance issues or anomalies that may affect the reliability of the application .

Communicate and report the performance status and results to the stakeholders or customers.

The other options are not as likely to be used in a reporting dashboard, because they are either too detailed, too outdated, or too irrelevant for measuring the performance characteristics of the application. For example:

Data from files containing error messages from the application (A) may help to identify and debug some specific errors or exceptions that occur in the application. However, they are not sufficient to measure the overall performance or reliability of the application. They are also too verbose and unstructured to be displayed in a reporting dashboard.

Results from the last performance and workload testing (B) may help to evaluate and optimize the performance of the application under different scenarios and conditions. However, they are not representative of the current or real-time performance of the application in production. They are also too static and outdated to be displayed in a reporting dashboard.

Detail log data from syslog files of the application © may help to record and track the events and activities that happen in the application. However, they are not designed to measure the key performance indicators or metrics of the application. They are also too complex and voluminous to be displayed in a reporting dashboard.

A virtual graphics processing unit (vGPU) is a type of hardware or software that enables a VM to use the physical GPU resources of the host or server for graphics-intensive tasks. Upgrading the vGPU is most likely to solve the issue of VDI performance being slow since the images were upgraded from Windows 7 to Windows 10, as it can provide more graphics processing power and memory for the VMs. Upgrading the vGPU can also improve the user experience and productivity, as it can enhance the display quality and responsiveness of the VDI environment. References: CompTIA Cloud+ Certification Exam Objectives, page 11, section 1.6

Detailed Explanation:

C. System security hardening elements: Pre-hardened templates reduce vulnerabilities, enforce security best practices, and ensure compliance. They provide a standardized base for scalable deployments.

References:

CompTIA Cloud+ CV0-003 Study Guide Chapter 15: Cloud Migrations​​.

Detailed Explanation:

B. 50%: In a two-disk mirror (RAID 1), one disk is used for redundancy. Therefore, only 50% of the total disk capacity is available for storage.

References:

CompTIA Cloud+ CV0-003 Study Guide Chapter 12: Storage in Cloud Environments​​.

Federation is a type of authentication mechanism that allows users to access multiple systems or applications across different domains or organizations with a single login credential. Federation can help configure SSO authentication in a hybrid cloud environment, as it can enable seamless and secure access to cloud-based and on-premises resources using the same identity provider and authentication method. Federation can also improve user convenience, productivity, and security, as it can simplify the login process, reduce login errors, and enhance password management. References: CompTIA Cloud+ Certification Exam Objectives, page 14, section 2.7

Hub and spoke is a type of network topology that consists of a central node or device (hub) that connects to multiple peripheral nodes or devices (spokes). Hub and spoke can help reduce long-term maintenance for managing two cloud environments from different MSPs, as it can simplify and centralize the network configuration and management by using the hub as a single point of contact and control for the spokes. Hub and spoke can also improve network performance and security, as it can reduce latency, bandwidth consumption, and network congestion by routing traffic through the hub. References: CompTIA Cloud+ Certification Exam Objectives, page 15, section 2.8

The latency test results show that the connectivity from APAC to EMEA and Americas regions has the highest latency values, ranging from 162 ms to 380 ms. This indicates that there is a significant delay in the network communication between these regions, which could affect the performance and availability of the cloud services. The connectivity from EMEA to all regions also has high latency values, ranging from 60 ms to 328 ms, which could also cause issues for the application deployment team. Therefore, these locations need to be investigated further to identify and resolve the root cause of the network latency.

Some possible causes of network latency are :

Congestion: The network bandwidth may be insufficient to handle the volume of traffic, resulting in packet loss, retransmission, and queuing delays.

Distance: The physical distance between the source and destination nodes may increase the propagation delay, which is the time it takes for a signal to travel through a medium.

Routing: The network topology and configuration may affect the number and quality of hops that a packet takes to reach its destination, resulting in transmission and processing delays.

Hardware: The performance and capacity of the network devices, such as routers, switches, firewalls, and servers, may affect the speed and efficiency of data processing and delivery.

Some possible solutions to reduce network latency are :

Scaling: The network resources can be increased or optimized to handle the traffic demand, such as adding more bandwidth, load balancers, or caching servers.

Location: The network nodes can be placed closer to each other or to the end users, such as using edge computing, content delivery networks (CDNs), or regional cloud data centers.

Routing: The network routes can be improved or optimized to reduce the number and distance of hops, such as using direct peering, dedicated circuits, or software-defined networking (SDN).

Hardware: The network devices can be upgraded or replaced with faster and more reliable ones, such as using solid-state drives (SSDs), fiber-optic cables, or 5G technology.

References:

What is Network Latency? | Cloudflare

How To Reduce Network Latency In 2021 - DNSstuff

Port 161 is the default port used by Simple Network Management Protocol (SNMP) to communicate with network devices and collect information about their status, performance, configuration, and events. Opening port 161 on the monitoring server’s firewall will allow SNMP traffic to pass through and enable monitoring for a private cloud environment. If port 161 is closed or blocked, SNMP traffic will be denied or dropped, resulting in a failure to monitor the network devices. References: CompTIA Cloud+ Certification Exam Objectives, page 15, section 2.8

A disaster recovery (DR) solution is a set of policies, procedures, and tools that enable an organization to restore or continue its critical functions in the event of a natural or human-induced disaster. A DR solution for the application between different data centers means that the application is replicated or backed up to another location that is geographically separated from the primary data center. This way, if the primary data center becomes unavailable due to a power outage, fire, flood, cyberattack, or any other cause, the application can be switched over to the secondary data center and resume its operations with minimal downtime and data loss. This solution ensures business continuity and high availability for the application and its users. References: CompTIA Cloud+ CV0-003 Study Guide, Chapter 5: Maintaining a Cloud Environment, page 221-222; Disaster recovery planning guide.

Updating the web browser to the latest version is the first action that the user should do when experiencing a connection timeout error after the administrator configured a redirect from HTTP to HTTPS on the web server. Updating the web browser can ensure that it supports the latest security protocols and standards, such as TLS 1.2 or 1.3, which are required for HTTPS connections. If the web browser is outdated or incompatible with the security protocols or standards used by the web server, it may fail to establish a secure connection and result in a connection timeout error. References: CompTIA Cloud+ Certification Exam Objectives, page 15, section 2.8

In-place restoration is the process of restoring data to the same location where it was originally stored, without affecting the rest of the system. This method is suitable for recovering non-critical files that were accidentally deleted, as it does not require stopping the server or creating a new instance. In contrast, alternate location, restore from image, and revert to snapshot are more disruptive methods that involve creating a new copy of the data or the entire system, which may affect the performance or availability of the server. References: CompTIA Cloud+ CV0-003 Certification Study Guide, Chapter 20, Backup and Restore Operations, page 3211.

The best storage type to deploy for the new file storage service is NVMe. NVMe stands for Non-Volatile Memory Express, and it is a protocol that allows faster access to data stored on solid state drives (SSDs). NVMe can deliver high performance, low latency, and parallelism for the file storage service. NVMe can also support fast read/write times for the targeted users, which is the key requirement for the project. Since the budget for the project is not a concern, NVMe can be a suitable choice for the file storage service. References: CompTIA Cloud+ CV0-003 Certification Study Guide, Chapter 4, Objective 4.1: Given a scenario, implement cloud storage solutions.

Object storage is a type of storage service that stores data as objects with unique identifiers and metadata in a flat namespace or structure. Backing up to object storage every three hours can help achieve the application requirements with the least cost for an IaaS application that has a two-hour RTO and a four-hour RPO, as it can provide scalable, durable, and cost-effective storage for backup data while meeting the recovery time and point objectives. Backing up to object storage every three hours can ensure that the backup data is no more than four hours old and can be restored within two hours in case of a disaster or failure. References: CompTIA Cloud+ Certification Exam Objectives, page 9, section 1.4

Hardened baselines are a set of security best practices that reduce the vulnerability of a system to exploits by reducing its attack surface1. They are also known as security configurations or benchmarks, and they provide a standard level of system hardening for an organization23.

Checking the hardened baselines of the servers is the first step that a cloud administrator should take to ensure compliance with the company’s security policy. This is because hardened baselines can help to:

Identify and eliminate common vulnerabilities and exposures (CVEs) that attackers can exploit1.

Remove unnecessary or unused services, accounts, software, and ports that can increase the attack surface23.

Apply appropriate settings and controls for encryption, authentication, authorization, firewall, and logging23.

Streamline audits and testing by reducing complexity and providing a reliable benchmark23.

A hybrid cloud is a type of cloud deployment model that combines two or more different types of clouds, such as public, private, or community clouds, into a single integrated environment. A hybrid cloud can meet the requirements for implementing cloud services with SSO to cloud infrastructure, on-premises directory service, and RBAC for IT staff, as it can provide flexibility, scalability, and security for cloud-based and on-premises resources. A hybrid cloud can also enable seamless and secure access to cloud infrastructure using SSO with directory service federation, as well as granular and consistent control over IT staff permissions using RBAC across different cloud environments. References: CompTIA Cloud+ Certification Exam Objectives, page 8, section 1.2

Detailed Explanation:

A. Add CPU resources to the cluster: High CPU wait time indicates insufficient CPU resources for handling workload demands. Adding CPUs to the cluster will reduce latency and improve application performance.

References:

CompTIA Cloud+ CV0-003 Study Guide Chapter 14: Compute Sizing for Deployment​​.

RAID 1 is a type of RAID level that creates an exact copy or mirror of data on two or more disks. RAID 1 can provide redundancy and fault tolerance, as it can survive the failure of one disk without losing any data. RAID 1 can also improve read performance, as it can access data from multiple disks simultaneously. The administrator should configure RAID 1 to set up mirroring on a storage array. References: CompTIA Cloud+ Certification Exam Objectives, page 9, section 1.4

Regions are geographical locations or areas where cloud service providers have data centers or facilities that host their cloud resources or services. Regions can help reduce latency for all users when deploying a globally accessed application to the cloud, as they can enable faster and closer access to the cloud resources or services based on the user’s physical location. Regions can also improve performance and availability, as they can provide redundancy and load balancing by distributing the workload across multiple locations. References: CompTIA Cloud+ Certification Exam Objectives, page 15, section 2.8

The maximum transmission unit (MTU) is the largest size of a packet or frame that can be sent over a network. Decreasing the MTU size on both servers can reduce the network delay between them, as it can reduce the fragmentation and reassembly of packets, improve the transmission efficiency, and avoid packet loss or errors. Decreasing the MTU size can also avoid taxing other system resources, as it does not require additional CPU, memory, or disk resources. References: CompTIA Cloud+ Certification Exam Objectives, page 16, section 3.2

File write permissions are permissions that control who can modify or delete files in a directory or system. Restricting the file write permissions to the development group only can help minimize the risk of having systems administrators in an IaaS compute instance perform application code changes, as it can prevent anyone other than the development group from altering or removing any files in the directory where the application code is stored. Restricting the file write permissions can also help maintain consistency and integrity, as it can ensure that only authorized and qualified users can make changes to the application code. References: CompTIA Cloud+ Certification Exam Objectives, page 14, section 2.7

A vGPU profile is a configuration option that defines the amount of video RAM (vRAM) and other resources that are allocated to a virtual machine (VM) that uses a virtual graphics processing unit (vGPU). A vGPU profile can affect the rendering performance of a VM, as it determines how much graphics memory and processing power are available for displaying complex graphics content. Selecting vGPU profiles with higher video RAM can most likely solve the issue of poor rendering performance when trying to display 3-D content on virtual desktops, especially at peak times, as it can provide more graphics resources and improve the quality and speed of rendering. References: CompTIA Cloud+ Certification Exam Objectives, page 11, section 1.6

Replication is a process of copying or synchronizing data from one location to another to ensure consistency and availability. Replication can help set up a disaster recovery (DR) site for a cloud environment, as it can enable data backup and recovery in case of a failure or outage in the primary site. Replication can also improve performance and reliability, as it can reduce latency and load by distributing data across multiple sites. Replication should be configured between the cloud environment and the DR site to ensure data protection and continuity. References: CompTIA Cloud+ Certification Exam Objectives, page 10, section 1.5

Hyperconverged storage is a type of storage architecture that combines compute, storage, and network resources into a single system or appliance. Hyperconverged storage uses software-defined storage (SDS) to pool and share the local storage of each node in the cluster, creating a distributed storage system that can be accessed by any node or virtual machine in the cluster. Hyperconverged storage can provide high performance, scalability, and efficiency for virtualized environments. The scenario of building a new virtualization cluster with five virtual hosts that share their flash and spinning disks among all the virtual hosts is an example of hyperconverged storage. References: [CompTIA Cloud+ Certification Exam Objectives], page 9, section 1.4

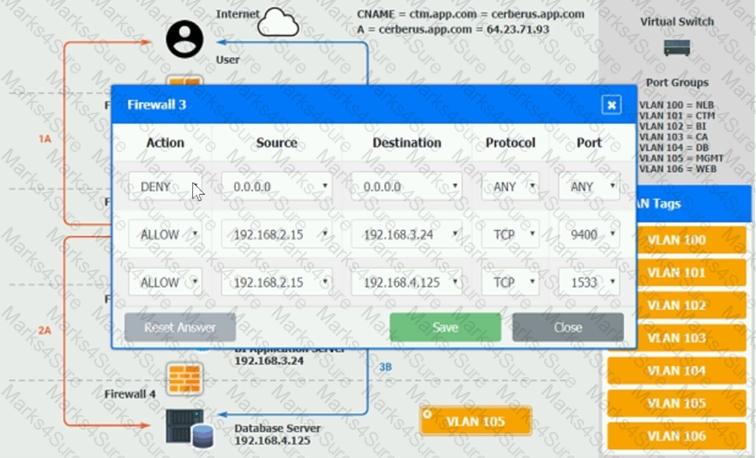

On firewall 3, change the DENY 0.0.0.0 entry to rule 3 not rule 1.

An API request limit is a restriction on the number of requests that can be made to a web service or application programming interface (API) within a certain time period. API request limits are often used by SaaS-based services to control the usage and traffic of their customers and prevent overloading or abuse of their resources. An API request limit can cause a failure to send all the emails if the marketing team exceeds the number of requests allowed by the SaaS-based service in a week. The service may reject or block any requests that go beyond the limit, resulting in fewer emails being sent than expected. References: CompTIA Cloud+ Certification Exam Objectives, page 13, section 2.5

Peering is a type of network connection that allows two or more networks to exchange traffic directly without using an intermediary or a third-party service. Peering can help connect multiregions within an IaaS provider, as it can enable private networking in and between the multisites for data replication. Peering can also provide low latency, as it can reduce the number of hops and distance between the networks. Peering is the best solution for designing a multiregion network within an IaaS provider to support business requirements. References: CompTIA Cloud+ Certification Exam Objectives, page 15, section 2.8

A virtual application delivery controller (vADC) is a type of network device or software that provides load balancing, security, and optimization for web applications or services. Deploying a vADC appliance can help prevent an outage of the organization’s web server infrastructure due to a spike in network traffic, as it can distribute the traffic across multiple web servers and improve the performance and availability of web applications or services. Deploying a vADC appliance can also provide mitigation methods such as DDoS protection, SSL offloading, and caching to enhance the security and efficiency of web traffic delivery. References: CompTIA Cloud+ Certification Exam Objectives, page 15, section 2.8

Permissions are rules or settings that determine what actions users can perform on files or resources in a system or service. Permissions can help control and restrict access to files or resources based on various criteria, such as user identity, role, group, or ownership. Defining and configuring the proper permissions for the file-sharing service is the best step for the administrator to take next after discovering that sales group members can access the financial application due to being part of the finance group and having write access to all files in the file-sharing service. Defining and configuring the proper permissions can prevent unauthorized or accidental access or modification of files or resources by limiting or granting access based on specific criteria. References: CompTIA Cloud+ Certification Exam Objectives, page 14, section 2.7

Ciphers are algorithms or methods that are used to encrypt and decrypt data for secure communication. Strong ciphers are ciphers that use high-level encryption techniques and keys to provide stronger security and protection for data. The cloud web server is using strong ciphers that are not supported by older browsers is the most likely cause of the issue of only internal users who are using new versions of the OSs being able to load the application home page after the administrator configured a redirect from HTTP to HTTPS on the web server. Older browsers may not support the strong ciphers used by the cloud web server for HTTPS connections, which can result in a failure to establish a secure connection and load the application home page. References: CompTIA Cloud+ Certification Exam Objectives, page 15, section 2.8

Containers are packages of software that contain all of the necessary elements to run in any environment. Containers virtualize the operating system and run anywhere, from a private data center to the public cloud or even on a developer’s personal laptop. Containers provide an isolated environment for running applications, sharing the host OS kernel but isolating processes, file systems, and network resources. Containers package applications and their dependencies together, ensuring they run consistently across different environments, from development to production. Containers are lightweight, resource-efficient, fast, and immutable, making them ideal for portability and scalability. By using containers, a cloud administrator can easily move resources from one environment to another without changing the code or configuration of the applications. References: CompTIA Cloud+ CV0-003 Study Guide, Chapter 2: Deploying a Cloud Environment, page 75-76; What are containers?; Portability in the Cloud: Cloud Native and Containers.

One possible answer is:

A. Use cloud-native serverless services.

Cloud-native serverless services are a type of cloud computing that allows developers to build and run applications without having to manage servers, infrastructure, or scaling. Cloud-native serverless services can help the organization meet the requirements listed above, as they can:

Minimize organizational infrastructure and comply with security standards. Cloud-native serverless services are fully managed by the cloud provider, which means the organization does not have to provision, configure, or maintain any servers or infrastructure. The cloud provider also handles the security aspects of the serverless environment, such as encryption, authentication, authorization, patching, and monitoring. The organization can focus on developing the application logic and rely on the cloud provider to meet the security standards12.

Minimize organizational compliance efforts. Cloud-native serverless services can also help the organization reduce the compliance burden, as they can leverage the compliance certifications and attestations of the cloud provider. The cloud provider can ensure that the serverless environment complies with various regulations and standards, such as PCI DSS, HIPAA, GDPR, ISO 27001, etc. The organization can inherit the compliance posture of the cloud provider and avoid the hassle of auditing and validating their own infrastructure12.

Focus on application development and increase speed to market. Cloud-native serverless services can also enable the organization to accelerate the development and delivery of their online product, as they can write code using their preferred programming languages and frameworks, and deploy it quickly and easily to the serverless environment. The serverless environment can automatically scale up or down based on the demand, ensuring high availability and performance. The organization can also integrate serverless services with other cloud services, such as databases, storage, analytics, etc., to create a full-stack application12.

Given the high CPU and memory utilization during non-peak periods, the cloud administrator should consider vertical scaling to enhance the performance of the existing database instances.

Vertical Scaling:

Definition: Vertical scaling, or "scaling up," involves adding more resources (CPU, memory, storage) to an existing server or instance to handle increased load.

Application in This Scenario: By upgrading the current database instances to more powerful ones with higher CPU and memory capacities, the administrator can ensure that the system handles both non-peak and peak loads efficiently. This approach is straightforward and doesn't require changes to the database architecture.

Consideration of Licensing Model:

The database software utilizes an instance-based licensing model, where costs are associated with the number of instances rather than their sizes. Vertical scaling maintains the same number of instances, thus avoiding additional licensing fees that might be incurred with other scaling strategies.

Analysis of Other Options:

A. Horizontal scaling:

Definition: Horizontal scaling, or "scaling out," involves adding more instances or nodes to a system to distribute the load.

Implication: Implementing horizontal scaling would increase the number of database instances, potentially leading to higher licensing costs due to the instance-based licensing model. Additionally, this approach may require significant architectural changes to ensure data consistency and distribution across instances.

B. Affinity-based scaling:

Definition: Affinity-based scaling involves directing specific workloads to particular servers or instances based on predefined rules, often to optimize cache usage or comply with regulatory requirements.

Implication: While this strategy can optimize performance for specific workloads, it doesn't address the underlying issue of insufficient CPU and memory resources during non-peak times.

D. Cloud bursting:

Definition: Cloud bursting is a hybrid cloud strategy where on-premises applications offload excess load to a public cloud during peak demand periods.

Implication: This approach is typically used to handle unexpected surges in demand and is more applicable to hybrid cloud environments. In this scenario, since the database is already hosted in a public cloud, cloud bursting is not relevant.

A /23 subnet mask has 9 bits for the host portion, which allows up to 512 IP addresses for the desktops. A /22 subnet mask has 10 bits for the host portion, which allows up to 1024 IP addresses, but this is more than the minimum required. A /24 subnet mask has 8 bits for the host portion, which allows up to 256 IP addresses, but this is not enough for the desktops. A /25 subnet mask has 7 bits for the host portion, which allows up to 128 IP addresses, but this is also not enough for the desktops. References: CompTIA Cloud+ Certification Exam Objectives, Domain 1.0: Cloud Concepts, Objective 1.2: Given a scenario, analyze and compare the characteristics of various cloud service models (SaaS, IaaS, PaaS). Subnet Mask Cheat Sheet - aelius.com

A staging environment is a type of development environment that is used to test and demonstrate the final product before deploying it to the production environment. A staging environment can help the web consultancy group avoid the issues of delivering a different or faulty product to the customers, as it can ensure that the product is fully functional, compatible, and secure. A staging environment can also help the group showcase the product to the customers in a realistic and controlled way, as it can mimic the production environment and avoid any interference from other development activities. A staging environment can be leveraged by using cloud services that allow for easy provisioning, scaling, and deployment of web applications

One possible solution for the company to continue adding new customers and to maintain the required level of isolation from other tenants is to implement VXLAN. VXLAN is a network virtualization technology that can extend VLAN by adding a 24-bit segment ID, which allows up to 16 million unique virtual segments. VXLAN can encapsulate layer 2 Ethernet frames within layer 3 IP packets, and tunnel them across the underlying network. VXLAN can provide logical isolation and security for different tenants, as well as scalability and flexibility for large cloud computing environments1.

One of the main benefits of cloud computing is that you only pay for the resources that you use. However, this also means that you need to manage your cloud resources efficiently and avoid paying for idle or unused resources1.

Shutting down the environment after work hours is a process that can be automated to best reduce cost in a cloud environment that must only be accessed during work hours. This process involves stopping or terminating the cloud resources, such as virtual machines, databases, load balancers, etc., that are not needed outside of the work hours. This can significantly reduce the cloud bill by avoiding charges for compute, storage, network, and other services that are not in use2.

The other options are not the best processes to automate to reduce cost in this scenario:

Option A: Scaling of the environment after work hours. Scaling is a process that involves adjusting the number or size of cloud resources to match the demand or workload. Scaling can be done manually or automatically using triggers or policies. Scaling can help optimize the performance and availability of a cloud environment, but it does not necessarily reduce the cost. Scaling down the environment after work hours may reduce some costs, but it may still incur charges for the remaining resources. Scaling up the environment before work hours may increase the cost and also introduce delays or errors in provisioning new resources3.

Option B: Implementing access control after work hours. Access control is a process that involves defining and enforcing rules and policies for who can access what resources in a cloud environment. Access control can help improve the security and compliance of a cloud environment, but it does not directly affect the cost. Implementing access control after work hours may prevent unauthorized access to the environment, but it does not stop or terminate the resources that are still running and consuming cloud services4.

Option D: Blocking external access to the environment after work hours. Blocking external access is a process that involves restricting or denying network traffic from outside sources to a cloud environment. Blocking external access can help protect the environment from potential attacks or breaches, but it does not impact the cost. Blocking external access after work hours may prevent unwanted requests or connections to the environment, but it does not shut down or release the resources that are still active and generating cloud charges.

Detailed Explanation:

B. Shrink the OS disk for Web1 and Web2: The OS disk size exceeds the maximum allowed by the cloud provider. Shrinking them ensures compatibility.

C. Migrate DB1 to DBaaS: The database disk exceeds the 2TB limit for a single data disk. Using Database as a Service (DBaaS) allows better storage management and cloud optimization.

References:

CompTIA Cloud+ CV0-003 Study Guide Chapter 15: Cloud Migrations​​.

LTS stands for Long Term Support, and it is a term that refers to a version of an operating system that receives updates and security patches for a longer period of time than other versions. LTS versions are usually more stable and reliable than other versions, and they are suitable for users who want to avoid frequent changes or compatibility issues. By choosing LTS versions for the VMs that are hosted in a cloud environment, the systems administrator can ensure that the VMs receive updates for as long as possible, and benefit from the enhanced security and performance of the operating system. LTS versions are typically released every few years, and they are supported for several years after their release. For example, Ubuntu 20.04 LTS is supported until April 2025, while Ubuntu 21.04 is supported until January 2022. References: CompTIA Cloud+ CV0-003 Certification Study Guide, Chapter 5, Objective 5.2: Given a scenario, troubleshoot common cloud resource and service issues.

Detailed Explanation:

B. Leveraging IaC templates: Infrastructure as Code (IaC) templates automate the deployment process, ensuring consistent environments across platforms and reducing manual effort.

References:

CompTIA Cloud+ CV0-003 Study Guide Chapter 19: Automation and Orchestration Techniques​​.

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple physical disks into a logical unit that provides improved performance, reliability, and storage capacity. RAID levels are different ways of organizing and distributing data across the disks in a RAID array. Each RAID level has its own advantages and disadvantages, depending on the requirements and trade-offs of the system.

RAID 6 is a RAID level that uses block-level striping with double parity. This means that data is divided into blocks and distributed across all the disks in the array, and two sets of parity information are calculated and stored on different disks. Parity is a method of error detection and correction that can reconstruct the data in case of disk failure. RAID 6 can withstand the failure of up to two disks without losing any data, which makes it suitable for a private cloud that requires high fault tolerance. RAID 6 also maximizes the storage capacity of its drives, as it only uses two disks for parity and the rest for data. The storage capacity of a RAID 6 array is equal to (n-2) x S, where n is the number of disks and S is the size of the smallest disk.

RAID 0, RAID 1, RAID 5, and RAID 10 are other RAID levels, but they do not meet the requirements of the private cloud. RAID 0 uses striping without parity, which improves performance but does not provide any redundancy or fault tolerance. RAID 0 cannot withstand any disk failure, as it would result in data loss. RAID 1 uses mirroring, which copies the same data to two or more disks. RAID 1 provides high reliability and fast read performance, but it wastes half of the storage capacity for redundancy. RAID 1 can only withstand the failure of one disk in each mirrored pair. RAID 5 uses striping with single parity, which distributes data and parity across all the disks in the array. RAID 5 provides a balance of performance, reliability, and storage capacity, but it can only withstand the failure of one disk. RAID 10 is a combination of RAID 1 and RAID 0, which creates a striped array of mirrored pairs. RAID 10 provides high performance and reliability, but it also wastes half of the storage capacity for redundancy. RAID 10 can withstand the failure of one disk in each mirrored pair, but not more than that.

For more information on RAID levels, you can refer to the following sources:

CompTIA Cloud+ CV0-003 Certification Study Guide, Chapter 4, Storage Technologies, page 791

Cloud+ (Plus) Certification | CompTIA IT Certifications2

A dual-stack infrastructure is a network that supports both IPv4 and IPv6 protocols. An active-active configuration is a high-availability cluster that distributes workloads across two or more nodes that are running the same service simultaneously. Replication between the two sites means that data is copied from one site to another to ensure consistency and redundancy. Data synchronization is the process of ensuring that data is identical across multiple locations. Therefore, data synchronization in real time means that data is replicated as soon as it changes on either site, without any delay or lag. References: Active-Active vs. Active-Passive High-Availability Clustering, Dual-stack IPv6 architectures for AWS and hybrid networks – Part 2, Understanding Dual Stacking of IPv4 and IPv6 Unicast Addresses

Feature compatibility is an important consideration for a successful cloud-to-cloud migration, as different cloud providers may have different features, services, APIs, and standards. If the application relies on specific features that are not available or compatible with the target cloud provider, the migration may fail or incur additional costs and complexity. The administrator should assess and compare the features of both cloud providers and ensure they meet the application requirements.

CASB (Cloud Access Security Broker) is what should be deployed to monitor and control the use of multiple SaaS-based business applications in a cloud environment. SaaS (Software as a Service) is a cloud service model that provides customers with access to software applications hosted on remote servers over a network or internet connection. SaaS can provide customers with convenience, flexibility, and scalability, but it may also introduce security risks such as data breaches, leaks, losses, etc., especially if customers have multiple SaaS subscriptions from different providers. CASB is a tool or service that acts as an intermediary between customers and SaaS providers. CASB can help to monitor and control the use of multiple SaaS subscriptions by providing features such as:

Visibility: CASB can provide visibility into what SaaS applications are being used, by whom, when, where, how, etc., as well as identify any unauthorized or suspicious activities.

Compliance: CASB can provide compliance with various laws, regulations, standards, policies, etc., that apply to SaaS applications and data, such as GDPR, HIPAA, PCI DSS, etc., as well as enforce them using rules or actions.

Security: CASB can provide security for SaaS applications and data by detecting and preventing any threats or attacks, such as malware, phishing, ransomware, etc., as well as protecting them using encryption, authentication, authorization, etc.

Not enough upload bandwidth is what best explains the reason for slow connectivity to a web application that has been migrated to a cloud environment with a synchronous uplink speed of 100Mbps. Bandwidth is a measure of how much data can be transferred over a network or connection in a given time period. Upload bandwidth is a measure of how much data can be sent from one location to another over a network or connection in a given time period. Upload bandwidth can affect connectivity to a web application by determining how fast data can be uploaded from clients to servers or vice versa. Not enough upload bandwidth can cause slow connectivity to a web application by creating congestion or bottleneck in data transfer, which may result in delays or errors in web requests or responses.

 Deploying web servers into an IaaS (Infrastructure as a Service) provider is the most suitable method to achieve the objective of hosting an external website and managing the OS. IaaS is a cloud service model that provides basic computing resources such as servers, storage, network, etc., to the customers. The customers have full control and flexibility over these resources and can install and configure any software they need on them. IaaS is suitable for hosting web servers and managing the OS, as it allows the customers to choose their preferred OS, web server software, settings, etc., and customize them according to their needs.

These are the actions that the administrator should perform to comply with the security requirement of isolating production, QA, and development servers from each other in a public cloud environment:

Create separate virtual networks for production, QA, and development servers: A virtual network is a logical isolation of network resources or systems within a cloud environment. Creating separate virtual networks for different types of servers can help to segregate them from each other and prevent direct communication or interference.

Move the servers to the appropriate virtual network: Moving the servers to the appropriate virtual network can help to assign them to their respective roles and functions, as well as ensure that they follow the network policies and rules of their virtual network.

Apply a network security group to each virtual network that denies all traffic except for the firewall: A network security group is a set of rules or policies that control and filter inbound and outbound network traffic for a virtual network or system. Applying a network security group to each virtual network that denies all traffic except for the firewall can help to enforce security and compliance by blocking any unauthorized or unwanted traffic between different types of servers, while allowing only necessary traffic through the firewall.

Configuring a firewall rule to block the traffic on the affected instance is what the administrator should perform during the containment phase of a security incident in the cloud. A security incident is an event or situation that affects or may affect the confidentiality, integrity, or availability of cloud resources or data. A security incident response is a process of managing and resolving a security incident using various phases, such as identification, containment, eradication, recovery, etc. The containment phase is where the administrator tries to isolate and prevent the spread or escalation of the security incident. Configuring a firewall rule to block the traffic on the affected instance can help to contain a security incident by cutting off any communication or interaction between the instance and other systems or networks, which may stop any malicious or unauthorized activity or access.

The error message indicates that the SSL/TLS handshake failed due to an invalid certificate. This means that the client machine does not trust the certificate authority (CA) that issued the certificate for the cloud provider’s API. A self-signed certificate or an insecure cipher would not cause this error, as they would be detected during the certificate validation process. The TLS version is not relevant, as the error occurs before the protocol negotiation. The most likely cause of the error is that the client machine does not have the root CA certificate installed in its trust store, or that the cloud provider’s certificate chain is incomplete or broken. To fix the error, the client machine needs to install the root CA certificate or the cloud provider needs to fix its certificate chain. References: The Official CompTIA Cloud+ Self-Paced Study Guide (CV0-003) eBook, Chapter 6, Section 6.2, page 2321

Encryption is the process of transforming data into an unreadable format using a secret key or algorithm. Encryption can be used to protect data at rest or in transit from unauthorized access or theft. If a physical breach occurs and hard drives are stolen, encryption can prevent the contents of the drives from being readable by anyone who does not have the decryption key or algorithm.

References: [CompTIA Cloud+ Study Guide], page 236.

A network access control list (ACL) is a set of rules that controls the inbound and outbound traffic for a network interface or a subnet. A deny rule can be used to block or filter the traffic from a specific source or destination, such as an IP address, a port number, or a protocol. By adding a deny rule to the network ACL, a systems administrator can prevent the communication between the compromised instance and the attacker, or between the compromised instance and other instances or servers. This can help to contain the security incident and limit the potential damage or data loss. A deny rule can also be used to isolate the compromised instance for further investigation or remediation. References: CompTIA Cloud+ CV0-003 Study Guide, Chapter 5: Maintaining a Cloud Environment, page 222-223; What is a network access control list (ACL)?.
