D-ISM-FN-01 Dell Information Storage and Management Foundations v2 Exam Questions and Answers

RAID 1 is disk mirroring . It writes identical copies of data to two disks simultaneously, providing redundancy.

Minimum of 2 disks (no parity, no striping).

Excellent read performance, write performance equivalent to a single disk.

Provides fault tolerance because data is duplicated.

A full backup captures all data each time it runs.

Main advantage: Fastest recovery because no additional backup sets (like incrementals or differentials) need to be combined.

Disadvantage: Takes more backup time and requires more storage space compared to incremental backups.

Option B: Full backups have a higher impact because of the time and bandwidth required.

Option C: Full backups consume the most storage.

Option D: Full backups are not the fastest in terms of backup window – they are the fastest in recovery.

Storage Class Memory (SCM) bridges the gap between DRAM and NAND flash memory. It offers faster access times than flash memory but is still slower than DRAM. SCM provides non-volatile storage with performance characteristics closer to DRAM, making it suitable for applications requiring high-speed data access.

WWN zoning uses the World Wide Names (unique identifiers) of devices (HBAs and targets) to define zone membership.

Offers flexibility: devices can be moved to different ports without reconfiguring zoning.

Common in modern SAN environments.

Port zoning uses physical port numbers for zone membership.

Mixed zoning combines port and WWN methods.

No zoning would not segment traffic.

GRC stands for Governance, Risk, and Compliance. It's a comprehensive framework that helps organizations align their IT operations with business objectives, manage risks effectively, and ensure compliance with internal and external regulations.

GDPR : A specific regulation focusing on data protection and privacy in the EU.

COBIT : A framework for IT governance and management, but not as comprehensive in risk and compliance aspects.

ITIL : Focuses on IT service management, not directly on governance or compliance.

Data Center Bridging (DCB) is a set of IEEE standards designed to enhance Ethernet for converged data center networks.

DCB includes priority-based flow control (PFC) to reduce frame loss during congestion.

Ensures lossless Ethernet transport , crucial for storage traffic (like FCoE).

QoS (A) prioritizes traffic but doesn’t guarantee lossless transport.

NAT (C) translates IP addresses, not relevant to lossless transport.

VLAN (D) segments networks logically but doesn’t address congestion.

Sub-LUN tiering allows for the movement of data at a more granular level within a Logical Unit Number (LUN), enabling:

Granular control over data placement: Specific data blocks can be moved to appropriate storage tiers based on access patterns.

Cost optimization: Frequently accessed data resides on high-performance (and more expensive) storage, while less accessed data is moved to cost-effective storage, optimizing overall storage costs.

Other options:

Reduced need for storage capacity: Not directly impacted by sub-LUN tiering.

Reduced need for storage tiering policies: Policies are still required to manage data movement.

Simplified storage management: While sub-LUN tiering adds efficiency, it may introduce complexity in management.

An incident is an unplanned disruption of a service or a reduction in its quality, often with an unknown root cause .

Incidents require immediate action to restore service.

Example: SAN switch port down, unexpected storage latency.

Support requests are typically service requests, not incidents.

Impact actions are more about changes, not incidents.

Events preventing corrections might be problems, not incidents.

In traditional storage provisioning, the RAID configuration significantly impacts the storage system's characteristics:

RAID Level : Determines data redundancy and fault tolerance. For example, RAID 1 mirrors data, providing high availability, while RAID 5 uses parity, balancing performance and redundancy.

Number of Drives : Affects both capacity and performance. More drives can increase total storage capacity and improve performance through parallel data access.

Make of Drives : While drive quality matters, it's less influential than RAID configuration in determining overall system characteristics.

Capacity of Drives : Impacts total storage size but doesn't directly influence performance or availability as significantly as RAID level and drive count.

Infrastructure as a Service (IaaS) is a cloud computing model that provides virtualized computing resources over the internet. It offers fundamental infrastructure services such as compute, storage, and networking, which users can provision and manage through a self-service portal. This model allows organizations to scale resources as needed and pay only for what they use.

Cloud-based backup solutions are managed by third-party providers and offer easy scalability, flexibility, and reduced IT management overhead. They allow businesses to focus on operations while the provider manages infrastructure, updates, and capacity.

Image-based backup: Captures entire system images but may still require local storage and management.

Agent-based backup: Deploys agents to servers, requiring management of the agents.

Tape-based backup: Involves hardware and manual processes for storage, increasing management burden.

Monitoring is the ongoing process of observing and tracking the performance and availability of IT infrastructure, including:

Storage devices

File systems

Ports and connectivity

It helps ensure service levels are met and detect potential issues.

Reporting : Summarizes data (often based on monitoring data).

Alerting : Notifies of specific events or thresholds (also uses monitoring data).

Infrastructure discovery : Detects and inventories devices.

Storage Class Memory (SCM) represents a new class of storage technology that bridges the gap between traditional DRAM and NAND flash memory. SCM offers significantly lower latency and higher endurance compared to NAND flash, making it the highest-performing storage medium currently available. Due to its advanced technology and performance characteristics, SCM is also the most expensive among the listed options.

FC (Fibre Channel): A network protocol used for high-speed data transfer, not a type of disk device.

SATA (Serial ATA): Commonly used in consumer-grade storage; offers lower performance and cost.

SAS (Serial Attached SCSI): Offers better performance than SATA but still lags behind SSDs and SCM.

SSD (Solid State Drive): Provides faster data access than HDDs but is outperformed by SCM.

SCM (Storage Class Memory): Combines the speed of DRAM with the persistence of NAND, offering unparalleled performance.

The Transport layer (Layer 4) of the OSI model ensures reliable data transfer between systems by providing:

End-to-end connections – manages communication sessions

Sequencing – orders data packets

Integrity – error detection and correction

Session (Layer 5) : Manages sessions and controls dialogues between systems.

Data Link (Layer 2) : Deals with local network frame delivery.

Presentation (Layer 6) : Translates data formats (like encryption, compression).

Full Detailed Explanation with Step by Step Solutions:

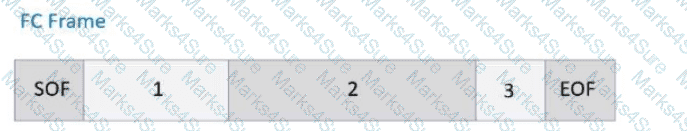

A standard Fibre Channel (FC) frame consists of several fields in a specific order. The typical sequence for an FC data frame is:

1️ ⃣ Frame header: Contains control and addressing information.

2️ ⃣ Data field: Carries the actual payload (up to 2112 bytes).

3️ ⃣ CRC (Cyclic Redundancy Check): Ensures data integrity of the frame.

The diagram in the exhibit shows exactly this ordering:

SOF (Start of Frame) – marks the beginning of the frame.

1 (Frame header) – the control and addressing info.

2 (Data field) – the main data payload.

3 (CRC) – for error checking.

EOF (End of Frame) – marks the end of the frame.
