D-OME-OE-A-24 Dell OpenManage Operate Achievement Questions and Answers

Step by Step Comprehensive Detailed Explanation with References In the OpenManage Enterprise web console, VLAN settings can be managed by navigating to the specific device and accessing its networking details. Here’s how you can manage VLAN settings:

Navigate to Devices : Start by going to the ‘Devices’ section in the OpenManage Enterprise web console.

Select a Device : Choose the device for which you want to manage VLAN settings.

View Details : Click on ‘View Details’ to access more information about the selected device.

Go to Hardware : Within the details view, navigate to the ‘Hardware’ tab.

Access Networking : Finally, select ‘Networking’ to manage VLAN settings for the device.

This path allows administrators to configure VLANs for individual devices, ensuring that network settings are tailored to the needs of each device. The process for managing VLAN settings is documented in the Dell EMC OpenManage Enterprise User’s Guide 1 , which provides instructions for configuring network-related settings, including VLANs.

=========================

In OpenManage Enterprise, custom groups can be created to organize devices based on various criteria. For a list of devices that update automatically based on specific properties of discovered systems, the appropriate type of custom group to use is a Dynamic group.

Here’s a detailed explanation:

Static Groups : These groups are manually created and managed. Devices must be manually added or removed, and the group does not update based on changes to device properties.

Dynamic Groups : These groups are automatically updated based on predefined criteria or properties. When a device meets the criteria, it is automatically included in the group, and if it no longer meets the criteria, it is removed.

Discovery Groups : These are typically used for organizing devices based on the method of discovery or during the initial discovery phase.

Query Groups : While these groups can be based on specific queries, they are not automatically updated like Dynamic groups.

Therefore, for a list of devices that need to update based on specific properties, a Dynamic group is the recommended choice as it ensures the group membership remains current with the changing properties of the devices 1 .

This information is based on the functionalities provided by Dell EMC OpenManage Enterprise, as outlined in the official documentation. It is always recommended to refer to the latest OpenManage Enterprise documentation for the most current features and procedures.

The minimum warranty level required for the SupportAssist adapter to effectively monitor the hardware status of a managed server is ProSupport Plus . This level of service provides the most comprehensive support features, including proactive and predictive support capabilities that are essential for hardware monitoring.

Here’s the rationale for this answer:

ProSupport Plus : This is the highest level of service offered by Dell, providing 24x7 priority access to ProSupport engineers, repairs for accidental damages, and proactive monitoring with SupportAssist technology 1 .

SupportAssist Technology : SupportAssist is a proactive monitoring tool that automatically detects hardware and software issues. It requires an active ProSupport or ProSupport Plus warranty to utilize all its features 2 .

Hardware Monitoring : With ProSupport Plus, SupportAssist can perform detailed hardware monitoring, send alerts, and even initiate automatic case creation for issues 3 .

While SupportAssist can still function with other warranty levels, ProSupport Plus ensures the full utilization of its capabilities, especially for critical hardware status monitoring and automated support case generation. It’s important to have the appropriate level of warranty to ensure that servers are monitored effectively and support is provided promptly when issues are detected.

When deploying a template that includes booting from an ISO in OpenManage Enterprise, specifying the share type is crucial for the server to access and boot from the ISO image. The correct share type to use in the Deploy Template wizard for this purpose is HTTP.

Here’s why HTTP is the appropriate choice:

HTTP (Hypertext Transfer Protocol) is widely used for transmitting files over the internet or a network. When a server boots from an ISO, it requires a protocol that can be used to access the file over a network. HTTP is suitable for this because it allows the server to download the ISO image as if it were accessing a web page or file on the internet 1 .

The other options, such as SCP (Secure Copy Protocol), FTP (File Transfer Protocol), and CIFS (Common Internet File System), are also used for file transfers but may not be supported for this specific scenario within the Deploy Template wizard of OpenManage Enterprise.

For detailed instructions on deploying server templates and configuring boot from ISO, administrators should refer to the official Dell OpenManage Enterprise documentation and support resources 1 .

=========================

In Dell OpenManage Enterprise, when a server is onboarded using an account that lacks administrative privileges, the status shown is “Monitored.” This status implies that the server has reduced device permissions compared to the “Managed” status, which would require administrator privileges.

Here’s a detailed explanation:

Monitored : This status indicates that the server can be contacted and discovered by OpenManage Enterprise, but the range of interactions is limited due to the lower-privileged credentials provided.  The server’s operational status can be viewed, but management tasks such as power control or firmware updates cannot be executed 1 .

Managed with alerts : This status would imply that the server is fully managed and that alerts can be configured and received, which requires administrative privileges.

Managed : This status is assigned to servers that are fully managed with administrative credentials, allowing for a full range of management tasks.

Monitored with limited actions : While this status is not explicitly mentioned in the provided search results, it would suggest a similar level of access as “Monitored” but with some additional limited actions available.

The distinction between these statuses is important for IT administrators who need to decide the level of access and control they require over the servers. For servers that only need to be monitored without full management capabilities, providing lower-privileged credentials is a common practice.

For more information on the implications of onboarding servers with different privilege levels and the resulting statuses, you can refer to the Dell OpenManage Enterprise technical documentation

IPMI (Intelligent Platform Management Interface) is a set of computer interface specifications for an autonomous computer subsystem that provides management and monitoring capabilities independently of the host system’s CPU, firmware, and operating system. One of the key advantages of IPMI over SNMP (Simple Network Management Protocol) is its ability to monitor and manage various subsystem sensors within the hardware.

While SNMP is widely used for network management and can gather data from various devices on the network, it is not as specialized in sensor data collection as IPMI. IPMI provides more detailed monitoring of system health and environment by allowing access to a broader range of sensor types and data. This includes temperatures, voltages, fans, power supplies, and more 1 2 3 .

Moreover, IPMI operates independently of the operating system, which means it can function even if the server’s OS fails or is unresponsive. This level of monitoring is crucial for maintaining system stability and preventing downtime due to hardware issues.

References:

Dell EMC OpenManage SNMP Reference Guide 1

Server Fault community discussions on Dell OpenManage and IPMI 2

Spiceworks Community insights on Dell OpenManage monitoring 3

=========================

Questions no: 27 Verified Answer C. Catalog is linked to a firmware baseline

Step by Step Comprehensive Detailed Explanation with References In OpenManage Enterprise, a catalog file cannot be deleted if it is linked to a firmware baseline. The firmware baseline relies on the catalog file to determine the applicable updates for devices managed by OpenManage Enterprise. If a catalog is in use by a baseline, it is protected from deletion to maintain the integrity of the firmware update process.

Here’s a detailed explanation:

Administrator Privileges : While administrator privileges are required for many actions within OpenManage Enterprise, they do not prevent the deletion of a catalog file unless it is linked to a baseline.

At Least One Catalog Must Be Present : OpenManage Enterprise does not require a catalog to be present at all times; catalogs can be added or removed as needed.

Catalog is Linked to a Firmware Baseline : This is the correct reason. The system prevents the deletion of a catalog file that is currently associated with a firmware baseline to avoid disrupting any ongoing or planned update processes.

Online Catalogs Cannot Be Deleted : Online catalogs can be deleted unless they are associated with a firmware baseline.

The process and restrictions related to managing catalog files are documented in the OpenManage Enterprise User’s Guide and support resources provided by Dell 1 2 3 .

=========================

When a device on the network is identified by the OpenManage Enterprise Discovery process, the details of the device are saved in the OpenManage Enterprise (OME) database. The OME database is the central repository where all the information and configurations related to the discovered devices are stored. This includes hardware details, monitoring data, and any other relevant information that the OpenManage Enterprise system uses to manage and monitor the devices 1 .

The database is designed to handle a large amount of data efficiently, ensuring that all device details are readily accessible for management tasks, reporting, and analytics within the OpenManage Enterprise platform 1 .

For more information on the discovery process and data storage in OpenManage Enterprise, administrators can refer to the official Dell OpenManage documentation and support resources 1 .

=========================

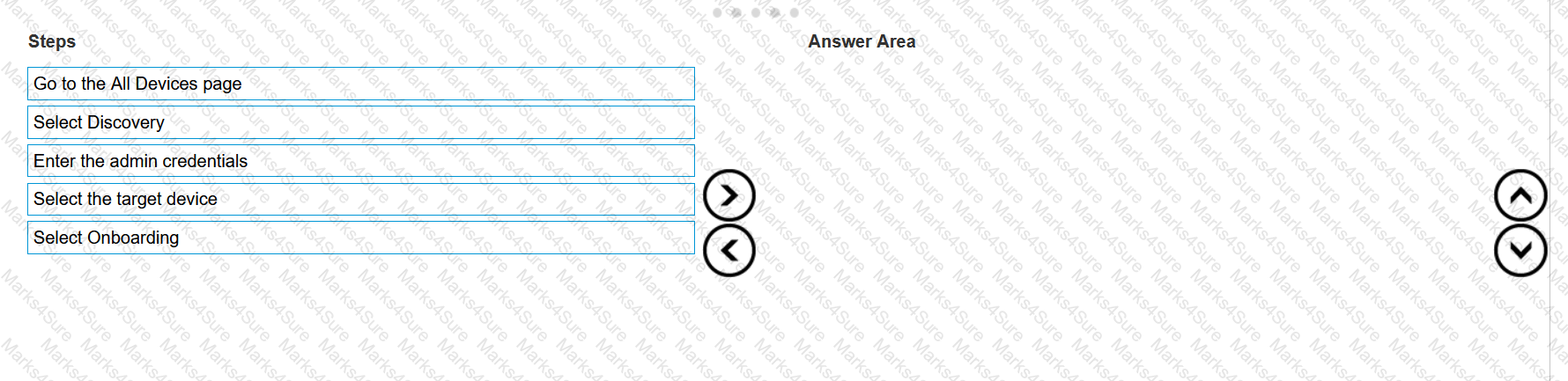

The correct order of steps to manually onboard a device in Dell OpenManage Operate is:

Go to the IP Addresses page.

Select Discovery.

Enter the admin credentials.

Select the target device.

Select Onboarding.

To manually onboard a device using Dell OpenManage Operate, follow these steps:

Go to the IP Addresses page : This is typically where you begin by accessing your inventory of devices and their respective IP addresses within Dell OpenManage Operate.

Select Discovery : The discovery process involves scanning for devices that can be managed within your network environment.

Enter the admin credentials : For security purposes and to ensure that only authorized personnel can add devices, administrative credentials are required.

Select the target device : After discovering devices, you need to select which specific device you want to onboard into Dell OpenManage Operate for management.

Select Onboarding : Finally, after selecting your target device, you proceed with onboarding it into your management console for monitoring and management tasks.

For verified answers according to Dell OpenManage Operate documents, please refer directly to those official documents or contact Dell support for confirmation as this information cannot be verified without access to those specific resources.

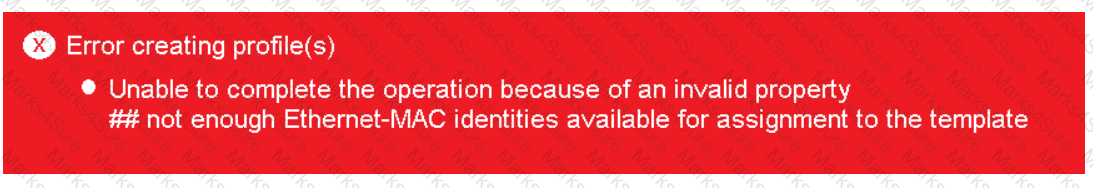

The error message indicates that there are not enough Ethernet MAC Identities available for assignment to the template. This suggests that the Identity pool does not have a sufficient number of Virtual Identities to accommodate the creation of server profiles for the new PowerEdge servers. To successfully create the profiles, the administrator needs to increase the number of Virtual Identities in the Identity pool. Here’s how to do it:

Access OpenManage Enterprise : Log into the OpenManage Enterprise console.

Navigate to Identity Pool : Go to the section where the Identity pools are managed.

Edit the Identity Pool : Select the Identity pool that is being used for the server profiles.

Increase Virtual Identities : Increase the number of Virtual Identities within the pool to ensure there are enough available for all the new servers.

Save Changes : Save the changes to the Identity pool.

Retry Profile Creation : Attempt to create the server profiles again; there should now be enough Virtual Identities to proceed without error.

By increasing the number of Virtual Identities, the administrator ensures that each new server can be assigned a unique Ethernet MAC Identity, which is necessary for network communication and management within OpenManage Enterprise.

For more detailed instructions on managing Identity pools and Virtual Identities, refer to the official Dell OpenManage documentation.

In an OpenManage Enterprise environment that experiences frequent network changes, it is recommended to run Discovery tasks once per day . This frequency ensures that the inventory of devices is kept up-to-date without causing excessive network traffic that could disrupt operations.

The rationale for this recommendation is as follows:

Frequent Network Changes : Environments with frequent changes require regular updates to the device inventory to reflect the current state of the network.

Balancing Load and Currency : Running Discovery tasks too frequently (e.g., every hour) could lead to unnecessary load on the network and OpenManage Enterprise system, while running them too infrequently (e.g., weekly) might result in outdated information. Daily discovery strikes a balance between these two extremes.

Automated Scheduling : OpenManage Enterprise allows for Discovery tasks to be scheduled automatically, which can be set to occur daily to maintain an up-to-date inventory with minimal manual intervention 1 .

It’s important to note that the specific frequency may need to be adjusted based on the unique characteristics of the network environment, including the number of devices, the nature of the changes, and the capacity of the network infrastructure. The recommendation provided here is based on general best practices for systems management in dynamic environments.

When an administrator schedules a job to deploy a template with virtual identities to servers, the status of these servers in the Identity Pool is set to “Reserved.” This status indicates that the virtual identities have been earmarked for these servers and cannot be assigned to other devices until the job is either completed or cancelled.

Here’s the process:

Template Deployment Scheduled : The administrator schedules the deployment of the template with virtual identities.

Identity Pool Reservation : The system reserves the required virtual identities in the Identity Pool for the scheduled job.

Status Set to Reserved : The status of the servers in the Identity Pool reflects this reservation as “Reserved.”

Job Execution : At the scheduled time (10PM the following day), the job will run, and the virtual identities will be applied to the servers.

Status Update : Once the job is completed, the status will change to reflect the new state, such as “Allocated” or “Deployed,” depending on the outcome of the deployment 1 .

The reservation ensures that there are no conflicts or double-assignments of virtual identities, which are crucial for network communication and management within OpenManage Enterprise 1 . For more detailed information on virtual identity management in Dell OpenManage Operate, administrators can refer to the official documentation provided by Dell 1 .

=========================

When a new server is added to a custom group and assigned to a Compliance Baseline CB1, but shows as “Compliance Incomplete,” it indicates that the server’s current configuration has not been fully inventoried or compared against the baseline. To resolve this, a Configuration Inventory task should be run on the new server. This task will gather the current configuration details of the server and compare them with the compliance baseline to determine if there are any discrepancies.

Here are the steps to fix the issue:

Select the New Server : In OpenManage Enterprise, navigate to the server list and select the newly added server.

Run Configuration Inventory : Go to the server’s actions or context menu and select the option to run a Configuration Inventory task.

Wait for Completion : Allow the task to complete. It will collect configuration data from the server.

Check Compliance Status : After the inventory task is complete, check the compliance status again. The server should now reflect the correct compliance status based on the baseline CB1.

Running a Configuration Inventory task ensures that all configuration settings of the server are accounted for and compared against the defined compliance baseline. This process is essential for maintaining the integrity of server configurations and ensuring that all servers adhere to the organization’s standards 1 .

For more detailed procedures and best practices, refer to the Dell OpenManage Enterprise documentation and support resources 1 2 .

=========================
