D-PDD-DY-23 Dell PowerProtect DD Deploy 2023 Questions and Answers

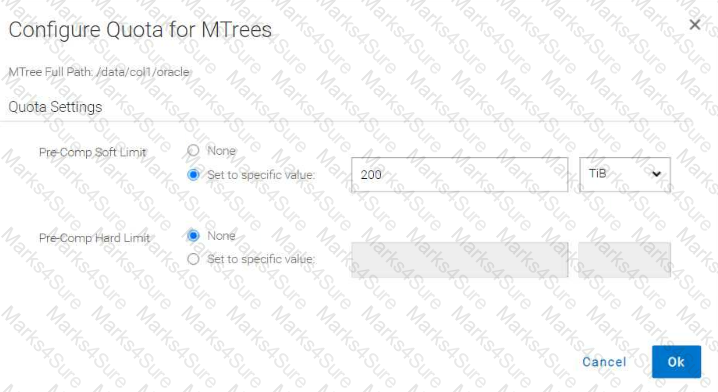

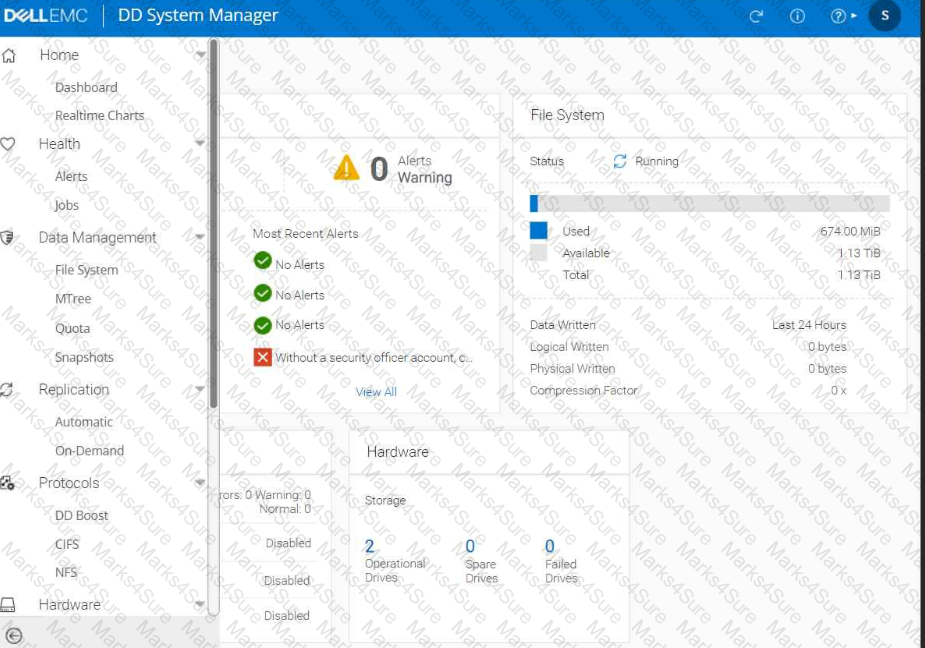

To configure a new MTree with a specified path and size limit in PowerProtect DD, follow these steps:

Step 1: Access the MTree Management Section

In the DD System Manager interface, locate Data Management in the sidebar.

Select MTree from the dropdown menu to manage MTrees.

Step 2: Create a New MTree

Click on Create MTree or Add MTree (the exact button label may vary).

Set the Path for the MTree as /data/col1/oracle.

Step 3: Set the MTree Size Limit

In the MTree creation dialog, look for an option to set a Quota or Size Limit for the MTree.

Set the Size Limit to 200 TiB to ensure the MTree does not exceed this capacity.

Step 4: Save the Configuration

Confirm and save your settings to create the MTree with the specified path and size restriction.

After these steps, you should have a new MTree at /data/col1/oracle with a maximum allowed size of 200 TiB. Let me know if further assistance is required!

A screenshot of a computer Description automatically generated

DD Namespace Redirection allows for the consolidation of multiple PowerProtect DD systems into a single federated namespace. This feature enables automatic redirection of backup data to different systems based on capacity thresholds, ensuring that the backup software does not require manual reconfiguration when one system approaches full capacity. This simplifies management and optimizes resource utilization across the DD systems in the data center.

The nfs show clients command provides a list of clients that have access to the NFS (Network File System) shares exported by the PowerProtect DD appliance. This information is crucial for administrators to monitor and manage NFS client connections, ensuring proper access and resource allocation.

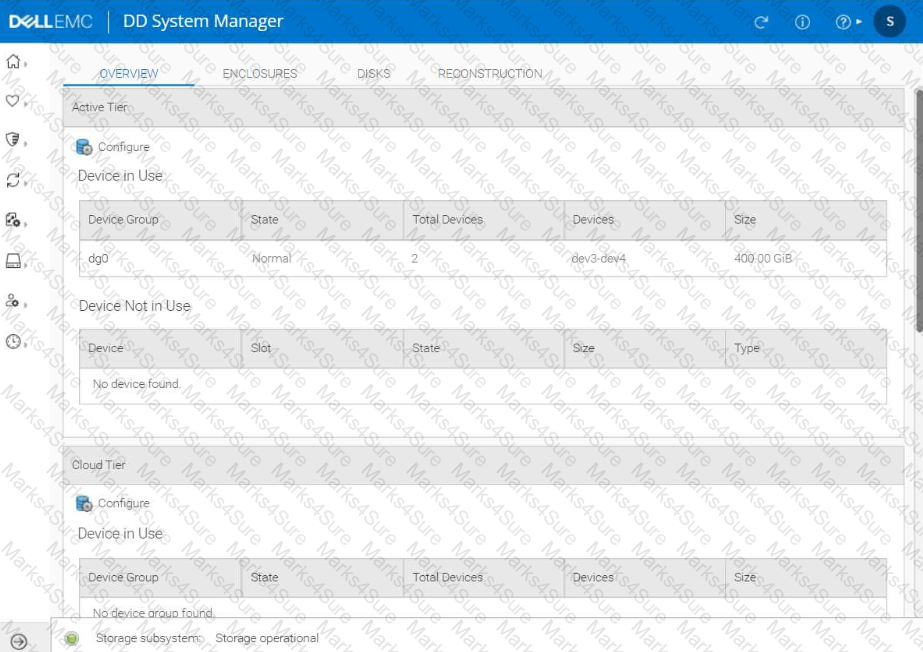

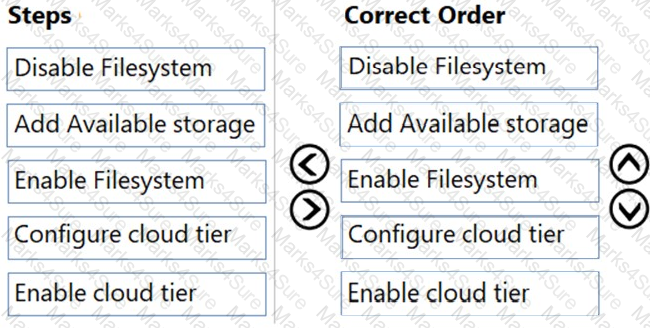

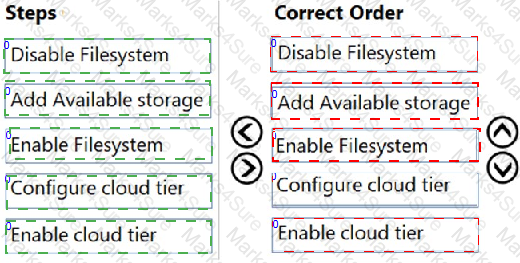

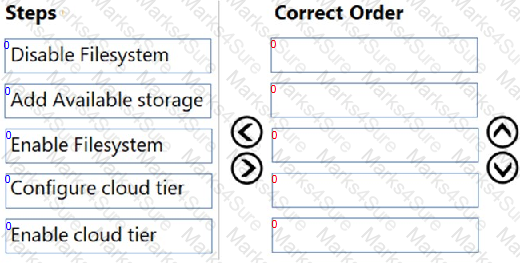

Disable Filesystem: This step ensures that any current filesystem operations are halted to safely modify the configuration.

Add Available Storage: This involves allocating additional storage resources for the Cloud Tier functionality.

Enable Filesystem: After adding storage, the filesystem needs to be re-enabled to make the system operational again.

Configure Cloud Tier: Set up the necessary parameters and options for the Cloud Tier, specifying how it will interact with the cloud storage.

Enable Cloud Tier: Finally, this step activates the Cloud Tier, allowing data to be tiered to cloud storage according to the configured settings.

The maximum backup speed of the PowerProtect DD Virtual Edition (DDVE) when utilizing DD Boost is 4.2TB per hour. DD Boost is a feature that enhances the speed and efficiency of data transfers between the backup application and the Data Domain appliance by performing deduplication operations closer to the source, thus reducing network traffic and improving throughput. DDVE’s performance capabilities are optimized for virtualized environments, and the 4.2TB/h rate represents the upper limit under ideal conditions, maximizing data protection performance in virtual setups.

Data Type: Different types of data may compress and deduplicate differently, affecting how much storage is needed.

Data Size: The total size of the data that needs to be backed up is a fundamental factor in determining capacity.

Change Rate: The frequency with which data changes impacts how much new data is generated and needs to be stored.

Deduplication Rate: Understanding how effective deduplication will be is essential for estimating how much physical storage will be needed after backups are processed.

Explanation : When implementing Link Aggregation Control Protocol (LACP) on a PowerProtect DD appliance, a virtual network interface is created to aggregate the physical interfaces into a single logical link. This configuration is essential to enable LACP functionality, as it allows the system to balance network traffic effectively across multiple physical connections, enhancing redundancy and throughput. By aggregating these physical interfaces, the appliance can better handle high data volumes, providing stable and efficient access to the underlying network resources.

The virtual network interface manages the logical grouping, ensuring seamless failover and load balancing between the physical links that comprise the aggregated connection.

Explanation : The standard port for syslog monitoring over UDP is 514. This protocol is widely used for logging and monitoring networked devices, including PowerProtect DD, facilitating real-time monitoring and alerts.

Explanation : The File System Settings in PowerProtect DD include data movement settings such as Throttle and Schedule to control the rate and timing of data transfers, optimizing resource utilization based on operational requirements.

In the PowerProtect DD File System Settings, the data movement system settings available include Throttle and Schedule . These settings allow administrators to control the flow of data between different storage tiers or destinations.

Throttle : This setting regulates the rate of data transfer, which helps in managing network load and ensures that data movement does not overwhelm the system resources or impact other network activities.

Schedule : Administrators can define specific times for data movement operations, which helps in optimizing resource utilization by scheduling intensive tasks during off-peak hours, thereby minimizing impact on performance during critical operational periods.

These options provide flexibility and control over how and when data is transferred, enhancing the overall efficiency and performance of data management tasks on PowerProtect DD systems.

RADIUS is commonly supported in PowerProtect DD for external authentication, allowing integration with centralized authentication systems for user management and access control.

To schedule space reclamation on a PowerProtect DD system as specified, here’s the general procedure to follow in the DD System Manager:

Log into DD System Manager : Access the management interface for your PowerProtect DD system.

Navigate to Data Management : In the sidebar, look for an option labeled Data Management or similar (may vary slightly depending on the exact DD OS version).

Select Space Reclamation : Within Data Management, find and select Space Reclamation settings.

Set Schedule :

Click on Schedule and choose to add a new schedule if not already present.

Set the Day to Monday .

Set the Time to 4:00 AM .

Configure Resource Limit :

Look for an option to limit the resource usage for the reclamation task.

Set the Maximum System Resource Usage (or a similarly named option) to 25% to avoid impacting the system performance excessively.

Save the Schedule : Confirm and save your settings.

Verify the Schedule : Check that the schedule appears correctly in the list, indicating it will run every Monday at 4:00 AM with the specified resource usage limit.

After completing these steps, the PowerProtect DD system should reclaim space as scheduled without exceeding 25% resource usage, minimizing its impact on other system operations.

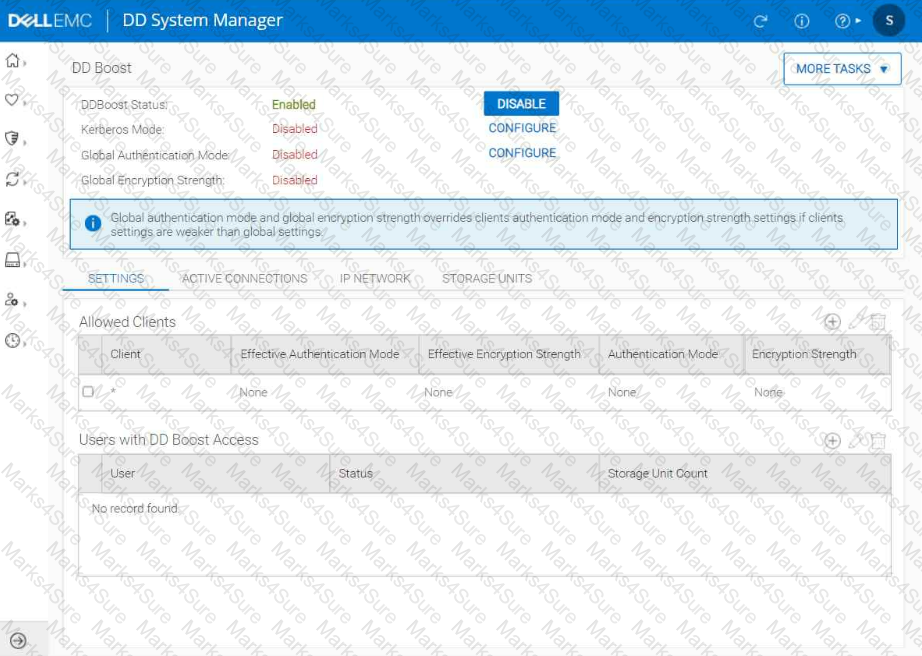

To configure DD Boost, enable it, create a new user, and set up a storage unit in the DD System Manager, follow these steps:

Enable DD Boost :

In the Protocols section on the left sidebar, locate DD Boost and click on it.

Inside the DD Boost settings, find the option to enable DD Boost if it ' s currently disabled.

Create a New User :

Go to Administration or Users (location varies based on version).

Select Add User or New User .

Set the username as ddboost and the password as Password123.

Assign the appropriate permissions, typically Admin or Read/Write access, based on best practice recommendations for DD Boost users.

Create a Storage Unit :

Return to the DD Boost section.

Look for an option labeled Storage Units or similar, and choose Add Storage Unit .

Name the storage unit SU1 .

Ensure that the newly created ddboost user has access to this storage unit.

Save and Confirm :

After configuring, save all settings and confirm the changes.

Verify that DD Boost is enabled, the user ddboost exists with the specified permissions, and the storage unit SU1 is created and accessible by this user.

This completes the setup for DD Boost with a new user and storage unit on PowerProtect DD. Let me know if you need more assistance with any of these steps.

A screenshot of a computer Description automatically generated

A screenshot of a login form Description automatically generated

To configure a user account for Retention Lock Compliance Edition with specific role and password policies on a PowerProtect DD system, follow these steps:

Step 1: Access the User Management Section

In the DD System Manager interface, go to Administration or Users (exact location may vary).

Look for an option to manage user accounts.

Step 2: Create or Verify the Account

If the account asterix1 already exists:

Select the user and edit the properties.

If the account does not exist:

Click on Add User or Create New User .

Enter the Username as asterix1.

Set the Password as password2.

Step 3: Assign the Compliance Role

Ensure that asterix1 is assigned the correct role, which is usually Security Officer or a similar role necessary for Retention Lock Compliance.

This role allows the user to manage and enforce compliance-related settings on the system.

Step 4: Set Password Expiration Policy

Configure the Password Aging Policy :

Set Password Expiration or Maximum Days to 180 days.

Ensure Minimum Days and Warning Days are set as needed or required by the compliance policy.

Step 5: Save and Verify

Save the changes and verify that the account asterix1 is now listed with the appropriate role and password settings.

This configuration ensures that the asterix1 account is in place with the correct permissions and that the password is set to expire after 180 days. Let me know if you need more assistance!

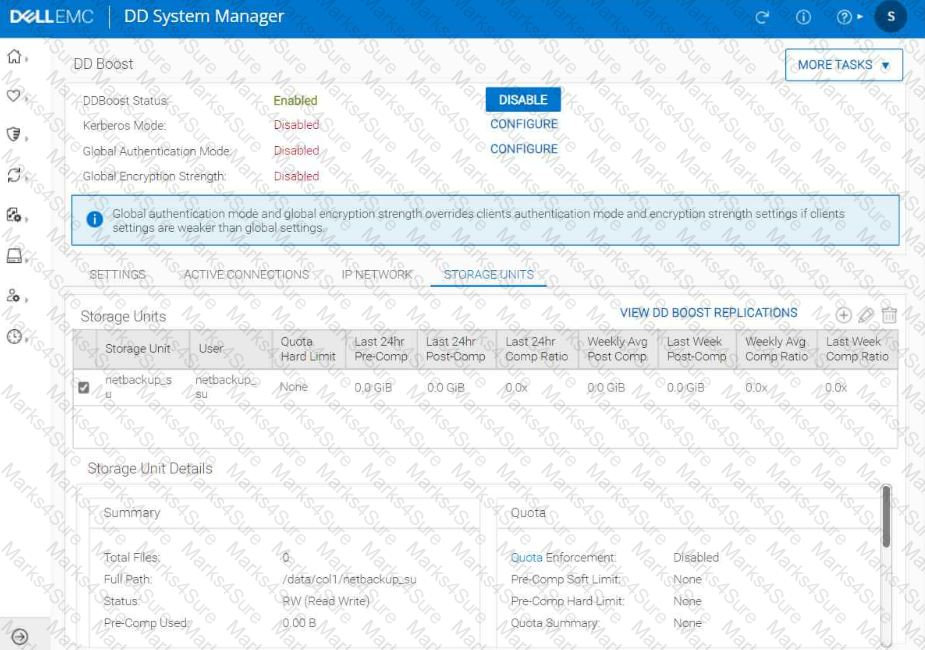

To create a DD Boost storage unit for Veritas NetBackup and give access to a user, follow these steps:

Enable DD Boost (if not already enabled) :

Navigate to Protocols in the left sidebar.

Select DD Boost and enable it if it’s currently disabled.

Create a New DD Boost User :

Go to Administration or Users section (location may vary depending on the DD OS version).

Add a new user with the username netbackup_user.

Set a password and assign the necessary permissions, such as Read/Write access.

Create a Storage Unit :

Return to the DD Boost section.

Look for an option labeled Storage Units or Add Storage Unit .

Name the storage unit netbackup_su .

During the setup, ensure that netbackup_user has access to this storage unit by assigning appropriate permissions.

Save and Confirm Settings :

Save the configuration changes.

Verify that netbackup_su is listed as a storage unit and that netbackup_user has access.

After completing these steps, you should have a storage unit named netbackup_su accessible by netbackup_user, configured specifically for use with Veritas NetBackup on your PowerProtect DD system. Let me know if further clarification is needed!

To resolve the issue and set up the cleaning schedule and manual cleaning on your PowerProtect DD system, follow these steps based on the information provided:

Access the Cleaning Schedule Settings:

Go to File System Settings.

Navigate to the Cleaning tab.

2. Set the Cleaning Schedule:

Frequency: Choose Weekly.

At: Set the cleaning to start every Tuesday at 6:00 AM.

Throttle: Set the throttle to 50% for scheduled cleaning.

3. Manually Start Cleaning:

After setting the schedule, initiate the cleaning manually from the File System settings.

Set the manual cleaning throttle to 30% to ensure system resources are not overused during the process.

To create a new non-admin user and a storage unit for an Oracle department on PowerProtect DD, follow these steps:

Step 1: Create the User " DDBoostOracle "

Navigate to the User Management Section :

Look under Administration or Users in the sidebar (the exact location may vary by DD OS version).

Create New User :

Click on Add User or New User .

Enter Username : DDBoostOracle

Enter Password : Password123

Set Management Role to None .

Set Password Aging Policy :

Set Minimum Days : 0

Set Maximum Days : 180

Set Warn Days : 15

Assign the User to DD Boost Users Group :

Locate the option to assign the user to groups and select the ddboost users group.

Save User Configuration :

Confirm and save the settings to create the user.

Step 2: Create the Storage Unit " SU_Oracle "

Navigate to DD Boost Protocol :

Go to Protocols > DD Boost in the sidebar.

Create a New Storage Unit :

Find Storage Units and select Add Storage Unit .

Name the storage unit as SU_Oracle .

Assign the User to the Storage Unit :

During the creation process or in the access settings of the storage unit, assign DDBoostOracle as the user with access.

Save Storage Unit Configuration :

Confirm and save the configuration to ensure that the new user has access to the storage unit.

This completes the setup for a non-admin user with the specified password aging policy and a dedicated storage unit for the Oracle department. Let me know if additional steps are needed!

BoostFS (Boost File System) is a DD Boost-enabled file system interface that allows applications like IBM Spectrum Protect to take advantage of DD Boost features, such as optimized deduplication, load balancing, and improved backup/restore performance. By using BoostFS, IBM Spectrum Protect can efficiently integrate with PowerProtect DD appliances to leverage DD Boost ' s capabilities for faster and more efficient data transfer.

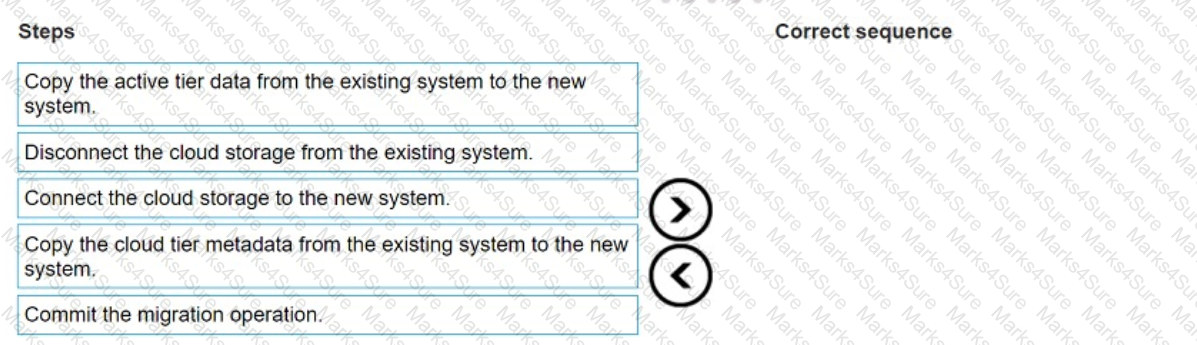

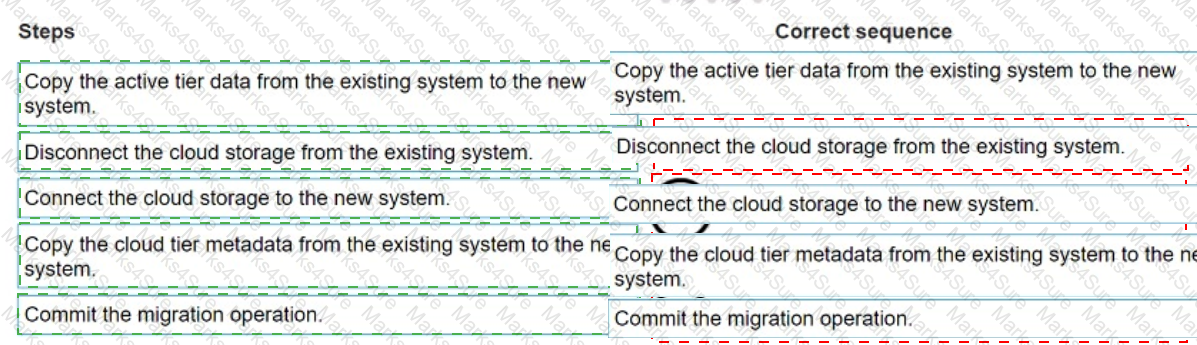

The correct sequence to perform Cloud Tier migration is as follows:

Copy the active tier data from the existing system to the new system.

Disconnect the cloud storage from the existing system.

Connect the cloud storage to the new system.

Copy the cloud tier metadata from the existing system to the new system.

Commit the migration operation.

Copy Active Tier Data : Start by transferring active tier data from the current system to the new PowerProtect DD system. This step ensures that primary data is accessible on the new appliance.

Disconnect Cloud Storage : Once the active tier data is copied, disconnect the cloud storage from the original system to prepare it for reconnection.

Connect Cloud Storage to New System : Attach the cloud storage to the new system. This step transitions cloud storage access from the old to the new appliance, preparing it for continued operations.

Copy Cloud Tier Metadata : Metadata associated with the cloud tier is copied to the new system, ensuring continuity of data access and management in the cloud tier.

Commit Migration Operation : Finally, complete the migration process by committing the changes, solidifying the new system as the primary appliance for both active and cloud tier operations.

This ordered approach ensures a structured and reliable migration process, maintaining data integrity and continuity across PowerProtect DD systems.

Explanation : Expiring snapshots and initiating file system cleaning are effective ways to free up space on a full PowerProtect DD system. These actions help reclaim storage by removing old, unneeded data without impacting active backups. When a PowerProtect DD system is full and no further data can be written or deleted, the following actions can be taken to free up space:

Expire Existing Snapshots : This process involves removing old or expired snapshots that are no longer needed, which helps in reclaiming space within the system.

Start File System Cleaning : File system cleaning is a maintenance operation that reclaims unused space by consolidating and removing data that is no longer needed, such as expired or deleted data segments. This process is essential in freeing up capacity when the system is near or at full utilization.

These steps allow administrators to make space available on the system without immediately adding new storage or altering the configuration.

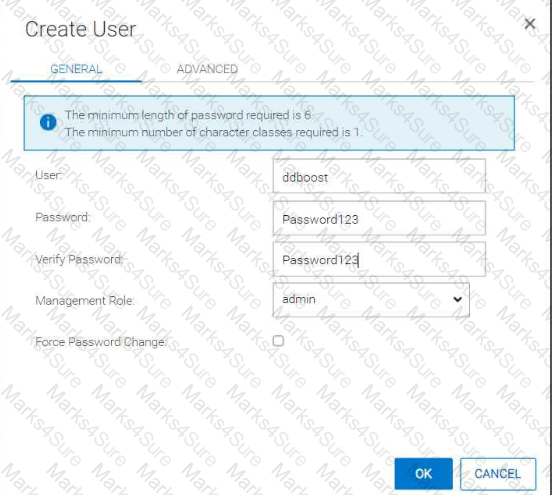

To configure DD Boost on the PowerProtect DD system and create the required user and storage unit, follow these steps:

Enable DD Boost:

Go to the DD System Manager.

Navigate to DD Boost Settings.

Click on Enable to activate DD Boost on the system.

2. Create the User ' ddboost ' :

Go to Access Management > Local Users.

Click Create to add a new user.

Set the username to ddboost and the password to Password123.

Assign the user management role (the recommended permission for DD Boost users).

Click OK to create the user.

3. Create the Storage Unit ' SU1 ' :

Go to Storage Units in the DD Boost section.

Click Create to add a new storage unit.

Name the storage unit SU1.

Assign the ddboost user to this storage unit for access.

Set any quota limits if required, or leave them as None if no restrictions are needed.

Click Create to finalize the storage unit creation.

After completing these steps, DD Boost will be enabled, and the ddboost user with appropriate permissions will have access to the newly created storage unit SU1.

To flash an LED on a hard drive and bring a disk back online using the DD System Manager or DDOS CLI, follow these general steps:

Step 1: Identify the Disk

In DD System Manager :

Go to the Hardware section in the sidebar.

Locate the list of disks, and find Disk 1.5 (the offline disk).

In DDOS CLI (if using CLI):

Use the command to list disks and confirm the status of Disk 1.5.

Command example: disk show state or disk show summary.

Step 2: Flash the LED on the Disk

In DD System Manager :

In the Hardware section, select Disk 1.5 .

Look for an option like Flash LED or Locate Drive to help identify the physical disk.

Activate the LED flash to identify the disk physically.

In DDOS CLI :

Use the command: disk locate 1.5 to flash the LED for Disk 1.5.

Step 3: Bring the Disk Back Online

In DD System Manager :

After identifying the disk, check for options to Bring Online or Reactivate Disk 1.5.

Select the option to return the disk to operation.

In DDOS CLI :

Use the command: disk unfail 1.5 to bring the disk back online.

Step 4: Verify the Disk Status

Confirm in DD System Manager or by using the disk show state command in CLI that Disk 1.5 is now online and functioning.

After completing these steps, the LED should flash to help locate the disk physically, and then Disk 1.5 will be returned to an operational state. Let me know if you need further guidance!

A screenshot of a computer Description automatically generated

If backups are failing when using a dynamic interface group, one of the likely causes is that DD Boost is disabled. Since DD Boost is essential for optimized data transfer during backups, its disabled status would lead to backup failures even if other configurations appear correct.

If you need to verify this in the simulator:

Go to the Protocols section.

Check the status of DD Boost .

Ensure that DD Boost is enabled to allow backups to proceed successfully.
