D-PE-OE-23 Dell PowerEdge Operate 2023 Questions and Answers

Identifying Servers Designed for HPC, AI, and VDI Solutions with Highest GPU Density

Server Portfolio and Features (10%)

Identify server features and specifications

Position the server in the market landscape

Understanding the Requirements

High-Performance Computing (HPC), Artificial Intelligence (AI), and Virtual Desktop Infrastructure (VDI) workloads require servers with:

High GPU Density : Ability to support multiple GPUs for intensive computational tasks.

Optimized Performance : Enhanced CPU capabilities, memory bandwidth, and storage options.

Evaluation of Options

Option A: XR11

Explanation : The PowerEdge XR11 is a ruggedized, single-socket server designed for edge computing and harsh environments. It has limited GPU support.

Conclusion : Not suitable for highest GPU density.

Option B: XE9680

Explanation : The PowerEdge XE9680 is a high-performance server designed specifically for HPC and AI workloads.

Features :

Supports up to 8 double-width GPUs , offering the highest GPU density.

Ideal for AI training, deep learning, and complex simulations.

Conclusion : Correct Answer .

Option C: R660xs

Explanation : The PowerEdge R660xs is a 1U, dual-socket server optimized for scalability and density but with limited GPU support.

Conclusion : Not designed for maximum GPU density.

Option D: R7615

Explanation : The PowerEdge R7615 is a 2U, single-socket server with support for GPUs but not the highest GPU density.

Conclusion : Not the best fit for this requirement.

Option E: XE8640

Explanation : The PowerEdge XE8640 is engineered for performance-intensive workloads.

Features :

Supports up to 4 double-width GPUs .

Optimized for HPC, AI, and VDI applications requiring high GPU density.

Conclusion : Correct Answer .

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications : Recognizing which server models offer the necessary GPU density for specific workloads.

Server Components (26%)

Explain how expansion cards are connected and the features of the GPU : Understanding GPU integration and its impact on server performance.

Conclusion

The PowerEdge XE9680 and XE8640 are designed to provide the highest GPU density for HPC, AI, and VDI solutions. They support multiple high-performance GPUs, making them ideal for compute-intensive tasks.

Identifying the AMD-Powered Server that Supports Dual CPU, 16G, and iDRAC Express

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Server Components (26%)

Define the different processor, memory options, and memory configurations

Understanding the Server Models

Option A: R7625

Features :

Processor : AMD EPYC processors

CPU Support : Dual-socket (supports two CPUs)

Generation : 16th Generation (16G)

Management : Comes with iDRAC9, supporting iDRAC Express

Analysis :

Meets all the specified criteria:

AMD-powered

Supports dual CPUs

Is a 16G server

Supports iDRAC Express

Conclusion : Correct Answer

Explanation of Other Options

Option B: R7525

Features :

Processor : AMD EPYC processors

CPU Support : Dual-socket

Generation : 15th Generation (15G)

Management : Supports iDRAC9

Analysis :

Does not meet the 16G requirement (it ' s a 15G server)

Option C: R960

Features :

Processor : Typically Intel Xeon processors

CPU Support : Quad-socket (supports up to four CPUs)

Generation : 14th or 15th Generation

Analysis :

Not AMD-powered

Does not meet the dual CPU and 16G requirements

Option D: R6615

Features :

Processor : AMD EPYC processors

CPU Support : Single-socket (supports one CPU)

Generation : 16th Generation (16G)

Analysis :

Does not support dual CPUs (only supports a single CPU)

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications : Knowing the specifications of each server model is crucial for matching customer requirements.

Server Components (26%)

Define the different processor, memory options, and memory configurations : Understanding CPU support and generation compatibility.

Conclusion

The Dell PowerEdge R7625 is the AMD-powered server that supports dual CPUs, is part of the 16th Generation, and comes with iDRAC Express. It aligns perfectly with the specified requirements.

Understanding the Unique Attribute of the Lifecycle Log

Server Troubleshooting (32%)

Explain the server logs and memory error

What is the Lifecycle Log?

The Lifecycle Log in Dell PowerEdge servers is a comprehensive log that records system events related to hardware configuration changes, firmware updates, errors, and other critical information. It is maintained by the Integrated Dell Remote Access Controller ( iDRAC ) and provides valuable data for troubleshooting and auditing.

Unique Attribute of the Lifecycle Log

Message ID:

Explanation:

Each entry in the Lifecycle Log is assigned a unique Message ID .

The Message ID is a specific code that identifies the type of event or error.

These codes are standardized and can be cross-referenced with Dell ' s documentation to understand the exact nature of the event.

Uniqueness:

While other logs may include timestamps, severity indicators, and event descriptions, the use of standardized Message IDs is unique to the Lifecycle Log.

This attribute allows for precise identification and correlation of events across systems.

Explanation of Options

Option A: Message ID

Analysis:

The Message ID is unique to the Lifecycle Log, providing specific identifiers for events.

Conclusion: Correct Answer .

Option B: Severity indicator

Analysis:

Severity indicators (e.g., informational, warning, critical) are common in various system logs.

Not unique to the Lifecycle Log.

Conclusion: Incorrect.

Option C: System event is recorded

Analysis:

Recording system events is a fundamental function of all logs.

Not an attribute unique to the Lifecycle Log.

Conclusion: Incorrect.

Option D: Date and timestamp

Analysis:

Date and timestamp entries are standard in virtually all logs to indicate when events occurred.

Not unique to the Lifecycle Log.

Conclusion: Incorrect.

Dell Operate References

Server Troubleshooting (32%)

Explain the server logs and memory error:

Understanding the structure and attributes of the Lifecycle Log is essential for effective troubleshooting.

Recognizing the importance of Message IDs aids in diagnosing and resolving issues quickly.

Server Management and Configuration Tools (14%)

Explain the management interface options - LCC, racadm, OMSA, iSM, OME:

The Lifecycle Controller (LCC) and iDRAC provide access to the Lifecycle Log and its detailed entries.

Conclusion

The Message ID is the attribute unique to the Lifecycle Log. It allows administrators to identify and interpret specific events accurately, facilitating efficient troubleshooting and system management.

Understanding iDRAC Group Manager Communication

Server Management and Configuration Tools (14%)

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

What is iDRAC Group Manager?

iDRAC Group Manager allows administrators to manage multiple iDRAC-enabled servers as a single group.

Purpose : Simplifies management tasks by enabling actions to be performed across multiple servers simultaneously.

Communication Protocol Used

Redfish Protocol

Explanation : Redfish is a modern, RESTful API designed for server management.

Usage in iDRAC Group Manager : iDRAC instances communicate with each other using the Redfish protocol to share information and coordinate management actions.

Benefits :

Secure communication over HTTPS.

Supports JSON data format, making it easy to integrate with web services.

Designed for scalability and interoperability.

Explanation of Options

Option A: IPv6

Explanation : IPv6 is an IP addressing protocol, not a communication method or protocol used by iDRAC for Group Manager features.

Conclusion : Incorrect.

Option B: Telnet

Explanation : Telnet is an unencrypted, insecure protocol for command-line access; it is not used for iDRAC Group Manager communication.

Conclusion : Incorrect.

Option C: SSH

Explanation : SSH provides secure command-line access but is not the protocol used for iDRAC instances to communicate within the Group Manager.

Conclusion : Incorrect.

Option D: Redfish

Correct Answer : iDRAC uses the Redfish protocol for communication when utilizing the Group Manager feature.

Dell Operate References

Server Management and Configuration Tools (14%)

Emphasizes understanding management interfaces and protocols.

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

Includes knowledge of modern protocols like Redfish used in server management.

Conclusion

When using the Group Manager feature, iDRAC instances communicate with each other using the Redfish protocol, enabling secure and efficient management of server groups.

Understanding iDRAC Direct and At-the-Box Management Tools

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

What is iDRAC Direct?

iDRAC Direct is a feature that allows administrators to connect directly to the iDRAC interface using a USB connection.

Purpose : Provides at-the-box management capabilities without the need for network access.

Connection : Utilizes a Micro USB port on the server connected to a management station (laptop/PC).

Advanced Server Management Tools Provided with iDRAC Direct

Web Services Management (WSMAN)

Explanation : WSMAN is a standardized protocol that allows for remote management of systems using web services.

Usage with iDRAC Direct : Administrators can execute management tasks via WSMAN over the USB connection provided by iDRAC Direct.

Benefits :

Platform-independent management.

Allows for scripting and automation.

Remote Access Controller Admin (RACADM)

Explanation : RACADM is a command-line utility used to manage the iDRAC and perform various administrative tasks.

Usage with iDRAC Direct : RACADM commands can be executed directly through the USB connection, enabling configuration and monitoring of the server.

Benefits :

Efficient management in environments with limited bandwidth.

Supports scripting for automation.

iDRAC RESTful API

Explanation : The iDRAC RESTful API is a programmatic interface that allows for the management of server hardware using RESTful web services.

Usage with iDRAC Direct : Provides a secure and efficient way to perform management tasks over the USB connection.

Benefits :

Modern API interface compatible with a wide range of programming languages.

Enables integration with automation tools and scripts.

Explanation of Options

Option A: Web Services Management (WSMAN)

Correct Answer : WSMAN is supported over iDRAC Direct for at-the-box management.

Option B: Remote Access Controller Admin (RACADM)

Correct Answer : RACADM commands can be executed via iDRAC Direct.

Option C: Intelligent Platform Management Interface Tool (IPMITool)

Incorrect : While IPMI is a management interface, the IPMITool is not provided specifically with iDRAC Direct for at-the-box management.

Option D: iDRAC Web Interface

Incorrect : The iDRAC Web Interface typically requires network access and is not directly provided over the iDRAC Direct USB connection for at-the-box management.

Option E: iDRAC RESTful API

Correct Answer : The RESTful API is accessible via iDRAC Direct for advanced management.

Dell Operate References

Server Management and Configuration Tools (14%)

Emphasizes understanding various management tools available with iDRAC Direct.

Define the function of the iDRAC, login procedures, licensing, and connection methods

Highlights the use of different interfaces and protocols for server management.

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

Focuses on different tools and their applications in server management.

Conclusion

The three tools provided with iDRAC Direct for advanced server management and at-the-box servicing are:

Web Services Management (WSMAN)

Remote Access Controller Admin (RACADM)

iDRAC RESTful API

These tools enable administrators to perform comprehensive management tasks directly at the server without the need for network connectivity.

To change the Power Supply Unit (PSU) configuration to a 2+0 setup with PSU2 as the primary in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Navigate to Power Management Settings:

In the iDRAC interface, go to the Configuration tab at the top.

Select Power Management from the dropdown options.

Locate the Power Configuration Section:

Within the Power Management settings, look for a section labeled Power Configuration or Power Supply Configuration .

Select the Redundancy Policy:

Change the Redundancy Policy to 2+0 . In this configuration, there will be no redundancy, and both power supplies will be active but configured as independent power sources without failover.

Set PSU2 as the Primary PSU:

Locate the option to designate the Primary PSU . Select PSU2 as the primary power source.

This setting ensures that PSU2 will handle the primary power load under normal conditions.

Apply and Save Changes:

Once you have made these changes, click Apply or Save to confirm the new configuration.

The interface may prompt for confirmation, after which the settings will be saved, and PSU2 will become the primary power supply under a 2+0 configuration.

Verify Configuration:

Review the updated settings to confirm that PSU2 is now set as primary and that the redundancy policy is 2+0, meaning only PSU2 is actively providing power without a secondary backup.

By following these steps in the iDRAC simulator, you will set up PSU2 as the primary power source with no redundancy, ensuring a 2+0 configuration. This setup will leverage PSU2 exclusively without automatic failover to another power supply.

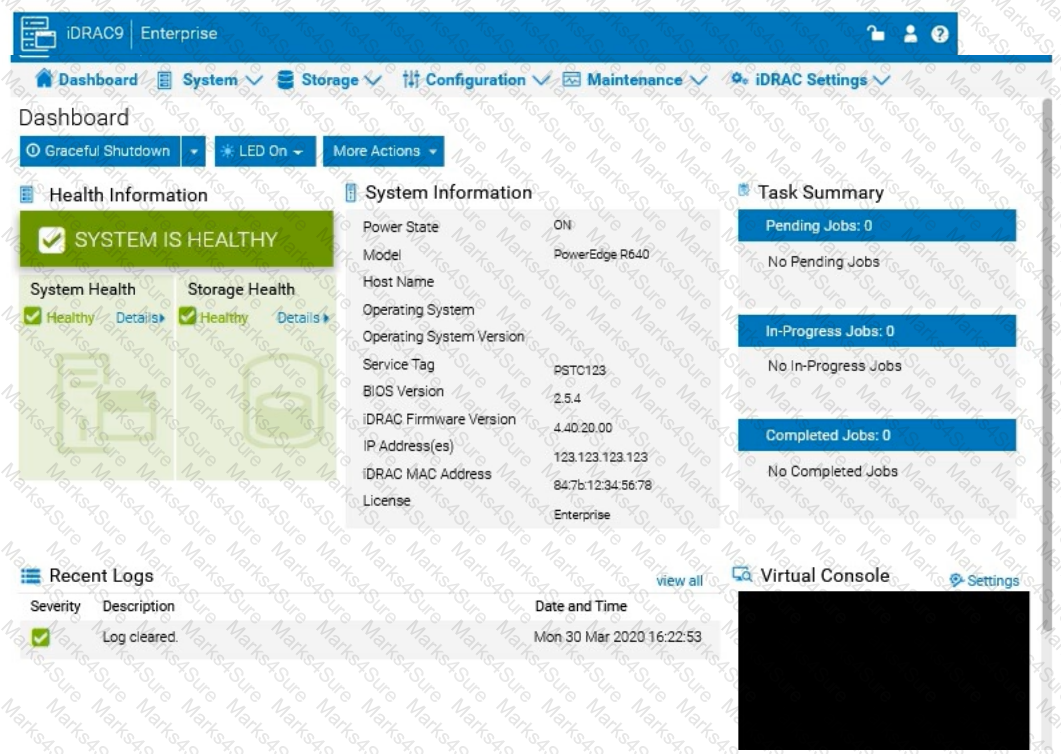

To investigate a power issue on a specific date, such as April 30, 2022, the system administrator should examine the iDRAC logs for entries related to power supply faults or failures. Here ' s how to approach finding the correct answer:

Step-by-Step Approach:

Access the System Logs:

In the iDRAC interface, navigate to the Dashboard tab.

Scroll down to the Recent Logs section or navigate to System Logs under Maintenance or iDRAC Settings (depending on the iDRAC version) to access detailed logs.

Filter Logs by Date:

Use the filter option to specify the date, focusing on entries from April 30, 2022. This will help narrow down relevant events.

Identify Power-Related Entries:

Look for log entries that mention power supply issues or voltage faults around the specified date. In this case, entries related to under-voltage faults or power supply failures will be critical.

Interpret the Log Entries:

Based on typical power fault logs, consider the possible answers:

A. Under voltage fault detection on power supply 1 : Indicates a voltage issue was detected on PSU1.

B. Power supply 2 has failed : Indicates PSU2 has completely failed.

C. Under voltage fault detected on power supply 2 : Indicates a voltage issue was detected on PSU2.

D. Power supply 1 has failed : Indicates PSU1 has completely failed.

The specific log entry depends on the exact wording in the logs. However, from the options provided, if the administrator received a notification about a power issue , the most likely scenario involves a failure or under-voltage detection.

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings .

Set the IP Address to 192.168.0.120 .

For the Subnet Mask , since it’s a /24 CIDR, set it to 255.255.255.0 .

Configure the Gateway:

In the same section, find the field for Default Gateway .

Enter the Gateway as 192.168.0.1 .

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1 .

Enter DNS Server 2 as 10.10.0.2 .

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120 .

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.

To prevent unwanted configuration changes in the iDRAC UI, you can adjust user roles, permissions, or enable specific security settings to restrict access for junior IT staff. Here are the steps to secure the iDRAC configuration:

Step-by-Step Guide:

Access User Settings:

In the iDRAC interface, navigate to iDRAC Settings from the main menu.

Choose User Authentication or Users to manage user accounts and permissions.

Adjust User Roles and Permissions:

Identify the accounts associated with junior IT staff.

For each user account, adjust the role to Read-Only if you want them to have view-only access without making configuration changes.

Alternatively, set their permissions to exclude configuration changes. This may involve assigning a custom role with limited access based on your needs.

Enable Configuration Lock (if available):

Some versions of iDRAC offer a Configuration Lock feature, which prevents any configuration changes until the lock is removed by an administrator.

Navigate to Configuration > System Security or User Authentication , depending on the version, and enable the Configuration Lock option.

Set Up Two-Factor Authentication (Optional):

For added security, enable Two-Factor Authentication under iDRAC Settings > Network or Security settings. This step ensures only authorized users can access and make changes to the iDRAC UI.

Save and Apply Security Changes:

After setting up the desired restrictions and permissions, save the settings to apply the changes.

Verify that junior IT staff accounts now have restricted access and cannot make configuration changes.

Log Out and Test the Changes:

Log out of the administrator account and log in with a junior IT staff account to confirm that the permissions are set correctly.

Ensure that configuration changes are disabled and that the user can only view the iDRAC interface as per the restrictions.

By following these steps, you can restrict junior IT staff from making any configuration changes within the iDRAC interface, thus preventing accidental or unauthorized modifications.

To create and save a server configuration profile with specific components in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access Configuration Profiles:

Go to the " Configuration " tab on the top menu bar.

From the dropdown options, select " Server Configuration Profile. "

Create a New Profile:

Within the Server Configuration Profile section, choose the option to Create a New Profile .

You will likely see options to specify which components to include in the configuration profile.

Select Components:

When prompted, select only the components required for the configuration:

NIC : Network Interface Card settings.

RAID : Storage controller and RAID configuration.

iDRAC : iDRAC management settings.

Ensure that other components are not selected to meet the requirement.

Save the Configuration:

Enter the file name " PE-server " for the profile.

Choose the option to Save or Export the configuration profile. This should save the configuration to the specified name, typically on the server or local storage available through iDRAC.

Verify the Profile Creation:

After saving, verify that the profile appears in the list of server configuration profiles with the name " PE-server. "

Confirm that it includes only the selected components.

By following these steps, you should successfully create and save the configuration profile with the specified components.

To enable capturing the full POST (Power-On Self-Test) sequence using the iDRAC interface, follow these steps:

Step-by-Step Guide:

Log into the iDRAC Interface:

Access the iDRAC UI using the server’s IP address from a web browser.

Enter your credentials to log in.

Navigate to System BIOS Settings:

Go to the Configuration tab on the top menu.

Select BIOS Settings from the dropdown menu. This will take you to the settings where you can manage BIOS-related configurations.

Enable POST Sequence Logging:

In the BIOS Settings, look for an option related to POST Behavior or Boot Sequence Capture .

Enable Verbose Mode or Capture Full POST Sequence . This setting ensures that the entire POST process is logged in detail during the next boot attempt.

Alternatively, if there is a specific setting for Capture System Boot Logs , enable it to ensure detailed logging during POST.

Apply the Changes:

After enabling the POST capture option, click Apply or Save .

iDRAC may prompt for confirmation or inform you that changes will take effect upon the next reboot. Confirm any prompts as required.

Restart the Server (if necessary):

If the server is currently off, attempt to power it on. If it’s on, you may need to perform a Graceful Shutdown followed by a restart to initiate the POST sequence.

Review POST Logs After Reboot:

Once the server attempts to boot, return to the iDRAC Logs section to review the captured POST logs.

Go to Maintenance > System Event Log or Lifecycle Log to view the detailed logs from the POST sequence. This can help diagnose why the server is failing to boot.

By enabling this setting, you will capture detailed information during the POST process, which can then be reviewed to identify any hardware or configuration issues preventing the server from booting successfully.

To configure an iDRAC shared management port with LOM2 and set up a failover network using LOM3 in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access iDRAC Network Settings:

In the iDRAC interface, navigate to the iDRAC Settings tab in the top menu bar.

Select Network from the dropdown options to access network configuration settings.

Configure the Shared Management Port:

In the Network settings, locate the section for Network Interface or LAN Interface Configuration .

Change the NIC Selection to Shared . This will enable the use of a LAN on Motherboard (LOM) port for iDRAC management.

Select LOM2 for the Shared Management Port:

Once you’ve selected Shared , additional options should appear for selecting the specific port.

Choose LOM2 as the Shared Management Port . This configures iDRAC to use LOM2 for its primary network connection.

Enable Failover and Select LOM3:

Look for the Failover settings within the same Network Interface configuration.

Enable Failover and select LOM3 as the failover network port. This configuration allows iDRAC to switch to LOM3 automatically if there is an issue with the connection on LOM2.

Save and Apply Settings:

Once you have configured the shared management port and failover settings, click Apply or Save to confirm the configuration.

The iDRAC interface may briefly refresh, and you should receive a confirmation that the settings have been applied successfully.

Verify Configuration:

After the settings are saved, you can verify that LOM2 is listed as the shared management port and that LOM3 is set as the failover port under Network settings.

By following these steps in the simulator, you should be able to configure iDRAC to use LOM2 for the shared management port and set up a failover network with LOM3. Make sure to save your changes to apply the configuration.
