D-PVM-OE-01 Dell PowerMax Operate v.2 Questions and Answers

Step by Step Comprehensive Detailed Explanation:

The syradm list -environment -offline command in Solutions Enabler is used to display information about migration environments that are currently offline.

Here's what it shows:

Controlled Environments: It lists the migration environments that are directly controlled by the host where the command is executed. These are the environments where the host acts as the primary control point for the migration.

Reachable Environments: It also lists environments that are reachable from the host executing the command. This includes environments controlled by other hosts that are connected and accessible within the SAN fabric.

This broader scope allows administrators to get a comprehensive view of offline migration environments across their managed systems.

Why other options are incorrect:

A. The environments where the application has been taken offline to perform the cutover: While offline environments might be associated with cutovers, the command shows all offline environments regardless of their specific stage in the migration process.

B. Only the environments controlled by the host from where the list command is run: It also includes reachable environments, not just those directly controlled by the host.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide: This guide provides detailed information about the syradm command and its various options, including the list -environment -offline command for displaying offline migration environments. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Step by Step Comprehensive Detailed Explanation:

The Port Attributes page in Unisphere for PowerMax allows storage administrators to configure various settings related to the front-end ports on the storage array. One of the functions available on this page is Select Mgt Option .

This option allows you to specify how the port is used for management purposes:

Dedicated Management Port: You can designate a port as a dedicated management port, which is used exclusively for communication with management tools like Unisphere and Solutions Enabler.

Shared Management Port: You can configure a port to be shared for both management traffic and host I/O traffic.

This flexibility allows you to optimize port usage and segregate management traffic if needed.

Why other options are incorrect:

A. Manage Protocol: Protocol settings (like FC or iSCSI) are typically configured elsewhere in Unisphere, not on the Port Attributes page.

C. Volume Set Addressing: Volume Set Addressing is a feature related to mainframe connectivity and is not directly managed through the Port Attributes page.

D. ORS Ceiling: ORS (Open Replicator Solutions) settings are managed separately and not through the Port Attributes page.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help: The online help for Unisphere provides detailed information about the Port Attributes page and the available configuration options, including the "Select Mgt Option" function. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide: This guide may offer general information about port management and configuration in PowerMax.

Step by Step Comprehensive Detailed Explanation:

In an MDM (Migration for Dell EMC) migration, data is moved from a source array to a target array. When the symdm sync -stop command is issued, it puts the migration into the CutoverNoSync state. This state signifies that:

Synchronization Stopped: Active data synchronization between the source and target arrays has been stopped.

Data on Both Arrays: However, the customer data still resides on both the source and target arrays. This is because the CutoverNoSync state is a transitional state that allows for a controlled cutover to the target array.

The next step would typically involve a cutover operation, where host access is switched to the target array, and the source array is removed from the migration configuration.

Why other options are incorrect:

A. Only the target array: While the goal is to eventually have the data only on the target, in the CutoverNoSync state, data still exists on both arrays.

B. Only on the source array: Data has already been partially or fully copied to the target array during the migration process.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide: This guide provides detailed information about the symdm command and its various options, including the sync -stop command and the CutoverNoSync state. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide: This guide may offer general information about data migration and the different states involved in the process.

Step by Step Comprehensive Detailed Explanation:

The Workload Planner in Unisphere for PowerMax helps you analyze and predict the performance impact of adding new workloads to your storage array. It uses sophisticated algorithms to calculate how the addition of a new workload will affect the existing workloads and whether it will violate any service level objectives (SLOs).

To determine if a Storage Group workload is stable, the Planner considers two key calculated values:

Read Response Time: The predicted read response time of the Storage Group after the new workload is added.

Write Response Time: The predicted write response time of the Storage Group after the new workload is added.

The Planner compares these calculated values against the service level (SL) defined for the Storage Group. If both the calculated read and write response times fall within the defined SL response time, the Planner considers the workload to be stable. This means that the new workload can be added without negatively impacting the performance of the existing workloads or violating the SLOs.

Why other options are incorrect:

A. One of the calculated values is within 10-20% of the SL-defined response time: Both read and write response times must be within the defined SL, not just one.

B. Both calculated values are within a 10-15% threshold of the SL-defined response time: The threshold is not fixed at 10-15%. The calculated values must be within the actual SL-defined response time.

C. One of the calculated values remains within the SL-defined response time: Again, both read and write response times need to be within the defined SL.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help: The online help for Unisphere provides detailed information about the Workload Planner feature, including how it calculates and analyzes workload stability. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide: This guide may offer general information about performance management and workload planning in PowerMax, providing context for understanding the Workload Planner's functionality.

https://visiondatacenter.com/products/DELLEMC_VMAX450F/vmax-software-datasheet.pdf

We need to create a secure snapshot named "Stor1" from the storage group "StorGroup1" in the Unisphere for PowerMax simulator, and the snapshot should be protected from deletion for two days.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality:

Steps:

1. Launch the Simulator and Navigate to the Storage Groups Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected).

In the left-hand navigation pane, click on Storage and then select Storage Groups .

2. Locate and Select "StorGroup1"

In the Storage Groups view, you'll see a list of all storage groups on the array.

Find the storage group named "StorGroup1".

Click on the name "StorGroup1" to open its details view.

3. Initiate the Snapshot Creation Process

Within the "StorGroup1" details view, look for an option related to creating snapshots or protecting the storage group. This might be a button labeled:

"Protect"

"Create Snapshot"

"SnapVX"

Or an icon representing snapshot creation.

Click the appropriate button or icon to start the snapshot creation process.

4. Configure Snapshot Settings

A new window or panel will appear, allowing you to configure the snapshot settings.

Snapshot Name: Enter Stor1 as the snapshot name.

Snapshot Technology: Select SnapVX (or a similar option) as the snapshot technology.

Secure Snapshot: This is crucial. Look for an option labeled "Secure Snapshot," "Enable Secure Snap," "Secure Snap," or something similar. Check this option .

Retention/Expiration: You need to set the retention period for the secure snapshot. This will define how long the snapshot cannot be deleted. There are usually a few ways to configure this:

Expiration Time: Set an explicit expiration date and time that is two days from now.

Retention Period: Specify a retention period of 2 days.

No Expiry: This option is not what we want here. We want the snap to be secure for 2 days.

Choose the appropriate option to make the snapshot undeletable for two days.

Other Settings: Review any other available settings. You might be able to choose between creating a new snapshot or linking to an existing one. Select the option to create a new snapshot .

5. Create the Snapshot

After configuring all the snapshot settings, review them carefully to ensure they are correct.

Click the button to create the snapshot. This button might be labeled:

"Run Now"

"OK"

"Create"

"Finish"

6. Verify Snapshot Creation (Optional)

After the snapshot creation operation completes, you can verify that the snapshot was created successfully:

Go back to the "StorGroup1" details view.

Look for a tab or section related to snapshots (e.g., "Snapshots," "TimeFinder," "Local Replication").

You should see the "Stor1" snapshot listed there, and its status should indicate that it's a secure snapshot with the correct retention period (2 days).

Step by Step Comprehensive Detailed Explanation:

Non-Disruptive Migration (NDM) is a feature in PowerMax that allows you to migrate data between storage arrays without any downtime or disruption to host applications. During NDM, SRDF (Symmetrix Remote Data Facility) is used to replicate data between the source and target arrays. Here are the configuration rules that apply to SRDF groups and connections during NDM:

A. The source and target arrays are at most one hop away from the control host: The control host, which manages the NDM process, must have direct connectivity to both the source and target arrays. This ensures efficient communication and control during the migration.

E. DM RDF groups are configured with a minimum of one path: SRDF groups used for NDM (DM RDF groups) must have at least one active path between the source and target arrays. This ensures that data can be replicated continuously during the migration.

Why other options are incorrect:

B. Two DM RDF groups are created per SG migration session: This is not a strict requirement. The number of DM RDF groups may vary depending on the configuration and the specific NDM operation.

C. RF and RE ports are supported, with RF ports being selected if both types are available: While RF and RE ports are supported for SRDF, there's no specific preference for RF ports during NDM. The choice of ports depends on the overall network configuration and availability.

D. A single array cannot have multiple DM RDF groups: An array can have multiple DM RDF groups if needed for different NDM operations or configurations.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax Family: Essentials and Best Practices Guide: This guide provides an overview of NDM and its requirements, including information about SRDF configuration.

Dell Solutions Enabler 10.0.0 CLI User Guide: This guide provides detailed information about SRDF commands and configuration options, which are relevant for NDM operations.

Step by Step Comprehensive Detailed Explanation:

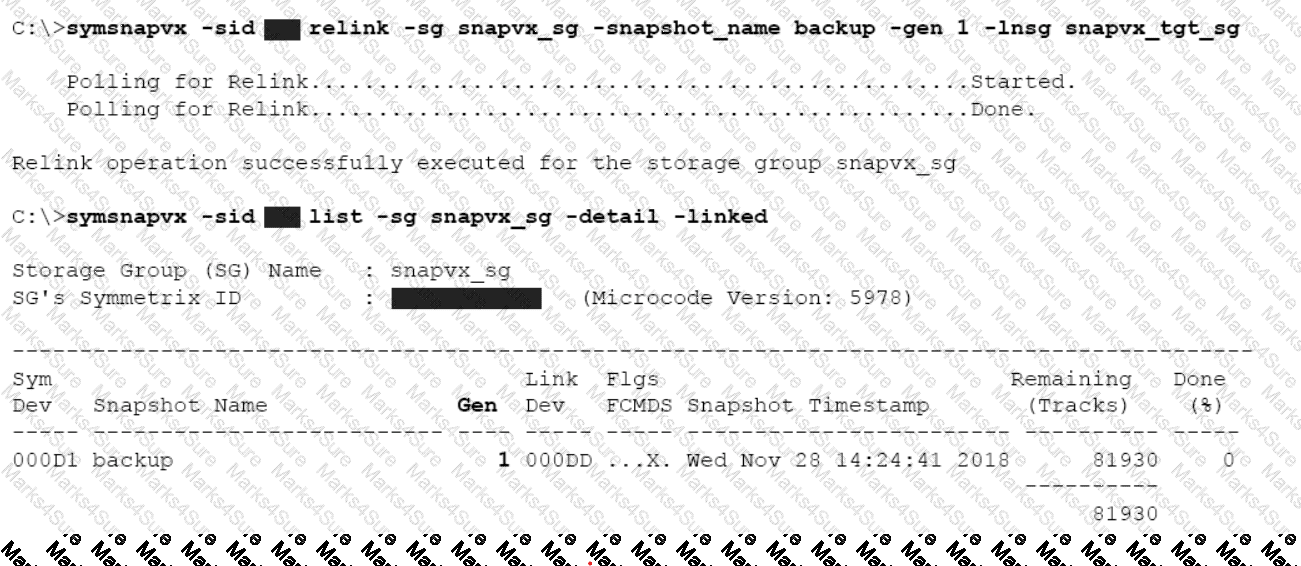

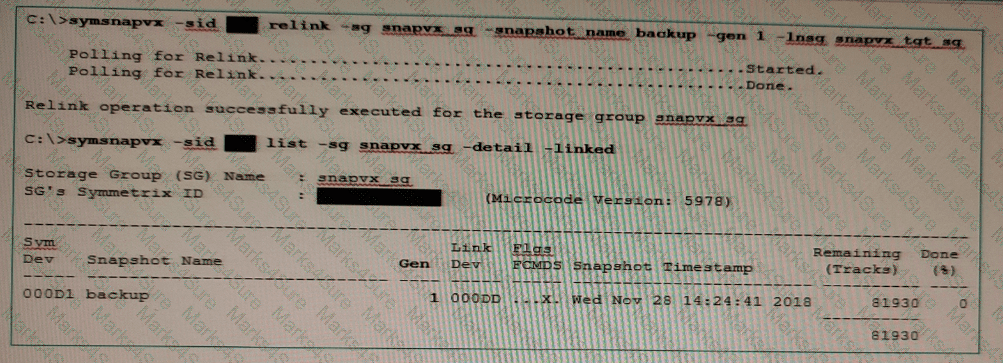

In TimeFinder SnapVX, snapshots of a source volume are assigned generation numbers. These numbers indicate the order in which the snapshots were created. The first snapshot taken has a generation number of 0, the second has 1, and so on.

In this case, four snapshots were created at different times:

8:00 AM (Generation 0)

10:00 AM (Generation 1)

12:00 PM (Generation 2)

2:00 PM (Generation 3)

Therefore, the snapshot created at 2:00 PM has a generation number of 3 .

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide: This guide provides detailed information about SnapVX features and functionalities, including how generation numbers are assigned to snapshots. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

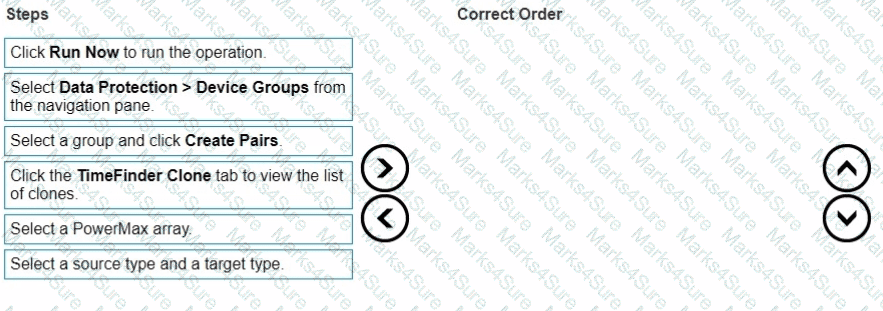

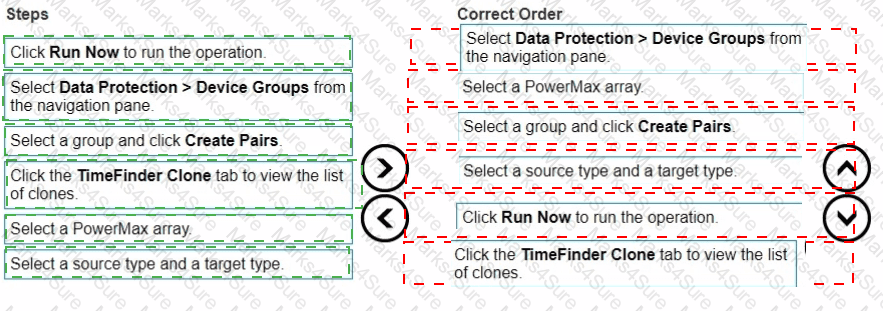

Here's the correct sequence of steps along with explanations:

Correct Order:

Select Data Protection > Device Groups from the navigation pane.

Why: This is the starting point within Unisphere for PowerMax. You need to navigate to the section where device groups are managed and where TimeFinder operations are initiated.

Select a PowerMax array.

Why: In an environment with multiple PowerMax arrays, you must specify the array on which you want to create the clone copy sessions.

Select a group and click Create Pairs.

Why: You are selecting the specific device group that will be the source for the clone operation and choosing the "Create Pairs" action to initiate the clone session creation process. This implies you are creating a clone from an existing group of devices.

Select a source type and a target type.

Why: This step defines the characteristics of the source and target devices for the clone session. This could involve selecting from different storage groups, specifying thin or thick provisioning, or other relevant settings. Note that in a clone context, the "target type" often refers to how the clone will be linked to the source (e.g., a full copy or a linked target).

Click Run Now to run the operation.

Why: After configuring all the settings for the clone session, this action triggers the actual creation of the clone pairs based on the selected source and target types and other parameters.

Click the TimeFinder Clone tab to view the list of clones.

Why: Once the operation has been initiated, this is how you would verify that the clone sessions were created successfully and monitor their status.

Select Data Protection > Device Groups from the navigation pane.

Select a PowerMax array.

Select a group and click Create Pairs.

Select a source type and a target type.

Click Run Now to run the operation.

Click the TimeFinder Clone tab to view the list of clones.

We need to remove all resources associated with a deprecated web application server named web_host_1 in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to accomplish this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the Hosts Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator.

In the left-hand navigation pane, click on Hosts > Hosts . This will take you to the Hosts management view.

2. Locate the Host web_host_1

In the Hosts view, you'll see a list of all configured hosts.

Find the host named web_host_1. You might need to use the search or filtering options if there are many hosts listed.

3. Identify Associated Resources

Before deleting the host, it's crucial to identify all resources associated with it. These typically include:

Masking Views: These define the LUNs that a host can access.

Storage Groups: These contain the volumes presented to the host.

Port Groups: These define the connectivity paths (ports) used by the host.

How to Find Associated Resources:

Click on the web_host_1 host entry. This should open a details view or properties page for the host.

Look for tabs or sections labeled "Masking Views," "Storage Groups," or similar.

Note down the names of any masking views and storage groups associated with web_host_1.

4. Remove the Host from Masking Views

Navigate to Hosts > Masking Views .

Locate the masking views that you identified in Step 3 as being associated with web_host_1.

Open each masking view's properties.

Remove the Host: There should be an option to edit the host list within the masking view. Find web_host_1 in the list of hosts and remove it.

Save Changes: Save the changes to the masking view.

Repeat for all masking views associated with web_host_1.

5. Delete or Modify Storage Groups

Navigate to Storage > Storage Groups .

Locate the storage groups that were associated with web_host_1.

Two Options:

If the storage group is ONLY used by web_host_1: You can delete the entire storage group. Select the storage group and click the Delete button (or a similar option).

If the storage group is shared with other hosts: You need to remove the volumes associated with web_host_1 from the storage group.

Open the storage group's properties.

Go to the "Volumes" tab.

Identify the volumes that were presented to web_host_1.

Select those volumes and choose the option to "Remove from Storage Group" or a similarly worded option.

Save the changes to the storage group.

6. Delete the Host

Go back to Hosts > Hosts .

Select web_host_1.

Click the Delete button (or a similar option, like a trashcan icon).

Confirm that you want to delete the host.

7. Verify Removal (Optional)

After deleting the host and modifying the storage groups and masking views, you can verify that the resources have been properly cleaned up.

Check the Storage Groups and Masking Views sections again to ensure that web_host_1 is no longer listed and that the storage groups have been either deleted or modified as intended.

Step by Step Comprehensive Detailed Explanation:

When you install Unisphere for PowerMax on a Microsoft Windows host, it installs several services necessary for its operation. The two primary services that are active after installation are:

SMAS (Storage Management Agent Service): This service is responsible for communication between the Unisphere server and the PowerMax storage array. It handles tasks like collecting data, sending commands, and receiving alerts from the array.

smasdb: This service manages the local database used by Unisphere for storing configuration information, performance data, and other relevant information.

Why other options are incorrect:

A. SYMAPI and symrdfg: SYMAPI is a command-line interface tool, not a service. symrdfg is a service related to SRDF (Symmetrix Remote Data Facility) replication, which may not be active if SRDF is not configured.

B. SMASandGNS: GNS is not a standard service associated with Unisphere for PowerMax.

C. SMASandSTP: STP is not a standard service associated with Unisphere for PowerMax.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Installation Guide: This guide provides detailed instructions for installing Unisphere for PowerMax on different operating systems, including Windows. It also lists the services that are installed and their functions. You can find this document on the Dell Support website by searching for "Unisphere for PowerMax Installation Guide."

Dell Unisphere for PowerMax 10.0.0 Online Help: The online help documentation for Unisphere may also provide information about the services it uses and their roles.

Step by Step Comprehensive Detailed Explanation:

The PowerMax 8500 is a high-end storage array designed for enterprise environments with demanding capacity requirements. The maximum capacity per array in a PowerMax 8500 is 24 petabytes effective (PBe) .

This means that after considering data reduction technologies like deduplication and compression, the array can store up to 24 petabytes of usable data.

Why other options are incorrect:

A. 8 PBe, B. 18 PBe, C. 20 PBe: These values are lower than the actual maximum capacity of the PowerMax 8500.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax 8500 Hardware Information Guide: This guide provides detailed technical specifications for the PowerMax 8500, including its maximum capacity. You can find this document on the Dell Support website by searching for "PowerMax 8500 Hardware Information Guide."

Dell PowerMax Family: Essentials and Best Practices Guide: This guide offers a general overview of the PowerMax family, including the 8500 model and its key features and capabilities.

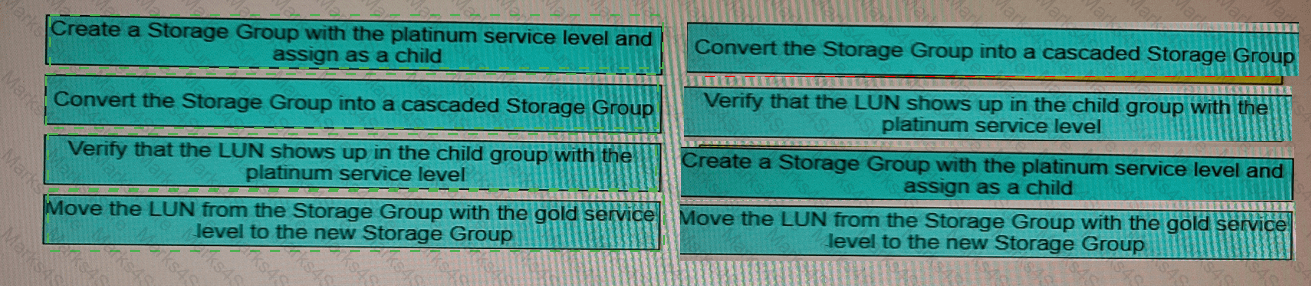

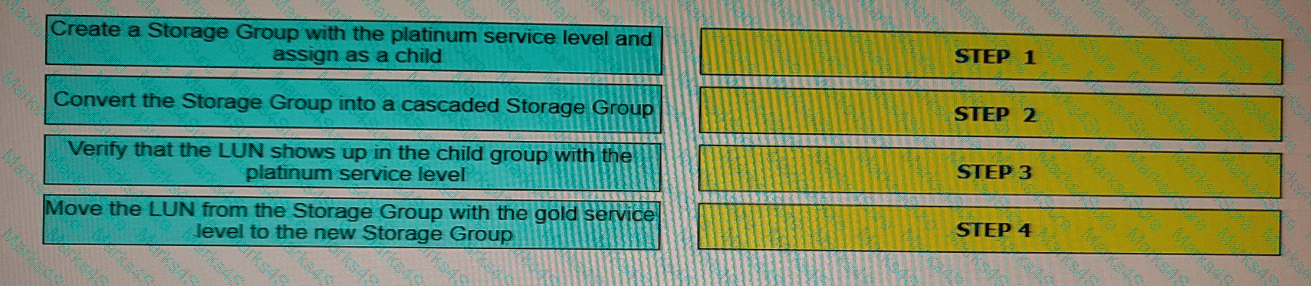

You want a detailed, step-by-step guide on how to add three 100 GB volumes to an existing host and change the service level of the associated storage group from Gold to Platinum on a PowerMax array, using the Unisphere for PowerMax interface shown in the image.

Here's a comprehensive guide, broken down into manageable steps:

Phase 1: Provisioning the New Volumes

Step 1: Log in to Unisphere for PowerMax

Open your web browser and enter the URL for your Unisphere for PowerMax management interface.

Log in with your administrator credentials.

Step 2: Navigate to Storage Groups

In the left-hand navigation pane, click on Storage to expand the storage management section.

Click on Storage Groups under the Storage section. This will display a list of existing storage groups on your PowerMax array.

Step 3: Locate the Target Storage Group

Identify the storage group that currently contains the host's existing two 100 GB volumes.

Tip: You can find this by:

Looking at the "Hosts" tab within each storage group's details. It will list the hosts connected to that storage group.

If you know the host's name, you might be able to search for it using the Unisphere search bar (if available).

Step 4: Initiate Adding Volumes

Once you've found the correct storage group, select it by clicking on its name.

Look for a button or option related to adding volumes. The exact wording might vary slightly depending on your Unisphere version, but it could be:

"Add to Storage Group"

"+" (a plus icon, which often signifies adding something)

"Add Volumes"

Click this button to start the process of adding new volumes to the storage group.

Step 5: Configure Volume Details

A new window or panel will appear, allowing you to specify the characteristics of the new volumes.

Select "Create new volumes"

Number of Volumes: Enter 3 in the field for the number of volumes.

Capacity: Enter 100 in the field for the capacity of each volume. Make sure the unit is set to GB.

Volume Name (Optional): You can give the volumes a specific name or prefix, or you can let Unisphere auto-generate names.

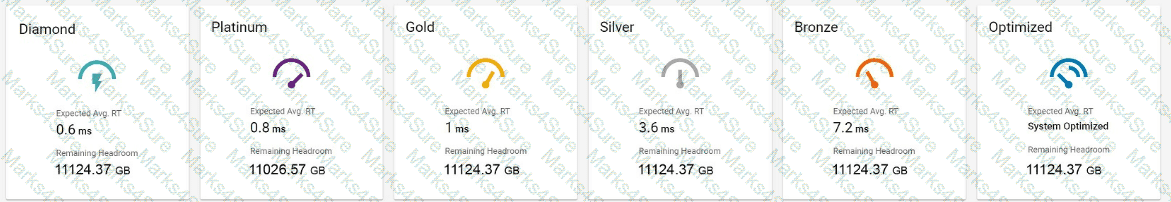

Service Level: Since the final goal is to move the entire Storage Group to platinum, you can either set this to platinum now or change it for the whole group later.

Other Settings: Review any other available settings (e.g., thin provisioning, data reduction). In most cases, the default settings should be fine, but adjust them if needed based on your environment's best practices.

Step 6: Execute Volume Creation

After you've configured all the volume settings, review them carefully to make sure they are correct.

Click the button to execute the operation. This button might be labeled:

"Run Now"

"OK"

"Finish"

"Apply"

Unisphere will start creating the new volumes. This might take a few moments.

Phase 2: Changing the Storage Group's Service Level

Step 7: Navigate Back to Storage Groups

Once the volume creation is complete, go back to the list of storage groups. You can usually do this by clicking "Storage Groups" in the left-hand navigation pane again.

Step 8: Select the Target Storage Group

Find the same storage group you worked with in Phase 1 (the one containing the host's volumes).

Click on the storage group's name to open its properties.

Step 9: Modify the Service Level

Look for a setting related to the "Service Level." It might be a dropdown menu, a field you can edit, or a link to a separate settings page.

Change the Service Level from Gold to Platinum .

Step 10: Save the Changes

Click the button to save the changes to the storage group's service level. This button might be labeled:

"Apply"

"Save"

"OK"

Phase 3: Host-Side Configuration

Step 11: Rescan for New Storage on the Host

The host needs to be made aware of the newly provisioned storage. The exact process for this depends on the host's operating system:

Windows:

Open Disk Management (diskmgmt.msc).

Go to Action > Rescan Disks .

Linux:

Identify the SCSI host bus numbers (e.g., ls /sys/class/scsi_host).

Use the command echo "- - -" > /sys/class/scsi_host/hostX/scan, replacing hostX with the appropriate host bus number.

You might also be able to use tools like rescan-scsi-bus.sh.

VMware ESXi:

In the vSphere Client, select the host.

Go to Configure > Storage Adapters .

Select the relevant storage adapter (e.g., your HBA).

Click Rescan Storage .

Step 12: Initialize, Partition and Mount (if needed):

Once the host detects the new volumes, you'll need to initialize them, create partitions, format them with a filesystem, and mount them, depending on your operating system and how you intend to use the storage. This is done using the host's operating system tools.

Phase 4: Verification and Monitoring

Step 13: Verify in Unisphere

Go back to the storage group in Unisphere and check the "Volumes" tab. You should see the three new 100 GB volumes listed along with the original two, and they should all have the "Platinum" service level.

Step 14: Verify on the Host

Confirm that the host can see and access the new volumes.

Step 15: Monitor Performance

After making these changes, monitor the performance of the storage group and the application using Unisphere's performance monitoring tools. Ensure that the Platinum service level is meeting your application's requirements

The Workload Planner then compares the two values to the maximum response time associated with its given service level. If both calculated values fall within (under) the service level defined response time band, the compliance state is STABLE https://www.dell.com/support/kbdoc/en-us/000022528/how-does-the-workload-planner-function

Step by Step Comprehensive Detailed Explanation:

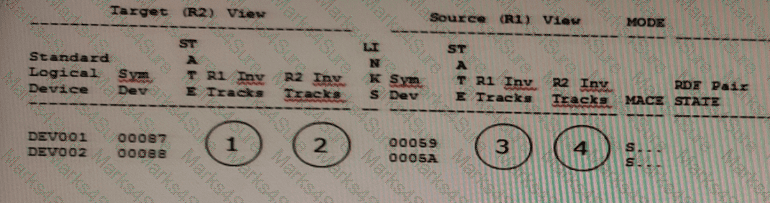

In SRDF (Symmetrix Remote Data Facility), a "Restore" operation is used to resynchronize the source (R1) and target (R2) devices after a situation where the target device might have been modified independently. This typically occurs after a failover scenario where the target device becomes the primary and undergoes changes.

During an SRDF Restore operation:

R2 Changes Discarded: Any changes made to the target (R2) device since the last synchronization are discarded.

R1 Changes Propagated: The current data on the source (R1) device is copied over to the target (R2), overwriting any existing data on the target.

This effectively restores the target device to a state consistent with the source device, ensuring data integrity and consistency.

Why other options are incorrect:

B. Resumes normal SRDF mirroring and host access: While a Restore operation can be part of the failback process, it's not the only step involved. Failback might involve additional actions like reversing replication direction and restoring host access.

C. Changes made to the R2 are propagated to the R1. Changes made to the R1 are discarded: This describes an "Update" operation, not a "Restore."

D. Enables access to both the R1 and R2 devices for their hosts: This describes a "Split" operation, where both devices are made accessible independently.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide: This guide provides detailed information about SRDF commands and operations, including the symrdf restore command. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide: This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "Restore" operation.

We need to terminate a clone session for the storage group named "DATA" in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the TimeFinder/Clone Section

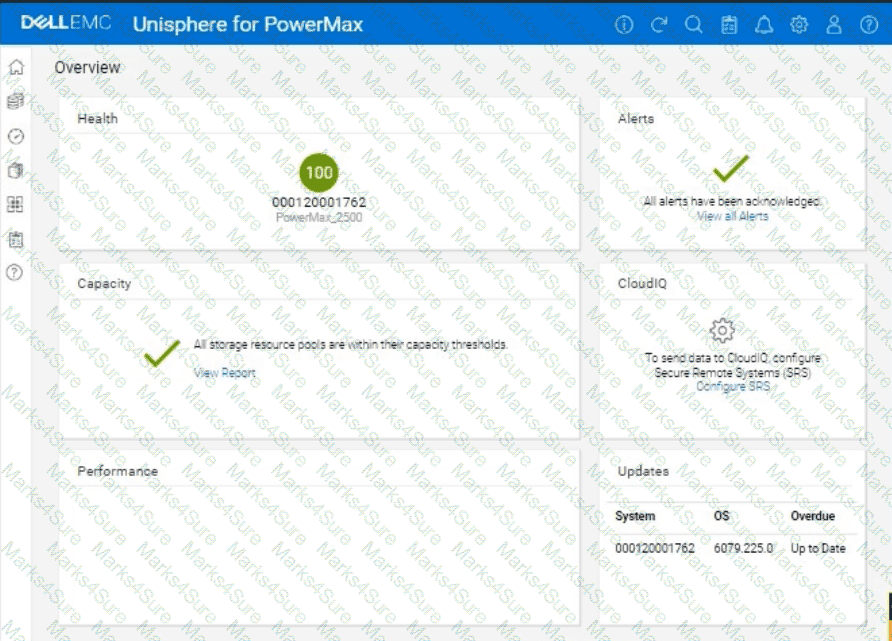

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected, based on the provided image).

In the left-hand navigation pane, locate the section related to TimeFinder operations. This is usually found under:

Data Protection

Local Protection

TimeFinder

Expand the relevant sections and click on TimeFinder SnapVX or TimeFinder Clone (the exact wording might vary slightly in the simulator). The goal is to get to the view where you can manage clone sessions.

2. Locate the Clone Session for the "DATA" Storage Group

The TimeFinder/Clone view will display a list of existing clone sessions.

You need to find the session associated with the "DATA" storage group. Look for the following:

Storage Group Name: The "DATA" storage group should be listed as the source of the clone session.

Session Type/Mode: Verify that it's a Clone session (not a SnapVX snapshot or another type of session).

3. Select the Clone Session

Once you've found the correct clone session for the "DATA" storage group, select it.

You can usually do this by:

Clicking a checkbox next to the session.

Clicking on the session itself (if the interface allows it).

4. Terminate the Clone Session

After selecting the clone session, look for an action button or menu option to terminate it. This might be labeled:

"Terminate"

"Delete"

"Remove"

"Fracture" (in some older versions)

"Stop"

Click the appropriate button to initiate the termination process.

Confirmation: You will likely be prompted with a confirmation message to ensure you want to terminate the selected clone session. Verify that you have selected the correct session (the one for the "DATA" storage group) and confirm the termination.

Step by Step Comprehensive Detailed Explanation:

TimeFinder SnapVX is a snapshot technology in PowerMax that allows you to create point-in-time copies of data. When using SnapVX, you can link target volumes to a snapshot to create writable copies of the data at that specific point in time.

The maximum number of target volumes that can be linked to a single snapshot on a source volume is 255 . This limitation ensures efficient management and performance of the SnapVX snapshots and linked targets.

Why other options are incorrect:

B. 256, C. 512, D. 1024: These numbers exceed the maximum limit of linked targets per snapshot.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide: This guide provides detailed information about SnapVX features and limitations, including the maximum number of linked targets per snapshot. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide: This guide offers a comprehensive overview of PowerMax technologies, including SnapVX. It may provide context for understanding the limitations and best practices for using SnapVX snapshots and linked targets.

Step by Step Comprehensive Detailed Explanation:

SnapVX Linked Targets: SnapVX is a snapshot technology used in Dell PowerMax storage arrays. A linked target is a volume that provides read/write access to a specific point-in-time copy (snapshot) of a source volume.

Read/Write Access: Unlike traditional snapshots, which are typically read-only, SnapVX linked targets allow modifications. This makes them suitable for use cases like testing, development, and data analysis where changes need to be made to a copy of the data without affecting the original source.

Secure Snapshots: SnapVX offers the capability to create "secure snapshots." These snapshots are write-protected and prevent any modifications or deletion, ensuring data integrity and protection against accidental or malicious changes.

Why other options are incorrect:

B. They support a maximum of 1024 snaps per volume: This is partially correct. While a source volume can have up to 1024 snapshots, this limit includes all types of snapshots (manual, automated, and legacy), not just linked targets.

B. They cannot send data to SRDF: This is incorrect. SnapVX linked targets can participate in SRDF (Symmetrix Remote Data Facility) replication, allowing for disaster recovery and data mobility.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide: This guide provides detailed information about SnapVX features and commands, including how to create, link, and manage snapshots. It confirms the read/write capability of linked targets and the ability to create secure snapshots. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide: This guide offers a comprehensive overview of PowerMax technologies, including SnapVX. It highlights the benefits of SnapVX linked targets for various use cases. You can find this document on the Dell Support website by searching for "PowerMax Family Essentials and Best Practices Guide."

Step by Step Comprehensive Detailed Explanation:

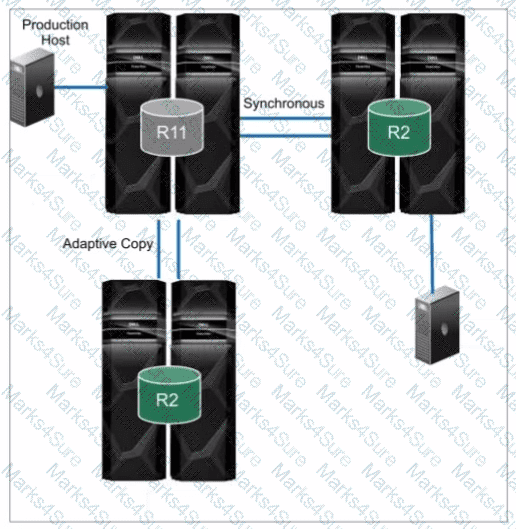

The topology shown in the exhibit depicts Cascaded SRDF . This SRDF configuration involves three storage arrays (or sites) connected in a chained or cascaded manner.

Here's how it works:

Primary Site (R1): The production host is connected to the primary storage array (R1).

Intermediate Site (R2): The primary array (R1) synchronously replicates data to an intermediate array (R2).

Remote Site (R2): The intermediate array (R2) then asynchronously replicates data to a remote array (also labeled R2 in the diagram).

This cascading setup provides a multi-hop disaster recovery solution, where data is first replicated synchronously to a nearby site for high availability and then asynchronously replicated to a further remote site for disaster recovery.

Why other options are incorrect:

B. SRDF/Star: SRDF/Star involves a central array replicating to multiple remote arrays in a star-like pattern.

C. SRDF/Metro: SRDF/Metro is designed for synchronous replication over short distances, typically within a metropolitan area.

D. Concurrent SRDF: Concurrent SRDF allows multiple SRDF relationships to exist simultaneously for the same device.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide: This guide provides detailed information about different SRDF configurations, including Cascaded SRDF. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide: This guide offers a comprehensive overview of SRDF and its functionalities, including various topologies and use cases.
