D-RP-DY-A-24 Dell RecoverPoint Deploy Achievement Questions and Answers

To re-image a Gen 6 RPA (RecoverPoint Appliance) node, you would typically use a bootable USB memory stick that contains the installation image.

This method is supported because it allows the RPA to boot directly into the installer environment, where you can perform the re-imaging process.

The Dell RecoverPoint for Virtual Machines Installation and Deployment Guide provides instructions on how to install and configure a Dell RecoverPoint system, which includes re-imaging nodes 1 .

For specific instructions on re-imaging a Gen 6 RPA node, you should refer to the documentation provided with your RPA or available on the Dell EMC support site 2 .

It’s important to use the correct version of the installation image that matches your RPA model and firmware version to ensure compatibility and a successful re-imaging process.

Please note that while the verified answer is based on general practices for re-imaging devices such as an RPA node, you should always consult the official Dell RecoverPoint documentation or contact Dell EMC support for the most accurate and up-to-date instructions.

Understanding RecoverPoint Clusters : RecoverPoint clusters are groups of RecoverPoint Appliances (RPAs) that work together to provide data protection and replication services. Each cluster can manage multiple Consistency Groups and replication sets.

VNX Array and RecoverPoint Integration : The VNX array is a storage solution that supports integration with RecoverPoint for data replication and protection. When deploying RecoverPoint clusters with a VNX array, it is important to consider the limitations and best practices for configuration.

Maximum Number of Clusters :

Step 1 : According to Dell RecoverPoint documentation, a single VNX array can support up to eight RecoverPoint clusters, provided that each LUN (Logical Unit Number) is attached to only one cluster at a time 1 2 .

Step 2 : This configuration ensures that the LUNs are not shared across multiple clusters, which could lead to conflicts and data consistency issues.

Implementation :

Step 3 : When setting up the clusters, ensure that each LUN is assigned to a specific cluster and not shared with others. This can be managed through the VNX management interface and the RecoverPoint Deployment Manager.

Step 4 : Configure the clusters to handle the replication and protection tasks for their assigned LUNs. This involves setting up Consistency Groups, replication policies, and monitoring the system for any issues.

Verification :

Step 5 : After deploying the clusters, verify that each LUN is correctly attached to only one cluster. Use the RecoverPoint Management Application to check the status and health of the clusters and their associated LUNs.

Step 6 : Monitor the system to ensure that the replication and protection processes are functioning as expected.

References : This information is verified based on the official Dell RecoverPoint documentation, which outlines the maximum number of clusters supported by a single VNX array and the best practices for configuration 1 2 .

Proper communication between Deployment Manager and the RecoverPoint Appliances requires the following ports: TCP 21, 22, 25, 80, and 7225. These ports facilitate the necessary management and data transfer operations essential for the deployment and configuration of RecoverPoint systems.

For a two-node vRPA cluster, a minimum of 9 IP addresses is required. This includes IP addresses for management, replication, and other network communication needs necessary to maintain high availability and proper functioning of the vRPA cluster.

When configuring zoning for RecoverPoint with VNX(SE), it is essential to follow the best practices and guidelines provided by Dell.

The zoning configuration typically involves manual setup to ensure that the RPA ports and VNX Front End (FE) ports are correctly zoned to allow for proper communication and replication processes 1 .

The manual method allows for precise control over the zoning configuration, which is crucial for the RecoverPoint system’s performance and reliability 1 .

While automatic zoning might be available in some environments, the recommended and supported method for RecoverPoint with VNX(SE) is manual zoning, as it provides the necessary customization and adherence to best practices 1 .

For the most accurate and detailed instructions, always refer to the latest official documentation or contact Dell EMC support directly. The information provided here is based on general knowledge of RecoverPoint systems and may not reflect the most recent updates or specific configurations.

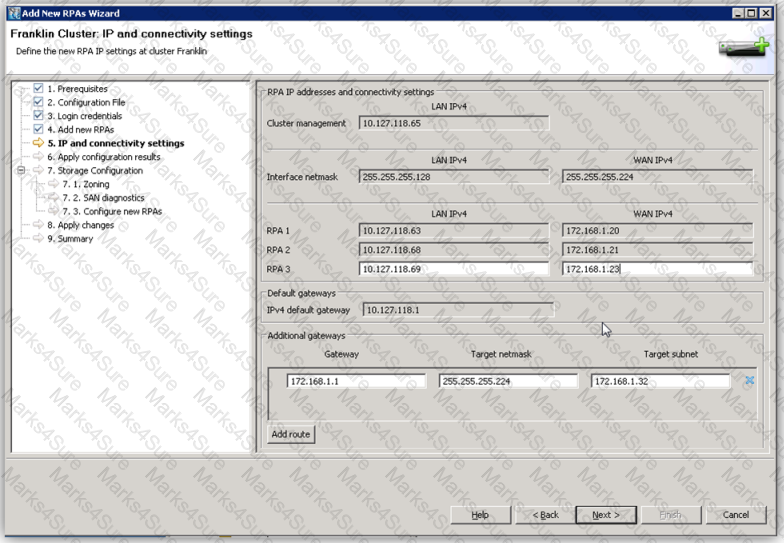

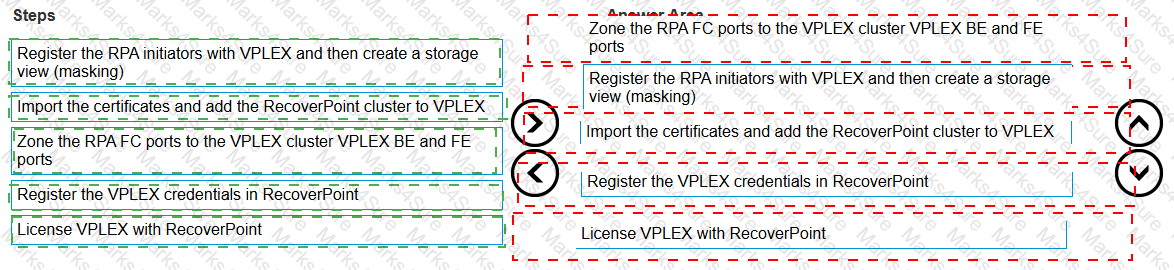

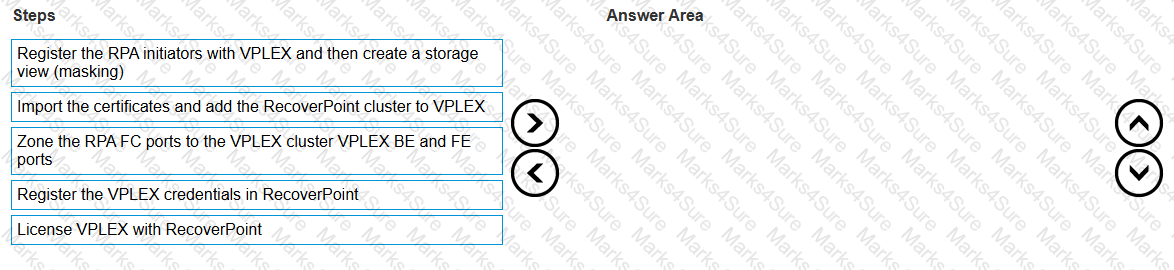

The correct sequence of steps to implement RecoverPoint with VPLEX is:

Zone the RPA FC ports to the VPLEX cluster VPLEX BE and FE ports

Register the RPA initiators with VPLEX and then create a storage view (masking)

Import the certificates and add the RecoverPoint cluster to VPLEX

Register the VPLEX credentials in RecoverPoint

License VPLEX with RecoverPoint

Explanation : When integrating RecoverPoint with VPLEX, it is essential to follow these steps in the correct order. Begin by zoning the RPA FC ports to both the BE (Back-End) and FE (Front-End) ports of the VPLEX cluster. Then, register the RPA initiators with VPLEX and create a storage view (masking). Next, import the necessary certificates and add the RecoverPoint cluster to VPLEX. Register the VPLEX credentials in RecoverPoint, and finally, license the VPLEX with RecoverPoint to complete the setup.

References : Dell RecoverPoint for Virtual Machines 6.0.1 vSphere HTML5 Plugin Administrator's Guide, Chapter on VPLEX Integration.

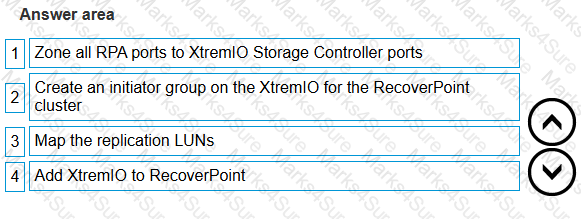

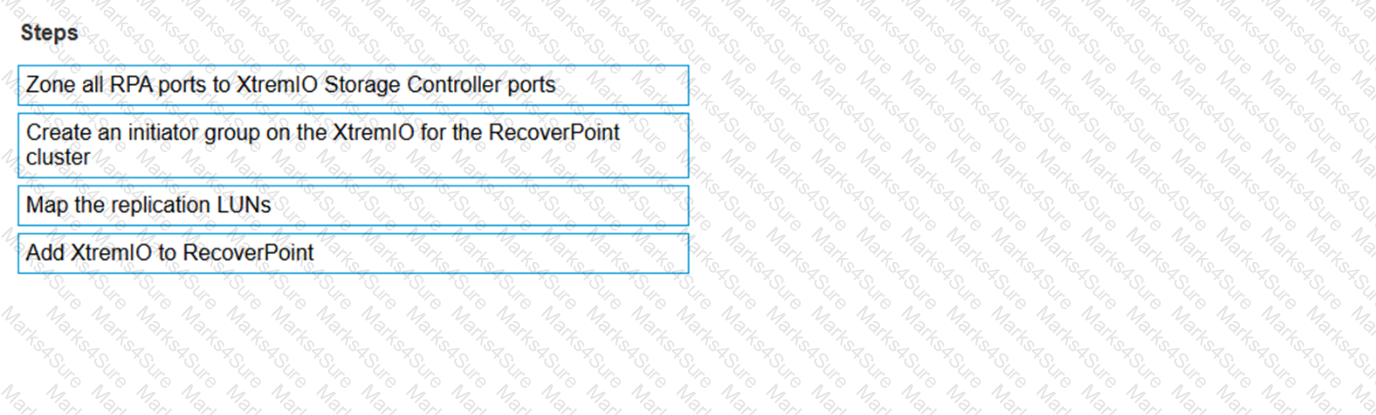

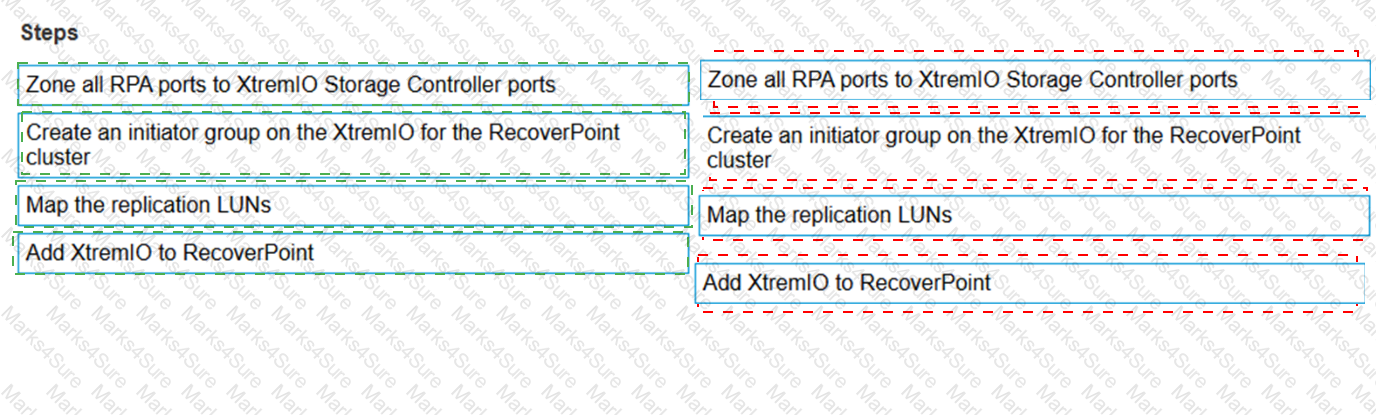

The correct sequence of steps to implement RecoverPoint with XtremIO is as follows:

Zone all RPA ports to XtremIO Storage Controller ports.

Create an initiator group on the XtremIO for the RecoverPoint cluster.

Map the replication LUNs.

Add XtremIO to RecoverPoint.

Zone all RPA ports to XtremIO Storage Controller ports : This step involves configuring the SAN zoning in such a way that each RPA (RecoverPoint Appliance) port is connected to an XtremIO storage controller port, ensuring proper communication between these devices.

Create an initiator group on the XtremIO for the RecoverPoint cluster : An initiator group is created on the XtremIO system which includes all of the initiators (hosts) that belong to the RecoverPoint cluster, allowing for proper authentication and access control.

Map the replication LUNs : In this step, logical unit numbers (LUNs) that are intended for replication are mapped to the RecoverPoint cluster through the previously created initiator group, making them visible and accessible for replication purposes.

Add XtremIO to RecoverPoint : Finally, integrate or add your XtremIO storage system into your existing RecoverPoint environment using RecoverPoint’s management interface or automated processes provided by Dell EMC.

These steps ensure a smooth and correct implementation of RecoverPoint with XtremIO, facilitating efficient replication and disaster recovery processes.

Network Adapter Configuration : For clusters running on RecoverPoint 5.0 or later, if the WAN (Wide Area Network) and LAN (Local Area Network) are utilizing separate network adapters, it is a requirement that these adapters are configured on different subnets 1 .

Subnet Allocation : This involves assigning different subnet addresses to the WAN and LAN adapters to segregate traffic and ensure proper routing within the network infrastructure 1 .

Network Policy Compliance : Adhering to this characteristic is crucial for maintaining network policy compliance and ensuring that the RecoverPoint system functions correctly within the designed network topology 1 .

For more detailed information on network configuration and best practices, you can refer to the Dell EMC RecoverPoint documentation, which provides guidelines on how to set up and manage network settings for RecoverPoint clusters 1 .

For ensuring the highest availability for all communication within a RecoverPoint with VNX(SE) cluster using virtual RPAs in a VMware environment, it is recommended to use at least 2 virtual switches. This setup allows for redundancy and load balancing, which are crucial for maintaining high availability and preventing single points of failure.

MetroPoint Consistency Group is designed to contain both active and standby production copies.

It integrates VPLEX Metro with RecoverPoint , providing a 3-site solution that allows for continuous availability and operational recovery 1 .

A single Consistency Group is configured which contains the two Production copies (active and standby) and a Replica Copy 1 .

This setup ensures that both VPLEX clusters’ data are protected and continuously available, with the ability to failover between two Metro sites without impacting protection 1 .

For more detailed information, you can refer to Dell’s official documentation on MetroPoint, which explains the functionalities and configurations of MetroPoint Consistency Groups 1 2 .

When changing from physical RPAs to vRPAs in a RecoverPoint with VNX(SE) environment, the licensing remains the same and no additional action is required. The existing licenses can be applied to the virtual RPAs without the need for new licenses.

Initiator Type - RecoverPoint Appliance : When registering each RPA initiator with the VNX, it is essential to specify the initiator type as “RecoverPoint Appliance” to ensure proper identification and compatibility within the storage network.

Failover Mode - 4 (ALUA) : The failover mode should be set to 4, which corresponds to Asymmetric Logical Unit Access (ALUA). This mode allows for optimized path failover and is the recommended setting for RecoverPoint appliances 1 .

For more detailed information and guidance on the configuration process, refer to the documentation provided by Dell, such as the RecoverPoint Deploying VNX and CLARiiON Arrays and Splitter Technical Note, which outlines the necessary steps for proper RPA initiator registration and configuration 1 .

Repository Volume : This is a special volume used by RecoverPoint for storing metadata about the system’s configuration and the data it protects. It is essential for the operation of RecoverPoint and must be present on any array that is part of a RecoverPoint/EX cluster 1 .

Journal Volume : The journal volume is used to store changes to protected data. It allows RecoverPoint to recover data to any point in time within the journal window. Like the repository volume, it is a required component of a RecoverPoint/EX cluster 1 .

When adding volumes from an unlicensed array to a RecoverPoint/EX cluster, both repository and journal volumes are supported and required for the cluster’s operation. The administrator must ensure that these volumes are properly configured to meet the system’s requirements 1 .

Understanding the Repository Volume : The Repository volume in a RecoverPoint system is crucial for storing configuration and metadata information. It must be highly available and resilient to ensure the proper functioning of the RecoverPoint system.

Recommended Location :

Step 1 : The recommended location for the Repository volume is on the VPLEX as a virtual volume. This setup leverages the high availability and redundancy features of VPLEX, ensuring that the Repository volume is protected and accessible.

Step 2 : Avoid using a VPLEX distributed volume for the Repository volume, as this is not supported and can lead to issues with data consistency and availability 1 .

Implementation :

Step 3 : Provision a virtual volume on the VPLEX array. Ensure that the volume is not thin-provisioned; it should be a thick or traditional RAID LUN to provide the necessary performance and reliability.

Step 4 : Assign the virtual volume to the RecoverPoint cluster during the deployment process. This can be done through the Deployment Manager or manually via the VPLEX management interface.

Verification :

Step 5 : After assigning the Repository volume, verify that it is correctly recognized by the RecoverPoint system. Check the status and health of the volume using the RecoverPoint Management Application.

Step 6 : Monitor the system to ensure that the Repository volume is functioning as expected and that there are no issues with data accessibility or performance.

References : This information is verified based on the official Dell RecoverPoint documentation, which outlines the best practices for locating and configuring the Repository volume in a VPLEX environment 2 3 1 .

After completing the zoning between the RPAs and the VNX ports and ensuring the RPA ports are available in the connectivity status on the VNX, the next step is to create a storage group on the VNX for RecoverPoint. This step is crucial to logically group the LUNs that will be managed and replicated by the RecoverPoint system.
