Understand vSwitch Functionality : A standard virtual switch (vSwitch) operates at the data link layer of the OSI model to connect virtual machines on the same ESXi host 2 .

Recognize vSwitch without Uplinks : When a vSwitch has no uplink ports configured, it cannot communicate with external networks, but it can still facilitate communication between VMs connected to it 1 .

Identify VM Communication : The VMs connected to the vSwitch without uplinks can communicate with each other, as the vSwitch can bridge traffic internally between VMs on the same VLAN 2 .

Exclude External Communication : Without uplinks, the VMs cannot communicate with outside networks, regardless of whether Cisco Discovery Protocol (CDP) is used 2 .

The Isilon OneFS operating system integrates the traditional storage architecture layers of FileSystem, DataManager, and VolumeManager. This integration simplifies management and improves performance by combining file system, data management, and volume management functions into a single layer.

References:

Dell EMC Isilon OneFS documentation.

Technical guides on Isilon architecture and features.

The LCS (Logical Configuration Survey) document contains all software baseline information post-RCM upgrade. It details the current configuration of the system, including software versions and settings, which are critical for maintaining system integrity and for future reference during support and maintenance activities.

References :

Dell EMC documentation on VxBlock systems.

Best practices for configuration management and documentation.

Review OneFS Operating System : The OneFS operating system is the foundation of the PowerScale scale-out NAS storage platform, designed to handle large and growing data stores efficiently 1 .

Identify Block Size : The native block size used by the OneFS file system is 8 KB. This block size is fundamental to the functionality of OneFS as it lays out data across the nodes and disks in a cluster 1 .

Understand Block Size Significance : The 8 KB block size is chosen to optimize storage efficiency and performance, particularly for the types of workloads and data patterns expected in a scale-out NAS environment 1 .

Reference Official Documentation : The Official Dell VxBlock Deploy Achievement document would align with the technical specifications of the OneFS operating system, confirming the 8 KB block size as a standard configuration 1 .

Understand SDN Architecture : In a Software Defined Network (SDN), separating the control plane from the data plane allows for centralized management of the network 1 .

Recognize the Control Plane’s Role : The control plane is responsible for making decisions about where traffic is sent, while the data plane moves packets from place to place 1 .

Identify the Advantage : The main advantage of this separation is the ability to programmatically control both physical and virtual network devices, which enables more flexible and dynamic network management 1 .

Apply SDN Benefits : This programmatic control facilitates rapid changes to network configurations, policies, and security, which can be applied consistently across the entire network 1 .

Reference Official Documentation : The Official Dell VxBlock Deploy Achievement document outlines the benefits of SDN, including the programmatic control that comes with separating the control and data planes 1 .

Understand VxLAN : VxLAN, or Virtual Extensible LAN, is a network virtualization technology that allows for the creation of a Layer 2 network on top of a Layer 3 network 1 .

Identify Key Benefit : One of the key benefits of VxLAN is that it enables vMotion to occur over Layer 3 subnets, which can span across different geographic locations 1 .

Recognize VxLAN Capabilities : By encapsulating Layer 2 Ethernet frames into Layer 4 UDP packets, VxLAN allows for the extension of networks over long distances, facilitating vMotion in environments where the physical network infrastructure is spread out 1 .

Reference Official Documentation : The Official Dell VxBlock Deploy Achievement document would align with this understanding of VxLAN, highlighting its ability to support vMotion across Layer 3 subnets as a significant advantage 1 .

=========================

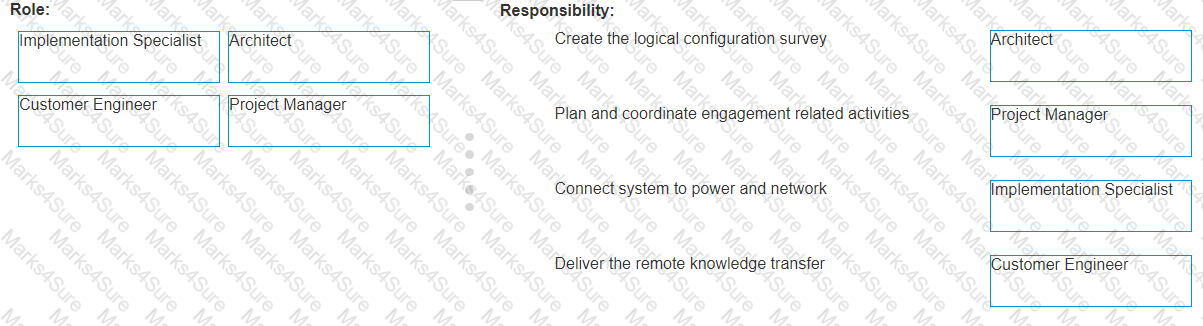

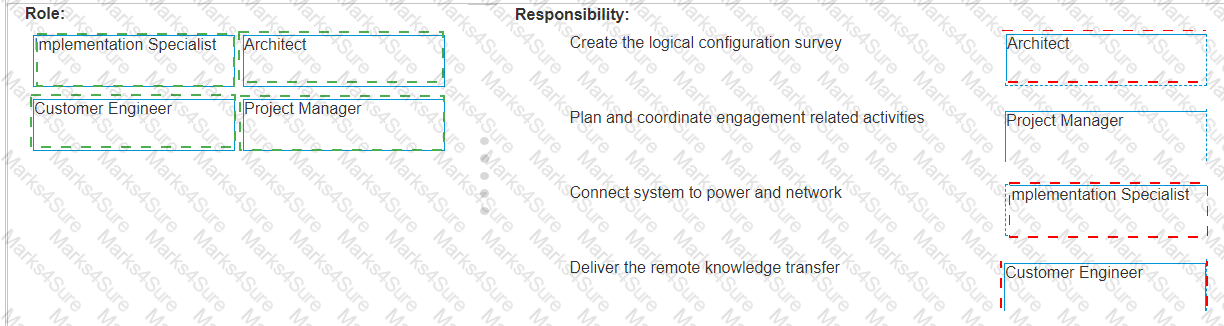

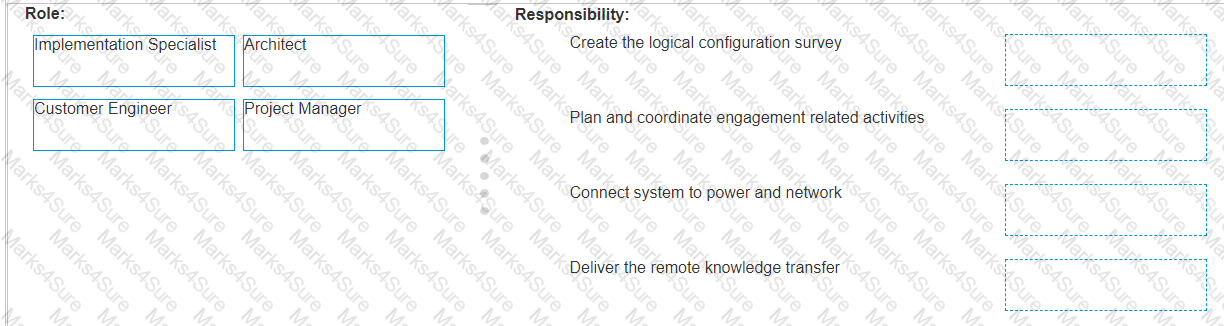

Based on the Dell VxBlock Deploy Achievement document, the roles and their responsibilities are matched as follows:

Implementation Specialist : Connect system to power and network 1 .

Architect : Create the logical configuration survey 1 .

Customer Engineer : Deliver the remote knowledge transfer 1 .

Project Manager : Plan and coordinate engagement related activities 1 .

Implementation Specialist : This role is typically responsible for the physical aspects of the deployment, such as connecting the system to power sources and the network 1 .

Architect : The Architect’s responsibility includes designing and creating surveys that capture the logical configuration of the system 1 .

Customer Engineer : This role often involves interfacing with the customer and providing knowledge transfer to ensure they understand the system 1 .

Project Manager : The Project Manager oversees the project, planning, and coordinating all activities related to the engagement 1 .

Review Test Plan Guidelines : The Test Plan guidelines in the Dell VxBlock Deploy Achievement document outline the procedures for validating the redundancy capabilities of the network 1 .

Understand Redundancy Validation : Redundancy validation involves testing the network’s ability to continue operating in the event of a component failure 1 .

Identify Redundancy Components : Top of Rack (ToR) switches are critical components that often have redundancy built-in to ensure network resilience 1 .

Execute Redundancy Test : To validate redundancy, the primary ToR switch is powered off to simulate a system failure. This tests the failover mechanisms and ensures that the secondary systems take over without service disruption 1 .

Document and Analyze Results : After the test, the results are documented and analyzed to confirm that redundancy measures are functioning as intended and that there is no loss of connectivity or service 1 .

Review Cisco ACI Deployment : When deploying a VxBlock system with Cisco ACI, it’s important to consider the physical connectivity and redundancy within the fabric 1 .

Consider Uplinks for Leaf Switches : For leaf switches in a Cisco ACI fabric, having a minimum of two uplinks is recommended to ensure redundancy and resiliency 1 .

Understand Fabric Load Balancing : While VXLAN is used within Cisco ACI for fabric load balancing, the consideration here is specifically about the physical uplinks from the leaf switches 1 .

Reference Official Documentation : The Official Dell VxBlock Deploy Achievement document provides guidelines for deploying VxBlock systems with Cisco ACI, including considerations for leaf switch connectivity 1 .

Review Deployment Phase Requirements : The final implementation step during the Deployment Phase of a VxBlock 1000 involves ensuring that the system is functioning as expected 1 .

Identify Required Task : A critical task in this step is to execute the test plan that was agreed upon during the planning phase 1 .

Understand the Importance of Test Plan Execution : Executing the test plan is essential to validate that all components of the VxBlock 1000 are working correctly and that the system meets the customer’s requirements 1 .

Reference Official Dell Documentation : The Official Dell VxBlock Deploy Achievement document outlines the importance of executing the test plan as a required task in the final implementation step during the Deployment Phase 1 .

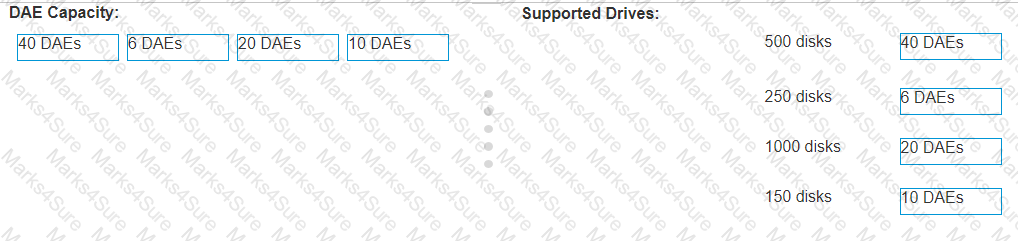

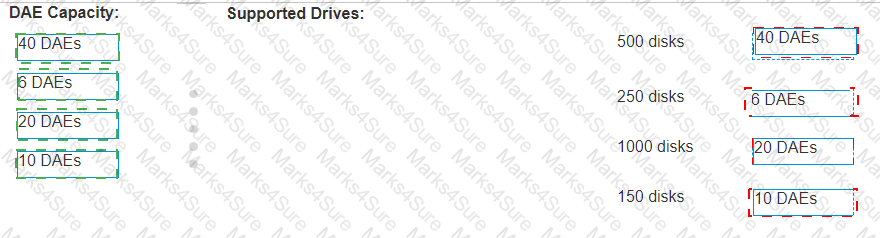

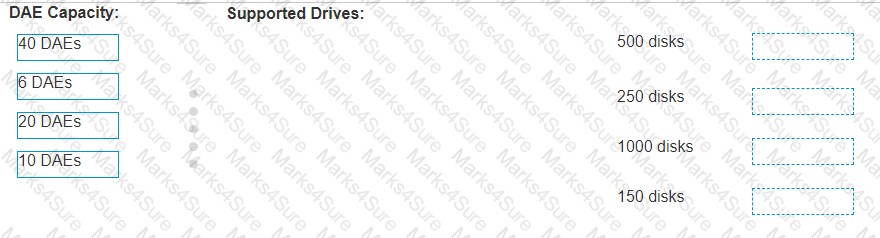

For 40 DAEs , the maximum number of supported 2.5 inch drives is 500 disks .

For 6 DAEs , the maximum number of supported 2.5 inch drives is 250 disks .

For 20 DAEs , the maximum number of supported 2.5 inch drives is 1000 disks .

For 10 DAEs , the maximum number of supported 2.5 inch drives is 150 disks .

Review the Dell Unity System Specifications : The Dell Unity system’s Drive Array Enclosures (DAEs) have different capacities, which determine the number of drives they can support 1 .

Match DAE Capacity to Drive Support : Each DAE capacity has a corresponding maximum number of supported drives, as outlined in the Dell VxBlock Deploy Achievement document 1 .

Verify with Official Documentation : Cross-reference the information with the official Dell documentation to ensure the accuracy of the drive support for each DAE capacity 1 .

The standard expected timeline to complete an RCM (Release Certification Matrix) upgrade is 3 weeks. This timeline accounts for the necessary planning, execution, and validation steps to ensure a successful upgrade.

References :

Dell EMC RCM upgrade process documentation.

Best practices for system upgrades.

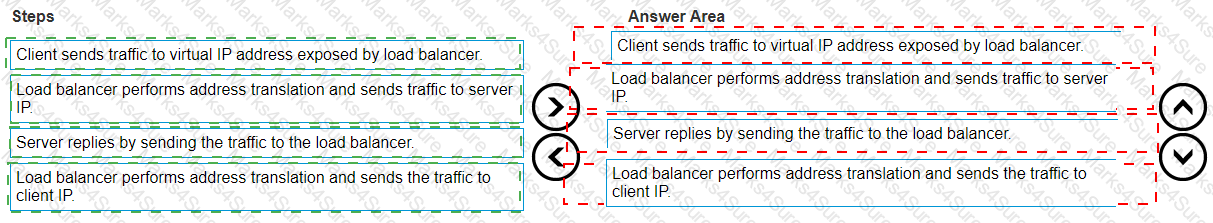

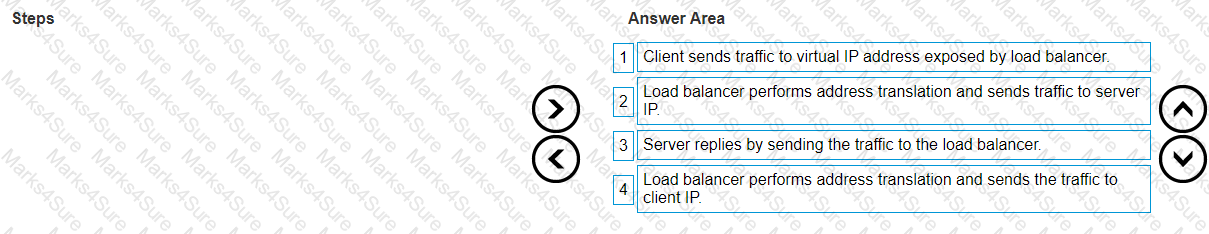

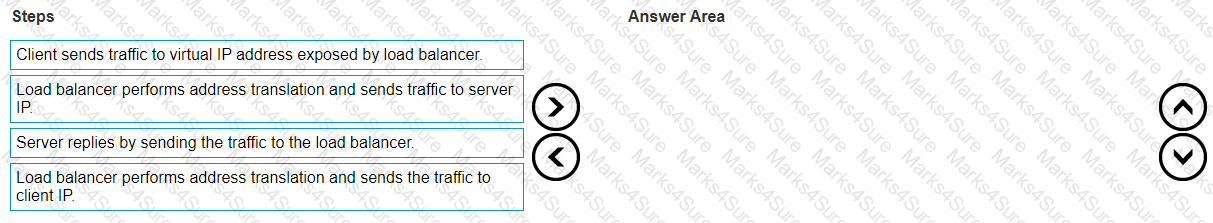

The order of steps taken when using an NSX edge service gateway with proxy mode load balancing is as follows:

Client sends traffic to virtual IP address exposed by the load balancer.

Load balancer performs address translation and sends traffic to server IP.

Server replies by sending the traffic to the load balancer.

Load balancer performs address translation and sends the traffic to client IP.

The process begins with a client initiating communication by sending traffic to a virtual IP address, which is managed by the NSX edge service gateway functioning as a load balancer.

Upon receiving the traffic, the load balancer translates this virtual IP address into one of the actual server IPs that it manages, effectively directing the client’s request to an appropriate server in its pool.

The selected server processes this request and responds back , sending its reply to the load balancer rather than directly back to the client.

Finally, once receiving this response from the server, the load balancer translates it from its own internal server IP back into what appears as a response from the original virtual IP address and forwards this response on to complete communication loop back at the client’s end.

Introduction to the new system : The primary purpose of the Knowledge Transfer process is to introduce the customer team to their new converged or hyperconverged system 1 .

Familiarization with the environment : This process involves familiarizing the customer’s team with the environment and operational aspects of the VxBlock system 1 .

Ensuring smooth transition : Knowledge Transfer is crucial for ensuring that the customer’s team can effectively manage and maintain their new system 1 .

Empowering the customer : By transferring knowledge, the customer’s team is empowered to take full advantage of the system’s capabilities and benefits 1 .

SMARTPOOL is a licensed feature of Isilon OneFS. It enables the automated tiering of data across different types of storage media within the cluster, optimizing performance and storage efficiency based on data usage patterns.

References:

Dell EMC Isilon OneFS documentation.

Technical resources on Isilon features and licensing.

The Converged Systems Administration Guide includes a complete list of tools used to perform a VxBlock 1000 upgrade. This guide provides detailed instructions and necessary resources for administrators to manage and upgrade VxBlock systems.

References:

Dell EMC Converged Systems documentation.

Best practices for system upgrades and administration.

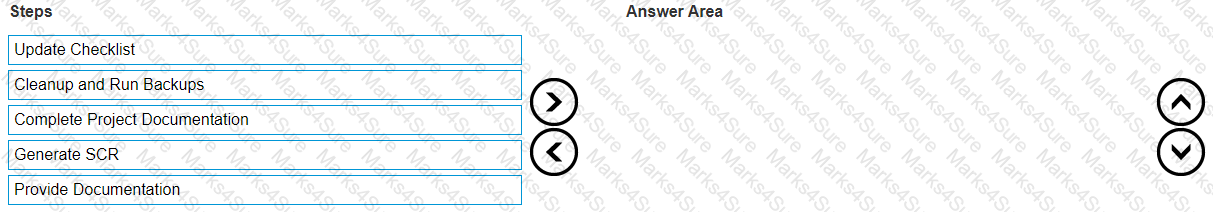

 Cleanup and Run Backups

 Update Checklist

 Complete Project Documentation

 Generate SCR (Service Change Request)

 Provide Documentation

In the Enhanced Knowledge Transfer Phase, the sequence of steps to finalize project deliverables ensures that all necessary tasks are completed in an orderly and efficient manner. Here's a detailed breakdown:

Cleanup and Run Backups:

Explanation: This step involves ensuring that the system and data are clean and backed up. It's crucial to clean up any temporary files or unnecessary data and perform backups to safeguard against data loss.

Review Project Closure Documents : The project closure phase involves several key documents that need to be reviewed and signed off to formally close the project 1 .

Identify Required Document : In addition to the Final Test Plan and Customer Satisfaction Survey, the Final Project Signoff is a crucial document that must be signed by the customer at the Project Closure Meeting 1 .

Understand the Significance : The Final Project Signoff serves as the customer’s formal acceptance of the project deliverables and confirms that all contractual obligations have been met 1 .

Ensure Compliance : It is important to ensure that the Final Project Signoff is completed and signed by the customer to officially close the project and release the project team from further responsibilities 1 .
