D-XTR-DY-A-24 Dell XtremIO Deploy Achievement Questions and Answers

The largest size supported for each volume in a new XtremIO X2-S single X-Brick cluster, as per the Official Dell XtremIO Deploy Achievement documents, is 64 TB. This information is verified through the official documentation which outlines the capabilities and specifications of the XtremIO X2 systems. The documents provide a detailed description of the critical components, features, and implementation solutions in customer environments, which includes the storage capacity specifications for XtremIO systems 1 .

Failed Cluster Creation : When a cluster creation fails, logs need to be collected for troubleshooting.

Debug Command : Running the create-debug-info debug-info-name=initial setup command helps in collecting the necessary logs for analysis.

Log Bundle Collection : This command gathers all relevant information needed to diagnose and fix the cluster creation issue.

References :

Dell XtremIO Command Reference Guide

Dell XtremIO Troubleshooting Guide

Data Protection Group (DPG) in XtremIO X2 : The DPG is designed to tolerate multiple disk drive failures while continuing to provide data services.

Failure Tolerance : In a fully-populated DPG with sufficient capacity, it would require 7 disk drives to fail sequentially to stop the data services, as XtremIO is designed with high fault tolerance and redundancy.

References :

Dell XtremIO X2 Data Protection Guide

XtremIO Architecture and Fault Tolerance Documentation

Dell XtremIO Deployment Services

The iostat command is used for monitoring the performance of system input/output devices on Linux/UNIX systems. It provides statistics about disk input/output operations and CPU utilization, which are essential for assessing the performance of these devices. The iostat command generates reports that can be used to change system configuration to better balance the input/output load between physical disks 1 . This command is particularly useful for system administrators who need to monitor and optimize disk performance and throughput 2 .

Understanding X-Bricks : X-Bricks are the fundamental building blocks of an XtremIO storage array. Each X-Brick consists of a pair of storage controllers and a set of SSDs.

XtremIO X1 Cluster Configuration :

An XtremIO X1 cluster can scale by adding more X-Bricks.

The scalability and configuration limits depend on the hardware and software capabilities of the XtremIO X1 system.

Maximum Number of X-Bricks :

The XtremIO X1 cluster can be configured with up to 4 X-Bricks.

This means the maximum configuration for an XtremIO X1 cluster would include 4 X-Bricks.

References :

Dell XtremIO X1 System Overview and Specifications

Dell XtremIO Deployment Services

Official XtremIO Documentation for hardware and cluster configuration limits.

Cable Management : Proper cable management is crucial for maintaining an organized and efficient data center environment.

Rack Units : For an XtremIO X2-R four X-Brick cluster, it is recommended to allocate 6U for the cable management ducts.

Space Allocation : This ensures that there is enough space to manage and organize cables without causing congestion or interfering with airflow.

References :

Dell XtremIO Hardware Installation Guide

Dell XtremIO Rack and Cable Management Documentation

When deploying Connect Home using FTPS at a customer site, the TCP ports that must be open between the XtremIO Management Server (XMS) and the Dell Technologies FTP server are 989 and 990. These ports are typically used for FTPS to secure the control channel (port 989) and the data channel (port 990).

The process for configuring these ports is as follows:

Identify FTPS Requirements : Understand that FTPS requires specific ports for secure communication. Port 989 is used for the FTPS control connection, and port 990 is used for the data transfer.

Configure Firewall Settings : On the customer’s firewall, configure the settings to allow outbound connections on ports 989 and 990 to the Dell Technologies FTP server.

Verify Connectivity : After configuring the firewall, verify that the XMS can establish a connection to the Dell Technologies FTP server over these ports.

Test Connect Home Functionality : Use the Connect Home feature to ensure that the XMS can communicate securely with the Dell Technologies FTP server using FTPS.

Consult Official Documentation : For detailed instructions and best practices, refer to the official Dell XtremIO Deploy Achievement document 1 . This document provides comprehensive guidance on all aspects of setting up and managing XtremIO systems, including the deployment of Connect Home using FTPS.

By following these steps and referring to the official documentation, you can ensure that the necessary ports are open for the Connect Home feature to function correctly in an XtremIO deployment.

The XtremIO Management Server (XMS) requires DNS configuration to resolve Fully Qualified Domain Names (FQDN) used in ESRS (Electronic Support Services) configurations. If the DNS is not configured on the XMS, it will not be able to resolve the ESRS FQDN, leading to a failure in connecting home. Configuring DNS on the XMS ensures that all network addresses, including the ESRS server, can be resolved correctly.

References :

Dell XtremIO Deployment and Learning Course Materials

XtremIO X2 Configuration Guide

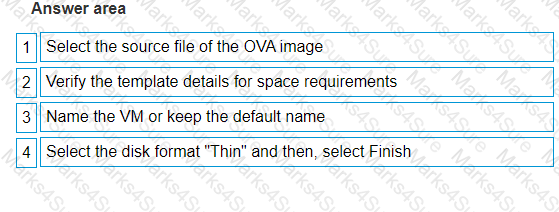

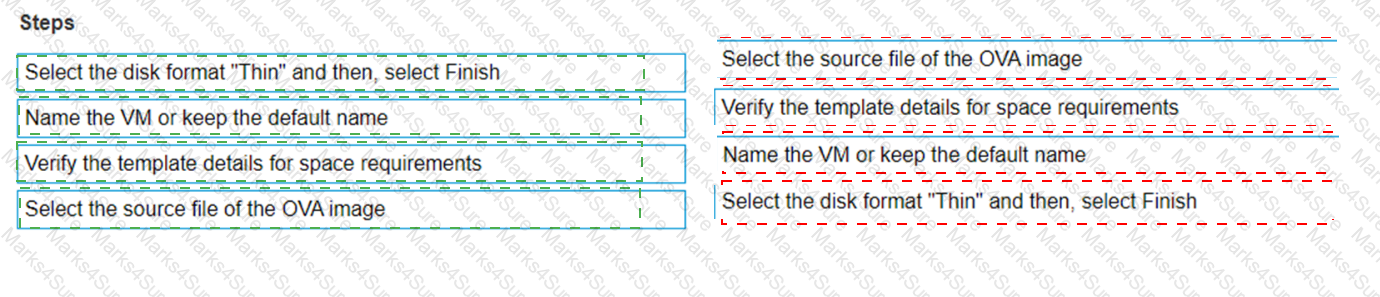

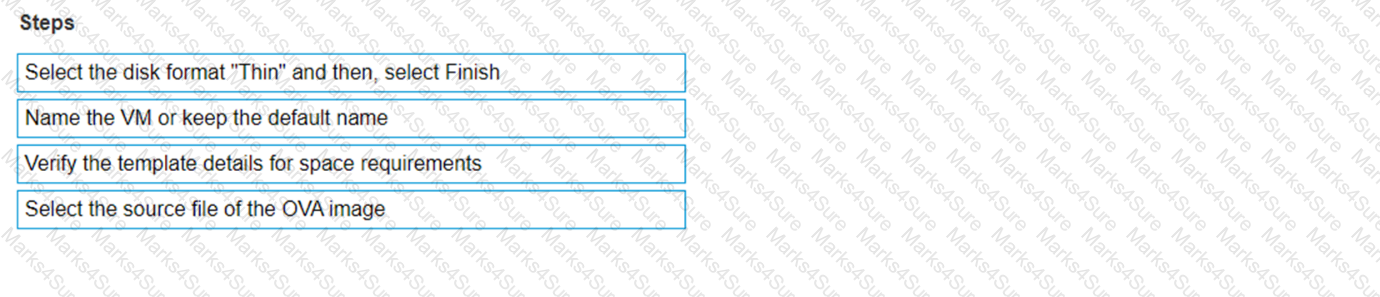

The documented sequence of steps to deploy an XMS OVF template includes:

Select the source file of the OVA image.

Verify the template details for space requirements.

Name the VM or keep the default name.

Select the disk format “Thin” and then, select Finish.

Select the Source File : Begin by selecting the source file of the OVA image, which is the package containing all files for the VM 1 .

Verify Template Details : Check the template details to ensure there is enough space on the datastore for the VM 1 .

Name the VM : Assign a unique name to the VM or retain the default name provided in the OVA template 1 .

Select Disk Format : Choose the “Thin” disk format to save storage space, as it allocates space as needed rather than upfront 1 .

Complete the Deployment : Finalize the deployment process by selecting ‘Finish’, which will deploy the VM to your environment 1 .

To interact with an XtremIO cluster using the REST API, the application that can be used is cURL. cURL is a command-line tool and library for transferring data with URLs and is commonly used for various types of HTTP requests.

The steps to use cURL with the XtremIO REST API are as follows:

Install cURL : Ensure that cURL is installed on your system. It is available for a variety of platforms including Windows, Mac, and Linux.

Prepare the API Request : Formulate your REST API request. This will include the XtremIO cluster’s endpoint and the specific API call you wish to make.

Execute the cURL Command : Use the cURL command in your terminal or command prompt to execute the API request. The general syntax for a cURL request is:

curl [options] [URL]

For example, to list all volumes on an XtremIO cluster, you might use:

curl -u username:password -X GET " https://XMS_IP_Address/api/json/v2/types/volumes "

Replace username:password with your actual credentials and XMS_IP_Address with the IP address of your XtremIO Management Server (XMS).

Analyze the Response : The response from the XtremIO cluster will be output to your terminal. It will typically be in JSON format, which you can then parse and analyze as needed.

Reference Documentation : For detailed information on the REST API calls available and their usage, refer to the official Dell XtremIO Deploy Achievement document 1 . This document will provide comprehensive guidance on implementing solutions using XtremIO systems, including the use of REST API for cluster interaction.

By following these steps and referring to the official documentation, you can successfully use cURL to interact with an XtremIO cluster via the REST API.

After completing the network configuration for all Storage Controllers in the XtremIO installation process, the next step is to check the cluster component connectivity. This step is crucial to ensure that all components within the cluster are communicating correctly and are ready for further configuration and use.

The process typically involves:

Verifying Network Settings : Confirm that the network settings applied to the Storage Controllers are correct and that they are on the correct network segments.

Testing Connectivity : Use network testing tools or the XtremIO Management Server (XMS) to test connectivity between the Storage Controllers and other cluster components such as X-Bricks and InfiniBand switches.

Checking Component Status : Review the status of all cluster components in the XMS to ensure they are operational and recognized by the system.

Resolving Connectivity Issues : If any connectivity issues are detected, troubleshoot and resolve them before proceeding with the installation process.

Documenting the Process : Keep a record of the connectivity checks and any actions taken to resolve issues as part of the installation documentation.

The “Small IO Alerts” feature in XtremIO is designed to notify administrators when a significant number of small I/O operations are detected, which could potentially impact the performance of the storage array. The threshold for these alerts is typically set to a default value that considers the architecture and performance characteristics of the system. In the case of XtremIO, the alert is triggered when I/O operations are smaller than 4 KB 1 . This threshold is set based on the understanding that smaller I/O sizes can lead to inefficient utilization of the storage array’s resources and can be an indicator of suboptimal application behavior or configuration.

RecoverPoint offers data protection and disaster recovery for heterogeneous storage environments. However, when it comes to XtremIO-to-XtremIO replication, RecoverPoint supports homogeneous replication, meaning it can replicate data between XtremIO arrays. This ensures that the advanced data services provided by XtremIO, such as deduplication and compression, are maintained during the replication process 1 .

Homogeneous Replication : RecoverPoint’s homogeneous replication capability allows for consistent replication between similar storage systems, which is essential for maintaining data efficiency features.

XtremIO Integration : When integrated with XtremIO, RecoverPoint utilizes the storage array’s native capabilities to ensure efficient replication.

Data Services Continuity : By supporting homogeneous replication, RecoverPoint ensures that XtremIO’s data services like deduplication and compression are preserved during replication, optimizing storage utilization and performance 1 .

Disaster Recovery : This integration allows for robust disaster recovery solutions, ensuring that data is protected and can be recovered in the event of a site failure.

Scalability : While RecoverPoint can scale up with additional RecoverPoint Appliances (RPAs) in other environments, the replication between XtremIO arrays is designed to work within the XtremIO ecosystem 1 .

Checking Connectivity : Before creating a cluster, it is crucial to ensure that all components such as DAE controllers, IB switches, IPMI, and BBU are correctly connected and operational.

Technician Advisor Tool : This tool is specifically designed to assist with installation and validation of hardware components in an XtremIO environment. It provides comprehensive checks and ensures all components are correctly connected and operational.

Other Options :

WebUI : Typically used for management and monitoring after cluster creation.

Easy-Install Menu : Helps in initial setup but may not provide detailed connectivity checks.

XMCLI : Can be used for various configurations and checks, but the Technician Advisor Tool is more specialized for this purpose.

References :

Dell XtremIO Installation and Setup Guide

Technician Advisor Tool Documentation

Dell XtremIO Deployment Services

During the installation of an XtremIO X1 system, the document that should be used to identify the ports for IPMI (Intelligent Platform Management Interface) cable connections is the XtremIO Storage Array Hardware Installation and Upgrade Guide . This guide typically contains detailed information about the hardware components, including diagrams and descriptions of the ports, which are essential for correctly connecting the IPMI cables.

The process of identifying the correct IPMI ports usually involves the following steps:

Locate the Guide : Access the XtremIO Storage Array Hardware Installation and Upgrade Guide . This document is designed to provide instructions specifically related to the physical components of the XtremIO system.

Identify the Ports : Use the diagrams and descriptions within the guide to locate the IPMI ports on the XtremIO hardware. These ports are typically labeled and may be color-coded to help distinguish them from other ports.

Connect the Cables : Once the IPMI ports have been identified, connect the IPMI cables to these ports as per the instructions provided in the guide. Ensure that the connections are secure and that the cables are not obstructing any other components.

Verify the Connections : After connecting the cables, verify that the connections match the diagrams and descriptions in the guide. This step is crucial to prevent any issues related to incorrect cabling.

Reference Documentation : For the most accurate and up-to-date information, always refer to the latest version of the XtremIO Storage Array Hardware Installation and Upgrade Guide 1 . This ensures that any changes or updates to the hardware are taken into account during the installation process.

By following these steps and referring to the correct documentation, you can ensure that the IPMI cable connections are made correctly, which is vital for the remote management and monitoring of the XtremIO X1 system.
