D-XTR-OE-A-24 Dell XtremIO Operate Achievement Questions and Answers

For synchronous replication from an XtremIO X1 cluster to a third-party array, the solution that enables this operation is VPLEX with RecoverPoint . Here’s why:

VPLEX : Dell EMC VPLEX is a virtualization and data mobility solution that allows for continuous availability and data mobility across arrays within a data center and over distance. It is often used in conjunction with RecoverPoint to provide synchronous replication 1 .

RecoverPoint : Dell EMC RecoverPoint offers continuous data protection with multiple replication options, including synchronous and asynchronous replication. It is designed to work with various storage arrays, including third-party arrays, providing flexibility in replication strategies 1 .

Combination of VPLEX and RecoverPoint : When combined, VPLEX and RecoverPoint offer a comprehensive solution that supports synchronous replication, ensuring zero data loss (RPO=0) and enabling consistency across sites. This combination is particularly useful when integrating XtremIO with third-party arrays 1 .

Native XtremIO Replication : While XtremIO does offer native replication capabilities, these are typically asynchronous and are designed to work within the XtremIO ecosystem. For synchronous replication, especially to a third-party array, the native replication may not be sufficient 1 .

RecoverPoint for VMs : This variant of RecoverPoint is specifically designed for virtual environments and may not be the best fit for array-based synchronous replication requirements 1 .

Therefore, the correct answer is VPLEX with RecoverPoint (OD), as it provides the necessary infrastructure and capabilities for synchronous replication from an XtremIO X1 cluster to a third-party array, ensuring data consistency and zero data loss during the replication process 1 .

The XtremIO admin account is a built-in account that is essential for the operation and management of the XtremIO storage system. One of the key characteristics of this account is that it cannot be removed from the system. This is to ensure that there is always an account available with the necessary privileges to manage and maintain the storage array 1 .

The admin account has a high level of access privileges, which are required for performing various administrative tasks such as managing users, configuring the system, and performing updates. While the admin account does not allow root level access as this is restricted to EMC support engineers only, it does provide a comprehensive set of capabilities for system administration 1 .

It’s important to note that while the admin account is used for many administrative tasks, it is not typically used to upload files directly to the XMS (OA) or to install the cluster (OC). These tasks are handled through other mechanisms within the XtremIO system 1 . The admin account’s primary role is to provide a secure and consistent way to administer the storage array, and its presence is a critical part of the system’s security and operational framework 1 .

For optimal performance when integrating new VMware hosts with an XtremIO storage array, it is recommended to adjust the LUN queue depth value of the Host Bus Adapters (HBAs). Here’s a detailed explanation:

LUN Queue Depth : This setting determines the number of I/O operations that can be queued to a logical unit number (LUN) on the storage system at one time. Properly configuring the queue depth can help optimize performance by allowing enough I/O operations to be processed concurrently without overwhelming the storage system 1 .

Emulex or QLogic HBAs : These are common types of HBAs used in VMware environments. Adjusting the LUN queue depth on these HBAs ensures that they are tuned to handle the I/O characteristics of the XtremIO storage array 1 .

Optimal Setting : The optimal LUN queue depth value can vary based on the specific environment and workload. However, Dell Technologies provides guidance on recommended settings for various configurations, which can be found in their official documentation or support resources 1 .

Impact on Performance : By adjusting the LUN queue depth, the storage I/O operations from the VMware hosts can be more efficiently managed, leading to better overall performance and reduced latency for applications accessing the XtremIO storage 1 .

When managing multiple XtremIO X2 clusters, it is accurate that a single XtremIO Management Server (XMS) can manage up to 16 X-Brick clusters. The XMS is a key component of the XtremIO environment, providing centralized management and monitoring capabilities for XtremIO clusters. Here’s a detailed explanation:

XMS Capabilities : The XMS is designed to manage multiple XtremIO clusters, offering a unified view and control over the entire storage environment. It allows administrators to perform various tasks such as provisioning, monitoring, and managing the clusters from a single interface 1 .

Scalability : The ability to manage up to 16 X-Brick clusters with a single XMS highlights the scalability of the XtremIO architecture. This scalability is essential for large-scale deployments where multiple clusters are used to meet performance and capacity requirements 1 .

Virtual and Physical XMS : The XMS can be deployed as either a physical server or a virtual machine (VM), providing flexibility in deployment options. Regardless of the deployment model, the XMS retains its capability to manage multiple clusters 1 .

XMCLI : While the XtremIO Management Command Line Interface (XMCLI) is used for managing clusters, it is not the only way to add or remove clusters. The XMS provides a graphical user interface (GUI) as well, which can also be used for these tasks 1 .

XtremIO X1 and X2 Compatibility : The statement regarding XtremIO X1 XMS managing XtremIO X2 clusters (OC) would require specific compatibility information, which typically depends on the software version and feature support 2 .

Limitations of Virtual XMS : The statement that a virtual XMS can manage up to four X-Brick clusters (OD) may not be accurate without specific context, as the capability can depend on the XMS version and the deployment configuration 1 .

Each X-Brick in an XtremIO environment requires at least one RecoverPoint Appliance (RPA) to manage replication tasks effectively.

RecoverPoint provides both synchronous and asynchronous replication, ensuring data integrity and disaster recovery capabilities.

The RPA is crucial for handling replication operations and maintaining data consistency across XtremIO clusters.

References:

Dell XtremIO Integration with RecoverPoint Documentation

Raid-Zero XtremIO and RecoverPoint Initial Findings

The XtremIO X2-S storage array is designed to support a significant amount of capacity per volume. Based on the information available, the largest size supported for each volume in a single X-Brick cluster is 64 TB 1 . Here’s a detailed explanation:

XtremIO X2-S Capacity : The XtremIO X2-S array allows for scaling up with additional SSDs to increase capacity. A single X-Brick can support a considerable number of SSDs, which contributes to the total volume size it can support 1 .

Volume Size : The volume size refers to the amount of data storage space that can be allocated for use by applications and services. In the case of XtremIO X2-S, the maximum volume size is designed to accommodate large-scale storage needs 1 .

Configuration : When configuring volumes on the XtremIO X2-S, administrators can specify the desired size up to the maximum supported limit. This ensures that the storage can be tailored to the specific requirements of the environment 1 .

Largest Supported Size : The option of 64 TB (OB) aligns with the high-capacity design of the XtremIO X2-S array, making it the correct answer for the largest volume size supported per volume on a single X-Brick cluster 1 .

According to Dell XtremIO documentation, when upgrading an XtremIO X2 two X-Brick cluster, the minimal number of SSDs that can be ordered is 12.

XtremIO clusters use a scale-out architecture, and each X-Brick requires a specific number of SSDs for proper functioning.

The upgrade process is designed to maintain the performance and resilience of the storage system.

The specific requirement of 12 SSDs ensures balanced data distribution and optimal performance across the cluster.

References:

Dell XtremIO Upgrade Guide

XtremIO X2 Specification Documents

The design concept of the XtremIO X2-S X-Brick configuration is to provide high logical capacity.

This allows for efficient storage management and data reduction technologies, enabling organizations to maximize their storage resources.

The high logical capacity supports extensive data consolidation and improved storage utilization.

References:

Dell XtremIO X2-S Configuration Guide

XtremIO Product Documentation

When integrating an XtremIO cluster into a VPLEX environment, the first activity that needs to be performed is zoning the VPLEX to the XtremIO Storage Controllers. Zoning is a SAN (Storage Area Network) configuration step that controls access between the storage and hosts, and in this case, between VPLEX and XtremIO. Here’s the process:

Zoning : This involves configuring the SAN fabric to ensure that the VPLEX directors can communicate with the XtremIO Storage Controllers. Zoning is crucial for establishing a secure and efficient connection between the two systems 1 .

Provisioning Storage (OA) : While provisioning storage to the host is an important step, it typically comes after the zoning has been established.

Creating and Mapping Volumes (OB) : Creating and mapping volumes dedicated to VPLEX is also a subsequent step that can only be performed after the zoning is in place.

Initiator Groups (OC) : Creating initiator groups is necessary for mapping storage to hosts, but it is not the first step in the process. The initiator groups will be used after zoning is completed to define access control for the VPLEX directors 1 .

In summary, the first activity to perform when adding an XtremIO cluster to a VPLEX environment is to zone the VPLEX to the XtremIO Storage Controllers (OD), as this establishes the foundational connectivity required for further configuration and provisioning steps 1 .

When dealing with misaligned partitions on XtremIO volumes after upgrading from Windows Server 2003 to Windows Server 2008, the following steps should be taken to realign the data:

Backup the Data : The first and most crucial step is to ensure that all data on the existing partitions is backed up. This is to prevent any data loss during the alignment process.

Run Diskpart : After backing up, use the Diskpart utility, which is a command-line disk partitioning tool that allows you to manage your disk’s partitions.

Recreate the Partition : With Diskpart, delete the existing misaligned partition and then create a new partition. When creating the new partition, ensure that it is aligned correctly, typically to a 1MB boundary, which is the default alignment for Windows Server 2008 and newer versions 1 .

Restore the Data : Once the new partition is created and aligned properly, restore the data from the backup to the newly aligned partition.

This process ensures that the partitions are aligned optimally for the XtremIO storage system, which can help improve performance and efficiency. It’s important to note that while tools like Disk Management and Mbralign can be used for managing partitions, they may not provide the necessary functionality to realign existing partitions on Windows Server 2008. Therefore, using Diskpart is the recommended approach 1 .

cURL is an application that can be used to interact with an XtremIO cluster via the REST API.

It allows for the execution of various HTTP commands to manage and retrieve information from the storage array.

cURL is widely used for its simplicity and capability to handle RESTful web services, making it suitable for managing XtremIO clusters.

References:

Dell XtremIO RESTful API Guide

XtremIO API Documentation

When using XtremIO storage arrays for Oracle ASM disk groups, the recommended redundancy type is typically external redundancy. This is because XtremIO arrays are built with inherent data protection and redundancy features that eliminate the need for additional mirroring at the ASM level 1 .

External Redundancy : With external redundancy, Oracle ASM does not mirror data within the disk group. Instead, it relies on the underlying storage system to provide redundancy and data protection. XtremIO’s unique data protection scheme, XDP (XtremIO Data Protection), provides such redundancy 1 .

XtremIO Features : XtremIO arrays are designed with high levels of fault tolerance and include features like SSD failover and advanced error correction. These features ensure data integrity and availability, making external redundancy a suitable choice 1 .

Performance Considerations : Choosing external redundancy can also lead to better performance since it avoids the overhead of additional mirroring at the ASM level, which is unnecessary given XtremIO’s capabilities 1 .

Best Practices : Dell EMC recommends using external redundancy for ASM disk groups when using storage arrays like XtremIO that provide their own robust data protection mechanisms 1 .

In summary, for Oracle ASM disk groups using XtremIO storage arrays, external redundancy (OC) is the recommended setting, as it leverages the array’s built-in redundancy features and optimizes performance 1 .

In a heterogeneous environment with multiple storage arrays connected to VMware vSphere, setting Disk.SchedQuantum to 64 is recommended.

This setting optimizes the scheduling of I/O requests and helps in balancing the load across different storage arrays.

Proper configuration of Disk.SchedQuantum enhances the performance and efficiency of the storage environment.

References:

VMware Best Practices for Storage

Dell XtremIO VMware Integration Guide

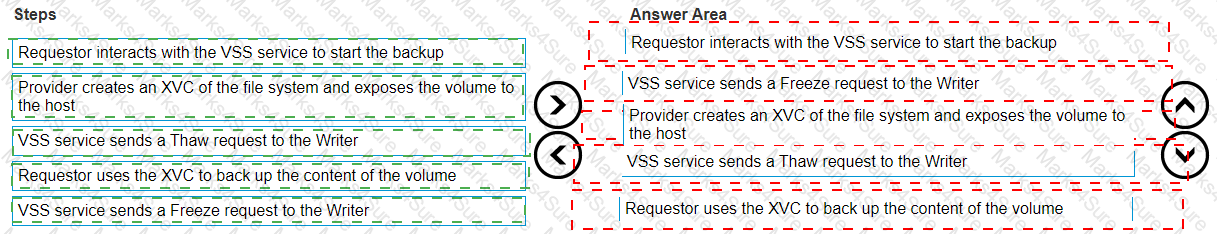

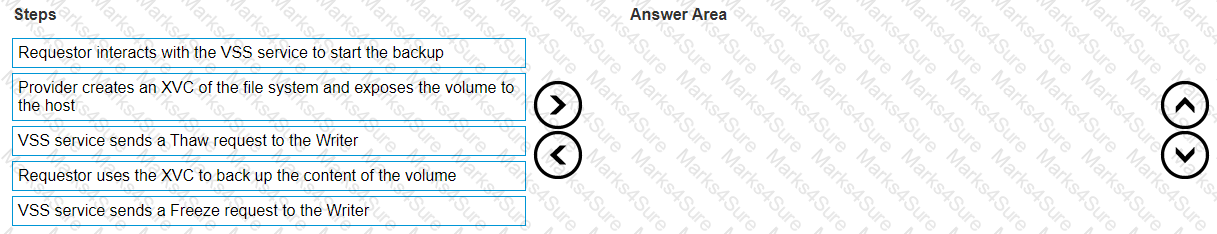

The correct sequence of steps to create a Windows volume backup using the Microsoft VSS Framework with an XtremIO cluster is:

Requestor interacts with the VSS service to start the backup

VSS service sends a Freeze request to the Writer

Provider creates an XVC of the file system and exposes the volume to the host

VSS service sends a Thaw request to the Writer

Requestor uses the XVC to back up the content of the volume

This sequence ensures that the backup is consistent and data integrity is maintained throughout the process.

References:

Dell XtremIO VSS Integration Guide

Microsoft VSS Framework Documentation

To create an iSCSI portal using the XtremIO X2 XMS WebUI, an administrator should navigate to Cluster Settings.

Within Cluster Settings, the configuration options for creating and managing iSCSI portals are available.

This is the starting point for setting up network configurations and ensuring the proper operation of iSCSI connections.

References:

Dell XtremIO X2 Configuration Guide

XtremIO XMS WebUI Documentation
