DEA-1TT5 Associate - Information Storage and Management Exam Questions and Answers

Graphical user interface, application Description automatically generated

https://www.delltechnologies.com/asset/en-in/products/storage/technical-support/h16567-connectrix-ds-6600b-switches-ss.pdf

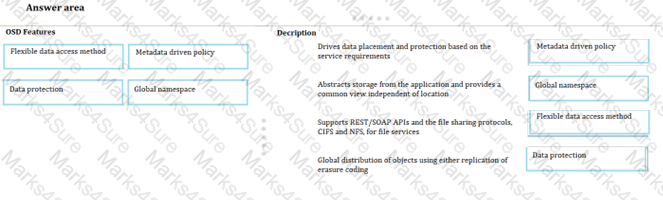

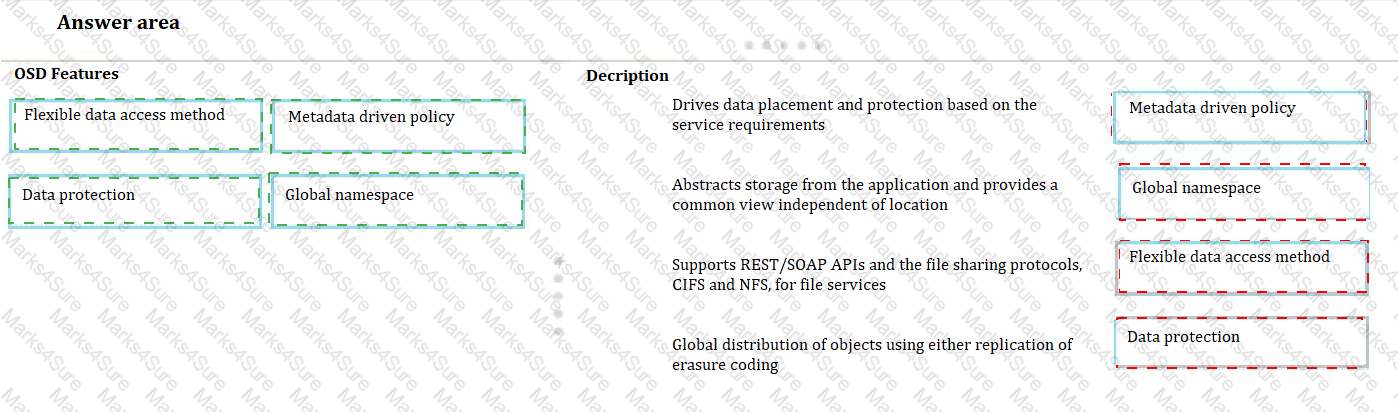

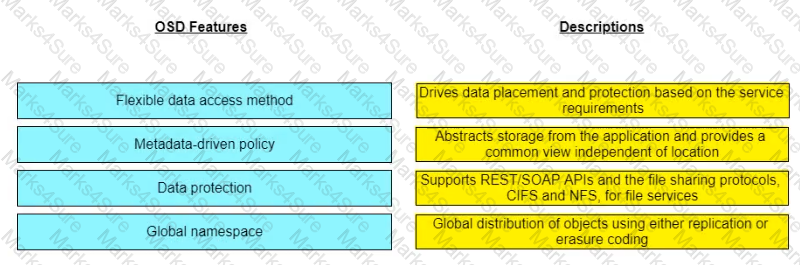

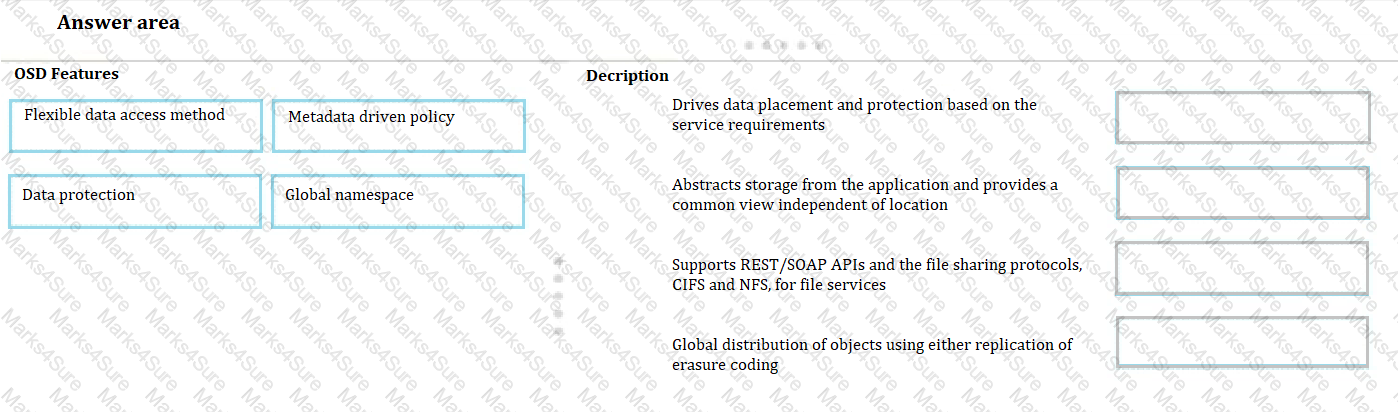

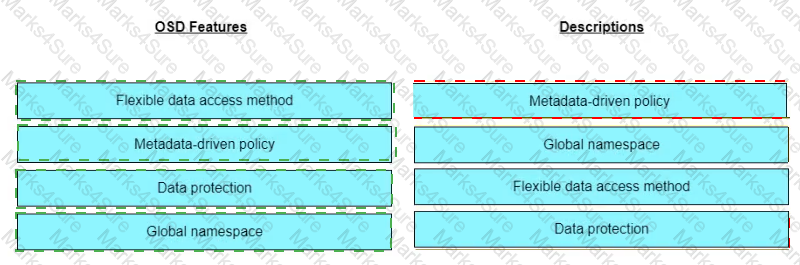

An OSD storage system is an object-based storage system that stores data as objects rather than files or blocks1. An OSD storage system consists of OSD nodes that have two key services: metadata service and storage service1.

The metadata service is responsible for generating the object ID from the contents of a file1. The object ID is a unique identifier that represents the data and its attributes. The metadata service also maintains the mapping of the object IDs and the file system namespace1. The file system namespace is a logical structure that organizes files into directories and subdirectories.

The storage service manages a set of disks on which the user data is stored1. The storage service stores data as objects in physical OSD containers. Each OSD container has a unique address that corresponds to an object ID. The storage service also handles requests from clients to read or write data to or from objects.

Automating the operations management process in a data center environment can help mitigate operational management risks. Automation can reduce the likelihood of human error, which can lead to outages or other disruptions. By automating routine tasks, such as patch management, configuration updates, and resource allocation, IT staff can focus on higher-value activities that drive innovation and improve the user experience. Additionally, automation can improve operational efficiency, reduce costs, and ensure operational agility, but it does not eliminate operational costs. Reference: Section 2.6.2 Automation of IT Operations, page 127.

Cloud tiering is a technology that automatically moves inactive or infrequently accessed data from high-performance primary storage to lower-cost secondary storage, such as cloud-based object storage. This process is based on policies that are defined by the IT administrator. Cloud tiering is a part of the secondary storage tier, which is typically used for storing inactive or infrequently accessed data that does not require the high performance or low latency of primary storage. The primary storage tier is used for storing active or frequently accessed data that requires high performance and low latency. The application tier is used for hosting applications and services, while the policy tier is used for defining and enforcing data management policies. Reference: Section 4.4 Secondary Storage Tier, page 239.

Layer 3 - Network - logical addressing and routing

Front-end ports connect the storage array controller to the host servers, while back-end ports connect it to the disk drives. The cache provides temporary storage for frequently accessed data to speed up I/O operations. Link control cards manage communication between the front-end and back-end ports.

To calculate availability, you need to calculate the total number of hours that the port is operational and divide it by the total number of hours in the week, which is 168. The total number of hours that Port 4 is operational in that week is 106.7, so the availability is 106.7/168 = 86.7%.
