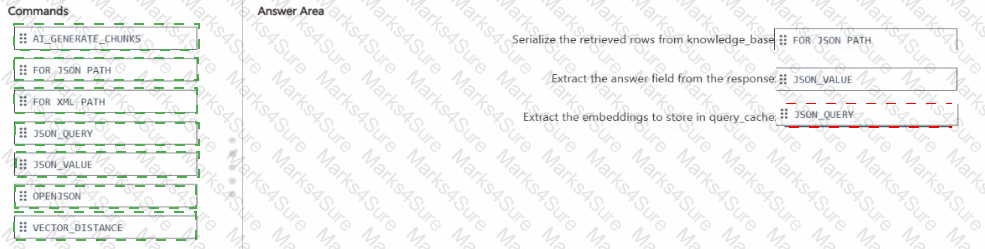

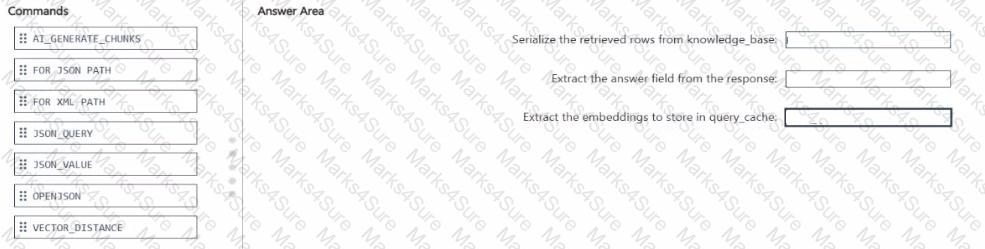

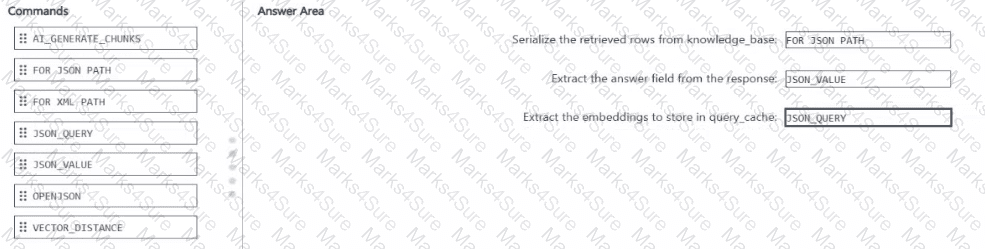

The correct mapping is:

FOR JSON PATH

JSON_VALUE

JSON_QUERY

To serialize the retrieved rows from knowledge_base , the correct command is FOR JSON PATH . Microsoft documents that FOR JSON formats query results as JSON, and PATH mode is the standard way to shape relational rows into JSON for downstream application or AI use.

To extract the answer field from the response , the correct command is JSON_VALUE because answer is a single scalar field . Microsoft states that JSON_VALUE is used to extract a scalar value from JSON text.

To extract the embeddings to store in query_cache , the correct command is JSON_QUERY because embeddings are returned as a JSON array , not a scalar. Microsoft states that JSON_QUERY extracts an object or array from JSON text, which is exactly the right behavior for an embeddings payload.

The unused options are not the best fit here:

OPENJSON is mainly for shredding JSON into rows and columns.

AI_GENERATE_CHUNKS is for chunking text, not extracting fields from a response payload.

VECTOR_DISTANCE computes similarity between vectors and is unrelated to JSON extraction.

FOR XML PATH produces XML, not JSON.

For an Azure App Service using a user-assigned managed identity to connect to Azure SQL Database with Microsoft Entra authentication , the required database-side step is to create a database user from the external provider , then grant the needed database roles. Microsoft’s Azure SQL documentation for managed identities states that to let a managed identity access the target database, you create a SQL user for that identity by using:

CREATE USER [ < identity-name > ] FROM EXTERNAL PROVIDER;

and then assign the appropriate roles.

That makes db_datareader and db_datawriter the right role grants here, because the requirement says the identity must have read and write permissions to SalesDB.

The other options are incorrect:

A uses CREATE LOGIN ... FROM EXTERNAL PROVIDER, which is not the right choice for this Azure SQL Database scenario; the documented pattern is to create a database user from the external provider.

B and D create SQL-authentication principals with passwords, which does not meet the Microsoft Entra managed-identity requirement.

D also grants sysadmin, which is a server-level overgrant and not appropriate for the stated read/write requirement.

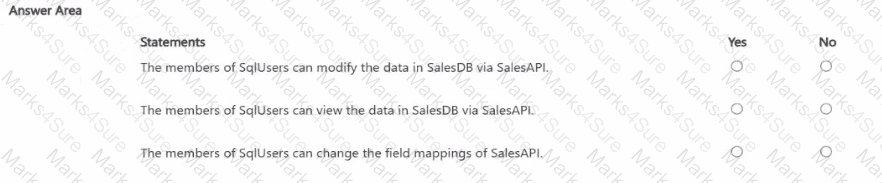

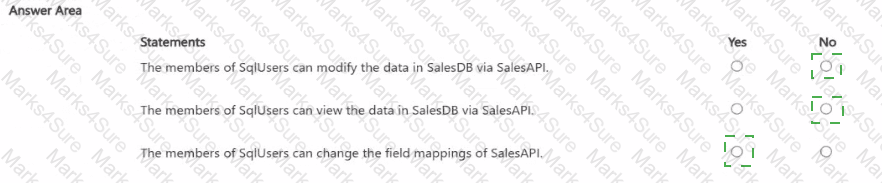

The members of SqlUsers can modify the data in SalesDB via SalesApi. → No

The members of SqlUsers can view the data in SalesDB via SalesApi. → No

The members of SqlUsers can change the field mappings of SalesApi. → Yes

For both viewing and modifying data through SalesApi, the key missing permission is Run Queries and Mutations . Microsoft’s Fabric GraphQL documentation states that callers need Execute permissions for the GraphQL API , which correspond to the Run Queries and Mutations option, and with SSO connectivity they also need appropriate permissions on the underlying data source. In the exhibit, SqlUsers has View and Edit GraphQL item selected, but Run Queries and Mutations is not selected, so members cannot query or mutate data through the API.

The third statement is Yes because the group was explicitly granted View and Edit GraphQL item . That permission is the one that allows users to open and modify the GraphQL item itself, including schema-related configuration such as field mappings in the API item. The workspace Viewer role does not by itself grant query execution through the API, but the direct GraphQL item permission shown does allow editing the item.

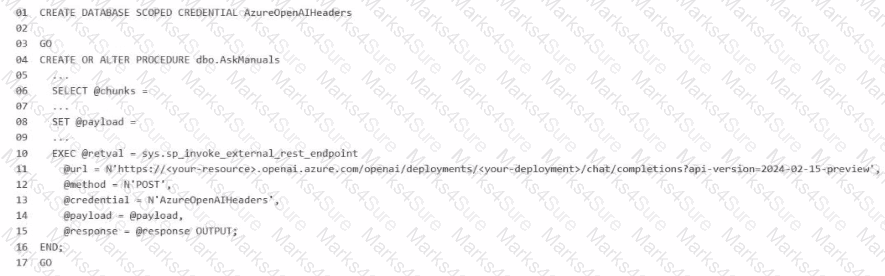

The correct answer is Option B because the requirement is to call an Azure OpenAI REST endpoint from SQL Server 2025 while providing the highest level of security , and the instance already has a managed identity enabled . For Microsoft’s SQL AI features, the preferred secure pattern is to use a database scoped credential with IDENTITY = ' Managed Identity ' instead of storing an API key. Microsoft documents that SQL Server 2025 supports managed identity for external AI endpoints, and for Azure OpenAI the credential secret uses the Cognitive Services resource identifier: { " resourceid " : " https://cognitiveservices.azure.com " } .

So line 02 should be:

WITH IDENTITY = ' Managed Identity ' ,

SECRET = ' { " resourceid " : " https://cognitiveservices.azure.com " } ' ;

Why the other options are incorrect:

A and D use HTTP header or query-string credentials with an API key , which is less secure than managed identity because a secret key must be stored and rotated manually. Microsoft recommends managed identity where supported to avoid embedded secrets.

C mixes Managed Identity with an api-key secret, which is not the correct pattern for Azure OpenAI managed-identity authentication.

E uses an invalid identity value for this scenario. The accepted credential identities for external REST endpoint calls include HTTPEndpointHeaders , HTTPEndpointQueryString , Managed Identity , and Shared Access Signature .

Because the endpoint is Azure OpenAI and the question explicitly asks for the highest security , managed identity with the Cognitive Services resource ID is the Microsoft-aligned answer.

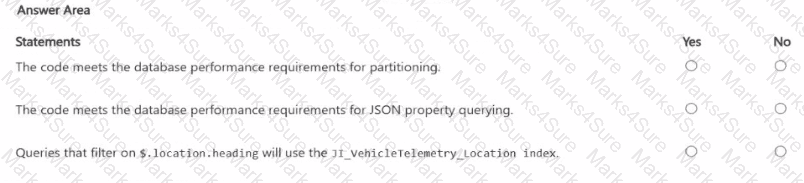

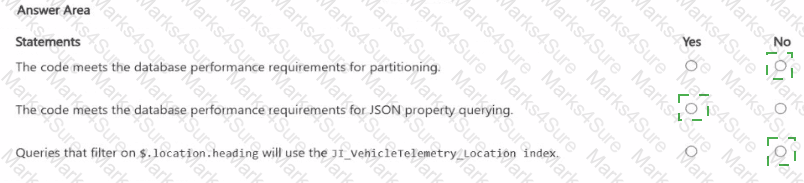

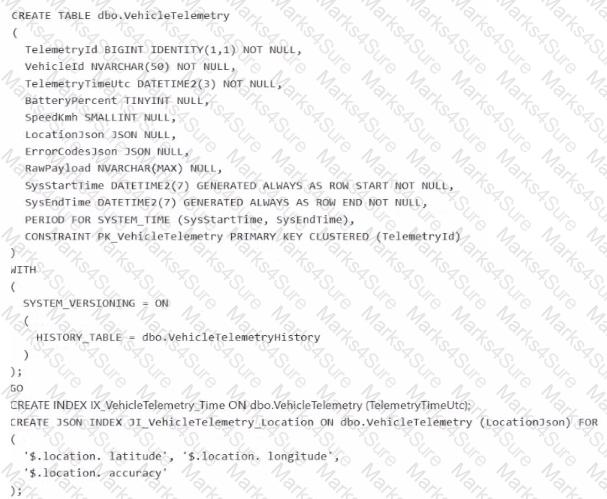

The first statement is No . The requirement says telemetry data must be stored in a partitioned table to provide predictable performance for ingestion and retention operations. However, the shown CREATE TABLE statement does not define a partition function or partition scheme, and the table is created with a regular clustered primary key on TelemetryId. Microsoft’s partitioning guidance states that creating a partitioned table requires a partition function , a partition scheme , and creating the table or index on that partition scheme using a partitioning column. None of that appears in the code, so the table is not partitioned.

The second statement is Yes . The code creates a JSON index named JI_VehicleTelemetry_Location on LocationJson for these specific JSON paths: $.location.latitude, $.location.longitude, and $.location.accuracy. That matches the requirement that those JSON properties must be filterable by using an index seek . Microsoft documents that JSON indexing is used to optimize filtering and sorting on JSON properties, and the index only helps for the properties included in the index definition.

The third statement is No . The JSON index is defined only for latitude, longitude, and accuracy. A query filtering on $.location.heading references a different path that is not included in the index definition, so that query would not use JI_VehicleTelemetry_Location for that predicate. JSON indexes are path-specific; they do not automatically cover unrelated properties in the same JSON document.

The correct answer is D because the requirement is to enable similarity search over embedding vectors and to minimize latency . Microsoft documents that CREATE VECTOR INDEX is specifically used to create an index on vector data for approximate nearest neighbor (ANN) search , which is designed to accelerate vector similarity queries compared to exact k-nearest-neighbor scans.

This matches the scenario exactly. The VehicleHealthSummary table already includes an Embeddings (vector(1536)) column. In Microsoft SQL platforms, embeddings are stored in vector columns and queried for semantic similarity. To improve performance and reduce response time, Microsoft recommends a vector index , not a regular B-tree nonclustered index and not a full-text index. A vector index is purpose-built for finding the most similar vectors efficiently.

The other options are not appropriate:

A would require manual comparison logic and would increase latency rather than minimize it.

B is incorrect because a standard nonclustered index is not the index type used for vector similarity operations.

C is incorrect because full-text indexes are for textual token-based search, not numeric vector embeddings.

Microsoft’s current documentation is explicit that vector indexes support approximate nearest neighbor search , and that the optimizer can use the ANN index automatically for vector queries. That is the exam-aligned design choice when the goal is fast retrieval of the most relevant health summary reports from an embeddings column.

The two correct actions are D and E because the ingestion failures are caused by malformed JSON and duplicate payloads , and these two controls address those two problems directly. Microsoft’s JSON documentation states that SQL Server and Azure SQL support validating JSON with ISJSON , and Microsoft specifically recommends using a CHECK constraint to ensure JSON text stored in a column is properly formatted.

For the duplicate-payload issue, creating a unique index on a hash of the payload is the appropriate design. Microsoft documents using hashing functions such as HASHBYTES to hash column values, and SQL Server allows a deterministic computed column to be used as a key column in a UNIQUE constraint or unique index . That makes a persisted hash-based computed column plus a unique index a practical and exam-consistent way to reject duplicate payloads efficiently.

The other options do not solve the stated root causes:

Snapshot isolation addresses concurrency behavior, not malformed JSON or duplicate payload detection.

A trigger to rewrite malformed JSON is not the right integrity control and is brittle.

Foreign key constraints enforce referential integrity, not JSON validity or duplicate-payload prevention

This also does not meet the goal. DROP PARTITION SCHEME removes the partition scheme object from the database; it is not the command used to remove just the rows for the oldest month from a partitioned table. Microsoft’s DROP PARTITION SCHEME documentation is explicit that the statement removes the partition scheme itself.

For removing only the oldest month’s rows with minimal impact, Microsoft points to partition-level maintenance operations such as truncating a single partition on a partitioned table. That targets only the needed data subset and is more efficient for retention workloads.

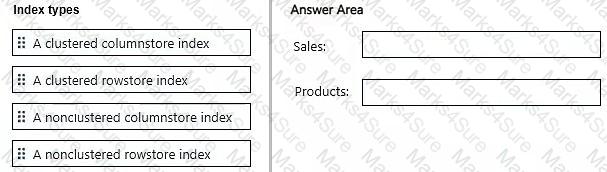

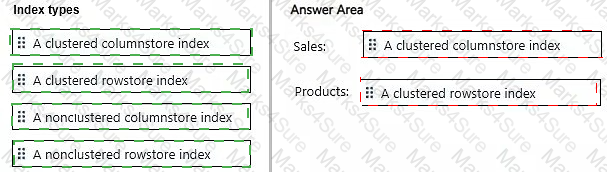

Sales → A clustered columnstore index

Products → A clustered rowstore index

For Sales , the correct choice is a clustered columnstore index . Microsoft identifies clustered columnstore indexes as the standard storage choice for large fact tables and analytical/data-warehouse workloads . The Sales table is 10 TB, loaded in nightly batches, and its reporting queries scan large portions of the table and perform aggregations such as SUM(TotalSale) . Those are exactly the workload characteristics that benefit from columnstore storage, batch-mode execution, aggregate pushdown, and high compression. Microsoft also notes that clustered columnstore indexes can provide substantial storage reduction compared with traditional uncompressed rowstore structures, which directly supports the requirement to minimize storage requirements .

For Products , the correct choice is a clustered rowstore index . Microsoft states that rowstore B-tree indexes perform best for point lookups, equality searches, and small-range retrieval , whereas columnstore is optimized for large analytical scans. Since Products is relatively small and primarily supports point lookups and joins to Sales , a rowstore structure is the better fit.

A nonclustered columnstore index would retain the underlying rowstore and add another compressed copy of selected columns, increasing storage. That is more appropriate for real-time analytics over an OLTP table, not for this dedicated large analytical fact table.

The correct answer is B because the problem is not the vector search operator itself. The problem is that embeddings are becoming stale when article content changes . Microsoft documents that change data capture (CDC) tracks insert, update, and delete operations on source tables, which makes it the right mechanism to identify only the rows that changed.

This also best satisfies the requirement to minimize CPU usage on SalesDB . With CDC, the database only records the row changes, and the embedding regeneration work can be moved to an external process such as an Azure Functions app. That avoids running embedding generation inline inside the database for every update and avoids repeatedly recalculating embeddings for unchanged rows. In contrast, an hourly full-table regeneration would be extremely wasteful on a table with two million frequently updated articles, and a trigger that calls embedding generation per row would push expensive AI work into the transactional path of the database.

Option A is incorrect because changing from VECTOR_SEARCH to VECTOR_DISTANCE does not regenerate embeddings; it only changes the retrieval method. Microsoft states that VECTOR_SEARCH is the ANN search function, while VECTOR_DISTANCE performs exact distance calculation, so neither option addresses stale embedding data.

So the right design is:

use CDC to detect only changed articles,

process those changes outside the database,

regenerate embeddings only for changed rows,

write back the refreshed embeddings for current semantic search results.

The best explanation is an open explicit transaction . During the incident, session 72 was sleeping but still had open_transaction_count = 1 , and sys.dm_exec_input_buffer(72, NULL) showed only BEGIN TRANSACTION UPDATE Sales.Orders. That pattern indicates the session executed an update inside an explicit transaction and then remained idle without committing or rolling back , while still holding locks. Other sessions showing blocking_session_id = 72 is the expected symptom of that situation. Microsoft explains that blocking occurs when one session holds a lock on a resource and another session requests a conflicting lock, and sleeping sessions can continue to block if they retain locks through an open transaction.

This also fits the observed behavior that the timeouts stopped only after session 72 was terminated . Killing the session would roll back the active transaction and release the locks, allowing waiting updates to continue. That is much more consistent with an uncommitted transaction than with a deadlock, because deadlocks are normally detected and one session is chosen as the victim automatically rather than persisting until manual termination.

The best recommendation is to use an MCP server . In the official DP-800 study guide , Microsoft explicitly lists skills such as configuring Model Context Protocol (MCP) tool options in a GitHub Copilot session and connecting to MCP server endpoints, including Microsoft SQL Server and Fabric Lakehouse . That makes MCP the exam-aligned mechanism for enabling AI-assisted tools to work with live database context rather than static snapshots.

This also matches the stated development requirement: the team will use Visual Studio Code and GitHub Copilot and needs to retrieve live metadata from the databases . Microsoft’s documentation for GitHub Copilot with the MSSQL extension explains that Copilot works with an active database connection , provides schema-aware suggestions , supports chatting with a connected database, and adapts responses based on the current database context . Microsoft also documents MCP as the standard way for AI tools to connect to external systems and data sources through discoverable tools and endpoints.

The other options do not satisfy the “live metadata” requirement as well:

A .dacpac is a point-in-time schema artifact, not live metadata.

A Copilot instruction file provides guidance, not live database discovery.

Including the database project in the repository helps source control and deployment, but it still does not provide live database metadata by itself.

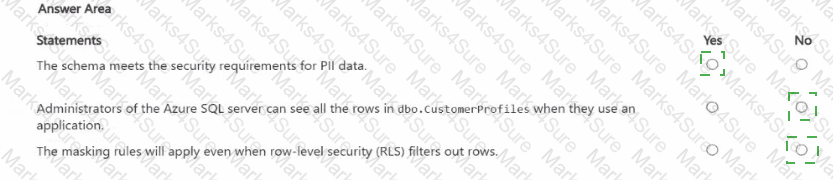

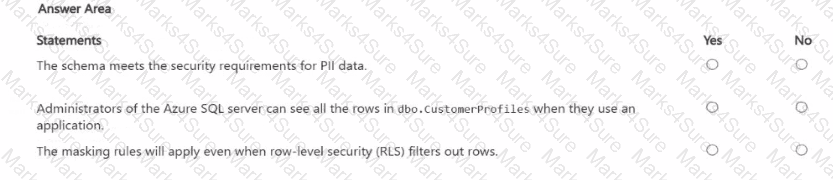

The schema meets the security requirements for PII data. → Yes

Administrators of the Azure SQL server can see all the rows in dbo.CustomerProfiles when they use an application. → No

The masking rules will apply even when row-level security (RLS) filters out rows. → No

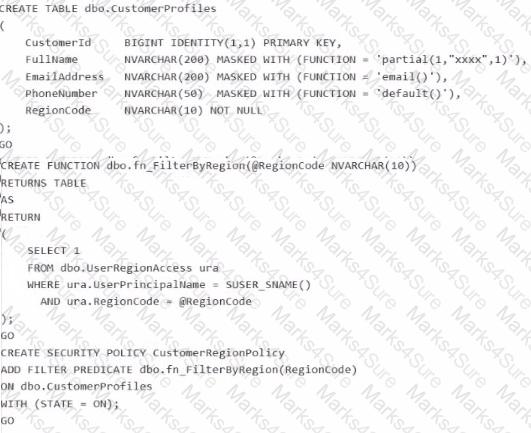

The first statement is Yes because the design combines two relevant SQL security controls for personally identifiable information: Dynamic Data Masking (DDM) on sensitive columns such as FullName, EmailAddress, and PhoneNumber, and Row-Level Security (RLS) to restrict which rows a user can access based on RegionCode. Microsoft documents that DDM limits sensitive data exposure for nonprivileged users , while RLS restricts row access according to the user executing the query. Together, these are valid and appropriate controls for protecting PII in Azure SQL Database.

The second statement is No . Administrative users can view unmasked data because administrative roles effectively have CONTROL, which includes UNMASK. However, that does not mean they automatically see all rows through the application query path defined by the RLS policy. The security policy filters rows based on SUSER_SNAME() and matching RegionCode, so row visibility is governed by the predicate unless the policy is altered or bypassed administratively. DDM and RLS solve different problems: DDM affects how returned values are shown, while RLS affects which rows are returned at all.

The third statement is No because masking only applies to data that is actually returned in the query result set. Microsoft describes DDM as hiding sensitive data in the result set of a query . If RLS filters a row out, that row is not returned, so there is nothing left for masking to act on. In other words, RLS eliminates inaccessible rows first from the user’s perspective, and DDM masks sensitive column values only on rows the user is allowed to see.

where exists 2. where p.PatientID = pr.PatientID Otherwise we filter PatientID twice. Having in the subquery does not work without group by and the date filter does not work without where.
