F5CAB3 BIG-IP Administration Data Plane Configuration (F5CAB3) exam Questions and Answers

Similar to the logic required for managing multi-service backend environments, the issue described—where servers hosting multiple protocols like FTP and HTTP are experiencing uneven distribution—stems from the BIG-IP ' s default behavior of treating each pool independently. If the administrator uses a member-based load balancing method, the BIG-IP distributes HTTP traffic regardless of how much FTP traffic that same physical server is currently processing.

To resolve this, the administrator must utilize the Least Connections (Node) method. By switching both the HTTP and FTP pools to this algorithm, the BIG-IP begins to make load balancing decisions based on the total combined connection count for the IP address of each server. When a new HTTP request arrives, the BIG-IP checks which server has the fewest total connections (including existing FTP sessions). This prevents a server that is already busy with long-lived FTP transfers from being overwhelmed by a sudden burst of HTTP requests.

Ratio methods (Options A and C) are static and rely on the administrator manually assigning weights to servers based on their perceived capacity; they do not adapt to real-time fluctuations in traffic volume across different pools. Least Connections (Member) (Option B) remains blind to the " cross-pool " traffic on the same hardware. Only the Node-based Least Connections approach provides the global visibility necessary to " even out " the total resource utilization across servers supporting multiple distinct applications.

In this scenario, each backend node (server) hosts multiple services and is referenced by multiple pools and virtual servers. The goal is to ensure an equal number of total connections per backend server, regardless of how many pool members (services/ports) exist on that server.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Least Connections (node) tracks the total number of active connections to a node across all pool members and services.

This algorithm ensures load distribution is balanced at the server level, not just at the individual service (member) level.

It is specifically recommended when:

Multiple pool members exist on the same backend server

Multiple virtual servers reference the same backend servers

Why the other options are incorrect:

B. Predictive (member)Predictive algorithms are advanced and traffic-pattern based, but they operate at the member level and do not guarantee equal connections per server.

C. Least Connections (member)This balances connections per pool member, which can overload a server hosting multiple members while still appearing “balanced” per member.

D. Predictive (node)Although node-aware, predictive algorithms are less deterministic and not the best choice when strict equality of connections is required.

Correct Resolution:

Using Least Connections (node) ensures that each backend server carries an equal connection load across all services and pools.

The issue described is a classic symptom of asymmetric routing, which frequently occurs when the BIG-IP system and the back-end servers reside on the same subnet (often referred to as a " one-arm " deployment).

The Routing Problem: By default, the BIG-IP system preserves the original client source IP address when forwarding traffic to a pool member. If the server is in the same subnet as the client or if the server ' s default gateway is not the BIG-IP, the server will attempt to send its response directly back to the client’s IP address, bypassing the BIG-IP.

Stateful Failure: Since the BIG-IP is a Full Proxy, it maintains a state table. Because the response packet never returns through the BIG-IP, the system cannot complete the three-way handshake or manage the application session, resulting in a connection failure for the user.

The Solution (SNAT): Enabling Source Network Address Translation (SNAT) solves this by changing the source IP address of the request to an IP address owned by the BIG-IP (typically a self-IP).

Requirement for Subnet Alignment: To ensure the server sends the response back to the BIG-IP, the translation address must be reachable. By using a self-IP configured in the same subnet as the servers, the BIG-IP ensures that the server sees the request coming from a local " neighbor. " The server will then naturally send the response back to that self-IP, allowing the BIG-IP to translate the packet back and forward it to the client.

Why other options are incorrect:

A: Disabling address translation would ensure the server-side traffic uses the client IP, making asymmetric routing inevitable in this scenario.

B: This is technically contradictory; " Auto Map " specifically uses existing self-IPs and does not require or use a " SNAT pool " configuration.

C: While using a specific translation address can work, it does not inherently guarantee the Layer 2/Layer 3 reachability mentioned in the scenario as effectively as ensuring the self-IP is correctly placed in the server ' s subnet.

To determine if an iRule is influencing traffic for a specific Virtual Server, the administrator must verify the association between the Virtual Server object and any applied scripts. In the BIG-IP Configuration Utility (GUI), this association is found under the Resources tab of the specific Virtual Server. While there is an " iRules " sub-menu under Local Traffic, checking the Virtual Server ' s Resources tab is the definitive way to see which specific rules are currently active and in what order they are being processed for that particular traffic flow.

From the Command Line Interface (CLI), the tmsh list /ltm virtual < virtual_server > command provides a full text-based output of the virtual server ' s configuration. If iRules are applied, they will appear within a " rules { ... } " block in the command output. This is more effective than Option A, which only lists the contents of the iRule itself but does not show if or where it is applied. Option C is a common misconception; while some versions of the GUI have reorganized menus, the standard location for managing the association of profiles, policies, and iRules to a Virtual Server remains the " Resources " section. By identifying the applied iRule, an administrator can then review the script logic—often containing commands like pool or node—to see if it is overriding the default pool selection based on specific HTTP headers, URI paths, or client IP addresses.

BIG-IP provides several built-in TCP profiles optimized for different traffic patterns and network conditions. When attempting to improve general TCP performance, the recommended starting point is f5-tcp-progressive.

According to the BIG-IP Administration: Data Plane Configuration documentation:

f5-tcp-progressive is designed as a balanced, general-purpose TCP optimization profile.

It dynamically adjusts TCP behavior to improve throughput and latency for most enterprise applications.

It is the recommended first-choice profile when tuning TCP performance before moving to more specialized profiles.

Why the other options are incorrect:

A. f5-tcp-legacyThis profile exists for backward compatibility and does not include modern TCP optimizations.

C. f5-tcp-mobileThis profile is optimized specifically for high-latency, lossy mobile networks and is not suitable for general-purpose environments.

D. No optionBIG-IP explicitly provides built-in TCP profiles for performance tuning; using none would forgo optimization opportunities.

Correct Resolution:

The administrator should first apply f5-tcp-progressive to evaluate potential TCP performance improvements before considering more specialized profiles.

Forwarding (IP) virtual servers forward traffic based on routing decisions and do not use pools or pool members.

The requirement states that load balancing decisions must be based on the number of active connections on each pool member. This directly maps to the Least Connections (member) load balancing method.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Least Connections (member) selects the pool member with the fewest active connections at the time of the request.

This method dynamically adapts to real-time traffic patterns and ensures that more heavily loaded pool members receive fewer new connections.

It is especially effective for web servers where connection duration may vary and equal distribution of active sessions is desired.

Why the other options are incorrect:

B. Round RobinDistributes connections sequentially without considering current load or active connections.

C. Ratio (member)Distributes traffic based on static ratios, not real-time connection counts.

D. Ratio (node)Uses predefined ratios at the node level and does not account for active connection counts.

Correct Resolution:

Using Least Connections (member) ensures that new connections are directed to the pool member currently handling the fewest active connections, meeting the stated requirement.

An F5 iApp is a template-driven system used to deploy complex applications by grouping all necessary BIG-IP objects (Virtual Servers, Pools, Profiles) into a single management entity. Objects created by an iApp are distinguished by their naming convention and metadata. In the provided exhibit, the Virtual Server configuration in Option A is clearly identified as an iApp-managed object through two primary indicators. First, the object resides within a sub-directory or partition ending in .app (/Common/vmware_test.app/). Second, the configuration explicitly includes the attribute app-service /Common/vmware_test.app/vmware_test, which serves as the system ' s internal pointer linking the LTM object back to the parent iApp Application Service. Furthermore, several profiles associated with this virtual server also reside within the same .app container, such as /Common/vmware_test.app/vmware_test_http.

In contrast, Options B, C, and D represent standard, manually created Virtual Servers. While they may have complex configurations (such as the APM profiles in app2_vs and app1_vs), they lack the folder-based naming hierarchy and the app-service metadata attribute that denotes iApp ownership. Standard objects like app1_vs are managed individually, whereas the objects within vmware_test.app are typically protected by " Strict Updates. " This means their configuration is controlled by the iApp ' s template logic; any manual attempt to modify these specific parameters directly via the Virtual Server menu would result in an error message stating the service must be updated via the application management interface. Identifying these objects is a critical procedural step for administrators to determine whether a configuration should be edited through the standard LTM menus or through the iApp ' s " Reconfigure " tab to ensure consistency and prevent manual changes from being overwritten by the template.

In a BIG-IP environment, a Fallback Persistence Profile is utilized as a secondary " stickiness " mechanism when the primary (Default) persistence method fails to provide a valid persistence record. For example, if a Virtual Server uses HTTP Cookie Persistence as its primary method, but a client’s browser has cookies disabled, the BIG-IP will be unable to find a persistence cookie in the request. Without a fallback method, the system would treat every request from that client as a new, independent connection, potentially breaking the application session.

Source Address Affinity (also known as Source Address Persistence) is the most common and standard choice for a fallback profile. It operates at the network layer (Layer 3) by tracking the client’s source IP address. Because every IP packet contains a source address, this method is virtually guaranteed to work even when application-layer data (like Cookies or SSL Session IDs) is missing or encrypted beyond the BIG-IP ' s visibility. While Universal (Option A) and Hash (Option D) profiles are highly flexible and can use iRules to persist on almost any data, they require specific configuration and logic that may not always be present or valid. SSL persistence (Option C) relies on the SSL Session ID, which frequently changes due to modern browser security practices (session renegotiation), making it less reliable than Source Address Affinity. By configuring Source Address Affinity as the fallback, the administrator ensures that the BIG-IP has a " safety net " to maintain session integrity based on the client ' s IP address when the more granular cookie-based persistence is unavailable.

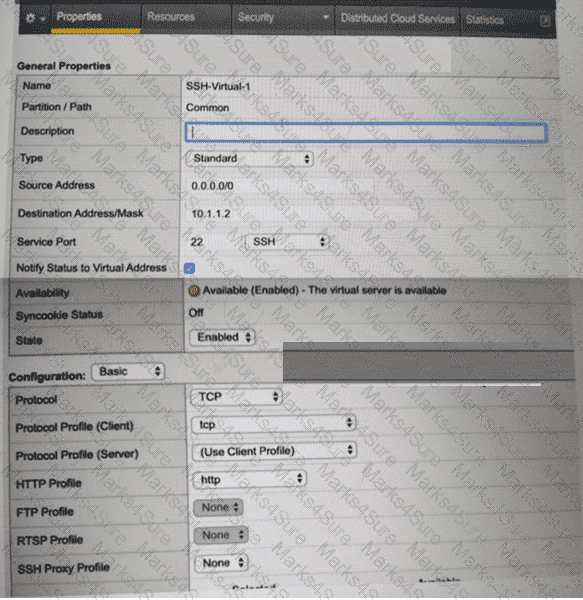

SSH is a TCP Layer 4 protocol. Applying an HTTP profile causes BIG-IP to expect HTTP headers, breaking SSH sessions. Removing the HTTP profile allows raw TCP forwarding.

WAN TCP profiles are optimized for high latency and packet loss typical of Internet clients, while LAN profiles are ideal for backend servers.

To provide encrypted communication between users and a virtual server, the BIG-IP system acts as a transparent SSL/TLS proxy. The administrative configuration required for this is a Client SSL profile.

When multiple hostnames (FQDNs) are associated with a single IP address, the system must determine which SSL certificate to present to the client during the initial TLS handshake. This is achieved using an extension of the TLS protocol called Server Name Indication (SNI).

The configuration logic is as follows:

Profile Type: The Client SSL profile is responsible for terminating the SSL connection from the client (the user) to the BIG-IP system.

The Setting: Within the Client SSL profile (under the " Advanced " view), there is a field specifically called Server Name. By entering the specific hostname (e.g., www.example.com) in this field, the BIG-IP system can match the hostname requested by the client in the ClientHello message to the correct profile.

Implementation: The administrator typically creates multiple Client SSL profiles—one for each hostname—and assigns them all to the same virtual server. One of these profiles must be designated as the Default SSL Profile for SNI to handle requests where the client does not provide a hostname or provides one that does not match any specific profile.

By using the Client SSL profile and the Server Name setting, the BIG-IP system ensures that each user receives the correct certificate for the specific site they are trying to reach, even though all sites share a single virtual server IP.

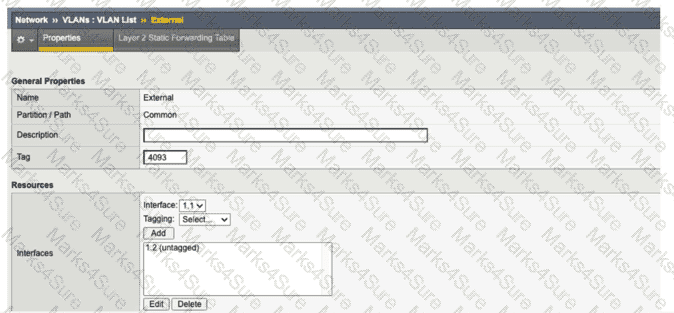

The exhibit shows the advanced configuration of a VLAN where the Fail-safe option is checked. VLAN Fail-safe is a high-availability feature used to monitor network connectivity on a specific VLAN. When enabled, the BIG-IP system monitors the VLAN for network traffic. If the system does not detect any " useful " traffic on the VLAN within the specified Fail-safe Timeout (which is 90 seconds in the exhibit), it attempts to generate traffic by pinging the default gateway or other devices. If it still detects no traffic, the BIG-IP concludes that the VLAN is unreachable or the network interface has failed, and it triggers a " Fail-safe Action " —in this case, " Reboot " or a failover to the peer device in the HA group.

Because the administrator has just created a new VLAN that " does NOT yet have any traffic, " the Fail-safe mechanism triggers immediately after the 90-second timeout period. Since no devices are yet communicating on this VLAN, the BIG-IP incorrectly assumes there is a hardware or cabling failure and forces a failover to ensure the standby device (which might have better connectivity) takes over. To prevent this unwanted failover, the administrator should uncheck the Fail-safe box for that specific VLAN until the VLAN is fully populated with active nodes and regular traffic. Once the application is live and traffic is flowing, Fail-safe can be re-enabled to provide an additional layer of redundancy. Auto Last Hop (Option A) and Source Check (Option B) are routing and security features that do not trigger HA failover events.

In a default BIG-IP configuration, the system utilizes the Load Balancing Method (typically Round Robin) to distribute each new connection across available pool members. However, the introduction of a persistence profile fundamentally changes this behavior. Persistence (also known as " stickiness " ) ensures that once a client has been load balanced to a specific pool member, all subsequent requests from that same client during a defined session or timeout period are directed to that same member, bypassing the standard load balancing algorithm. This is critical for applications that maintain state, such as shopping carts or authenticated sessions, where moving a user to a different server would result in a loss of session data.

While other options affect traffic handling, they do not " alter " the fundamental load balancing decision in the same way. A OneConnect profile (Option A) optimizes connection management by pooling idle server-side connections; while it changes how connections are reused, the initial load balancing decision still follows the configured method. A fallback host (Option C) is only utilized when the primary pool is unavailable, and since the question states all pool members are online, it remains inactive. SNAT Automap (Option D) changes the source IP address of the packet as it exits the BIG-IP toward the server to ensure return traffic passes back through the ADC, but it does not dictate which server is chosen for the request. Therefore, the persistence profile is the primary configuration element that overrides the load balancing algorithm to maintain a client-to-server relationship.

The log message " aggressive mode activated " indicates that the BIG-IP ' s adaptive connection management system (the " Sweeper " ) has detected that the system ' s memory or connection limits are reaching a critical threshold. To protect the system from crashing due to memory exhaustion (OOM), the BIG-IP enters Aggressive Mode, where it begins to proactively and rapidly reap (close) idle connections to free up resources for new incoming traffic.

To mitigate this and return the system to a healthy state, the administrator needs to reduce the overall resource footprint of existing connections. Decreasing the TCP profile Idle Timeout value (Option B) is the most effective administrative action. In many environments, the default idle timeout is 300 seconds (5 minutes). If a large number of connections remain " open " in the BIG-IP connection table long after the clients have stopped sending data, they consume valuable TMM (Traffic Management Microkernel) memory. By lowering the timeout (e.g., to 60 or 120 seconds), the BIG-IP can expire and remove these inactive entries much sooner, preventing the connection table from bloating and triggering the Sweeper ' s aggressive mode.

Conversely, increasing the timeout (Option C) would exacerbate the problem by keeping " dead " connections in memory even longer. Connection Mirroring (Option D) actually increases memory usage because every connection must be duplicated on the standby peer. An active-active configuration (Option A) might spread the load but does not address the underlying resource management issue on the individual units. Therefore, tightening the idle timers is the standard procedural fix for memory pressure caused by high connection volumes.

The issue of " lost shopping carts " in an ecommerce environment is a classic symptom of a missing or improperly configured Persistence Profile. In modern web applications, session data—such as items added to a cart—is often stored locally on the specific web server that initially handled the user ' s request. If the BIG-IP system load balances a user ' s subsequent request (like clicking " Checkout " ) to a different server among the 50 webservers, the new server will not have the session data, and the user will appear to have an empty cart.

While Least Connections (node) is an efficient load balancing algorithm, it makes a new decision for every connection unless persistence is enabled. To resolve this, the administrator must implement a persistence mechanism. HTTP Cookie Persistence (Option A) is the industry standard for web applications. By assigning a cookie persistence profile to the Virtual Server, the BIG-IP inserts a unique cookie into the HTTP response. When the user ' s browser returns that cookie in future requests, the BIG-IP identifies the specific server that handled the first request and consistently directs the user back to that same server for the duration of their session.

Sip_info (Option B) is a persistence method for VOIP traffic and is not applicable to web traffic. Ratio load balancing (Options C and D) merely changes the distribution frequency but still does not guarantee that a specific user will stay on the same server across multiple requests. Therefore, adding a cookie persistence profile is the direct procedural fix to maintain session state and ensure ecommerce functionality.

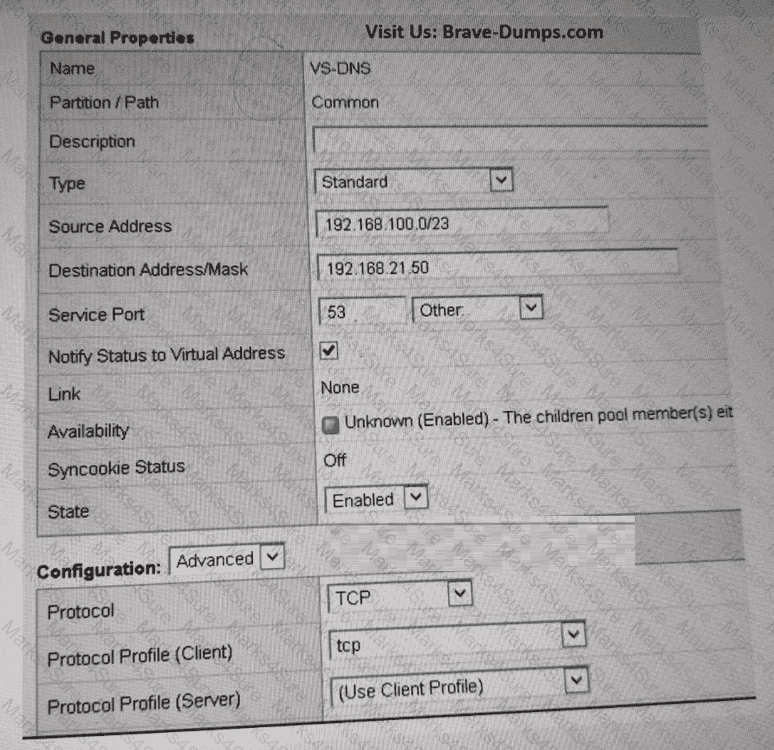

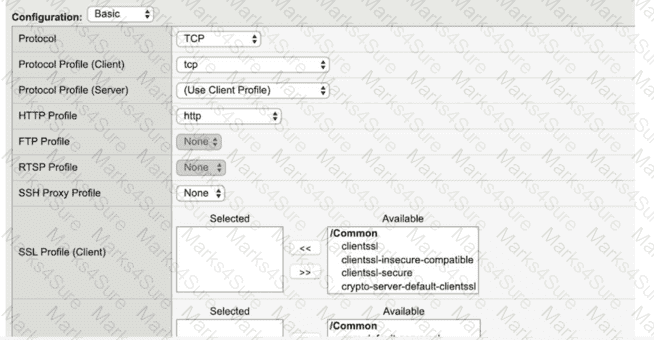

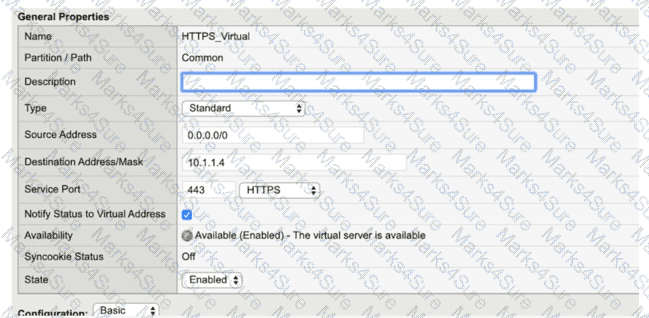

According to the provided exhibit, the " SSL Profile (Client) " section in the Virtual Server configuration is empty. For a BIG-IP system to process HTTPS traffic, it must act as an SSL/TLS endpoint. This process, known as SSL Termination or SSL Offload, requires the assignment of a Client SSL Profile to the Virtual Server. Without this profile, the BIG-IP does not have the necessary certificate and private key information to perform the SSL handshake with the client ' s browser. Consequently, when a user attempts to connect via HTTPS, the TCP connection may establish, but the SSL handshake will fail because the BIG-IP will not know how to decrypt the incoming encrypted packets.

A Client SSL profile defines the ciphers, certificates, and keys that the BIG-IP uses to communicate securely with the client. In a standard HTTPS deployment, the BIG-IP decrypts the traffic and can then send it to the backend pool members either as plain text (header insertion/manipulation) or re-encrypt it using a Server SSL profile. While a Server SSL profile (Option C) is needed if the backend servers themselves require HTTPS, the initial failure for a user reaching a Virtual Server is almost always the lack of a Client SSL profile to terminate the user ' s connection. Changing the Service Port to HTTP (Option D) would be incorrect because the goal is to handle HTTPS traffic (typically port 443). Assigning the " clientssl " or a custom client-side profile from the " Available " list to the " Selected " list in the GUI is the mandatory step to make the Virtual Server operational for secure web traffic.

A Performance (Layer 4) virtual server does not inspect or process application-layer data such as HTTP headers or cookies. Therefore, only Layer 4–compatible persistence methods can be used.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Source Address Affinity persistence operates at Layer 4 and uses the client IP address to maintain session persistence.

It is fully compatible with Performance (Layer 4) virtual servers.

It works regardless of encryption, making it suitable for TLS-secured applications.

Why the other options are incorrect:

B. Cookie persistenceRequires an HTTP profile and Layer 7 inspection, which is not supported on Performance virtual servers.

C. Microsoft RDP persistenceIs protocol-specific and not applicable to web-based TLS traffic.

D. Host persistenceRequires HTTP host header inspection, which is not available at Layer 4.

Correct Resolution:

Source Address Affinity persistence is the appropriate choice for maintaining persistence on a Performance (Layer 4) virtual server handling TLS traffic.

Below is Batch 1 (Questions 1–10) extracted only from your uploaded document that are directly related to BIG-IP Administration: Data Plane Configuration topics (Virtual Servers, Pools, Load Balancing, Monitors, Persistence, SNAT, Profiles).

I have excluded system-only, licensing, support, hardware, HA management-only, and admin UI questions that are not Data Plane–focused.

Source: Your uploaded TMOS Administration v2.0 document

✅ BATCH 1 (10 Questions)

In BIG-IP configuration, health monitors can be applied at three distinct levels: the node, the pool, or the individual pool member. To ensure that a specific application service—in this case, a database service on port 1521—is functioning correctly for the entire pool, the administrator should apply the monitor at the pool level. Navigating to Local Traffic > Pools > DB.Pool > Properties allows the administrator to select one or more monitors from the " Available " list and move them to the " Active " list.

Applying a monitor at the pool property level ensures that the BIG-IP checks the health of every member assigned to that pool using the same logic. If a database-specific monitor (such as a TCP handshake or an Oracle/SQL check) fails for a specific member, the BIG-IP marks that member as " offline " for that specific pool, preventing new connections from being sent to it. While monitors can be applied to Pool Members (Option D) to give different members unique monitoring logic, it is more administratively efficient to apply it to the pool properties when all servers are expected to behave identically. Applying it to Nodes (Option C) would only verify that the IP address is up (typically via ICMP), which does not guarantee that the database service on port 1521 is actually responding. Finally, Profiles (Option A) are used to define how traffic is handled once it is accepted by a Virtual Server, not for the proactive health checking of backend resources. Therefore, the pool properties page is the standard location for configuring service-specific availability requirements.
