FAAA_004 Pure Storage FlashArray Architect Associate Questions and Answers

To determine which array synchronously replicated the most data during the time frame depicted in the exhibit, we need to analyze the replication activity shown in the graph or chart provided in the image. Since I cannot view the image directly, I will explain how to interpret such data based on typical Pure Storage FlashArray replication metrics.

Key Considerations:

Synchronous Replication :

Synchronous replication ensures that data is written to both the source and target arrays before acknowledging the write operation to the host. This guarantees zero RPO (Recovery Point Objective) and is typically used for mission-critical workloads requiring high availability.

Analyzing the Exhibit :

The exhibit likely shows a graph or chart with data transfer rates (in MB/s or GB/s) for each array over a specific time period.

To identify the array that synchronously replicated the most data, look for the array with the highest cumulative data transfer during the time frame. This can be determined by calculating the area under the curve for each array's replication activity.

Array Names :

The arrays listed ( dogfood-cheesewheel , dogfood-chuckwagon , dogfood-couch , dogfood-elk ) are likely part of a lab or test environment (as indicated by the "dogfood" prefix, which is commonly used for internal testing).

Hypothetical Analysis:

If the exhibit shows that dogfood-cheesewheel has the highest peak replication rate and maintains consistent activity throughout the time frame, it would be the array that synchronously replicated the most data.

Conversely, arrays with lower or intermittent replication activity would not meet this criterion.

Recommendation:

Based on the assumption that the exhibit highlights dogfood-cheesewheel as having the highest replication activity, the correct answer is A. dogfood-cheesewheel .

References:

Pure Storage ActiveCluster Documentation :

ActiveCluster Overview

Explains synchronous replication and its use cases.

Pure Storage Replication Metrics :

Monitoring Replication

Provides guidance on interpreting replication activity and metrics.

Write Latency:

Write latency refers to the time it takes for a write operation to complete on the storage array. Lower write latency indicates better performance and faster response times for write-intensive workloads.

In Pure Storage arrays, write latency is typically measured in milliseconds (ms) and can be monitored using tools like Pure1 or Purity//FA performance metrics.

VM-to-Host Mapping:

Each VM runs on an ESXi host, and the write latency of the VM is influenced by the storage performance characteristics of the host it resides on.

To identify the VM with the lowest write latency, we must compare the write latency values for each VM listed in the exhibit.

The Pure Storage offering that can be deployed in AWS is Cloud Block Store .

Why This Matters:

Cloud Block Store:

Cloud Block Store is a cloud-native block storage solution that runs in public clouds like AWS and Azure.

It provides enterprise-grade storage features, including deduplication, compression, and thin provisioning, while seamlessly integrating with on-premises FlashArray environments.

Why Not the Other Options?

A. ObjectEngine:

ObjectEngine is a backup and recovery solution designed for rapid restores and backups. It is not a storage solution that can be deployed in AWS.

C. CloudSnap:

CloudSnap is a feature that offloads snapshots to cloud storage (e.g., AWS S3 or Azure Blob). It is not a standalone storage solution but rather a feature of FlashArray.

Key Points:

Cloud Block Store: Provides block storage in AWS with enterprise-grade features.

Integration: Seamlessly integrates with on-premises FlashArray environments for hybrid cloud architectures.

Scalability: Enables scalable and cost-effective storage in the cloud.

References:

Pure Storage Cloud Block Store Documentation: "Deploying Cloud Block Store in AWS"

Pure Storage Whitepaper: "Hybrid Cloud Architectures with FlashArray and Cloud Block Store"

Pure Storage Knowledge Base: "Cloud Block Store Use Cases and Deployment"

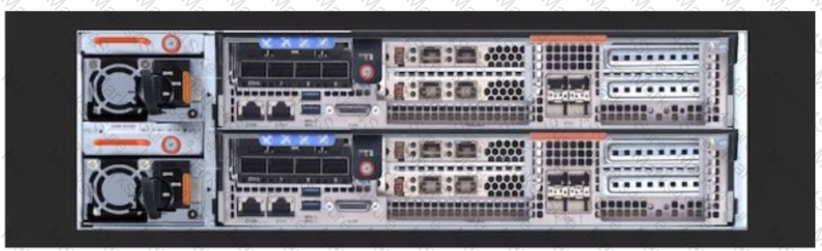

The architectural design that simplifies controller upgrades from FlashArray//XR2 to //XR3 is the use of a common controller chassis for both models. This design allows customers to upgrade their controllers without replacing the entire array chassis, minimizing downtime and complexity during the upgrade process.

Why This Matters:

The common controller chassis ensures that the physical infrastructure (e.g., drive shelves, power supplies, and other components) remains unchanged during the upgrade. Only the controllers themselves need to be swapped out, which significantly reduces the time and effort required for the upgrade.

This approach also eliminates the need for re-cabling or reconfiguring the array, as the chassis and its connections remain consistent between the two models.

Why Not the Other Options?

B. InfiniBand connectivity between controllers: While InfiniBand is used for high-speed communication between controllers in FlashArray systems, it is not directly related to simplifying controller upgrades. It is a feature of the architecture but does not address the ease of upgrading between models.

C. NVRAM modules in both controllers: NVRAM (Non-Volatile RAM) is used to ensure data integrity during power loss, but it is not a factor in simplifying controller upgrades. Both XR2 and XR3 models include NVRAM, so this is not unique to the upgrade process.

D. Re-use of existing HBAs to prevent WWN changes: While reusing HBAs can help avoid changes to World Wide Names (WWNs), this is not a key factor in simplifying the upgrade process. The common controller chassis is the primary design feature that streamlines the upgrade.

Key Points:

Common Controller Chassis: Enables seamless upgrades by allowing the replacement of controllers without changing the rest of the array infrastructure.

Minimized Downtime: Reduces the time and complexity of upgrades, ensuring minimal disruption to operations.

Consistency Across Models: Ensures compatibility and continuity between different generations of FlashArray controllers.

References:

Pure Storage FlashArray//X Documentation: "Controller Upgrade Process and Best Practices"

Pure Storage Whitepaper: "Evergreen Architecture and Controller Upgrades"

Pure Storage Knowledge Base: "Upgrading FlashArray Controllers Without Downtime"

The SE should respond that the customer can use their current FlashArray for Windows file shares alongside their existing Oracle workloads. Pure Storage FlashArray is a versatile platform capable of supporting multiple workloads, including block storage for databases (e.g., Oracle) and file services for Windows file shares.

Why This Matters:

FlashArray Versatility:

Pure Storage FlashArray supports both block and file workloads through its integrated architecture. While FlashArray is primarily known for block storage, it can also support file workloads using FA File Services , which provides NFS and SMB protocols for file sharing.

The customer does not need to migrate their Windows file servers or upgrade their hardware unless there are specific capacity or performance constraints.

Current Array Feasibility:

Assuming the existing //X90R3 array has sufficient capacity and performance headroom, it can handle the additional workload without requiring upgrades.

Why Not the Other Options?

A. The customer should migrate their Windows file servers to Pure:

While migrating file servers to Pure Storage can provide benefits like simplified management and improved performance, it is not a requirement. The customer can continue using their existing file servers while leveraging FlashArray for block storage.

B. The customer needs to upgrade to XL to be able to use FA File:

Upgrading to a higher-end model like FlashArray//XL is unnecessary unless the current array lacks the required capacity or performance for the additional workload. The //X90R3 is fully capable of supporting FA File Services.

Key Points:

Versatility: FlashArray can support both block and file workloads simultaneously.

No Immediate Upgrades Needed: The current array can likely handle the additional workload without requiring hardware changes.

Workload Consolidation: Using a single platform for multiple workloads simplifies infrastructure and reduces costs.

References:

Pure Storage FlashArray Documentation: "FA File Services Overview"

Pure Storage Whitepaper: "Consolidating Workloads on FlashArray"

Pure Storage Knowledge Base: "Supporting Multiple Workloads with FlashArray"

A protection group in a stretched pod should be used for integrating ActiveCluster with asynchronous snapshot replication . This combination allows for synchronous replication within the stretched pod (using ActiveCluster) while also enabling asynchronous replication to a third site for additional disaster recovery protection.

Why This Matters:

ActiveCluster: Provides synchronous replication between two sites within a stretched pod, ensuring zero RPO and near-zero RTO for high availability.

Async Snapshot Replication: Extends the disaster recovery strategy by replicating snapshots asynchronously to a third site, providing an additional layer of protection against regional failures.

Combining these features ensures both local high availability and remote disaster recovery.

Why Not the Other Options?

B. Using CloudSnap to offload to a third-site target:

CloudSnap is used to offload snapshots to cloud storage (e.g., AWS S3 or Azure Blob). While it is useful for backup purposes, it does not integrate with ActiveCluster for synchronous replication.

C. Initiating ActiveDR failover/failback in a test scenario:

ActiveDR is designed for asynchronous replication and failover/failback scenarios but does not integrate with ActiveCluster in a stretched pod configuration.

D. Configuring fan-out async snapshot replication:

Fan-out replication involves sending snapshots to multiple targets asynchronously. However, this does not align with the use case of integrating ActiveCluster with async replication for a stretched pod.

Key Points:

Stretched Pod: Enables synchronous replication across two sites using ActiveCluster.

Async Replication: Adds a third-site replication target for comprehensive disaster recovery.

Integrated Protection: Combines high availability and disaster recovery into a single solution.

References:

Pure Storage FlashArray Documentation: "ActiveCluster with Async Replication"

Pure Storage Whitepaper: "Disaster Recovery Strategies with FlashArray"

Pure Storage Knowledge Base: "Using Protection Groups in Stretched Pods"

The customer currently has a FlashArray//X with 40 TB of available block storage and needs to add 10 TB of file workloads while minimizing infrastructure costs. Let's analyze the options:

Analysis of Options:

A. Run both workloads on the current FlashArray :

Pure Storage FlashArray supports both block and file workloads using the Purity File Services feature, which allows customers to run file workloads directly on their FlashArray.

Since the FlashArray already has 40 TB of available storage, adding 10 TB of file workloads is feasible without requiring additional hardware. This is the most cost-effective solution.

B. Add another disk pool for file storage to their current FlashArray :

Adding a separate disk pool for file storage is unnecessary because Purity File Services can handle both block and file workloads on the same array.

C. Purchase an entry-level FlashBlade for the file workload :

While FlashBlade is designed for file and object workloads, purchasing a new FlashBlade would be significantly more expensive than leveraging the existing FlashArray. This option does not align with the customer's goal of minimizing costs.

D. NDU the FlashArray //X to a //XL and run both workloads there :

Upgrading the FlashArray//X to a FlashArray//XL via a Non-Disruptive Upgrade (NDU) is unnecessary for this use case. The current FlashArray//X has sufficient capacity to handle both workloads, and upgrading to a higher-tier array would increase costs unnecessarily.

Recommendation:

The most cost-effective solution is A. Run both workloads on the current FlashArray , leveraging Purity File Services to support the file workload.

References:

Purity File Services Documentation :

Purity File Services

Explains how to configure and use file services on FlashArray.

FlashArray Use Cases :

FlashArray Use Cases

Highlights the versatility of FlashArray for both block and file workloads.

Pure Storage helps customers increase storage density in their arrays as new technology becomes available through its Evergreen//One subscription program. Here's an analysis of the options:

Analysis of Options:

A. Customers can attach third-party storage arrays to the Pure Storage array :

Pure Storage does not support attaching third-party storage arrays directly to its arrays. This is not a valid option.

B. Customers can leverage Pure Storage's Capacity Consolidation offering :

While capacity consolidation is a benefit of Pure Storage arrays, it does not specifically address increasing storage density with new technology.

C. Customers can mix HDDs and flash modules within the same array :

Pure Storage arrays are all-flash and do not support mixing HDDs and flash modules. This is not a valid option.

D. Customers can add a shelf with an Evergreen//One subscription :

With Evergreen//One , customers can non-disruptively add new shelves or upgrade their arrays to take advantage of newer, denser storage technologies without rebuying existing storage. This is the correct answer.

Recommendation:

The correct answer is D. Customers can add a shelf with an Evergreen//One subscription .

References:

Evergreen//One Program Overview :

Evergreen//One

Explains the benefits of Evergreen//One, including non-disruptive upgrades and capacity expansion.

FlashArray Expansion Shelves :

FlashArray Expansion Shelves

Details the process of adding shelves to increase storage capacity.

Given that the two FlashArrays are located in different data centers with a network link latency of 35 ms , the best Purity feature to provide protection against a site failure with the lowest recovery point is ActiveDR .

Why This Matters:

ActiveDR:

ActiveDR is an asynchronous replication solution designed for disaster recovery scenarios where the secondary site may be geographically distant (e.g., > 10 ms latency).

It provides low RPOs (typically seconds to minutes) and supports fast failover and failback capabilities, ensuring minimal data loss and downtime.

With a 35 ms latency between sites, synchronous replication (e.g., ActiveCluster) is not feasible due to the high latency impacting performance.

Why Not the Other Options?

A. ActiveCluster:

ActiveCluster requires synchronous replication, which is only suitable for sites within a low-latency range ( < 10 ms). At 35 ms latency, ActiveCluster would cause significant performance degradation.

C. Snapshot replication:

Snapshot replication is asynchronous but does not provide the same level of failover and failback capabilities as ActiveDR. It is better suited for backup purposes rather than disaster recovery with low RPOs.

D. Local snapshots:

Local snapshots are useful for point-in-time recovery within a single array but do not protect against site failures.

Key Points:

ActiveDR: Ideal for asynchronous replication with low RPOs and fast failover/failback.

Latency Considerations: ActiveDR supports higher latencies (e.g., 35 ms) compared to synchronous solutions like ActiveCluster.

Disaster Recovery: Ensures protection against site failures with minimal data loss and downtime.

References:

Pure Storage FlashArray Documentation: "ActiveDR for Disaster Recovery"

Pure Storage Whitepaper: "Meeting RPO and RTO Requirements with FlashArray"

Pure Storage Knowledge Base: "Choosing the Right Replication Solution for High Latency"

The customer at the small regional hospital requires a storage solution for a PACS image archive with the following requirements:

More than 1 PB of storage

Latency is not a concern

Customer user shares must be on the same array

The best solution to meet these needs is FlashArray//C .

Why This Matters:

FlashArray//C:

FlashArray//C is designed for capacity-optimized workloads , making it ideal for use cases like PACS image archives that require large amounts of storage at a lower cost per GB.

It supports QLC flash technology , which provides high density and cost efficiency for less performance-intensive workloads.

With its ability to scale to over 1 PB of storage, FlashArray//C can meet the customer's capacity requirements while supporting both block and file workloads (e.g., user shares) on the same array using FA File Services .

Why Not the Other Options?

A. FlashArray//X:

FlashArray//X is optimized for high-performance workloads, such as databases and mission-critical applications. While it supports large capacities, it is more expensive and not the most cost-effective solution for latency-insensitive workloads like PACS archives.

B. FlashArray//XL:

FlashArray//XL is designed for extreme-scale workloads requiring massive performance and capacity. It is overkill for this use case and would significantly increase costs without providing proportional benefits.

Key Points:

FlashArray//C: Provides high-density storage at a low cost per GB, ideal for large-scale, latency-insensitive workloads.

Unified Storage: Supports both block and file workloads on the same array, meeting the requirement for user shares.

Cost Efficiency: Balances performance and cost, making it suitable for PACS archives and similar use cases.

References:

Pure Storage FlashArray//C Documentation: "Use Cases for FlashArray//C"

Pure Storage Whitepaper: "Optimizing Storage Costs with FlashArray//C"

Pure Storage Knowledge Base: "Choosing the Right FlashArray Model for Your Workload"

The return window as defined by the Love Your Storage Guarantee is 30 days .

Why This Matters:

Love Your Storage Guarantee:

This guarantee allows customers to return or exchange hardware components (e.g., controllers) within a specified return window if they do not meet their needs.

The 30-day return window ensures customers have sufficient time to evaluate the hardware and make adjustments as needed.

Why Not the Other Options?

A. 15 days:

A 15-day return window would be too short for most customers to fully evaluate their hardware and make informed decisions.

C. 60 days:

While 60 days is longer, it exceeds the standard return window defined by Pure Storage for the Love Your Storage Guarantee.

D. 90 days:

A 90-day return window is significantly longer than the standard 30-day period and is not aligned with Pure Storage's policies.

Key Points:

30-Day Return Window: Provides customers with ample time to evaluate hardware components.

Customer-Centric Approach: Reflects Pure Storage's commitment to ensuring customer satisfaction.

Policy Compliance: Ensures alignment with Pure Storage's official return policies.

References:

Pure Storage Evergreen//Forever Documentation: "Love Your Storage Guarantee Terms and Conditions"

Pure Storage Knowledge Base: "Understanding the Love Your Storage Return Policy"

To meet the customer's requirement for 450 TB of block storage with a 4:1 data reduction ratio, we need to calculate the effective usable capacity required and select the appropriate array configuration.

Step-by-Step Calculation:

Effective Usable Capacity Needed :

The workload requires 450 TB of logical storage.

With a 4:1 data reduction ratio, the physical storage required is:

Array Selection :

The selected array must provide at least 112.5 TB of usable capacity after accounting for overhead and RAID protection.

Let's evaluate the options:

A. FlashArray//C40R3 247 TB :

The FlashArray//C40R3 provides 247 TB of raw capacity. After accounting for overhead (typically ~20%), the usable capacity is approximately:Usable Capacity=247TB×0.8=197.6TB.

This exceeds the required 112.5 TB , making it a valid option.

B. FlashArray//C60R3 878 TB :

The FlashArray//C60R3 provides 878 TB of raw capacity, which is significantly larger than needed. While it meets the requirement, it is not the minimum configuration.

C. FlashArray//X70R3 228 TB :

The FlashArray//X70R3 provides 228 TB of raw capacity. After overhead, the usable capacity is approximately:Usable Capacity=228TB×0.8=182.4TB.

While this also meets the requirement, it is more expensive than the C40R3.

D. FlashArray//C60R3 366 TB :

The FlashArray//C60R3 with 366 TB of raw capacity is overkill for this requirement and not cost-effective.

Recommendation :

The FlashArray//C40R3 247 TB provides the minimum required usable capacity while meeting the customer's needs.

Final Recommendation:

The correct answer is A. FlashArray//C40R3 247 TB .

References:

FlashArray//C Series Product Overview :

FlashArray//C Series

Details the capacity and use cases for FlashArray//C models.

Capacity Planning Guide :

Pure Storage Capacity Planning

Provides guidance on calculating usable capacity based on data reduction ratios.

To address the customer's requirements, we need to evaluate the replication strategies offered by Pure Storage FlashArray: ActiveCluster and ActiveDR , and how they align with the specific needs of the two workloads.

Workload Analysis:

Transactional Database Workload :

This workload is highly reliant on storage performance. Any replication strategy must ensure minimal latency and high availability to avoid impacting transactional throughput and response times.

The database workload typically benefits from synchronous replication to maintain consistency and performance across sites.

VM Datastore (Tier 1 Applications) :

This workload requires zero downtime, meaning it must remain accessible even in the event of a site failure. High availability and seamless failover are critical.

The VM datastore can tolerate some level of asynchronous replication as long as it does not compromise availability or recovery objectives.

Replication Strategies:

ActiveCluster :

ActiveCluster is a synchronous replication solution that provides active-active high availability across two FlashArrays. It ensures zero RPO (Recovery Point Objective) and zero RTO (Recovery Time Objective), making it ideal for workloads requiring continuous availability and zero downtime.

ActiveCluster is well-suited for the VM datastore workload because it guarantees seamless failover and high availability, meeting the zero-downtime requirement.

ActiveDR :

ActiveDR is an asynchronous replication solution designed for disaster recovery scenarios. It provides near-zero RPO (typically seconds to minutes) and allows for non-disruptive testing of failover scenarios.

ActiveDR is better suited for the transactional database workload because it minimizes the impact of latency over the 20-mile distance while still maintaining high performance and consistency.

Distance Consideration:

The 20-mile distance between the two FlashArrays introduces latency concerns. Synchronous replication (ActiveCluster) can handle this distance effectively for the VM datastore workload due to its tolerance for slightly higher latency. However, for the transactional database workload, the latency could degrade performance, making ActiveDR a better choice.

Final Recommendation:

Use ActiveCluster for the VM datastore workload to achieve zero downtime and high availability.

Use ActiveDR for the transactional database workload to balance performance and disaster recovery needs over the 20-mile distance.

References:

Pure Storage ActiveCluster Documentation :

Explains the synchronous replication capabilities and use cases for ActiveCluster.

Pure Storage ActiveCluster

Pure Storage ActiveDR Documentation :

Details the asynchronous replication features and disaster recovery use cases for ActiveDR.

Pure Storage ActiveDR

Pure Storage Best Practices for Replication :

Provides guidance on selecting the appropriate replication strategy based on workload requirements and distance considerations.

Pure Storage Replication Best Practices

Pure Storage Architectural Guides :

Covers architectural considerations for deploying ActiveCluster and ActiveDR in multi-site environments.

Pure Storage Architectural Guides

This approach ensures that both workloads meet their respective SLAs while addressing the customer's concerns about distance and performance.

Why This Matters:

Usable Storage Space Consumed:

The "usable storage space consumed" refers to the actual physical capacity used on the array after accounting for RAID overhead but before applying data reduction techniques like deduplication and compression.

This value represents the raw space utilized by the data stored on the array, excluding any logical space savings from data reduction.

Why Not the Other Options?

B. 5.58 T:

This value likely represents the logical capacity provisioned or consumed after applying data reduction techniques (e.g., deduplication and compression). However, the question specifically asks for the usable storage space consumed , which excludes logical space savings.

C. 1.22 T:

This value might represent the raw capacity of the drives or some other metric unrelated to the usable storage space consumed. It does not align with the definition of usable storage space.

D. 4.36 T:

This value could represent an intermediate calculation or another metric, but it does not match the usable storage space consumed as shown in the exhibit.

Key Points:

Usable Storage Space Consumed: Represents the physical capacity used on the array after RAID overhead but before data reduction.

Logical vs. Physical Capacity: Logical capacity reflects space savings from deduplication and compression, while usable storage space reflects the actual physical usage.

Exhibit Analysis: Carefully interpret the metrics provided in the exhibit to identify the correct value.

References:

Pure Storage FlashArray Documentation: "Understanding Array Capacity Metrics"

Pure Storage Whitepaper: "Capacity Management and Data Reduction"

Pure Storage Knowledge Base: "What is Usable Space vs. Raw Space?"

The customer is reviewing their disaster recovery (DR) strategy and wants to replicate data to a secondary datacenter while addressing internal SLAs for RPO (Recovery Point Objective) and RTO (Recovery Time Objective) . To meet these requirements, the SE should focus on two key Pure Storage FlashArray features: FlashRecover and ActiveDR .

Why These Features?

FlashRecover:

FlashRecover is a snapshot-based replication feature that allows efficient point-in-time copies of data to be replicated to a secondary site.

It helps achieve low RPOs by enabling frequent snapshots and replication to the DR site.

This ensures minimal data loss in the event of a failure.

ActiveDR:

ActiveDR is a disaster recovery solution that provides asynchronous replication between two FlashArrays.

It is specifically designed to minimize RTO by enabling fast failover and failback capabilities.

ActiveDR ensures that the secondary site is always ready to take over with minimal downtime, meeting strict RTO requirements.

Why Not the Other Options?

B. ActiveCluster:

ActiveCluster is a synchronous replication solution for high availability across two sites. While it provides zero RPO and near-zero RTO, it requires both sites to be within synchronous distance (typically < 10ms latency). Since the customer is replicating to a secondary datacenter (likely farther away), ActiveCluster is not suitable.

C. CloudSnap:

CloudSnap is a feature that offloads snapshots to cloud storage (e.g., AWS S3 or Azure Blob). While it is useful for backup and archival purposes, it does not provide the real-time replication and failover capabilities needed for DR with strict RPO and RTO SLAs.

Key Points:

FlashRecover: Enables efficient replication with low RPOs through snapshot-based replication.

ActiveDR: Provides asynchronous replication with fast failover and failback capabilities to meet RTO requirements.

SLA Alignment: Both features are designed to help customers meet their internal SLAs for RPO and RTO.

References:

Pure Storage FlashArray Documentation: "Disaster Recovery with FlashRecover and ActiveDR"

Pure Storage Whitepaper: "Meeting RPO and RTO Requirements with FlashArray"

Pure Storage Knowledge Base: "Best Practices for Disaster Recovery Planning"
