FCP_FAZ_AD-7.4 FCP - FortiAnalyzer 7.4 Administrator Questions and Answers

https://docs.fortinet.com/document/fortianalyzer/6.2.5/administration-guide/420493/modes

https://docs.fortinet.com/document/fortianalyzer/6.2.5/administration-guide/621804/log-forwarding

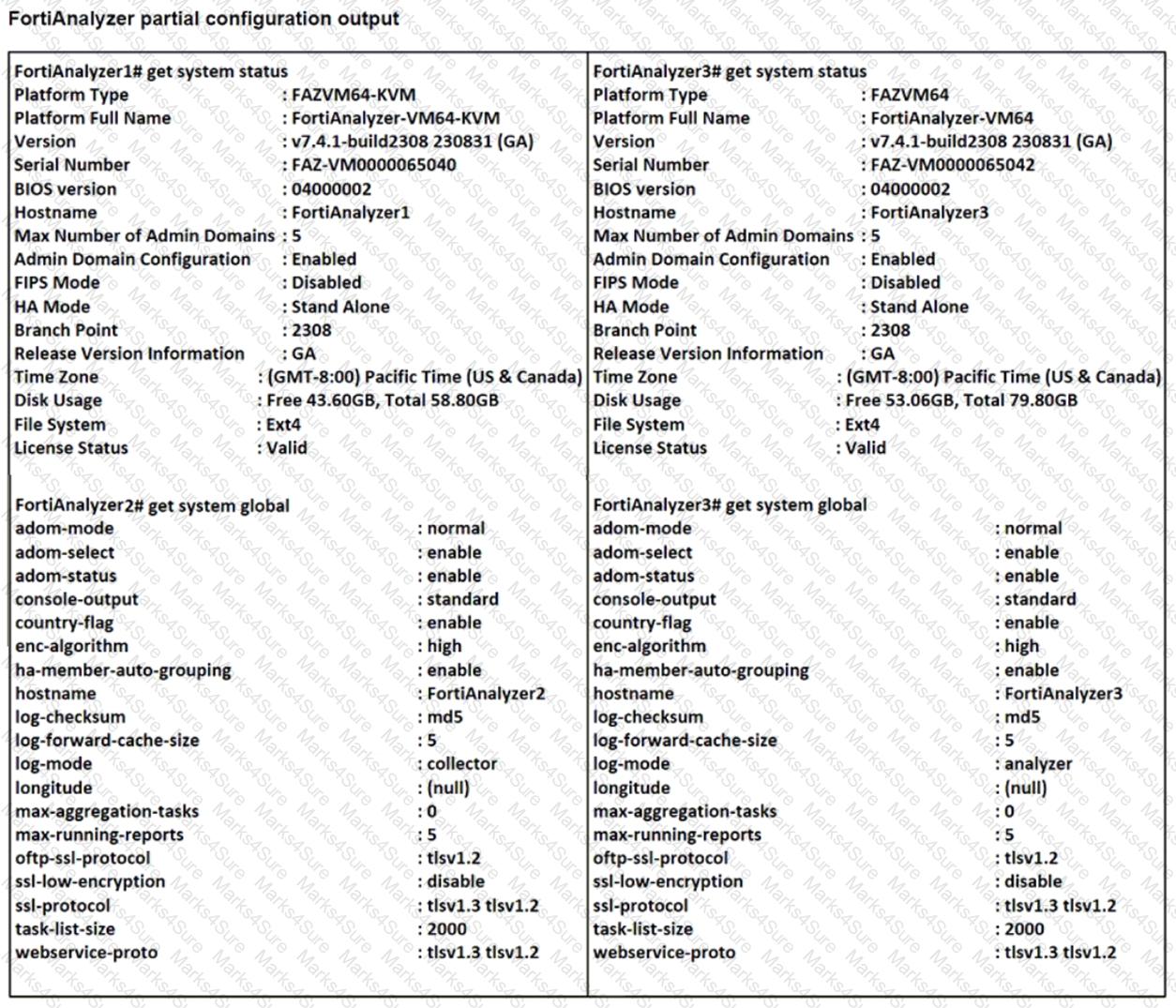

Based on the partial configuration output, the primary factor for determining which devices can be members of a FortiAnalyzer Fabric is the log-mode setting. Devices with the same log mode can be part of the same FortiAnalyzer Fabric.

FortiAnalyzer1: Log mode is set to collector.

FortiAnalyzer2: Log mode is set to collector.

FortiAnalyzer3: Log mode is set to analyzer.

Devices with the same log mode can be part of the same fabric. Since FortiAnalyzer1 and FortiAnalyzer2 both have their log modes set to collector, they can be members of a FortiAnalyzer Fabric.

Therefore, the correct answer is FortiAnalyzer1 and FortiAnalyzer2.

FortiAnalyzer_7.0_Study_Guide-Online.pdf page 242: Output variables allow you to use the output from a preceding task as an input to the current task.

"Output variables allow you to use the output from a preceding task as an input to the current task." FortiAnalyzer_7.0_Study_Guide-Online page 242

RAID level affects how much disk space is reserved for redundancy and fault tolerance. For example, RAID 1 mirrors data, meaning you need more space for redundancy, while RAID 5 or RAID 6 reserves space for parity.

Disk size directly influences the total available and reserved space since the larger the disk, the more space may need to be reserved for system functions, logs, and other operations.

The total quota and license type do not directly impact the reserved disk space, though they do influence other aspects of capacity and functionality.

Archive logs: When a real-time log file in Archive has been completely inserted, that file is compressed and considered to be offline." https://docs.fortinet.com/document/fortianalyzer/7.4.3/administration-guide/381919/logs

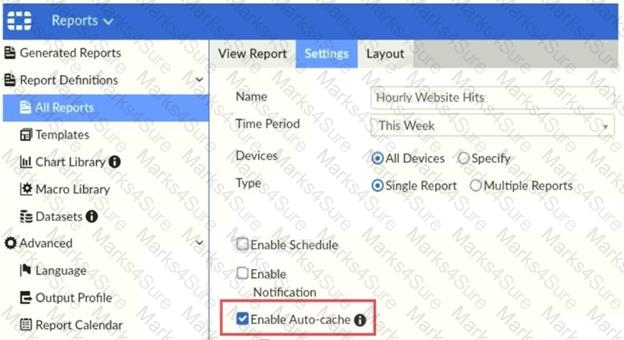

"Enable auto-cache in the report settings to boost the reporting performance and reduce report generation time. Scheduled reports have auto-cache enabled already."

FortiAnalyzer_7.0_Study_Guide-Online page 306

The miglogd process on FortiGate is responsible for handling log forwarding and caching. When FortiAnalyzer is unreachable, miglogd temporarily stores logs in a local cache until the connection is restored. This prevents log loss during temporary network interruptions or FortiAnalyzer outages.

https://docs.fortinet.com/document/fortianalyzer/6.2.5/cli-reference/395556/test#test_application

When the RAID status is Degraded, it typically indicates that one or more drives in the RAID array have failed or are missing, causing the RAID array to operate with reduced redundancy. In this state, the array is still functioning, but it's at risk because the fault tolerance provided by RAID is compromised.

A) FortiAnalyzer_7.0_Study_Guide-Online.pdf page 148: The log communication between devices can be protected by encryption, with the desired encryption level, using the commands shown on the slide. (You need to interpret this. "Real time" and "aggregation" is about the "moment" when Fortigate sends the logs. However, no matter the moment, Fortigate will upload logs encrypted or unencrypted based on previous / differente config).

C) FortiAnalyzer_7.0_Study_Guide-Online.pdf page 147: Aggregation: Logs and content files stored and uploaded at scheduled time.

You can add more than one fabric connector, each with the same or different notification settings. The receiving side of the connector must be configured for the notifications to be sent successfully.

FortiAnalyzer_7.0_Study_Guide-Online.pdf page 34: Fabric connectors also enable FortiAnalyzer to send notifications to ITSM platforms when a new incident is created or for any subsequent updates.

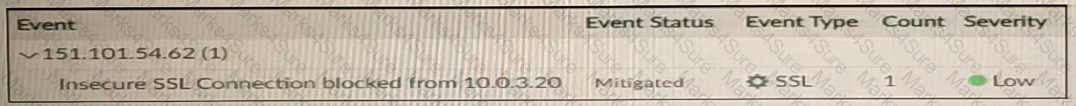

Events in FortiAnalyzer will be in one of four statuses. The current status will determine if more actions need to be taken by the security team or not.

The possible statuses are:

Unhandled: The security event risk is not mitigated or contained, so it is considered open.

Contained: The risk source is isolated.

Mitigated: The security risk is mitigated by being blocked or dropped.

(Blank): Other scenarios.

FortiAnalyzer_7.0_Study_Guide-Online pag. 189.

FortiAnalyzer_7.0_Study_Guide-Online.pdf page 189: Review the hardware requirements before you enable a management extension application. Some of them require a minimum amount of memory or a minimum number of CPU cores.

https://docs.fortinet.com/document/fortianalyzer/6.2.5/administration-guide/448471/creating-a-security-fabric-adom

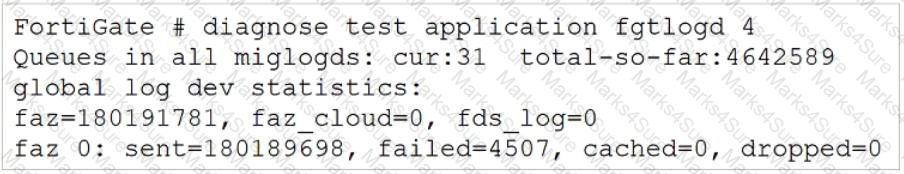

The output shows that FortiGate has sent a large number of logs (sent=180189698), but some logs have failed to be sent (failed=4507). This suggests that FortiAnalyzer was temporarily unavailable or had an issue receiving logs, leading to the failure count. There are no logs cached or dropped, indicating FortiGate is still attempting to send logs but with some failures.

FortiAnalyzer_7.0_Study_Guide-Online.pdf page 128: Are the device analytics logs required for reports in the new ADOM? If so, rebuild the new ADOM database

DOMs with registered devices cannot be deleted.

An ADOM cannot be deleted if it has registered devices. You must first remove or deregister the devices before deleting the ADOM.

The status of the ADOMs must be unlocked.

An ADOM must be in an unlocked state before it can be deleted. If the ADOM is locked, it will not allow deletion.

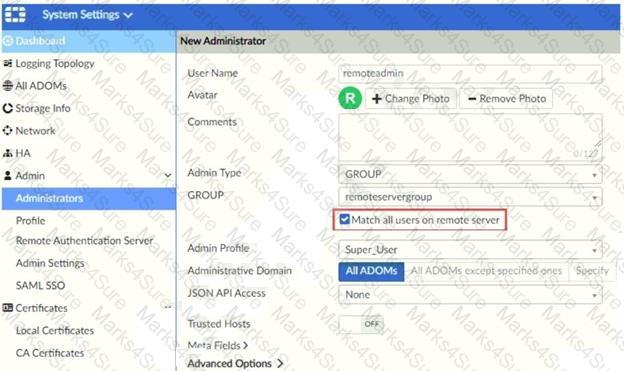

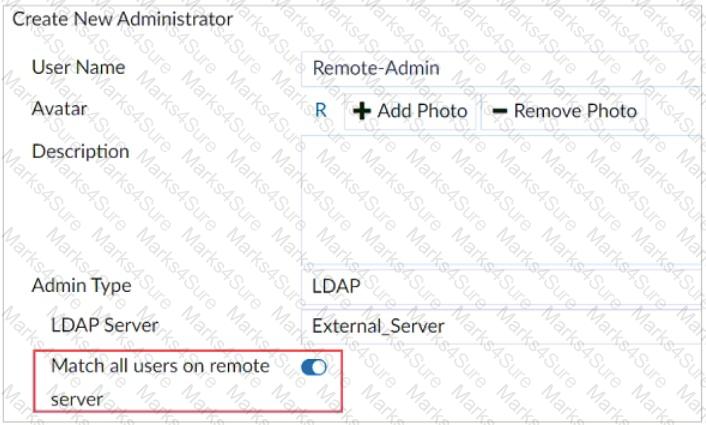

C. One or more remote LDAP servers: FortiAnalyzer needs to be configured to communicate with your external LDAP server where the user accounts and groups reside. This involves setting up the LDAP server address, port, and authentication details.

B. An administrator group: You need to create an administrator group on FortiAnalyzer and link it to the specific LDAP group that contains the users you want to grant administrative access. This allows any user within that LDAP group to authenticate and have the permissions assigned to the administrator group on FortiAnalyzer.

This configuration allows FortiAnalyzer to authenticate users against the external LDAP server and authorize them based on their membership in the designated LDAP group. This way, you don't need to create individual local accounts for each administrator, simplifying user management and centralizing authentication.

The two correct statements about high availability (HA) on FortiAnalyzer are:

FortiAnalyzer HA supports synchronization of logs as well as some system and configuration settings.

FortiAnalyzer HA synchronizes both logs and certain system configuration settings between the units in the cluster to ensure consistent operation.

All devices in a FortiAnalyzer HA cluster must run in the same operation mode, either analyzer mode or collector mode.

In an HA cluster, all devices must be configured to operat` e in the same mode — either analyzer mode or collector mode—to ensure consistency and proper functionality across the cluster.

The other options, such as VRRP, are not required for HA in FortiAnalyzer, and disk space can vary between nodes but may impact log storage capacity.

https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/137bb60e-ff37-11e8-8524-f8bc1258b856/fortianalyzer-fortigate-sql-technote-40-mr2.pdf

Playbook jobs that include one or more failed tasks are labeled as Failed in Playbook Monitor. FortiAnalyzer_7.0_Study Guide page No: 247

Playbook jobs that include one or more failed tasks are labeled as Failed in Playbook Monitor. A failed status, however, does not mean that all tasks failed. Some individual actions may have been completed successfully.

Both modes, forwarding and aggregation, support encryption of logs between devices.

Both forwarding and aggregation modes can use encryption to securely transfer logs between FortiAnalyzer devices.

Aggregation mode stores logs and content files and uploads them to another FortiAnalyzer device at a scheduled time.

In aggregation mode, logs are stored and then transferred to another FortiAnalyzer at a scheduled time, rather than in real-time. This mode is typically used when consolidating logs from multiple devices into a central FortiAnalyzer.

The other options are incorrect because:

Forwarding mode sends logs in real-time but not exclusively to other FortiAnalyzer devices; it can also send logs to external systems like syslog servers.

Aggregation mode is primarily for consolidating logs to another FortiAnalyzer and doesn't focus on forwarding logs to syslog or CEF servers.

When a device is moved from one ADOM to another, analytics logs can be moved automatically, but you may need to rebuild the database for the logs to be fully transferred and usable in the new ADOM. Archived logs, however, do not move automatically between ADOMs.

The Standard_User profile allows viewing logs and performing some device management tasks but typically does not allow configuring global settings like creating a mail server for alert emails. To create a mail server, the administrator would need to have a profile with higher privileges, such as Super_User or a custom profile with the necessary permissions.

What does the System Configuration backup include?

System information, such as the device IP address and administrative user information.

Device list, such as any devices you configured to allow log access.

Report information, such as any configured report settings, as well as all your custom report details. These are not the actual reports.

FortiAnalyzer_7.0_Study_Guide-Online pag. 29

FortiAnalyzer_7.0_Study_Guide-Online.pdf page 29: What does the System Configuration backup include?

• System information, such as the device IP address and administrative user information

• Device list, such as any devices you configured to allow log access

• Report information, such as any configured report settings, as well as all your custom report details. These are not the actual reports.

In a hardware RAID setup, FortiAnalyzer supports hot swapping, which allows you to replace a failed disk without shutting down the device. The RAID controller will automatically rebuild the array using the new disk, minimizing downtime and maintaining data integrity.

https://help.fortinet.com/fmgr/50hlp/56/5-6-1/FMG FAZ/1100_Storage/0017_Deleted%20device%20logs.htm

https://docs.fortinet.com/document/fortianalyzer/6.2.5/administration-guide/87802/automatic-deletion

https://docs.fortinet.com/document/fortigate/6.2.0/cookbook/747268/configuring-wildcard-admin-accounts

FortiAnalyzer_7.0_Study_Guide-Online.pdf page 217: Threat hunting consists in proactively searching for suspicious or potentially risky network activity in your environment. The proactive approach will help administrator find any threats that might have eluded detection by the current security solutions or configurations.

The Total Quota is derived from the total system storage minus any reserved space allocated for system use, such as databases, system files, or reserved space for log retention policies. Used storage and retention policies do not directly impact the calculation of the quota available, though they can influence overall space utilization.
