FCP_WCS_AD-7.4 FCP - AWS Cloud Security 7.4 Administrator Exam Questions and Answers

Web Filtering:

FortiGate for AWS offers advanced web filtering capabilities, which allow organizations to control and monitor web access. This feature complements AWS's native security services by providing granular control over web traffic (Option B).

OSPF over IPSec:

FortiGate for AWS can establish dynamic routing protocols such as OSPF (Open Shortest Path First) over IPSec tunnels. This capability enhances network routing flexibility and security, which is not natively provided by AWS (Option C).

Secure SD-WAN with Application Visibility:

FortiGate for AWS provides Secure SD-WAN functionality, offering enhanced application visibility and traffic management. This is a significant addition to AWS's networking services, optimizing application performance and security (Option E).

Comparison with Other Options:

Option A (Higher VPN throughput) is not specifically enhanced by FortiGate as compared to AWS native services.

Option D (Advanced dynamic routing) is partially covered under OSPF over IPSec but is not as specific as the other chosen options.

References:

FortiGate for AWS Documentation: FortiGate on AWS

AWS Networking and Content Delivery: AWS Networking

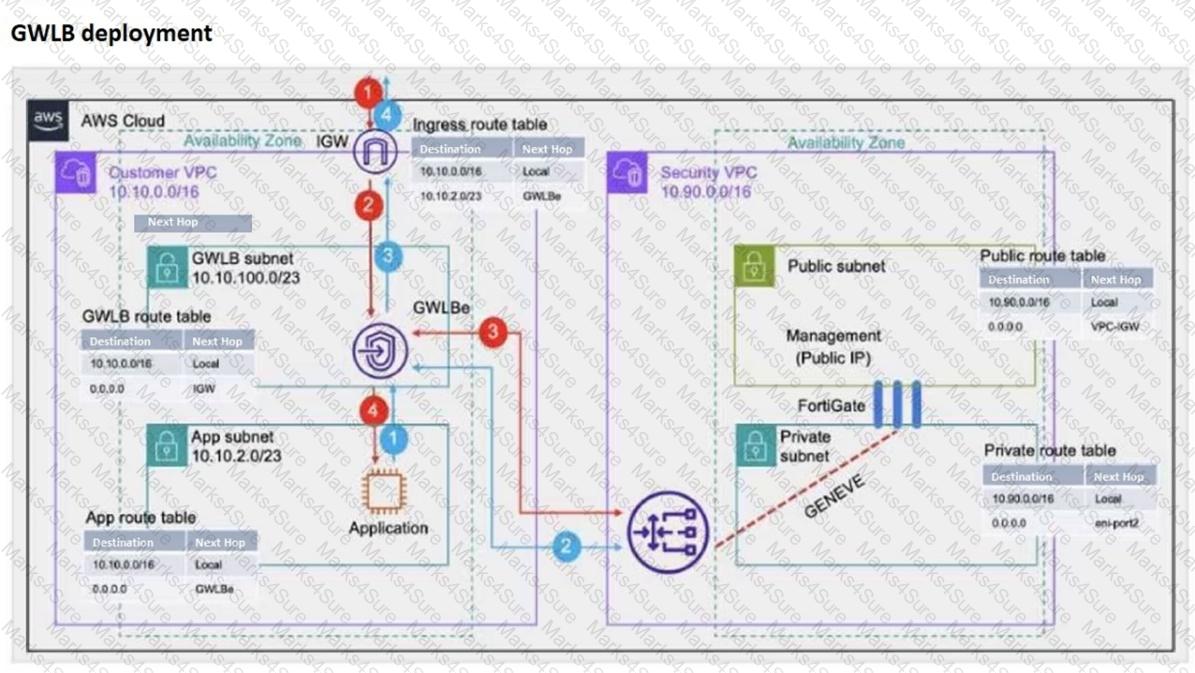

Traffic Direction through GWLB Endpoint:

The ingress route table directs inbound traffic to the GWLB through a GWLB endpoint (GWLBe). This endpoint is responsible for directing traffic to the Gateway Load Balancer for further processing (Option B).

GENEVE Encapsulation:

The GWLB encapsulates the inbound traffic using the GENEVE protocol. This encapsulated traffic is then sent to FortiGate instances for security inspection. The use of GENEVE ensures that the original traffic context is preserved and can be analyzed by FortiGate (Option D).

Other Options Analysis:

Option A is incorrect because GWLB does not forward traffic without encapsulation in its dedicated subnet.

Option C is incorrect as the inbound traffic is directed to the GWLB endpoint first, not directly to the application subnet.

References:

AWS Gateway Load Balancer Documentation: AWS GWLB

GENEVE Protocol Overview: GENEVE Protocol

FortiGate Cloud-Native Firewall (CNF):

FortiGate CNF offers cloud-native firewall capabilities designed to provide network security within AWS. It integrates seamlessly with AWS services and offers advanced threat protection and traffic management (Option C).

Fortinet Managed Rules for AWS WAF:

Fortinet Managed Rules for AWS WAF provide pre-configured, updated security rules that protect web applications from common threats such as SQL injection and cross-site scripting. This offering simplifies the protection of web applications hosted on AWS (Option D).

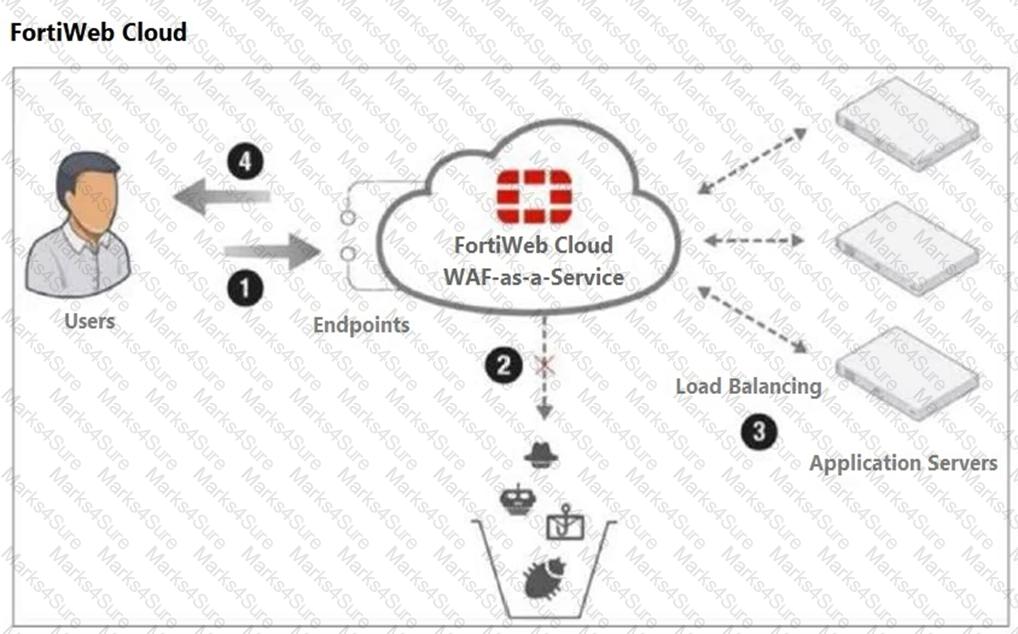

FortiWeb Cloud:

FortiWeb Cloud is a Web Application Firewall (WAF) as a service that provides comprehensive protection for web applications hosted on AWS. It offers features such as bot mitigation, DDoS protection, and deep inspection of HTTP/HTTPS traffic (Option E).

Comparison with Other Options:

Option A (AWS WAF) is a native AWS service, not a Fortinet offering.

Option B (FortiEDR) is focused on endpoint detection and response, which is not specifically aimed at protecting web applications.

References:

FortiGate CNF Documentation: FortiGate CNF

Fortinet Managed Rules for AWS WAF: Fortinet AWS WAF Rules

FortiWeb Cloud Overview: FortiWeb Cloud

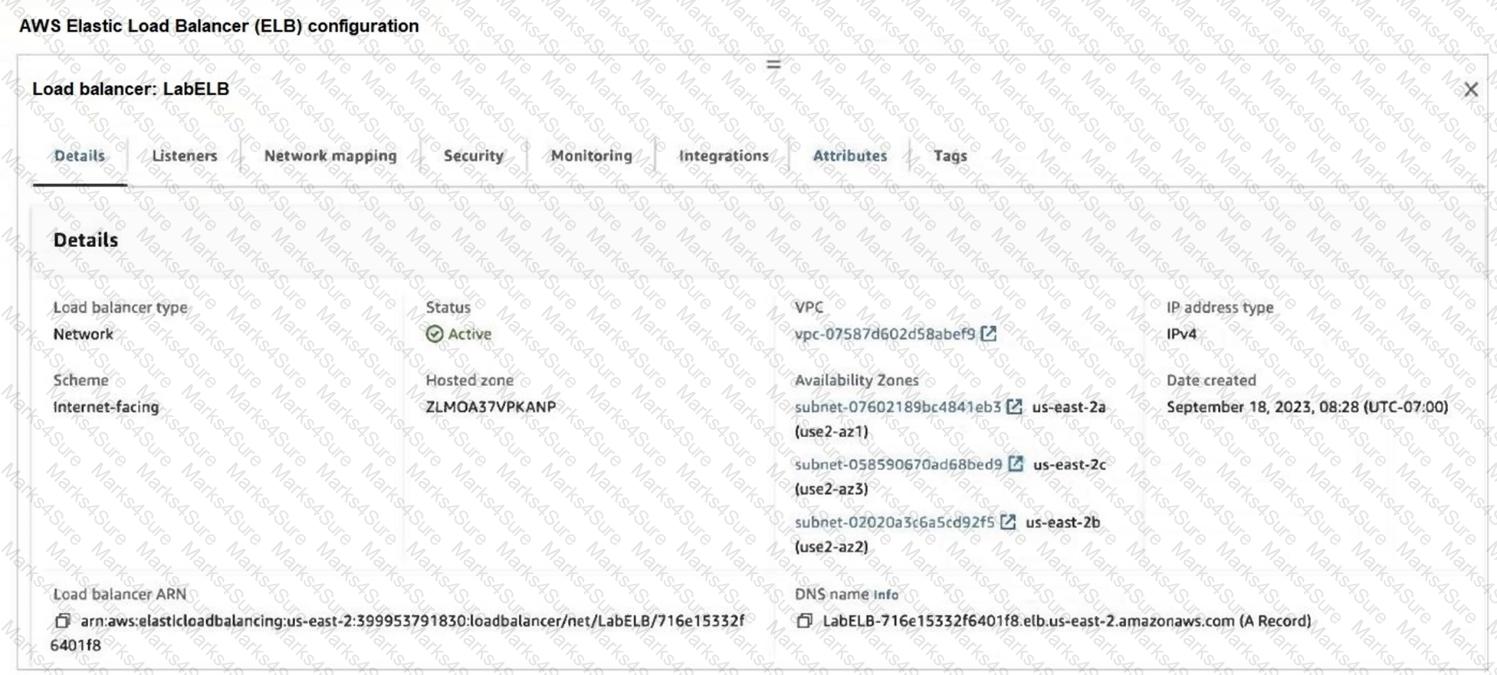

Load Balancer Configuration Overview:

The provided configuration indicates that the ELB is an internet-facing load balancer.

Multi-AZ Load Balancing:

The load balancer is configured to distribute traffic across multiple availability zones (A, B, and C), ensuring high availability and fault tolerance (Option A).

Accessing Targets via DNS:

The DNS name of the load balancer (LabELB-716e15332f6401f8.elb.us-east-2.amazonaws.com) can be used to reach the targets behind the ELB, facilitating traffic routing to the appropriate instances (Option C).

Comparison with Other Options:

Option B is incorrect as the ARN is not used to access the load balancer directly.

Option D is incorrect because the load balancer is configured for internet-facing traffic, not just internal VPC traffic.

References:

AWS Elastic Load Balancer Documentation: AWS ELB

Understanding ELB DNS: AWS ELB DNS

ENI Attachment Across Availability Zones:

Elastic Network Interfaces (ENIs) are associated with a specific Availability Zone. They cannot be attached to instances that are in a different Availability Zone than where the ENI was created. Therefore, an ENI created in Availability Zone 1 cannot be attached to an instance in Availability Zone 2 (Option A).

ENI Reattachment:

ENIs can be detached from one instance and reattached to another instance within the same Availability Zone. This flexibility allows for network interface configuration to be preserved across instance changes within the same AZ.

Other Options Analysis:

Option B is incorrect because an ENI can be reattached to any instance in the same AZ.

Option C is incorrect as the primary ENI (eth0) cannot be detached from an instance.

Option D is incorrect because when an ENI is moved, the traffic is directed to the new instance, and there is no redirection to the old instance.

References:

AWS ENI Documentation: Elastic Network Interfaces

AWS Networking Best Practices: AWS Networking

FortiSandbox Deployment:

FortiSandbox for AWS deploys new EC2 instances to create isolated environments where it can safely execute and analyze suspicious files. These instances run custom Windows and Linux virtual machines specifically configured for sandboxing (Option D).

Sandboxing Process:

The process involves sending potential malware to these isolated VMs, executing it, and monitoring its behavior to detect malicious activities. The results are then captured and analyzed to provide detailed threat intelligence.

Other Options Analysis:

Option A is incorrect because FortiSandbox for AWS operates entirely within the AWS environment and does not require an on-premises manager.

Option B is incorrect as the FortiSandbox manager is not installed on the AWS platform for managing on-premises instances.

Option C is incorrect because FortiSandbox requires sufficient resources to perform the actual sandboxing and analysis tasks.

References:

FortiSandbox for AWS Documentation: FortiSandbox

Sandboxing Concepts: Sandboxing

Understanding the Requirement:

The organization needs to connect a data VPC to the on-premises infrastructure with high bandwidth.

The solution should avoid multiple connections between sites.

Transit Gateway Connect:

Transit Gateway Connect is designed to integrate with SD-WAN networks and provides scalable bandwidth using GRE tunnels.

It simplifies hybrid cloud connectivity by allowing high bandwidth connections without the need for multiple physical connections.

Benefits of Transit Gateway Connect:

Supports scalable bandwidth through GRE tunnels.

Facilitates seamless integration with on-premises and cloud environments.

Reduces complexity by avoiding the need for multiple VPN connections.

Comparison with Other Options:

Option A (Transit VPC with IPSec) is not preferred due to complexity and potential limitations in bandwidth scalability.

Option B (Internet Gateway) is not suitable for private, high-bandwidth connections.

Option C (Transit Gateway multicast) does not address the requirement for high bandwidth in a hybrid cloud setup.

References:

AWS Transit Gateway Documentation: AWS Transit Gateway Connect

Hybrid Cloud Connectivity: AWS Hybrid Cloud
