The OSPF database optimization is necessary to reduce unnecessary routing information and improve network performance. In the given topology, Area 0.0.0.1 is a non-backbone area connected to Area 0.0.0.0 (the backbone area) through an Area Border Router (ABR).

To optimize OSPF in this scenario, configuring Area 0.0.0.1 as a Stub Area will:

● Reduce the size of the OSPF database by preventing external routes (from outside OSPF) from being injected into Area 0.0.0.1.

● Allow only intra-area and inter-area routes, meaning routers in Area 0.0.0.1 will rely on a default route for external destinations.

● Improve convergence time and reduce router processing load since fewer LSAs (Link-State Advertisements) are exchanged.

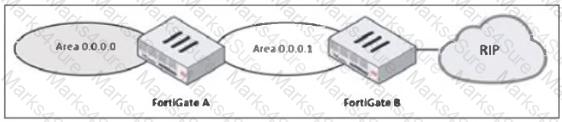

The diagram shows a multi-area OSPF network where:

● FortiGate A is in OSPF Area 0 (Backbone area).

● FortiGate B is in OSPF Area 0.0.0.1 and is connected to an RIP network.

To ensure that OSPF Area 0 (0.0.0.0) learns routes from the external RIP network, FortiGate B must redistribute RIP routes into OSPF.

Steps to achieve this:

1. Enable route redistribution on FortiGate B to inject RIP-learned routes into OSPF.

2. This allows OSPF Area 0.0.0.1 to forward RIP routes to OSPF Area 0 (0.0.0.0), making the external network visible.

Applying an aggressive IPS profile without prior testing can disrupt legitimate applications by incorrectly identifying normal traffic as malicious. To prevent disruptions while still monitoring for threats:

● Enable IPS in "Monitor Mode" first:

● This allows FortiGate to log and analyze potential threats without actively blocking traffic.

● Administrators can review logs and fine-tune IPS signatures to minimize false positives before switching to blocking mode.

● Verify and adjust signature patterns:

● Some signatures might trigger unnecessary blocks for legitimate application traffic.

● By analyzing logs, administrators can disable or modify specific rules causing false positives.

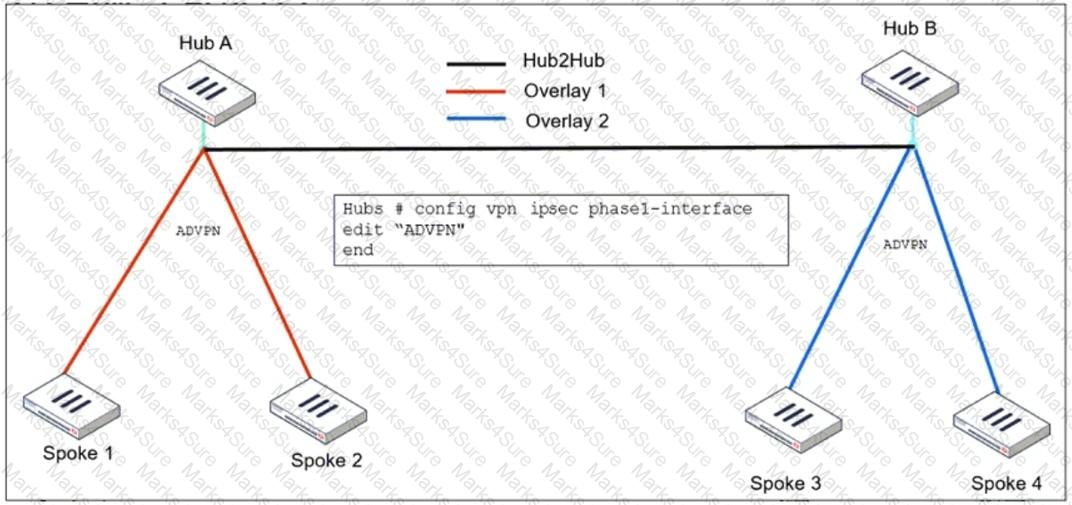

When configuring ADVPN (Auto-Discovery VPN) to connect overlay networks across different hubs using IBGP and EBGP, special configurations are required to allow spokes from different overlay networks to dynamically establish tunnels.

● set auto-discovery-crossover enable

● This allows cross-hub tunnel discovery in an ADVPN deployment where multiple hubs are used.

● Since Hub A and Hub B belong to different overlays, enabling crossover discovery ensures that spokes from one overlay can dynamically create direct tunnels to spokes in the other overlay when needed.

● set enforce-multihop enable

● This setting ensures that BGP peers using loopback interfaces can establish connectivity even if they are not directly connected.

● Multihop BGP sessions are required when using loopback addresses as BGP peer sources because the connection might need to traverse multiple routers before reaching the BGP neighbor.

● This is especially useful in ADVPN deployments with multiple hubs, where routes might need to cross from one hub to another.

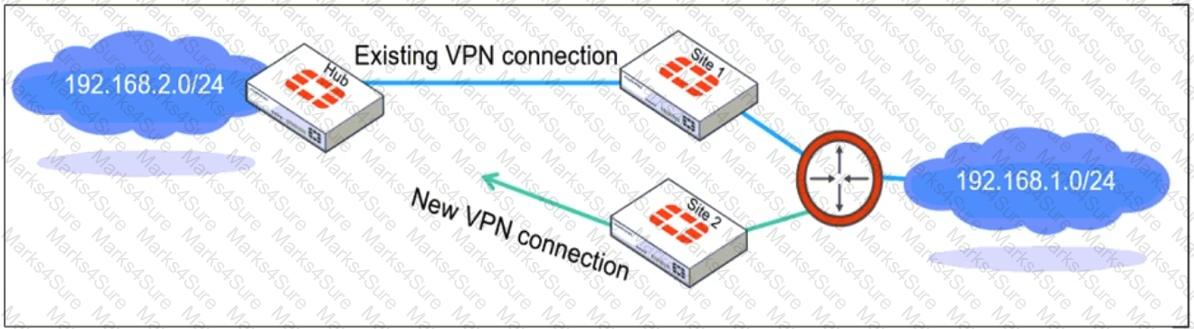

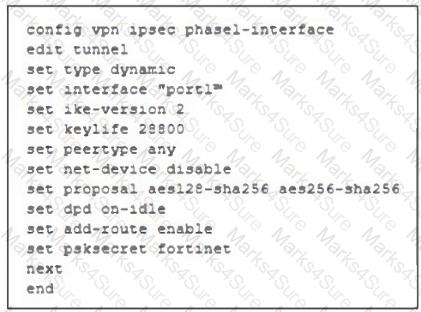

When multiple remote sites connect to the same hub using overlapping subnets, FortiGate needs to determine which route should be used for traffic forwarding. The route-overlap setting in IPsec Phase 2 allows FortiGate to handle this scenario by deciding whether to keep the existing route (use-old) or replace it with a new route (use-new).

In an ECMP (Equal-Cost Multi-Path) routing setup, both routes should be retained and balanced, but FortiGate does not support ECMP directly over overlapping routes in IPsec Phase 2. Instead, an administrator must decide which connection takes precedence using route-overlap settings.

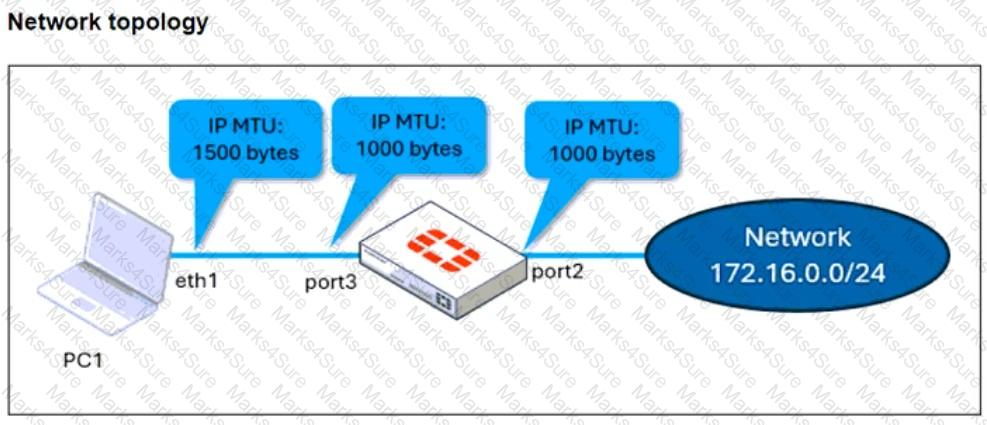

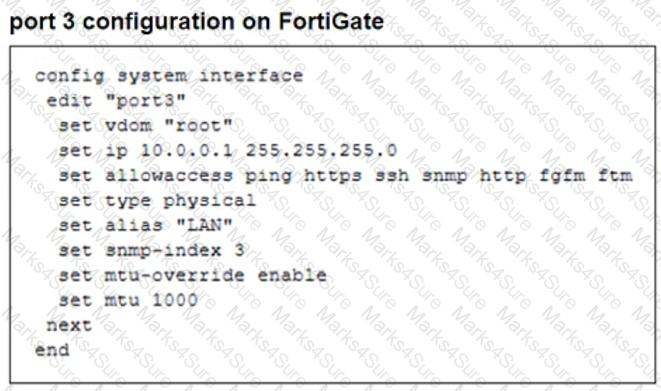

The issue occurs because FortiGate enforces the "do not fragment" (DF) bit in the packet, and the packet size exceeds the MTU of the network path. When the Windows PC1 (with an MTU of 1500 bytes) attempts to send a 1400-byte packet, the FortiGate interface (with an MTU of 1000 bytes) needs to fragment it. However, since the DF bit is set, FortiGate drops the packet instead of fragmenting it.

To resolve this, the user should adjust the ping packet size to fit within the path MTU. In this case, reducing the packet size to 972 bytes (1000 bytes MTU minus 28 bytes for the IP and ICMP headers) should allow successful transmission.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

Based on the FortiOS 7.6 Administration Guide and the Life of a Packet documentation (Parallel Path Processing), the FortiGate follows a specific, hardcoded sequence when processing the first packet of a new session. This process is divided into several stages: Ingress, Kernel, and Egress.

The very first stage is Ingress, where all packets accepted by a network interface are processed by the TCP/IP stack. Immediately following this, the packet must pass through IP integrity header checking. This step involves reading the packet headers to verify that the packet is a valid protocol (TCP, UDP, ICMP, etc.) and that the header length is correct. This sanity check is performed before any other security functions, such as decryption (which occurs later in the Ingress stage) or the Reverse Path Forwarding (RPF) check (which occurs even later during the Routing step in the Kernel stage).

Installation of the session key (Option A) only occurs after the packet has matched a firewall policy and the session has been fully established and offloaded to the NPU. Therefore, IP integrity header checking is the absolute first security-related validation performed on an incoming packet.

Based on the FortiGate Infrastructure 7.6 study guide and the Hardware Acceleration technical documentation, the diagnose vpn tunnel list command provides the status of IPsec tunnel offloading to the Network Processor (NPU).

In the provided exhibit, the specific value npu_flag=20 (which corresponds to 0x20 in hexadecimal) indicates that the IPsec Security Association (SA) cannot be offloaded to the NPU. While the NPU may have visibility of the gateway IPs (npu_rgwy and npu_lgwy), the flag itself serves as a diagnostic indicator that the traffic must be processed by the system CPU rather than the hardware accelerator.

This lack of offloading typically occurs when the tunnel configuration uses a cipher (encryption algorithm) or an HMAC (authentication algorithm) that is not supported by the specific NPU model installed in the FortiGate. For example, if a tunnel is configured with a legacy or highly complex algorithm that the NP6 or NP7 chip is not designed to process in hardware, the FortiOS kernel handles the encryption and decryption, resulting in the npu_flag=20 status. Therefore, despite the presence of NPU-related fields, the specific flag value confirms that hardware acceleration is not active for these SAs.

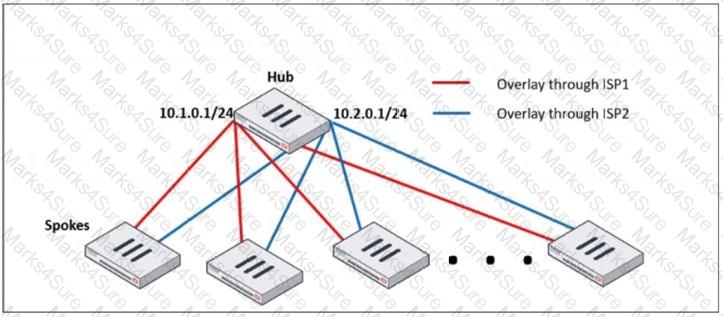

When designing an ADVPN (Auto-Discovery VPN) network for a large enterprise with spokes that have varying numbers of internet links, the main challenge is to minimize the number of peer connections and routes at the hub while maintaining scalability and efficiency.

Using a dynamic routing protocol (such as BGP or OSPF) with loopback interfaces helps in several ways:

● Reduces the number of peer connections at the hub by using a single loopback address per spoke instead of individual physical interfaces.

● Enables simplified route advertisement by dynamically learning and propagating routes instead of manually configuring static routes.

● Supports multiple internet links per spoke efficiently, as dynamic routing can automatically adjust to the best available path.

● Allows seamless failover if a spoke’s internet link fails, ensuring continuous connectivity.

From the OSPF status output, the key information is:

● "This router is an ASBR" → This means the FortiGate is acting as an Autonomous System Boundary Router (ASBR).

● An ASBR is responsible for injecting external routing information into OSPF from another routing protocol (such as BGP, static routes, or connected networks).

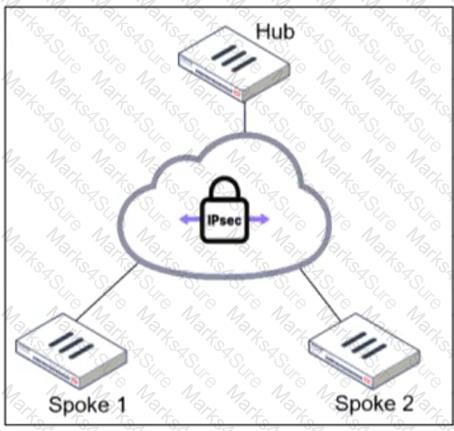

ADVPN (Auto-Discovery VPN) 2.0 is the optimal solution for enabling direct spoke-to-spoke communication without passing through the hub, while also allowing automatic link selection based on quality metrics.

● Dynamic Direct Tunnels:

● ADVPN 2.0 allows spokes to establish direct IPsec tunnels dynamically based on traffic patterns, reducing latency and improving performance.

● Unlike static VPNs, spokes do not need to pre-configure tunnels for each other.

● Automatic Link Optimization:

● ADVPN 2.0 monitors the quality of multiple internet connections on each spoke.

● It automatically switches to the best available connection when the primary link degrades or fails.

● This is achieved by dynamically adjusting BGP-based routing or leveraging SD-WAN integration.

In the given ADVPN (Auto-Discovery VPN) topology, BGP is being used to dynamically establish routes between spokes. The neighbor-range configuration is crucial for simplifying BGP peer setup by automatically assigning neighbors based on their IP range.

set neighbor-group advpn

● The neighbor-group parameter is used to apply pre-defined settings (such as AS number) to dynamically discovered BGP neighbors.

● The advpn neighbor-group is already defined in the configuration, and assigning it to the neighbor-range ensures consistent BGP settings for all spoke neighbors.

set prefix 172.16.1.0 255.255.255.0

● This command allows dynamic BGP peer discovery by defining a range of potential neighbor IPs (172.16.1.1 - 172.16.1.255).

● Since each spoke has a unique /32 IP within this subnet, this ensures that any spoke within the 172.16.1.0/24 range can automatically establish a BGP session with the hub.

In an IBGP (Internal BGP) network, all routers must be fully meshed, meaning every router must establish a BGP session with every other router in the same autonomous system (AS). This does not scale well in large networks due to the exponential increase in BGP sessions.

To optimize and scale IBGP, Route Reflectors (RRs) are used. A Route Reflector (RR) reduces the number of IBGP peer connections by allowing a centralized router (RR) to redistribute IBGP routes to other IBGP peers (called clients). This eliminates the need for a full mesh, significantly reducing BGP session overhead.

By configuring the route-reflector-client setting on IBGP peers, an administrator can:

● Scale IBGP sessions by reducing the number of direct BGP peer connections.

● Optimize the routing table by ensuring routes are efficiently propagated within the IBGP network.

● Eliminate the need for full mesh topology, making IBGP more manageable.

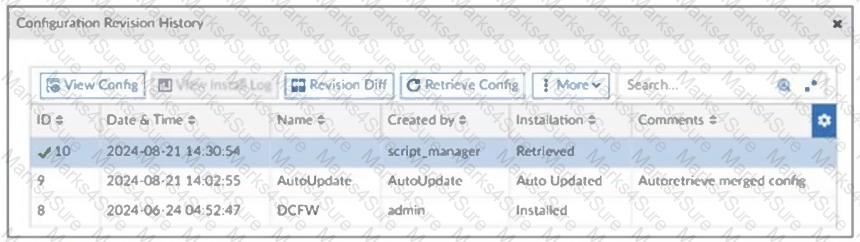

The Configuration Revision History window in FortiManager shows that the most recent configuration change (ID 10) was created by script_manager with the action Retrieved.

Since script_manager is a system-level script execution user, the IT team needs to find who actually triggered this script. This can be done by:

● Checking the FortiManager system logs for script execution events.

● Using the type=script filter to locate the administrator associated with the script execution.

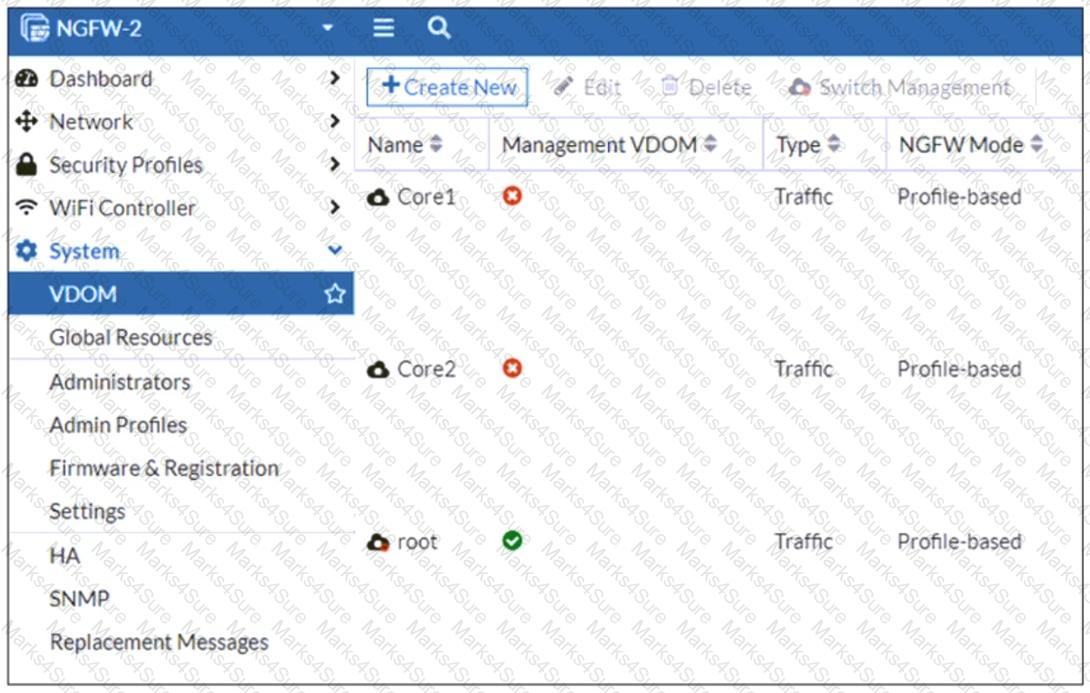

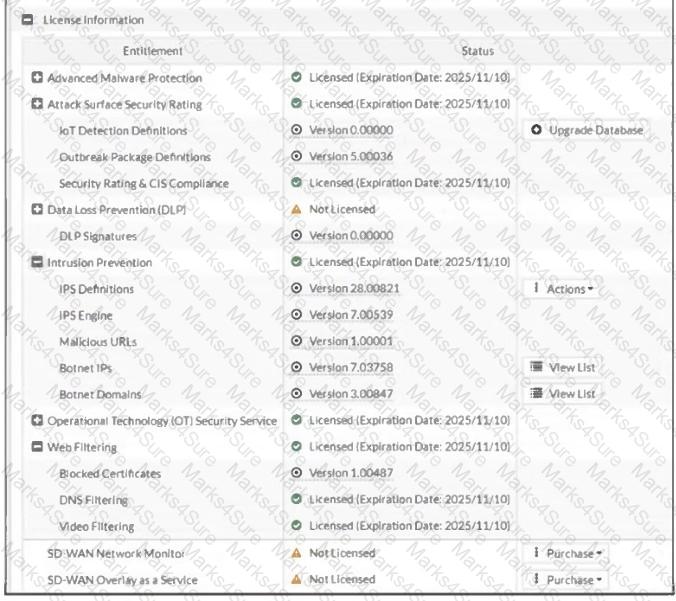

Since Core1 and Core2 are not designated as management VDOMs, they rely on the root VDOM for connectivity to external resources such as FortiGuard updates. If the root VDOM lacks a VDOM link to these VDOMs or cannot reach FortiGuard services, security features like web filtering will stop working.

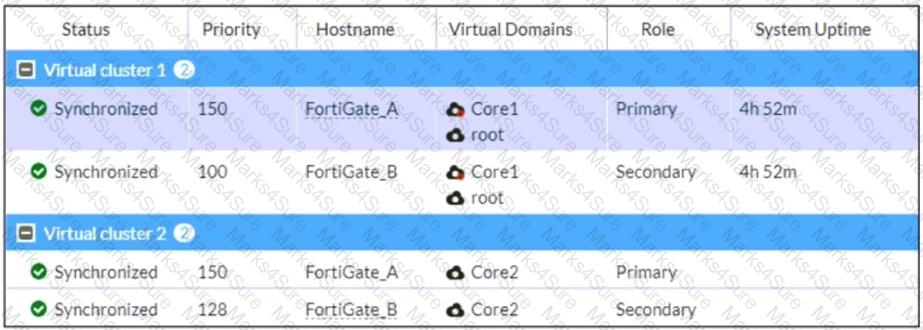

The exhibit shows an active-passive HA (high availability) cluster with two virtual clusters, where FortiGate_A is the primary device for both Core1 and Core2. If the goal is to have FortiGate_B take over Core2 traffic, its priority must be higher than FortiGate_A for Virtual Cluster 2.

Currently, FortiGate_A has a priority of 150 for Core2, while FortiGate_B has 128. Increasing FortiGate_B’s priority to 200 ensures it becomes the primary for Virtual Cluster 2, taking over the Core2 VDOM traffic while keeping Core1 traffic on FortiGate_A.

Disabling override would prevent forced failovers but wouldn’t change the role distribution. Adjusting the load-balancing method is irrelevant in an active-passive setup, as it only applies to active-active configurations.
