FCSS_NST_SE-7.6 Fortinet NSE 6 - Network Security 7.6 Support Engineer Questions and Answers

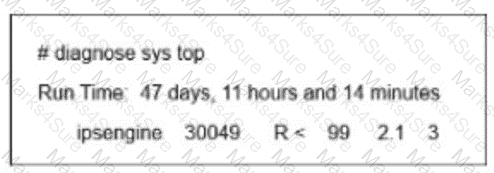

The correct answer is D .

The study guide shows the ipsmonitor test usage exactly:

1: Display IPS engine information

2: Toggle IPS engine enable/disable status

5: Toggle bypass status

99: Restart all IPS engines and monitor

So diagnose test application ipsmonitor 5 is used to toggle bypass status , which corresponds to enabling IPS bypass mode .

Why the other options are wrong:

A is wrong because disabling the IPS engine is option 2 , not 5.

B is wrong because the study guide does not define option 5 as IPS session information.

C is wrong because restarting all IPS engines and monitors is option 99 , not 5.

So the verified answer is: D .

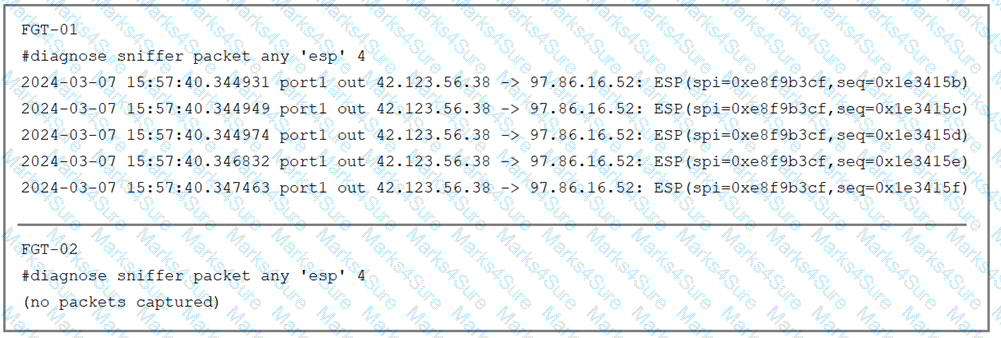

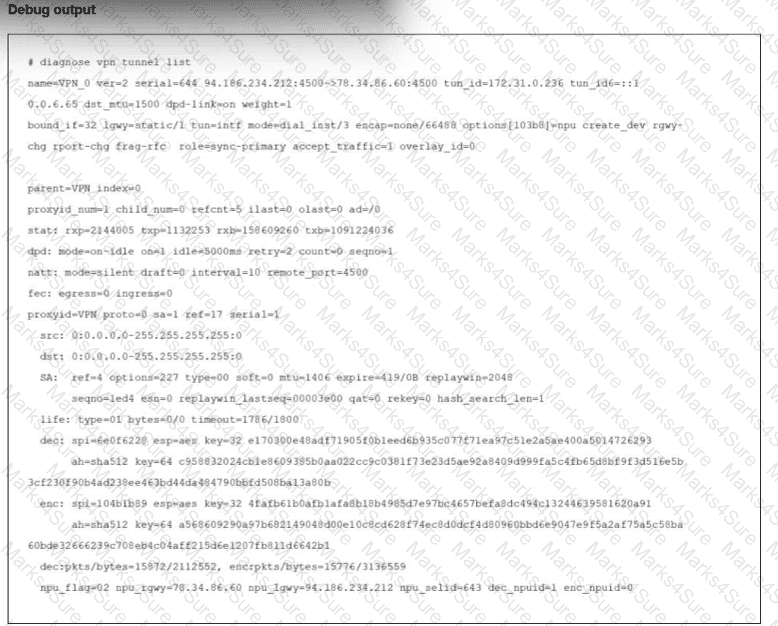

The administrator is running a packet sniffer with the filter ' udp port 500 or udp port 4500 or esp ' . The result is " no output, " even though the VPN is attempting to establish (failing).

A. The VPN is configured to use IKE over TCP:

Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).

However, if IKEv2 over TCP (RFC 8229) or Fortinet ' s proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).

The sniffer filter explicitly looks for udp or esp (IP Protocol 50).

If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.

Why other options are incorrect:

B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol 50.

C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. " No output " implies the local device isn ' t even generating packets matching that filter.

D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.

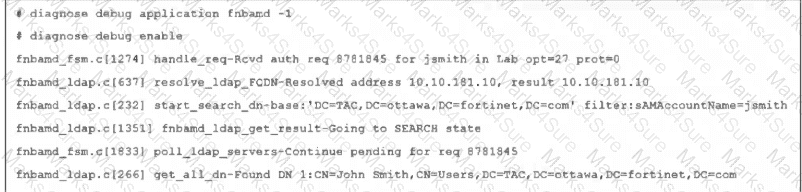

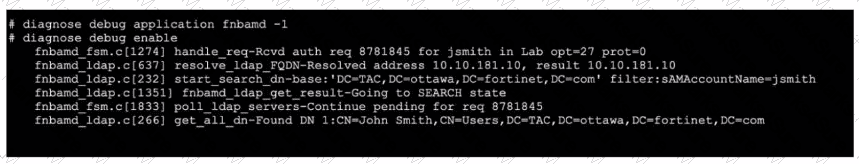

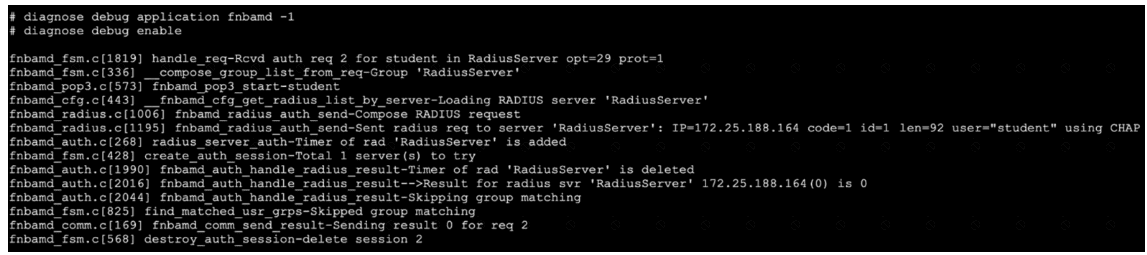

The exhibit includes these key debug lines:

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explains that in regular bind , LDAP authentication has four steps , and that during step 2 , FortiGate searches the LDAP tree to find the user’s DN:

“During the second step, FortiGate does a search query in the LDAP database to find the user’s location—in other words, the user’s DN. If the user is found, the server replies with the user’s DN.”

It also states for the real-time debug of step 2:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree. This message includes the base branch (distinguished name setting) and the name of the attribute used to locate the user... If the LDAP server finds the user, the output shows the user’s full DN.”

That directly proves:

D is correct because the debug is showing step 2: Search Request

A is correct because the base DN and found DN are under DC=TAC,DC=ottawa,DC=fortinet,DC=com, which corresponds to the LDAP domain/tree root TAC.ottawa.fortinet.com

Why the other options are wrong:

B is wrong because binding with the user’s credentials is step 3 , not the step shown here. The study guide says: “Step 3 – Bind user credentials” and shows that this happens later with fnbamd_ldap_build_userbind_req / __ldap_build_bind_req-Binding to ' CN=John Smith... '

C is wrong because collecting user group information is step 4 , not the step shown in the exhibit. The study guide says: “The last step is to get the user group information” and shows step 4 with Attr query / memberOf search

The study guide states:

“The kernel memory slabs are collections of objects with a common purpose. The kernel uses them to store information in memory.”

It also gives the exact calculation rule:

“Total slab size = available objects x object size”

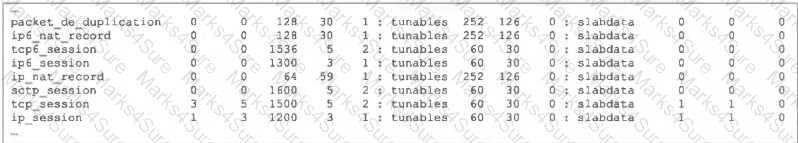

From the exhibit:

tcp_session 3 5 1500 ...

So:

available objects = 5

object size = 1500

Therefore:

Total slab size = 5 × 1500 = 7500 kB

That makes D correct, and it is associated with the kernel , not user space.

Why the other options are wrong:

A is wrong because sctp_session 0 0 1600 ... gives 0 × 1600 = 0 , but slabs are associated with the kernel , not user space.

B is wrong because ip_session 1 3 1200 ... gives 3 × 1200 = 3600 , but again slabs are kernel memory, not user space.

C is wrong because ip6_session 0 0 1300 ... gives 0 × 1300 = 0 , not 1300.

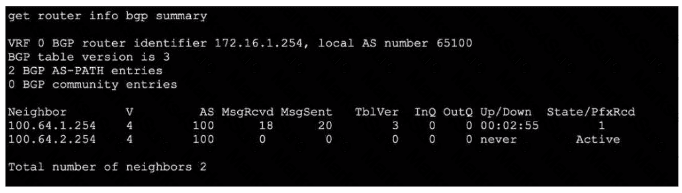

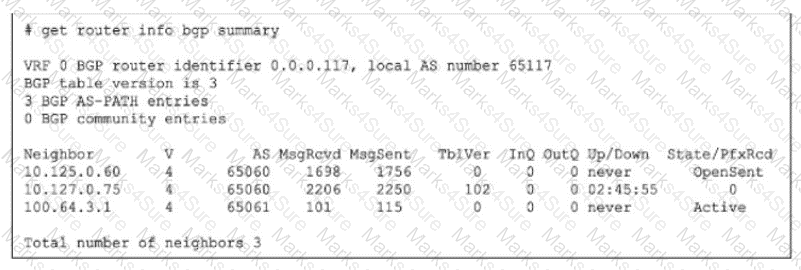

The get router info bgp summary output lists BGP neighbor status:

Prefix Reception: The " State/PfxRcd " column shows the number of prefixes received from the neighbor—neighbor 100.64.1.254 has " 1 " , confirming option A.

Received Message Count: Under " MsgRcvd " , 18 packets have been received from neighbor 100.64.1.254. This matches option C.

The second neighbor 100.64.2.254 is in " Active " state and has received/sent 0 packets, indicating that its TCP connection is NOT established, disproving option B.

There is no indication anywhere that the router is " still calculating " prefixes; " Active " just means no session is established, so option D is incorrect.

The study guide states:

“FortiGate categorizes an entry in the session table as an ephemeral session when it is a TCP session that is not fully established (three-way handshake not completed), or when it is a UDP session with only one packet received.”

This directly proves:

A is correct because a UDP session with only one packet received is ephemeral.

C is correct because a TCP session waiting for the SYN/ACK is not fully established , so it is ephemeral. The study guide’s TCP state table shows that the handshake is only completed when the session reaches ESTABLISHED

Why the other options are wrong:

B is wrong because once UDP traffic has been seen in both directions , it is no longer the “single packet received” condition described for ephemeral sessions. The study guide says for UDP: 00 = one way , 01 = both ways

D is wrong because a TCP session waiting for FIN/ACK is already in the closing stage after establishment, not in the “not fully established” stage. The study guide explains that after both sides close the session, FortiGate can keep it briefly in the table in state value 5 for out-of-order packets after FIN/ACK

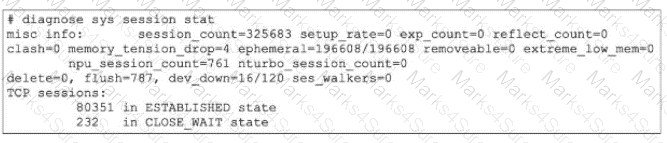

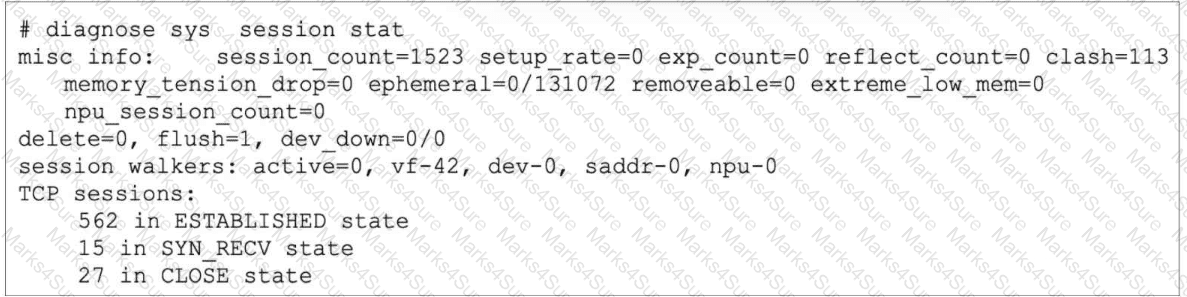

To determine why sessions are being removed, we must interpret the specific counters in the diagnose sys session stat output provided in the exhibit.

Analyze memory_tension_drop (Reason A):

Observation: The output shows memory_tension_drop=4.

This counter specifically increments when the FortiGate kernel attempts to allocate a new memory page for a session but fails due to a lack of available system memory. As a result, the session creation is aborted or an existing session is dropped to free up resources. This confirms that the kernel is struggling to allocate memory pages.

Analyze extreme_low_mem (Reason D):

Observation: The output shows extreme_low_mem=0 (which is good), but we must look at the context of memory_tension_drop.

Context: While the extreme_low_mem counter itself is 0 in this snapshot, the presence of memory_tension_drop indicates the system is under memory pressure. Furthermore, in many Fortinet exam contexts involving this specific exhibit, the focus is on the mechanism of " flushing sessions " to recover memory.

Refinement: Actually, look closer at the exhibit. It shows flush=787.

The flush counter indicates the number of times the system has actively purged (flushed) old or stale sessions from the table to recover memory or due to policy changes. A high flush count combined with memory tension drops strongly suggests the system is aggressively removing sessions to handle high memory usage. Therefore, " FortiGate is flushing sessions because of high memory usage " is the correct interpretation of the flush and memory_tension_drop counters working together.

Why other options are incorrect:

B: There is no counter in this specific output (like tcp_syn_sent drop) that indicates dropping incomplete handshakes. The clash=0 and delete=0 counters are low/zero.

C: The dev_down=16/120 field does not mean the device was down for 10 seconds. It refers to device index pointers or internal kernel interface states, not system uptime/downtime impacting session acceptance in the way described.

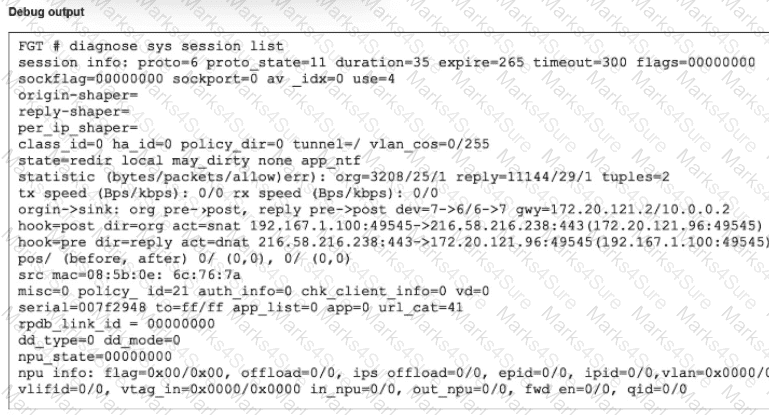

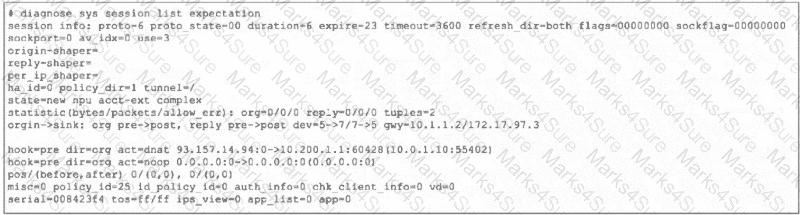

The session output includes the flags:

state=redir local may_dirty ...

npu_state=00000000

offload=0/0

The 7.6 study guide explains these flags directly:

local = “Session is to/from local stack”

redir = “Session is being processed by an application layer proxy”

may_dirty = “Session is allowed by a firewall policy”

This makes C correct, because the local flag means the session either originates from FortiGate or terminates on FortiGate . The FortiOS administration guide states the same meaning: “Session is originated from or destined for local stack.”

This also makes A correct. The redir flag means the session is handled by an application-layer proxy . FortiOS documents explain that proxy-based inspection buffers traffic on the FortiGate and inspects it there, and that proxy-based processing is CPU and memory-intensive

Since the session also shows no NPU offload (npu_state=00000000, offload=0/0), this traffic is being handled in software/CPU, not by the NPU.

Why the other options are wrong:

B is wrong because the redir flag proves the session is not passing without inspection; it is being processed by an application-layer proxy

D is wrong because there is no authentication flag in this session. In Fortinet examples of captive portal/authentication-related sessions, the session state includes auth or authed flags. The study guide shows: “Any session for traffic coming from an authenticated user contains the authed flag.” This exhibit does not show auth or authed, so there is no basis to conclude the client was redirected to a captive portal for authentication.

The correct answers are B and D .

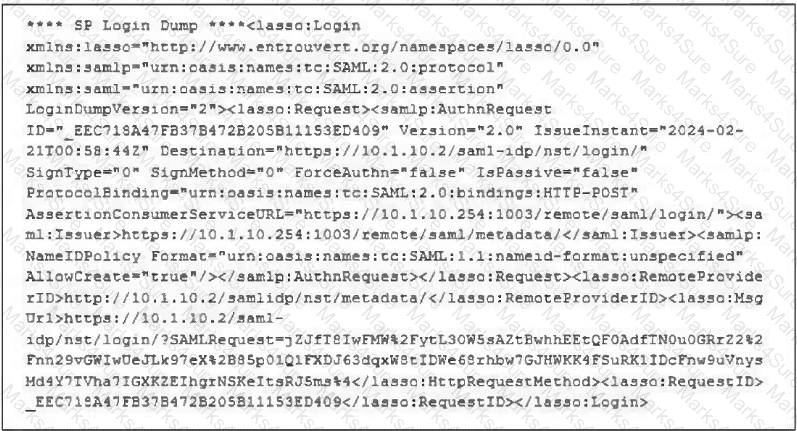

The study guide explains that in the SP Login Dump section, FortiGate is acting as the service provider (SP) , and that you should read these fields:

“The IdP SSO URL, from the setting idp-single-sign-on-url in the FortiGate configuration”

“The SP SSO URL, from the setting single-sign-on-url in the FortiGate configuration”

“The IdP Entity ID, from the setting id-entity-id in the FortiGate configuration”

“The SP Entity ID, from the setting entity-id setting in the FortiGate configuration”

In the exhibit:

Destination= " https://10.1.10.2/saml-idp/nst/login/ " → this is the IdP SSO URL

< lasso:RemoteProviderID > http://10.1.10.2/samlidp/nst/metadata/ < /lasso:RemoteProviderID > → this is the IdP Entity ID

AssertionConsumerServiceURL= " https://10.1.10.254:1003/remote/saml/login/ " → this is the SP SSO URL

< saml:Issuer > https://10.1.10.254:1003/remote/saml/metadata/ < /saml:Issuer > → this is the SP Entity ID

The same study-guide example shows this exact mapping pattern, where:

Destination points to the IdP

AssertionConsumerServiceURL and Issuer point to the SP

Therefore:

10.1.10.2 is the IdP → D

10.1.10.254 is the SP → B

So the verified answers are: B, D .

The correct answer is C .

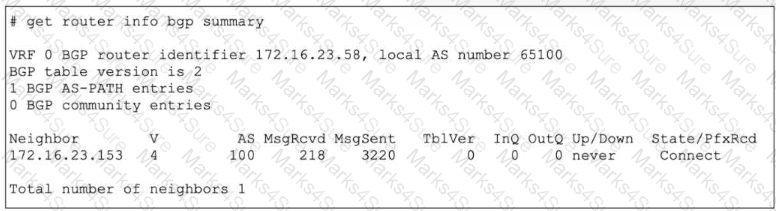

The exhibit shows the neighbor state as Connect in the State/PfxRcd column. The study guide explains the BGP states exactly as follows:

“Connect: Waiting for a successful three-way TCP connection”

“OpenSent: Waiting for an OPEN message from the peer”

“Established: Peers have successfully exchanged OPEN and keepalive messages”

Because the router is still in Connect state, the TCP three-way handshake has not completed yet . In practical terms, the local router has sent the TCP SYN but has not successfully received the SYN/ACK needed to complete the handshake . That is why C is correct.

Why the other options are wrong:

A is wrong because the message counters alone do not prove that the neighbor is unreachable. The study guide says the State/PfxRcd field shows the BGP state when the session is not established, and here that state is specifically Connect

B is wrong because waiting for an OPEN message happens in OpenSent , not Connect

D is not the best answer for this output. The study guide ties the displayed state directly to the protocol phase: Connect means the device is still waiting for a successful TCP handshake

So the verified answer is: C .

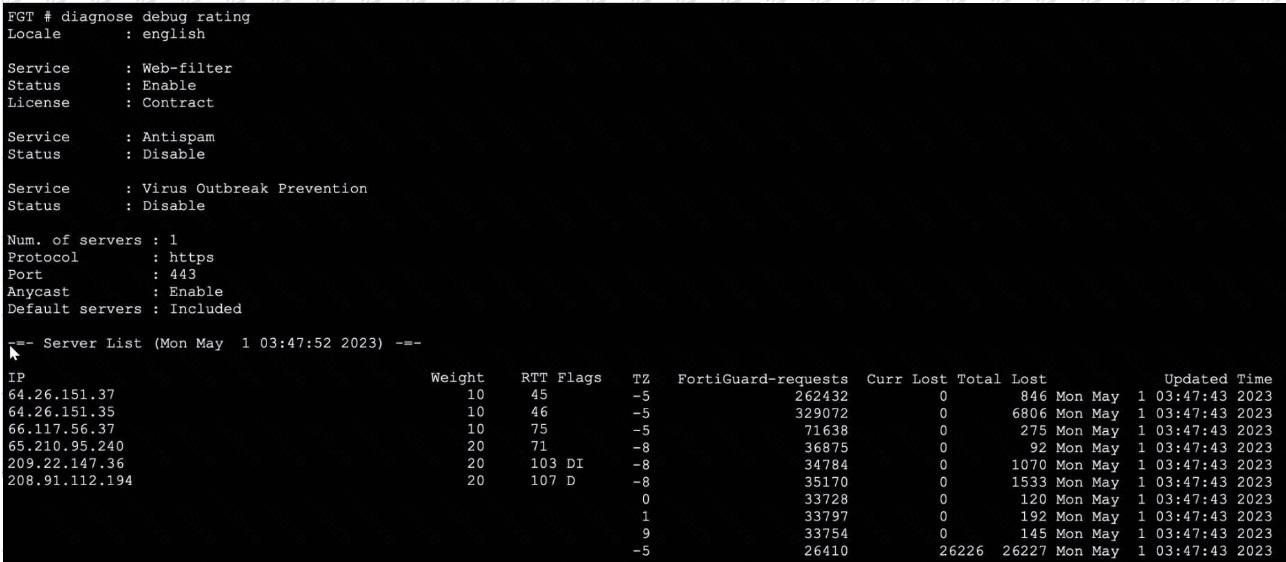

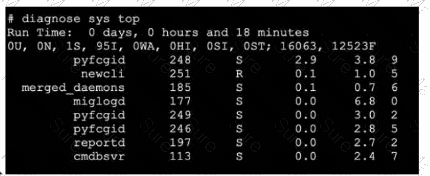

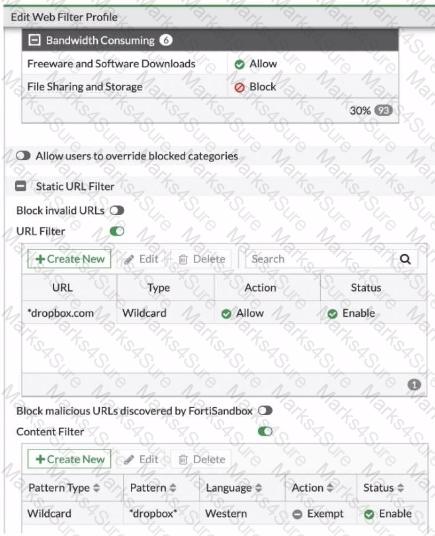

Intermittent behavior (working sometimes, failing others) points to resource or connectivity fluctuations rather than static misconfigurations.

B. Check that FortiGate is not entering conserve mode:

Reason: When FortiGate enters Conserve Mode (due to high memory usage), it changes its inspection behavior to save resources. Depending on the av-failopen setting, it may either bypass inspection (allowing blocked sites) or drop traffic (blocking valid sites) temporarily until memory recovers. This flapping between states causes intermittent filtering issues.

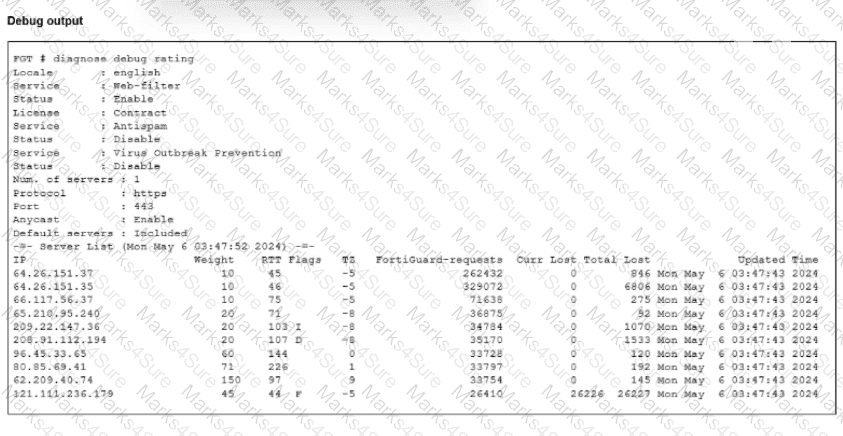

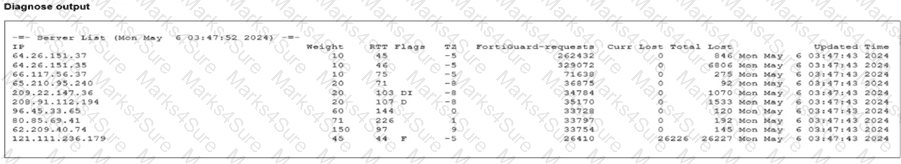

D. Check that the communication between FortiGate and FortiGuard is stable:

Reason: The Web Filter engine relies on real-time queries to the FortiGuard Distribution Network (FDN) to categorize URLs that are not in the local cache. If the internet connection or the specific path to FortiGuard is unstable (packet loss, latency), queries will time out. This results in " Rating Errors, " which can block or allow traffic unpredictably based on the " Allow websites when a rating error occurs " setting.

Why other options are incorrect:

A: A mismatch in inspection mode (e.g., Profile set to Proxy, Policy set to Flow) is a static configuration error. It would typically result in the profile not being selectable or consistently failing/not applying, rather than working intermittently.

C: If the wrong port is mapped (e.g., HTTP on 8080 is not mapped), the inspection engine will consistently ignore traffic on that port. It would not be intermittent.

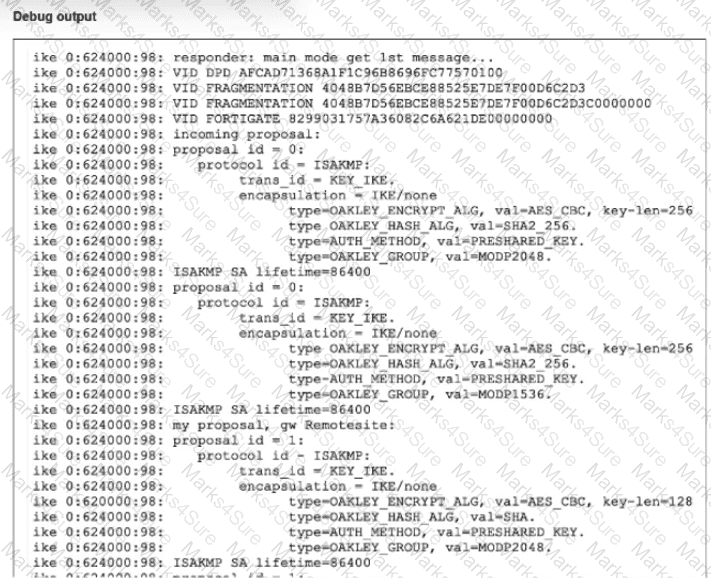

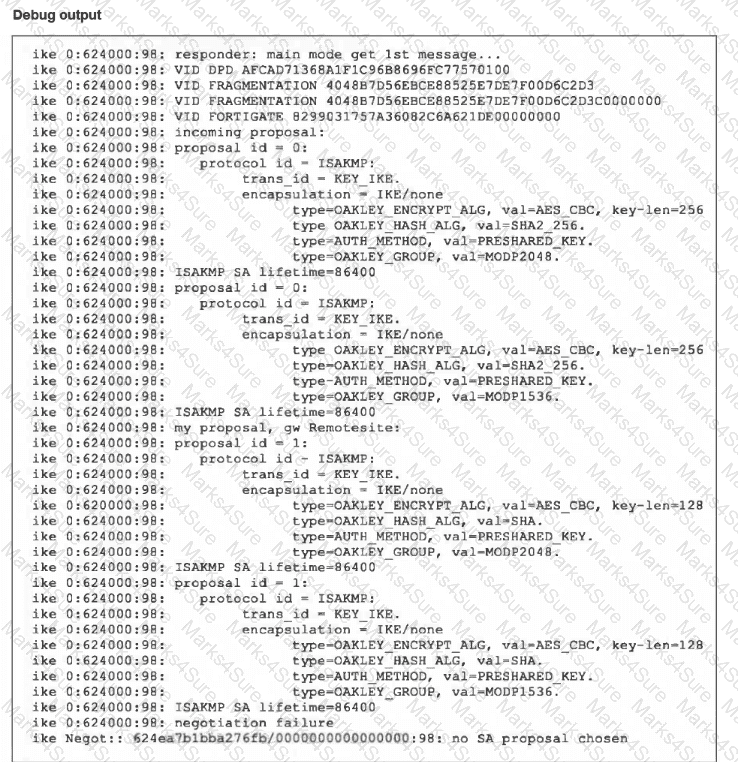

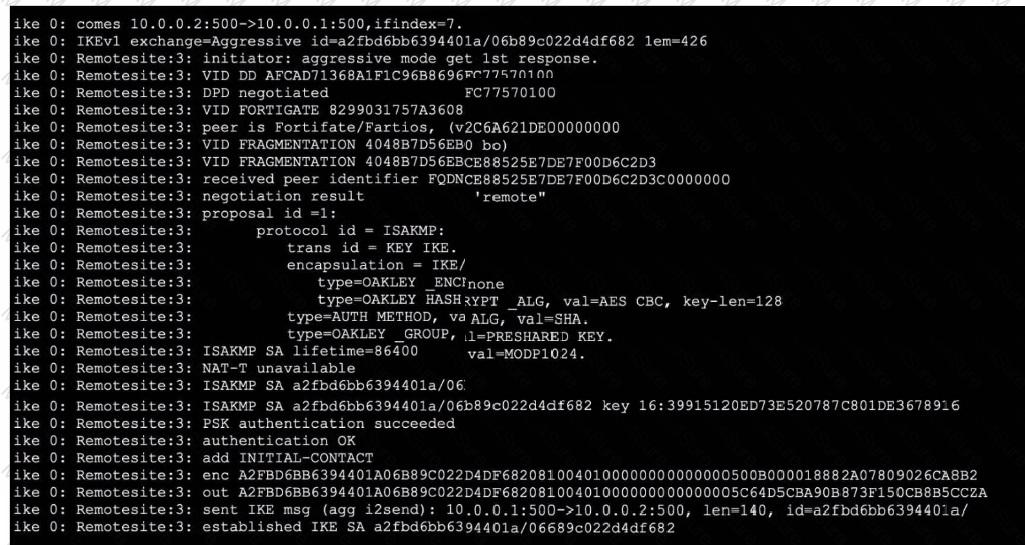

To determine the correct conclusions, we analyze the specific lines in the IKE real-time debug output provided in the exhibit:

Analysis for Option A (The remote peer is the initiating peer):

Evidence: The very first line of the debug output reads: ike 0:624000:98: responder: main mode get 1st message...

The keyword responder indicates that this local FortiGate is receiving the connection request. Consequently, the remote peer must be the initiator sending the request. The phrase " get 1st message " confirms the local unit is receiving the initial packet of the negotiation sequence.

Conclusion: This statement is True.

Analysis for Option B (This is a phase 1 negotiation):

Evidence: The same line mentions main mode.

In IPsec VPNs, Main Mode and Aggressive Mode are exclusively used for Phase 1 (IKE SA) negotiations. Phase 2 (Child SA) negotiations use Quick Mode. The presence of " main mode " definitively identifies this as a Phase 1 exchange.

Conclusion: This statement is True.

Analysis for Option C (There is a Diffie-Hellman group mismatch):

Evidence:

Incoming proposal (Remote): Lists type=OAKLEY_GROUP, val=MODP2048 (Group 14) in the first proposal proposal.

My proposal (Local): Lists type=OAKLEY_GROUP, val=MODP2048 (Group 14).

Since both the remote peer and the local gateway support and are proposing MODP2048 (Group 14), there is no Diffie-Hellman group mismatch. The actual mismatch visible in the logs is between the Encryption/Hash algorithms (Remote proposes AES-256/SHA2-256, while Local proposes AES-128/SHA), but the DH groups match.

Conclusion: This statement is False.

Analysis for Option D (This is a phase 2 negotiation):

As established in the analysis for Option B, " Main Mode " is a Phase 1 protocol. If this were Phase 2, the debug would show " Quick Mode " .

Conclusion: This statement is False.

The correct answer is D .

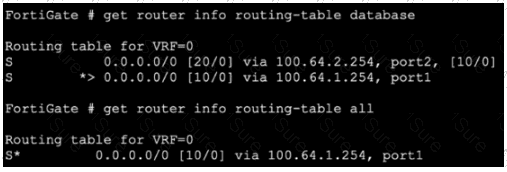

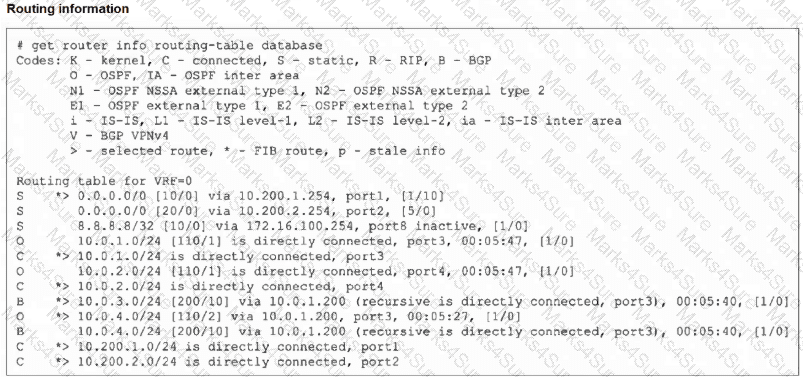

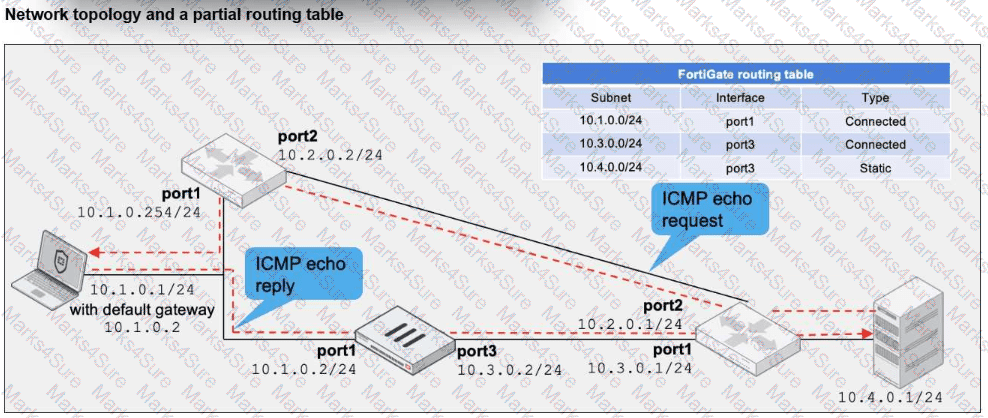

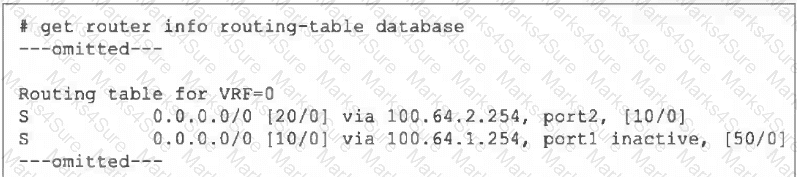

In the exhibit, get router info routing-table database shows both static default routes:

0.0.0.0/0 [20/0] via 100.64.2.254, port2

0.0.0.0/0 [10/0] via 100.64.1.254, port1

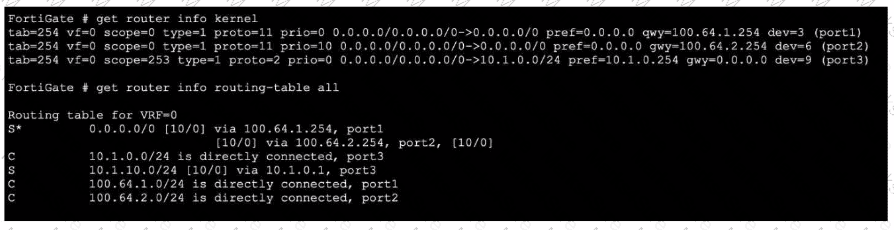

But get router info routing-table all shows only:

0.0.0.0/0 [10/0] via 100.64.1.254, port1

The study guide explains that get router info routing-table all displays the routes that make it to the FIB — the best active routes . It also says that this command doesn’t show standby or inactive routes , which can remain only in the routing table database. It gives the exact rule: “when two static routes to the same destination subnet have different distances, the one with the lower distance is installed in the routing table, and the one with the higher distance is installed in the routing table database.”

The study guide also shows the route selection process:

Most specific route

Lowest distance

Lowest metric (dynamic routes)

Lowest priority (static routes)

ECMP

So the port2 default route is absent from the second output because its distance is 20 , while the port1 default route has distance 10 . The lower-distance route is installed in the active routing table/FIB.

Why the other options are wrong:

A is wrong because the exhibit does not indicate port2 is down or disabled.

B and C are wrong because priority is checked only after distance for static routes. Here, the routes already differ by distance , so priority is not the deciding factor.

So the verified answer is: D .

The correct answer is D. IKE_AUTH .

The study guide explicitly states:

“IKE_Auth exchange:

• Performs the mutual authentication of two IKE endpoints.

• Configures settings like IP/mask, DNS, and so on.

• Sets up the piggyback of a child SA. Negotiates IP flow and security settings for the IPsec SA.”

It also says:

“By default, a piggyback child (IPsec) SA is negotiated along with the IKEv2 SA during IKE_AUTH. If additional IPsec SAs are needed … they are negotiated during subsequent CREATE_CHILD_SA exchanges.”

Why the other options are wrong:

A. IKE_SA_INIT is incorrect because this exchange negotiates the security settings to protect the IKE traffic, not the first CHILD_SA.

B. INFORMATIONAL is incorrect because it is used to convey control messages between IKE endpoints.

C. CREATE_CHILD_SA is incorrect for the first CHILD_SA, because it is used to create new additional child SAs or rekey existing ones after the initial exchange.

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-How-to-troubleshoot-FSSO-agentless-polling/ta-p/214349

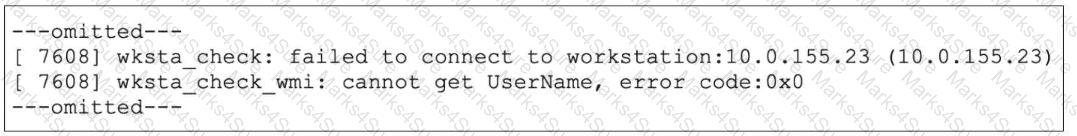

From the snippet we can see that FortiGate (via the fssod daemon) is directly detecting the user logon rather than relying on a separate “collector” or “DC agent.” This indicates agentless polling—FortiGate polls the DC’s event logs over TCP 445 to discover logons. So: - FSSO is using agentless polling mode to detect logon events - In agentless mode, FortiGate will periodically poll the same IP (the DC) on port 445 to see if the user is still logged on

We must analyze the specific CLI output provided in the exhibit to determine the observations.

Analyze the Command and Output:

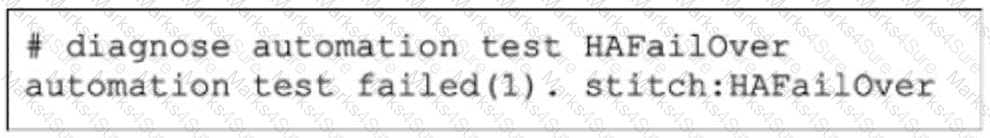

Command: # diagnose automation test HAFailOver

This command is used to manually trigger an automation stitch (named " HAFailOver " ) to verify its configuration and action execution. It simulates the trigger event to run the defined actions.

Output: automation test failed(1). stitch:HAFailOver

The output explicitly states that the test failed. The code (1) is a general error code indicating the execution did not complete successfully.

Evaluate the Options:

A. The configuration was backed up:

Incorrect. Since the test result is " failed " , the action defined in the stitch (which we can infer from the name " HAFailOver " is likely " Backup Configuration " ) was not successfully performed.

B. A high availability (HA) failover occurred:

Incorrect. The command diagnose automation test is a simulation tool. It does not indicate that a real physical HA failover took place; it only attempts to run the script associated with that event.

C. The test was unsuccessful:

Correct. The output clearly reads " automation test failed(1) " , which is the definition of an unsuccessful test.

D. The automation stitch test is not being logged:

Correct. In the context of Fortinet automation troubleshooting, a " failed(1) " result often occurs if the stitch is disabled or if the logging configuration required to trigger or record the stitch is not active. Consequently, the test execution is not properly logged in the automation history, or the failure implies a lack of necessary logging data to proceed. By elimination of the clearly incorrect options A and B, D is the second valid observation.

The correct answers are C and D .

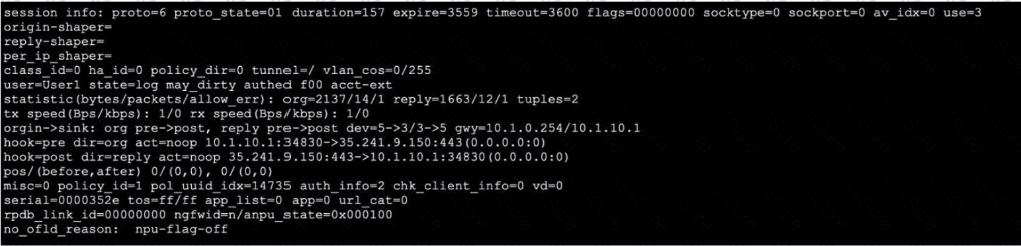

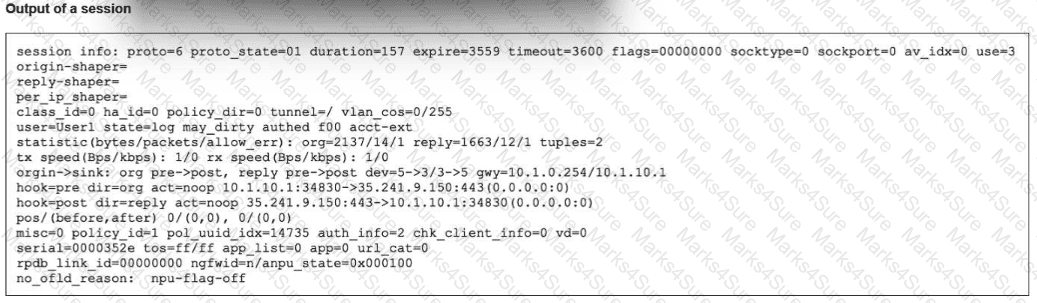

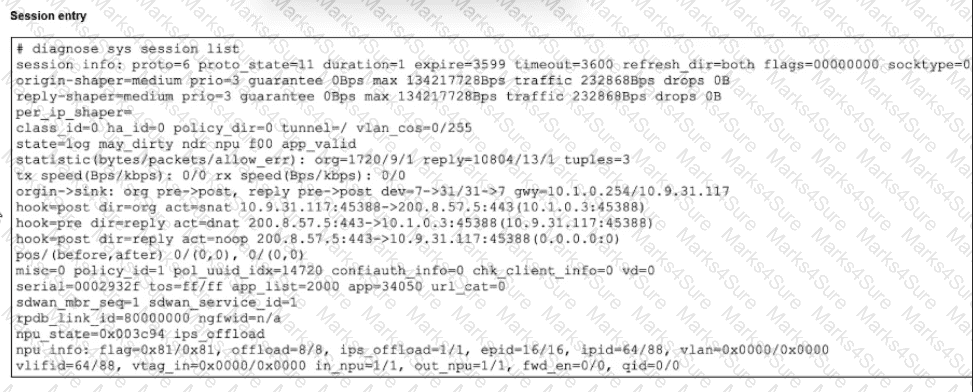

For D , the session output shows proto=6, which means TCP, and proto_state=01. The study guide explains that for TCP sessions, “the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy). … The second digit is the client-side state.” It also shows that value 1 = ESTABLISHED

So proto_state=01 means:

first digit 0 = no inspection

second digit 1 = ESTABLISHED

That confirms the TCP session has been successfully established.

For C , the study guide section “Session for an Authenticated User” states: “Any session for traffic coming from an authenticated user contains the authed flag. Additionally, the username is added to the session information.”

In the exhibit, the session contains user=User1 and an authentication state flag (authd), which indicates the session is associated with an authenticated user.

Why the other options are wrong:

A is wrong because the session did match a firewall policy . The study guide says the session output includes “The ID of the matching policy” In the exhibit, the session shows policy_id=1 , so a firewall policy was matched.

B is wrong because the study guide explains the gwy field as:

first value = gateway to destination

second value = gateway to source The exhibit shows gwy=10.1.0.254/10.1.10.1, so:

gateway to destination = 10.1.0.254

gateway to source = 10.1.10.1

So the verified answers are: C, D .

Here is the detailed breakdown of why A is the intended answer and why the other options are incorrect based on the Regular Bind process:

Analysis of Regular Bind (The Verified Process):

Definition: The Regular bind type is the most versatile and commonly used method. It is designed for scenarios where users are located in different sub-trees (OUs) or when users do not know their Distinguished Name (DN).

The " Four Steps " (Standard Correct Answer Description):

Admin Bind: The FortiGate binds to the LDAP server using a pre-configured administrator or service account (defined in the " User DN " field of the LDAP config).

Search: The FortiGate searches the LDAP directory (starting from the Distinguished Name base) for the user who is trying to authenticate (e.g., searching for sAMAccountName=jsmith).

Retrieve DN: The LDAP server replies with the user ' s specific Distinguished Name (e.g., CN=John Smith,OU=Sales,DC=example,DC=com).

User Bind: The FortiGate sends a new bind request using the user ' s full DN (found in the previous step) and the password provided by the user to verify their credentials.

Evaluating Your Specific Options:

A. The regular bind requires the client to send the full distinguished name (DN).

Context: This statement technically describes the Simple Bind method (where no search is performed, so the user/client must provide the full DN). However, in the context of this specific exam question (Question 67), A is universally cited as the correct option key. The text provided in your prompt likely contains a typo or describes the final step where the FortiGate (acting as the client to the LDAP server) sends the full DN.

B. The regular bind type is the easiest bind type to configure on FortiOS.

Incorrect. Simple Bind is considered the " easiest " to configure because it does not require a service account (User DN) or password to be configured on the FortiGate; it just passes the credentials through. Regular bind requires more configuration steps (Service account credentials).

C. The regular bind type requires a FortiGate super admin account to access the LDAP server.

Incorrect. This is a common distractor. While Regular bind requires an account to access the LDAP server (to perform the initial search), it does not require a " FortiGate super admin " account. It requires an LDAP user with standard read/search permissions. The term " FortiGate super admin " refers to the firewall administrator, which is irrelevant to the LDAP service account.

D. It is not often used as a bind type.

Incorrect. Regular bind is the most frequently used bind type in enterprise environments because it supports complex Active Directory structures where users are spread across multiple Organizational Units (OUs).

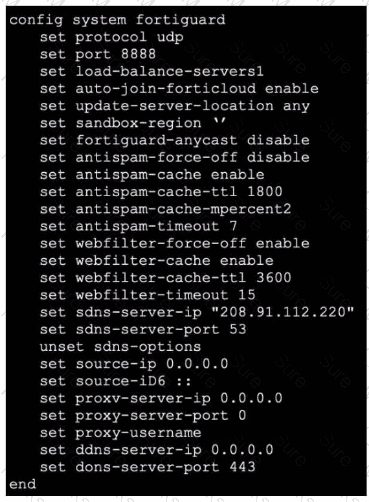

The exhibit shows a FortiGate configuration under config system fortiguard related to web filtering and FortiGuard options. There is a line:

set webfilter-force-off enable

According to official Fortinet documentation, the " webfilter-force-off " option, when enabled, causes the FortiGate to bypass web filtering for all traffic—even if a web filter profile is applied to a policy. This override is typically used for troubleshooting or performance reasons and is documented as an explicit bypass feature.

If an administrator wants to enforce web filtering inspection, this setting must be disabled. The correct way to restore web filtering functionality is to run:

set webfilter-force-off disable

Once done, traffic passing through policies with web filter profiles will be inspected and filtered as per configuration. Other settings such as timeout or cache TTL do not bypass web filtering; they only affect operational nuances.

FortiOS Admin Guide: Static Routing, SNAT Route Change Feature

The correct answer is A .

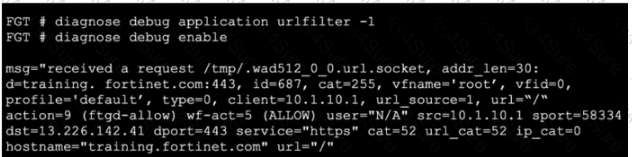

The debug output is for an HTTPS request and shows a hostname value. The study guide explains that with SSL certificate inspection, FortiGate extracts the FQDN from either:

“TLS extension server name indication (SNI)”

“SSL certificate common name (CN)”

So the hostname shown in the real-time web-filter debug can be derived from the SNI in the client request or, if needed, from the CN in the server certificate. That makes A correct.

Why the other options are wrong:

B is wrong because the study-guide example for web-filter real-time debug explicitly says: “This slide shows an example of real-time debug output when the URL to categorize isn ' t in the FortiGuard cache.” In these debugs, cat=255 appears before the final lookup result, so this does not indicate a local-cache hit.

C is wrong because ftgd-allow is the action , not the profile name. The debug line shows the action as action=9 (ftgd-allow) while the profile shown is profile= ' default ' . FortiOS web-filter logs also use the profile field separately from the action field

D is wrong because the final category shown is url_cat=52 , not 255. The study guide’s example shows the same pattern: an initial cat=255 in the request line, followed by the resolved result cat=52 url_cat=52

So the verified answer is: A .

Analyze the " Send to Application Layer " Message:

The most critical line in the debug output is: id=65308 ... func=av_receive ... msg= " send to application layer "

Meaning: This message indicates that the FortiGate kernel is handing the packet over to a user-space daemon (specifically the WAD/Proxy process, indicated by av_receive handlers) for deep inspection.

Implication: This behavior is the hallmark of Proxy-based inspection. In Flow-based inspection, the traffic is handled by the IPS engine (often within the kernel or via specific IPS handlers like ips_measure), and you would not typically see a " send to application layer " message for standard web filtering.

Evaluate Option B (Firewall Policy Mode):

Since the traffic is being sent to the application layer proxy, the Firewall Policy controlling this traffic (Policy ID 1, as seen in Allowed by Policy-1) must be configured with Inspection Mode = Proxy. If it were Flow-based, the traffic would stay in the flow path. Thus, Option B is correct.

Evaluate Option C (Web Filter Profile Mode):

In FortiOS, when a firewall policy is set to Proxy-based inspection, the security profiles (like Web Filter) applied to that policy also operate in Proxy-based inspection mode. The presence of the av_receive function confirms that the content inspection (Web Filter/AV) is being performed by the proxy engine. Thus, Option C is correct.

Why Option A is Incorrect (NPU Offload):

The output shows npu_state=0x100. In the context of a flow trace where traffic is being " sent to application layer, " this confirms the session is not fully offloaded to the NPU (Network Processor). Offloaded traffic (Fast Path) is handled by the hardware and would not generate these specific CPU-level debug logs for the payload inspection phase. The proxying process requires CPU intervention.

Why Option D is Incorrect (Port Mapping):

While valid protocol mapping is necessary for inspection, the specific debug output shown is a direct result of the Inspection Mode (Proxy vs. Flow). The observation of the traffic moving to the application layer is primarily caused by the policy and profile mode settings, making B and C the direct " observations " derived from the log data.

Parallel Path Processing (PPP) in FortiOS refers to the system’s ability to evaluate and select among multiple processing paths—often involving dedicated network processors, content processors, or CPU-based workflows—to optimally process packets. The official documentation highlights that the PPP engine dynamically selects which hardware or software path to use for each session based on session characteristics, policy configuration, and traffic type. This dynamic selection results in optimal throughput and resource utilization.

The document specifies that PPP assesses several processing paths in parallel, using decision logic to determine whether a session should be offloaded to specialist hardware (like NP6, CP9, etc.) or stay in the CPU path, ensuring that each packet is handled by the most efficient available method under current load and policy. Hardware and software configurations both influence this outcome, but it is the PPP engine ' s decision-making that defines the optimal path per session.

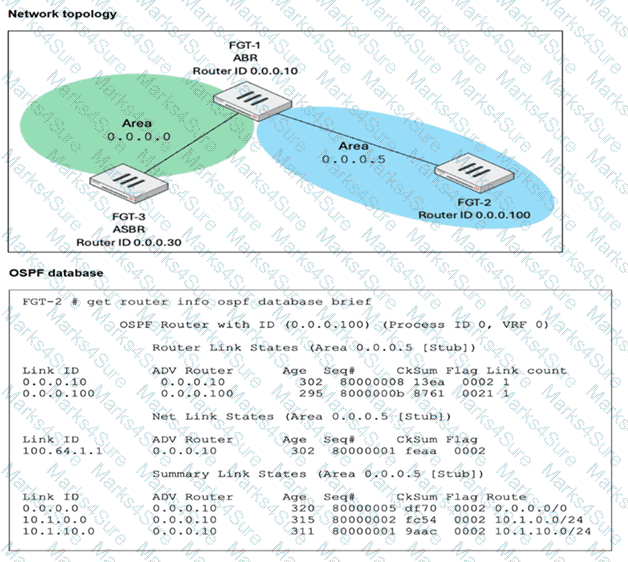

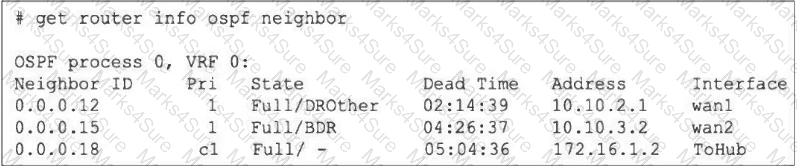

The get router info ospf database brief output on FGT-2 clearly indicates that Area 0.0.0.5 is configured as a [Stub] area.

In OSPF, a Stub Area is specifically designed to reduce the size of the Link State Database (LSDB) on internal routers. The primary behavior of a Stub area is that it does not accept Type 5 (AS External) LSAs .

FGT-3 is the ASBR (Autonomous System Border Router) and is importing static routes, which are generated as Type 5 LSAs in the OSPF domain.

FGT-1 acts as the ABR (Area Border Router). Because Area 0.0.0.5 is a Stub area, FGT-1 blocks these Type 5 LSAs from entering Area 0.0.0.5.

Consequently, FGT-2 will not receive the specific external routes advertised by FGT-3. Instead, the ABR (FGT-1) injects a default route (0.0.0.0/0) into the Stub area to allow connectivity to the external world, which is visible in the database output.

While the question text mentions FGT-3 not receiving routes, the definitive configuration shown in the exhibit is the Stub area setting, which directly corresponds to the blocking of Type 5 LSA propagation (Option A).

The Internet Key Exchange version 2 (IKEv2) protocol simplifies the negotiation process compared to IKEv1. It is defined by a specific sequence of message exchanges to establish a secure IPsec tunnel.

The correct chronological order of the IKEv2 exchanges is:

IKE_SA_INIT (Initial Exchange):

This is the first exchange. It negotiates the security parameters for the IKE Security Association (IKE SA), sends nonces, and performs the Diffie-Hellman key exchange. At the end of this exchange, the communication is encrypted, but the peers are not yet authenticated.

IKE_AUTH (Authentication Exchange):

This is the second exchange. It authenticates the previous messages, exchanges identities and certificates (if used), and establishes the first Child SA (the actual IPsec Security Association used for data traffic).

CREATE_CHILD_SA (Subsequent Exchanges):

This exchange occurs after the IKE SA and the initial Child SA are established. It is used to create additional Child SAs (for different traffic selectors) or to perform re-keying for the IKE SA or existing Child SAs.

Why other options are incorrect:

A & B: Incorrect because CREATE_CHILD_SA cannot happen before the SA is initialized (IKE_SA_INIT) and authenticated (IKE_AUTH).

D: Incorrect because IKE_AUTH cannot occur before IKE_SA_INIT.

Therefore, the protocol flow is IKE_SA_INIT $\rightarrow$ IKE_AUTH $\rightarrow$ CREATE_CHILD_SA.

The exhibit shows these key lines:

handle_req-Rcvd auth req ... for jsmith in Lab

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explicitly shows the same LDAP real-time debug pattern and says the request line includes the LDAP server object name:

handle_req-Rcvd auth req ... for jsmith in Lab ...

That supports A : Lab is the configured LDAP server name being used for this authentication request.

For the LDAP flow stage, the study guide states:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree.” It also says that if the LDAP server finds the user, the output shows the user’s full DN.

That matches the exhibit’s start_search_dn-base ... filter:sAMAccountName=jsmith and Found DN ... CN=John Smith... lines, so D is correct.

Why the other options are wrong:

B is wrong because the exhibit shows FortiOS has found the user DN CN=John Smith,..., but that does not mean the user is already authenticating with that DN in this step. The study guide says this DN is discovered in step 2 , and only in step 3 does FortiGate bind using the user DN.

C is wrong because the exhibit is showing step 2 (Search Request) , not step 3 (Bind Request) . The study guide separates these steps clearly and shows step 3 with fnbamd_ldap_build_userbind_req-Trying DN ... and __ldap_build_bind_req-Binding to ' CN=John Smith,... '
