H12-811_V2.0 HCIA-Datacom V2.0 Questions and Answers

During modulation, the transmitter maps digital information onto certain physical characteristics of a carrier signal so that the information can be transmitted over the air. The three classic carrier parameters that can be modified are amplitude , frequency , and phase . Therefore, options A , B , and D are correct.

Amplitude modulation changes the strength of the carrier wave. Frequency modulation changes the oscillation rate of the carrier. Phase modulation changes the phase angle of the carrier relative to a reference. Modern wireless communication systems often combine these parameters, especially amplitude and phase, in complex digital modulation schemes such as QPSK, 16-QAM, 64-QAM, or higher-order QAM used in WLAN standards. Option C , channel, is not a carrier parameter modified during modulation. A channel refers to a frequency resource or spectrum allocation used for communication, not a physical waveform characteristic being directly altered to encode bits. HCIA-Datacom introduces these basic wireless concepts to help learners understand how WLAN signals are transmitted, how data rate improvements are achieved, and why different modulation methods have different requirements for signal quality and interference resistance.

============

This statement is false . On Huawei devices, the domain to which a user belongs is usually determined by the domain part carried in the user name, for example user@huawei.com. However, if the specified domain is not configured on the NAS device, authentication does not necessarily fail immediately . In many cases, the device can use a default domain for authentication processing, depending on the AAA configuration.

Huawei AAA supports both an administrator user default domain and a normal user default domain . If a user name does not match a configured domain, or the domain carried in the user name is unavailable, the device may fall back to the default domain and continue authentication according to the configured policy. Therefore, the statement is incorrect because it treats authentication failure as unavoidable in every such case. HCIA-Datacom emphasizes domain-based AAA processing because it allows different groups of users to use different authentication, authorization, and accounting methods. At the same time, learners must understand the function of default domains, which provide flexibility in real deployments and prevent unnecessary authentication failures in some login scenarios.

============

This statement is false because although Area 0 is indeed the backbone area , the statement about the area ID range is incorrect. In OSPF, the area ID is a 32-bit value , which can be represented either in decimal format or in IPv4 address format such as 0.0.0.0. It is not limited to the numeric range 0 to 255 .

For example, an area can be configured as 0, 1, 100, or in dotted-decimal form such as 0.0.0.1 or 0.0.0.10, depending on implementation and configuration style. HCIA-Datacom teaches that OSPF uses hierarchical area design to improve scalability, reduce SPF calculation scope, and optimize LSA flooding. The backbone area , which is Area 0, serves as the transit area connecting all non-backbone areas in a standard OSPF design. Therefore, the second part of the statement is correct, but the first part is wrong, making the entire statement false. This question tests whether the learner understands both the function of Area 0 and the actual format of OSPF area identifiers.

============

This statement is false . In Layer 3 in-path WLAN networking , the WAC and Fit APs communicate over Layer 3, which means the APs must discover the WAC through methods that are valid across Layer 3 boundaries. Broadcast is a Layer 2 mechanism and cannot normally be used for WAC discovery across Layer 3 networks. Therefore, saying that APs can obtain the WAC address through broadcast or DHCP in this scenario is incorrect.

In Huawei WLAN deployments, Fit APs can commonly discover the WAC address through methods such as DHCP option-based discovery , DNS , or preconfigured controller information, depending on the deployment model and product features. Because the WAC and AP are not in the same Layer 2 broadcast domain in Layer 3 in-path networking, broadcast discovery is not the standard mechanism here. HCIA-Datacom stresses the difference between Layer 2 direct discovery and Layer 3 discovery methods because this affects initial AP registration, CAPWAP establishment, and troubleshooting when APs fail to go online. Understanding the discovery mechanism is essential when planning IP addressing, DHCP options, and controller placement in enterprise WLAN designs.

============

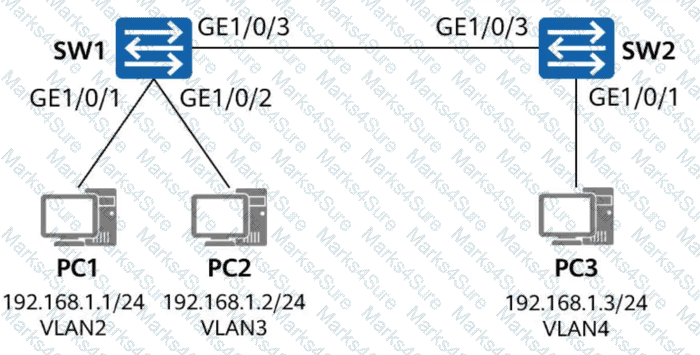

PC1 and PC2 are in different VLANs on SW1, while PC3 is in VLAN 4 on SW2. To allow traffic from VLAN 2 and VLAN 3 users to reach PC3 through the inter-switch link, SW1 must be able to send frames from PC1 and PC2 toward SW2 in a form that SW2 can place into VLAN 4.

Option B is valid because a hybrid interface on SW1 can send frames from VLAN 2 and VLAN 3 untagged , and setting the PVID to VLAN 4 allows untagged inbound frames on the peer side to be associated appropriately when matched with the SW2 configuration. Option C is also valid because configuring SW2’s GE1/0/3 as a trunk allowing VLAN 4 and setting its PVID to VLAN 4 means untagged frames arriving from SW1 are treated as belonging to VLAN 4 and can then be forwarded to PC3 through its access interface.

Option A is incomplete because only configuring SW2 does not solve the VLAN handling on SW1. Option D is incorrect because a trunk on SW1 would send VLAN 2 and VLAN 3 frames tagged, which would not match the VLAN 4-only expectation on SW2 in this scenario.

============

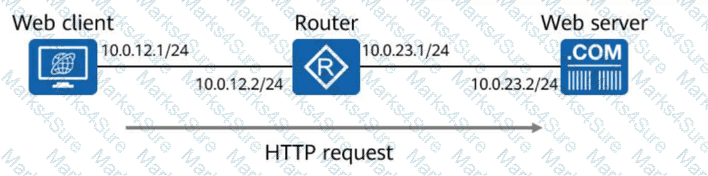

In the standard TCP/IP forwarding model, transport-layer headers such as TCP and UDP headers are added by the source host and are mainly interpreted by the destination host. Routers that forward packets between the source and destination operate primarily at the network layer , using the destination IP address in the IP header to make forwarding decisions. Therefore, under normal routing behavior, routers do not process transport-layer header information when deciding how to forward packets.

This is a key concept in layered communication. The source host encapsulates application data with a transport-layer header, then with an IP header, and finally with a data-link header. Each router along the path removes only the Layer 2 frame header, checks the Layer 3 destination IP information, decrements TTL, recalculates the IP header checksum when required, and forwards the packet. The transport-layer content remains unchanged in normal forwarding. HCIA-Datacom uses this principle to explain end-to-end communication and layer responsibilities. Although advanced devices may inspect higher-layer information for security or policy purposes, standard router forwarding in the basic TCP/IP model does not depend on transport-layer processing.

On Huawei switches, a physical Ethernet interface usually works as a Layer 2 switch port by default. A Layer 2 interface cannot be assigned an IP address directly. If an administrator wants to configure an IP address on such an interface, the interface must first be converted into a Layer 3 interface . The command used for this is undo portswitch , so option B is correct.

After this command is executed, the interface no longer behaves as a Layer 2 switching port and can then support Layer 3 features such as direct IP address configuration. Options A , C , and D are all Layer 2 port-type commands used to configure the interface as a trunk, access, or hybrid port. These commands do not solve the problem because they keep the interface operating at Layer 2. HCIA-Datacom emphasizes the difference between Layer 2 switching interfaces and Layer 3 routed interfaces on switches. Understanding when to use undo portswitch is important in campus network deployment, especially when configuring routed uplinks, management interfaces, or inter-device Layer 3 links on switches.

============

This statement is false because the receiver is one of the fundamental elements of communication. In basic communication theory, a complete communication process requires at least four essential elements: the sender , the information or message content , the transmission medium or channel , and the receiver . If the receiver is missing, communication cannot be completed because there is no endpoint to accept, interpret, or respond to the transmitted information.

In datacom networks, this concept maps directly to real networking scenarios. A source host generates data, the data is carried over some medium such as copper, fiber, or wireless, and a destination host receives the data. Network devices such as switches and routers assist the forwarding process, but the fundamental communication model still includes both communicating endpoints. HCIA-Datacom emphasizes the complete sender-to-receiver process when introducing network communication basics, protocol encapsulation, and forwarding. Therefore, excluding the receiver from the communication elements is conceptually incorrect. The correct understanding is that sender, receiver, information content, and channel together form the essential basis of communication.

============

A router works mainly at the network layer . When it receives a frame, it removes the Layer 2 header and trailer, examines the destination IP address in the Layer 3 header, consults the routing table, selects the outgoing interface, and then re-encapsulates the packet into a new Layer 2 frame for the next hop. Therefore, statement B is true and is not part of the answer.

Statement A is false because the router does not create a new destination IP address during normal forwarding. The source and destination IP addresses remain unchanged end to end unless special functions such as NAT are used. Statement C is false because routing-table lookup is based on the destination IP address, not on TCP or UDP port numbers. Statement D is also false because normal IP routing does not inspect application-layer content to determine the outgoing interface. That decision is made from the network-layer destination address and the routing table. This question tests the layered forwarding logic of routers in TCP/IP networks.

============

This statement is true . On a Huawei WAC, the number of APs that can go online is controlled by the available license resources . If a Fit AP fails to come online and the command display ap online-fail-record shows Insufficient license resources , it means the controller does not currently have enough licensed capacity to allow additional APs to register successfully.

In this case, the administrator must expand the license capacity or adjust existing license allocation so that the AP can be admitted. This is a common WLAN deployment issue, especially when new APs are added without first verifying the current AP license limit on the WAC. HCIA-Datacom troubleshooting methodology emphasizes interpreting controller diagnostics and fault records accurately. An AP can fail to go online for many reasons, including CAPWAP reachability problems, version mismatch, authentication issues, or licensing limitations. When the failure reason explicitly indicates insufficient license resources, the troubleshooting direction is clear: the controller’s AP license capacity must be checked and, if necessary, increased. This question tests the ability to map a specific WAC alarm record to the correct operational response.

============

This statement is true . When a device has multiple routes to the same destination prefix, route selection is based first on the longest prefix match , and when prefix length is the same, the device compares the route preference or administrative priority associated with each routing source. On Huawei devices, a direct route has a better preference than a static route , so the direct route is selected first when both routes have the same destination and mask.

A direct route is generated automatically when an IP address is configured on an interface and that interface is Up. Because the destination network is directly connected, this route is considered more trustworthy and efficient than a manually configured static route pointing to the same prefix. HCIA-Datacom uses this principle to explain route selection, routing-table generation, and troubleshooting cases where a configured static route does not appear as the active route because a direct or dynamic route has higher priority. This is a basic but important concept in IP forwarding and helps engineers correctly interpret routing tables on Huawei routers and Layer 3 switches.

============

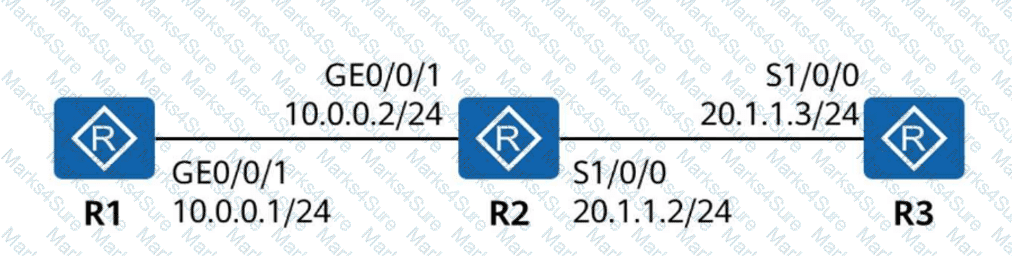

For two directly connected edge networks to communicate through intermediate routing, each end router must have a route to the remote destination network pointing to the correct next hop on the transit link. Since 10.0.0.0/24 is directly connected to R1 and 20.1.1.0/24 is directly connected to R3, R1 needs a route to 20.1.1.0/24, and R3 needs a route to 10.0.0.0/24.

Option A is correct because it configures on R1 a static route to the remote network 20.1.1.0/24 using next hop 10.0.0.2, which is the neighbor toward the transit path. Option D is correct because it configures on R3 a static route to the remote network 10.0.0.0/24 using next hop 20.1.1.1, which is the proper adjacent forwarding address in that direction. Option B is incorrect because a router cannot use a next hop that belongs to the remote destination network but is not directly reachable as a valid immediate forwarding address in this topology. Option C is also incorrect because the specified next hop is not the correct adjacent next-hop address for R3. HCIA-Datacom stresses that static routes must always point to a reachable next hop or outbound interface.

============

The correct answer is 802.11ac , so option C is correct. In standard WLAN evolution knowledge used in HCIA-Datacom, 802.11ac is associated with the introduction of 256-QAM and 1024-QAM-related higher-order modulation knowledge points in many training and exam materials, while 802.11ax and 802.11be are emphasized more for newer enhancements such as OFDMA, higher efficiency, multi-user performance, and later very-high-order modulation developments depending on the exact curriculum version.

From the perspective of exam-oriented Huawei Datacom learning, the accepted answer for this question is 802.11ac . Option A , 802.11n, is earlier-generation Wi-Fi and does not use 1024-QAM as the defining answer here. Option B , 802.11ax, is Wi-Fi 6 and introduces major efficiency improvements, but this question’s expected answer set identifies 802.11ac . Option D , 802.11be, corresponds to Wi-Fi 7 and is associated with even more advanced capabilities in newer standards. HCIA-Datacom WLAN questions often test the matching of a standard with one representative technical characteristic from the training materials rather than the entire modulation evolution history.

============

The false statements are A and D . Option A is considered false in HCIA-Datacom wording because intelligent computing data center networks aim to build a lossless Ethernet fabric through coordinated technologies such as high-bandwidth interfaces, deep buffers, PFC, ECN, congestion control, and optimized forwarding. The exam-oriented knowledge point treats these technologies as solutions for a zero packet loss network design goal rather than stating that a truly lossless network cannot be achieved.

Option D is also false because RDMA is used to reduce end-to-end communication latency and CPU overhead between servers, especially for east-west traffic in AI and high-performance computing clusters. It is not specifically described as reducing latency between GPU servers and physical switches . That wording is inaccurate. Option B is true because PFC and ECN are standard lossless Ethernet technologies applied in intelligent computing networks. Option C is also true because AI training and distributed computing generate massive data synchronization traffic, requiring very high single-port bandwidth such as 200GE or 400GE . HCIA-Datacom highlights bandwidth, low latency, and lossless transport as the core requirements of intelligent computing data center networks.

============

This statement is true . In SNMP, both Trap and Inform messages are used by managed devices to proactively report alarms or events to the Network Management System (NMS) . However, their reliability behavior is different. A Trap is sent without requiring an acknowledgment from the NMS. Once it is transmitted, the sender does not confirm whether the manager actually received it.

By contrast, an Inform Request requires the NMS to send a response confirming receipt. If the managed device does not receive the acknowledgment within the expected time, it can retransmit the Inform message. Because of this, Inform is considered more reliable than Trap, although it also introduces slightly more overhead. HCIA-Datacom highlights this difference when explaining SNMP-based monitoring and alarm reporting. In real network O & M scenarios, the choice between Trap and Inform depends on the required balance between reliability and simplicity. This question tests a very standard SNMP knowledge point: Trap is unacknowledged , while Inform is acknowledged . Understanding this distinction helps network engineers choose suitable alarm reporting mechanisms in enterprise monitoring platforms.

============
