Free Practice Questions for the Huawei HCIE-Storage H13-629_V3.0 Exam (2026 Updated)

The OceanStor Pacific logical software architecture states that the index layer provides fine-grained space-layout management capabilities and that the index module “maps the data objects in the DROS or block module to the lower-layer Plog space.” The training materials separately define the surrounding block-service components. VBS provides standard iSCSI/SCSI access. EDS provides structured services and value-added features, while OSD provides data-persistence capabilities. OceanStor Pacific block storage also uses a multi-MDC design to enhance reliability. The MDC is therefore the metadata-control component associated with maintaining the logical metadata relationship between block data and its allocated storage space. VBS is the access layer and does not own the metadata mapping function; OSD persists the actual data; EDS provides the broader structured-data service. Maintaining space metadata and the data-to-space index relationship belongs to the Metadata Controller function.

Study Guide Topics: Scale-Out Storage Technology Presentation → OceanStor Pacific → Logical Software Architecture → Block Service → Index Layer → MDC/VBS/EDS/OSD.

The correct default chunk size for the stated 3.84 TB SSD configuration is 8 KB.

The Training Materials describe RAID 2.0+ global pooling as follows: “The system uses RAID 2.0+ to create a global storage pool… All SSDs evenly contribute LUN spaces for back-end SSD sharing.” This explains why storage space is divided into fine-grained units rather than assigning an entire LUN to a fixed RAID group or individual SSD.

Huawei ' s ROW architecture then organizes these units into chunk groups (CKGs). Instead of traditional overwrite behavior, new data and parity are written into a new chunk group and the LBA mapping is redirected to it.

For 3.84 TB SSDs in the configuration tested here, the corresponding default fine-grained chunk size is 8 KB. Options measured in megabytes represent a much coarser allocation unit and do not match this RAID 2.0+ chunk configuration.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Dorado → RAID 2.0+ → Global Storage Pool → Chunk/CKG → ROW Architecture.

The correct security layer is the Network layer.

Huawei defines SFTP as Secure File Transfer Protocol and SSH as Secure Shell in the course terminology. Both protocols protect communications carried between systems over the network rather than implementing application-data protection or storage-resource access logic.

The BCManager eReplication architecture also shows communication among the eReplication Server, Agents, browsers, storage systems, virtualization platforms, and DR management systems through network protocols such as HTTPS, REST, SOAP, and storage-management interfaces.

Using SSH replaces insecure remote terminal access with encrypted secure-shell communication, while SFTP protects file transfer through a secure channel. Their purpose in this context is therefore protection of management communication while information crosses the network.

Consequently, this control belongs to network-layer security, rather than the application, management-function, or operating-system layers.

The retrieved Training Materials define SSH/SFTP and the eReplication communications architecture, although the four-choice security-layer taxonomy itself is not reproduced as a separate table in the parsed material.

Study Guide Topics: Data Protection Solution → BCManager eReplication → Security → Secure Communications → SSH/SFTP → Network Layer.

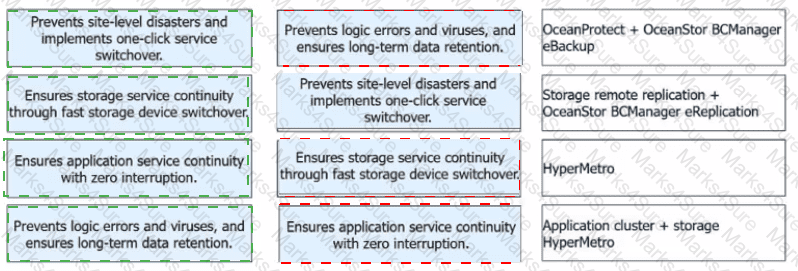

1 → Storage remote replication + OceanStor BCManager eReplication; 2 → HyperMetro; 3 → Application cluster + storage HyperMetro; 4 → OceanProtect + OceanStor BCManager eBackup

The mapping follows Huawei ' s separation of business continuity, data recoverability, and long-term retention.

The course states: “DR ensures business continuity. Backup focuses on data recoverability. Archiving is for long-term storage of cold data and regulatory compliance.”

Remote replication combined with BCManager eReplication addresses site-level disaster recovery, and Huawei states that BCManager provides one-click DR drill and switchover capabilities.

HyperMetro is the appropriate solution for storage-level continuity because Huawei defines it as an active-active storage solution using dual-write technology to provide service continuity and zero data loss.

When continuous availability must extend to the application layer, storage HyperMetro must be combined with an application cluster so that application processing itself can fail over seamlessly.

Finally, backup protects against logical corruption, accidental deletion, and malware-related damage because historical copies remain available independently of production data.

Study Guide Topics: Data Protection Basics → DR vs Backup → HyperMetro → Remote Replication → BCManager eReplication → Application-Level HA.

The OceanStor Pacific architecture states: “Storage engine layer: implements persistent storage.” It further specifies that this layer provides “erasure coding (EC), data rebuilding and balancing, disk management, and data read/write capabilities.”

Therefore, C. Data reconstruction belongs to the engine layer.

Option A, tiered storage, is implemented as an advanced storage-service capability through features such as SmartTier, meaning it belongs logically to the service layer rather than the persistence engine. Option B, protocol interworking, is associated with service/interface processing. Huawei specifically describes multi-protocol access and interworking for NFS, CIFS, POSIX, MPI, S3, and HDFS in the interface/service architecture.

Option D, service configuration, is part of storage management, alongside installation, deployment, user management, device management, alarm reporting, monitoring, upgrade, and capacity expansion.

The architectural separation is therefore clear: interfaces expose protocols; the service layer implements storage services and value-added functions; the engine layer provides persistent storage, redundancy, rebuilding, balancing, and disk I/O; and management performs administrative operations.

Study Guide Topics: Scale-Out Storage Technology Presentation → OceanStor Pacific → Functional Architecture → Storage Engine Layer.

The supplied HCIE-Storage question set identifies A, B, and C as correct.

Link compression is an inter-array transmission optimization associated with HyperReplication. Because it operates on the replication path rather than in the host/application data path, it is transparent to the application server. The host continues to perform ordinary reads and writes against the primary storage system while HyperReplication handles the remote synchronization process.

Huawei describes HyperReplication as the core technology used to synchronize copies of local data to a remote storage system and distinguishes synchronous and asynchronous replication modes. For asynchronous replication, changed data is collected and transferred to the secondary system according to the replication period. Compression can therefore be applied inline to the transmission stream to reduce required WAN bandwidth.

Option D is not part of the keyed link-compression sequence. The retrieved Training Materials establish the HyperReplication transport and consistency mechanisms, but the parsed course text available here does not provide a detailed link-compression processing sequence that independently substantiates the specific “decompress first, then verify” assertion. Therefore, that additional sequence should not be inferred.

Study Guide Topics: Data Protection Solution → HyperReplication → Remote Replication Link → Link Compression → Bandwidth Optimization.

The required feature is SmartMobility.

The function implements policy-driven movement of file data according to its value or activity level. Frequently accessed, performance-sensitive data remains on the local primary storage, while colder data can be relocated to remote storage resources. The objective is to preserve high performance for active data while reducing the cost of retaining less frequently accessed information.

Huawei characterizes next-generation hybrid flash storage as supporting “Free warm and hot data flow” and states that “Warm and hot data can be migrated in a gateway-free, software-free, and cross-device manner.”

The broader tiering architecture similarly describes policy-based classification of hot, warm, and cold data and automated migration according to storage policies. This enables the physical location of cold data to change without requiring the application to manage the movement manually.

SmartMobility extends that lifecycle principle to file-service scenarios in which cold file data is migrated away from the primary system to suitable remote devices while the frequently accessed portion remains local.

Study Guide Topics: Data Storage Technology Presentation → Hybrid Flash Storage → File Services → Data Lifecycle Management → Hot/Cold Data Migration → SmartMobility.

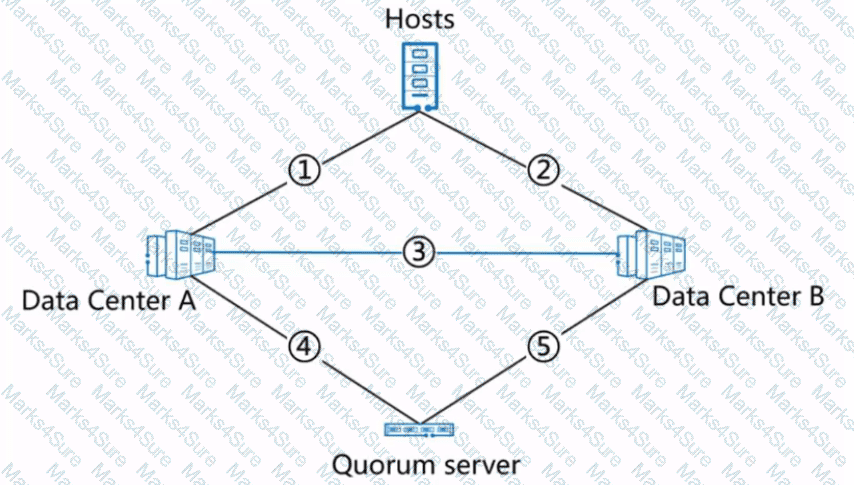

Huawei states that when communication between the two HyperMetro storage systems is interrupted, “the preferred site continues to provide services while the other site stops providing services.” In static-priority arbitration, the preset preferred site wins arbitration and continues service delivery. The arbitration table makes the scenario even more explicit. For a HyperMetro pair in To be synchronized state, it states: “If DC A is the preferred site, the LUN in DC A continues providing services while the LUN in DC B stops.” These symptoms identify interruption of the HyperMetro communication/replication connection between the two storage arrays. In the topology, that connection is fault point 3. A host-access link failure would affect host connectivity rather than produce this exact arbitration state. A quorum-link-only failure also does not match the combination of To-be-synchronized status and one-site service suspension. Therefore, the failed component is the inter-storage HyperMetro link represented by 3.

Study Guide Topics: Data Protection Solution → HyperMetro → Arbitration Mechanism → Quorum Server Mode → Static Priority Mode → Link Failure Scenarios.

Huawei defines HyperCDP as a continuous-protection mechanism and states that it provides more intensive and persistent protection than conventional writable snapshots while imposing little impact on source LUN performance.

For block protection, a protection group provides the logical collection of source LUNs that must be protected consistently. A HyperCDP consistency group is then created for that protection group so that the member LUNs can receive a coordinated set of CDP protection points. Therefore, the protection group must already exist before the corresponding HyperCDP CG is created, making B correct.

A protection plan or schedule controls the policy and timing of protection-point generation; it is not the prerequisite object that defines which LUNs belong to the HyperCDP consistency relationship. This distinction is important: membership is established by the protection group, while execution timing is governed by scheduling/policy settings.

Huawei ' s data-protection model consistently separates protected objects/groups from the policies subsequently applied to those groups.

Study Guide Topics: Flash Storage Technology Presentation → HyperCDP → Block Continuous Data Protection → Protection Groups → HyperCDP Consistency Groups.

The SmartVirtualization offline-takeover workflow states: “Step 2: Disconnect the application server from the heterogeneous storage system to stop data transfer and services. Step 3: Connect the application server to the local storage system and enable the local storage system to take over services.” The takeover-mode section further states that offline takeover uses no masquerading and is applicable to compatible Huawei and third-party heterogeneous storage systems; importantly, services on the related application servers are stopped temporarily. For migration implementation, services must therefore first be stopped. The original source-storage mapping is then changed so that host access can be redirected correctly. SmartVirtualization subsequently takes over the source LUNs. After the host paths and service relationship have been transferred to Huawei storage, applications and services are restored. SmartMigration can then move the actual data from the heterogeneous eDevLUN to the target internal LUN while Huawei storage controls host access.

Consequently, the sequence is b → a → c → e → d, or baced.

Study Guide Topics: Data Migration Solution → SmartVirtualization → Offline Takeover → Takeover Mode Selection → SmartMigration.

The flash-storage course describes database applications as having 8 KB I/O, with random reads accounting for 70%, and identifies OLTP as a workload suitable for caching hot, random small-I/O data.

The financial-file material also states that small-file aggregation is applicable to “small check image files in carrier and financial scenarios.” This is inconsistent with option C ' s characterization of document imaging as being dominated by GB-level large-file writes.

Financial OLTP workloads are highly transactional and typically produce small, random I/O with identifiable hot regions, which matches the training material ' s OLTP/SmartCache model. Backup and archiving workflows are throughput-oriented and therefore favor larger sequential transfers, while restoration reverses the dominant direction toward reads. OLAP workloads process substantial datasets and consequently emphasize large sequential read operations.

The directly retrieved training passages do not reproduce the complete four-row financial workload table verbatim, but they specifically support the OLTP pattern and contradict the large-file characterization in option C.

Study Guide Topics: Data Storage Technology Presentation → Typical Application Scenarios → Financial Services → OLTP/OLAP → Document Imaging → I/O Characteristics.

The OceanProtect software architecture states: “Infrastructure: Includes GaussDB, Elasticsearch, Kafka, ZooKeeper, and other common components.”

Accordingly, Elasticsearch, Kafka, and GaussDB are valid infrastructure components and the correct selections are A, C, and D.

GaussDB provides relational database services required by the management and data-protection software stack. Elasticsearch supports indexing and search-oriented functions, which are important for metadata processing, global search, and operational data retrieval. Kafka provides distributed messaging capabilities that enable communication and event/data exchange between components in the distributed OceanProtect architecture.

Ceph is not listed as one of the OceanProtect infrastructure components in this architecture. Instead, the storage layer is Huawei ' s integrated storage platform, providing file-system and protocol-access capabilities beneath the data-protection services.

The same architecture separates the platform into the management layer, data-protection layer, storage layer, hardware layer, and common infrastructure. ProtectManager schedules backup, recovery, archive, and replication jobs, while DataMover Engine processes protection data flows.

Study Guide Topics: Data Protection Solution → OceanProtect Backup Storage → Software Architecture → Infrastructure Components → ProtectManager/DataMover Engine.

The only true statement is C, so the false statements are A, B, and D.

Huawei states: “If communication between the storage systems is down, the preferred site continues to provide services while the other site stops providing services.”

The HyperMetro pair therefore transitions to To be synchronized because the two storage systems can no longer maintain synchronous dual-write consistency across the failed inter-site link.

Option A is false because automatic fallback to static priority mode is associated with quorum-server failure, not merely failure of the HyperMetro communication link while the quorum server remains available. Option D is false because permitting both sites to continue independently would create a split-brain risk. Quorum arbitration exists specifically to prevent that condition.

Option B is also false because arbitration does not simply make both sides unavailable. One site wins arbitration and continues providing services, while the losing site stops host access.

This behavior preserves data consistency until the inter-site link is repaired and synchronization resumes.

Study Guide Topics: Data Protection Solution → HyperMetro → Single Quorum Server → Arbitration Mechanism → Link Failure → To-be-Synchronized State.

The SmartMulti-Tenant section explicitly lists the three components of service isolation between tenants as “Service configuration isolation,” “Service access isolation,” and “Service data isolation.”

Therefore, A, C, and D are correct. Service configuration isolation prevents one vStore administrator or tenant environment from changing the service configuration belonging to another tenant. Service access isolation restricts access so that a tenant reaches only the resources allocated to that vStore. Service data isolation ensures that the data belonging to separate tenants remains logically segregated.

Option B is deliberately different. The course describes network isolation between tenants separately from service isolation. It states that a client can use a specified LIF to access only the file systems and snapshots belonging to the corresponding tenant. Therefore, network isolation is indeed part of the broader SmartMulti-Tenant architecture, but it is not one of the three items classified specifically as service isolation.

Study Guide Topics: Flash Storage Technology Presentation → Flash Storage Features → SmartMulti-Tenant → vStore → Tenant Service Isolation.

Huawei identifies MigrationDirector for SAN as the dedicated migration tool for SAN storage migration. Before migration execution, the migration environment must be defined: the source storage must be identified, the relevant service host must be known, and the target storage/resources must be prepared.

The Lab Guide ' s workflow places Creating a Service Host, Configuring the Source Storage, and Preparing the Target Storage before the actual Data Migration phase. A SmartVirtualization migration lab follows the same structure: production/service-host preparation and target-storage preparation precede takeover and data migration.

This makes A, B, and C configuration/preparation activities.

Option D belongs later in migration execution. Huawei ' s migration delivery sequence explicitly places target-storage configuration and migration preparation before stopping services, taking over the source storage, recovering applications, and migrating data.

Therefore, service takeover is an implementation/cutover activity rather than information entered during migration-task configuration.

Study Guide Topics: Data Migration Solution → MigrationDirector for SAN → Migration Task Configuration → Source Storage → Service Host → Target Storage Planning → Cutover.
