H31-341_V2.5 HCIP-Transmission V2.5 Questions and Answers

In hybrid transmission scenarios involving both 100G-and-beyond and 10G signals, it is recommended that the optical power of 100G signals be higher than that of 10G signals but not exceed the single-wavelength nominal value of the OA board. This ensures the 100G signals, which typically have stricter OSNR and power requirements, maintain adequate quality without causing nonlinear effects or saturation. Proper power balancing between different signal rates prevents performance degradation and interference. HCIP-Transmission guidelines emphasize this approach for hybrid system stability and optimized performance.

Among the differences between MPLS-TP OAM and MPLS OAM, the interval for sending OAM packets is not changed by canceling 3.3 ms and 10 ms values (D). This means these intervals remain in place or are not the key differentiators. The other options (A, B, C) correctly describe differences such as packet formats, label alarms (AIS, RD1, UNEXPMEG), and added functions (CC, AIS, LB, LT) unique to MPLS-TP OAM. HCIP-Transmission materials clarify these differences to aid in understanding the enhanced OAM capabilities for transport profile MPLS networks.

The fiber type described, having zero dispersion at 1310 nm and a typical dispersion coefficient of about 17 ps/(nm·km) at 1550 nm, corresponds to ITU-T G.652 standard fiber, commonly called standard single-mode fiber (SSMF). G.652 fibers are widely used in optical networks due to their low attenuation and favorable dispersion characteristics around 1310 nm, where chromatic dispersion is minimal (essentially zero). This makes them suitable for legacy systems and many current applications. In contrast, G.654 is optimized for low loss and dispersion in the 1550 nm window; G.655 fibers have non-zero dispersion-shifted characteristics; G.653 fibers have zero dispersion around 1550 nm, which differs from the question’s description. HCIP-Transmission standards specify G.652 as the standard fiber matching these parameters.

When light passes through a passive optical component, the decrease in optical power is termed insertion loss. This is a fundamental concept in optical transmission where every component like connectors, splices, splitters, or filters adds some level of power attenuation. Managing insertion loss is crucial to maintain overall system performance, especially in long-haul or dense WDM systems where accumulated loss can degrade the signal. HCIP-Transmission emphasizes the importance of measuring and minimizing insertion loss to ensure system stability and reach requirements are met.

In an outloop (external loopback), the transmitted signal is sent out of the NE and then looped back into its receive port, so signals flow into the local WDM NE.

Hardware loopback on optical ports uses pigtail jumpers, and on electrical ports uses self-loop cables, both performed manually.

When performing optical hardware loopback, adding an optical attenuator is necessary to prevent excessive return power from damaging the transmitter.

OTUk_LOM (Loss of Multiframe) alarm is generated when frame alignment is lost; however, the statement that it occurs when the Frame Alignment Signal (FAS) is Out of Frame (OOF) for three consecutive milliseconds is false. The actual time threshold differs slightly according to standards and vendor implementations. HCIP-Transmission clarifies these alarm thresholds and conditions to ensure precise timing in fault detection, avoiding false alarms while providing timely notifications for network maintenance.

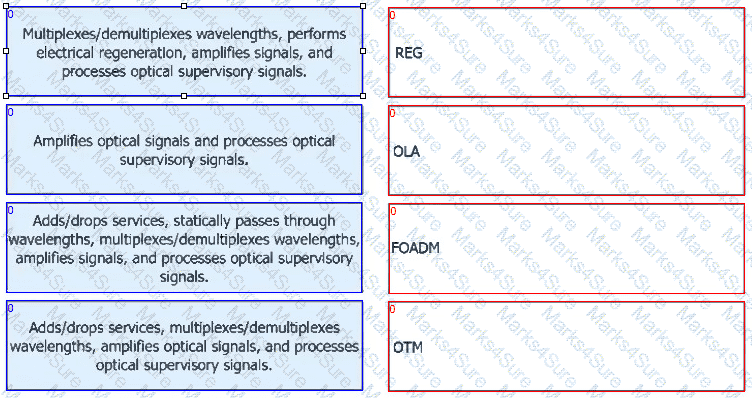

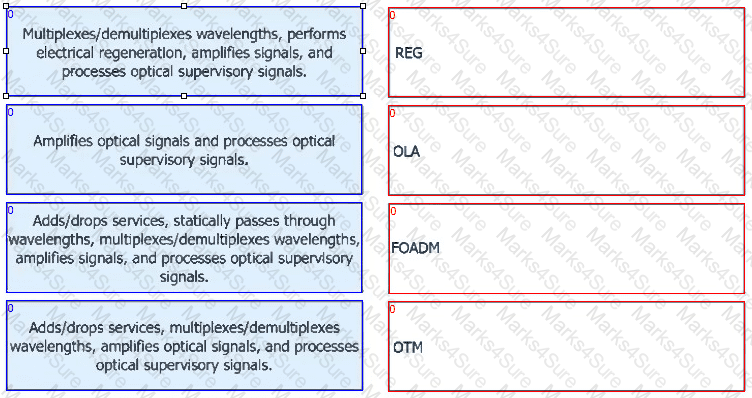

Gain of an Optical Amplifier (OA) measures how much the signal power is increased, typically expressed in decibels (dB), which is a standard unit for power ratios in optical systems.

Insertion loss refers to the decrease of optical power that occurs when light passes through a passive optical component such as connectors, splitters, filters, or splices. This loss results from absorption, scattering, or imperfect coupling within the component. In optical transmission systems, insertion loss is a critical parameter affecting link budget and overall signal quality. HCIP-Transmission materials stress managing insertion loss to ensure sufficient power reaches the receiver and to maintain the integrity of transmitted signals over long distances. Proper component selection and maintenance help minimize insertion loss in WDM systems.

When using the loopback method for troubleshooting or testing, the objects to be looped back or replaced can include optical fibers, boards, fiber adapters, optical attenuators, or power supply devices. Loopback tests help isolate faults by looping signals back to the source or intermediate points, enabling precise fault location. HCIP-Transmission explains that loopback can be applied at various points within the transmission system to verify signal integrity and component function, making it a versatile diagnostic tool in optical networks.

A TTI mismatch in the PM layer generates TTI and TIM alarms but does not constitute a loss of frame alignment, so ODUk_PM_LOF is not reported.

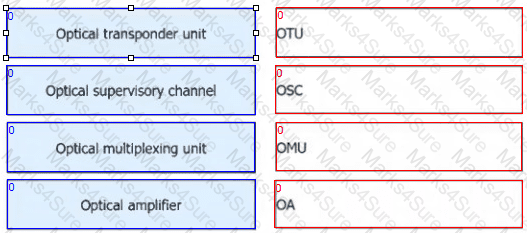

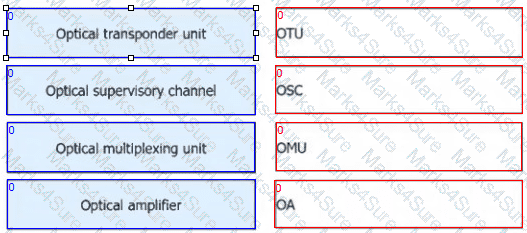

External faults (e.g., fiber cuts, connector issues) should be ruled out before investigating internal equipment faults.

Broader network-level checks (e.g., path continuity, OLP status) come before per-device NE diagnostics.

Isolate faults on individual wavelengths before examining the aggregated multi-wavelength transport.

PWE3 specifies two CES emulation modes: Structure-Agnostic TDM over Packet (SAToP) and Structure-aware TDM Circuit Emulation Service over PSN (CESoPSN). Circuit Emulation over Packet (CEP) is not defined within PWE3.

The statement that signal flow analysis divides the entire network into OMSs (Optical Multiplex Sections) and identifies fault directionality is false. While signal flow analysis does help in locating faults, it is typically performed within a specific OMS or section rather than dividing the entire network at once. OMS segmentation is a physical or logical division, but signal flow analysis focuses on detailed fault location along signal paths rather than large-scale network segmentation. HCIP-Transmission clarifies these nuances to improve fault management precision.

An IP subnet mask of 27 bits means 32 - 27 = 5 bits are left for host addresses. The number of hosts per subnet is 2^5 - 2 = 30. The subtraction of 2 accounts for the network address and broadcast address, which cannot be assigned to hosts. This calculation is fundamental in IP subnetting and is widely used in network design to allocate IP address ranges efficiently. HCIP-Transmission materials include these principles as part of the networking fundamentals necessary for transmission network engineers.

The DWSS20 board does not support grooming of 20-degree optical signals; it is designed for other signal types or degrees.

ESC (Enhanced Supervision Channel) uses Fixed frame structure DCC and Embedded DCC types to transmit supervisory and management information within the optical channel.

A VOA (Variable Optical Attenuator) is configured on each wavelength path of a WSS (Wavelength Selective Switch) board to adjust the power of optical signals. This power adjustment is crucial to achieve flatness across channels by compensating for varying signal intensities. Without such adjustment, some wavelengths may overpower others, causing nonlinear effects and signal degradation. The VOA ensures that all wavelength channels have balanced power levels, improving signal quality and network reliability. This principle is fundamental in dense WDM networks and is emphasized in HCIP-Transmission studies focusing on optical layer signal integrity and amplification management.

In the described scenario, when the R_LOS alarm is detected on the client side at site A, after alarm processing on the WDM side, a REM_5F alarm is reported downstream at site B. Subsequently, site B reports an R_LOS alarm to its downstream client device, confirming alarm propagation and fault transparency in multi-site transmission. This behavior ensures that faults detected at one point are properly signaled through the network, allowing for coordinated protection and troubleshooting. HCIP-Transmission documents this alarm flow process in WDM site fault management and alarm handling procedures.

An inserted ODUk_PM_LCK overhead is transparently forwarded downstream rather than reported or converted into another alarm.

After powering on, ensure the fan tray’s FAN indicator shows steady green (normal operation), fans are spinning properly, and airflow through both upper and lower parts of the subrack is unobstructed to maintain adequate cooling.

R_LOS, R_LOF, R_OOF, and MUT_LOS all indicate loss of signal or framing, which directly interrupts service delivery.

To find the nominal multiplexed input power when reducing from 80 to 10 wavelengths, use logarithmic power scaling:

Start with the minimum input power per wavelength (-16 dBm), subtract 10·log(10) to adjust for fewer wavelengths passing, then add 10·log(80) to scale back to the full 80-wavelength configuration.

The Optical Amplifier (OA) module inside an EMR8 board includes a critical function called "gain locking." This function ensures that when channels are added, dropped, or experience fluctuations, the gain of the remaining channels stays stable. Without gain locking, changes in one channel's power could inadvertently affect the amplification of other channels, causing signal degradation and uneven performance. Gain locking maintains consistent output power levels and improves overall system stability, which is vital in dense WDM networks. This function helps avoid cascading issues during dynamic network changes and supports reliable service delivery in HCIP-Transmission systems.

The intermediate flatness method targets maintaining the single-wavelength input optical power within ±2 dB of the nominal value to ensure balanced power distribution and optimal system performance.

Signal flow analysis is a diagnostic method used to check the service flow through a faulty WDM system node by node, aiding in fault localization. By analyzing the signal path stepwise, engineers can identify where faults or performance degradation occur within the network elements. HCIP-Transmission materials highlight this technique as vital for efficient troubleshooting in complex optical networks, enabling fast restoration and minimal service impact.

The TMB1AST2 board is a specialized optical module used in transmission equipment. According to HCIP-Transmission references, all the statements about this board are correct. (A) The TM1 optical port must be connected to the TMI1 optical port for proper operation. (B) It supports IEEE 1588v2 clock processing, essential for precise time synchronization, and includes OTDR (Optical Time Domain Reflectometer) functions for fiber fault detection and maintenance. (C) When working with DFIU03/DFIU04 boards, the OSC optical port requires an optical module that supports the 1511 nm wavelength to ensure wavelength compatibility. (D) Similarly, when working with DSFIU01/DSFIU02 boards, the TM1/RM1 and TM2/RM2 ports must use optical modules supporting 1511 nm and 1491 nm wavelengths respectively, ensuring correct wavelength assignment for WDM channels. This detailed configuration ensures interoperability and proper system functionality.

An abnormal TTI in the SM layer triggers a Trail Identifier Mismatch (TIM) alarm. AIS signals loss of signal, not a TTI mismatch.

For an OA system, the lower threshold of receive optical power of a line board with an APD receiver or the WDM side of an OTU board is the optical module’s receiver sensitivity plus 3 dB, not 5 dB. The 5 dB margin applies mainly to PIN receivers. This distinction is critical because APDs have higher sensitivity and thus require a smaller margin to avoid false alarms or unnecessary protection switching. HCIP-Transmission clearly differentiates these thresholds to ensure proper optical power management and alarm settings in the network.

The power difference becomes 6 dB (2 dBm – (–4 dBm) = 6 dB), which exceeds the 5 dB threshold, so protection switching occurs.

Alarm handling differs between OTN and SDH encapsulation processes, so they are not processed in the same way when GE services are mapped into OTN versus SDH signals.

The TMK1UNS5 is a universal OTN line board that operates in 100 G and 200 G line modes and supports hybrid OTN/SDH/packet mapping (including ODU0, ODU1, ODU2/2e, ODU3, ODU4, and ODUflex) as well as FEC, OSC, and 1+1 protection. Its published “Functions and Features” do not include an electrical 3R regeneration mode, so it cannot be used as a regenerator.

With an initial RI1–RI2 difference of 2 dB and a 5 dB threshold, only when the active channel’s loss increases by 7 dB (to 3 dBm) while the standby remains at 8 dBm does the difference reach 5 dB and trigger switching.

The loopback method can substitute or bypass components such as fibers, boards, adapters, attenuators, or power supplies to isolate and verify signal paths during troubleshooting.
