H35-211_V2.5 HCIP-Access V2.5 Questions and Answers

The ONT details pane in eSight displays access-port attributes (admin/state, type), Ethernet rate/speed/duplex, and PON optical module telemetry such as temperature and Tx/Rx optical power for condition monitoring and troubleshooting.

In GPON, DBA (Dynamic Bandwidth Allocation) operates in the upstream direction. The OLT grants upstream transmission opportunities to ONTs by assigning T-CONT bandwidth (Fixed/Assured/Non-Assured/Best-Effort) within upstream frames. The downstream direction is a continuous broadcast stream from the OLT at the fixed GPON line rate; user traffic is multiplexed without DBA. Hence, DBA is upstream-only; downstream traffic is not DBA-scheduled.

Huawei Anti-MAC-Spoofing binds the source MAC to the service flow/port to prevent address forgery. It is functionally exclusive with certain per-VLAN MAC check features (e.g., WMAC, SC, PPPoe-SMAC) to avoid conflicting validation logic. For IPoE users with fixed IP, operators typically configure static bindings/entries so that address and access policies remain consistent.

Option D is wrong: disabling Anti-MAC-Spoofing and removing fixed entries can affect service behavior; if forwarding is interrupted, that does impact user service—so the statement is self-contradictory and incorrect.

Huawei digitmap syntax uses x to represent any single digit 0–9. To match a 7-digit number starting with 7727, the correct pattern is 7727xxx.

A adds an unrelated rule 7726. and uses . incorrectly as a wildcard; not recommended.

B uses 772. (invalid for the intended match) plus 7727xxx; the first part is improper.

C matches only the 4-digit string 7727.

D contains 7727xxx (correct) and an additional 7727 rule; although the extra rule is unnecessary, it does not prevent correct matching.

In NGN architectures, services (voice, video, data) converge over a packet-based backbone. The core switching layer provides the unified transport using IP/MPLS and related QoS mechanisms, delivering high reliability and large-capacity switching for all upper-layer services. The control and management layers orchestrate services, while the edge/access layer aggregates users—but the packet-based integrated transmission platform itself is the role of the core.

Right. The SIP Max-Forwards header limits how many SIP elements a request can traverse. Each proxy decrements the value by one; when it reaches zero, the message must not be forwarded, preventing infinite loops and yielding responses like 483 (Too Many Hops). RFC 3261 (Sections 8.1.1.6, 16.6, 20.22) defines this behavior; later work further discusses loop mitigation

A single-layer VLAN is limited by the IEEE 802.1Q VLAN ID space (1–4094), i.e., about 4K VLANs. In large PON deployments, when you must separate multiple services (e.g., HSI, VoIP, IPTV) and the user scale approaches or exceeds the 4K ceiling, a dual-layer VLAN (QinQ) design is required to extend the VLAN namespace and implement hierarchical isolation (access VLAN + service/aggregation VLAN).

In Huawei’s 10G GPON (XG-PON) system, the split ratio defines how many Optical Network Units (ONUs) can be connected to a single Optical Line Terminal (OLT) port through passive optical splitters.

According to ITU-T G.987.x standards and Huawei’s 10G GPON technical specifications, the maximum theoretical optical split ratio for 10G GPON is 1:128.

This means that a single OLT PON port can serve up to 128 ONUs through the passive optical distribution network (ODN).

While the physical capability supports 1:128, practical deployments often use lower ratios (e.g., 1:64) to maintain optical power budgets and ensure stable service quality, especially over longer fiber distances or when optical losses are high.

Huawei’s MA5800/EA5800 series OLTs, which support 10G GPON, comply fully with this standard, enabling 1:128 maximum splitting with appropriate ODN design.

Therefore, the correct answer is C. 1:128.

References (Aligned with HCIP-Access V2.5 and Huawei Technical Documentation):

HCIP-Access V2.5 Study Guide – “Huawei Campus Network Overview” Chapter, Section: GPON and 10G GPON Overview

Huawei 10G GPON (XG-PON) Technical White Paper

ITU-T G.987.1: 10-Gigabit-capable Passive Optical Networks (XG-PON) – General Characteristics

Huawei MA5800/EA5800 Product Description – Optical Port Split Ratio Specifications

In U2000’s IPTV/IGMP service model, the IGMP template suite includes: Permission templates (program authorization), Multicast user templates (user IGMP attributes), Program templates (program/group definitions), and Preview parameter templates (preview/fast-zapping parameters). These cooperate to control user authorization, program mapping, and IGMP behavior.

At Layer 2, Huawei switches use HGMP/IGMP-Snooping mechanisms to listen to IGMP reports and constrain multicast forwarding to interested ports, preventing broadcast-like flooding. PIM-SM/DM and IGMP-proxy are Layer-3 multicast control/relay functions, not L2 forwarding control.

PITP (Port Identification Transparent Transmission) is used on access networks to carry a user’s physical access-location to the upper AAA/BRAS. It has two working forms: P-mode (PPPoE+)—injecting location identifiers into PPPoE discovery—and V-mode (Vendor-tag)—carrying vendor/location tags transparently upstream. The purpose is to let the upper server associate user credentials with access location and, by policy, restrict roaming. Options A, B, D, and E correctly describe these behaviors/terms. Option C is inaccurate as written: PITP itself does not “bind the authentication” or inherently “avoid theft/roaming”; it only delivers location info. Preventing credential theft/roaming is achieved by AAA/BRAS policy that uses the PITP-carried location, not by PITP alone.

In capacity planning, the planned bandwidth is computed as:

Planned Bandwidth = Users × Penetration × Concurrency × Online Bandwidth × Duty Cycle × Channels × Coverage.

Substituting the values: 500 × 0.5 × 0.4 × 4 Mbit/s × 0.125 × 1 × 0.7

= 250 × 0.4 × 4 × 0.125 × 0.7

= 100 × 4 × 0.125 × 0.7

= 400 × 0.125 × 0.7

= 50 × 0.7

= 35 Mbit/s.

This matches the given result, so the statement is true.

GPON (per ITU-T G.984.x and Huawei OLT specifications) provides a downstream line rate of ~2.488 Gbit/s, commonly denoted as 2.5 Gbit/s, and an upstream rate of ~1.244 Gbit/s (1.25 Gbit/s). Therefore, the downstream effective bandwidth option that matches GPON is 2.5 Gbit/s.

The MG reports availability and restarts to the MGC using H.248 ServiceChange with Method=Restart. The Reason code distinguishes the type of restart. In Huawei implementations aligned with H.248 semantics, Reason=[901] corresponds to a warm/warmboard restart scenario rather than a full cold start.

Board restart triggers a warm restart of the voice board/MG, producing ServiceChange { Method=Restart, Reason=901 }.

Reset coldstart performs a cold start, which would use a different reason code (cold start), not 901.

Reboot system generally implies a broader device reboot similar to cold start semantics, not 901.

ONT re-register affects ONU registration and does not cause the MG to announce a ServiceChange restart to the MGC.

For intercommunication across VLANs—especially for voice between ONUs—ARP Proxy is configured on the OLT so the OLT responds to ARP on behalf of endpoints and bridges traffic across VLAN boundaries without exposing the full L3 gateway to each segment.

A: “Saving IP addresses” is not the defining difference; ARP Proxy’s function is ARP mediation to enable L2/L3 reachability.

B: Both features target intercommunication, not isolation.

D: A VLAN service-profile is planned and applied from the OLT side to ONUs; it is not “configured on the ONU” directly for this purpose.

With ONT Zero-Touch Provisioning (ZTP) enabled on eSight, newly discovered ONTs can be automatically identified and provisioned by pushing service templates from eSight. This removes the need for advance (preset) service configuration on the OLT during incremental onboarding; the OLT simply accepts the provisioning delivered by eSight.

In IP address discovery mode, eSight does not require L2 same-subnet adjacency; it only requires IP reachability/routing, proper SNMP credentials/alignment, and the operator’s Resource Access permission to poll and add devices. The “same network segment” prerequisite applies to ARP broadcast discovery mode, not to IP address discovery.

The OLT’s anti–IP-attack (control-plane protection) function identifies and rate-limits abnormal or attack traffic to protect the CPU. It does not block legitimate management protocols such as Telnet/SSH by design. Remote management remains available when sourced from permitted hosts and within configured thresholds; administrators can also use trusted-host/ACL policies if needed.

IP multicast is designed for one-to-many delivery, allowing a single source stream to be replicated in the network only where branching is required. Compared with sending multiple unicast copies, multicast significantly reduces bandwidth consumption on shared links and provides efficient point-to-multipoint distribution. This is the core rationale for using multicast in video/TV services on campus and access networks.

OLT-level (device-level) protection is achieved by dual-homing ONUs to two independent OLT interfaces so that services can switch to another OLT when one fails. In Huawei protection taxonomy, the dual-homing scheme (as contrasted with single-homing) provides device-side redundancy for the OLT. By comparison, Ethernet port protection groups and LACP protect uplink links and bandwidth at Layer 2, not the OLT device itself; single-homing does not protect against OLT failure.

XGS-PON downstream line rate is ~10 Gbit/s. When 12 terminals share a PON tree concurrently, the rough per-terminal share is 10,000 Mbit/s ÷ 12 ≈ 833 Mbit/s, commonly expressed as “about 800 Mbit/s.” This aligns with planning examples in HCIP-Access where downstream concurrency on XGS-PON is calculated by dividing the port rate by the number of active ONUs/APs on the splitter.

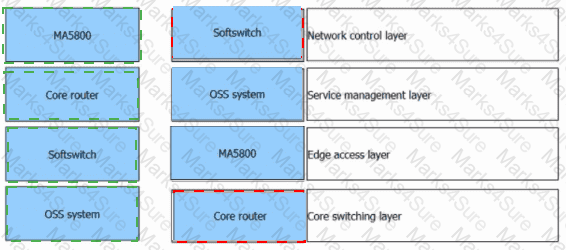

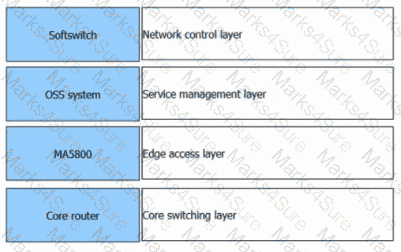

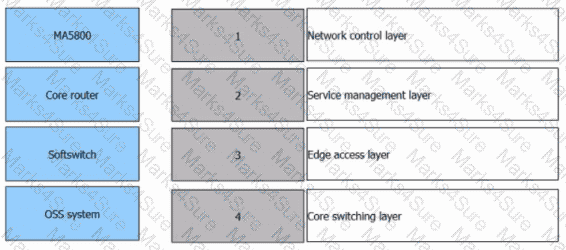

Drag & Drop Answer (NGN layers → devices):

Network control layer → Softswitch

Service management layer → OSS system

Edge access layer → MA5800

Core switching layer → Core router

Why:

Softswitch handles call/session control ⇒ control layer.

OSS provides O & M/service management ⇒ service management layer.

MA5800 is an OLT/access device ⇒ edge access layer.

Core router provides backbone forwarding ⇒ core switching layer.

In IPTV/multicast access scenarios, channel zapping delay is heavily influenced by how fast the network stops forwarding the previous channel’s stream after a user switches. Huawei documents the IGMP Fast Leave/Prompt Leave feature, which enables the access device to immediately prune the old multicast group on receipt of a Leave (without waiting for group-specific queries and timers), thereby reducing the channel change delay and improving perceived switching speed. Option A explicitly disables a helpful pre-join optimization, which would worsen experience; Option C (preview) concerns showing brief previews and is not a primary mechanism for shortening zapping time; Option D is unrelated to performance. Thus, enabling Quick/Fast Leave is the correct action to shorten switching time.

Huawei anti-DoS on access boards performs periodic detection. Ports with consecutive detections of abnormal traffic are placed into a blacklist/quarantine state. The system then applies a random back-off interval before re-detecting; if no further anomalies are found, the port can be automatically removed from the blacklist.

In SIP, each proxy/server that forwards a request prepends its own address to the top of the Via header list. Therefore, as A’s INVITE traverses C, then D, then E, server E adds its Via at the top last, followed by D, then C below it. The message that reaches user B shows the Via stack (top→bottom) as E → D → C, which corresponds to option C. RFC 3261 states that the server transport uses “the value of the top Via header field” to determine response routing, confirming that the most recent hop is at the top

In H.248, the MGC controls the MG by creating a Context (also called an empty connection) and then adding terminations to build point-to-point, multipoint, or conference topologies. During call setup the MGC typically creates an empty context first, then binds terminations as media is negotiated.

A is incorrect: contexts and terminations can be modified during the session.

B is incorrect as written (the association/context is released, not “used”).

C is incorrect: an MG limited to point-to-point cannot host three or more endpoints in one context.

IPTV over FTTH relies on multicast control; therefore the essential U2000 template is the IGMP template, which defines IGMP behaviors, program authorization binding, and multicast parameters used by the OLT/ONT. MGC applies to voice (VoIP), and SNMP pertains to NMS communication rather than IPTV service logic; value-added templates are not mandatory for basic IPTV.

In Huawei IPTV access, when the OLT’s IGMP audit/authorization debug shows a negative program-rights/authorization result, it indicates that the user lacks permission for the requested multicast program group. This is distinct from port multicast bandwidth alarms (insufficient multicast bandwidth), IGMP snooping state malfunctions, or subscriber traffic shaping/bandwidth checks. Authorization failures map directly to “no permission to watch the program.”

Huawei devices support independent mapping/remarking for inner and outer VLAN priorities (802.1p CoS) when QinQ is used. Operators can define distinct mapping tables or remark rules per tag. Option A is incorrect (priorities can be derived or remarked, not “must be” tag-in-packet), option C is incorrect because mapping profiles are configurable, and option D confuses VLAN IDs with priorities; inner/outer CoS can be mapped independently for inbound/outbound directions.

In SIP message correlation, a response matches a request using the CSeq header (method and sequence number) together with the dialog identifiers (Call-ID, From/To with tags). Among the options, CSeq is the direct, standard field used to pair a specific request with its corresponding response within the same dialog.

In an H.248 (Megaco) control model, the MGC is the controller that issues provisioning/connection-control commands such as Add, Modify, Subtract, AuditValue, AuditCapabilities to the MG. The MG (Media Gateway) can initiate only specific messages toward the MGC to announce state changes or report detected events—namely ServiceChange (to indicate restart, failure, availability changes, etc.) and Notify (to report observed events collected per event descriptor). Therefore, among the listed options, the commands that the MG itself can send are ServiceChange and Notify.

Standard OTDR operation allows you to configure multiple acquisition parameters:

Measurement range (distance range): sets the maximum span to be traced; best practice is typically 1.5–2× the fiber length under test.

Wavelength: select test wavelength(s), e.g., 1310/1550 nm for SM fiber, to observe different loss characteristics.

Mode: vendors provide real-time/average (or similar) acquisition modes to stabilize traces.

Pulse width: controls dynamic range vs. event resolution; longer pulses see farther but increase dead zones, while shorter pulses improve resolution at the cost of range.

These are documented in foundational OTDR references and application notes.
