HPE0-S59 HPE Compute Solutions Questions and Answers

When you configure a vVol datastore using the HPE Storage Integration Pack for VMware vCenter, the storage object to check in SSMC (HPE StoreServ Management Console) is the Storage Container. The Storage Container is a logical storage entity that houses virtual volumes (vVols) and represents the vVol datastore in the storage system. Verifying the Storage Container ensures that the vVol datastore is properly configured and managed.

When compute nodes cannot access the D3940 Storage Module in an HPE Synergy environment, the first thing to check is whether a logical interconnect has been created based on the 12Gb SAS switches. Logical interconnects are essential for defining the connection and communication pathways between the compute nodes and the storage module. Without a proper logical interconnect configuration, the compute nodes will not be able to access the storage module.

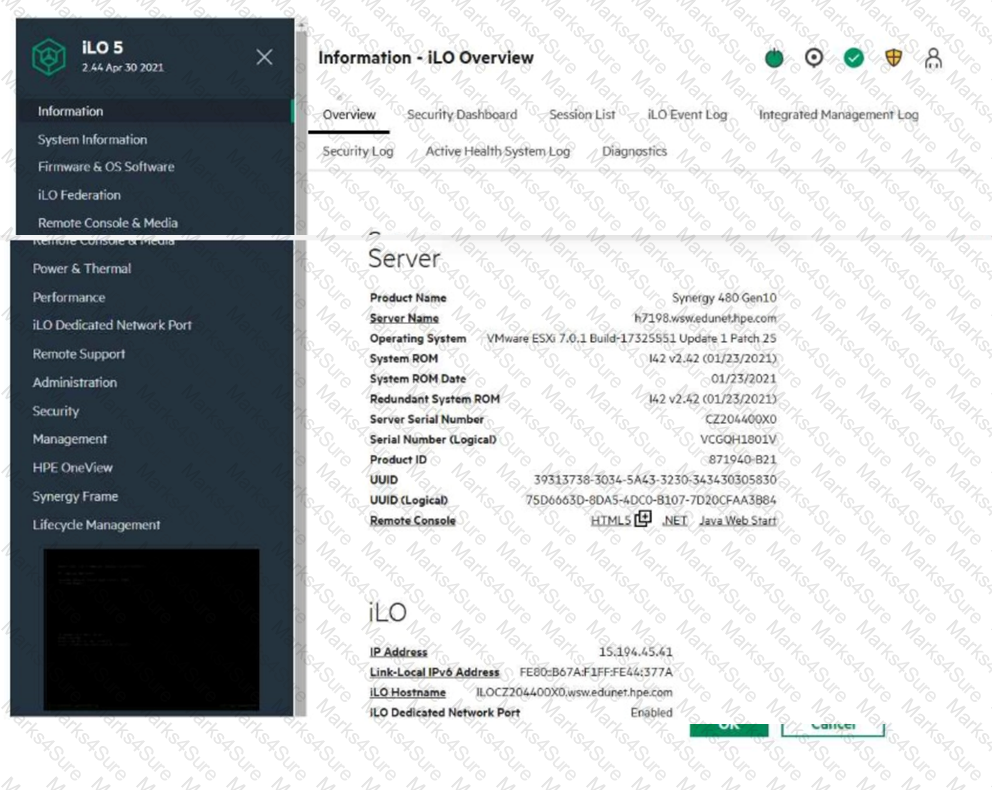

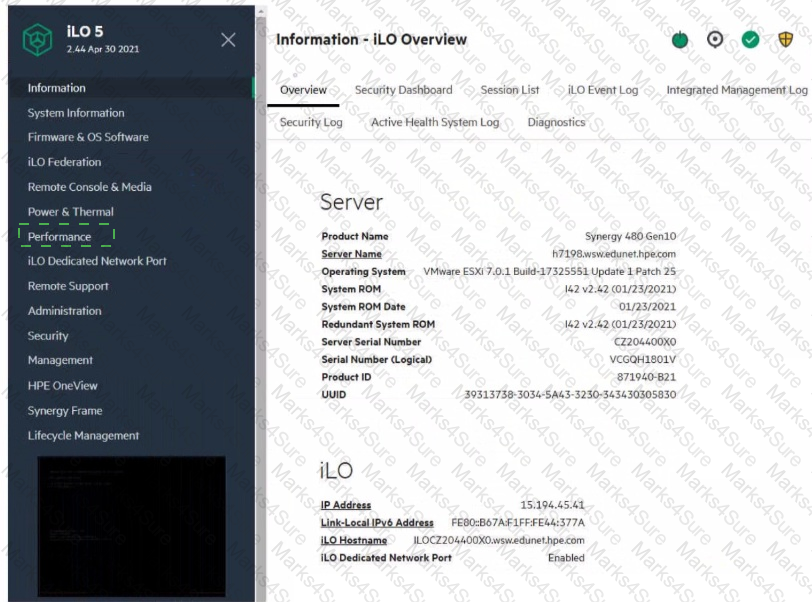

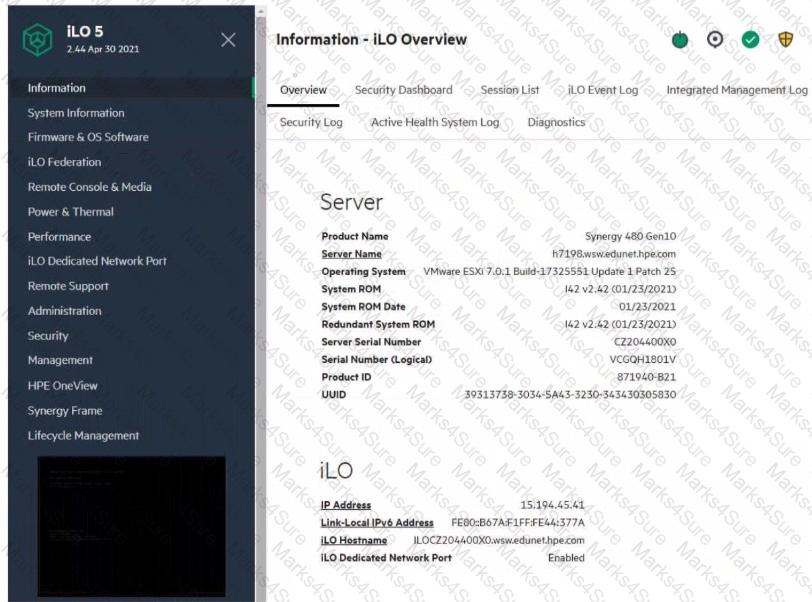

The Performance section within the iLO management interface provides access to the Workload Advisor. This feature offers insights and analytics regarding the server ' s performance, helping to optimize workloads and manage resources efficiently.

The HPE Synergy Master/Satellite architecture is strictly defined by the compatibility between the " Master " (Primary) interconnect modules and the " Satellite " (Interconnect Link Modules - ILM) modules across multiple frames.

Fabric Generations: HPE Synergy fabrics are categorized into generations. The HPE Virtual Connect SE 100Gb F32 Module is a second-generation (Gen2) " Master " module. It is designed to work with the HPE Synergy 50Gb Interconnect Link Module as its satellite to extend the fabric to additional frames.

ILM Compatibility (The 20Gb vs 50Gb Issue): The 20Gb Interconnect Link Modules mentioned in the proposed new frame are first-generation (Gen1) satellite modules. They were designed to work with the HPE Virtual Connect SE 40Gb F8 Module (Gen1 Master).

According to HPE Synergy cabling and fabric rules, you cannot mix Gen1 satellites (20Gb ILM) with Gen2 masters (100Gb F32).

For the 100Gb F32 Master modules in Frame 1 to extend the Ethernet/FCoE fabric to Frame 2, Frame 2 must use the 50Gb Interconnect Link Modules .

Fibre Channel Connectivity: Unlike the Ethernet fabric, the HPE Synergy Virtual Connect SE 32Gb FC Modules are not master/satellite modules. They are standalone SAN interconnects. Each frame that requires native Fibre Channel connectivity typically contains its own pair of FC modules. They are managed within the same Logical Enclosure in HPE OneView, but they do not use " Interconnect Link Modules " or " stacking " in the way Ethernet masters do.

Why other options are incorrect:

Option A: There is no requirement to " balance " the number of compute modules across frames (12 in one, 8 in another) for a Logical Enclosure to function.

Option C: HPE OneView licensing for Synergy is per-node/per-frame (OneView Advanced). There is no specific " Extended Logical Enclosure " license required to add a second frame to an existing LE; the management infrastructure simply scales as frames are added.

Option D: " Stacking " is a term often used for traditional switches. In Synergy, the 32Gb FC modules provide individual uplinks to the SAN fabric. While they are part of the same logical management entity, the term " stacked " is technically inaccurate for how these modules are interconnected or managed across frames in this specific architecture.

Port flap protection is a feature of the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy that can be configured to disable ports experiencing frequent up and down transitions. This feature helps to stabilize the network by preventing the disruptive effects of port flapping.

HPE OneView is designed to provide a unified and consistent management experience across its entire software-defined storage portfolio. When a customer transitions from HPE 3PAR StoreServ to HPE Primera (or even newer Alletra 9000 systems), the core management workflows within HPE OneView remain essentially identical:

Storage Systems and Pools: In both cases, the storage system is added to the HPE OneView appliance. Once connected, HPE OneView discovers the available storage pools, which are referred to as Common Provisioning Groups (CPGs) on both 3PAR and Primera.

Volume Management: The process of creating, provisioning, and managing volumes is the same. Administrators use the same templates and server profiles to attach storage, regardless of the underlying hardware generation.

Automation and Templates: Because HPE OneView uses a software-defined approach, the " Logical " definitions of the infrastructure are decoupled from the physical hardware. This allows for a frictionless transition where existing automation scripts and REST API calls typically do not need to be modified when swapping a 3PAR array for a Primera array.

Licensing: Management of storage in HPE OneView does not require a different " type " of license when moving from 3PAR to Primera; the integration is built into the standard storage management capabilities of the appliance.

Why other options are incorrect:

Option B: While HPE Primera has many advanced internal features (like AI-driven optimizations via HPE InfoSight), these are handled at the array level. Within HPE OneView, CPG management and other basic provisioning features are functionally identical to those provided for 3PAR.

Option C: HPE OneView provides full support for HPE Primera. Far from being " limited, " Primera is a core platform for HPE’s " Intelligent Storage " strategy.

Option D: There is no " dedicated " license required specifically for Primera management that differs from the existing 3PAR management model in OneView.

When a new Ethernet network is created in HPE OneView and is not available in the server profile, it is typically because the network has not been added to the uplink set within the Logical Interconnect Group (LIG). To resolve this issue, the network must be included in the uplink set configuration, and then the logical interconnect configuration must be updated from the LIG to propagate the changes.

HPE Private Cloud AI is designed as an integrated, full-stack solution, but it separates the lifecycle management of the " Compute/AI Stack " from the " Storage Stack. "

The Software Catalog: HPE provides a curated, tested, and versioned Software Catalog specifically for the Private Cloud AI environment. This catalog typically includes the firmware (SPP) for the worker nodes, the NVIDIA GPU drivers, the Kubernetes orchestration layer, and the HPE AI Essentials software (Option B). By updating the catalog, the admin ensures all these components remain compatible and supported as a single unit.

HPE GreenLake for File Storage (Option D): While this storage is a foundational component of the AI solution (providing the high-performance data lake), it is managed as a distinct service within the HPE GreenLake cloud platform. The software and firmware for the HPE Alletra Storage MP (which powers the file storage) follow their own release cycle and maintenance windows. Administrators must manage and trigger these updates through the HPE GreenLake for Storage portal, separate from the AI-specific software catalog orchestration.

Control Plane and Workers: The Control Plane nodes (Option A) and the Operating System on the workers (Option C) are generally included in the automated lifecycle managed by the Private Cloud AI solution ' s management plane to ensure the " turnkey " nature of the private cloud remains intact.

Key Technical Takeaway:

In a " Solution " context (like Private Cloud AI), components that are shared services or independent platforms (like a massive scale-out storage array) are often managed via their own dedicated lifecycle tools, even if they are sold as part of a single SKU/bundle.

HPE Synergy allows scaling of logical enclosures up to 5 frames. Given the current setup of three frames fully populated with HPE Synergy 480 Gen10 Plus modules and other specified components, the customer can add another frame to the existing logical enclosure. This flexibility in scaling ensures that the logical enclosure can be expanded without the need to create a new logical enclosure, provided that the necessary interconnect modules are in place.

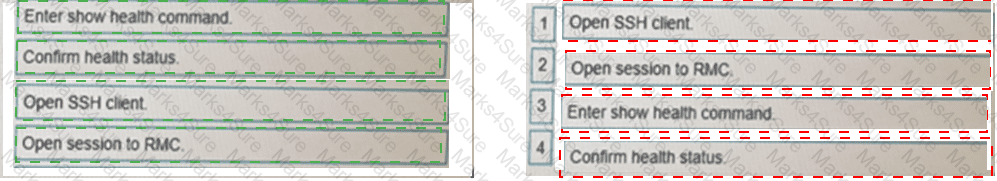

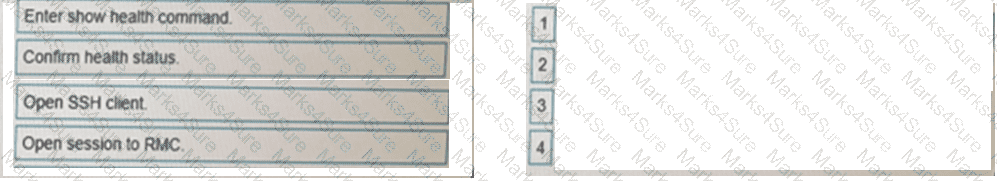

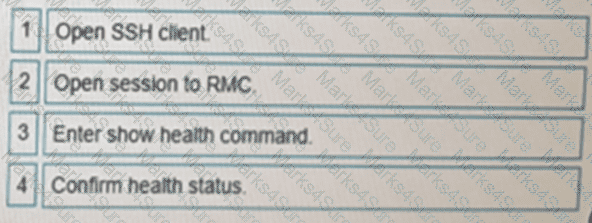

Open SSH client: Begin by opening an SSH client on your computer. This client will be used to establish a secure connection to the Rack Management Controller (RMC).

Open session to RMC: Use the SSH client to open a session to the RMC. The RMC is the central management component for the HPE Superdome Flex system.

Enter show health command: Once connected to the RMC, enter the show health command. This command will provide detailed information about the health status of various components within the Superdome Flex system.

Confirm health status: Review the output of the show health command to confirm the health status of the Superdome Flex components. This step ensures that all components are functioning correctly and identifies any potential issues.

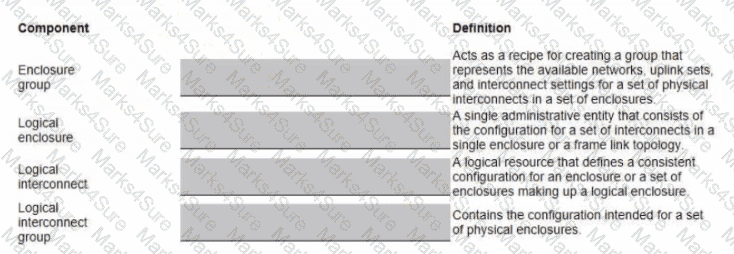

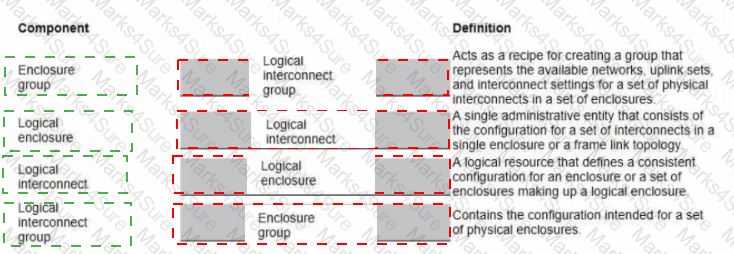

Here are the correct matches for each HPE Synergy logical component with their respective definitions:

Enclosure group Definition: Contains the configuration intended for a set of physical enclosures.

Logical enclosure Definition: A logical resource that defines a consistent configuration for an enclosure or a set of enclosures making up a logical enclosure.

Logical interconnect Definition: A single administrative entity that consists of the configuration for a set of interconnects in a single enclosure or a frame link topology.

Logical interconnect group Definition: Acts as a recipe for creating a group that represents the available networks, uplink sets, and interconnect settings for a set of physical interconnects in a set of enclosures.

Enclosure group: An enclosure group in HPE Synergy defines the configuration settings, including logical interconnect groups and firmware baselines, for a set of physical enclosures.

Logical enclosure: A logical enclosure in HPE Synergy is a resource that includes one or more physical enclosures and their associated logical interconnects, providing a consistent configuration for those enclosures.

Logical interconnect: A logical interconnect represents a set of interconnects within an enclosure, managed as a single entity. It includes the configuration of the interconnects and their connections.

Logical interconnect group: A logical interconnect group (LIG) defines the network configuration, including available networks, uplink sets, and interconnect settings, that can be applied to multiple enclosures.

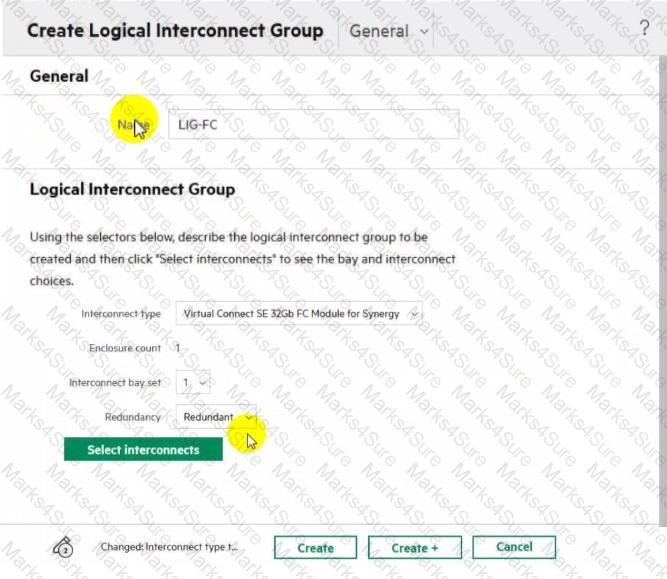

In the HPE Synergy setup shown in the exhibit, the interconnect type is Virtual Connect SE 32Gb FC Module for Synergy with an enclosure count of 1 and interconnect bay set 1. Typically, in such configurations, the interconnect modules are installed in bays 1 and 4 for redundancy. This placement ensures high availability and failover capabilities.

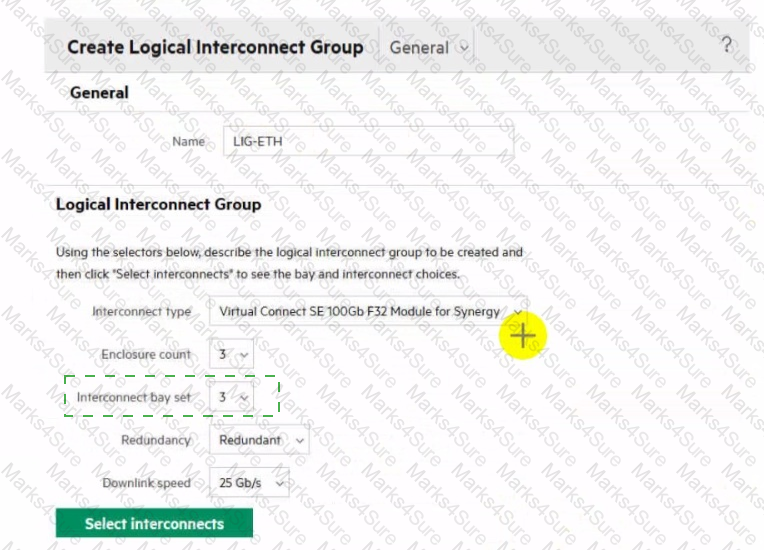

Click the drop-down menu next to " Interconnect bay set " .

To define the location of the master modules within the logical interconnect group, you need to select the appropriate interconnect bay set. The drop-down menu next to " Interconnect bay set " allows you to specify which bays the interconnect modules will be placed in, thereby determining the location of the master modules.

For VMware vSAN deployments, it is recommended that all drives in the D3940 storage modules be SSD drives to ensure optimal performance and efficiency. SSDs provide the necessary speed and reliability required by vSAN for handling storage-intensive operations and maintaining high performance.

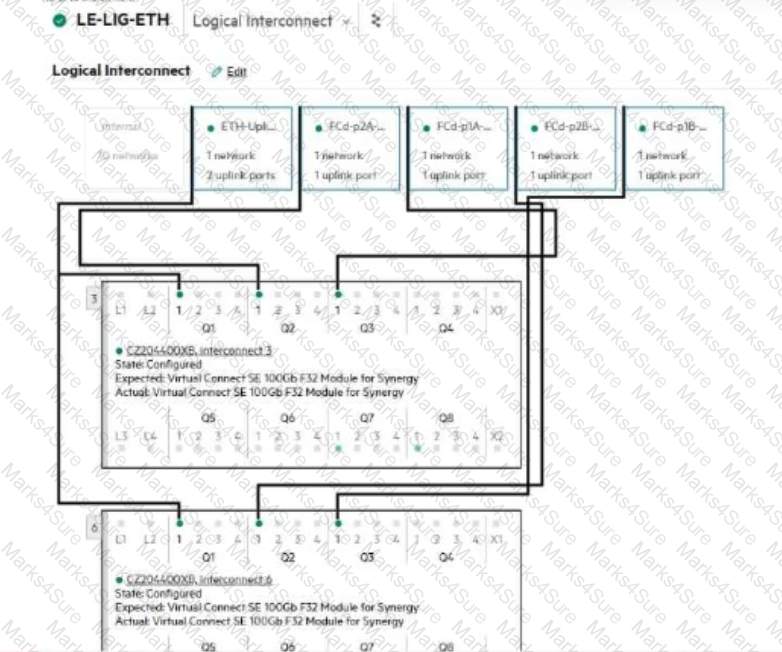

In the HPE Synergy architecture, Logical Interconnect Groups (LIGs) define the connectivity patterns for the frames. The ability of an LIG to span multiple frames depends entirely on the interconnect technology being used:

Ethernet Virtual Connect (Options A & D): The HPE Virtual Connect SE 40 Gb F8 and 100 Gb F32 modules are designed for Multi-Frame Link Aggregation . Using a Master/Satellite architecture, these LIGs can span up to five Synergy frames, allowing a single logical management point for the entire fabric.

Fibre Channel Switches (Option B): The Brocade 32GB Fibre Channel Switch Module is a traditional " managed switch " persona. Unlike Virtual Connect, which acts as a fabric extender/aggregator, the Brocade module operates as a standalone switch within the frame ' s backplane. In HPE OneView, an LIG containing traditional Fibre Channel switches is strictly limited to a single frame . You cannot " stack " or span a Brocade switch LIG across multiple frames in the same way you do with Ethernet VC modules.

Virtual Connect FC (Option C): While Virtual Connect Fibre Channel modules also generally operate within a frame context for their uplinks, the question specifically targets the " Switch Module " (Brocade) which, as a standard industry switch, does not participate in the proprietary Synergy multi-frame horizontal stacking architecture.

With 15 HPE Synergy 12000 frames, the customer must create multiple logical enclosures to manage the setup efficiently. HPE Synergy typically supports up to five frames per logical enclosure, meaning that at least five logical enclosures would be necessary to manage all 15 frames. This ensures proper organization, management, and scalability of the resources.

The transition from the first-generation HPE Synergy Composer (based on Gen9 technology) to the HPE Synergy Composer 2 (based on Gen10 technology) introduced a critical hardware advancement for system administrators and troubleshooting scenarios.

Integrated iLO 5 ASIC: Unlike the original Composer, which did not provide a user-accessible iLO interface for the appliance itself, the HPE Synergy Composer 2 is built with an integrated HPE iLO 5 management processor.

Remote Appliance Management: This allows administrators to connect directly to the iLO of the Composer 2 module via its own IP address. From this interface, you can perform tasks that were impossible on the first-generation hardware, such as:

Remote Console Access: View the startup sequence or the maintenance console of the management appliance even if the OneView software is not responding.

Power Management: Remotely reset or power cycle the management module without having to physically visit the data center to " reseat " the module.

Virtual Media: Mount an ISO to recover or re-image the appliance remotely.

Silicon Root of Trust: Being based on Gen10 architecture, the Composer 2 also brings the Silicon Root of Trust security feature to the management layer, providing hardware-level validation of the appliance firmware to protect against rootkits and compromised code.

Why other options are incorrect:

Option A: Both the original Composer and Composer 2 support a maximum of 21 frames in a single management ring (a single Logical Enclosure).

Option B: While the original Composer hardware is less powerful than Composer 2, HPE OneView 5.2 did not officially reduce the supported frame count to 12; the 21-frame limit remained standard for both, though performance is significantly better on Composer 2.

Option C: Both generations of Composers support the management of satellite frames (sometimes referred to in architectures as remote frames within the same rack/complex). " Remote frames " in the context of geographically distant frames is a function of the Global Dashboard, not a limitation of the local Composer hardware.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

To enable dedicated Fibre Channel (FC) connectivity in an HPE Synergy frame, if using Brocade switches, it is necessary to create a logical interconnect group in HPE OneView. This group defines the configuration and management of FC connectivity for the compute modules. Properly configuring and managing this logical interconnect group ensures that the compute modules can establish dedicated FC connections.

When a logical interconnect group (LIG) that is used to configure logical interconnects in multiple logical enclosures is modified, all logical interconnects configured using this LIG will report inconsistency. This is because the configuration of the logical interconnects will no longer match the new settings defined in the modified LIG, and the inconsistencies must be resolved to ensure the configurations are synchronized.

The HPE Alletra Storage MP X10000 is the specific HPE solution designed to deliver high-performance, scale-out object storage . As HPE transitioned its storage portfolio to the modular " MP " (Multi-Protocol) hardware platform, it introduced distinct software-defined personas for different data types.

HPE Alletra MP X10000 (The Object Specialist): This model is optimized specifically for unstructured data and massive-scale object workloads. It provides a cloud-native, S3-compatible interface, making it ideal for modern application development, active data lakes, and AI training sets. It leverages a disaggregated architecture that allows capacity and performance to scale independently.

HPE Alletra MP B10000: The " B " series is designated for Block and File services. While it is a versatile platform providing mission-critical performance with 100% availability guarantees, it is not the primary recommendation when the requirement is specifically for an object storage service.

HPE Solutions with Weka/Qumulo: While HPE partners with Weka and Qumulo for high-performance file systems that can support object protocols (like S3), these are typically categorized as " File-first " solutions or specialized third-party integrations. The X10000 is the first-party, flagship HPE Alletra branded solution for dedicated high-performance object storage.

Key Technical Advantages of X10000 for Object Storage:

S3 Native API: Provides the standard interface required by modern applications for object access.

Exabyte Scalability: Designed to handle massive growth in unstructured data without the performance bottlenecks found in traditional NAS.

Cloud-Managed: Fully integrated into the HPE GreenLake cloud console for unified management alongside block and file services.

When managing HPE Primera arrays using HPE OneView, the management procedures and features are largely the same as those for HPE 3PAR arrays. HPE OneView provides a consistent management experience across both storage platforms, allowing customers to easily transition from HPE 3PAR to HPE Primera without significant changes to their management workflows.

The VMware vSphere Standard license does not include support for advanced features like Distributed Resource Scheduler (DRS) and Distributed Switches. These features are available only with the vSphere Enterprise Plus license. Therefore, to meet the customer ' s requirement of using Distributed Switches and a DRS cluster, the proposal should include vSphere Enterprise Plus licenses instead of Standard licenses.

The HPE OneView for VMware vCenter (OV4VC) plugin allows administrators to perform " Grow Cluster " operations directly from the vSphere Client. This process relies on a tight integration between the plugin appliance and the HPE OneView appliance.

Dependency on Server Profile Templates (SPT): When you " Grow " a cluster, the plugin must have access to a valid Server Profile Template defined in HPE OneView. This template dictates the hardware configuration, firmware levels, and network connectivity for the new nodes being added to the cluster.

Import and Registration Process: For an SPT to be available within the " Grow Cluster " wizard in vCenter, it must first be successfully imported and registered within the OV4VC appliance. If the SPT was recently created in OneView or if the synchronization between OneView and the OV4VC appliance has failed, the template will not appear, or the process will throw an error during the validation phase.

Troubleshooting Workflow: If an error occurs during the " Grow Cluster " operation, the primary troubleshooting step is to log into the HPE OneView for VMware vCenter Server management console (the appliance ' s own web interface). Here, you can verify:

The health of the connection to the HPE OneView appliance.

Whether the required Server Profile Templates are correctly listed and synchronized.

If the OS Deployment Plans associated with those templates are accessible.

Why other options are incorrect:

Option A: Hypervisor Cluster Profiles are a feature inside the HPE OneView UI itself. While they serve a similar purpose, the question specifically mentions the customer is using HPE OneView for VMware vCenter Server (the plugin), which operates from the vSphere side.

Option C: " Importing a cluster " is the initial step to bring an existing vSphere cluster under OneView management. The customer is already attempting to grow a cluster, implying the management relationship should already be established.

Option D: While iLO is essential for node health, a " Grow Cluster " error in the plugin is typically a higher-level orchestration issue related to template availability or appliance connectivity rather than an individual node ' s registration status in OneView.

The HPE OneView Update Readiness Checker (URC) is a specialized utility designed to ensure a smooth transition during the appliance update process. Its primary and specific function is as follows:

Pre-Update Health Validation: The tool is designed to evaluate the internal health of the HPE OneView appliance (whether it is a VM or a Synergy Composer) for a set of known conditions that could potentially cause an update to fail. This includes checking database integrity, filesystem space, and internal service states.

Appliance-Centric Analysis: According to official HPE documentation, the checker evaluates conditions only on the appliance itself and not the managed environment (such as individual compute node firmware or interconnect modules). This makes it a " safety net " for the management layer specifically.

Deployment: It runs on a client system (Windows or Linux) outside the appliance and connects via the API to perform these health checks. It is recommended to run this tool immediately before any major or minor appliance update.

Why other options are incorrect:

Option A: Compatibility between Synergy Service Packs (SSPs) and OneView versions is typically checked via the HPE Synergy Software Releases documentation or the Synergy Management Combination matrix, not the URC utility.

Option C: Firmware compliance of compute nodes is handled by the HPE OneView Firmware Compliance reports and Server Profiles within the main OneView UI, not by the external Update Readiness Checker.

Option D: While milestone releases are critical for the update path, the URC checks for health and readiness rather than just identifying the current version number or milestone status, which is easily visible on the " About " page of the appliance.

When encountering an error while growing a VMware cluster using HPE OneView for VMware vCenter Server, it is crucial to verify that the server profile template is properly imported and registered in HPE OneView. This ensures that the necessary configurations and settings are correctly applied to the new compute nodes being added to the cluster.

To expand an existing logical enclosure based on a single HPE Synergy frame to include a second frame and ensure a highly available master setup, the following steps should be performed:

Modify an existing logical interconnect to include the second HPE Synergy frame: This step involves updating the logical interconnect configuration to encompass the new frame, ensuring network connectivity and consistency across both frames.

Move one of the master modules to the appropriate interconnect bay in the second frame: To achieve a highly available master setup, one of the master modules should be relocated to the second frame, providing redundancy and high availability for the management components.

The HPE Superdome Flex architecture is built on a modular " building block " design where multiple chassis are interconnected to form a single, massive " complex. " The firmware management for this system is centralized through the Rack Management Controller (RMC) .

Complex Firmware Model: Unlike standard rack servers where BIOS and BMC firmware are updated independently, Superdome Flex utilizes a complex firmware bundle . This bundle contains synchronized versions of the BIOS, BMC, and RMC firmware to ensure all parts of the scale-up system work in harmony.

Simultaneous Updates: When an administrator initiates a firmware update via the RMC CLI (using the update firmware command), the RMC orchestrates the deployment of the firmware to all chassis and components within the complex simultaneously . This ensures that the entire system remains on a consistent version, which is critical for the stability and cache coherency of mission-critical workloads.

Terminology Note: In HPE training and documentation context, " multiple HPE Superdome systems " in this question refers to the individual chassis/modular units that comprise a larger Superdome Flex complex.

Why other options are incorrect:

Options B & D: HPE Persistent Memory (Intel Optane) firmware can be updated via the RMC CLI as part of the complex update, but it can also be updated using HPE Smart Update Manager (SUM) through specific components. Therefore, neither is the " only " tool.

Option C: While HPE OneView is a powerful management tool, it is not the only way to perform I/O updates. In fact, HPE SUM is the primary tool for performing both online and offline I/O firmware and driver updates for Superdome Flex.

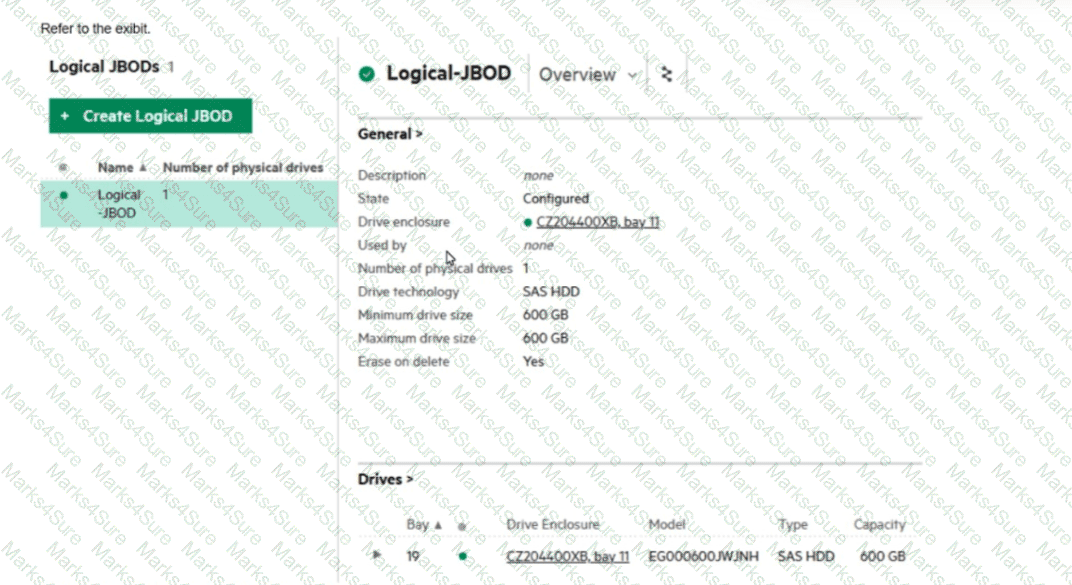

In HPE Synergy, logical JBODs (Just a Bunch of Disks) can be configured to be accessible by compute nodes across different frames. This flexibility allows for the logical JBOD to be pre sented to compute nodes that are not in the same frame as the storage module, facilitating better resource utilization and workload management.

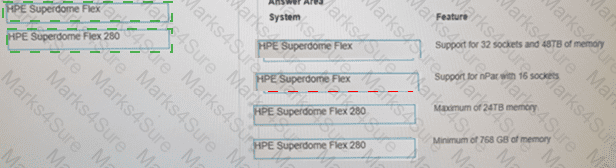

Here are the correct matches for each HPE Superdome Flex system with its respective feature:

HPE Superdome Flex

Support for 32 sockets and 48TB of memory

Support for nPar with 16 sockets

HPE Superdome Flex 280

Maximum of 24TB memory

Minimum of 768 GB of memory

HPE Superdome Flex:

Support for 32 sockets and 48TB of memory: The HPE Superdome Flex system is designed for extremely large-scale workloads and can support configurations with up to 32 CPU sockets and 48TB of memory.

Support for nPar with 16 sockets: This system supports nPartitions (nPars) with configurations that can include up to 16 CPU sockets, providing flexible partitioning and resource allocation.

HPE Superdome Flex 280:

Maximum of 24TB memory: The HPE Superdome Flex 280 supports a maximum memory capacity of 24TB, suitable for large but not as massive workloads compared to the full Superdome Flex.

Minimum of 768 GB of memory: The minimum memory configuration for the HPE Superdome Flex 280 is 768 GB, ensuring a base level of performance and capacity for smaller deployments.
