HPE0-S60 Delta - HPE Compute Solutions Questions and Answers

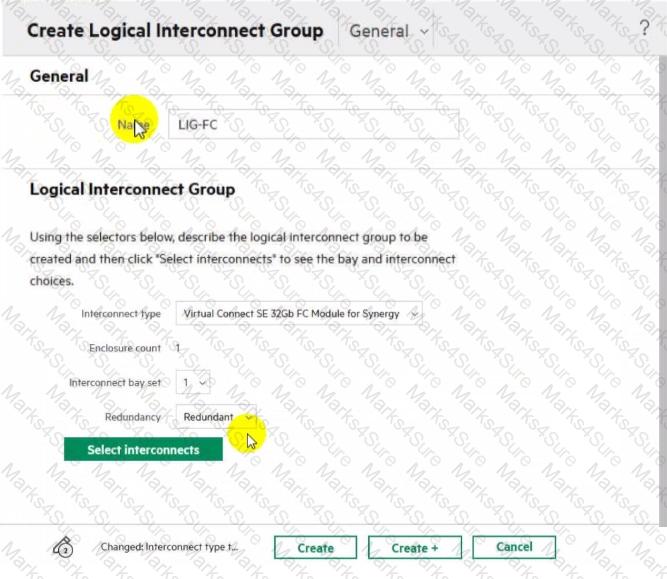

In the HPE Synergy setup shown in the exhibit, the interconnect type is Virtual Connect SE 32Gb FC Module for Synergy with an enclosure count of 1 and interconnect bay set 1. Typically, in such configurations, the interconnect modules are installed in bays 1 and 4 for redundancy. This placement ensures high availability and failover capabilities.

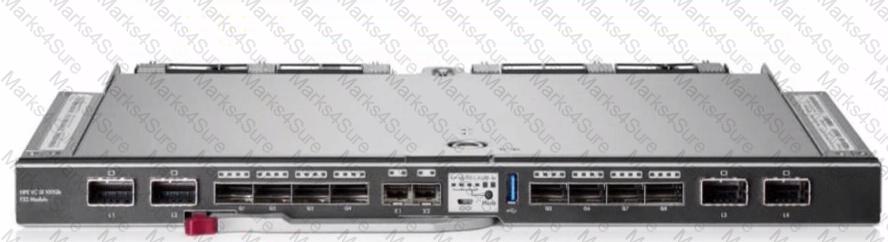

A logical interconnect group in HPE Synergy is used to define a consistent network configuration across multiple frames. The HPE Virtual Connect SE 100 Gb F32 Module for Synergy allows for logical interconnect groups to span across multiple frames. This is because the 100 Gb module supports high-speed connectivity and the necessary infrastructure to maintain consistent network configurations over multiple frames, which is essential for scalable and flexible Synergy environments.

One of the key benefits of using HPE Composer 2 is its enhanced scalability. A pair of HPE Composer 2 modules can manage up to 42 frames, which is double the capacity managed by the previous generation HPE Composer (which manages up to 21 frames). This increased capacity allows for more efficient and large-scale management of HPE Synergy environments.

A milestone release in HPE OneView refers to a version that includes significant architectural enhancements and updates. It serves as a prerequisite for subsequent updates, ensuring that the system is prepared for the next set of features and improvements. This type of release is essential for maintaining compatibility and stability as new hardware components and features are introduced.

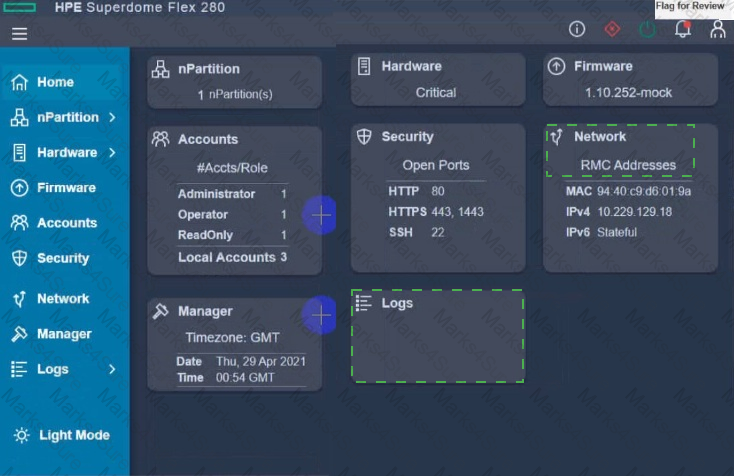

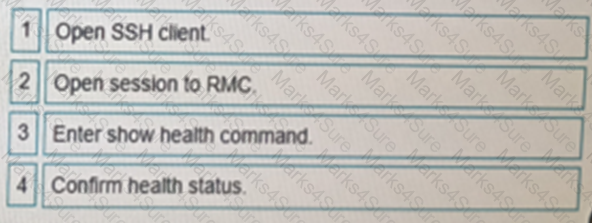

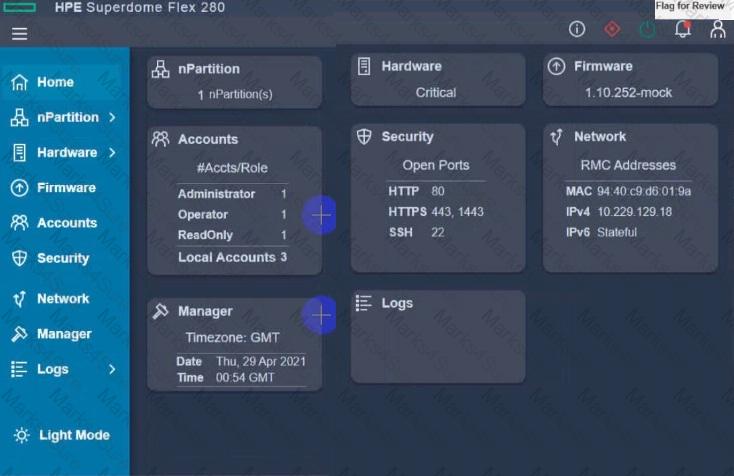

Open SSH client: Begin by opening an SSH client on your computer. This client will be used to establish a secure connection to the Rack Management Controller (RMC).

Open session to RMC: Use the SSH client to open a session to the RMC. The RMC is the central management component for the HPE Superdome Flex system.

Enter show health command: Once connected to the RMC, enter the show health command. This command will provide detailed information about the health status of various components within the Superdome Flex system.

Confirm health status: Review the output of the show health command to confirm the health status of the Superdome Flex components. This step ensures that all components are functioning correctly and identifies any potential issues.

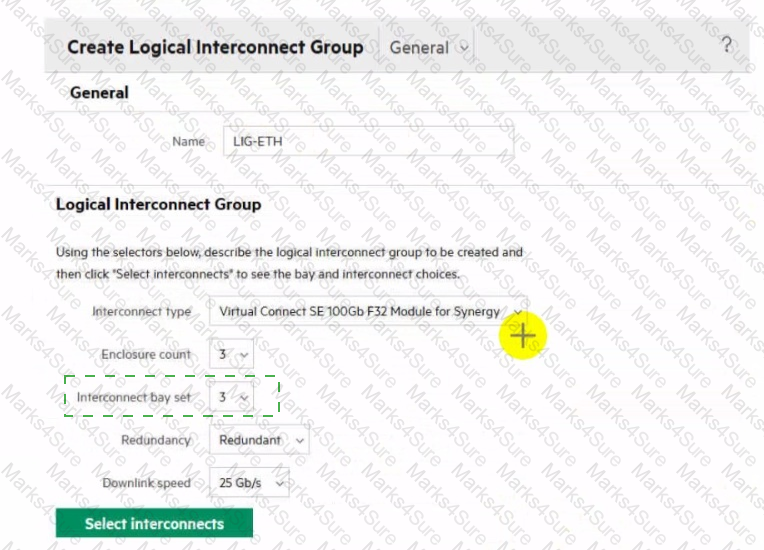

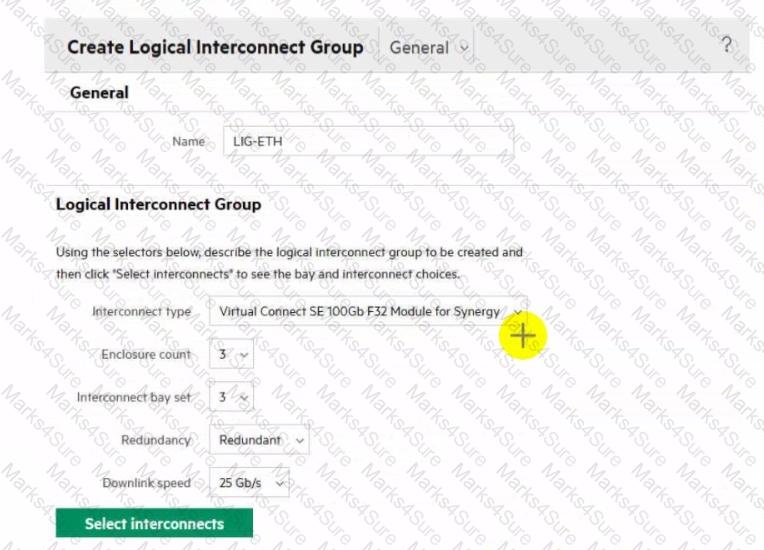

Click the drop-down menu next to "Interconnect bay set" .

To define the location of the master modules within the logical interconnect group, you need to select the appropriate interconnect bay set. The drop-down menu next to "Interconnect bay set" allows you to specify which bays the interconnect modules will be placed in, thereby determining the location of the master modules.

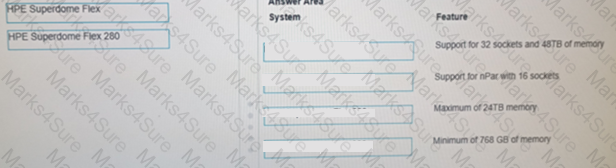

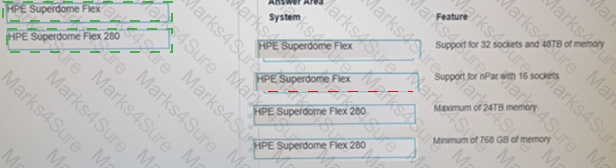

Here are the correct matches for each HPE Superdome Flex system with its respective feature:

HPE Superdome Flex

Support for 32 sockets and 48TB of memory

Support for nPar with 16 sockets

HPE Superdome Flex 280

Maximum of 24TB memory

Minimum of 768 GB of memory

HPE Superdome Flex:

Support for 32 sockets and 48TB of memory: The HPE Superdome Flex system is designed for extremely large-scale workloads and can support configurations with up to 32 CPU sockets and 48TB of memory.

Support for nPar with 16 sockets: This system supports nPartitions (nPars) with configurations that can include up to 16 CPU sockets, providing flexible partitioning and resource allocation.

HPE Superdome Flex 280:

Maximum of 24TB memory: The HPE Superdome Flex 280 supports a maximum memory capacity of 24TB, suitable for large but not as massive workloads compared to the full Superdome Flex.

Minimum of 768 GB of memory: The minimum memory configuration for the HPE Superdome Flex 280 is 768 GB, ensuring a base level of performance and capacity for smaller deployments.

A restriction of using a RoCE (RDMA over Converged Ethernet) network is that it does not support smart link and private network features. These features are essential for certain network configurations and use cases, but they are not available in RoCE networks, which are designed for high-performance, low-latency communication.

To configure a Link Aggregation Group (LAG) for two connections within a server profile for a compute node running an ESXi system, a Virtual Distributed Switch (VDS) is required from the VMware side. VDS allows for the configuration of LAGs and provides advanced network features such as centralized management and monitoring, which are essential for setting up and managing LAGs.

In an HPE Synergy environment, a logical enclosure represents a management domain that groups multiple Synergy frames and their associated compute, storage, and fabric resources. Given the setup with 3 HPE Synergy 12000 Frames and the specified components, the customer must create at least two logical enclosures to effectively manage all compute nodes and resources across multiple frames. This ensures proper resource allocation, management, and redundancy.

Here are the correct matches for each HPE OneView network type with their respective definitions:

Internal network Definition: A network that does not utilize any uplink ports and is used for communication between servers in the same frame.

Tagged network Definition: A network in which any tagged packets are dropped and forwarding is done by a MAC address.

Tunnel network Definition: A network with a dedicated set of uplink ports used to pass a group of VLANs without changing the VLAN tags.

Untagged network Definition: A network that contains multiple networks on a single uplink set that allows your customer to share uplinks with those networks.

Internal network: This network type facilitates communication between servers within the same frame without utilizing uplink ports, providing internal data exchange.

Tagged network: This network type drops any packets that are tagged and forwards packets based on their MAC address, ensuring only untagged traffic is processed.

Tunnel network: This type of network uses a specific set of uplink ports to pass VLAN groups while preserving the VLAN tags, useful for maintaining VLAN configurations across different network segments.

Untagged network: This network type enables the sharing of uplinks among multiple networks by placing them on a single uplink set, useful for optimizing network resource usage.

HPE System Update Manager (SUM) is the recommended method for updating firmware on HPE Superdome Flex systems, especially when HPE Persistent Memory firmware needs to be updated. HPE SUM ensures that all firmware components are updated correctly and consistently, reducing the risk of compatibility issues.

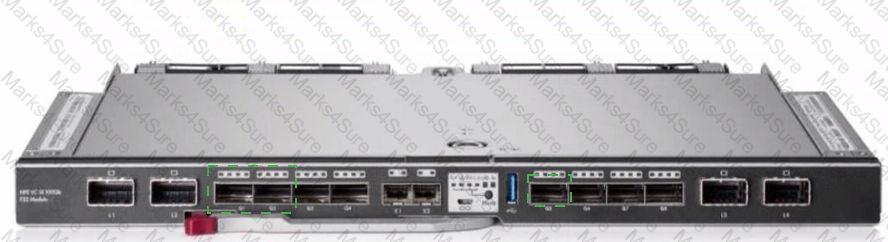

To use FC (Fibre Channel) as a storage access protocol with HPE Primera to boot HPE Synergy compute nodes, you must add FC upgrade licenses in HPE OneView. These licenses enable FC connectivity for the HPE Virtual Connect SE 100Gb F32 Modules, allowing the compute nodes to connect to the FC storage.

The Rack Management Controller (RMC) is a critical component for configuring nPartitions (nPars) in HPE Superdome systems. The RMC provides the necessary control and management interfaces to define and manage nPars, ensuring proper allocation of resources and isolation of workloads.

Manual orchestration during a firmware update allows administrators to control the update process more precisely. Specifically, it enables the selection and update of one side of the interconnect topology at a time. This capability is particularly useful in maintaining network availability and minimizing downtime during the update process, as one side can be updated and verified before proceeding to the other side.

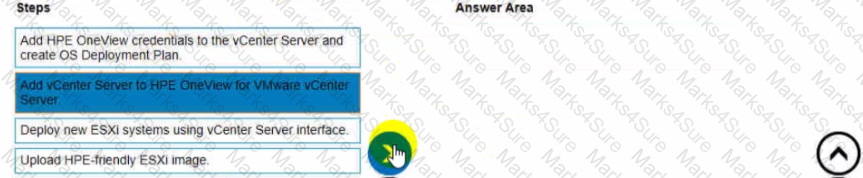

To configure HPE OneView for VMware vCenter Server to deploy ESXi systems, follow these steps in the correct order:

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server.

Upload HPE-friendly ESXi image.

Deploy new ESXi systems using vCenter Server interface.

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan: Integrate HPE OneView with vCenter Server by adding the necessary credentials and setting up the OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server: Ensure that vCenter Server is added to HPE OneView for VMware vCenter Server to enable communication and management.

Upload HPE-friendly ESXi image: Upload an ESXi image that is optimized for HPE hardware to the vCenter Server for use in the deployment process.

Deploy new ESXi systems using vCenter Server interface: Use the vCenter Server interface to deploy new ESXi systems based on the created server profile template and the uploaded ESXi image.

These steps ensure a seamless deployment and management of ESXi systems using HPE OneView integrated with VMware vCenter Server.

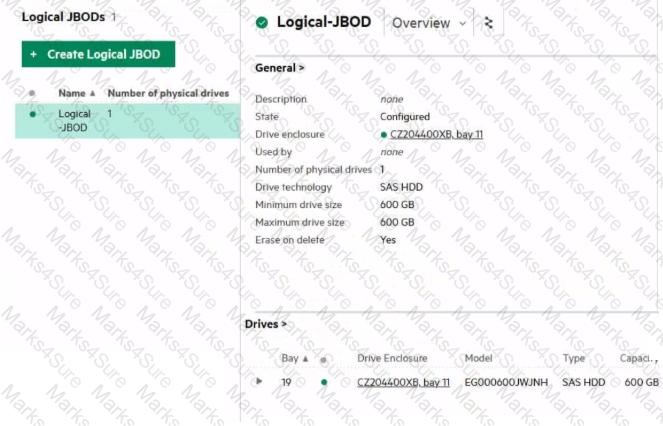

In HPE Synergy, logical JBODs (Just a Bunch of Disks) can be configured to be accessible by compute nodes across different frames. This flexibility allows for the logical JBOD to be presented to compute nodes that are not in the same frame as the storage module, facilitating better resource utilization and workload management.

The HPE Synergy 480 Gen10 Plus Compute Module supports 8 memory channels and can accommodate memory DIMMs of up to 256GB. This capability ensures high memory bandwidth and large memory capacity, which are essential for demanding workloads and applications.

A limitation when creating a server profile in HPE OneView is that it is not possible to create shared volumes on demand directly through a server profile. Server profiles in HPE OneView are used to define and manage the configuration of compute nodes, including network connections, BIOS settings, and boot order, but they do not have the capability to dynamically create or manage shared storage volumes.

To enable dedicated Fibre Channel (FC) connectivity in an HPE Synergy frame, if using Brocade switches, it is necessary to create a logical interconnect group in HPE OneView. This group defines the configuration and management of FC connectivity for the compute modules. Properly configuring and managing this logical interconnect group ensures that the compute modules can establish dedicated FC connections.
