HPE7-A08 HPE Aruba Networking Certified Professional - Switching Questions and Answers

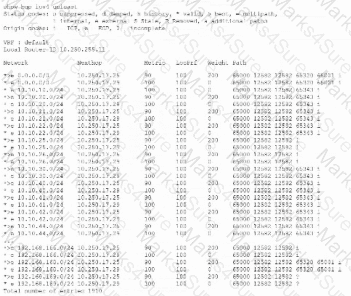

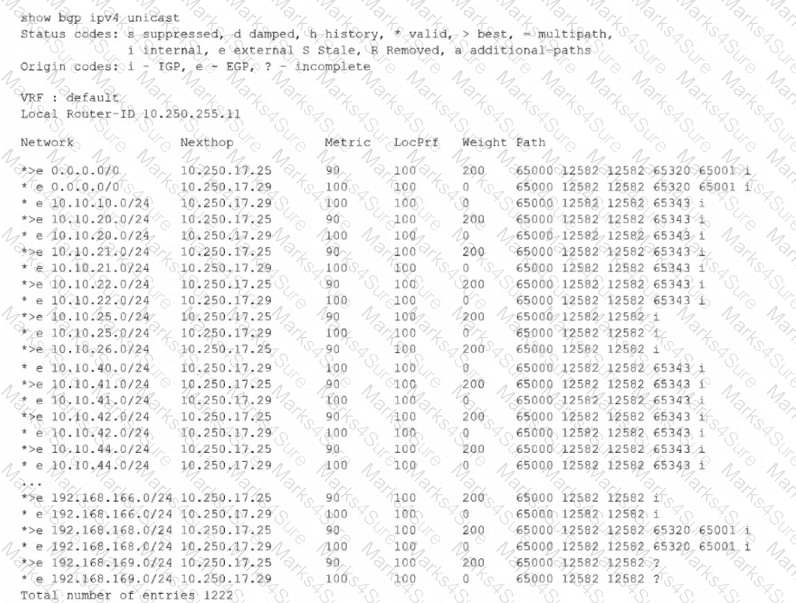

To keep the BGP routing table size manageable and below a specified threshold, the customer should consider enforcing routing policies with aggregation. Route aggregation reduces the number of individual routes advertised and stored by combining multiple routes into a summarized one.

Setting route metrics equal or advertising only a primary path does not reduce the number of routes as effectively.

Importing only the default route (0.0.0.0/0) is impractical for normal operations.

Thus, route aggregation is the best practice for controlling routing table size in merged BGP environments.

The event message:

perl

Copy

2024-04-04T08:35:38.312254+00:00 ICX-Core-1 hpe-vaxd[2167]: Event[701|LOG_INFO|AMM1/1|VSX2 state local up, remote down]

indicates that the local VSX member is up, but the remote VSX member is down. In a VSX pair, both switches must be operational for full redundancy and synchronization.

This log means the secondary VSX switch (remote) is down or unreachable, causing loss of synchronization and possibly traffic failover issues.

Option B (keepalive detection) is related but the event specifically shows the state of the remote switch being down.

Options C and D refer to LAG or interface state, which are not what this log entry describes.

In the HPE Aruba Networking Central monitoring framework, the platform maintains a persistent management connection (via WebSockets) to every managed AOS-CX switch.

The Connectivity Heartbeat: Central continuously monitors the status of this connection. If a switch loses power, its management processor stops functioning immediately. After a short timeout period where the heartbeat is not received, Central marks the device as " Down " and triggers the Switch Disconnected alert.

VSX Architecture in Central: It is important to note that even though two switches are in a VSX (Virtual Switching Extension) pair, Aruba Central treats them as individual managed entities for connectivity purposes. If the Primary switch goes offline, Central sees that specific device ' s management tunnel drop.

Evaluating Other Options:

Option A (Switch Reboot): A reboot alert is typically generated when a switch gracefully restarts or when it checks back into Central after an unexpected power cycle. If the switch remains powered off, it is simply " Disconnected. "

Option B (Switch Stack Conductor Change): This is a specific alert for VSF (Virtual Switching Framework) stacks (like the 6200 or 6300 series). In VSF, a failure of the master results in a role change. In VSX, there is no " Conductor " role; there is a Primary and Secondary, and they are not managed as a single " stack " object in the same way VSF is.

Option D (Switch STP Root Change): While a VSX Primary failure might trigger an STP re-election if that switch was the Root Bridge, the direct management alert from Central regarding the hardware state is " Switch Disconnected. "

Using the command copy checkpoint 20240722 running-config exemplifies the Replace configuration troubleshooting methodology. This involves replacing the current running configuration with a known good checkpoint to restore proper operation.

Divide and conquer isolates faults by segment.

Top-down/Bottom-up analyzes layer by layer.

Spot the difference compares configurations.

Replacing the config is a straightforward rollback approach.

The Audit Trail in HPE Aruba Networking Central serves as the primary ledger for compliance and accountability across the entire managed estate.

Accountability (The " Who " ): The fundamental purpose of an audit trail is to provide a record of " who, what, and when. " When a configuration is modified—whether it’s a VLAN change, a port shutdown, or a global routing update—the Audit Trail logs the Username of the administrator or the API key identity that initiated the task.

Validating Changes: In the Global view, the Audit Trail allows a Lead Engineer to verify that changes were authorized. If a network outage occurs, the trail is used to correlate the timing of the outage with the specific user who pushed the last set of changes.

Evaluating Other Options:

Option A: Central typically retains Audit Trail data for up to 90 days (standard) or longer with specific data retention subscriptions, but 7 years is not the standard architectural default for these logs.

Option B: While you can see that a " Config Push " occurred, the detailed Configuration Difference (the " Diff " ) is usually viewed in the Configuration Status or Audit Event Details page, rather than being the primary defining attribute of the basic Audit Trail list.

Option C: The Audit Trail identifies the action (e.g., " Update Switch Configuration " ), but it doesn ' t always distinguish the specific UI workflow (like Multi-edit vs. Standard GUI) used within the Central platform.

Key Exam Tip: Whenever you see " Audit Trail " in an Aruba exam, think Accountability . It is the tool used to track administrator actions.

In the Aruba/HPE troubleshooting framework, the methodology is selected based on the information provided at the start of the engagement.

Follow the Path: Since you have the Source IP and Destination IP , you have a clear starting and ending point. This methodology involves identifying every hop (switches, routers, firewalls) between the client and the SQL server.

Execution: You would typically use tools like traceroute, check interface statistics for errors/drops on each switch in the path, and look for specific buffer or congestion issues that could cause " intermittent " loss.

Why others are less ideal: * Divide and Conquer: Better for situations where you don ' t know the full path but know the issue is likely at a specific layer (e.g., Layer 3).

Spot the Difference: Used when one server works and another doesn ' t; here, we are troubleshooting a single, specific intermittent path.

Top-down/Bottom-up: These are systematic but time-consuming. When you have the IPs, " Follow the path " is the most direct and efficient diagnostic choice.

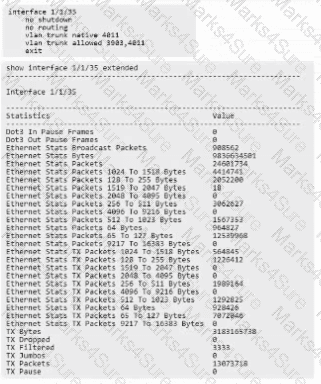

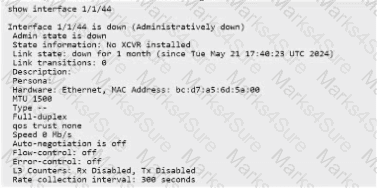

The issue is VMware vMotion traffic on VLAN 3903 failing, while other VLANs work normally. vMotion traffic requires support for larger frame sizes (jumbo frames) because vMotion packets are large and benefit from increased MTU to improve performance and reduce fragmentation.

Configuring jumbo frames on VLAN 3903 ensures that frames on this VLAN can use an MTU larger than the default 1500 bytes.

Configuring jumbo on the interface alone may not be sufficient if the VLAN itself is not set to support jumbo frames.

Setting MTU on VLAN or interface might not work unless jumbo frames are enabled.

When troubleshooting downloadable user roles (DUR) between Aruba CX switches and ClearPass, it is crucial to verify the Trust Anchor profile on the switch. The Trust Anchor profile contains the certificates and keys that allow secure communication and authentication with ClearPass, ensuring the switch can validate the RADIUS server and downloaded user role information.

SNMP community string (Option A) is unrelated to DUR.

User-role configuration (Option B) is important but verifying trust anchor ensures secure role downloads.

HTTPS client certificate (Option C) is not typically part of DUR authentication.

Therefore, the Trust Anchor profile must be verified.

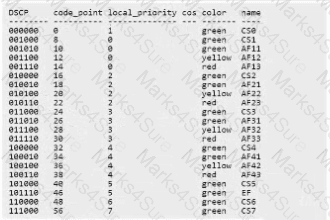

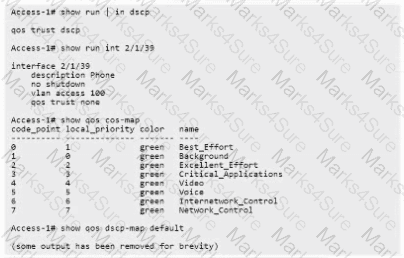

In an end-to-end Quality of Service (QoS) design, the goal is to maintain the priority of traffic as it transitions from the wireless medium (WMM) to the wired infrastructure (Ethernet).

WMM to DSCP Mapping: Aruba APs map Wireless MultiMedia (WMM) Access Categories (like Voice or Video) to specific DSCP (Differentiated Services Code Point) values in the IP header before forwarding the frames onto the wired network.

The Concept of " Trust " : By default, many switches operate in a " trusted " or " untrusted " mode. If a port is untrusted, the switch will strip or ignore any DSCP markings on incoming packets and remark them to 0 (Best Effort). To prevent this, the AOS-CX switch must be configured to trust the incoming DSCP markings.

Applying Trust via Interface (Option B): On the physical ports where APs are connected, you must apply the command qos trust dscp. This ensures that as the AP sends traffic into the switch, the switch honors the DSCP values assigned by the AP.

Applying Trust via User-Role (Option A): In modern Aruba " Colorless Port " architectures, switches often use User-Based Tunneling (UBT) or local roles assigned via ClearPass. If the AP itself is assigned a " User-Role " upon connection, that role can include a QoS policy that specifies DSCP trust. This is the preferred method for dynamic environments because the security and QoS policies follow the device regardless of which physical port it uses.

Why other options are incorrect:

Option C: LLDP-MED is used to negotiate parameters (like Voice VLAN), but it doesn ' t provide the granular " trust " mechanism required for WMM-to-DSCP mapping.

Option D: Colorless ports are a deployment method for roles, but " Colorless ports " is not a configuration command that handles QoS prioritization itself.

Option E: AOS-CX does not typically utilize a " global " trust command; trust is applied at the ingress point (interface or role) to maintain security and control.

To capture packets on an HPE Aruba CX switch and view the output remotely in real-time, the best practice is to use a mirror session that forwards traffic to a remote device running a packet analyzer such as Wireshark. ERSPAN (Encapsulated Remote Switched Port Analyzer) allows the mirror traffic to be encapsulated in GRE and sent over an IP network to a remote monitoring station. This method ensures full packet capture with no local resource constraints and provides full visibility to the analyst.

Option B (using tcpdump on the switch) only provides summarized or limited capture locally.

Option C (mirroring to another switch port) only allows local monitoring and does not provide remote real-time viewing.

Option D (mirror to CPU and then use tshark) is less efficient and may be resource-intensive on the switch.

Therefore, configuring ERSPAN to a remote Wireshark host is the recommended and best way.

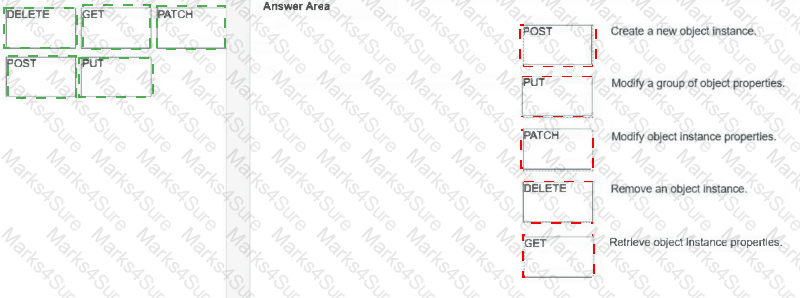

The Aruba CX switches REST API supports the JSON (JavaScript Object Notation) data format for both requests and responses. JSON is widely adopted for REST APIs due to its lightweight and readable format.

XML and YAML are not supported for REST API on CX switches.

SOAP is a different protocol not used by Aruba CX REST API.

Therefore, JSON is the correct and supported data format.

Colorless ports allow network devices to move or replace endpoints without changing port-level configurations, typically by automatically assigning network policies dynamically to any port.

HPE Aruba’s solution for colorless ports is the VNBT (Virtual Network Boundary Tagging) feature. VNBT allows dynamic segmentation of traffic, so ports can automatically take on the policies assigned to devices regardless of physical port location.

VRRP is a first-hop redundancy protocol and unrelated to port colorlessness.

VSF (Virtual Switching Framework) is for switch stacking.

VRF (Virtual Routing and Forwarding) is for traffic segmentation.

Thus, VNBT is the correct feature to meet colorless port requirements.

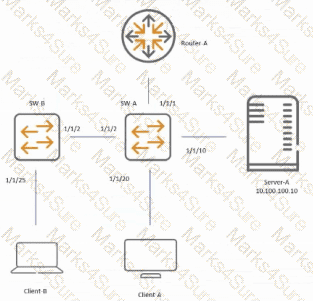

To prevent rogue DHCP servers in a VLAN, DHCP snooping authorized-server commands are used to specify trusted DHCP servers allowed to respond.

Option A (dhcpv4-snooping trust 10.100.100.10) configures a trusted port, but it is not VLAN specific and not precise enough for this purpose.

Enabling DHCP snooping globally and on VLAN or interface (Options C and D) are prerequisites but do not prevent rogue servers unless authorized servers are defined.

Option B correctly enables an authorized DHCP server IP on VLAN 30, blocking unauthorized DHCP responses.

To interpret AOS-CX event logs correctly for the ACP-S exam, you must understand the syntax used by the VSX Daemon (hpe-vsxd) when reporting the status of Multi-Chassis Link Aggregation Groups (MC-LAGs).

Anatomy of the Log Message:

hpe-vsxd: This indicates the message is generated by the VSX synchronization process.

VSX 2: This refers specifically to Virtual Port Channel (or VSX LAG) ID 2 . It does not refer to the switch member ID, but the logical LAG ID.

State local down: This means the physical member ports assigned to LAG 2 on the switch you are currently logged into (the " local " switch) are operationally down.

remote up: This indicates that via the Inter-Switch Link (ISL), the switch has learned that its VSX peer (the " remote " switch) still has its physical member ports for LAG 2 in an " up " state.

Operational Impact: In a healthy VSX environment, an MC-LAG should ideally show " local up, remote up. " When a log shows " local down, remote up, " it signifies a partial failure of the multi-chassis aggregation. Traffic destined for the device connected to LAG 2 will now only flow through the peer switch.

Why other options are incorrect:

Option A: If the secondary switch were down entirely, the " remote " status would typically be reported as " down " or " unknown " because the ISL/Keepalive synchronization would be lost.

Option B: If it were down on both, the log would read " local down, remote down. "

Option D: Keepalive failures are reported with different Event IDs (typically involving the " keepalive " keyword) and affect the overall VSX role state (Split-Brain recovery), not a specific LAG ID.

Key Practice Tip: Always look for the keywords local and remote in VSX logs. They provide an immediate health snapshot of the synchronized state between the two core switches.

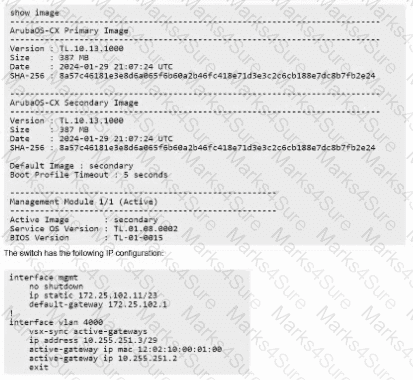

To upgrade an HPE Aruba Networking CX 8320 VSX cluster with minimal downtime from a remote server, the correct command is:

vsx update-software scp://172.25.101.10/image vrf mgmt

Using SCP (Secure Copy Protocol) ensures secure transfer.

Specifying vrf mgmt ensures the update uses the management VRF for connectivity.

Using TFTP is less secure and not recommended for production upgrades.

The primary keyword is not valid for the vsx update-software command.

This method allows an in-service software upgrade (ISSU) with least disruption.

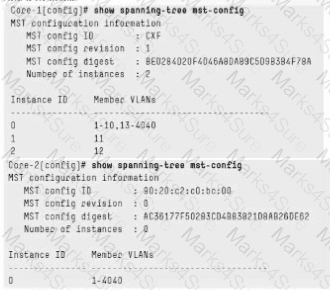

If both switches are configured with default spanning-tree priorities and both appear as primary root bridges, to have a single spanning tree domain, matching MST configuration (Multiple Spanning Tree) must be created on Core-2 to align with Core-1.

Setting priority to 1 on one switch can help but matching MST configurations is the recommended approach for multiple VLANs.

Creating MST instances on only one switch will not ensure consistency.

Matching MST configurations ensures consistent root bridge election and stable spanning tree.

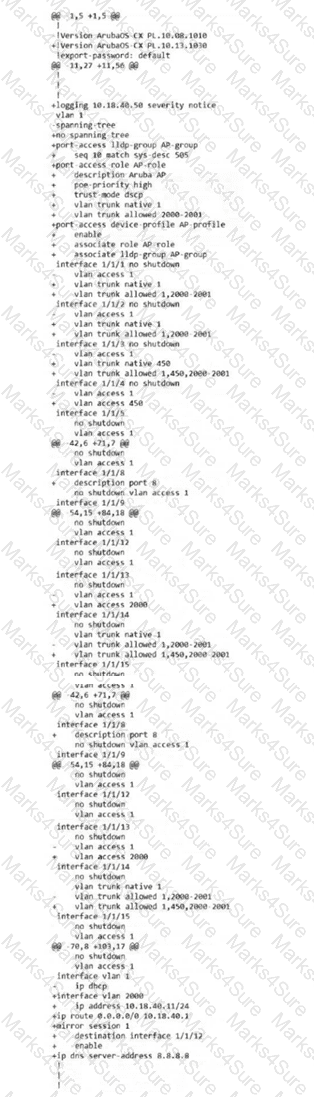

The output shown in the exhibit is a unified diff (indicated by the + and - signs and the @@ headers), which is the standard format AOS-CX uses to display differences between two configuration states.

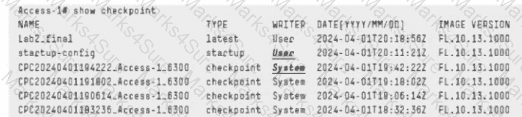

AOS-CX Checkpoints: ArubaOS-CX switches use " checkpoints " to save snapshots of the configuration. These can be created manually by a user or automatically by the system (e.g., when a configuration change is pushed from Central or NetEdit).

The checkpoint diff Command: The command checkpoint diff < NAME1 > < NAME2 > is used to perform a line-by-line comparison. One of these names can be the running-config .

Lines with a -: These are present in the first configuration (the older checkpoint) but missing in the second (the newer config).

Lines with a +: These are present in the second configuration but were not in the first.

Analyzing the Exhibit: The output shows a comparison between a switch running version 10.08.1010 (the - line) and version 10.13.1030 (the + line), along with several configuration changes like adding an lldp-group, a port-access role, and IP addressing on vlan 2000.

Differentiating Command Syntax: * In the AOS-CX CLI, checkpoint diff is an " action " command used specifically for this analytical comparison.

While many diagnostic commands start with show, the diff utility is executed directly as checkpoint diff.

Terms like " saved-config revisions " are not standard AOS-CX terminology; the system uses " checkpoints " exclusively for this purpose.

When managing a network through HPE Aruba Networking Central , administrators have access to specialized reporting tools designed for lifecycle management and expansion planning.

Purpose of the Switch Capacity Planning Report: This specific report is engineered to give a clear overview of physical and electrical headroom within the switching infrastructure. When preparing to add new Access Points (APs), two variables are critical:

Port Density: The report identifies the number of available (unused) ports across various speeds (1GbE, 2.5GbE, 5GbE, etc.).

PoE Budgeting: High-performance APs (such as Wi-Fi 6E or Wi-Fi 7 models) require significant Power over Ethernet (PoE) wattage (PoE+ or UPoE). The report calculates the Total PoE Budget vs. the Currently Allocated PoE , allowing you to see if the switch power supplies can handle the additional load.

Evaluating Other Options:

Option A (Infra Inventory): This report focuses on asset management. it provides details like serial numbers, MAC addresses, hardware models, and firmware versions. It does not provide real-time or historical port usage or PoE consumption data.

Option C (Network): This is a broader summary report that typically focuses on connectivity, client counts, and overall network health rather than specific hardware resource limits.

Option D (Resource Utilization): While this report is useful, it generally focuses on System Resources such as CPU usage, Memory (RAM) consumption, and temperature sensors rather than physical port availability or PoE power budgets.

Best Practice: In an Aruba Central environment, running the Switch Capacity Planning report before a hardware refresh or expansion is a mandatory step to avoid " PoE starvation " or physical port shortages during the installation phase.

In the Aruba troubleshooting framework, there are several structured approaches to resolving network issues.

Replace Configuration (Option A): This methodology involves reverting the system to a known good state. In AOS-CX, Checkpoints are snapshots of the switch configuration. By running copy checkpoint [name] running-config, the administrator is essentially performing a " rollback. " This is often used when a recent change (like the routing change mentioned) caused a failure, and the fastest way to restore service is to " replace " the current faulty configuration with a verified historical one.

Evaluating Other Methodologies:

Top-down/Bottom-up: These involve working through the OSI layers (either from physical to application or vice-versa).

Spot the difference: This involves comparing a working device/configuration with a non-working one. While you might use checkpoint diff to find the error, the act of copying the checkpoint itself is the " Replace " method.

Divide and conquer: This involves starting in the middle of a stack (e.g., Layer 3) and testing in both directions.

Colorless Ports is a foundational concept in Aruba’s Dynamic Segmentation strategy. It refers to a switch configuration where all access ports are configured identically, and the network identity of the port changes dynamically based on the device that plugs into it.

Role of 802.1X: To achieve a colorless port, the switch must first identify the device or user. 802.1X (Port-based Network Access Control) is the industry-standard method for providing this identification. When a device connects, the switch challenges it for credentials. Based on the response, the RADIUS server tells the switch which " User Role " to apply, which then sets the VLAN, QoS, and ACLs.

Complementary Methods: While 802.1X is the primary answer here, colorless ports also frequently utilize MAC Authentication for devices that do not support 802.1X (like printers).

Evaluating Other Options:

Option A: 802.1Q is the standard for VLAN tagging. While colorless ports use VLANs, 802.1Q is a static trunking/tagging protocol and does not provide the " dynamic " intelligence required for a colorless environment.

Option C: 802.11X is a common " trick " option on exams. 802.11 is the standard for Wireless (Wi-Fi), and there is no specific " 802.11X " protocol used for wired switch port security.

Option D: 802.1AD refers to " QinQ " or double-tagging, used primarily in service provider environments to tunnel customer VLANs. It has no relevance to the colorless port security model.

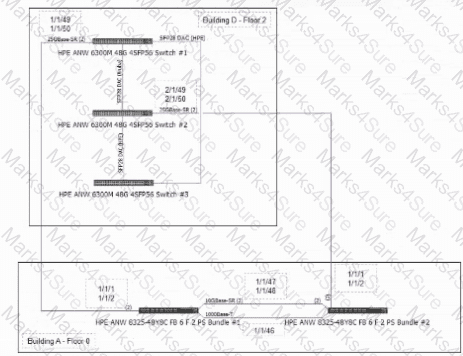

In complex network designs involving different administrative domains (like a Campus and a Data Center), it is often desirable to prevent Spanning Tree Protocol (STP) from merging the two environments into a single, massive logical tree.

The Goal of Isolation: " Isolated spanning tree topology " means that the Campus and the Data Center should each have their own independent Root Bridge and calculate their own loop-free paths without being influenced by one another.

BPDU Filter (The Solution): When you apply BPDU Filter to an interface, the switch stops sending BPDUs out of that port and, more importantly, ignores any incoming BPDUs. Because the Campus switch no longer " sees " the BPDUs coming from the Data Center core, it will stop recognizing the DC as the Root Bridge and will instead elect a local Root Bridge (or remain as the Root itself). This effectively breaks the STP connection between the two domains while still allowing Layer 2 data traffic to flow.

Evaluating Other Options:

Option A (Root Guard): This is used to prevent a specific port from becoming a Root Port. If a superior BPDU is received, the port is placed into a " root-inconsistent " state (blocked). While this protects the local Root role, it does not " isolate " the topology; the switches still participate in the same overall STP domain.

Option C (BPDU Guard): This is intended for edge ports (connected to PCs/Printers). If it receives a BPDU, it shuts down the port entirely (rxtx-disable). Applying this to a core-to-core link would cause a total loss of connectivity as soon as the DC core sends a BPDU.

Option D (Admin Edge): This simply tells the switch to skip the Listening/Learning states and go straight to Forwarding. It does not provide topology isolation.

In VSX architecture, the Inter-Switch Link (ISL) is implemented as a Link Aggregation Group (LAG). To ensure proper forwarding and VLAN consistency, the ISL LAG must allow all configured VLANs. This allows VSX synchronization and data forwarding across all VLANs that span the two switches.

ISL traffic is not specifically tagged with EF QoS markings by default.

ISL traffic is not encapsulated in GRE tunnels.

The ISL LAG does not automatically include all VLANs; VLANs must be allowed on the LAG explicitly.

Hence, the LAG must be configured to allow all VLANs.

When a VSX primary switch is powered off, it loses connectivity with management systems such as HPE Aruba Central. This causes the management system to trigger a " Switch Disconnected " alert because the switch is no longer reachable.

" Switch Reboot " alerts would indicate a restart, not power off.

" Switch Stack Conductor Change " refers to stack leadership changes, not VSX primary down.

" Switch STP Root Change " relates to Spanning Tree Protocol root bridge changes.

Hence, powering off the VSX primary causes a " Switch Disconnected " alert.

In the AOS-CX architecture, a Local User Role (LUR) is a logical container that defines the network privileges and connectivity settings for a client once they have been successfully authenticated. Unlike " Downloadable User Roles " (DUR), which are stored on ClearPass, LURs are defined directly in the switch configuration.

VLAN Assignment (Option A): One of the primary functions of a user role is to dynamically assign a client to a specific VLAN. This allows the physical port to remain " colorless " —the port ' s VLAN membership is determined by the identity of the user rather than a static configuration on the interface.

ACL (Access Control List) (Option E): To enforce " Least Privilege " security, LURs allow you to attach an IPv4 or IPv6 ACL directly to the role. This ensures that even if two users are in the same VLAN, their traffic can be filtered differently based on the role they were assigned (e.g., a " Contractor " role might have an ACL blocking access to internal servers, while an " Employee " role does not).

Why other options are incorrect:

Option B: The ClearPass server is part of the global AAA (RADIUS) configuration. It is the destination for authentication requests, not a parameter defined within a specific user role.

Option C: While many CLI commands allow for a description, it is a metadata field for administrative clarity and is not considered a functional " parameter " of network enforcement in the context of the ACP-S exam.

Option D: Authentication methods (like 802.1X or MAC-auth) are the triggers that result in a role being applied. They are configured at the interface or global level, not inside the role itself.

In a high-security " Colorless Ports " environment using AOS-CX, we often run both 802.1X (Dot1x) and MAC Authentication (MAC-auth) on the same port to handle a mix of corporate laptops and " dumb " IoT devices (printers, cameras).

The Default Behavior: By default, the switch usually attempts 802.1X first. When a device like a printer is plugged in, it does not have an 802.1X " supplicant " to respond to the switch ' s EAPOL-Request packets. The switch will wait for a series of timeouts and retries (EAPOL timeouts) before it gives up on 802.1X and moves on to the next method (MAC-auth). This waiting period is what causes the " few minutes " delay the user is experiencing.

Auth-Precedence vs. Auth-Priority:

Auth-Precedence: This defines the order in which the switch attempts the authentication methods.

Auth-Priority: This defines which method " wins " if multiple methods succeed (relevant for a PC that might trigger both).

The Solution: By changing the auth-precedence to mac-auth dot1x, the switch immediately captures the device ' s MAC address and sends it to the RADIUS server (like Aruba ClearPass) for authentication.

For a printer, MAC-auth succeeds immediately, and the port is authorized without waiting for 802.1X timeouts.

For a corporate laptop, MAC-auth happens first (granting basic or initial access), and then the 802.1X process can trigger immediately after to provide higher-level " User " access.

Why other options are incorrect:

Option A: Disabling 802.1X removes the security for corporate devices on those ports; it is not a " secure configuration " maintenance.

Option B: Increasing the timeout would make the delay worse , not better.

Option D: There is no specific " MAC auth start value " timer in AOS-CX that would solve a multi-minute delay caused by the 802.1X failure wait.

CLI Example:

Bash

interface 1/1/1

aaa authentication port-access auth-precedence mac-auth dot1x

Colorless Ports are a foundational element of Aruba’s Dynamic Segmentation strategy. They allow any device to be plugged into any access port without requiring manual VLAN or ACL configuration by the IT staff.

The Role of Authentication: When a device connects, the switch uses 802.1X or MAC Authentication to identify the device and communicate with Aruba ClearPass .

Downloadable User Roles (DUR): Instead of pre-configuring thousands of roles locally on every switch, the switch downloads the specific policy—including VLAN assignment, QoS, and Access Control Lists (ACLs)—directly from ClearPass. This is the Downloadable User Role .

Why this is " Colorless " : Because the policy is defined centrally and " downloaded " to the port only when needed, the physical port has no static identity (no " color " ). This simplifies deployment and ensures that security policies follow the user or device regardless of where they plug in.

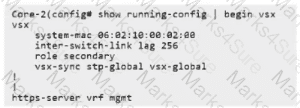

In an AOS-CX Virtual Switching Extension (VSX) environment, the Configuration Synchronization (vsx-sync) feature simplifies management by allowing the Primary switch to automatically push configuration settings to the Secondary switch.

Primary-Only Configuration: A fundamental rule of vsx-sync is that all synchronization commands must be configured on the Primary VSX node . The Secondary node simply receives and applies the configuration; it does not initiate the sync.

The time Synchronization Module: In AOS-CX, the command used to synchronize all time-related parameters—including NTP servers , authentication keys, and time zone settings—is vsx-sync time.

Command Logic: By adding vsx-sync time under the vsx context on the Primary switch, the NTP configuration currently present on the Primary will be replicated to the Secondary switch ' s running configuration.

Why other options are incorrect:

Options B and C: These are incorrect because they suggest configuring the sync on the Secondary switch.

Option A: While it specifies the Primary switch, vsx-sync ntp is not the correct command syntax in AOS-CX; the feature is consolidated under the broader vsx-sync time module.

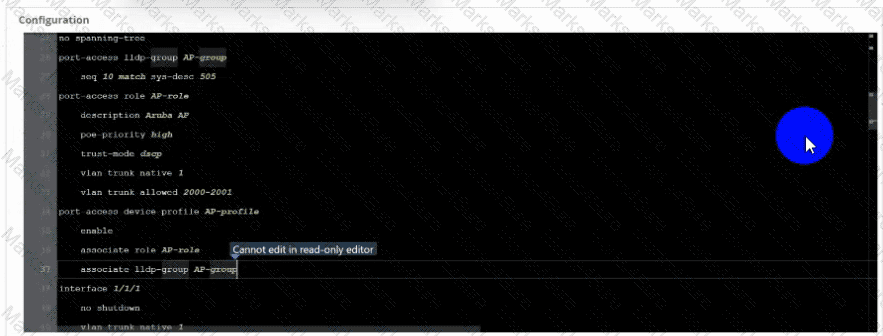

This scenario highlights the " Source of Truth " logic within Aruba Central UI Groups .

UI Group Constraints: When a group is managed via the UI (User Interface) mode , Central acts as the absolute master of the configuration. If you add a switch that already has a local configuration (non-factory default) into a group that already has an established configuration, Central perceives a Configuration Conflict .

The Safety Mechanism: To prevent Central from accidentally wiping out a production switch ' s settings the moment it connects, Central will not automatically synchronize (push) the group configuration to a device that is not in a Factory Default state.

The Resolution: For the switch to synchronize with an existing UI group, you must either:

Erase the startup-configuration on the switch and reboot it (Factory Default), allowing it to " pull " the group config cleanly.

Manually resolve the conflict by moving the device into the group and then selecting the option to overwrite the local configuration with the group configuration.

Evaluating Other Options:

Option A: This is false. Central fully supports VSX monitoring and configuration (specifically via Template groups or the VSX orchestration UI).

Option B: If the switch is " added to a group, " it has already passed the initial onboarding/authorization phase.

Option C: If it " cannot establish a connection, " the switch would show as Offline , not as a synchronization failure within a group.

AOS-CX switches include a robust Configuration Checkpoint system that allows administrators to save snapshots of the configuration state. These checkpoints are stored in the switch ' s internal flash memory.

Understanding the Exhibit: The output shows several checkpoints.

Lab2_final: A user-created checkpoint.

startup-config: The current configuration that will be loaded on reboot.

CPC2024...: Automatic " System " checkpoints created by the switch during various configuration events or at scheduled intervals.

The " Diff " Operation: To investigate a missing configuration (like the missing device profile) without impacting the operational state of the switch, you use the checkpoint diff command. This command compares two configuration files and displays the specific lines that are present in one but missing in the other (marked with + and -).

Analyzing the Requirement: The user wants to validate the removal without changing the current config.

Option B (Correct): Executing checkpoint diff startup-config CPC20240401183236_Access-1_6300 (or another older checkpoint) will show exactly what was removed. This is a read-only comparison.

Why other options are incorrect:

Option A: show checkpoint only lists the metadata (name, date, version); it does not provide a content comparison.

Option C: This command would overwrite an existing checkpoint or create a new one, but it does not provide an analytical comparison of the differences.

Option D: checkpoint rollback is a destructive operation; it immediately applies the older configuration to the running state, which violates the requirement to not change the current configuration.

In the study of BGP (Border Gateway Protocol) for AOS-CX, understanding the differences between Internal BGP (iBGP) and External BGP (eBGP) is fundamental to the ACP-S certification.

eBGP Peering Definition: eBGP occurs when two BGP neighbors reside in different Autonomous Systems. In this scenario, the local switch is in AS 65010 and the neighbor is in AS 65100 .

The " Directly Connected " Requirement: By default, BGP assumes that eBGP neighbors are directly connected (physically connected or on the same subnet). This is because eBGP packets are sent with a Time-to-Live (TTL) of 1 . If the neighbor is more than one hop away (for example, peering via loopback interfaces without additional configuration), the packet will expire before reaching the neighbor, and the session will not establish.

Terminology Note: The term " directory connected " in the question is a common typographical error in exam materials for " directly connected. " In the context of eBGP peering, being directly connected is the default requirement to ensure the TTL 1 packet reaches the peer. If you were peering with a non-directly connected device, you would need to manually configure ebgp-multihop.

Analysis of Other Options:

Option A: This is incorrect as it uses a random AS number (65001) that does not match the local or neighbor AS provided in the prompt.

Option B: Route Reflectors are a solution used exclusively in iBGP to solve the split-horizon rule (which dictates that a prefix learned from an iBGP peer cannot be advertised to another iBGP peer). Route reflectors are never used for standard eBGP sessions.

Option D: While AOS-CX requires you to enter the address-family ipv4 unicast context to activate a neighbor, the keyword " internal " is not a valid address-family type in the AOS-CX BGP syntax for this purpose.

Key Practice Tip: When configuring BGP on AOS-CX, always remember that after defining the neighbor x.x.x.x remote-as, you must enter the address-family context and use the neighbor x.x.x.x activate command for the session to transition to the " Established " state.

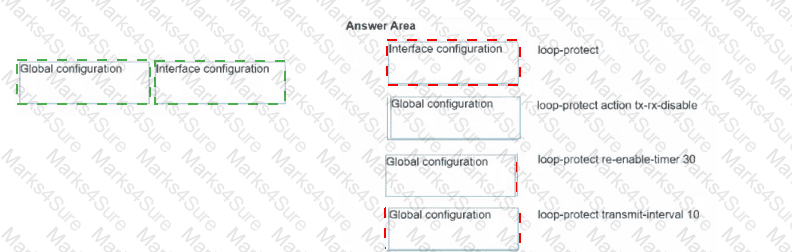

Interface configuration: loop-protect

Global configuration: loop-protect action tx-rx-disable

Global configuration: loop-protect re-enable-timer 30

Global configuration: loop-protect transmit-interval 10

In the AOS-CX operating system, configuration for Loop Protection follows a " Global Parameter, Local Execution " model. This distinguishes it from STP, which often has more per-interface tunable parameters.

Enabling the Feature (Interface configuration): The command loop-protect is entered within the interface context (e.g., interface 1/1/1). This command acts as a " trigger " or toggle that tells the switch to start sending and listening for loop-protection probe packets on that specific physical port or LAG.

Defining the Behavior (Global configuration): The specific way the loop protection " engine " behaves is defined once for the entire switch in the global configuration context .

loop-protect action tx-rx-disable: This sets the universal response if a loop is detected. The switch can be told to simply log the event, or physically disable the port (either just the transmitter, or both transmitter and receiver).

loop-protect re-enable-timer 30: If a port is disabled due to a loop, this global timer defines how many seconds the switch waits before automatically attempting to bring the port back online to see if the loop has been physically removed.

loop-protect transmit-interval 10: This defines how frequently the switch generates the proprietary loop protection packets.

Why this structure exists: This model simplifies administration. You can change the sensitivity (interval) or the severity (action) for the entire switch in one place, while still having the granular control to only enable the feature on " risky " ports where unmanaged switches or hubs might be connected.

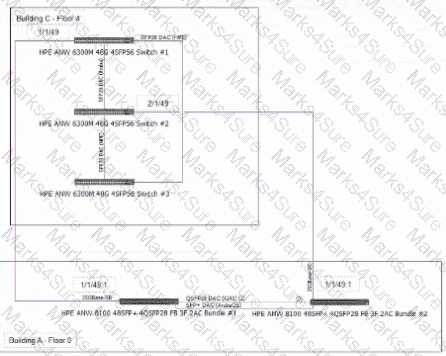

In a Virtual Switching Framework (VSF) stack, high availability and control plane redundancy depend on the designation of specific roles among the stack members.

Conductor and Secondary Roles:

Conductor: The " brain " of the stack that manages the control plane and synchronization. By default, the first switch configured (Member 1) becomes the Conductor.

Secondary: This is the " Standby Conductor. " It maintains a synchronized state of the management and control planes. If the Conductor fails, the Secondary immediately takes over the Conductor role to keep the stack operational.

Analyzing the Exhibit:

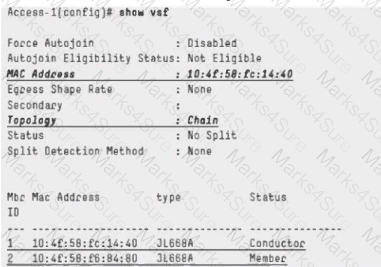

Looking at the output of show vsf, the Secondary field is currently empty (blank).

While Member 2 is seen as a " Member, " it has not been officially promoted to the Secondary role.

In the current state, if Member 1 (the Conductor) fails, there is no designated standby to take over. The stack would lose its control plane, and Member 2 would not be able to function as a standalone manager for the stack configuration.

The Solution: To ensure the stack survives a failure of either member, you must explicitly configure a secondary member. On a 2-member 6300 stack, the command vsf secondary-member 2 is used to designate Member 2 as the standby. This populates the " Secondary " field seen in the exhibit and enables redundancy.

Evaluating Other Options:

Option A: Split-detection is a separate mechanism used to prevent " split-brain " scenarios (where both members think they are the conductor after a link failure), but it requires a secondary member to be defined first to even function as a redundant pair.

Option B: Auto-stacking is a deployment method used to automatically number and link members during initial setup; it does not configure high-availability roles.

Option D: There is no command vsf conductor-member 2. The conductor role is assigned dynamically or via the secondary role promotion.

To make configuration changes using multi-edit in Aruba Central when encountering the shown condition, you must enable edit config mode using the gear icon. This unlocks the configuration for editing and allows you to make batch changes safely.

Selecting configuration status or device in multi-edit alone is not sufficient.

Overriding state is not a standard approach in Aruba Central for editing configs.

The troubleshooting methodology exemplified by comparing outputs or configurations to find discrepancies is called Spot the difference. It involves checking variations between working and non-working states or devices.

Follow the path: tracing packet flow step-by-step.

Top-down/Bottom-up: analyzing layers systematically.

Replace configuration: swapping configurations to isolate issues.

Here, comparing command outputs aligns with spot-the-difference.

For multicast to function efficiently on Aruba CX access switches, IGMP snooping needs to be enabled on the VLAN interfaces. IGMP snooping listens to IGMP join and leave messages between multicast clients and routers to allow the switch to forward multicast traffic only to interested ports, reducing unnecessary multicast flooding.

PIM is a multicast routing protocol and usually configured on routing devices, not access switches.

IGMP (without snooping) enables hosts to signal interest but does not control traffic forwarding at the switch layer.

Enabling IGMP snooping on SVI alone may not be sufficient; it should be enabled on VLANs that carry multicast clients.

Hence, enabling IGMP snooping on VLAN is necessary for efficient multicast traffic flow.

LACP (Link Aggregation Control Protocol) modes can be active or passive. When two switches are both configured in passive mode, no LACP packets are initiated, causing the link aggregation to fail or go into a block state.

Changing one side from passive to active causes that switch to initiate LACP negotiation, resolving the block state.

Changing to static mode disables LACP negotiation, which is not recommended unless both sides are static.

Changing timeout does not solve LACP block issues caused by mode mismatches.

Therefore, changing one switch’s LACP mode from passive to active is necessary to resolve the block.
