The deployment of the HPE CSI (Container Storage Interface) Driver involves several sequential steps to enable dynamic provisioning of storage on HPE Alletra 9000 arrays. Once the Helm repository has been added, the administrator must provide the driver with the necessary authentication and connectivity details for the storage backend.

According to the HPE Storage Container Orchestration Documentation (SCOD), the definitive next step to enable communication between the Kubernetes cluster and the Alletra 9000 is to create a Kubernetes Secret. This Secret contains critical parameters such as the storage array's IP address or FQDN, and the management credentials (username and password). Without this Secret, the CSI driver cannot authenticate against the Alletra 9000 REST API to perform volume creation, mounting, or snapshot operations.

While creating a StorageClass (Option C) is a required step, it follows the creation of the Secret. The StorageClass definition must specifically reference the name of the Secret to identify which storage backend should be used for a particular tier of service. Option A (creating a namespace) is often done as part of the helm install command itself (using the --create-namespace flag) and is a general administrative task rather than a storage-specific configuration step. Option D is incorrect as the Alletra 9000 does not pull credentials from the Kubernetes conductor; rather, the Kubernetes driver pushes requests to the array using the credentials stored in the Kubernetes Secret. Establishing this secure handshake via the Secret is the foundational step for all subsequent persistent volume (PV) and persistent volume claim (PVC) activities.

When competing against IBM FlashSystem, HPE's primary differentiators lie in the intelligence of the management platform and the integration into the broader hybrid cloud ecosystem.

The first major advantage is AIOps for infrastructure, pioneered by HPE InfoSight. While IBM has Storage Insights, HPE InfoSight is widely considered the industry benchmark for deep-stack predictive analytics. It uses machine learning to analyze millions of sensor points across the global install base to predict and prevent up to 86% of problems before they occur. This goes beyond simple storage monitoring; it provides visibility into the "noisy neighbor" VMs and host-side issues that impact storage performance, providing a level of autonomous management that IBM's portfolio currently lacks.

The second advantage is Full stack automation with hybrid cloud. By managing the Alletra 9000 through the HPE GreenLake Data Services Cloud Console (DSCC), the customer transitions from managing a "box" to a cloud-native operational model. This provides a unified API and a consistent management experience whether the data is on-premises or in the cloud. DSCC enables "Intent-Based Provisioning," where the user simply specifies the workload type and the cloud console automatically selects the best-suited array and volume parameters, ensuring optimal performance without manual tuning. This "Cloud Ops" model is a cornerstone of the HPE GreenLake strategy, offering a more streamlined, automated experience than the traditional management software typically associated with the IBM FlashSystem line. While IBM does offer ransomware features (Option C), HPE's focus on AIOps and hybrid cloud integration provides a more transformative operational benefit for most enterprise customers.

The HPE Solutions for Qumulo are a result of a strategic partnership designed to provide a high-performance, scale-out NAS (Network Attached Storage) platform for unstructured data. According to the HPE Solutions with Qumulo Reference Architecture, the primary hardware platform utilized for these factory-built, integrated solutions is the HPE Apollo 4000 series, specifically the HPE Apollo 4200.

The Apollo 4200 is chosen for this role because it is a density-optimized, storage-centric server that provides an ideal balance of compute and massive internal storage capacity within a standard 2U rack footprint. Architecturally, the Apollo 4200 supports an "SSD-first" hybrid configuration or an all-flash configuration, which aligns perfectly with Qumulo's file system requirements. Qumulo’s software uses the SSDs for a high-speed metadata layer and write-cache, while utilizing high-capacity HDDs for the data plane, ensuring that even with billions of files, the system maintains near-flash performance.

While the HPE ProLiant DL325 is also used for specific all-NVMe nodes in the Qumulo portfolio, the Apollo 4200 remains the foundational building block for the hybrid and archive nodes that comprise the bulk of enterprise deployments. The HPE Apollo 4500 (Option D) is a 4U system that, while part of the Apollo family, is not the standard integrated platform for the mainstream Qumulo joint offering. The HPE Alletra 5000 (Option B) is a block-storage-focused platform derived from the Nimble lineage, and the ProLiant DL360 (Option C) is a general-purpose 1U compute server that lacks the internal drive density required for a high-capacity scale-out file storage solution. By selecting the Apollo 4200, customers benefit from a pre-validated, factory-integrated solution that simplifies the deployment of massive file lakes for workloads like video surveillance, medical imaging, and big data analytics.

Performance Estimation

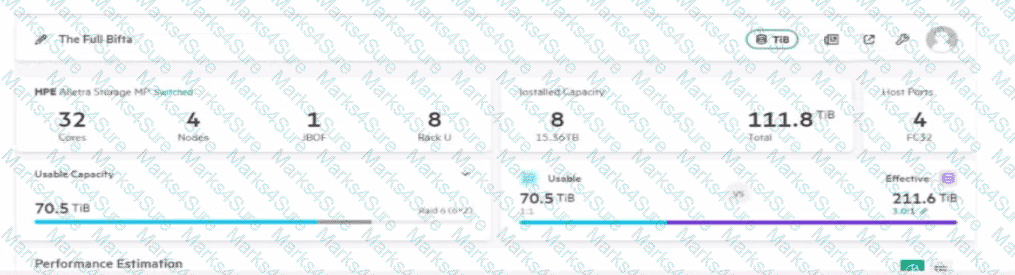

The HPE Ninja Sizer is a vital tool for storage architects to model the "Performance vs. Capacity" trade-offs of the HPE Alletra MP B10000 disaggregated architecture. In this scenario, the current configuration (as shown in the exhibit) consists of 4 nodes and 1 JBOF (with 8 drives of 15.36TB each).

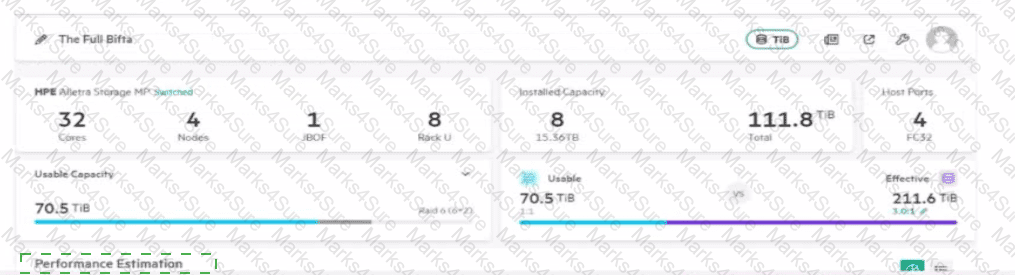

To address poor read/write performance in Ninja Sizer, the partner must analyze the Performance Estimation pane. By clicking the chart/graph icon in the bottom right of the summary dashboard, the tool opens a detailed breakdown of the IOPS, throughput, and latency limits for the selected hardware. In a disaggregated shared-everything (DASE) architecture like the Alletra MP, performance is a direct function of the "node-to-drive" ratio. A configuration with only 8 drives (as seen in image_6491d0.png) may be "disk-bound," meaning the controllers have more compute power than the backend drive count can support in parallel.

By accessing the performance details, the partner can see if the bottleneck is at the node level (CPU/Cores) or the drive level (Flash bandwidth). To "correct this issue" and optimize the sizing, the partner would typically need to increase the drive count within the JBOF to allow for more parallel I/O streams or add additional JBOFs to scale the backend bandwidth. The Ninja Sizer provides real-time feedback; as the partner adds more 15.36TB drives, they will see the Performance Estimation bars move from yellow/red toward green, indicating an appropriately balanced solution that meets the customer's latency and throughput SLAs.

The HPE B-Series SN7000B is a high-performance Director based on Brocade Gen 7 (G7) technology. Buffer-to-Buffer (BB) credits are the fundamental flow-control mechanism used in Fibre Channel to prevent frame loss and manage congestion.

Statement D is a foundational principle of SAN architecture: BB credits are based on link speed and frame size. In an FC fabric, the number of credits required to "fill the pipe" (keep data moving without waiting for acknowledgments) is a direct function of the Round Trip Time (RTT), which is determined by the physical distance, the speed of the link (e.g., 64Gb/s vs 32Gb/s), and the size of the frames being sent (typically 2KB). As link speeds increase, more buffer credits are required to maintain full throughput over the same distance.

Statement C reflects a specific technical default in the Brocade Fabric OS (FOS) for Gen 7 hardware. To ensure that ports can initialize and handle basic traffic immediately upon being enabled, the switch reserves a default number of credits from the ASIC's global buffer pool. For user ports on these high-density blades, the system reserves eight buffer credits per port, regardless of whether the port is currently online or offline. This reservation ensures that the port has the minimum resources necessary to complete a fabric login (FLOGI) or negotiate a link without competing for pool resources.

Option E is incorrect because the entire pool is not reserved; a significant portion of the ASIC's buffers remains in a "shared pool" that can be dynamically allocated for long-distance links or high-demand ports via the "Extended Fabrics" feature. Option B is incorrect as it confuses the TCP windowing concept with FC credit-based flow control. Option A is incorrect because BB credits are a local port-to-port negotiation (link-level) and do not need a fabric-wide global "agreement" to form the fabric.

HPE Morpheus Enterprise is a comprehensive multi-cloud management and orchestration platform that enables self-service provisioning and lifecycle management across private and public clouds. To accurately size and quote a Morpheus solution in tools like HPE Online Config Advanced (OCA), the primary licensing metric is the Workload Element (WLE), also frequently referred to as a Workload Element (WE) in some documentation.

A Workload Element is defined as a granular unit of compute directly associated with an application service that is being managed or inventoried by Morpheus. This includes:

Virtual Machines (VMs) on-premises (e.g., VMware vCenter, Hyper-V).

Instances in the public cloud (e.g., AWS EC2, Azure VMs, Google Cloud instances).

Bare metal servers if they are provisioned to run application services.

Container deployments (such as Kubernetes pods).

Importantly, Morpheus does not count supporting infrastructure like storage arrays, load balancers, or physical hypervisor hosts (e.g., the physical server running ESXi) as Workload Elements. Licensing is typically based on a concurrent model, meaning the customer must license the total number of WLEs under management at any given time, regardless of whether they are located on-prem or in a public cloud. Therefore, the partner must calculate the aggregate sum of all VMs and cloud instances the customer intends to manage to ensure the license quantity in OCA is correct.

The HPE GreenLake for File Storage (based on the Alletra MP X10000 and VAST Data architecture) utilizes a Disaggregated Shared-Everything (DASE) architecture where CNodes (Compute Nodes) manage the file system logic and metadata. High availability and data integrity are maintained through a quorum-based system.

In a standard cluster environment, a strict majority of nodes ($n/2 + 1$) must be operational to maintain the "Quorum," which is the state required to acknowledge I/O and prevent "split-brain" scenarios. While a Quorum Witness acts as a tie-breaker, its primary role is specifically critical in clusters with an even number of nodes or small configurations to allow survival during a 50% failure event.

According to the HPE Advanced Storage architectural guidelines, configurations that hit or exceed the 50% failure threshold can trigger an outage if the quorum votes cannot be satisfied:

Option E (Six CNodes with three failed): In a 6-node cluster, a majority is 4. With exactly 3 nodes failed (50%), the system reaches a "tie" state. Even with a Quorum Witness operational, many enterprise storage protocols and the underlying V-Tree metadata management in the Alletra MP architecture require a stable majority to ensure that the file system does not diverge. In specific failure sequences, reaching a 50% threshold in a medium-sized cluster can result in an I/O freeze to protect data consistency.

Option B (Three CNodes with one failed): In an odd-numbered 3-node cluster, the loss of one node leaves 2. While 2/3 is a majority, the system is now "at-risk." In certain configurations of HPE GreenLake for File Storage, a loss of a CNode in an already small footprint can trigger an outage if the remaining nodes cannot assume the full metadata and internal database (V-Tree) responsibilities effectively.

Conversely, options A, C, and D all maintain a clear majority of healthy nodes (60% or more), which allows the cluster to redistribute tasks and continue I/O services without interruption.

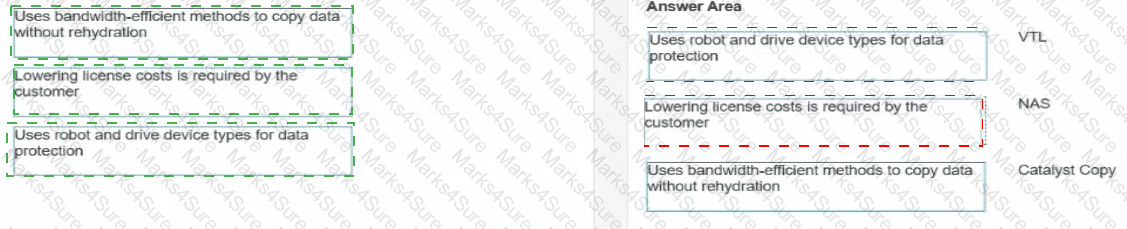

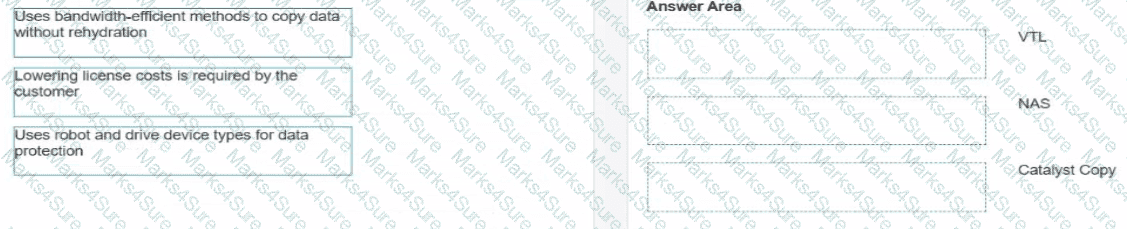

Catalyst Copy: Uses bandwidth-efficient methods to copy data without rehydration

NAS: Lowering license costs is required by the customer

VTL: Uses robot and drive device types for data protection

The HPE StoreOnce portfolio provides multiple data protection interfaces to align with different legacy and modern workload requirements. Understanding the specific technical "DNA" of each interface is key to a successful Master ASE design.

HPE StoreOnce Catalyst Copy is the most advanced method for data movement. Unlike standard protocols that must "rehydrate" (decompress/deduplicate) data before sending it over the network, Catalyst Copy is "deduplication-aware". It identifies unique data blocks at the source and only transmits those that do not already exist at the destination. This bandwidth-efficient method allows for high-speed replication over WAN links with minimal overhead.

The NAS (Network Attached Storage) interface is often chosen when lowering license costs is a primary driver. Because it utilizes industry-standard protocols like NFS or SMB/CIFS, it does not require the specialized (and often separately licensed) backup software agents or plug-ins associated with the high-performance Catalyst protocol. While it lacks some of the advanced deduplication-at-source benefits of Catalyst, it remains a cost-effective choice for general-purpose file-based backups.

The VTL (Virtual Tape Library) interface is designed for customers with existing investments in tape-based backup workflows. It emulates physical tape hardware, presenting the backup software with virtual "robot" (medium changer) and drive device types. This allows organizations to transition from physical tape to disk-based deduplication without changing their existing backup scripts or procedures, providing a seamless "drop-in" replacement for aging tape libraries.

When sizing a migration from a highly efficient array like the HPE Alletra 9000 (or Primera) to the next-generation HPE Alletra MP B10000, storage architects must account for the difference between the "Written Capacity" (what the host thinks it has stored) and the "Consumed Capacity" (the physical space used after data reduction).

The standard best practice for an HPE Master ASE when performing these migrations is to Size to consumption multiplied by 1.25. This "1.25 factor" (representing a 25% overhead) is the recommended safety margin used in sizing tools like HPE NinjaStars and the HPE Cloud Physics assessment reports.

This 25% buffer is designed to cover several critical architectural requirements:

System Metadata and Overhead: Both the Alletra 9000 and Alletra MP require physical capacity to store internal metadata, map tables, and the structures required for their respective data reduction engines.

Snapshot Reserve: While snapshots are thin and pointer-based, they still consume physical space as data changes over time. The 1.25 multiplier ensures there is enough "headroom" for typical snapshot retention policies.

Data Reduction Parity: Data reduction ratios (deduplication and compression) can fluctuate based on the specific workload. Sizing exactly to current consumption without a buffer risks an out-of-space condition if the new array's reduction engine handles a specific block pattern slightly differently during the initial ingest.

Operational Performance: SSD-based arrays perform best when they are not "packed" to 100% capacity, as the garbage collection and wear-leveling processes require free blocks to operate efficiently.

Sizing to "original capacity" (Option D) would lead to a massive over-provisioning and wasted cost, as it ignores the benefits of modern data reduction. Option C (1.5) is generally considered overly conservative for modern flash environments, while 1.25 provides the optimal balance of cost-efficiency and technical risk mitigation.

In a Zerto environment, a Virtual Protection Group (VPG) is the fundamental unit of management used to group virtual machines that must be replicated together to maintain write-order fidelity and application consistency. This is particularly vital for multi-tier applications, such as a database server and a web server, that need to be recovered to the exact same point in time.

According to the HPE Advanced Storage Solutions technical guides and Zerto's architectural specifications, a single Virtual Machine (VM) can be associated with a maximum of three VPGs simultaneously. This capability is often referred to as "one-to-many" replication. This architectural flexibility allows a storage administrator to design complex data protection strategies that go beyond simple site-to-site disaster recovery. For example, a VM could be part of:

A Local VPG for high-speed recovery from the local journal (Short-term retention).

A Remote VPG for disaster recovery to a secondary data center or public cloud.

A Tertiary VPG for long-term retention or to a third site for regional disaster protection.

When a VM is protected in multiple VPGs, each VPG maintains its own independent journal, settings, and Recovery Point Objective (RPO) targets. However, the Virtual Replication Appliance (VRA) on the host only needs to read the data changes (IOs) from the hypervisor once; it then distributes those changes to all the target VRAs associated with the various VPGs. This ensures that while the VM is highly protected across multiple locations, the overhead on the production host and the hypervisor remains minimal. It is important to note that while three is the maximum, the storage architect must ensure that the available network bandwidth and the IOPS of the target storage systems can handle the aggregate replication load of all associated VPGs.

The customer's requirements focus on a single data management platform that can unify disparate backup tasks and eliminate data silos across files, objects, and archiving while supporting massive scale-out NAS. The HPE Solutions with Cohesity (specifically Cohesity DataProtect and Cohesity SmartFiles) are architecturally designed to meet these specific needs.

Unlike traditional backup software that often relies on separate components for different data types, Cohesity provides a unique shared-nothing, scale-out architecture that consolidates secondary data onto a single platform. It natively supports a vast array of workloads including virtual machines, containers (Kubernetes), databases (SQL, Oracle, NoSQL), and physical servers. A core differentiator for Cohesity is its ability to act as a Scale-Out NAS via its SmartFiles feature, allowing it to manage PB-scale unstructured data without the performance bottlenecks found in traditional "siloed" storage.

When delivered via HPE GreenLake Flex, this solution is typically paired with HPE Alletra 4000 storage servers (such as the Alletra 4120 or 4140). These servers are density-optimized, storage-centric systems that provide the high-throughput and massive internal capacity required for a modern secondary storage environment. While Commvault (Option A) and Veeam (Option D) are powerful data protection suites, they are often used in conjunction with external target storage (like StoreOnce or Alletra MP) and do not always provide the same level of native, unified scale-out NAS and data silo elimination within a single management plane as the integrated Cohesity/Alletra 4000 stack.

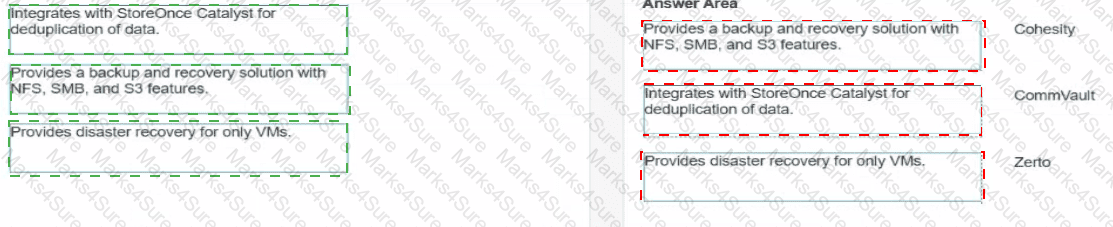

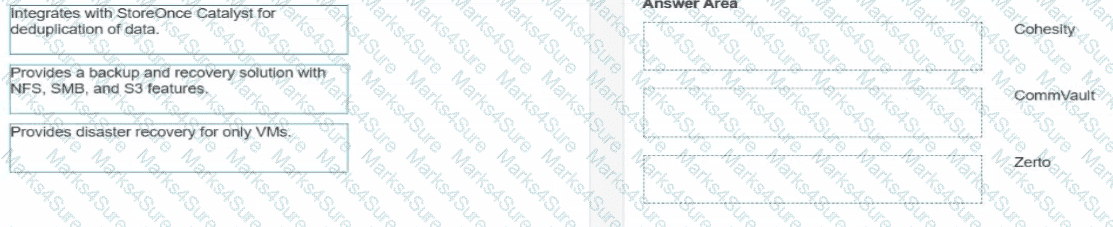

Cohesity: Provides a backup and recovery solution with NFS, SMB, and S3 features.

Commvault: Integrates with StoreOnce Catalyst for deduplication of data.

Zerto: Provides disaster recovery for only VMs.

Enterprise data protection requires selecting the right software partner to align with specific infrastructure needs, whether protecting bare-metal servers, virtualized workloads, or modern unstructured data.

Cohesity: This solution is defined by its "multicloud data platform" approach. It is often used to consolidate secondary storage silos by providing a single platform that handles not only backup and recovery but also serves as a scale-out NAS. It natively provides NFS, SMB, and S3 features, allowing it to act as a target for unstructured data while simultaneously protecting applications and VMs.

Commvault: As a long-standing leader in enterprise backup, Commvault features deep, verified integration with HPE hardware. A key differentiator for HPE customers is how Commvault integrates with StoreOnce Catalyst. This integration allows Commvault to manage the movement of deduplicated data directly to StoreOnce appliances without needing to rehydrate the data, significantly reducing network traffic and storage costs across the enterprise.

Zerto: Unlike traditional backup products that rely on snapshots, Zerto utilizes continuous data protection (CDP) through the hypervisor layer. While it is a powerhouse for replication and orchestration, it is architecturally focused on virtualized environments. Within the context of this comparison, it is the solution that provides disaster recovery for only VMs, as its Virtual Replication Appliances (VRAs) are purpose-built to intercept I/O within VMware or Hyper-V environments.

The management of an HPE Solution with Cohesity is centered around providing a unified, global experience across hybrid and multi-cloud environments. For managing data protection policies, alerting, and operational oversight across one or more Cohesity clusters, the correct tool is Cohesity Helios.

Cohesity Helios is a SaaS-based management platform that provides a "single pane of glass" for the entire Cohesity data estate. According to HPE and Cohesity technical documentation, Helios utilizes machine learning and AI-driven analytics to offer proactive health monitoring and global search capabilities. It allows administrators to define a single set of data protection policies—covering variables like frequency, retention, and replication—and apply them universally across clusters located on-premises (on HPE Alletra 4000 servers), at the edge, or in the public cloud.

In contrast, SpanFS (Option D) is the underlying web-scale distributed file system that powers the Cohesity DataPlatform, but it is not a management tool itself. HPE GreenLake Data Ops Manager (Option B) is part of the HPE Data Services Cloud Console (DSCC) primarily used for managing native HPE Alletra Block and File storage arrays, rather than third-party software-defined platforms like Cohesity. While the solution can be procured via HPE GreenLake Flex (Option A), the operational day-to-day management of the software policies resides within the Helios console to ensure consistency with Cohesity’s broader ecosystem. Helios ensures that as the customer scales their Alletra 4000 footprint, the management of their secondary data remains simplified and policy-driven.

The customer's requirements specify a need for a fully managed environment that supports a "multi-gen" IT stack, including virtual machines (VMs), containers, and bare metal servers, all while providing a cloud-like operational experience for DevOps. HPE Private Cloud Enterprise (PCE) is the only solution in the portfolio designed specifically to meet all these criteria in a single, integrated managed service.

HPE Private Cloud Enterprise provides an automated, self-service cloud experience for developers and IT operators. It natively supports the provisioning and lifecycle management of bare metal compute resources, which is a key requirement for the customer’s diverse workload environment. For containers, PCE integrates with standard Kubernetes orchestration, and for virtual machines, it supports multiple hypervisors including VMware. A critical differentiator is that PCE is delivered as a managed service, meaning HPE handles the underlying infrastructure management (updates, patching, and health), allowing the customer to focus on application development and DevOps productivity.

Options A and B are focused on specific stacks (VMware Cloud Foundation and Azure Stack HCI, respectively) which do not offer the same native, unified bare-metal management and multi-workload breadth as PCE. HPE Private Cloud Business Edition (Option C) is a self-managed solution intended for smaller-scale VM environments and does not provide the "fully managed" experience or the native bare-metal compute service required by this enterprise customer. PCE’s inclusion of HPE Morpheus Enterprise software further ensures the "DevOps toolchain" integration requirement is met by providing a powerful self-service engine for infrastructure-as-code.

Sizing a storage solution for SAP HANA is fundamentally different from sizing general-purpose virtualization workloads. SAP HANA is an in-memory database, but it has extremely strict requirements for the underlying persistent storage layer to ensure data integrity during savepoints and log writes. SAP enforces these requirements through the SAP HANA Tailored Data Center Integration (TDI) program.

To begin the sizing process and ensure the solution will pass the SAP Hardware Configuration Check Tool (HWCCT) or the newer SAP HANA System Check, a storage architect must first determine the required IOPS rate, specifically for the /hana/data and /hana/log volumes. SAP provides specific KPIs for latency and throughput that must be met. For instance, the log volume requires extremely low-latency writes to handle the sequential redo logs, while the data volume requires high-throughput (MB/s) and specific IOPS to handle asynchronous savepoints.

While the number of nodes (Option C) and replication features (Option D) are important for the overall architecture, they do not dictate the "right-sizing" of the storage performance tier in the same way the IOPS and throughput requirements do. If the storage cannot meet the SAP-certified IOPS and latency thresholds, the entire solution will be unsupported, regardless of how many nodes are present. By identifying the IOPS and throughput needs first, the architect can determine if the customer requires an All-Flash Alletra 9000 or if an Alletra MP configuration with specific drive counts is necessary to provide the required "parallelism" to hit SAP's performance targets.
