Free Practice Questions for the HPE Technical Certification HPE7-S02 Exam (2026 Updated)

A is correct. HPE Slingshot topology classes trade edge-facing capacity against the inter-switch links needed to scale the fabric. A Class 1 topology uses a smaller topology structure and can devote more switch ports to L0 connections toward compute-node NICs. A Class 3 topology uses additional switch groups and therefore consumes more switch ports for L1/L2 fabric connectivity, leaving fewer host-facing ports per switch even though the overall fabric can scale to a much larger endpoint count.

Option B reverses the scaling relationship: Class 3 is the topology intended for larger fabrics, not Class 1. Option C also reverses the port-ratio concept; the larger class requires a greater proportion of inter-switch connectivity. Option D is incorrect because adaptive-routing capabilities are properties of the Slingshot fabric and switch architecture, not a special routing technology unlocked only by choosing Class 1.

This is a topology-design question rather than a raw bandwidth question. The designer balances the number of endpoint ports per switch, the number of switch groups, and the inter-switch links required to maintain the target bisection and path diversity.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 10; HPE Slingshot “Switch Topology Classes” documentation.

C is correct. The Alerts view in HPE AI Essentials is designed to move an administrator from a detected condition to the evidence needed for diagnosis. From an alert, the administrator can open the logs for the pod associated with that alert. That is materially different from taking a remediation action such as restarting a pod: the Alerts interface provides observability and troubleshooting context, while restart or recovery actions are performed through the appropriate Kubernetes or platform-management workflow. Alert forwarding is separately configured in the platform’s observability settings rather than as a per-alert action, and HPE GreenLake does not provide an alert-correlation function from this local Alerts view.

This is an important operational distinction for the exam. HPE Private Cloud AI troubleshooting follows an evidence-first workflow: identify the alert, inspect the affected workload and its logs, and then determine the corrective action. Pod logs can expose image-pull failures, scheduling problems, resource exhaustion, application exceptions, or service communication errors without immediately changing system state.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 7 “Troubleshooting HPE Private Cloud AI,” especially alerts and solution-provided tools; HPE AI Essentials Software documentation, “Viewing Alerts and Notifications.”

A is correct. When the objective is automated renewal of the HPE AI Essentials ingress certificate, cert-manager should control the certificate lifecycle. A ClusterIssuer is part of that implementation because it defines the certificate-authority or ACME issuing service that cert-manager can use cluster-wide. Once the issuer and the corresponding Certificate resource are configured correctly, cert-manager can request, replace, and renew the certificate rather than requiring repeated manual secret replacement.

Option C describes a manually supplied secret containing certificate material. That can be appropriate when an organization already has a certificate and wants to install it manually, but by itself it does not provide automated renewal. An AuthorizationPolicy controls traffic authorization, not certificate issuance, so B is unrelated. The Istio ingress gateway already exists as part of HPE AI Essentials; creating another gateway is not the required certificate-renewal step.

Rev. 26.21 specifically updates certificate material for HPE AI Essentials 1.9 and later, making it important to distinguish automated cert-manager workflows from manual ingress-cert replacement.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 3 “Replacing the Istio ingress gateway certificate”; HPE AI Essentials documentation, “Using cert-manager to Generate and Replace SSL Certificate.”

B is correct. HPE AI Essentials uses service identities based on SPIFFE concepts. Workloads receive SPIFFE Verifiable Identity Documents (SVIDs) from the platform’s SPIRE infrastructure, and the Istio service mesh uses those identities to establish authenticated service-to-service communication. This gives workloads cryptographically verifiable identities that are independent of network location and supports mutual authentication between services inside the platform.

Option A incorrectly attributes workload identity to the Istio ingress gateway. The ingress gateway handles north-south access, but it is not the certificate authority that independently issues identities to every internal workload. Option C describes Kubernetes secrets generated by Kyverno, which is not the HPE AI Essentials workload-authentication architecture. Option D is too generic; static self-signed certificates created at installation would not provide the dynamic, workload-specific identity and rotation model that SPIRE supplies.

For integrators, the important design point is that the platform treats workload identity as a first-class security control. Istio provides the service-mesh enforcement and mTLS capabilities, while SPIRE supplies trusted identities used by workloads and proxies.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 3 “Understanding and managing communications”; HPE Private Cloud AI/HPE AI Essentials core-concepts documentation for Istio, SPIRE, and service identity.

A is correct. VMware ESXi host TPM attestation depends on a trusted measured boot chain. Enabling UEFI Secure Boot helps establish that chain by allowing the platform to verify signed boot components and by aligning the host with VMware’s secure-boot and TPM attestation requirements. With a supported TPM 2.0 configuration, vCenter can evaluate host attestation status and detect changes that compromise the expected boot measurements.

Encrypting self-encrypting drives is a storage-data protection control and does not determine whether the host passes TPM boot attestation. TAA compliance concerns procurement and manufacturing requirements, not the trusted boot state. The iLO Service Port provides a local management interface and has no role in establishing the ESXi TPM measurement chain.

The configuration must be treated as a platform-security dependency, not a post-installation checkbox. UEFI mode, Secure Boot, supported TPM settings, and compatible ESXi configuration should be established before hosts are placed into the production cluster.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 8 “Designing HPE compute for VMware vSphere”; HPE ProLiant Gen12 security/UEFI documentation; VMware vSphere TPM and Secure Boot attestation guidance.

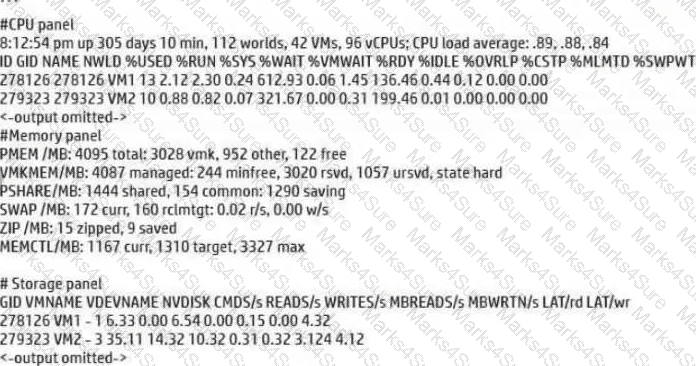

A is correct. The esxtop output indicates memory pressure rather than CPU or storage saturation. The host has only about 122 MB of free physical memory, the VMkernel memory state is shown as hard, ballooning is active, and swap is in use. Those are strong indicators that ESXi is reclaiming memory because demand is approaching or exceeding comfortable physical capacity. Reclamation can increase latency sharply, especially when guest memory is swapped to storage.

The CPU figures do not show the classic signature of CPU contention. The displayed VMs have low %RDY values, so they are not spending excessive time waiting for physical CPU scheduling. The storage panel also shows relatively low read/write latency for the displayed workloads, which does not support a storage-controller or storage-network bottleneck as the primary cause.

The appropriate remediation is therefore to add physical memory, reduce VM memory commitments, or evacuate some VMs to other hosts. The screenshot is a good example of why VMware troubleshooting should correlate multiple esxtop panels rather than infer the bottleneck from utilization alone.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 8 “Troubleshooting HPE running VMware”; VMware ESXi esxtop memory-reclamation concepts.

D is correct. Airflow pools provide a direct mechanism for controlling task concurrency. Each pool has a defined number of slots, and tasks assigned to that pool consume slots while they execute. Reducing the number of slots in the default pool therefore limits the number of tasks that can run simultaneously and places an upper bound on how aggressively Airflow can consume cluster resources across concurrent DAG activity.

Option A is not the supported control in this scenario; the Airflow UI does not serve as the general editor for executor-pod CPU and memory sizing. Option B is the opposite of the stated objective because enabling autoscaling can increase executor capacity in response to demand. Option C suggests changing framework values for executor resources, but HPE’s Airflow integration historically constrains those settings and the exam-tested method for limiting aggregate workload pressure is pool concurrency.

This is a scheduling-level safeguard rather than a Kubernetes quota. In a production environment, pool slots can be combined with platform quotas and workload resource requests to create layered control over resource consumption.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 4 “Airflow” and Module 7 resource troubleshooting; HPE AI Essentials Airflow documentation, pool slots and maximum simultaneous jobs.

A is correct. HPE AI Essentials provides platform-level identity and access management for connected data sources. After the S3 object store is configured, an administrator can use the Identity and Access Management interface to grant the required users privileges to that object-store data source. This gives the selected users access from supported tools such as notebooks and Spark applications while leaving other users without permission.

The HPE GreenLake cloud user-management page controls broader workspace or service access, but it is not the place to assign the fine-grained HPE AI Essentials data-source privilege described in this scenario. Embedding user lists directly in the object-store connection settings is not the documented access-control workflow. Creating credential secrets manually in every user namespace is also the wrong pattern: it duplicates sensitive credentials, increases rotation overhead, and bypasses the platform’s centralized authorization model.

The operational principle is separation of connection configuration from authorization. The platform stores the data-source integration, while Identity and Access Management determines who may use it. That model is more auditable and maintainable than distributing access keys.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 4 “Connecting to data”; HPE AI Essentials Software documentation, Identity and Access Management and user access to data.

C is correct. In a retrieval-augmented generation pipeline, initial retrieval can return a set of candidate passages or vectors that are approximately relevant to the user’s query. The retriever reranking NIM evaluates those candidates more precisely and reorders them so that the items with the strongest semantic relevance are placed first. The highest-quality context can then be supplied to the generative model, improving answer relevance and reducing the amount of weak context passed into the prompt.

Option A describes ingestion and preprocessing, which occurs before the content is indexed in a RAG datastore. Option B describes retrieval or database-query activity, not reranking itself. Option D is the role of the LLM or generation NIM that produces the final natural-language response. Reranking sits between retrieval and generation.

The distinction is important because RAG quality is not determined only by the embedding search. A reranker can use a stronger relevance model on a limited candidate set, trading a small amount of additional computation for substantially better context selection.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 5, NVIDIA NeMo deep dive; NVIDIA NeMo Retriever documentation, retrieval and reranking services.
