Integration-Architect Salesforce Certified Platform Integration Architect (Plat-Arch-204) Questions and Answers

Resiliency in long-running Batch Apex processes is best achieved by utilizing modern, event-driven error handling frameworks provided by the Salesforce platform. The BatchApexErrorEvent is the architecturally recommended component for monitoring and responding to failures in Batch Apex jobs.

When a Batch Apex class implements the `Database.RaisesPlatformEvents` interface, the platform automatically publishes a BatchApexErrorEvent whenever an unhandled exception occurs during the execution of a batch. This event contains critical metadata, including the exception message, the stack trace, and the scope (the specific IDs of the records that were being processed when the failure occurred).

An Integration Architect should recommend building a Platform Event Trigger that subscribes to these error events. This trigger can perform sophisticated error handling logic, such as:

* Logging the failure details into a custom " Integration Error " object for auditing.

* Initiating a retry logic by re-enqueuing only the failed records into a new batch job.

* Notifying administrators or external systems via an outbound call or email.

This approach is superior to Option B (internal handling) because unhandled exceptions often cause the entire batch transaction to roll back, potentially losing any error logging performed within the same scope. It is also more efficient than Option C (middleware), as it keeps the error recovery logic " close to the data, " reducing the need for external systems to constantly poll for job status or parse complex logs. By using BatchApexErrorEvent, UC ensures a resilient, self-healing process that maintains the integrity of the invoice generation cycle.

---

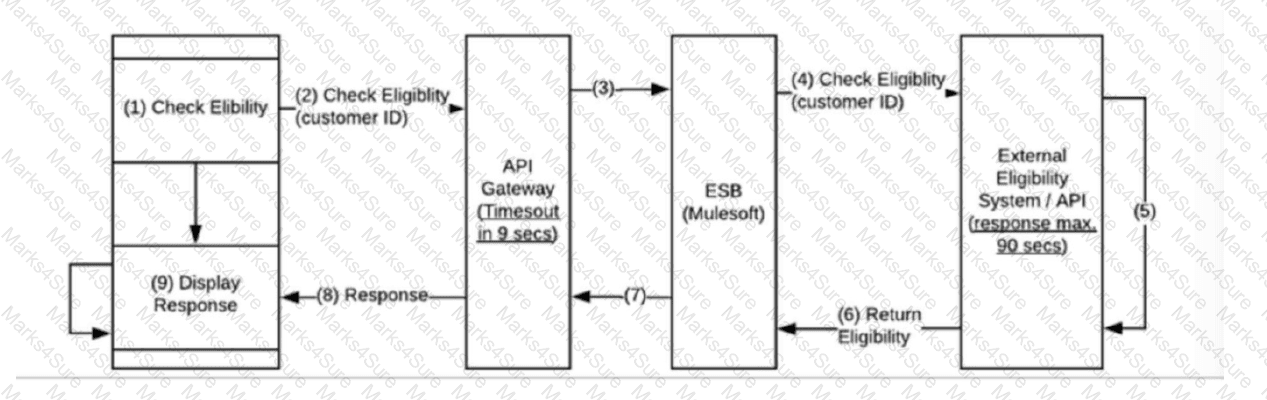

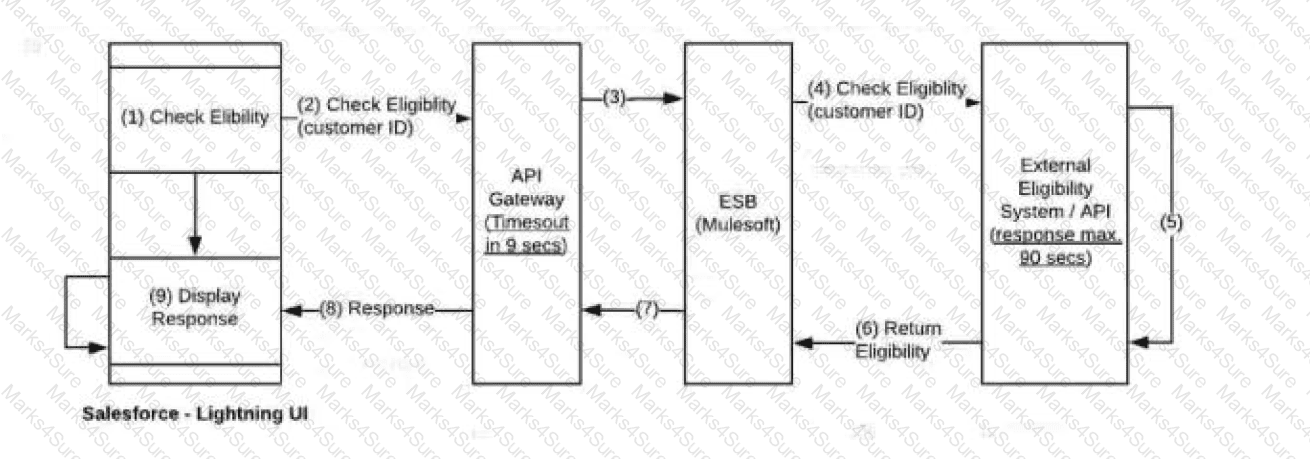

In this architectural scenario, the Integration Architect must navigate two critical technical " bottlenecks " : the 9-second API Gateway timeout and the 90-second backend processing time . Since the backend takes significantly longer than the gateway allows for a synchronous connection, a standard Request-Reply pattern will fail. Furthermore, having 3,000 concurrent agents perform synchronous callouts would risk hitting Salesforce ' s concurrent long-running request limits.

The most scalable and user-friendly solution is to implement an Asynchronous Request-Reply pattern using Platform Events and the empAPI .

When an agent clicks " Check Eligibility, " Salesforce sends an initial asynchronous request to the ESB (MuleSoft). The ESB immediately acknowledges receipt with a 202 Accepted status, freeing up the Salesforce UI thread and avoiding the API Gateway’s 9-second timeout. Once the backend eligibility system completes its 90-second process, MuleSoft acts as a client to Salesforce, performing a Remote Call-In to publish a specific Platform Event containing the result and the original Request ID.

On the frontend, the Lightning UI uses the empAPI (Enterprise Messaging Platform API) to subscribe to the streaming channel for that Platform Event. Because the empAPI uses CometD technology to maintain a single long-lived connection, it can efficiently push the response to the agent ' s screen the moment it arrives, without requiring the agent to manually refresh or click a " Check Update " button (as suggested in Option B). This provides a " real-time " feel despite the long backend latency.

Option A is non-viable because synchronous polling would exacerbate the load on the API Gateway and likely lead to governance limit issues within Salesforce. By using Platform Events and empAPI, the architect ensures the solution remains within Salesforce ' s execution limits while providing a seamless, automated experience for a high-volume call center environment.

To securely integrate a distributed package with a central " Hub " org, the architect should utilize the OAuth 2.0 Web Server Flow. In this model, a Connected App is created in the central org to act as the identity and access provider.1

A critical component of this setup is the Callback URL (Redirect URI). When a user in the " Subscriber " org (where the packag 2 e is installed) initiates the connection, Salesforce redirects them to the central org to authorize the access. After successful authentication, the central org needs the correct callback URL to return the authorization code to the specific subscriber org.

Using this flow satisfies the security team ' s requirement for a specific integration account . The administrator in the central org can pre-authorize specific profiles or permission sets to use the Connected App, ensuring that only the designated integration user ' s credentials are used to fulfill requests. Option A is a security " anti-pattern " (storing passwords in fields), and Option C is unnecessary as API access is a standard feature. This OAuth-based approach provides a secure, revocable, and standardized way to manage cross-org communication in a multi-tenant environment.

When dealing with a " big surge " or high-volume influx of requests, a synchronous pattern like Request and Reply (Option A) can lead to significant performance bottlenecks. In a synchronous model, each Salesforce user thread must wait for the external scheduling system to respond, which could lead to " Concurrent Request Limit " errors during peak times.

The Remote Process Invocation—Fire and Forget pattern is the architecturally sound choice for managing surges. In this pattern, Salesforce captures the registration intent and immediately hands it off to an asynchronous process or a middleware queue. Salesforce does not wait for the external system to process the room capacity logic; instead, it receives a simple acknowledgment that the message was received. 23

This pattern decouples the front-end user experience from the back-end processing limits. Middleware can then " drip-feed " these registration 4 s into the scheduling system at a rate it can handl 5 e. If the scheduling system becomes overwhelmed or goes offline, the messages remain safely in the queue. Option C (Batch) is unsuitable because users expect near real-time feedback on their registration attempt, even if the final confirmation is sent a few minutes later. By utilizing Fire and Forget, NTO ensures a responsive Community Experience during the critical launch window while maintaining system stability.

To provide " immediate notifications " to a client that already supports CometD , the architect must utilize Salesforce ' s Streaming API . PushTopic Events are the classic Streaming API implementation for broadcasting changes to specific records.

A PushTopic is a definition that includes a SOQL query and a set of trigger events (Create, Update, Delete). When an Opportunity in NTO ' s instance is updated and matches the query, Salesforce automatically pushes a notification to the topic ' s channel. The affiliate ' s CometD client, having subscribed to this channel, receives the data payload instantly. 12

Option A ( Polling ) is the architectural opposite of " immediate notifications " . Polling is inefficient, consumes API limits, and int 13 roduces latency between the actual record change and the client ' s discovery of that change. Option C is incorrect as there is no " Accept CometD " setting in a Connected App; while a Connected App is used for OAuth authentication, the PushTopic is the mechanism that actually defines and delivers the stream. By using PushTopic, NTO provides a decoupled, event-driven architecture that fulfills the requirement for real-time visibility while minimizing the technical burden on the affiliate ' s infrastructure.

For organizations using both Salesforce Service Cloud and B2C Commerce (formerly Demandware), Salesforce provides a specialized, pre-built integrat 25 ion known as the Salesforce B2C Commerce to Service Cloud Connector . This connector is part of the Salesforce B2C Solution Architecture and is the recommended choice because it offers " out-of-the-box " cross-cloud functionality.

The connector enables several critical business processes for service agents:

Unified Customer Profile: Synchronizes customer data between the two platforms, ensuring agents have the most current contact information.

Order History Visibility: Allows agents to view real-time order data and status from the Commerce system directly within the Service Console.

Service Actions: Enables agents to perform commerce-related tasks, such as " Order on Behalf Of, " without leaving the Salesforce interface.

While an architect could build a custom integration using the Commerce REST API (Option A) or MuleSoft (Option C), these approaches require significant development, testing, and long-term maintenance effort. The B2C Connector reduces time-to-market and leverages Salesforce ' s own engineering to handle complex synchronization logic and API versioning. Recommending the standard connector aligns with the architectural principle of " clicks before code " and ensures that the integration remains supported by Salesforce as both platforms evolve.

When designing high-volume integrations, the Salesforce Platform Integration Architect must distinguish between standard REST resources and " Composite " resources to optimize API consumption. The Salesforce REST API provides several composite resources to group multiple operations into a single call, thereby reducing the overhead of multiple HTTP requests and helping to stay within daily API limits.

According to Salesforce documentation on Composite Resources, the sObject Tree resource (/services/data/vXX.X/composite/tree/) is specifically designed to handle multiple records in a single request. While it is primarily marketed for creating complex hierarchies (parent-child relationships), it has a unique limit that allows for up to 200 records to be processed in a single call. These records can even be unrelated records of the same type. This is a significant advantage over the standard Batch and Composite resources.

The Composite resource and the Batch resource both have a much lower limit of 25 subrequests per call. While each subrequest in a Batch call could technically be a collection operation, the question specifically asks for the resource that natively supports the " 200 records " threshold preferred for bulk-style updates within the REST framework. By utilizing the sObject Tree resource, the architect can bundle 200 record updates into a single transaction, effectively reducing API consumption by a factor of 200 compared to individual REST calls. This aligns with the requirement to avoid major architectural changes (like switching to the Bulk API 2.0) while solving the immediate problem of exceeding daily governor limits. In the context of the Integration Architect exam, understanding these specific payload limits is crucial for selecting the most efficient " Request-Reply " or " Data Synchronization " pattern.

For a distributable package to securely access a central " Hub " org, the architecture must support the OAuth 2.0 Web Server Flow . This flow is designed for applications (like the package installed in a " Spoke " org) that can securely store a Client Secret and need to act on behalf of a specific user.

The Connected App in the central org acts as the " Identity and Access " gatekeeper. A critical component of the Connected App configuration is the Callback URL (Redirect URI). When a user in the " Subscriber " org clicks " Authorize, " Salesforce redirects them to the central org to log in. After successful authentication, the central org needs to know where to send the " Authorization Code " back to.

In a multi-org packaging scenario, each subscriber org will have a unique instance URL (e.g., na15.salesforce.com). The architect must ensure that the Connected App ' s callback URLs are correctly configured to handle these redirects.

Option C (Encrypted Passwords) is a major security risk and is considered an " anti-pattern " in modern integration. Option A is unnecessary, as API access is a standard feature. By using the Connected App with correct Callback URLs , the architect allows the security team in the central org to oversee exactly which " Spoke " orgs have authorized access. They can use the " Connected Apps OAuth Usage " page to monitor, rotate secrets, or revoke access for individual orgs, providing the granular security control required for an enterprise-grade distributed Salesforce architecture.

When an integration callout initiated from a Lightning Web Component (LWC) fails, the architect must distinguish between client-side and server-side security layers. Unlike Apex callouts, which are governed by Remote Site Settings at the server level, LWC requests originate directly from the user ' s browser. Consequently, they are subject to the browser ' s Content Security Policy (CSP).

CSP is a security layer that helps detect and mitigate certain types of attacks, including Cross-Site Scripting (XSS) and data injection attacks. It prevents a website from loading content from a third party unless that domain is explicitly safe-listed. If an LWC attempts to connect to an external API endpoint that is not listed in the CSP Trusted Sites in Salesforce Setup, the browser will block the request before it is even sent, often returning a " Refused to connect because it violates the document ' s Content Security Policy " error. While Cross-Origin Resource Sharing (CORS) is also a browser-level security mechanism, it must be configured on the external server to allow the browser to access its resources; however, the first validation step within the Salesforce environment for a failing LWC callout is ensuring the domain is allowed by the org ' s CSP.

Salesforce is a highly capable CRM platform, but it is not a dedicated messaging or orchestration engine. When requirements include complex message queuing, process choreography, and guaranteed quality of service (QoS) , the Integration Architect must recommend a middleware solution (ESB or iPaaS).

" True message queuing " involves holding messages in a persistent state until the target system is ready to receive them, handling sophisticated retry logic (such as exponential backoff), and providing dead-letter queues for failed messages. While Salesforce has basic asynchronous tools like Outbound Messaging or Platform Events, they lack the granular control over queuing and orchestration that enterprise middleware provides.

Option A is incorrect because performing heavy transformation and protocol translation (like XML to JSON or SOAP to REST) within Salesforce consumes excessive Apex CPU time and is better handled by middleware designed for that purpose. Option B is conceptually backward; usually, architects move away from synchronous Request-Reply toward asynchronous Fire-and-Forget to improve scalability. By recommending a middleware solution to handle these infrastructure-level concerns, the architect ensures that Salesforce remains performant for its users while the middleware manages the technical complexities of reliably connecting the enterprise.

When a custom mobile application already secured with OAuth needs to update a record in Salesforce, the standard architectural recommendation is to use the REST API . The REST API is optimized for mobile environments because it uses lightweight JSON payloads and follows standard HTTP methods (such as PATCH for updates), which are highly compatible with mobile development frameworks.

In this specific scenario, the architect must address the Field-Level Security (FLS) constraint. Because the geolocation field is set to read-only for users, a standard UI-based update would typically fail. However, when using an inbound REST API call with a properly authorized integration user or via a " System Mode " context (if utilizing a custom Apex REST resource), the system can be configured to bypass UI-level restrictions while maintaining data integrity.

The mobile device captures the coordinates via the device ' s native GPS capabilities and initiates an inbound call to the Salesforce REST endpoint. Option A (Apex inbound call) is a subset of REST functionality but is only necessary if complex server-side logic is required that the standard REST API cannot handle. Option C is technically incorrect as mobile devices do not typically " receive " callouts from Salesforce in this pattern; they initiate the requests. By leveraging the standard REST API, the architect ensures a scalable, secure, and standardized integration that adheres to Salesforce ' s mobile-first integration principles.

To design a robust and scalable integration architecture, a Salesforce architect must first define the technical scope and " plumbing " of the data flow.

The most critical details for solving integration architecture needs include:

Source and Target Systems: Identifying which systems are involved determines the available APIs (REST, SOAP, etc.) and the necessary security protocols.

Directionality: Knowing whether the integration is unidirectional (Salesforce to System X) or bidirectional is vital for managing record mastering and avoiding " infinite loops " in data synchronization.

Data Volume & Transformation Complexity: High volumes may require asynchronous batch processing via the Bulk API, while complex transformations (e.g., mapping custom external IDs to Salesforce Account Numbers) may necessitate a middleware layer like MuleSoft to act as the " central nervous system " .

Option A focuses on UI/UX and licensing, which are general program concerns rather than architectural integration requirements. Option C deals with project management and governance, which are important for execution but do not inform the choice between a Request-Reply or Fire-and-Forget pattern. By focusing on systems, data direction, and transformation complexity, the architect can select the correct pattern and tools that satisfy business requirements while staying within platform limits.

A synchronous requirement in Salesforce implies a Request-Reply pattern where the user waits for a response. To implement this correctly while adhering to platform constraints, the architect must initiate the callout from the User Interface (UI) layer. 3

Option C is the correct architectural choice. By using a Lightning component and a button (or a Quick Act 4 ion), the callout is initiated directly from the user ' s session. The component calls an Apex controller, which performs the synchronous REST callout to the OMS. This allows the user to receive immediate feedback—such as a " Success " message or an " Error " notification from the OMS—directly on the Opportunity page.

Option A is incorrect because Apex Triggers are prohibited from making synchronous callouts. If a trigger initiates a callout, it must be asynchronous (using @future or Queueable Apex), which violates the business requirement for synchronicity. Making a synchronous call from a trigger would block the database transaction and could lead to " Uncommitted Work Pending " errors or system timeouts. Option B (Batch Apex) is inherently asynchronous and delayed; an hourly job would not provide the real-time, synchronous feedback required during the " Closed/Won " transition. Therefore, moving the integration logic to a UI-driven button is the only way to satisfy the synchronous requirement while staying within Salesforce ' s execution and transaction limits.

To satisfy a requirement for a synchronous callout triggered by a user action, the architect should use a UI-driven approach, such as a Lightning component and a button .

In Salesforce, triggers (Option B) are primarily used for asynchronous logic in integration contexts. Because a trigger executes as part of the database save operation, making a synchronous callout directly from a trigger is prohibited as it would block the database transaction until the external system responds, leading to performance degradation and " uncommitted work pending " errors. If a trigger must initiate an integration, it must do so asynchronously (using @future or Queueable Apex), which violates the requirement for a synchronous call.

By using a Lightning component , the architect can initiate a synchronous Request-and-Reply pattern. When the sales rep clicks the " 7 Submit to OMS " button, the componen 8 t invokes an Apex method that makes the REST callout to the OMS in real-time. The user remains on the page while the system waits for the OMS to respond, allowing for immediate feedback—such as an order confirmation number or an error message—to be displayed in the UI. A Batch Apex job (Option C) is inherently asynchronous and delayed, making it unsuitable for a synchronous, real-time fulfillment requirement.

When dealing with multiple external service providers (like different regional shippers) that have varying API requirements, the most scalable architectural choice is an Enterprise Service Bus (ESB) or middleware solution. This scenario describes a classic " Orchestration " and " Transformation " use case.

An ESB excels at:

1. Routing/Mediation: The ESB can receive a single, standardized request from Salesforce ( " Get Shipping Rates " ) and use business logic to determine which regional carrier ' s API should be called.

2. Transformation: Each carrier likely has a distinct XML or JSON schema. The ESB can transform the common data model sent by Salesforce into the specific format required by the chosen shipper.

3. Protocol Bridging: If one shipper uses SOAP and another uses REST, the ESB handles these technical differences, allowing Salesforce to interact with a single, simplified interface.

Option A (Apex REST) would require the Salesforce team to maintain custom code for every new shipping provider added, leading to high technical debt and maintenance challenges. Option C is incorrect because an ESB is a back-end infrastructure component, not a user interface tool.

By utilizing an ESB, Northern Trail Outfitters decouples Salesforce from the complexities of the shipping providers ' APIs. This " Hub and Spoke " model means that adding a new regional shipper in the future only requires configuration within the ESB, rather than a full code deployment in Salesforce. This provides the agility and architectural separation necessary for a global retail operation.

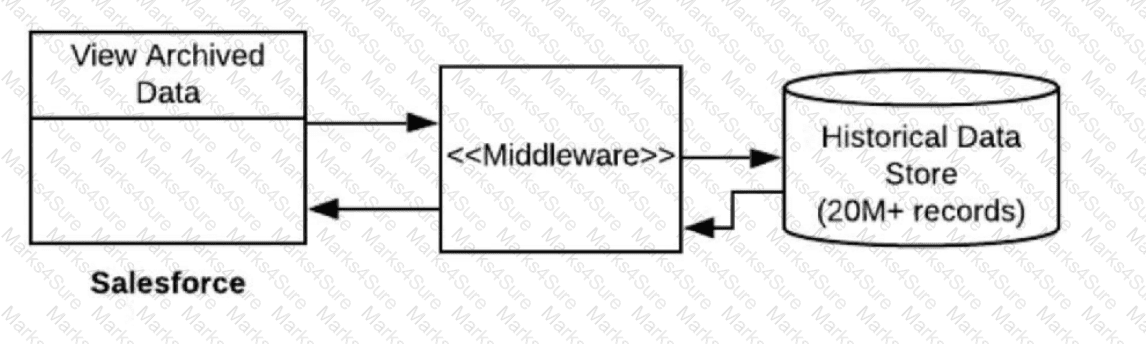

When designing a solution to view large volumes of archived data (over 20 million records) without physically storing them back in Salesforce, a Data Virtualization pattern is the architecturally preferred approach. This pattern allows users to view and interact with external data in real-time without the overhead of data replication, which would otherwise consume significant storage and impact platform performance.

To maximize declarative configuration , the Salesforce Platform Integration Architect should recommend Salesforce Connect . Salesforce Connect allows for the creation of External Objects , which behave much like standard objects but point to data residing outside of Salesforce. This is achieved by having the middleware (ESB) expose the Historical Data store via an OData (Open Data Protocol) endpoint. Once configured, call center agents can view historical case items directly on the Case record page using standard related lists or lookups, all configured through the point-and-click interface rather than custom code.

The provided landscape diagram illustrates a clear path from Salesforce through middleware to the Historical Data Store. Option A leverages this by using the ESB to bridge the protocol gap. Because the data store is already " fine-tuned to be performant with search queries, " Salesforce Connect can efficiently query only the specific historical records needed for the current case view.

In contrast, Option B requires a " Request and Reply " pattern using Apex callouts and custom Lightning components. While functional, this is a code-heavy approach that increases technical debt and does not meet the " maximize declarative configuration " requirement. Option C, using " Fire and Forget " with Platform Events, is unsuitable for a synchronous " view data " request; Platform Events are asynchronous and would require a complex, custom-built UI to " wait " for and display the response. Therefore, the combination of OData and Salesforce Connect provides the most seamless, scalable, and low-maintenance solution for call center agents.

In modern enterprise architecture, securing the boundary between cloud environments like Salesforce and on-premise data centers is a critical responsibility of the Integration Architect. When Corporate Security Guidelines mandate that all traffic must pass through a secure firewall, the architecture must support a Demilitarized Zone (DMZ) or " Perimeter Network " strategy.

An API Gateway or a specialized middleware connector acts as the " front door " for these on-premise resources. The architect must evaluate whether the chosen middleware solution supports a distributed deployment model where the gateway component can reside within the DMZ. This setup allows the organization to terminate external (cloud) connections in a hardened environment before the traffic is inspected and proxied to the internal, trusted network.

While supporting OAuth (Option C) is essential for modern authentication, it does not satisfy the specific network-level firewall requirement described. Similarly, ODBC connections (Option B) are low-level database protocols that usually operate deep within the internal network and would typically be considered a security risk if exposed directly to a firewall.

By ensuring the middleware has an architecturally compatible gateway for the DMZ, the architect provides a solution that allows for deep packet inspection, IP whitelisting, and rate limiting at the edge of the corporate network. This approach aligns with the " Defense in Depth " principle, ensuring that Salesforce can securely communicate with legacy systems (like SAP or internal databases) without exposing those systems directly to the public internet, thereby satisfying the new Corporate Security Guidelines.

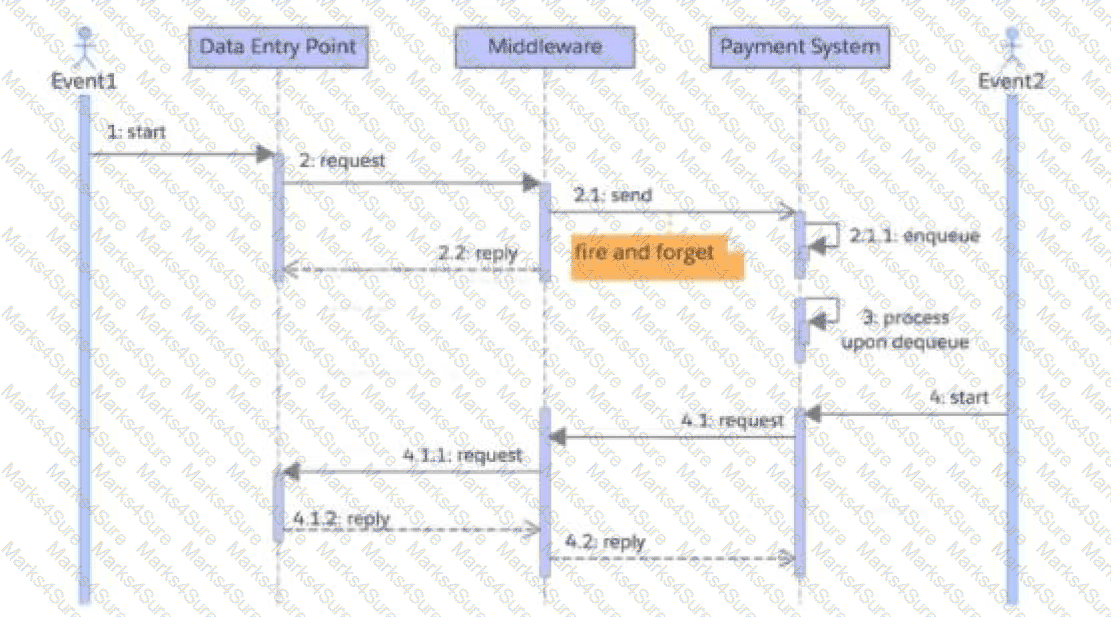

In high-concurrency environments like 24/7 payment processing, a common architectural failure is " race conditions, " where multiple threads attempt to update the same record simultaneously. To resolve this while strictly adhering to a Service Level Agreement (SLA), the Integration Architect must shift the responsibility of orchestration to a central " nervous system " —the Middleware (e.g., MuleSoft or an ESB).

According to Salesforce Integration best practices, Middleware coordination is essential for managing the state and sequencing of asynchronous messages. By having the Middleware coordinate request delivery, it can implement a " Sequential Processing " or " First-In-First-Out " (FIFO) queue logic. This ensures that even if the Data Entry Point pushes requests at high speed, the Middleware can throttle or serialize the calls to the Payment System, preventing the record-locking errors and update conflicts mentioned in the scenario.

Furthermore, the globally unique identifier created at the Data Entry Point allows the Middleware to perform Idempotency checks . If a duplicate request arrives or an error occurs, the Middleware can use this ID to verify the status before attempting another update, ensuring that the " exactly-once " processing requirement of the SLA is met without creating duplicate payment records or conflicting status updates.

While Option B suggests retries—which are necessary for a " Fire-and-Forget " pattern—retrying without central coordination often exacerbates update conflicts rather than solving them. Option C (processing once) is a result of a well-designed system, but it does not provide the mechanism to handle the specific update conflicts described. By recommending that the Middleware coordinate the entire flow, the architect provides a robust solution that manages delivery, handles retries gracefully, and ensures data integrity across the system landscape.

In a contract-first integration strategy using RAML (RESTful API Modeling Language), the specification defines the exact structure of requests and responses. Because Salesforce unit tests cannot perform actual network callouts, the platform requires d1evelopers to use the HttpCalloutMock interface to simulate responses.

To ensure that the integration code strictly adheres to the established RAML contract, the integration architect must mandate that the HttpCalloutMock implementation returns responses that mirror the RAML specification . This means the mock must include all required fields, correct data types, and the expected HTTP status codes (e.g., 200 OK, 201 Created) as defined in the contract. By doing this, the unit tests verify that the Apex client code can successfully parse and process the specific JSON or XML payloads defined in the RAML spec.

Option A and B are technically imprecise. The Apex client does not " implement " the mock; rather, the test class provides a separate mock implementation to the runtime via Test.setMock(). The value of the integration architecture lies in the content of that mock. If the mock is designed to return contract-compliant data, then any change to the RAML that breaks the Apex code ' s ability to process it will be caught immediately during the testing phase. This " Mock-as-a-Contract " approach provides a safety net, ensuring that Salesforce remains compatible with external services even as those services evolve, provided the RAML is kept up to date.

The timing of Platform Event publishing is a critical detail for an Integration Architect, as it affects data consistency and transaction integrity. In Salesforce, the default and most common behavior for publishing Platform Events from Apex is " Publish After Commit. "

When an architect chooses the " Publish After Commit " setting (defined at the event level), the events are held in a buffer and are only released to the event bus after the Apex transaction completes successfully. This ensures that if the database transaction fails and rolls back, the event—which might trigger external actions—is never sent. This prevents " ghost " events where an external system is told to process data that was never actually saved to the Salesforce database.

The question implies a standard scenario where events are being " published " into the bus. In this state, the events have passed the transaction boundary. If the events were only " being published from Apex " (Option C), it doesn ' t describe the state of the delivery or the transaction. Option B is technically incorrect for standard event publishing logic, as Salesforce explicitly separates the event bus from the database commit to maintain atomicity.

Understanding this " After Commit " behavior is vital when designing synchronization patterns. If the architect requires the event to be sent regardless of whether the transaction succeeds (e.g., for logging a failure), they would need to configure the event as " Publish Immediately. " However, in a standard synchronization use case where events are " only being published, " it signifies that the source transaction has finalized, and the messages are now available for subscribers (like middleware or other Salesforce orgs) to consume.

---

The foundational step for any complex CRM transformation is the discovery and evaluation phase . Before selecting specific tools, connectors, or middleware, an Integration Architect must first understand the business context and data landscape of the organization. Universal Containers has data fragmented across three distinct silos: Marketing, Outlook, and an ERP. To achieve a " single view of the customer, " the architect must evaluate how these systems are currently used and how they need to interact with Salesforce in the future.

Evaluating data and system usage allows the architect to define critical integration requirements:

Mastery and Ownership: Identifying which system is the " System of Record " (SoR) for leads, contacts, and financial data. For example, do leads convert in Salesforce and then push to the ERP, or does the Marketing system maintain control until a certain lifecycle stage?

Volume and Latency: Determining if Outlook sync needs to be real-time or if nightly batch updates from the ERP are sufficient.

Transformation Needs: Understanding the complexity of mapping ERP billing structures to Salesforce Account and Opportunity objects.

While exploring connectors (Option C) and middleware (Option B) are essential implementation steps, they are secondary to the initial evaluation. Proposing a technical solution before identifying the actual requirements risks building a system that is either over-engineered or missing key business functionality. By prioritizing the evaluation of data usage, the architect ensures that the resulting integration architecture is scalable, cost-effective, and directly supports the strategic goal of providing a unified customer view.

In the discovery and translation phase of a Salesforce project, an Integration Architect must move beyond high-level business goals to define the technical " DNA " of the data exchange. While organizational readiness and user experience are vital to project success, they do not dictate the architectural patterns required to move data between systems.

The most critical details for designing an integration architecture are the Timing and Volume requirements. Identifying whether a business process is Synchronous or Asynchronous is the primary decision point. For example, if a Salesforce user requires an immediate validation from an external system before they can save a record, a synchronous " Request-Reply " pattern using an Apex Callout is required. If the data update can happen in the background without blocking the user, an asynchronous " Fire-and-Forget " pattern is preferred to improve system performance and user experience.

Furthermore, understanding the Update Frequency (e.g., real-time, hourly, or nightly) and the Data Volume (e.g., 100 records vs. 1 million records) allows the architect to select the appropriate Salesforce API. High-volume, low-frequency updates are best handled by the Bulk API to minimize API limit consumption, while low-volume, high-frequency updates are better suited for the REST API or Streaming API. By specifically seeking out these timing and frequency aspects, the architect ensures that the chosen solution is scalable, stays within platform governor limits, and meets the business ' s Service Level Agreements (SLAs). Without these details, the architect risks designing a solution that is either too slow for the business needs or too taxing on system resources.

When building a distributable package (likely a Managed Package) that must securely communicate back to a central " Hub " org, the architect must use a framework that supports OAuth 2.0 flows. Storing plain-text or even encrypted passwords (Option B) is a security violation and is brittle across different environments.

The architecturally sound solution is to leverage the Authentication Provider and Named Credentials framework. In the central org, a Connected App is created to act as the OAuth endpoint. In the package, an Authentication Provider is configured using the Consumer Key and Consumer Secret from that Connected App. This setup allows the administrator in the " Subscriber " org (the org where the package is installed) to initiate an OAuth flow.

When the security team " authorizes " the integration after installation, they are essentially completing the OAuth handshake. This grants the subscriber org an Access Token and a Refresh Token associated with the specific integration user in the central org. This mechanism ensures:

Credential Security: No passwords are ever stored in the code or metadata.

Centralized Control: The security team in the central org can revoke the Refresh Token at any time to kill the integration.

Scalability: The same package can be distributed to hundreds of orgs, each with its own unique, secure connection to the central Hub.

By using an Authentication Provider combined with a Named Credential, the Apex code in the package can simply call the endpoint by its developer name, and Salesforce handles the entire authentication header injection automatically, ensuring a robust and secure cross-org integration.

When proposing Platform Events as an integration mechanism, an architect must ensure that the security model is correctly configured to allow for the publication and subscription of events. Unlike standard objects, Platform Events have specific permission requirements for the " Integration User " or any system entity interacting with the event bus.

For an external system to subscribe to a Platform Event stream (via CometD or the Pub/Sub API), the user account used to authenticate the connection must have the " Read " permission on the specific Platform Event entity. Similarly, if the external system needs to publish events back into Salesforce, the user must have " Create " permissions. These permissions are typically managed through a Profile or a Permission Set assigned to the Integration User.

Regarding the other options, Option A is incorrect because Platform Events are designed for asynchronous communication. They are inherently decoupled; the external system does not need the same uptime as Salesforce. High-volume platform events are stored in the event bus for 72 hours , allowing an external system to " catch up " using a Replay ID once it comes back online. Option C is also incorrect because Platform Events follow a Publish/Subscribe pattern. Salesforce " broadcasts " the event to the bus without needing to know which specific external systems are listening. This decoupling is a primary advantage of event-driven architecture, as it allows for a " one-to-many " distribution model where multiple systems can consume the same message without additional configuration within Salesforce. Thus, ensuring the correct object-level permissions (Read/Create) is the most critical technical consideration for the architect to guarantee successful message delivery.

In the context of Salesforce Connect , securing the integration depends heavily on how the platform authenticates with the external system. The Identity Type configuration is the fundamental security setting for an External Data Source.

The architect must choose between two Identity Types:

Named Principal: Salesforce uses the same set of credentials for all users to access the external system. This is simple to manage but does not allow the external system to distinguish between individual Salesforce users for auditing or permission purposes.

Per User: Each Salesforce user must have their own credentials for the external system. This is the most secure option as it ensures that the data visible in Salesforce respects the specific permissions the user has in the source system.

By correctly configuring the Identity Type , the architect ensures that the requests coming from Salesforce are properly authorized at the target system. Option B (CSRF Protection) is a security measure to prevent cross-site request forgery but is not the primary mechanism for authenticating the Salesforce service itself. Option A is a technical compatibility setting for non-standard OData implementations and does not directly relate to security. Therefore, recommending the appropriate Identity Type—typically " Per User " for sensitive data—is the key step in securing the OData connection.

When migrating from a legacy environment to a multi-tenant cloud platform like Salesforce, Data volume and processing volume represent the most critical technical constraints. Legacy systems often operate without the strict governor limits found in Salesforce, meaning they may push large datasets or high-frequency updates that could easily overwhelm standard Salesforce APIs.

An integration architect must evaluate these volumes to determine the appropriate integration pattern:

Pattern Selection: If the daily volume involves millions of records, the architect must recommend the Bulk API rather than standard REST or SOAP APIs to avoid hitting daily API limits.

Synchronous vs. Asynchronous: High processing volumes often necessitate asynchronous patterns (such as Fire-and-Forget or Batch) to prevent user-interface lag and " Concurrent Request Limit " errors.

Data Virtualization: If the legacy data volume is massive but only needs to be viewed occasionally, the architect might consider Salesforce Connect to avoid consuming expensive internal data storage.

While reporting (Option A) and multi-currency (Option C) are important functional requirements, they do not fundamentally dictate the technical " plumbing " or scalability of the integration architecture. By prioritizing the analysis of volume and processing needs, the architect ensures the new modernization effort is stable, performant, and capable of scaling as the business grows within the bounds of the Salesforce platform.

When integrating Salesforce with high-security enterprise systems like an Enterprise Billing System (EBS) and a Document Management System (DMS), the primary architectural concern is respecting the Enterprise security needs for access control. These systems often contain highly sensitive financial data and are governed by strict regulatory requirements (e.g., PCI-DSS or GDPR).

The integration consultant must evaluate how to extend existing enterprise identity and authorization policies to Salesforce users. This often involves a Identity Federation strategy using protocols like SAML 2.0 or OpenID Connect . Instead of maintaining separate credentials in Salesforce (which Option A suggests and is generally an " anti-pattern " for 10 million records), the consultant should consider using a central Identity Provider (IdP) .

By considering enterprise security needs, the architect ensures that when a support agent clicks a link in Salesforce to view a bill, the request is authenticated against the enterprise ' s security gateway. This allows for Single Sign-On (SSO) while ensuring that authorization (who can see what) remains mastered in the source systems or the central IdP. Migration (Option C) is physically and technically unfeasible for systems handling 10 million customers ' historical bills and real-time processing. The focused objective is to build a " window " into these systems from Salesforce while maintaining the integrity of the enterprise ' s existing security perimeter.

To secure outbound HTTP requests from Salesforce, architects must implement defense-in-depth measures at both the authentication and transport layers.

Named Credentials are the primary architectural recommendation for managing callout endpoints and authentication in a secure, declarative manner. They abstract the endpoint URL and authentication parameters (such as usernames, passwords, or OAuth tokens) away from Apex code. This prevents sensitive credentials from being hardcoded or exposed in metadata, significantly reducing the risk of accidental disclosure. By using Named Credentials, Salesforce handles the heavy lifting of authentication headers automatically, ensuring that the integration is both secure and maintainable.

Two-way SSL (Mutual Authentication) provides an additional layer of security at the transport layer. While standard SSL ensures that Salesforce trusts the external server, Two-way SSL requires the external server to also verify the identity of the Salesforce client. The architect first generates a certificate in Salesforce, which is then presented to the external system during the TLS handshake. This " mutual trust " ensures that the external service only accepts requests from an authorized Salesforce instance, protecting against man-in-the-middle attacks and unauthorized access attempts.

While an Authorization Provider (Option C) is essential for OAuth-based flows, it is typically used within the configuration of a Named Credential rather than as a standalone security method for a generic HTTP request. By combining Named Credentials with Two-way SSL, the architect ensures that the integration is secured at both the session/authentication level and the network/transport level, adhering to enterprise security best practices for cloud-to-on-premise or cloud-to-cloud communication.

To achieve a " Customer 360 " view where sales and service associates have the context needed for daily interactions, Salesforce is the logical System of Record (SoR) for customer and prospect engagement.

While the ERP remains the master for financial transactions (invoices) and the Marketing tool masters campaign analytics, Salesforce should house the core " Golden Record " of the customer. This is achieved by integrating relevant data from the ERP (order status, invoice history) and Marketing (lead source, email engagement) into Salesforce. This strategy (Option A) empowers associates to log interactions and view history in one place, fulfilling the primary goal of the CRM implementation while avoiding the complexity of a new custom database (Option B) or trying to force prospect-level engagement data into a rigid ERP (Option C).

When an enterprise architect identifies complex infrastructure needs such as caching, queuing, and sophisticated event routing, it signals that a point-to-point integration architecture is insufficient. In such cases, the Integration Architect should recommend a Middleware-mediated architecture.

Middleware tools, such as an Enterprise Service Bus (ESB) or an iPaaS (Integration Platform as a Service) , are specifically designed to fulfill these complex " Quality of Service " (QoS) requirements. In a publish/subscribe scenario, the middleware acts as the central orchestrator. It can receive a single " Fire and Forget " event from a publisher (like Salesforce) and then manage the technical complexities of routing that message to multiple active subscribers.

Middleware handles infrastructure-level tasks such as message queuing for offline systems, automatic retries with exponential backoff, and error handling with alerts—capabilities that are either unavailable or difficult to scale within Salesforce natively. Performing message transformation and protocol translation (e.g., SOAP to REST) within the middleware layer also protects Salesforce ' s Apex CPU limits. By leveraging middleware for these concerns, the architect ensures that Salesforce remains a performant engagement layer while the middleware provides the robust technical backbone for a resilient enterprise landscape.

When dealing with extremely large files, such as the 2.5 GB design files mentioned, an architect must consider the platform ' s file size limits and storage costs. Salesforce Files have a maximum upload size of 2 GB through most interfaces, making Option B technically unfeasible for a 2.5 GB file. Furthermore, storing numerous large files natively in Salesforce would lead to excessive storage consumption and costs.

The most efficient and cost-effective approach is Data Virtualization or Redirection . By creating a custom object to store the file location URL (Option C), the actual file remains in the performant on-premise file store. When the community user needs to access the design, they are redirected to the source system, which handles the massive data transfer. This fulfills the requirement to " view " the files without the overhead of moving gigabytes of data through the Salesforce infrastructure. Option A is less ideal because a 2.5 GB download over a standard Request-Reply pattern would likely lead to timeouts and a poor user experience.

To meet the requirements of minimal customization, low developer resources, and real-time visibility without data replication, the architect should utilize Salesforce Connect with External Objects and an OData connector.

Salesforce External Objects allow the OMS data to be viewed within Salesforce as if it were stored natively, but the data remains in the on-premise system. This fulfills the requirement for sales reps to see " up-to-date information " because every time they view the record, Salesforce Connect fetches the latest data via the ESB ' s OData endpoint. This Data Virtualization pattern is the most efficient choice for real-time history where users only need to view the data occasionally.

Options A and B involve Data Replication via ETL, which would store the order data inside Salesforce. Given the volume (15,000 orders/shift with 25 line items each = 375,000 records daily), this would rapidly consume Salesforce data storage limits and require significant custom development for the ETL logic and REST APIs. Furthermore, ETL is typically batch-oriented and would not provide the true " real-time " view requested. By using an OData connector, the architect leverages a declarative, " no-code " solution that satisfies the timeline constraints and provides immediate access to order details and line items without the cost of data storage.

When a target system experiences prolonged outages (lasting " several days " ), point-to-point integration solutions built within Salesforce are likely to fail or reach their retry limits. For example, Salesforce Outbound Messaging (Option B) only retries for up to 24 hours before dropping the message.

The architecturally robust solution is to introduce a Middleware layer (ESB or iPaaS) that provides queuing and buffering . In this model, Salesforce sends the order to the middleware. The middleware immediately acknowledges receipt (preserving Salesforce performance). If the manufacturing system is offline, the middleware stores the message in a persistent queue.

Middleware is designed for this high level of Quality of Service (QoS) . It can be configured with custom retry logic—such as waiting 30 minutes between attempts—and can hold millions of messages for days or even weeks. This effectively " insulates " Salesforce from the manufacturing system ' s instability. Option C is overly complex and requires custom development in both the event bus and Apex, whereas middleware provides this functionality as a native capability. By using middleware, the architect ensures that no orders are lost during extended manufacturing downtime and that the integration is decoupled and resilient.

Securing an outbound integration from Salesforce to an external system like Microsoft Azure requires ensuring that the external endpoint can trust the requests coming from Salesforce. One of the most robust methods for securing this communication at the transport layer is Mutual Authentication (Two-Way SSL/TLS) .

In a standard SSL handshake, the client verifies the server’s certificate. In Mutual Authentication , the server (in this case, the Azure API Gateway) also requests and validates a certificate from the client (Salesforce). This ensures that only authorized clients can even establish a connection. For production environments, Salesforce architects recommend using certificates signed by a Certification Authority (CA) rather than self-signed certificates to ensure a chain of trust that is recognized globally.

Option C is a common point of confusion; while Connected Apps and OAuth are essential for securing inbound requests into Salesforce, they do not natively secure the connection when Salesforce is acting as the client calling an external gateway. Option A focuses on user-level access within Salesforce but does not address the point-to-point security between the two platforms. By implementing Two-Way SSL, Northern Trail Outfitters ensures that the Azure API Gateway identifies Salesforce as a trusted source before any data is exchanged, providing a high level of security that protects against " Man-in-the-Middle " attacks and unauthorized access attempts.

The CIO ' s concern regarding " viability " and " scaling " is rooted in the risks associated with tightly coupled, point-to-point integrations . Using @future methods for direct callouts creates a " spaghetti " architecture where Salesforce must manage the specific endpoints, authentication, and error logic for every external system.

The architect should recommend implementing an Enterprise Service Bus (ESB) . An ESB acts as a centralized middleware layer that provides mediation, routing, and orchestration . By moving the integration logic to an ESB, Salesforce only needs to send a single message to the bus. The ESB then takes responsibility for delivering that data to multiple business units and external systems. This decouples Salesforce from the downstream systems; if a target system changes its API or is replaced, only the ESB configuration needs to be updated, not the Salesforce Apex code.

While External Services (Option A) provide a low-code way to call APIs, they still represent point-to-point connections and do not solve the broader orchestration and scaling challenges. ETL tools (Option C) are designed for bulk data movement and would not satisfy the need for the near real-time updates that the existing callout logic likely supports. An ESB provides the " quality of service " features—such as guaranteed delivery, retries, and protocol transformation—that are necessary for a growing enterprise to maintain a stable and scalable integration landscape.

In a synchronous Request-Reply scenario where a bank agent is waiting " on the spot " for a credit check, the error-handling strategy must balance immediate feedback with system resilience.

Option A is the recommended architectural approach for enterprise resiliency. By placing a Middleware layer (like MuleSoft) between Salesforce and the credit agencies, the architect can implement sophisticated error-handling patterns that are invisible to the user but critical for success. If a credit agency ' s API is momentarily unreachable, the middleware can perform automated retries (e.g., three attempts with 500ms intervals). If the retries still fail, the middleware sends a clean, structured error response back to Salesforce.

Option B (Fire and Forget) is fundamentally unsuitable for this use case because the agent needs the result immediately to open the account; they cannot wait for a callback that might arrive hours later. Option C (Mock service) is only a testing tool and provides no value in a production environment where real financial data is required. By delegating the retry logic to the middleware, the architect protects Salesforce ' s concurrent request limits (since the agent only occupies a thread for the duration of the final response) and ensures that transient network issues do not result in a " failed " bank account application for the customer.
