Free Practice Questions for the Juniper JNCIA JN0-106 Exam (2026 Updated)

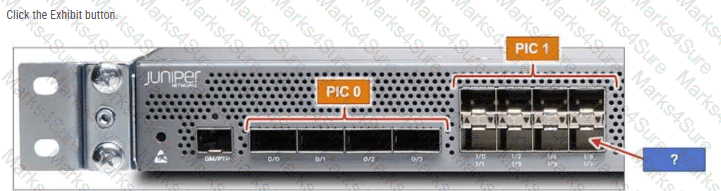

The Juniper MX204 is a fixed-configuration router that utilizes a specific hierarchical naming convention for its physical interfaces: type-fpc/pic/port. In the MX204 architecture, there is a single built-in Flexible PIC Concentrator (FPC), which is always designated as FPC 0 . This FPC is subdivided into two logical Physical Interface Cards (PICs): PIC 0 and PIC 1 .

As shown in the exhibit, PIC 0 contains four high-speed ports (labeled 0/0 through 0/3) that typically support 40GbE or 100GbE speeds. PIC 1 contains eight ports (labeled 1/0 through 1/7) designed for 1GbE or 10GbE connectivity. These ports are arranged in a stacked, $2 \times 4$ grid. The labeling system on the chassis indicates the port numbers for each column. In the fourth column of the PIC 1 block, the top port is identified as 1/6 and the bottom port as 1/7 .

The blue arrow in the exhibit points directly to the bottom-right interface in the PIC 1 section. Correlating this physical location with the chassis labels confirms that the port number is 7. When combined with the FPC and PIC identifiers, the full interface name is xe-0/1/7 (assuming a 10GbE transceiver is installed). Understanding this physical-to-logical mapping is essential for accurate cabling and configuration within the Junos OS, ensuring that administrators apply the correct logical unit and protocol settings to the intended physical hardware.

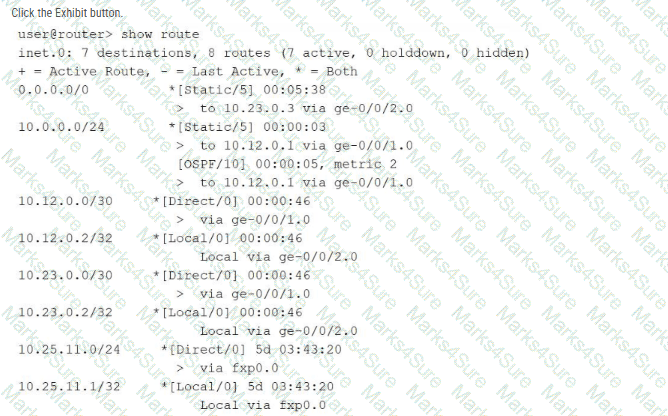

In the Junos OS architecture, the routing table often receives prefix information from various sources, including direct connections, static configurations, and multiple dynamic interior and exterior gateway protocols. Route preference, frequently referred to as administrative distance in other vendor environments, serves as the primary tie-breaking mechanism used by the Routing Engine to select a single " active " route when multiple entries for the exact same destination prefix exist from different protocol sources. Each routing source is assigned a default numerical value, where a lower numerical value indicates a more preferred or " trustworthy " source. For instance, a direct route typically carries a preference of 0, while OSPF internal routes default to 10 and BGP routes default to 170.

The selection process evaluates these values; the route with the lowest preference is installed in the forwarding table and used for transit traffic. If preferences are equal, Junos secondary tie-breakers like local preference or metric are considered. Understanding this hierarchy is critical for traffic engineering and ensuring predictable routing behavior across the fabric. Modification of these default values via routing policy allows administrators to influence path selection without altering the underlying protocol metrics themselves.

In Junos OS, the configuration database is designed with a robust versioning system that facilitates rapid recovery from administrative errors. Every time a commit command is successfully executed, the system automatically archives the previous active configuration and assigns it a " rollback " index. The rollback command is used within configuration mode to revert the candidate configuration to a previously saved state.

The indices are zero-based, where rollback 0 represents the currently active configuration that was just committed. To restore the configuration that was functional immediately before the most recent, problematic commit, the administrator must use rollback 1. This command replaces the current candidate configuration with the contents of the last known working state. It is important to note that executing rollback 1 only populates the candidate buffer; to make this previous configuration active and restore connectivity, the administrator must subsequently issue the commit command. This mechanism is a cornerstone of Junos OS ' s commitment to high availability and operational resilience, allowing for nearly instantaneous restoration of services without the need for manual line-by-line configuration edits during a network outage.

Junos OS is built upon a highly stable and secure architecture that distinguishes it from many legacy network operating systems. Two of its most defining characteristics are software modularization and the separation of the control and forwarding planes .

Modularization means that Junos OS runs each major function—such as the routing protocol process (rpd), the management process (mgd), and the interface process (dcd)—as an independent software daemon in its own protected memory space. This ensures that if a single process crashes or needs to be restarted, it does not bring down the entire system or interrupt traffic forwarding.

Furthermore, the physical and logical separation of the Control Plane (Routing Engine) and the Forwarding Plane (Packet Forwarding Engine) is a cornerstone of Junos design. The Routing Engine handles complex intelligence, protocol calculations, and management, while the Packet Forwarding Engine performs high-speed packet switching in hardware. This ensures that a heavy management load or a complex routing recalculation won ' t cause " jitter " or packet loss for transit traffic. Conversely, Junos strictly prohibits unsigned third-party binaries to maintain system integrity, and it maintains a clear functional distinction between routing policies (path selection) and security policies (traffic permit/deny).

Simple Network Management Protocol version 3 (SNMPv3) represents a significant security evolution over its predecessors, SNMPv1 and SNMPv2c. While earlier versions relied on " community strings " sent in plain-text—which are easily intercepted and provide minimal security—SNMPv3 introduces a comprehensive security framework known as the User-based Security Model (USM). The primary benefit of SNMPv3 is that it protects against tampering and eavesdropping. It achieves this through two main mechanisms: message integrity (authentication), which ensures that a packet has not been altered in transit, and data confidentiality (privacy), which encrypts the payload of the SNMP packets using advanced algorithms like AES or DES.

Furthermore, SNMPv3 provides for secure communication by utilizing encrypted credentials rather than cleartext strings. Administrators define specific users and assign them security levels: noAuthNoPriv, authNoPriv, or authPriv. In the most secure mode (authPriv), the system requires both a password for authentication (validated via MD5 or SHA hashes) and a separate password for encryption. This architecture ensures that management traffic—including sensitive device telemetry and configuration data—remains confidential and authenticated as it traverses the network. While SNMPv3 is inherently more complex to configure than SNMPv2c due to these additional security parameters, it is the required standard for any production Junos environment where management plane integrity is a priority.

The Routing Engine (RE) is the control-plane component of a Junos OS device. Its primary responsibilities include routing protocol processing, system management, maintaining routing tables, running Junos OS processes, and providing administrative access. Consequently, management traffic and control traffic are processed by the Routing Engine. Juniper specifically describes the Routing Engine as controlling routing updates and system management , while routing protocol packets from the network are directed to the Routing Engine.

Management traffic includes traffic associated with services such as SSH, Telnet, SNMP, and other traffic whose destination is the device itself. Control traffic includes routing protocol communications such as OSPF, BGP, and other protocol packets required to establish and maintain the device ' s control-plane state. Juniper categorizes these as local packets , which are handled by the Routing Engine.

By contrast, transit traffic enters one physical interface and is forwarded toward another destination. This forwarding operation is normally handled by the Packet Forwarding Engine (PFE) rather than the Routing Engine. The separation of forwarding and control functions is fundamental to Junos OS architecture.

Study Guide Reference Topics: Junos OS Fundamentals — Routing Engine and Packet Forwarding Engine; control plane versus forwarding plane; management and protocol traffic.

===============

The Routing Engine (RE) in a Junos device serves as the centralized intelligence and management hub, primarily responsible for the control and management planes of the system. In this capacity, the RE is tasked with processing routing updates, such as OSPF Link State Advertisements (LSAs) or BGP Update messages. These updates are vital for the RE to maintain the Routing Information Base (RIB), calculate the shortest paths, and subsequently populate the Forwarding Information Base (FIB) which is then pushed to the Packet Forwarding Engine (PFE).

Furthermore, the Routing Engine handles all local management traffic. This category encompasses administrative access through the Command Line Interface (CLI) via SSH or Telnet, SNMP queries from network management systems, and system logging processes. Because the RE runs the Junos OS kernel, it must directly interpret and respond to these management-level requests to ensure the device remains configurable and observable. Conversely, transit traffic—the data passing through the device from one ingress port to an egress port—is offloaded to the PFE to be handled at wire speed. While the PFE manages the heavy lifting of data forwarding and Class of Service (CoS) application, the RE remains focused on high-level protocol maintenance and system administration, ensuring that control plane stability is maintained even under heavy traffic loads. Reference: Junos OS Fundamentals, Control Plane Functions, Routing Engine Traffic.

==========

When a Junos device is initialized for the first time or after a factory reset, it operates with a " factory-default " configuration. This configuration contains the minimum settings necessary for the device to boot, but it lacks essential security parameters. The Junos OS kernel enforces a strict security mechanism that prevents any administrator from successfully executing a commit command until a root-level password has been defined.

Specifically, the root-authentication object must be configured under the [edit system] hierarchy. This requirement ensures that no Junos device is deployed into a production environment with an open, unauthenticated root account. If an administrator attempts to commit changes without this setting, the configuration parser will return a " missing mandatory statement " error and the commit process will fail. While other settings—such as a system hostname, management IP address (on the fxp0 or me0 interfaces), or logical interface configurations—are critical for operational readiness, they are not strictly enforced by the system validation logic for the initial activation. Only the root-authentication (which can be a plain-text password or an encrypted key) is a hard prerequisite for transitioning the device from a default state to an active, running configuration.

Junos OS utilizes a Role-Based Access Control (RBAC) model through the use of login classes, which define the specific permissions and restrictions for different user levels. To simplify administration, Juniper provides several predefined classes that cater to common organizational roles. The requirement here is for an account that can perform basic network diagnostics (operational mode) but lacks the authority to modify the system state (configuration mode).

The operator class is specifically engineered for this purpose. It grants permissions such as clear, network, reset, trace, and view. These permissions allow the user to execute monitoring commands like show, use diagnostic tools like ping and traceroute, and clear statistics. Crucially, the operator class does not include the configure or commit permissions, preventing the user from entering configuration mode or making any permanent changes to the device.

Comparing this to other options: the read-only class is more restrictive, generally allowing only the viewing of configuration and some state data, but often restricting active diagnostic tools like ping. The super-user class provides unrestricted access, while maintenance is not a standard predefined class for general operational roles. Assigning the operator class ensures that junior staff or automated monitoring systems have the visibility they need to troubleshoot connectivity without risking the integrity of the device configuration.

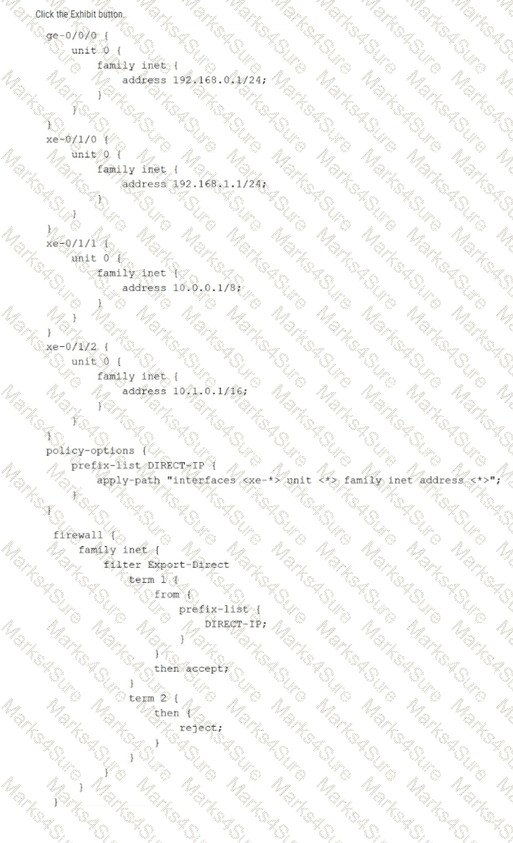

The exhibit illustrates the use of the apply-path feature within a prefix list configuration. In Junos OS, apply-path is a dynamic configuration utility that allows a prefix list to be automatically populated with values derived from other parts of the configuration—in this case, all IPv4 addresses assigned to interfaces with the xe-* prefix. This is particularly useful for building automated firewall filters or routing policies that stay updated as interfaces are added or modified.

When viewing the standard configuration using show configuration, the CLI only displays the literal apply-path statement. To verify the actual list of IP addresses that the system has inherited and populated into the DIRECT-IP list, the administrator must use the | display inheritance pipe filter. This command instructs the Junos OS parser to expand all inherited values and dynamic paths, showing the effective configuration as it is seen by the Packet Forwarding Engine. Based on the exhibit, this would reveal the subnets associated with xe-0/1/0, xe-0/1/1, and xe-0/1/2, while ignoring ge-0/0/0 because it does not match the xe-* wildcard. This verification is a critical troubleshooting step before applying such a prefix list to a transit firewall filter like Export-Direct.

The Junos Command Line Interface (CLI) is designed with an intuitive, context-sensitive help system that assists users in navigating the command hierarchy. When an administrator enters a question mark (?) at the prompt, the CLI provides immediate feedback based on the current location within the hierarchy. First, it lists all available commands and options that are valid at that specific point. This allows the user to see the breadth of possible next steps without needing to refer to external documentation.

Second, the ? character triggers the display of summary information for each of those commands and options. This brief descriptive text provides a clinical overview of what each command achieves, helping the user select the appropriate tool for their task. This " help-on-demand " feature is functional in both operational and configuration modes. It is important to distinguish this from the help command; while help (such as help topic or help reference) provides more exhaustive documentation and usage examples, the ? prompt is primarily a quick-reference tool for command completion and syntax discovery. This mechanism ensures that even complex configurations can be built accurately by exploring the available options and their summarized purposes directly within the terminal environment. Reference: User Interfaces, CLI Help Facilities, Command Discovery.

==========

When a network architect needs to completely sanitize a Junos device for redeployment or decommissioning, the request system zeroize command is the most thorough tool available. Unlike simply loading the factory default configuration, which only resets the configuration database, the zeroize command performs a deep wipe of the system.

Specifically, this command removes all user-created data, including all configuration files (active and rollback), log files, license keys, and any locally stored files in the /var/tmp or /home directories. It essentially restores the device to its " pristine " out-of-box state. Once the command is initiated, the device reboots and goes through a sanitization process. This is a critical security measure to ensure that sensitive information—such as encrypted passwords, proprietary routing policies, or SNMP community strings—does not leave the organization when hardware is transferred.

In contrast, the request system storage cleanup command is a maintenance utility used to delete temporary files and old log entries to free up disk space, but it does not affect the running configuration or user accounts. Therefore, for a total system reset that includes configuration deletion, zeroize is the mandatory operational command.

In the Junos OS architecture, the configuration environment is strictly bifurcated to ensure system stability and integrity. The candidate configuration is a specific database that serves as a staging area, storing all proposed changes made by an administrator during a configuration session before they are finalized. Unlike other network operating systems where changes might take effect immediately upon entry, Junos utilizes this " sandbox " approach where modifications reside only in the candidate database until a commit command is explicitly executed.

Once the commit process is initiated, the Junos OS kernel validates the candidate configuration for syntax errors and logical consistency. If the validation check is successful, the candidate configuration is promoted and becomes the active configuration—the operational state currently running on the device hardware. This separation allows multiple administrators to work on complex changes without impacting live transit traffic or device stability prematurely. If a mistake is identified during the editing process, the candidate configuration can be easily discarded or compared against the active state to identify discrepancies. This workflow is a cornerstone of Junos OS, facilitating a " check-before-apply " methodology that is essential for carrier-grade reliability and minimizing the risk of accidental outages during critical maintenance windows. Reference: Junos OS Fundamentals, Configuration Databases, Candidate vs. Active.

==========

In the Junos OS environment, distinguishing between static diagnostic data and real-time telemetry is crucial for effective troubleshooting. While commands like show interfaces provide a cumulative snapshot of counters since the last reboot or counter clear, they do not easily reveal instantaneous spikes or fluctuating utilization patterns. To address the requirement for " live, real-time traffic updates, " the monitor interface command is the correct operational tool.

When an architect executes monitor interface ge-0/0/5, the CLI launches an interactive, ncurses-based screen that refreshes every second. This display provides immediate visibility into input and output bits-per-second (bps), packets-per-second (pps), and error increments. Unlike static commands, this real-time stream allows a technician to observe micro-bursts or sustained high-utilization periods as they occur, which is essential for diagnosing " intermittent slowness " caused by congestion. In contrast, show chassis hardware focuses on physical inventory, and show interfaces terse only provides administrative and operational status. Even the extensive version of the show command only offers a point-in-time calculation of averages. Therefore, monitor interface is the primary mechanism for interactive performance auditing of individual ports on the Packet Forwarding Engine.

Traceoptions represent an essential diagnostic facility within Junos OS, primarily used by network engineers for deep-level troubleshooting and protocol analysis. The fundamental purpose of configuring traceoption log files is to enable detailed debugging of specific protocols—such as BGP, OSPF, or IS-IS—or specific system processes like the Routing Protocol Process (rpd). When enabled, the system captures detailed information about the internal operations of the protocol, including the exchange of packets, state machine transitions, and error conditions, writing this data to a dedicated file in the /var/log directory.

Unlike standard system logging (syslog), which captures high-level events and warnings, traceoptions provide a granular, " behind-the-scenes " view of how a protocol is interacting with its neighbors. This is particularly useful for identifying the root cause of complex adjacency issues or route instability that standard show commands may not reveal. However, because tracing can be resource-intensive, it is typically configured with specific flags to limit the output to relevant events and is disabled once the troubleshooting task is complete. Traceoptions do not serve to optimize routing automatically , nor are they intended for permanent compliance storage or simple bandwidth monitoring. Instead, they remain the premier tool for clinical debugging and protocol verification within the Junos environment. Reference: Operational Monitoring and Maintenance, Troubleshooting Tools and Traceoptions.

==========

In modern Junos OS versions, the most efficient and standard way to isolate Out-of-Band (OOB) management traffic from transit traffic is by utilizing the management-instance . Historically, management interfaces like fxp0 (on M/MX/T series) or me0 (on EX/QFX series) shared the global routing table (inet.0), which could lead to routing conflicts if management subnets overlapped with production data.

To resolve this, Junos introduced the set system management-instance command. When this is enabled, the OS automatically creates a dedicated routing instance named mgmt_junos. The physical management interface (be it fxp0, em0, or me0) and its associated logical unit are moved into this private instance. This creates a complete separation: management protocols like SSH, SNMP, and NTP operate within mgmt_junos, while BGP, OSPF, and customer data remain in inet.0. This architecture ensures that even a massive routing loop or table exhaustion in the production plane will not prevent an administrator from accessing the device via the OOB port. Furthermore, it simplifies the configuration of default gateways for management traffic, as the mgmt_junos instance maintains its own independent routing table (mgmt_junos.inet.0), preventing management routes from ever being leaked into the provider core.

Junos OS routing policies are evaluated using a sequential, " first-match " logic. When a route is compared against a policy, the system evaluates the terms in the order they are defined. Once a route meets all the match criteria (the from statement) in a term, the router executes the associated action (the then statement).

If the action is a terminating action —such as accept or reject—the evaluation of that specific route for that specific policy ends immediately. In this scenario, since the route matched the first term and the action was accept, the route is successfully processed and the policy evaluation is complete. The system will not proceed to evaluate the second or third terms. This behavior is critical for network architects to understand when ordering terms; more specific " exceptions " must be placed at the top of the policy, while broader " catch-all " terms must be placed at the bottom. If the administrator wanted the evaluation to continue to the next term despite a match, they would need to explicitly include the next term action, which is a non-terminating action. Without it, a match on an accept action signifies the final decision for that route within that policy context.

In Junos OS, the Routing Engine (RE) performs a validation check on every entry in the Routing Information Base (RIB). For a static route to be considered valid and transition to an active state in the inet.0 table, its designated next hop must be resolvable . A next-hop address is resolvable only if the router has an existing route (typically a directly connected route) to that specific IP address.

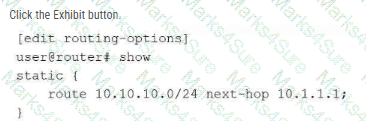

According to the exhibit, the static route for 10.10.10.0/24 has been configured with a next hop of 10.1.1.1 . However, the scenario states that the actual gateway router is located at 10.10.1.1 . If the local interface (ge-0/0/1) is configured with an IP in the 10.10.1.0/x subnet, the router will have a direct route to 10.10.1.1, but it will likely have no path to the 10.1.1.1 address provided in the exhibit.

Because the router cannot resolve the next hop 10.1.1.1 , the static route is placed in an " inactive " or " hidden " state. It will not be installed in the forwarding table pushed to the Packet Forwarding Engine (PFE), and standard show route commands will not display it unless specific flags like hidden or all are used. This logic ensures that the router does not attempt to forward packets into a " black hole " where the gateway is logically unreachable. To fix this, the administrator must modify the configuration to point to the correct, reachable next-hop address of 10.10.1.1.

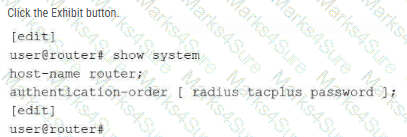

For managing high volumes of administrative users, Junos OS supports externalizing the authentication, authorization, and accounting (AAA) process. The two primary industry-standard protocols supported for this purpose are RADIUS (Remote Authentication Dial-In User Service) and TACACS+ (Terminal Access Controller Access-Control System Plus).

Using these protocols allows an architect to maintain a centralized user database on an external server (like Cisco ACS, FreeRADIUS, or Microsoft NPS) rather than configuring every individual user account locally on every Junos device. When a user attempts to log in via SSH or the console, the Junos device acts as a client, forwarding the credentials to the remote server. RADIUS is often preferred for its broad compatibility and efficiency, while TACACS+ is frequently chosen for its ability to separate authentication from authorization and its support for granular command-level accounting. SHA (Secure Hash Algorithm) is a cryptographic hash function used within these processes but is not an authentication protocol itself. Similarly, IPsec is a suite for securing IP communications (VPNs) and is unrelated to the administrative login AAA sequence.

In the IPv4 addressing architecture, a /24 prefix length (standard Class C subnet mask of 255.255.255.0) signifies that the first 24 bits of the 32-bit address are reserved for the network portion, leaving 8 bits for the host portion. To calculate the total number of available IP addresses within this range, the formula $2^n$ is applied, where $n$ represents the number of host bits. For a /24 mask, $2^8$ results in 256 total addresses.

However, standard networking conventions—which Junos OS adheres to for interface configuration and routing—require the reservation of two specific addresses within any given subnet. The first address in the range is the network address (where all host bits are 0), used to identify the subnet itself in the routing table. The last address in the range is the directed broadcast address (where all host bits are 1), utilized to communicate with all hosts on that segment simultaneously. Therefore, the number of " usable " hosts that can be assigned to device interfaces, such as ge-0/0/0.0 or a workstation, is calculated as $2^n - 2$. In this instance, $256 - 2 = 254$. Understanding this calculation is fundamental for an architect when performing IP address management (IPAM) and ensuring that the Packet Forwarding Engine is configured with valid, assignable host addresses within a defined broadcast domain.

To effectively troubleshoot packet forwarding in a Junos environment, an architect must distinguish between the control plane ' s Routing Information Base (RIB) and the data plane ' s Forwarding Information Base (FIB). While the command show route displays the RIB (the master routing table maintained by the Routing Engine), it does not necessarily reflect the actual instructions being executed by the hardware. The definitive command for viewing the data plane ' s active path selection is show route forwarding-table.

Executing this command reveals the contents of the FIB as it has been pushed from the Routing Engine to the Packet Forwarding Engine (PFE). The output provides critical diagnostic data, including the destination prefix, the specific next-hop IP address, the interface through which the packet will egress, and the type of route (such as unicast or broadcast). This is the " ground truth " for packet movement; if a route exists in the RIB but is missing from the forwarding table, it indicates a failure in the communication between the RE and PFE. Utilizing this command is the primary method for identifying black holes, incorrect next-hop resolution, or issues with hardware-level filter applications that might be impacting transit traffic flow at wire speed.

Creating a new user account in Junos OS involves several specific steps within the [edit system login] configuration hierarchy. To establish a functional and secure user account, an administrator must first define the username and assign that user to a login class. Login classes are essential because they define the permissions and access levels for the user, such as super-user, read-only, or operator. Without a login class, a user would have no permissions to perform tasks within the CLI.

The second mandatory task is to configure an authentication method for the user, most commonly a password. This is typically done using the authentication plain-text-password command, which prompts the administrator to enter and confirm the secret string that the system then hashes and stores. While Junos also supports public-key authentication for SSH, a local password remains the standard for basic access control. It is important to note that SSH access is generally controlled at the system level under [edit system services] and does not need to be enabled on a per-user basis individually. Furthermore, allowing a user to bypass authentication is contrary to the Junos security model and is not a standard task in user account creation. Reference: User Interfaces, User Management, Login Classes.

The clear log command is a vital operational utility within the Junos OS used to manage the size and relevance of log files without interrupting the system ' s logging processes. When a Senior Architect executes the clear log ospf-trace command, the Junos kernel truncates the specified file, effectively removing all existing text and resetting the file size to zero bytes. Crucially, the file itself is not deleted from the /var/log directory, nor is the underlying traceoptions configuration modified in any way.

Because tracing is often used for real-time debugging of protocol behaviors like OSPF, trace files can rapidly grow to several megabytes, making it difficult to find specific events. By clearing the log, the administrator ensures that any subsequent OSPF events—such as adjacency changes, LSA flooding, or SPF calculations—are recorded at the very beginning of the file, free from historical clutter. The OSPF process (rpd) continues to write to the file immediately after the truncation occurs. This operational behavior distinguishes the clear command from the file delete command, which would remove the file entirely, or the set protocols ospf traceoptions configuration command, which defines which specific events the device should record. Utilizing clear log is a standard best practice during intensive troubleshooting sessions to maintain a clean and chronologically relevant diagnostic environment.

The Routing Engine (RE) functions as the centralized processor and administrative core of any Junos OS-based platform. Its primary responsibility involves the execution and maintenance of the control plane, which includes running all active routing protocols such as OSPF, BGP, and IS-IS. Through these protocols, the RE exchanges topology information with neighboring routers, builds the Routing Information Base (RIB), and calculates the optimal paths for traffic. Once these paths are determined, the RE distributes the resulting Forwarding Information Base (FIB) to the Packet Forwarding Engine (PFE) for hardware-level execution.

In addition to its protocol duties, the Routing Engine manages the device configuration and the overall system environment. This includes providing the user interface (CLI or J-Web), managing the candidate and active configuration databases, and handling the commit process. While the PFE is specifically designed to forward transit traffic and evaluate that traffic against firewall filters at line rate, the RE focuses on the higher-level logic and management tasks. This architectural separation ensures that management functions—such as a complex configuration commit or a protocol re-convergence event—do not degrade the performance of the data plane, allowing the device to continue forwarding user traffic without interruption. Reference: Junos OS Fundamentals, Routing Engine Functions, Management and Control Planes.

==========

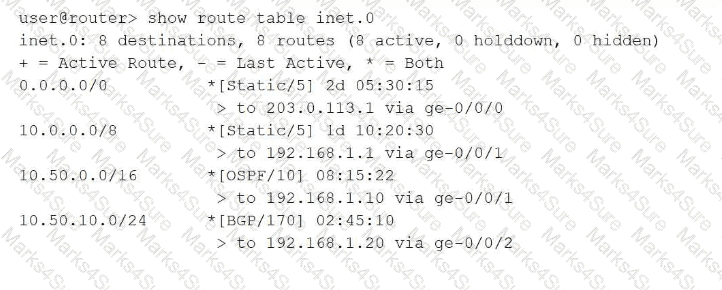

The primary and most critical rule used by Junos OS (and routers in general) to determine the next hop for a specific packet is the Longest Prefix Match (LPM) algorithm. When the Routing Engine or Packet Forwarding Engine looks up a destination IP address in the routing or forwarding table, it may find several entries that technically encompass that address. The LPM rule dictates that the router must select the most specific route available—that is, the entry with the highest number of matching bits in its subnet mask (the longest prefix).

For example, if a router has a route for 10.1.1.0/24 and another for 10.1.1.0/28, a packet destined for 10.1.1.1 will always be forwarded according to the /28 route, as it is more specific. Longest prefix match takes precedence over all other selection criteria, including route preference (administrative distance) and metrics. Preference and metrics are only evaluated when the router has multiple entries for the exact same prefix length (e.g., two different paths to 10.1.1.0/24). This logic ensures that traffic is guided along the most precise path defined in the network topology. Routers never choose paths at random or based on the most recent update as their primary selection mechanism, as doing so would result in non-deterministic and inefficient routing behavior. Reference: Routing Fundamentals, Routing Table and Forwarding Table Selection.

==========

The relationship between the routing table (Routing Information Base or RIB) and the forwarding table (Forwarding Information Base or FIB) is the cornerstone of the Junos OS architectural separation between the control and data planes. The routing table resides in the control plane on the Routing Engine (RE). Its primary role is to aggregate all reachability information from every configured protocol and select the best route for each destination prefix based on criteria like preference and metrics.

Once the Routing Engine has identified the single " active " best path for a destination, it distills this complex routing data into a simplified, streamlined version called the forwarding table . The forwarding table contains only the essential information needed to move a packet: the destination prefix, the egress interface, and the Layer 2 next-hop MAC address. The RE then " pushes " this forwarding table to the Packet Forwarding Engine (PFE) in the data plane. By having the PFE use a table built from the routing table , Junos ensures that transit traffic can be processed at wire speed without the overhead of complex routing logic. This one-way flow—from the comprehensive RIB on the RE to the optimized FIB on the PFE—allows the device to maintain high performance even while routing protocols are recalculating or the management plane is under heavy load.
